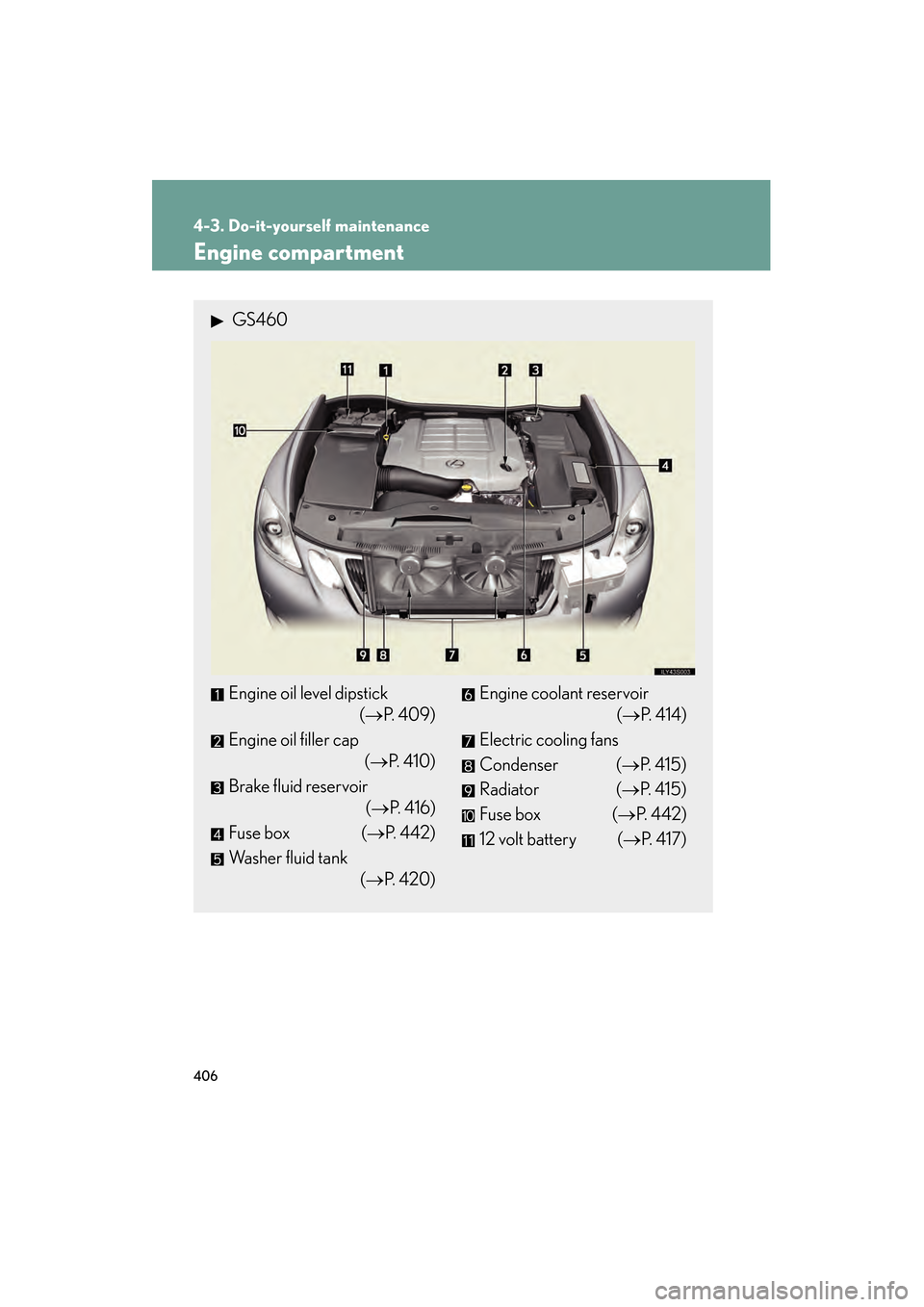

Engine compartment
GS460
Engine oil level dipstick(→P. 4 0 9 )
Engine oil filler cap (→P. 4 1 0 )
Brake fluid reservoir (→P. 4 1 6 )
Fuse box ( →P. 4 4 2 )
Washer fluid tank (→P. 4 2 0 )Engine coolant reservoir
(→P. 4 1 4 )
Electric cooling fans
Condenser ( →P. 415)
Radiator ( →P. 415)
Fuse box ( →P. 4 4 2 )
12 volt battery ( →P. 417)
GS_U_G.book Page 406 Thursday, June 19, 2008 12:54 PM
Page 408 of 598
407
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U
June 19, 2008 12:54 pm

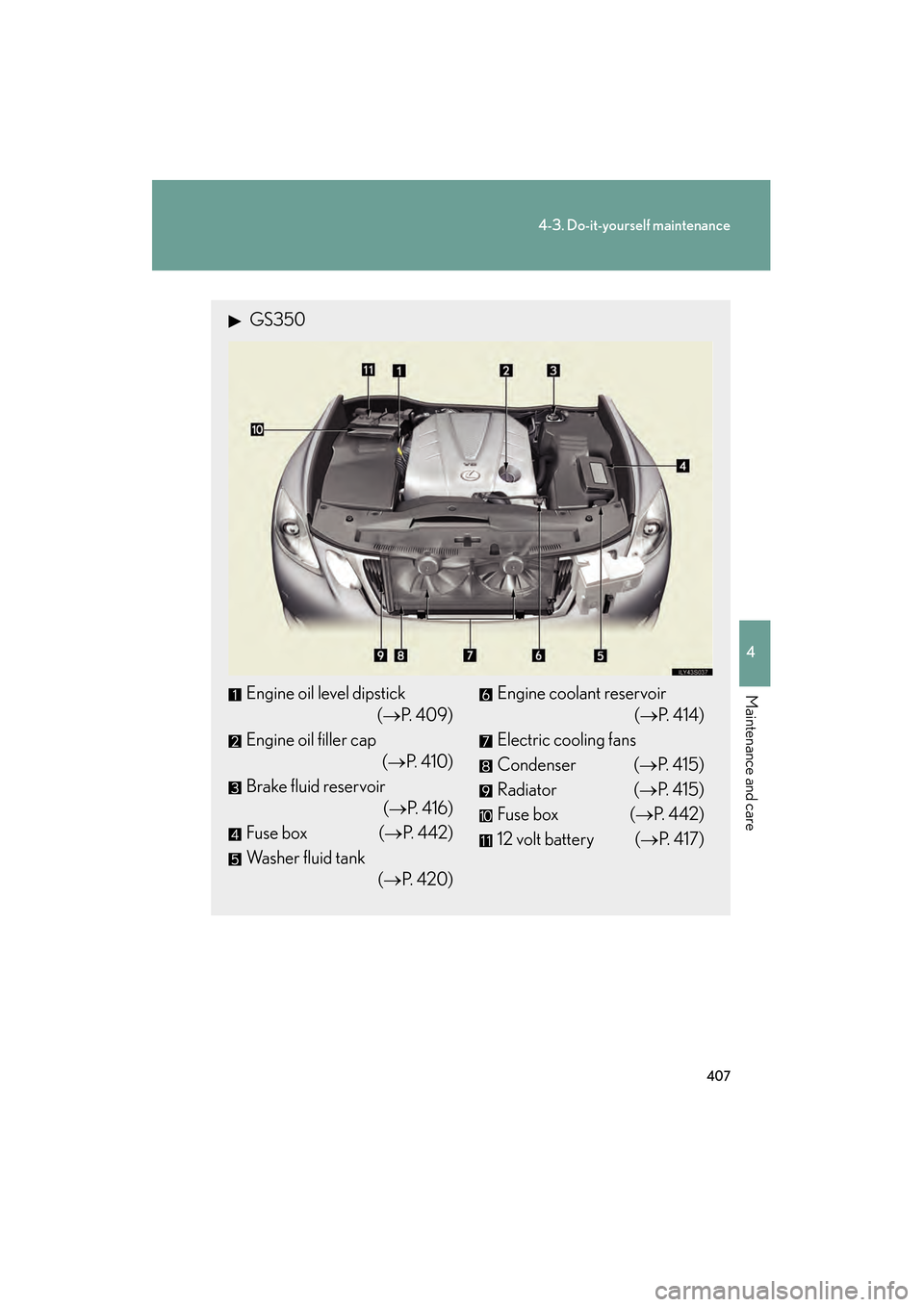

GS350
Engine oil level dipstick(→P. 4 0 9 )
Engine oil filler cap (→P. 4 1 0 )
Brake fluid reservoir (→P. 4 1 6 )
Fuse box ( →P. 4 4 2 )
Washer fluid tank (→P. 4 2 0 )Engine coolant reservoir
(→P. 4 1 4 )
Electric cooling fans
Condenser ( →P. 415)
Radiator ( →P. 415)
Fuse box ( →P. 4 4 2 )
12 volt battery ( →P. 417)
GS_U_G.book Page 407 Thursday, June 19, 2008 12:54 PM
Page 443 of 598
442
4-3. Do-it-yourself maintenance
GS_G_U
June 19, 2008 12:54 pm

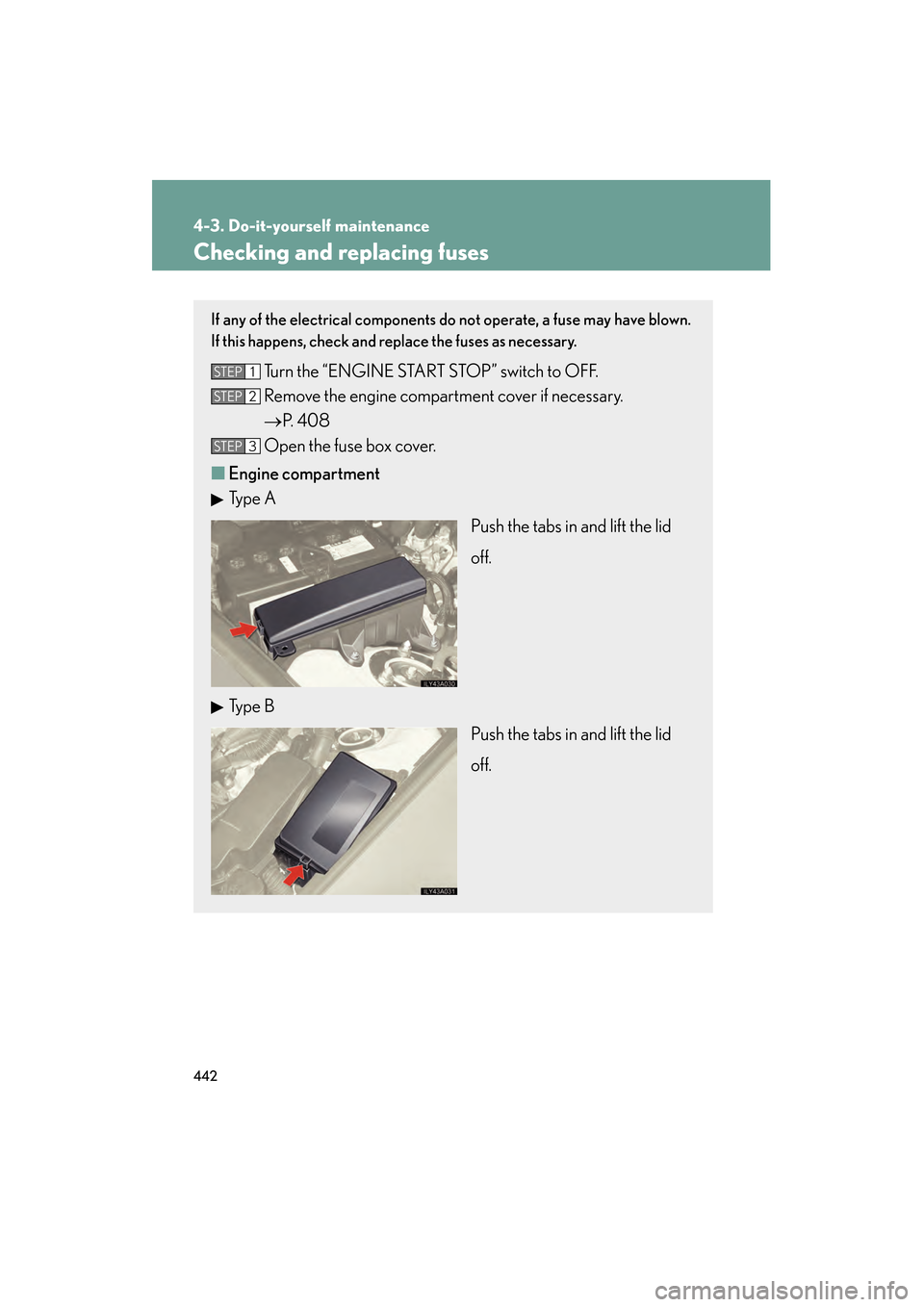

Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have blown.
If this happens, check and replace the fuses as necessary.
Turn the “ENGINE START STOP” switch to OFF.
Remove the engine compartment cover if necessary.
→P. 4 0 8
Open the fuse box cover.
■ Engine compartment
Ty p e A
Push the tabs in and lift the lid
off.
Ty p e B Push the tabs in and lift the lid
off.STEP1
STEP2
STEP3
GS_U_G.book Page 442 Thursday, June 19, 2008 12:54 PM
Page 444 of 598
443
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U
June 19, 2008 12:54 pm

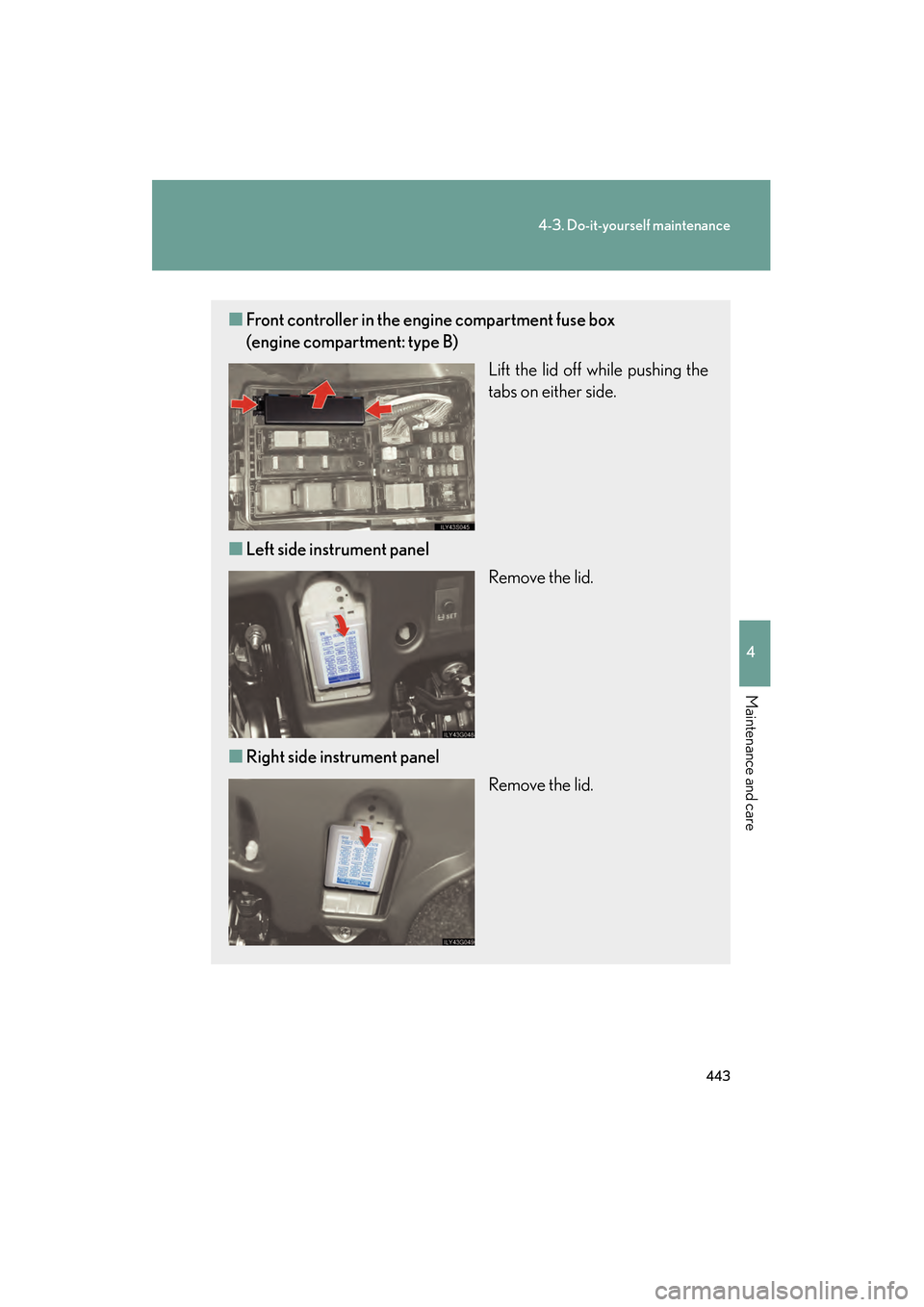

■Front controller in the engine compartment fuse box
(engine compartment: type B)
Lift the lid off while pushing the
tabs on either side.
■ Left side instrument panel
Remove the lid.
■ Right side instrument panel
Remove the lid.
GS_U_G.book Page 443 Thursday, June 19, 2008 12:54 PM
Page 446 of 598
445
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U
June 19, 2008 12:54 pm

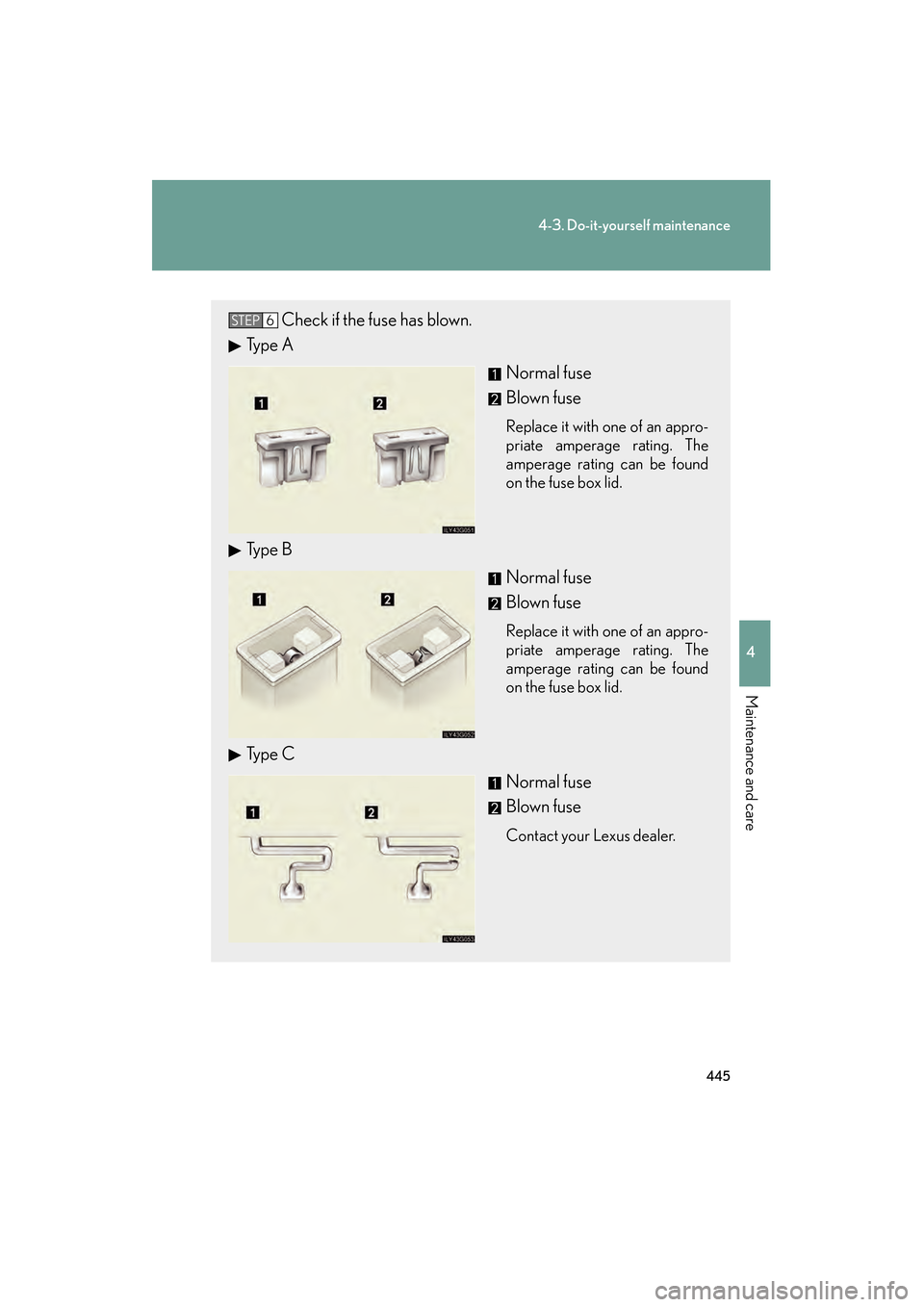

Check if the fuse has blown.
Ty p e A
Normal fuse
Blown fuse
Replace it with one of an appro-
priate amperage rating. The
amperage rating can be found
on the fuse box lid.
Ty p e BNormal fuse
Blown fuse
Replace it with one of an appro-
priate amperage rating. The
amperage rating can be found
on the fuse box lid.
Ty p e CNormal fuse
Blown fuse
Contact your Lexus dealer.
STEP6
GS_U_G.book Page 445 Thursday, June 19, 2008 12:54 PM
Page 459 of 598
458
4-3. Do-it-yourself maintenance
GS_G_U
June 19, 2008 12:54 pm

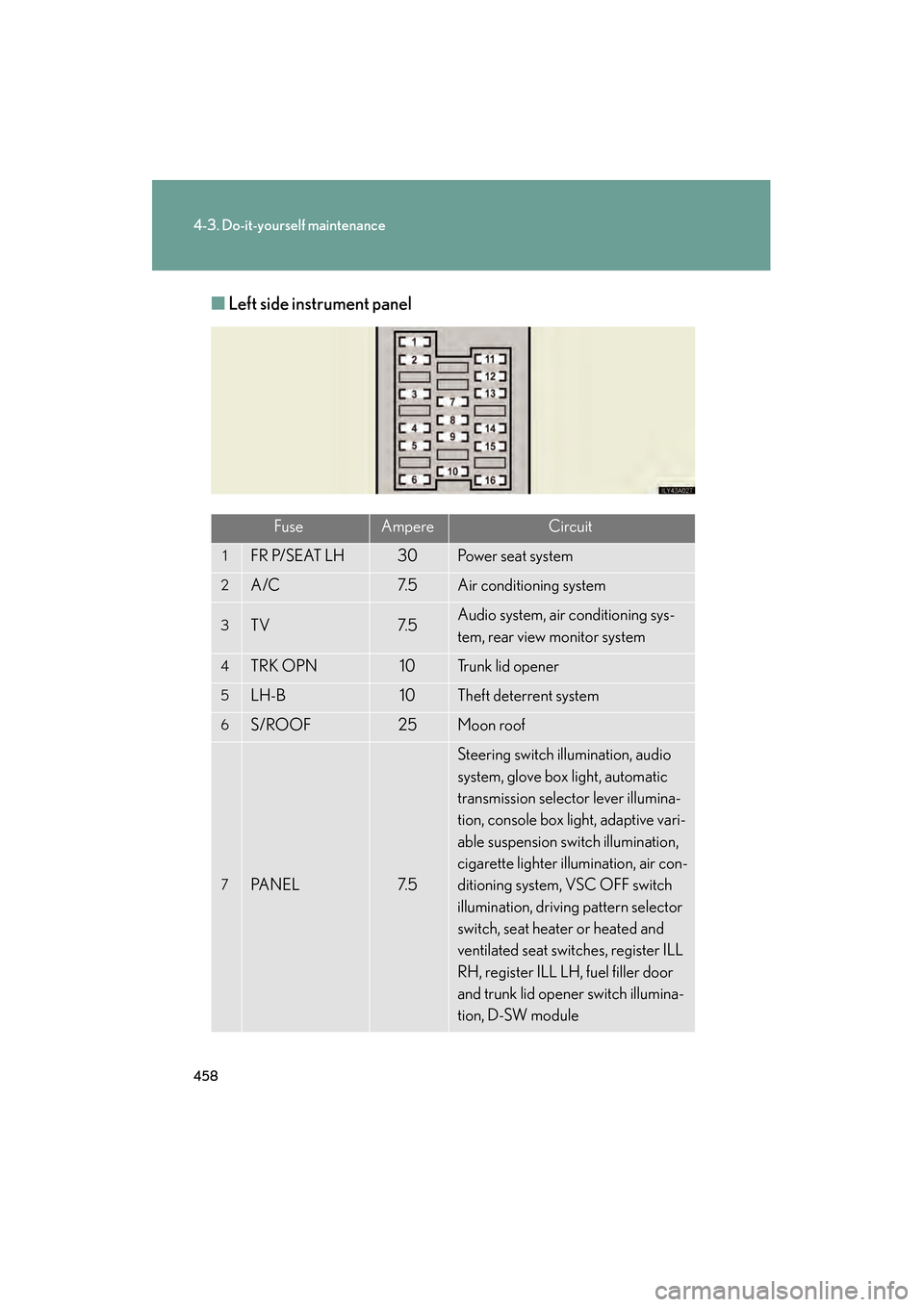

■Left side instrument panel
FuseAmpereCircuit
1FR P/SEAT LH30Power seat system
2A/C7. 5Air conditioning system
3TV7. 5Audio system, air conditioning sys-
tem, rear view monitor system
4TRK OPN10Tr u n k l i d o p e n e r
5LH-B10Theft deterrent system
6S/ROOF25Moon roof
7PA N E L7. 5
Steering switch illumination, audio
system, glove box light, automatic
transmission selector lever illumina-
tion, console box light, adaptive vari-
able suspension switch illumination,
cigarette lighter illumination, air con-
ditioning system, VSC OFF switch
illumination, driving pattern selector
switch, seat heater or heated and
ventilated seat switches, register ILL
RH, register ILL LH, fuel filler door
and trunk lid opener switch illumina-
tion, D-SW module
GS_U_G.book Page 458 Thursday, June 19, 2008 12:54 PM
Page 467 of 598
466
4-3. Do-it-yourself maintenance
GS_G_U
June 19, 2008 12:54 pm

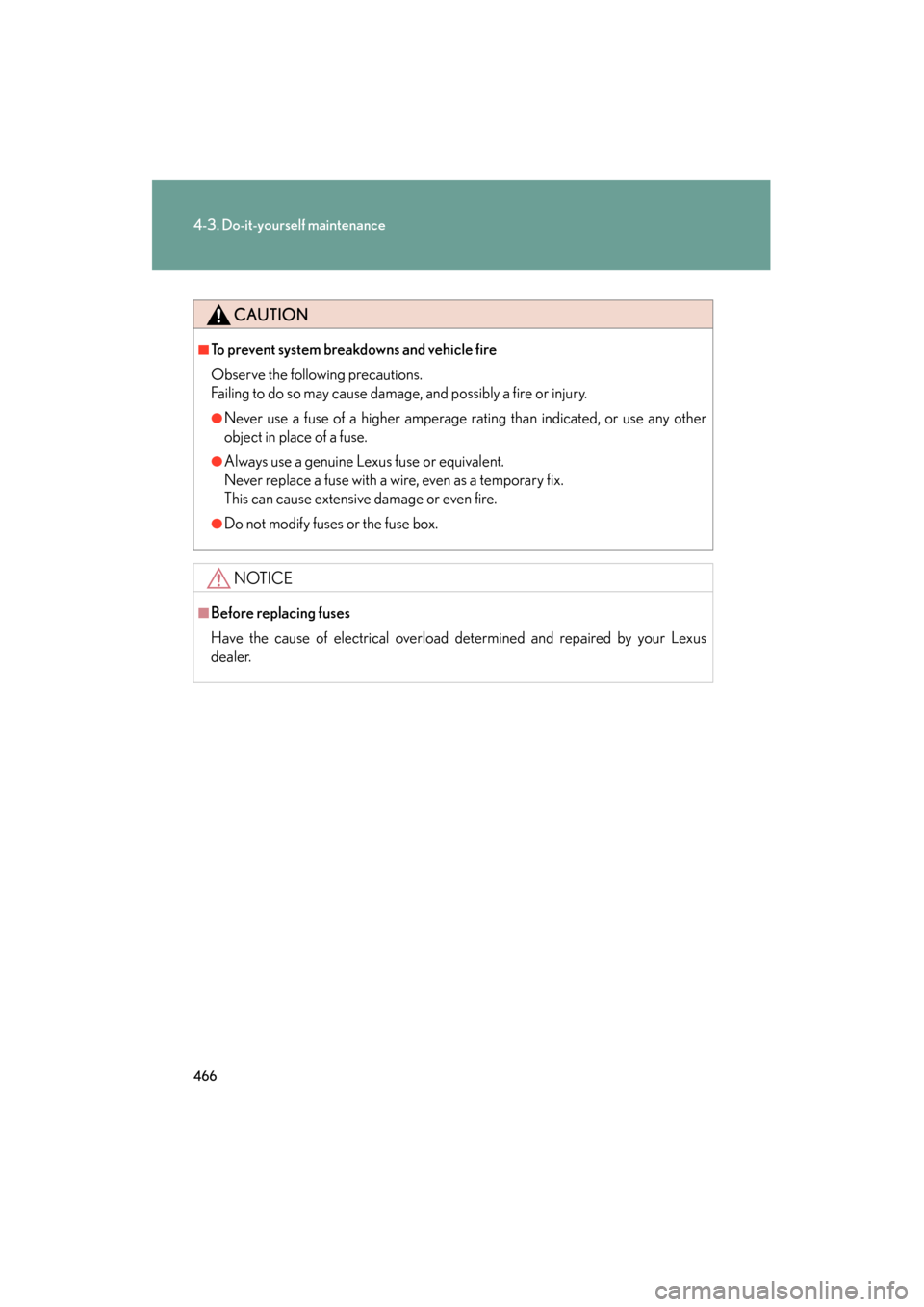

CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than indicated, or use any other
object in place of a fuse.
●Always use a genuine Lexus fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
This can cause extensive damage or even fire.
●Do not modify fuses or the fuse box.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your Lexus
dealer.
