Lexus GS350 2008 Specifications / LEXUS 2008 GS460/350 (OM30A87U) Service Manual

41
1-2. Opening, closing and locking the doors and trunk
1
Before driving
GS_G_U
October 23, 2015 1:08 pm
CAUTION
■To prevent an accident
Observe the following precautions while driving the vehicle.
Failing to do so may result in a door opening and an occupant falling out, resulting in
death or serious injury.
●Always use a seat belt.
●Always lock all doors.
●Ensure that all doors are properly closed.
●Do not pull the inside handle of the front door while driving. 
The doors will open even if it is locked.
●Set the rear door child protector locks when children are seated in the rear seat.

42
1-2. Opening, closing and locking the doors and trunk
GS_G_U
October 23, 2015 1:08 pm
Tr u n k
Canceling the trunk opener feature
Turn the main switch in the glove
box OFF to disable the trunk
opener.ON
OFF
The trunk lid cannot be opened
even with the wireless remote con-
trol or the smart access system
with push- button start.
The trunk can be opened using the trunk opener, smart access system with
push-button start or wireless remote control.
■Trunk opener
Press the opener switch.
■ Smart access system with push-button start
 P. 2 3
■ Wireless remote control
 P. 3 4

43
1-2. Opening, closing and locking the doors and trunk
1
Before driving
GS_G_U
October 23, 2015 1:08 pm
■Tr u n k e a s y c l o s e r
In the event that the trunk lid is left slightly open (not latched properly), the trunk
easy closer will automatically close it to the fully closed position.
■Tr u n k l i g h t
When the trunk light switch is set to ON, the trunk light turns on when the trunk is
opened.
■Tr u n k h a n d l e
■Internal trunk release lever
■Using the mechanical key
The trunk can be also opened using the mechanical key. ( P. 5 2 6 )
ON
OFF
Use the trunk handle when closing the trunk.
The trunk lid can be opened by pulling down
on the glow-in-the-dark lever located on the
inside of trunk lid.
The lever will continue to glow for some time
after the trunk lid is closed.

44
1-2. Opening, closing and locking the doors and trunk
GS_G_U
October 23, 2015 1:08 pm
CAUTION
■While driving
Keep the trunk lid closed.
This not only keeps personal belongings fr om being thrown out, but also prevents
exhaust gases from entering the vehicle.
■When children are in the vehicle
●Never leave children unattended in the vehicle as they may lock themselves in the
vehicle or trunk, which could cause the child to overheat or suffocate, resulting in
death or serious injury.
●Do not allow a child to open or close the trunk lid. Doing so may cause the trunk
lid to operate unexpectedly and part of the child’s body may become caught.
■Tr u n k e a s y c l o s e r
When the trunk lid is not completely closed, the trunk ea sy closer will automatically
close it. Be careful not to catch fingers or anything else in the trunk lid. Failure to do
so may result in serious injury.
NOTICE
■To avoid damage to the trunk easy closer
Do not apply force when the closer is operating.

45
1
Before driving
GS_G_U
June 15, 2008 11:26 am
1-3. Adjustable components (seats, mirrors, steering wheel)

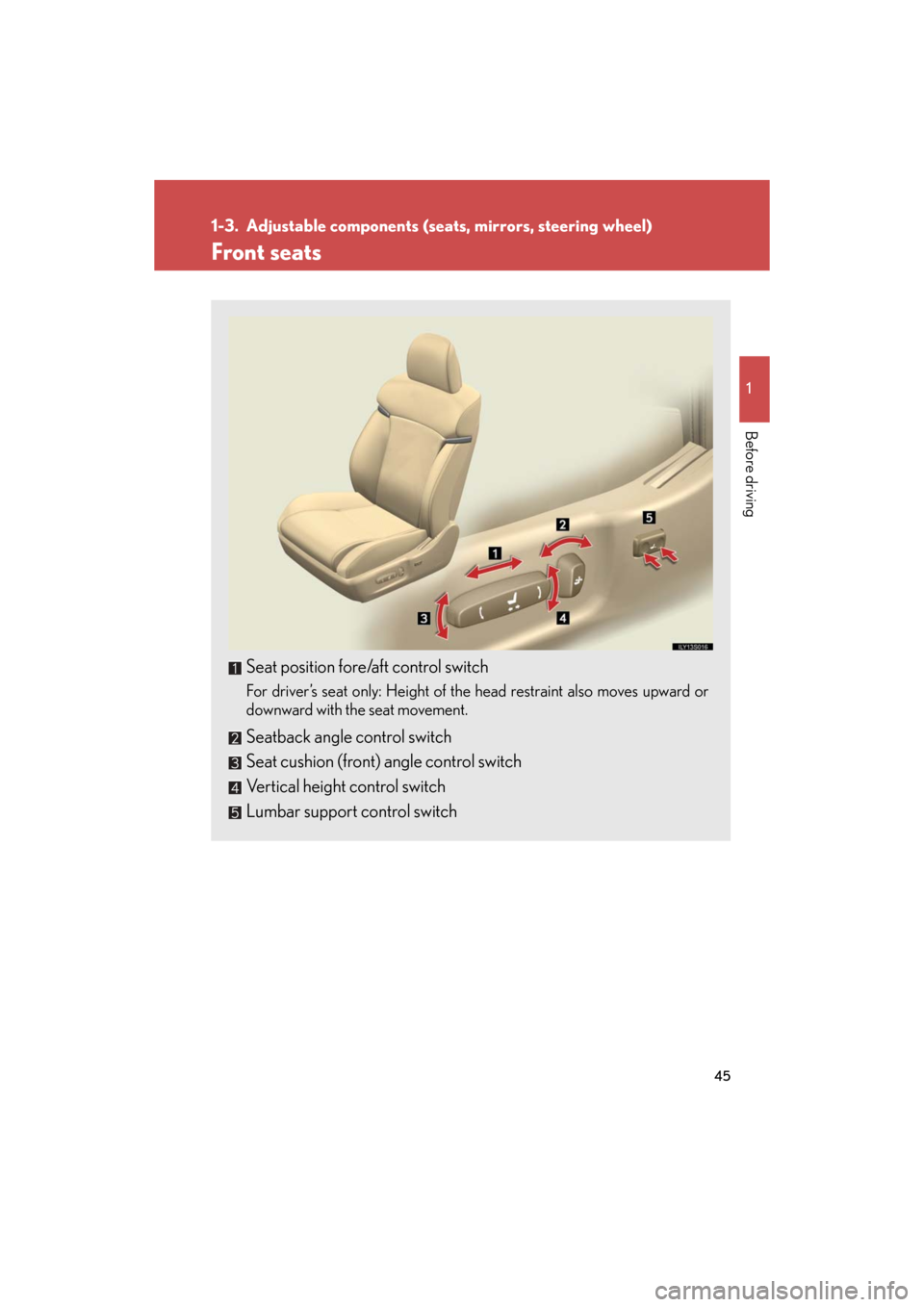

Front seats
Seat position fore/aft control switch
For driver’s seat only: Height of the head restraint also moves upward or
downward with the seat movement.
Seatback angle control switch
Seat cushion (front) angle control switch
Vertical height control switch
Lumbar support control switch

46
1-3. Adjustable components (seats, mirrors, steering wheel)
GS_G_U
June 15, 2008 11:26 am
CAUTION
■Reclining adjustment
Do not recline the seat more than necessary when the vehicle is in motion, to
reduce the risk of sliding under the lap belt. 
If the seat is too reclined, during an accident the lap belt may slide past the hips and
apply restraint forces directly to the abdomen or your neck may contact the shoul-
der belt, increasing the risk of death or serious injury.

47
1
1-3. Adjustable components (seats, mirrors, steering wheel)
Before driving
GS_G_U
June 15, 2008 11:26 am

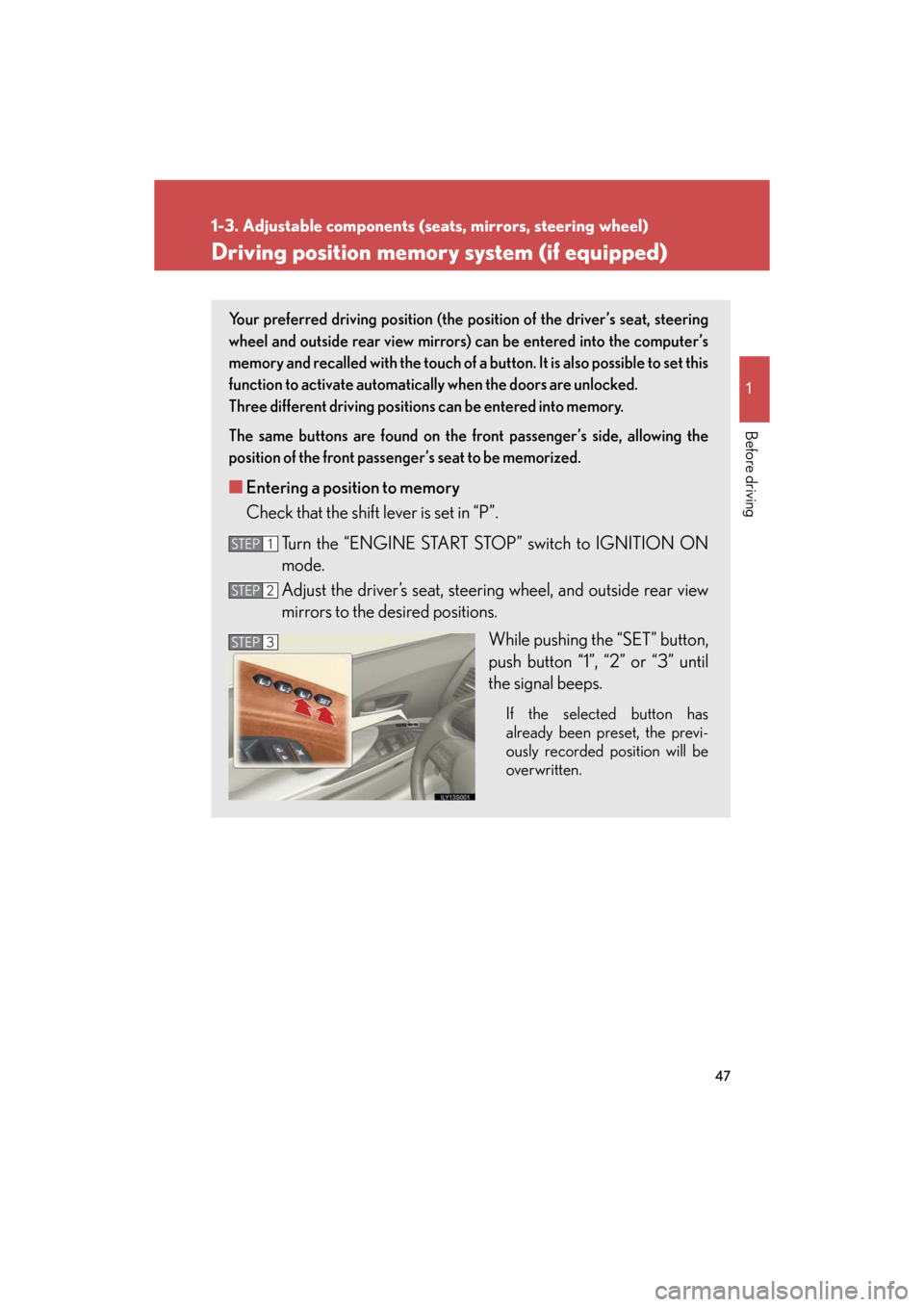

Driving position memory system (if equipped)
Your preferred driving position (the position of the driver’s seat, steering
wheel and outside rear view mirrors) can be entered into the computer’s
memory and recalled with the touch of a bu tton. It is also possible to set this
function to activate automatically when the doors are unlocked. 
Three different driving positions can be entered into memory.
The same buttons are found on the fr ont passenger’s side, allowing the
position of the front passenger’s seat to be memorized.
■ Entering a position to memory
Check that the shift lever is set in “P”.
Turn the “ENGINE START STOP ” switch to IGNITION ON
mode.
Adjust the driver’s seat, steering wheel, and outside rear view
mirrors to the desired positions.
While pushing the “SET” button,
push button “1”, “2” or “3” until
the signal beeps.
If the selected button has
already been preset, the previ-
ously recorded position will be
overwritten.
STEP1
STEP2
STEP3STEP3

48
1-3. Adjustable components (seats, mirrors, steering wheel)
GS_G_U
June 15, 2008 11:26 am
Linking driving position memory with door unlock operation (driver
side only)
Memorized driving positions can be recalled when you unlock the
driver’s door using the entry functi on or wireless remote control and
open the driver’s door. Steering wh eel position is recalled when the
“ENGINE START STOP” switch is s et to the IGNITION ON mode.
■ Setting the linked door unlock operation
Set the driving positions into the memory system using the “1”, “2”
or “3” buttons on the driver’s side. ( P. 4 7 )
Turn the “ENGINE START STOP” switch to the OFF, then close
the driver’s door.
■ Recalling the memorized position
Check that the shift lever is set in “P”.
Turn the “ENGINE START STOP ” switch to IGNITION ON
mode.
Push button “1”, “2” or “3” to
recall the memorized position.
STEP1
STEP2
STEP1
STEP2

49
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
GS_G_U
June 15, 2008 11:26 am
Push the “1”, “2” or “3” button on
the driver’s side and the button
on the wireless remote control at
the same time for about 1 second
until you hear a beep.
Open one of the doors.
If a door is not opened within 60 seconds after is pressed, the
doors will be locked again and th e alarm will automatically be set.
In case that the alarm is trigger ed, immediately stop the alarm.
( P. 7 5 )STEP3
■Canceling the linked do or unlock operation
Close the driver’s door with the “ENGINE START STOP” switch set to
the OFF.
Push the “SET” button and the button on the wireless remote control
at the same time for about 1 second until you hear 2 beeps.
■Retained accessory power
Each memorized position (except for the tilt and telescopic steering column) can
be activated within 30 seconds after the co rresponding side door is opened, even if
the “ENGINE START STOP” switch is in the OFF.
■If any position memory button is push ed while the adjustments are being made
The operation will stop. To reactivate the sy stem, push the desired button (“1” or “2”)
again.
■If the 12 volt battery is disconnected
The memorized positions must be reset be cause the computer’s memory is erased
when the 12 volt battery is disconnected.
STEP4
STEP1
STEP2

50
1-3. Adjustable components (seats, mirrors, steering wheel)
GS_G_U
June 15, 2008 11:26 am
CAUTION
■Seat adjustment caution
Take care during seat adjustment that the seat does not strike the rear passenger or
squeeze your body against the steering wheel.
If this happens, you can stop the moveme nt by pressing another driving position
memory button.
