4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U
May 13, 2008 5:14 pm
Replacing light bulbs■ Headlight high beam
Unplug the connector while
depressing the lock release.
Turn the bulb base counterclock-
wise to remove it.
STEP1
STEP2

472
4-3. Do-it-yourself maintenance
GS_G_U
May 13, 2008 5:14 pm
■Parking light
Turn the bulb base counterclock-
wise.
Remove the light bulb.
■ Back-up light
Open the trunk lid. Remove the
trunk handle and panel cover clips.
Partly remove the trunk panel
cover and turn the bulb bases
counterclockwise.
STEP1
STEP2
STEP1
STEP2

473
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U
May 13, 2008 5:14 pm
Remove the light bulb.
■ Rear turn signal light
Open the trunk lid and remove the
cover.
Turn the bulb base counterclock-
wise.
Remove the light bulb.STEP3
STEP1
STEP2
STEP3

474
4-3. Do-it-yourself maintenance
GS_G_U
May 13, 2008 5:14 pm
■Bulbs other than the above
If any of the bulbs listed below has burnt out, have your Lexus dealer
replace it.
●Headlight low beams (high-intensity discharge bulbs)
● Fog lights
● Front turn signal lights
● Front side marker lights
● Side turn signal lights
● Tail/stop lights
● Tail lights
● Rear side marker lights
● High mounted stoplight
● License plate lights
■Condensation build-up on the inside of the lens
Contact your Lexus dealer for more inform ation in the following situations. Tempo-
rary condensation build-up on the inside of the headlight lens does not indicate a
malfunction.
●Large drops of water are built up on the inside of the lens.
●Water has built up inside the headlight.
■LED light bulbs
The side turn signal lights, tail, tail/stop and high mounted stoplights consist of a
number of LEDs. If any of the LEDs burn out, take your vehicle to your Lexus dealer
to have the light replaced.
If two or more LEDs in a stoplight burn out, your vehicle may not conform to local
laws (SAE).
■High-intensity discharge (HID) headlights
If voltage to the high-intensity discharge bu lbs is insufficient, the light may not come
on, or may go out temporarily. The high-i ntensity discharge bulbs will come on
when normal power is restored.

475
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U
May 13, 2008 5:14 pm
CAUTION
■Replacing light bulbs
●Turn off the headlights. Do not attempt to replace the bulb immediately after turn-
ing off the headlights. 
The bulbs become very hot and may cause burns.
●Do not touch the glass portion of the light bulb with bare hands. Hold the bulb by
the plastic or metal portion. 
If the bulb is scratched or dropped it may blow out or crack.
●Fully install light bulbs and any parts used to secure them. Failing to do so may
result in heat damage, fire, or water ente ring the headlight unit. This may damage
the headlights or cause condensation to build up on the lens.
●Do not attempt to take apart or repair the low beam discharge headlight bulbs,
connectors, power supply circuits, or related components. 
Doing so could result in electric shock and death or serious injury.
■High-intensity discharge (HID) headlights
●Contact your Lexus dealer before replac ing high-intensity discharge headlights
(including light bulbs).
●Do not touch the high-intensity discharge headlight’s high voltage socket when
the headlights are turned on. 
An extremely high voltage of 20000 V wi ll be discharged and could result in
death or serious injury by electric shock.
■To prevent damage or fire
Make sure bulbs are fully seated and locked.

476
4-3. Do-it-yourself maintenance
GS_G_U
May 13, 2008 5:14 pm

5
When trouble arises
495
5-2. Steps to take in an emergency
GS_G_U
May 13, 2008 5:14 pm
CAUTION
■Maintenance of the tires
Each tire, including the spare (if provided), should be checked monthly when cold
and inflated to the inflation pressure re commended by the vehicle manufacturer on
the vehicle placard or tire inflation pressure label (tire and load information label).
(If your vehicle has tires of a different size than the size indicated on the vehicle
placard or tire inflation pressure label [tire and load information label], you should
determine the proper tire inflation pressure for those tires.)
As an added safety feature, your vehicle has been equipped with a tire pressure
monitoring system (TPMS-tire pressure warning system) that illuminates a low tire
pressure telltale (tire pressure warning light) when one or more of your tires is sig-
nificantly under-inflated. Accordingly, when the low tire pressure telltale (tire pres-
sure warning light) illuminates, you should stop and check your tires as soon as
possible, and inflate them to the proper pressure. Driving on a significantly under-
inflated tire causes the tire to overheat an d can lead to tire failure. Under-inflation
also reduces fuel efficiency and tire tread life, and may affect the vehicle’s handling
and stopping ability.
Please note that the TPMS (tire pressure warning system) is not a substitute for
proper tire maintenance, and it is the driver’s responsibility to maintain correct tire
pressure, even if under-inflation has not reached the level to trigger illumination of
the TPMS low tire pressure telltale (tire pressure warning light).
Your vehicle has also been equipped with a TPMS (tire pressure warning system)
malfunction indicator to indicate when th e system is not operating properly. The
TPMS (tire pressure warning system) malf unction indicator is combined with the
low tire pressure telltale (tire pressure warning light). When the system detects a
malfunction, the telltale will flash for approximately one minute and then remain
continuously illuminated. This sequence will continue upon subsequent vehicle
start-ups as long as the malfunction exists . When the malfunction indicator is illumi-
nated, the system may not be able to detect or signal low tire pressure as intended.
TPMS (tire pressure warning system) malfunctions may occur for a variety of rea-
sons, including the installation of replacem ent or alternate tires or wheels on the
vehicle that prevent the TPMS (tire pressure warning system) from functioning
properly. Always check the TPMS (tire pressure warning system) malfunction tell-
tale after replacing one or more tires or wheels on your vehicle to ensure that the
replacement or alternate tires and wheels allow the TPMS (tire pressure warning
system) to continue to function properly.

504
5-2. Steps to take in an emergency
GS_G_U
May 13, 2008 5:14 pm
Wa r n i n g m e s s a g eDetailsCorrection procedure
The engine oil level is low.Check the engine oil level,
and add if necessary.

Low tire inflation pres-
sure.Check the tire inflation
pressure, and adjust to the
appropriate level.
(U.S.A. only)
The engine oil should be
changed.
Check and change the
engine oil.
Comes on approximately
5000 miles (8000 km)
after the engine oil is
changed (and the oil
maintenance data has
been reset).

506
5-2. Steps to take in an emergency
GS_G_U
May 13, 2008 5:14 pm
Wa r n i n g m e s s a g eDetailsCorrection procedure
(Flashing)
(If equipped)
The radar cruise control
system is unable to judge
vehicle-to-vehicle dis-
tance.
• Turn the mode select switch to either the nor-
mal or power mode.
• If the windshield wipers are on, turn them off or
set them to either the
intermittent or the slow
mode.
(If equipped, flashing)
Yo u r v e h i c l e i s n e a r i n g
the vehicle ahead (in
radar cruise mode).Slow the vehicle by apply-
ing the brakes.
■After changing the engine oil (U.S.A. only)
Make sure to reset the oil maintenance data. ( P. 4 1 2 )
■Approach warning message
In the following instances, there is the poss ibility that the approach warning will not
activate even when the vehicle-to-vehicle distance decreases.
●When your vehicle and the vehicle ahead are traveling at the same speed or the
vehicle ahead is traveling more quickly than your vehicle.
●When the vehicle ahead is traveling at very low speed.
●Immediately after cruise control speed is set.
●At the instant the accelerator pedal is depressed.

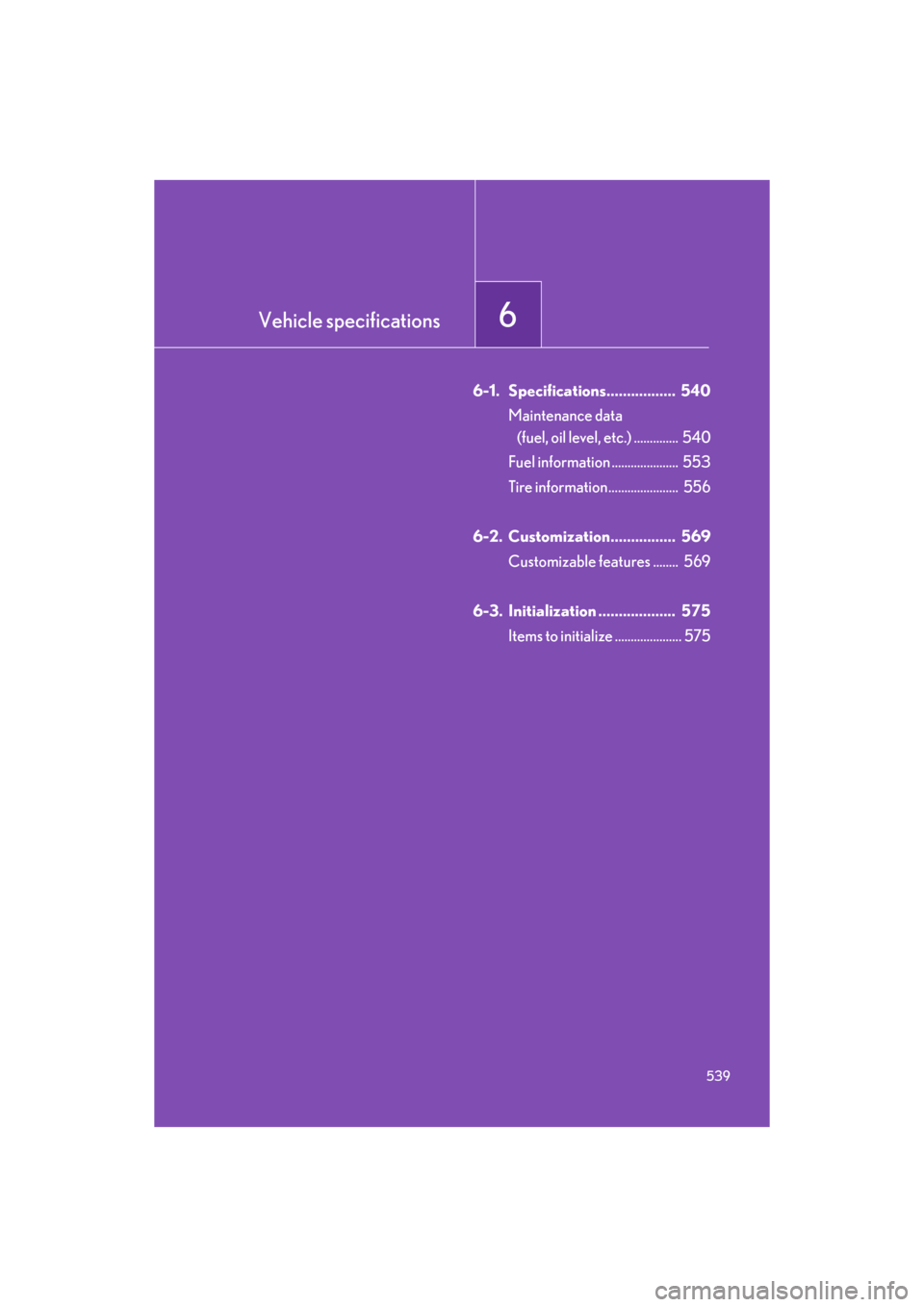

Vehicle specifications6
539
GS_G_U
May 13, 2008 5:14 pm
6-1. Specifications................. 540Maintenance data 
(fuel, oil level, etc.) .............. 540
Fuel information ..................... 553
Tire information...................... 556
6-2. Customization................ 569 Customizable features ........ 569
6-3. Initialization ................... 575 Items to initialize ..................... 575
