wheel Lexus GS350 2008 Using the audio system / LEXUS 2008 GS460/350 (OM30A87U) Owners Manual

550
6-1. Specifications
GS_G_U
May 13, 2008 5:14 pm
Tires and wheelsTy p e A
Ti r e s i z e245/40R18 93Y, P245/40R18 93V, 
245/40ZR18, T155/70D17 110M (spare)
Front and rear tire inflation 
pressure
(Recommended cold tire inflation
pressure)
Driving under normal conditions 
33 psi (230 kPa, 2.3 kgf/cm2 or bar)
Driving at high speeds above 100 mph (160
km/h) (in countries where such speeds are per-
mitted by law) Add 9 psi (60 kPa, 0.6 kgf/cm
2 or bar) to the
front tires and rear tires. Never exceed the
maximum cold tire inflation pressure indicated
on the tire sidewall.
Spare tire inflation pressure 
(Recommended cold tire inflation
pressure)
60 psi (420 kPa, 4.2 kgf/cm2 or bar)
Wheel size18  8 J, 17  4T (spare)
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)

551
6-1. Specifications
6
Vehicle specifications
GS_G_U
May 13, 2008 5:14 pm
Type B
Ti r e s i z e225/50R17 94W, P225/50R17 93V,
T155/70D17 110M (spare)
Front and rear tire inflation 
pressure
(Recommended cold tire inflation
pressure)
Driving under normal conditions 
33 psi (230 kPa, 2.3 kgf/cm2 or bar)
Driving at high speeds above 100 mph (160
km/h) (in countries where such speeds are per-
mitted by law) Add 7 psi (50 kPa, 0.5 kgf/cm
2 or bar) to the
front tires and rear tires. Never exceed the
maximum cold tire inflation pressure indicated
on the tire sidewall.
Spare tire inflation pressure 
(Recommended cold tire inflation
pressure)
60 psi (420 kPa, 4.2 kgf/cm2 or bar)
Wheel size17  7 1 /2 J, 17  4T (spare)
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)

559
6-1. Specifications
6
Vehicle specifications
GS_G_U
May 13, 2008 5:14 pm
Tire size■ Typical tire size information
The illustration indicates typical
tire size.
Ti r e u s e 
(P = Passenger car, 
T = Temporary use)
Section width (millimeters)
Aspect ratio 
(tire height to section width)
Tire construction code 
(R = Radial, D = Diagonal)
Wheel diameter (inches)
Load index (2 or 3 digits)
Speed symbol 
(alphabet with one letter)
■ Tire dimensions
Section width
Ti r e h e i g h t
Wheel diameter

562
6-1. Specifications
GS_G_U
May 13, 2008 5:14 pm
■Temperature A, B, C
The temperature grades are A (the highest), B, and C, representing
the tire’s resistance to the generation of heat and its ability to dissipate
heat when tested under controlled conditions on a specified indoor
laboratory test wheel.
Sustained high temperature can cause the material of the tire to degenerate
and reduce tire life, and excessive temperature can lead to sudden tire fail-
ure.
The grade C corresponds to a level of performance which all passenger car
tires must meet under the Federal Mo tor Vehicle Safety Standard No. 109.
Grades B and A represent higher levels of performance on the laboratory
test wheel than the minimum required by law.
Warning: The temperature grades for this tire are established for a tire that
is properly inflated and not overloaded. 
Excessive speed, underinflation, or excess ive loading, either separately or in
combination, can cause heat buildup and possible tire failure.
Glossary of tire terminology
Tire related termMeaning
Cold tire inflation pres-
sureTire pressure when the vehicle has been parked for
three hours or more, or has not been driven more
than 1 mile or 1.5 km under that condition
Maximum inflation pres-
sureThe maximum cold inflated pressure to which a tire
may be inflated, shown on the sidewall of the tire
Recommended inflation
pressureCold tire inflation pressure recommended by a man-
ufacturer

563
6-1. Specifications
6
Vehicle specifications
GS_G_U
May 13, 2008 5:14 pm
Tire related termMeaning
Accessory weight
The combined weight (in excess of those standard
items which may be replaced) of automatic transmis-
sion, power steering, power brakes, power windows,
power seats, radio and heater, to the extent that these
items are available as factory-installed equipment
(whether installed or not)
Curb weight
The weight of a motor vehicle with standard equip-
ment, including the maximum capacity of fuel, oil and
coolant, and if so equipped, air conditioning and
additional weight optional engine
Maximum loaded vehicle
weight
The sum of: 
(a) Curb weight 
(b) Accessory weight 
(c) Vehicle capacity weight 
(d) Production options weight
Normal occupant weight150 lb. (68 kg) times the number of occupants speci-
fied in the second column of Table 1* that follows
Occupant distributionDistribution of occupants in a vehicle as specified in
the third column of Table 1* below
Production options
weight
The combined weight of installed regular production
options weighing over 5 lb. (2.3 kg) in excess of the
standard items which they replace, not previously
considered in curb weight or accessory weight,
including heavy duty brakes, ride levelers, roof rack,
heavy duty battery, and special trim
RimA metal support for a tire or a tire and tube assembly
upon which the tire beads are seated
Rim diameter 
(Wheel diameter)Nominal diameter of the bead seat

567
6-1. Specifications
6
Vehicle specifications
GS_G_U
May 13, 2008 5:14 pm
Tire related termMeaning
Pneumatic tire
A mechanical device made of rubber, chemicals, fab-
ric and steel or other materials, that, when mounted
on an automotive wheel, provides the traction and
contains the gas or fluid that sustains the load
Radial ply tire
A pneumatic tire in which the ply cords that extend to
the beads are laid at substantially 90 degrees to the
centerline of the tread
Reinforced tire
A tire designed to operate at higher loads and at
higher inflation pressures than the corresponding
standard tire
Section width
The linear distance between the exteriors of the side-
walls of an inflated tire, excluding elevations due to
labeling, decoration, or protective bands
SidewallThat portion of a tire between the tread and bead
Sidewall separationThe parting of the rubber compound from the cord
material in the sidewall
Snow tire
A tire that attains a traction index equal to or greater
than 110, compared to the ASTM E-1136 Standard
Reference Test Tire, when using the snow traction test
as described in ASTM F-1805-00, Standard Test
Method for Single Wheel Driving Traction in a
Straight Line on Snow-and Ice-Covered Surfaces,
and which is marked with an Alpine Symbol ( )
on at least one sidewall

568
6-1. Specifications
GS_G_U
May 13, 2008 5:14 pm

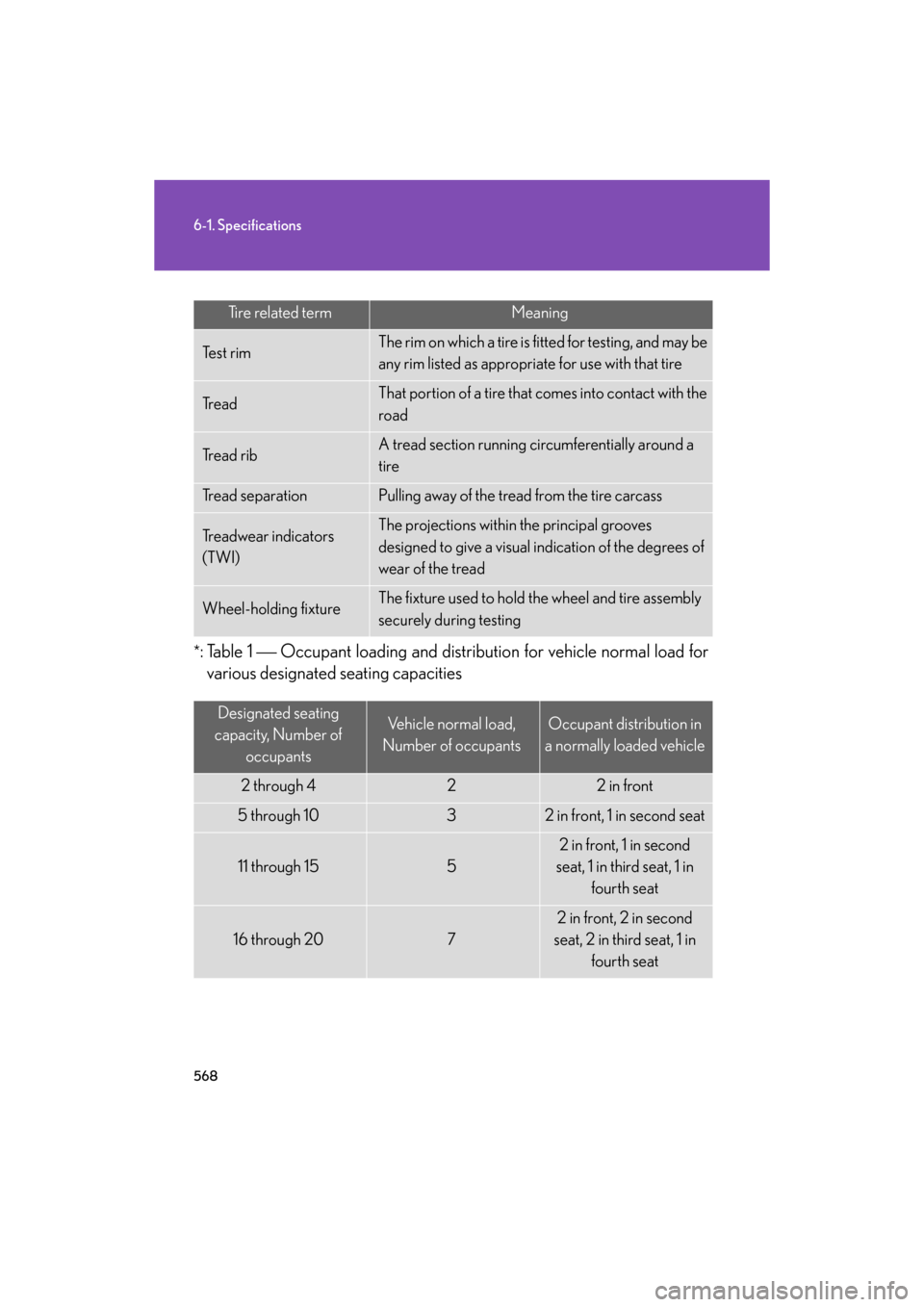

*: Table 1  Occupant loading and distributi on for vehicle normal load for
various designated seating capacities
Tire related termMeaning
Te s t r i mThe rim on which a tire is fitted for testing, and may be
any rim listed as appropriate for use with that tire
Tr e a dThat portion of a tire that comes into contact with the
road
Tr e a d r i bA tread section running circumferentially around a
tire
Tr e a d s e p a r a t i o nPulling away of the tread from the tire carcass
Treadwear indicators
(TWI)The projections within the principal grooves
designed to give a visual indication of the degrees of
wear of the tread
Wheel-holding fixtureThe fixture used to hold the wheel and tire assembly
securely during testing
Designated seating
capacity, Number of
occupantsVehicle normal load,
Number of occupantsOccupant distribution in
a normally loaded vehicle
2 through 422 in front
5 through 1032 in front, 1 in second seat
11 through 155
2 in front, 1 in second
seat, 1 in third seat, 1 in fourth seat
16 through 207
2 in front, 2 in second
seat, 2 in third seat, 1 in
fourth seat

588
Alphabetical index
GS_G_U
May 13, 2008 5:14 pm
JackPositioning a floor jack.................... 404
Replacing the wheel...........................512
Jack handle ............................................... 512
Keyless entry.............................................. 34
Keys Engine (ignition) switch ......................121
If the electronic key does 
not operate properly .................... 526
If you lose your keys......................... 525
Key number plate ................................. 20
Keys ............................................................. 20
Mechanical key...................................... 20
Wireless remote control key .......... 34
Lexus Link System ................................ 373
Light bulbs Replacing ............................................... 470
Wattage.................................................. 552
Light sensitive optitron meter ........... 134
Lights Fog light switch .....................................145
Headlights switch ................................ 142
Interior lights list.................................. 337
Replacing light bulbs........................ 470
Turn signal lever .................................. 130
Vanity lights ..........................................348
Wattage.................................................. 552 Maintenance
Do-it-yourself maintenance.........400
General maintenance..................... 396
Maintenance data ............................. 540
Maintenance requirements.......... 394
Meter Instrument panel light control ....... 133
Meters....................................................... 132
Micro dust and pollen filter ................ 221
Mirrors Inside rear view mirror ........................ 61
Side mirror heater..............................225
Side mirrors.............................................. 62
Vanity mirrors ..................................... 348
Moon roof....................................................67
MP3 disc...................................................247
Multi-information display ....................139
Odometer .................................................132
Oil Engine oil............................................... 409
Opener Fuel filler door .........................................70
Hood ....................................................... 403
Trunk............................................................ 42
Outer foot lights.................................... 337
Outside rear view mirrors Adjusting and folding .......................... 62
Mirror position memory .................... 47
Outside temperature 
display ..........................................140, 350
Overhead console ............................... 343
Overheating, Engine .......................... 533J
K
L
M
O

590
Alphabetical index
GS_G_U
May 13, 2008 5:14 pm
Smart access system with 
push-button start Antenna location....................................24
Entry function...........................................22
Starting the engine ................................121
Spare tire Inflation pressure............................... 550
Spare tire..................................................513
Spark plug ................................................546
Specifications ........................................ 540
Speedometer........................................... 132
Steering wheel Adjustment............................................... 60
Audio switches ...................................288
Steering wheel position 
memory...................................................47
Storage compartment ........................ 344
Storage feature......................................340
Stuck If your vehicle becomes stuck.....536
Sun visors ................................................. 347
Switch “ENGINE START STOP” 
switch .......................................................121
Fog light switch .....................................145
Ignition switch..........................................121
Light switches ........................................ 142
Mode select switch............................. 126
Power door lock switch .....................37
Power window switch ........................ 64
Tire pressure warning 
reset switch ....................................... 422
Tire pressure 
warning select switch................... 424
Window lock switch ........................... 64
Wipers and washer switch .............146 Tachometer ..............................................132
Tail lights
Switch ........................................................ 142
Theft deterrent system Alarm........................................................... 75
Immobilizer system .............................. 73
Theft prevention labels........................... 77
Tire inflation pressure .........................550
Tire information Glossary ................................................ 562
Size ........................................................... 559
Tire identification number .............558
Uniform Tire Quality Grading ... 560
Tires Chains..................................................... 200
Checking................................................. 421
Compact spare tire............................ 513
If you have a flat tire ............... 512, 522
Inflation pressure ...............................550
Information ........................................... 556
Replacing ................................................ 512
Rotating tires.......................................... 421
Size ...........................................................550
Snow tires.............................................. 202
Tire pressure warning system....... 421
Tools.............................................................512
Total load capacity ................................ 198
Touch screen..........................................208
Towing Dinghy towing .................................... 205
Emergency towing ........................... 478
Trailer towing ...................................... 204
Traction control...................................... 184
Trip meter ..................................................132T

592
Alphabetical index
GS_G_U
May 13, 2008 5:14 pm
WasherChecking ............................................... 420
Preparing and checking before winter ......................................199
Switch ........................................................146
Washing and waxing .......................... 388
Weight Cargo capacity.....................................194
Load limits .............................................. 198
Weight ....................................................540
Wheels ......................................................435
Window glasses ...................................... 37
Window lock switch ............................... 37
Windows Power windows..................................... 64
Rear window defogger .................. 225
Washer .....................................................146
Windshield wipers Position .....................................................201
Windshield wipers ..............................146
Winter driving tips ................................. 199
Wireless remote control key Locking/Unlocking ............................. 34
Replacing the battery ...................... 440
WMA disc ............................................... 247
