display Lexus GS350 2008 Using the audio system / LEXUS 2008 GS460/350 OWNER'S MANUAL (OM30A87U)

423
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U
May 13, 2008 5:14 pm
■How to initialize the tire pressure warning system
Park the vehicle in safe plac e and turn the “ENGINE START
STOP” switch to OFF.
While the vehicle is moving, initialization is not performed.
Adjust the tire inflation pressure to the specified cold tire inflation
pressure level. ( P. 550)
Make sure to adjust the tire pressure to the specified cold tire inflation
pressure level. The tire pressure warning system will operate based on
this pressure level.
Turn the “ENGINE START STOP” switch to IGNITION ON
mode.
Push and hold the tire pressure
warning reset switch until the tire
pressure warning light blinks
slowly three times and the mes-
sage “PRESSURE INITIAL”
appears on the multi-information
display.
Wait for a few minutes with the IGNITION ON mode, and then
turn “ENGINE START STOP” switch to the OFF.
STEP1
STEP2
STEP3
STEP4
STEP5

427
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U
May 13, 2008 5:14 pm
■Initializing the tire pressure warning system
Initialize the tires with the tire inflation pressure adjusted to the specified level.
■If you push the tire pressure warning reset switch accidentally
If initialization is performed, adjust the ti re inflation pressure to the specified level
and initialize the system again.
■When the initialization of the tire pressure warning system has failed
Initialization can be completed in a few minutes. However, in the following cases,
the settings have not been recorded and the system will not operate properly. If
repeated attempts to record tire inflation pressure settings are unsuccessful, have
the vehicle inspected by your Lexus dealer.
●When operating the tire pressure warnin g reset switch, the tire pressure warn-
ing light does not flash 3 times and the setting message does not appear on the
multi-information display.
●After carrying out the initia lization procedure, the tire pressure warning light
blinks for 1 minute then stays on after driving for 20 minutes.
■Routine tire inflation pressure checks
The tire pressure warning system does not replace routine tire inflation pressure
checks. Make sure to check tire inflation pressure as part of your routine of daily
vehicle checks.

When trouble arises5
477
GS_G_U
May 13, 2008 5:14 pm
5-1. Essential information..... 478If your vehicle needs 
to be towed ............................ 478
If you think something is  wrong ..................................... 484
Fuel pump shut off 
system .................................... 485
Event data recorder .............. 486 5-2. Steps to take in an

emergency ................... 488
If a warning light turns on or a 
warning buzzer sounds... .. 488
If a warning message is 
displayed................................. 497
If you have a flat tire (Vehicles 
with standard tires) .............. 512
If you have a flat tire (Vehicles 
with run-flat tires)................ 522
If the engine will not start .... 523
If the shift lever cannot be 
shifted from “P”.................... 524
If you lose your keys .............. 525
If the electronic key does 
not operate properly.......... 526
If the 12 volt battery is 
discharged ............................ 529
If your vehicle overheats ..... 533
If the vehicle becomes 
stuck........................................ 536

5
When trouble arises
491
5-2. Steps to take in an emergency
GS_G_U
May 13, 2008 5:14 pm
*3: Open door warning buzzer:
P. 5 0 2
*
4: Driver’s and front passenger’s seat belt reminder buzzer:
The driver’s and front passenger’s seat belts reminder sounds to alert the driver
and front passenger that his or her seat belt is not fastened. The buzzer sounds
intermittently for 10 seconds after the vehicle has reached a speed of at least 12
mph (20 km/h). Then, if the seat belt is still unfastened, the buzzer will sound in
a different tone for 20 more seconds.
Warning lightWarning light/DetailsCorrection procedure
Master warning light
A buzzer sounds and the
warning light comes on and
flashes to indicate that the
master warning system has
detected a malfunction.
Take appropriate action in
accordance with the message
displayed on the multi-infor-
mation display.
■If the malfunction indicator lamp comes on while driving
First check the following:
●Is your vehicle low on gas? 
If it is, refuel the vehicle immediately.
●Is the fuel tank cap loose? 
If it is, tighten it securely.
The light will go off after taking several driving trips. 
If the light does not go off even after several trips, contact your Lexus dealer as soon
as possible.

5
When trouble arises
497
5-2. Steps to take in an emergency
GS_G_U
May 13, 2008 5:14 pm
If a warning message is displayed
Stop the vehicle immediately.A buzzer sounds and a warning message is shown on the multi-informa-
tion display. The following warnings indicate the possibility of damage to
the vehicle that may lead to an acci dent. Immediately stop the vehicle in a
safe place and contact your Lexus dealer.
Wa r n i n g m e s s a g eDetails
(Flashing)
Abnormal engine oil pressure.
The warning light may turn on if the engine oil pres-
sure is too low.
If a warning is shown on the multi-information display, stay calm and per-
form the following actions:
Multi-information display
Master warning light
The master warning light also
comes on or flashes in order to
indicate that a message is cur-
rently being displayed on the
multi-information display.
If any of the warning li ght turns on again after pe rforming the following
actions, contact your Lexus dealer.

498
5-2. Steps to take in an emergency
GS_G_U
May 13, 2008 5:14 pm

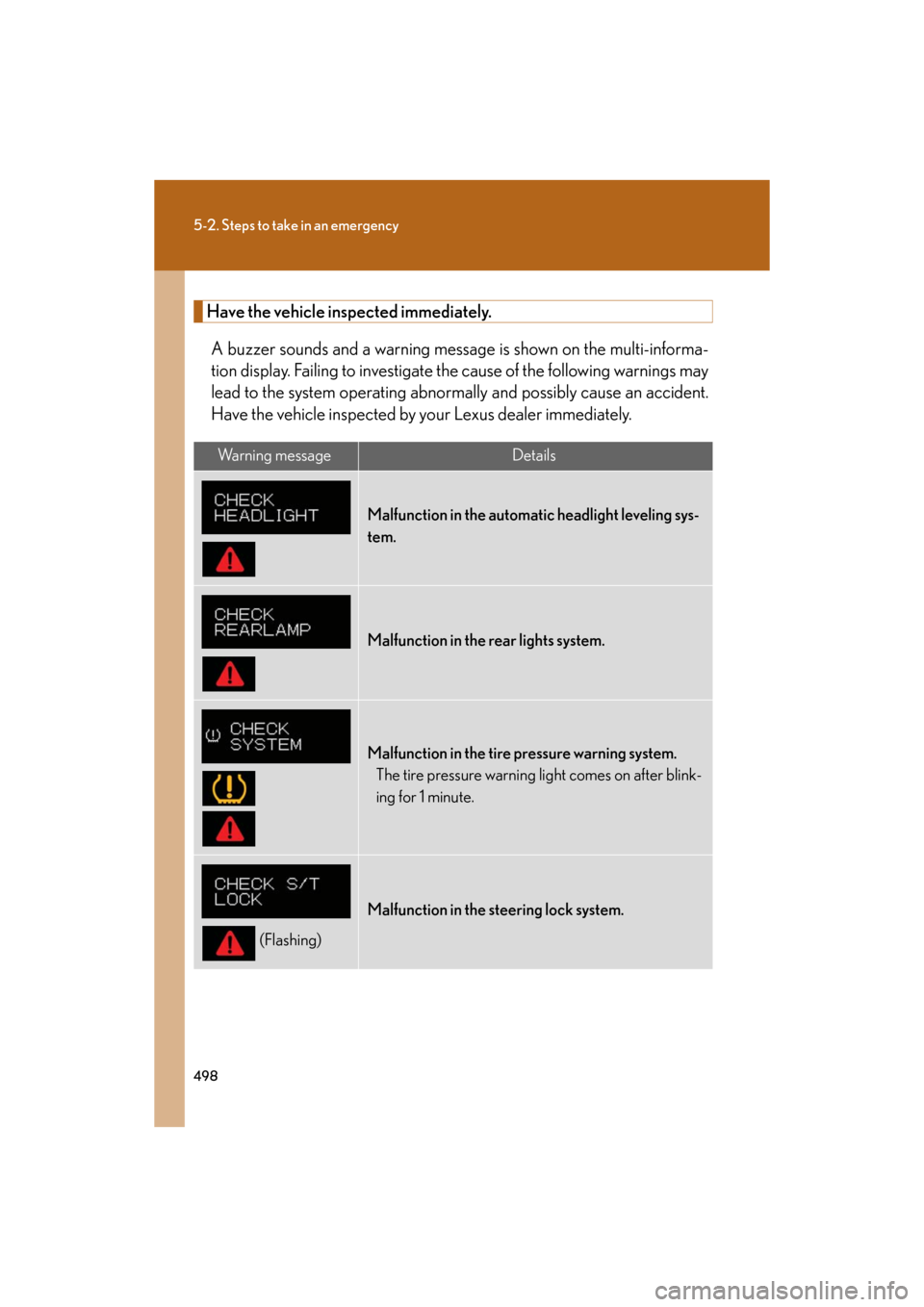

Have the vehicle inspected immediately.A buzzer sounds and a warning message is shown on the multi-informa-
tion display. Failing to investigate the cause of the following warnings may
lead to the system operating abnormally and possibly cause an accident.
Have the vehicle inspected by your Lexus dealer immediately.
Wa r n i n g m e s s a g eDetails
Malfunction in the automatic headlight leveling sys-
tem.
Malfunction in the rear lights system.
Malfunction in the tire pressure warning system.
The tire pressure warning light comes on after blink-
ing for 1 minute.
(Flashing)
Malfunction in the steering lock system.

5
When trouble arises
499
5-2. Steps to take in an emergency
GS_G_U
May 13, 2008 5:14 pm
Wa r n i n g m e s s a g eDetails
(AWD models)
Malfunction in the AWD system.
(If equipped)
Intuitive parking assist malfunction.The malfunctioning sensor is shown flashing on the
display.
(If equipped)
Malfunction in the active stabilizer suspension sys-
tem.

(If equipped)Malfunction in the PCS.

5
When trouble arises
501
5-2. Steps to take in an emergency
GS_G_U
May 13, 2008 5:14 pm
Have the vehicle inspected immediately.Failing to investigate the cause of th e following warning may lead to the
system operating abnormally and possibly cause an accident. Have the
vehicle inspected by your Lexus dealer immediately.
*: Electronically Controlled Brake System
Wa r n i n g m e s s a g eDetails
Malfunction in the TRAC, VSC or hill-start assist con-
trol system.
GS460: “CHECK ECB
*” may be displayed at the
same time, or on its own.
(U.S.A)
(Canada)
Malfunction in the ABS or brake assist system. GS460: “CHECK ECB*” may be displayed at the
same time, or on its own.
(GS460)
Malfunction in the VGRS.
(If equipped, steering guide symbol and
arrows are flashing)
The steering sensor cable is broken and signals can-
not be received.

502
5-2. Steps to take in an emergency
GS_G_U
May 13, 2008 5:14 pm
Have the malfunction repaired immediately.A buzzer sounds and a warning message is shown on the multi-informa-
tion display. After taking the spec ified steps to correct the suspected
problem, check that the warning message turns off.
Wa r n i n g m e s s a g eDetailsCorrection procedure
One or more of the doors
is not fully closed.
The system also indi-
cates which doors are
not fully closed.
flashes and a
buzzer sounds to indi-
cate that one or more of
the doors is not fully
closed (with the vehicle
having reached a speed
of 3 mph [5 km/h]).
Make sure that all of the
doors are closed.
The hood is not fully
closed.
flashes and a
buzzer sounds to indi-
cate that hood is not fully
closed (with the vehicle
having reached a speed
of 3 mph [5 km/h]).
Close the hood.

5
When trouble arises
507
5-2. Steps to take in an emergency
GS_G_U
May 13, 2008 5:14 pm
Other messagesIf the following message is displayed, take appropriate action and confirm
that the message has disappeared.
MessageDetails
(If equipped)
Calibrate the neutral position of the steering wheel.
■Initializing the steering sensor
Use one of the following methods.
●With the vehicle stopped, turn the steering wheel all the way to the left and right.
(The order is not important.)
●Drive for more than 5 minute on an un-crowded road with as few curves and
corners as possible.
If the steering guide symbol disappears, th e steering sensor has been initialized. If
the steering guide symbol does not disappear, have the vehicle checked by your
Lexus dealer.
