514
5-2. Steps to take in an emergency
GS_G_U
May 13, 2008 5:14 pm
Taking out the spare tireLift up the hook of the panel on the
trunk floor.
Secure the panel using the hook
provided. Then take out the tool
tray.
Loosen the center fastener that
secures the spare tire.
If the center fastener cannot be
turned by hand, use the wrench
that is stored in the trunk. (To
secure the tire, tighten the center
fastener by hand. Do not use the
wrench or other tools.)
STEP1
STEP2
STEP3

526
5-2. Steps to take in an emergency
GS_G_U
May 13, 2008 5:14 pm
If the electronic key does not operate properly
Locking and unlocking the doors, unlocking the trunk and key linked
functions
Doors Using the mechanical key in order
to perform the following opera-
tions:
Locks all doors
Closes the windows/moon roof
(turn and hold)
Unlocks the door
Turning the key rearward unlocks
the driver’s door.
Turning the key once again unlocks
the other doors.
Opens the windows/moon roof
(turn and hold)
If communication between the electron ic key and vehicle is interrupted
(
P. 26) or the electronic key cannot be used because the battery is
depleted, the smart access system with push-button start and wireless
remote control cannot be used. In such cases, the doors and trunk can be
opened or the engine can be started by following the procedure below.

552
6-1. Specifications
GS_G_U
May 13, 2008 5:14 pm
Light bulbs
A: D4S high-intensity discharge bulbs
B: HB3 halogen bulbs 
C: Wedge base bulbs (amber) 
D: Wedge base bulbs (clear) 
E: HB4 halogen bulbs 
F: Double end bulbs
Light bulbsBulb No.WTy p e
Exterior
Headlights (low beam)D4S35A
Headlights (high beam)HB360B
Front turn signal lights21C
Parking lights5D
Fog lightsHB451E
Front side marker light1945D
Rear turn signal lights21C
Back-up lights92116D
Trunk light5F
InteriorVanity lights8D

570
6-2. Customization
GS_G_U
May 13, 2008 5:14 pm

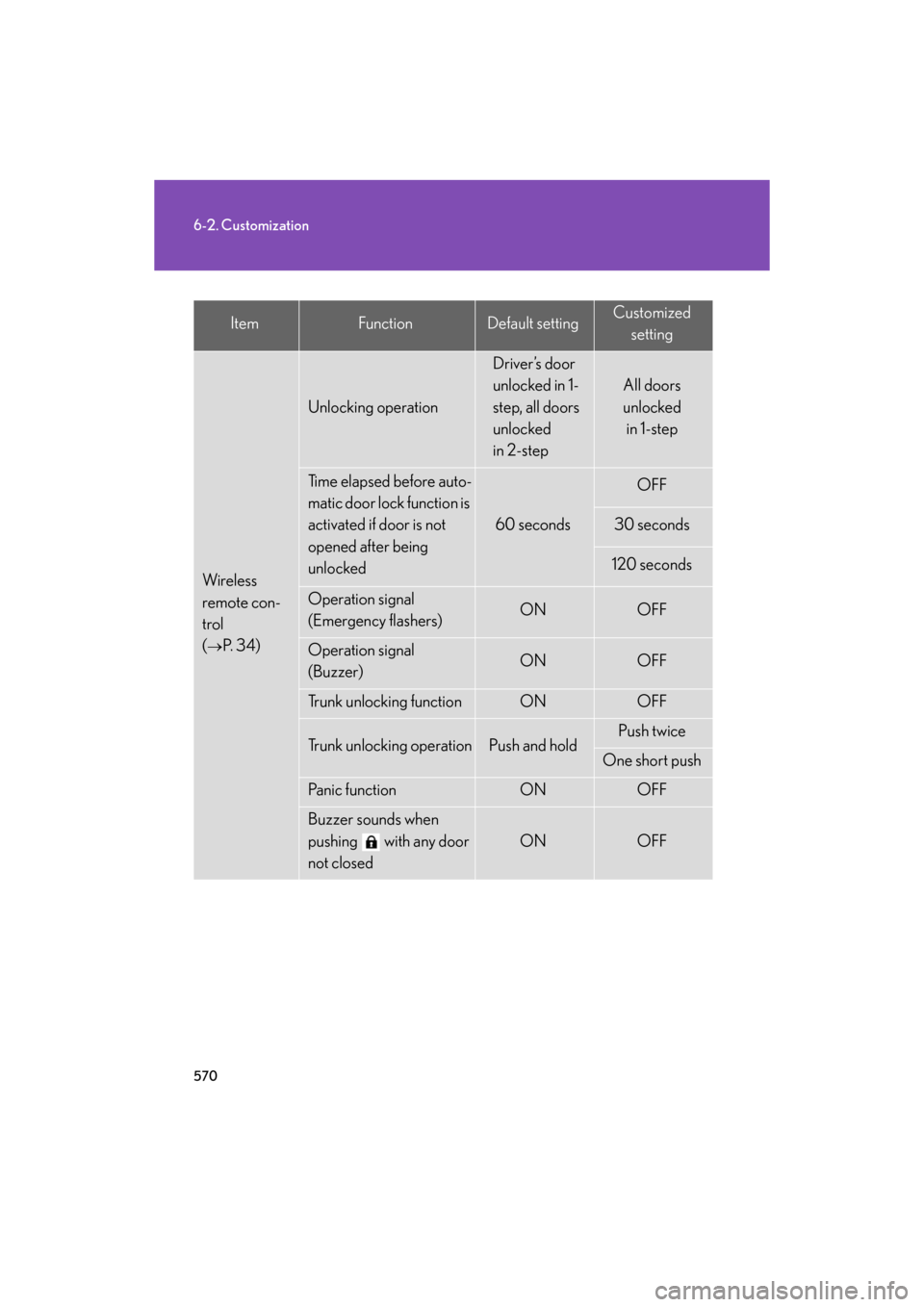

ItemFunctionDefault settingCustomizedsetting
Wireless
remote con-
trol 
(
P. 3 4 )
Unlocking operation
Driver’s door
unlocked in 1-
step, all doors
unlocked 
in 2-step
All doors
unlocked in 1-step
Time elapsed before auto-
matic door lock function is
activated if door is not
opened after being
unlocked
60 seconds
OFF
30 seconds
120 seconds
Operation signal 
(Emergency flashers)ONOFF
Operation signal
(Buzzer) ONOFF
Trunk unlocking functionONOFF
Trunk unlocking operationPush and holdPush twice
One short push
Panic functionONOFF
Buzzer sounds when
pushing with any door
not closed
ONOFF

585
Alphabetical index
GS_G_U
May 13, 2008 5:14 pm
BrakeFluid ............................................................ 416
Parking brake ..........................................131
Brake assist ............................................... 184
Care Exterior ...................................................388
Interior....................................................... 391
Seat belts ............................................... 392
Cargo capacity ....................................... 194
Cargo hooks .......................................... 360
CD player/changer .............................242
Chains....................................................... 200
Child-protectors ..................................... 38
Child restraint system Definition................................................... 98
Installation................................................ 102
Installing CRS with lower 
anchors .................................................106
Installing CRS with seatbelts .........103
Installing CRS with top straps ....... 107
Child safety Airbag precautions ............................. 87
Battery precautions ................ 419, 532
Child restraint system ........................ 98
Child-protectors................................... 38
How your child should wear 
the seatbelt ........................................... 56
Installing child restraints ................... 102
Moon roof precautions ..................... 69
Power window lock switch ..............64
Power window precautions.............64
Removed electronic key battery 
precautions ......................................... 441
Seat belt comfort guide..................... 54
Seat belt precautions...........................57 Seat heater precautions................ 355
Trunk precautions................................. 44
Cigarette lighter....................................352
Cleaning Exterior................................................... 388
Interior ...................................................... 391
Seat belts ................................................392
Clock ......................................................... 349
Coin holder .............................................345
Compass ..................................................369
Condenser ............................................... 415
Console box ........................................... 342
Cooling system Engine overheating.......................... 533
Cruise control Cruise control....................................... 150
Dynamic radar cruise control....... 153
Cup holders ............................................345
Curtain shield airbags........................... 80
Customizable features .......................569
Daytime running light system ........... 143
Defogger Rear window ........................................ 225
Side mirror............................................. 225
Dimension................................................540
Dinghy towing ........................................205
Display Multi-information display ................ 139
Touch screen ...................................... 208
Trip information ................................... 140
Warning message ............................. 497
Do-it-yourself maintenance ............ 400
Door courtesy lights ............................ 337
Door pocket............................................ 346
C
D

588
Alphabetical index
GS_G_U
May 13, 2008 5:14 pm
JackPositioning a floor jack.................... 404
Replacing the wheel...........................512
Jack handle ............................................... 512
Keyless entry.............................................. 34
Keys Engine (ignition) switch ......................121
If the electronic key does 
not operate properly .................... 526
If you lose your keys......................... 525
Key number plate ................................. 20
Keys ............................................................. 20
Mechanical key...................................... 20
Wireless remote control key .......... 34
Lexus Link System ................................ 373
Light bulbs Replacing ............................................... 470
Wattage.................................................. 552
Light sensitive optitron meter ........... 134
Lights Fog light switch .....................................145
Headlights switch ................................ 142
Interior lights list.................................. 337
Replacing light bulbs........................ 470
Turn signal lever .................................. 130
Vanity lights ..........................................348
Wattage.................................................. 552 Maintenance
Do-it-yourself maintenance.........400
General maintenance..................... 396
Maintenance data ............................. 540
Maintenance requirements.......... 394
Meter Instrument panel light control ....... 133
Meters....................................................... 132
Micro dust and pollen filter ................ 221
Mirrors Inside rear view mirror ........................ 61
Side mirror heater..............................225
Side mirrors.............................................. 62
Vanity mirrors ..................................... 348
Moon roof....................................................67
MP3 disc...................................................247
Multi-information display ....................139
Odometer .................................................132
Oil Engine oil............................................... 409
Opener Fuel filler door .........................................70
Hood ....................................................... 403
Trunk............................................................ 42
Outer foot lights.................................... 337
Outside rear view mirrors Adjusting and folding .......................... 62
Mirror position memory .................... 47
Outside temperature 
display ..........................................140, 350
Overhead console ............................... 343
Overheating, Engine .......................... 533J
K
L
M
O

591
Alphabetical index
GS_G_U
May 13, 2008 5:14 pm
TrunkOpener....................................................... 42
Trunk light .................................................43
Wattage ................................................. 552
Turn signal lights Replacing light bulbs ....................... 470
Switch ........................................................130
Wattage ................................................. 552
Vanity lights Vanity lights .......................................... 348
Wattage ................................................. 552
Vanity mirrors........................................ 348
Variable gear ratio steering ..............185
Vehicle dynamics 
integrated management ..................185
Vehicle identification number .......... 541
Vehicle load limits..................................198
Vehicle stability control .......................184
Ventilators............................................... 354
Warning buzzers Brake system .......................................488
Downshifting.......................................... 128
Open door .......................................... 490
Seat belt reminder ............................ 490
Warning lights Anti-lock brake system .................. 489
Brake system .......................................488
Charging system ...............................488
Electric power steering warning light ..................................... 489
Electronically 
controlled brake system/ 
Vehicle stability control .............. 489
Low fuel level....................................... 490 Malfunction indicator lamp .......... 489
Master warning light.......................... 491
Open door ........................................... 490
Pre-collision system......................... 489
Seat belt reminder light.................. 490
SRS airbags.......................................... 489
Tire pressure warning light .......... 490
Warning messages Anti-lock brake system .................... 501
Brake assist ............................................ 501
Dynamic radar cruise control................................... 500
Engine oil level ................................... 504
Engine oil maintenance ................. 504
Engine oil pressure ........................... 497
Headlight............................................... 498
Hill-start assist control ...................... 501
Hood ....................................................... 502
Intuitive parking 
assist ............................ 499, 505, 507
Moon roof ............................................ 503
Open door ........................................... 502
Parking brake ..................................... 503
Pre-collision system.............499, 505
Rear lights system ............................. 498
Smart access system with 
push-button start ........................... 508
Steering lock............................. 498, 510
Tire pressure warning 
system .....................................498, 504
TRAC........................................................ 501
Trunk ....................................................... 503
VGRS ....................................................... 501
VSC/ECB.............................................. 501
Washer fluid ........................................ 503
V
W

596
GS_G_U
May 13, 2008 5:14 pm
GAS STATION INFORMATION
Auxiliary catch lever
P. 4 0 3
Trunk opener
P. 4 2
Fuel filler door
P. 7 0
Hood lock release lever
P. 4 0 3
Fuel filler door opener
P. 7 0
Tire inflation pressure
P. 5 5 0
Fuel tank capacity18.7 gal. (71 L, 15.6 Imp.gal.)
Fuel typePremium unleaded gasoline onlyP. 71, 543
Cold tire inflation 
pressureP. 5 5 0
Engine oil capacity
(Drain and refill)
With filter
Without filterqt. (L, Imp.qt.)
GS460 GS350 (2WD) GS350 (4WD)
9.1 (8.6, 7.6) 6.6 (6.3, 5.5) 6.7 (6.4, 5.6)
8.9 (8.4, 7.4) 6.2 (5.9, 5.2) 6.3 (6.0, 5.3)
Engine oil type“Toyota Genuine Motor Oil” or equivalent
Oil grade: ILSAC multigrade engine oil P. 544
