GS_G_U
May 13, 2008 5:14 pm
2-3. Operating the lights and 
windshield wipers .................... 142
Headlight switch ............................ 142
Fog light switch .............................. 145
Windshield wipers and 
washer............................................. 146
Headlight cleaner switch ........... 149
2-4. Using other driving 
systems ...................................... 150
Cruise control ................................ 150
Dynamic radar cruise 
control............................................. 153
Intuitive parking assist ................. 164
Rear view monitor system ......... 179
AVS (Adaptive Variable 
Suspension System) .................. 183
Driving assist systems.................. 184
PCS (Pre-Collision System)..... 190
2-5. Driving information ................... 194 Cargo and luggage ...................... 194
Vehicle load limits ......................... 198
Winter driving tips ........................ 199
Trailer towing ................................. 204
Dinghy towing .............................. 205 3-1. Using the touch screen .......... 208
Touch screen ................................ 208
Setting the touch screen ............ 212
3-2. Using the air conditioning 
system and defogger .............. 217
Automatic air conditioning 
system .............................................. 217
Rear window and outside rear 
view mirror defoggers ............ 225
3-3. Using the audio system........... 226 Audio system type ....................... 226
Using the radio.............................. 229
Using the cassette player ......... 238
Using the CD player................... 242
Playing MP3 and WMA discs.................................. 247
Using the DVD player ................ 251
Playing DVD 
video/audio ................................. 254
Playing video CD ......................... 266
DVD player and DVD 
video disc information ............. 270
Optimal use of the 
audio/video system .................. 282
Using the AUX adapter ............ 287
Using the steering switches .... 288
3Interior features

91
1-7. Safety information
1
Before driving
GS_G_U
May 13, 2008 5:14 pm
CAUTION
■SRS airbag precautions
●If breathing becomes difficult after the SRS airbag has deployed, open a door or
window to allow fresh air in, or leave the vehicle if it is safe to do so. Wash off any
residue as soon as possible to prevent skin irritation.
●If the areas where the SRS airbags are stored, such as the steering wheel pad and
front pillar garnish, are damaged or cracked, have them replaced by your Lexus
dealer.
●Do not place anything, such as a cushion, on the front passenger’s seat. Doing so
will disperse the passenger’s weight, which prevents the sensor from detecting
the passenger’s weight properly. As a result, the SRS front passenger airbag may
not deploy in the event of a collision.
■Modification and disposal of SRS airbag system components
Do not dispose of your vehicle or perfor m any of the following modifications with-
out consulting your Lexus dealer. The SRS airbags may malfunction or deploy
(inflate) accidentally, causing death or serious injury.
●Installation, removal, disassembly and repair of the SRS airbags
●Repairs, modifications, removal or replace ment of the steering wheel, instrument
panel, dashboard, seats or seat upholstery, front, side and rear pillars or roof side
rail
●Repairs or modifications of the front fender , front bumper, or side of the occupant
compartment
●Installation of snow plows, winches, etc. to the front grille (bull bars, kangaroo bar
etc.)
●Modifications to the vehi cle’s suspension system
●Installation of electronic devices such as mobile two-way radios or CD players
●Modifications to your vehicle for a person with a physical disability

When driving2
111
GS_G_U
May 13, 2008 5:14 pm
2-1. Driving procedures ........ 112Driving the vehicle................... 112
Engine (ignition) switch .......... 121
Automatic transmission ........ 125
Turn signal lever ....................... 130
Parking brake ............................ 131
2-2. Instrument cluster .......... 132 Gauges and meters ................ 132
Indicators and warning 
lights ......................................... 136
Multi-information display ..... 139 2-3. Operating the lights and

windshield wipers ........ 142
Headlight switch ..................... 142
Fog light switch ........................ 145
Windshield wipers and 
washer ..................................... 146
Headlight cleaner switch ..... 149
2-4. Using other driving 
systems .......................... 150
Cruise control.......................... 150
Dynamic radar cruise 
control ..................................... 153
Intuitive parking assist ........... 164
Rear view monitor 
system....................................... 179
AVS (Adaptive Variable 
Suspension System) ............ 183
Driving assist systems ............ 184
PCS (Pre-Collision 
System) ................................... 190
2-5. Driving information........ 194 Cargo and luggage ................ 194
Vehicle load limits ................... 198
Winter driving tips .................. 199
Trailer towing .......................... 204
Dinghy towing......................... 205

183
2-4. Using other driving systems
2
When driving
GS_G_U
May 13, 2008 5:14 pm

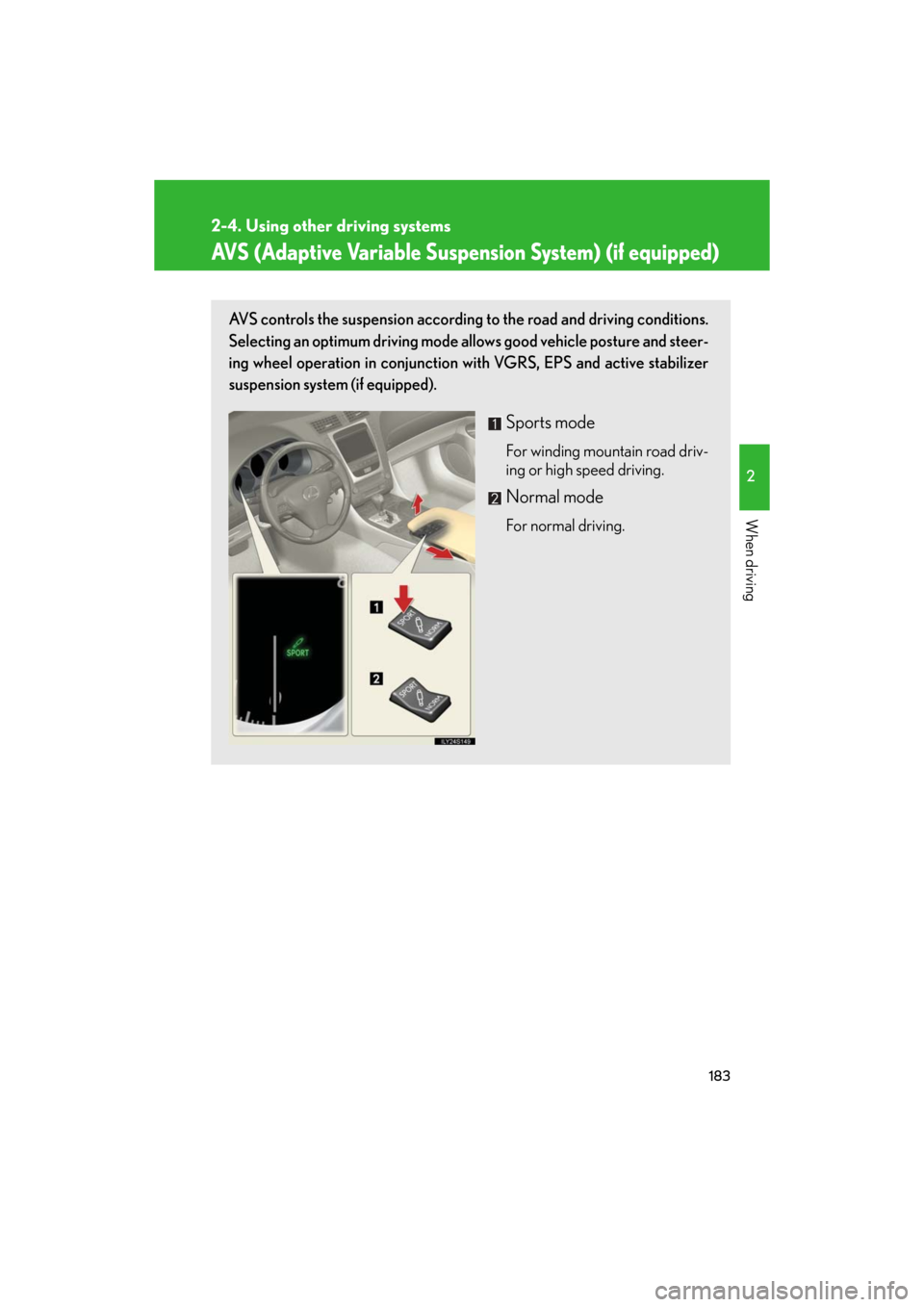

AVS (Adaptive Variable Suspension System) (if equipped)
AVS controls the suspension according to the road and driving conditions.
Selecting an optimum driving mode allows good vehicle posture and steer-
ing wheel operation in conjunction with VGRS, EPS and active stabilizer
suspension system (if equipped).
Sports mode
For winding mountain road driv-
ing or high speed driving.
Normal mode
For normal driving.

184
2-4. Using other driving systems
GS_G_U
May 13, 2008 5:14 pm
Driving assist systems
To help enhance driving safety and performance, the following systems
operate automatically in response to various driving situations. Be aware,
however, that these systems are supplementary and should not be relied
upon too heavily when operating the vehicle.
■ABS (Anti-lock Brake System)
Helps to prevent wheel lock when the brakes are applied suddenly, or if
the brakes are applied while driving on a slippery road surface.
■ Brake assist
Generates an increased level of braking force after the brake pedal is
depressed, when the system detects a panic stop situation.
■VSC (Vehicle Stability Control)
Helps the driver to control skidding wh en swerving suddenly or turning on
slippery road surfaces.
■ TRAC (Traction Control)
Maintains drive power and prevents the rear wheels from spinning when
starting the vehicle or accelerating on slippery roads.
■Hill-start assist control
Helps prevent the vehicle from rolling backwards when starting on an
incline or slippery slope. It operates for approximately 5 seconds at maxi-
mum.
■ EPS (Electric Power Steering)
Employs an electric motor to reduce the amount of effort needed to turn
the steering wheel.
■Active stabilizer suspension system (if equipped)
Turns at smaller angles to main tain the stable vehicle posture.

189
2-4. Using other driving systems
2
When driving
GS_G_U
May 13, 2008 5:14 pm
CAUTION
■The hill-start assist control may not operate effectively when
●On steep inclines.
●On icy surfaces.
■When the VSC is activated
The slip indicator light flashes and a warning buzzer sounds. Always drive carefully.
Reckless driving may cause an accident. Ex ercise particular care when the indica-
tor light flashes and a buzzer sounds.
■When TRAC and VSC are off
Be especially careful and drive at a speed appropriate to the road conditions. As
these are systems to ensure vehicle stability and driving force, do not turn off TRAC
and VSC unless necessary.
■Replacing tires
Make sure that all tires are of the same size, brand, tread pattern and total load
capacity. In addition, make sure that the ti res are inflated to the specified tire pres-
sure level.
The ABS and VSC will not function correctly if different tires are fitted on the vehi-
cle. 
Contact your Lexus dealer for further info rmation when replacing tires or wheels.
■Handling of tires and suspension
Using tires with any kind of problem or modifying the suspension will affect the driv-
ing assist systems, and may cause the system to malfunction.

444
4-3. Do-it-yourself maintenance
GS_G_U
May 13, 2008 5:14 pm
■Luggage compartment
Remove the cover.
■ Luggage compartment (vehicles with active stabilizer suspension
system)
Remove the lid.
After a system failure, see “Fuse la yout and amperage ratings”
( P. 447) for details about which fuse to check.
Remove the fuse with the pull-
out tool.
STEP4
STEP5

458
4-3. Do-it-yourself maintenance
GS_G_U
May 13, 2008 5:14 pm
■Left side instrument panel
FuseAmpereCircuit
1FR P/SEAT LH30Power seat system
2A/C7. 5Air conditioning system
3TV7. 5Audio system, air conditioning sys-
tem, rear view monitor system
4TRK OPN10Trunk lid opener
5LH-B10Theft deterrent system
6S/ROOF25Moon roof
7PA N E L7. 5
Steering switch illumination, audio
system, glove box light, automatic
transmission selector lever illumina-
tion, console box light, adaptive vari-
able suspension switch illumination,
cigarette lighter illumination, air con-
ditioning system, VSC OFF switch
illumination, driving pattern selector
switch, seat heater or heated and
ventilated seat switches, register ILL
RH, register ILL LH, fuel filler door
and trunk lid opener switch illumina-
tion, D-SW module

462
4-3. Do-it-yourself maintenance
GS_G_U
May 13, 2008 5:14 pm
FuseAmpereCircuit
9IGN10
Multi-port fuel injection system/
sequential multiport fuel injection
system, SRS airbag system, stop/tail
lights, steering lock system, electroni-
cally controlled brake system, Lexus
link system ECU, occupant classifica-
tion system ECU
10ACC7. 5
Multiplex communication system,
smart access system with push-but-
ton start, rear view monitor system,
audio system, air conditioning system,
Lexus link system ECU
11CIG15Cigarette lighter
12PWR OUTLET15Po w e r o u t l e t
13AIR SUS20Adaptive variable suspension system
14RR DOOR RH20
Rear right door control system
(power door lock system, door cour-
tesy light, power window)
15FR DOOR RH20
Front right door control system
(power door lock system, power rear
view mirror control system, door
courtesy light, outside rear view mir-
ror heater, power window), multiplex
communication system

465
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U
May 13, 2008 5:14 pm
■Luggage compartment 
(vehicles with active stabilizer suspension system)
FuseAmpereCircuit
1STB FR50Front stabilizer
2STB RR30Rear stabilizer
3STB DC/DC30DC/DC converter
■After a fuse is replaced
●If the lights do not turn on even afte r the fuse has been replaced, a bulb may
need replacement. ( P. 4 7 0 )
●If the replaced fuse blows again, have the vehicle inspected by your Lexus
dealer.
■If there is an overload in the circuits
The fuses are designed to blow before the entire wiring harness is damaged.
