Lexus GS350 2009 Owner's Manual

150
2-2. Instrument cluster
GS_G_U (OM30B43U)
May 14, 2009 1:15 pm

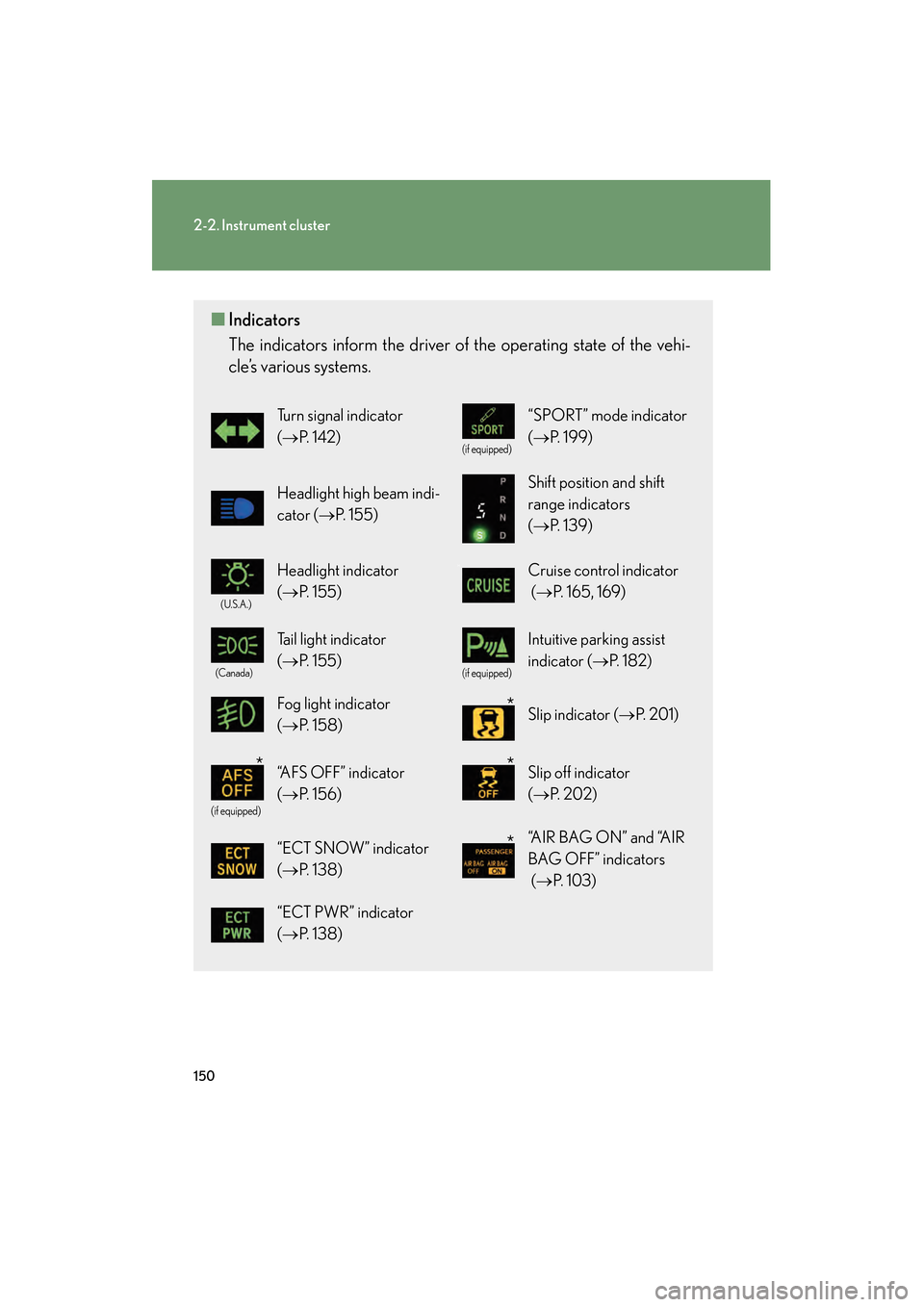

■Indicators
The indicators inform the driver of the operating state of the vehi-
cle’s various systems.
Turn signal indicator
(→ P. 1 4 2 )
(if equipped)
“SPORT” mode indicator
(→ P. 199)
Headlight high beam indi-
cator ( →P. 1 5 5 )Shift position and shift
range indicators
(→ P. 1 3 9 )
(U.S.A.)
Headlight indicator
(→ P. 1 5 5 )MCruise control indicator
(→ P. 165, 169)
(Canada)
Tail light indicator
(→ P. 1 5 5 )
(if equipped)
Intuitive parking assist
indicator ( →P. 1 8 2 )
Fog light indicator
(→ P. 1 5 8 ) Slip indicator ( →P. 2 0 1 )
(if equipped)
“AFS OFF” indicator
(→ P. 1 5 6 ) Slip off indicator
(→ P. 202)
“ECT SNOW” indicator
(→ P. 1 3 8 )“A I R B A G O N ” a n d “A I R
BAG OFF” indicators
(→ P. 1 0 3 )
“ECT PWR” indicator
(→ P. 1 3 8 )
*
**
*
sec_02-02.fm Page 150 Thursday, May 14, 2009 1:15 PM

151
2-2. Instrument cluster
2
When driving
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
CAUTION
■If a safety system warning light does not come on
Should a safety system light such as ABS and the SRS airbag warning light not
come on when you turn to IGNITION ON mode, this could mean that these sys-
tems are not available to help protect you in an accident, which could result in death
or serious injury. Have the vehicle inspec ted by your Lexus dealer immediately if
this occurs.
■ Warning lights
Warning lights inform the driver of malfunctions in the indicated
vehicle’s systems. ( →P. 507)
*: These lights turn on when the “ENGINE START STOP” switch is turned
to IGNITION ON mode to indicate that a system check is being per-
formed. They will turn off after the engine is on, or after a few seconds.
There may be a malfunction in a syst em if the lights do not come on, or
turn off. Have the vehicle inspected by your Lexus dealer.
(U.S.A.)(Canada)(U.S.A.)(Canada)(GS460)
(U.S.A.)(Canada)(if equipped)
*******
*****
**
GS_U_G.book Page 151 Monday, April 27, 2009 10:50 AM

152
2-2. Instrument cluster
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
Multi-information display
The multi-information display presents the driver with a variety of driving-
related data, including the current driving range.
●Trip information (→ P. 153)
Displays driving range, fuel con-
sumption and other cruising
related information.
●Intuitive parking assist dis-
play (if equipped) ( →P. 183)
Automatically displayed when
using intuitive parking assist.
●Dynamic radar cruise con-
trol display (if equipped)
(→P. 1 6 9 )
Automatically displayed when
using dynamic radar cruise con-
trol.
●Warning messages
(→P. 5 1 6 )
Automatically displayed when a
malfunction occurs in one of the
vehicle’s systems.
GS_U_G.book Page 152 Monday, April 27, 2009 10:50 AM

153
2-2. Instrument cluster
2
When driving
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
Trip information■ Driving range
■ Average fuel consumption after refueling
■ Current fuel consumption
■ Outside temperature
Displays the estimated maximum distance that can
be driven with the quantity of fuel remaining.
• This distance is computed based on your average
fuel consumption. As a result, the actual distance
that can be driven may differ from that displayed.
• When only a small amount of fuel is added to the tank, the display may not be updated.
Displays the average fuel consumption since the
vehicle was last refueled.
Displays the current rate of fuel consumption.
Displays the outside air temperature.
The temperature range that can be displayed is from
-40°F (-40°C) to 122°F (50°C).
Display items can be switched
by pushing the “DISP” switch.
GS_U_G.book Page 153 Monday, April 27, 2009 10:50 AM

154
2-2. Instrument cluster
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
■System check display
After switching the “ENGINE START STOP” switch to IGNITION ON mode,
“CHECK” is displayed while system operation is checked. When the system check
is complete, “COMPLETED” is displayed before returning to the normal screen.
NOTICE
■The multi-information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal informa-
tion display. At extremely low temperatures, the information display monitor may
respond slowly, and display changes may be delayed.
GS_U_G.book Page 154 Monday, April 27, 2009 10:50 AM

155
2
When driving
GS_G_U (OM30B43U)
April 27, 2009 10:40 am
2-3. Operating the lights and windshield wipers
Headlight switch
Turning on the high beam headlightsWith the headlights on, push the
lever forward to turn on the high
beams.
Pull the lever back to the center
position to turn the high beams off.
Pull the lever toward you to turn
on the high beams.
Release to turn them off. You can
flash the high beams with the head-
lights on or off.
The headlights can be operated manually or automatically.
The side marker, parking,
tail, license plate and
instrument panel lights
turn on.
The headlights and all lights listed above turn
on.
The headlights and all the lights listed above turn
on and off automatically.
(When the “ENGINE
START STOP” switch is
in IGNITION ON
mode.)
U.S.A. Canada
GS_U_G.book Page 155 Monday, April 27, 2009 10:50 AM

156
2-3. Operating the lights and windshield wipers
GS_G_U (OM30B43U)
April 27, 2009 10:40 am
AFS (Adaptive Front lighting System) (if equipped)AFS improves visibility at intersectio ns and on curves by automatically
adjusting the level of the headlights according to vehicle speed and the
degree of the tire angle that are controlled by steering input.
Operates at speeds of 6 mph (10 km/h) or higher.
■ Deactivating AFS
Press the switch to turn it off.
The indicator turns on when
the AFS is deactivated.
■Daytime running light system
To make your vehicle more visible to other drivers, the headlights turn on automati-
cally (at a reduced intensity) whenever the engine is started and the parking brake
is released. Daytime running lights are not designed for use at night.
■Headlight control sensor
The sensor may not function properly if an
object is placed on the sensor, or anything
that blocks the sensor is affixed to the wind-
shield.
Doing so interferes with the sensor detecting
the level of ambient light and may cause the
automatic headlight system to malfunction.
GS_U_G.book Page 156 Monday, April 27, 2009 10:50 AM

157
2-3. Operating the lights and windshield wipers
2
When driving
GS_G_U (OM30B43U)
April 27, 2009 10:40 am
■Automatic light off system
The headlights and tail lights turn off 30 seconds after all doors are closed if the
“ENGINE START STOP” switch has been switched to ACCESSORY mode or
turned OFF while the headlights are turned on. (The lights turn off immediately if
the button on the key is pressed after all doors are locked.)
To turn the lights on again, switch to IGNITION ON mode, or turn the light switch
off once and then back to the or position.
■Automatic headlight leveling system
The level of the headlights is automatically adjusted according to the number of
passengers and the loading condition of the vehicle to ensure that the headlights do
not interfere with other road users.
■If the indicator flashes...
It may indicate a malfunction in th e system. Contact your Lexus dealer.
■Customization that can be configured at Lexus dealer
Settings (e.g. light sensor sensitivity) can be changed.
(Customizable features →P. 5 9 2 )
NOTICE
■To prevent 12 volt battery discharge
Do not leave the lights on longer than necessary when the engine is off.
GS_U_G.book Page 157 Monday, April 27, 2009 10:50 AM

158
2-3. Operating the lights and windshield wipers
GS_G_U (OM30B43U)
April 27, 2009 10:40 am

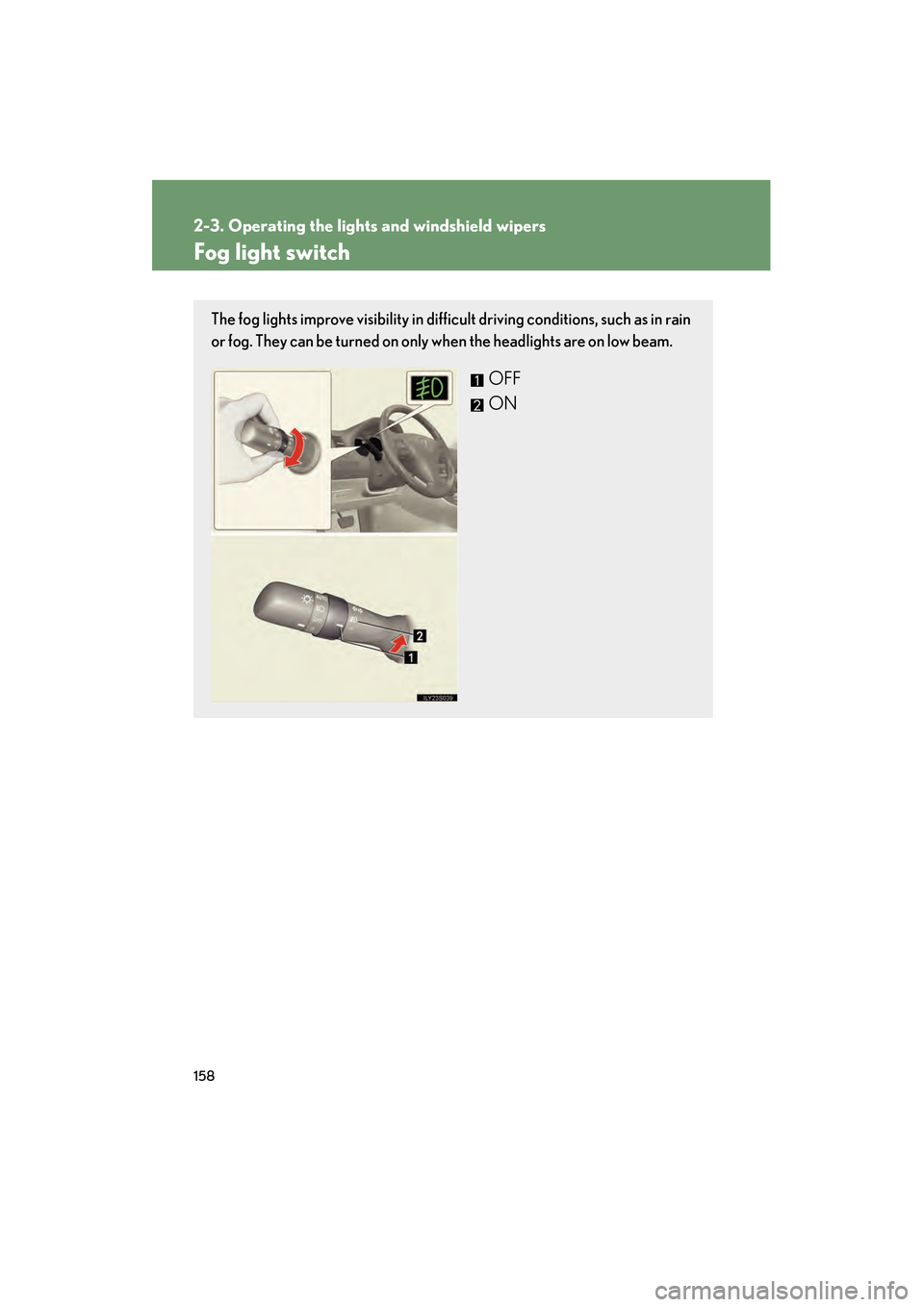

Fog light switch
The fog lights improve visibility in difficult driving conditions, such as in rain
or fog. They can be turned on only when the headlights are on low beam.
OFF
ON
GS_U_G.book Page 158 Monday, April 27, 2009 10:50 AM

159
2-3. Operating the lights and windshield wipers
2
When driving
GS_G_U (OM30B43U)
April 27, 2009 10:40 am

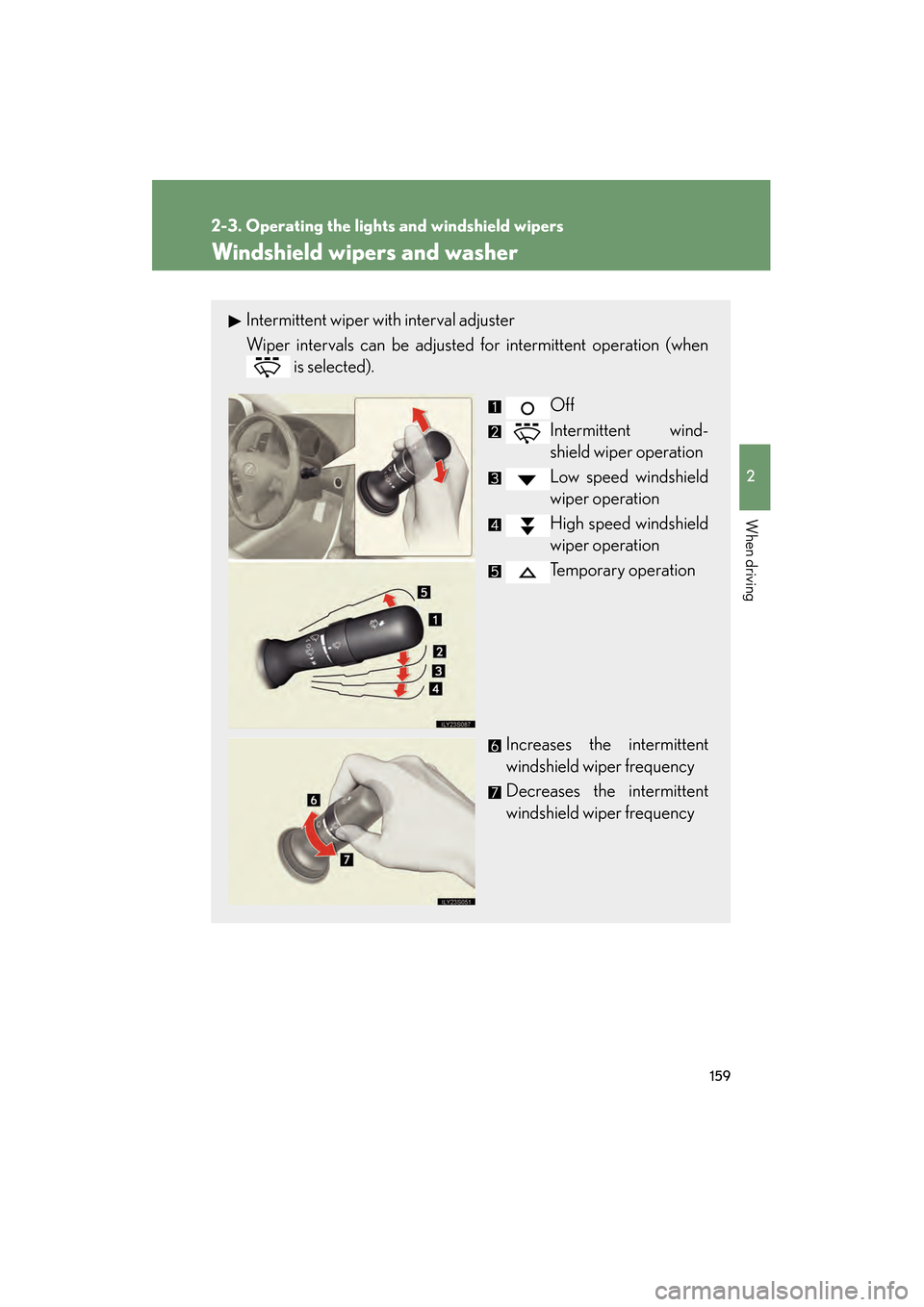

Windshield wipers and washer
Intermittent wiper with interval adjuster
Wiper intervals can be adjusted for intermittent operation (when
is selected).
Off
Intermittent wind-
shield wiper operation
Low speed windshield
wiper operation
High speed windshield
wiper operation
Temporary operation
Increases the intermittent
windshield wiper frequency
Decreases the intermittent
windshield wiper frequency
GS_U_G.book Page 159 Monday, April 27, 2009 10:50 AM
