Lexus GS350 2009 Owner's Manual

520
5-2. Steps to take in an emergency
GS_G_U (OM30B43U)
April 27, 2009 10:48 am

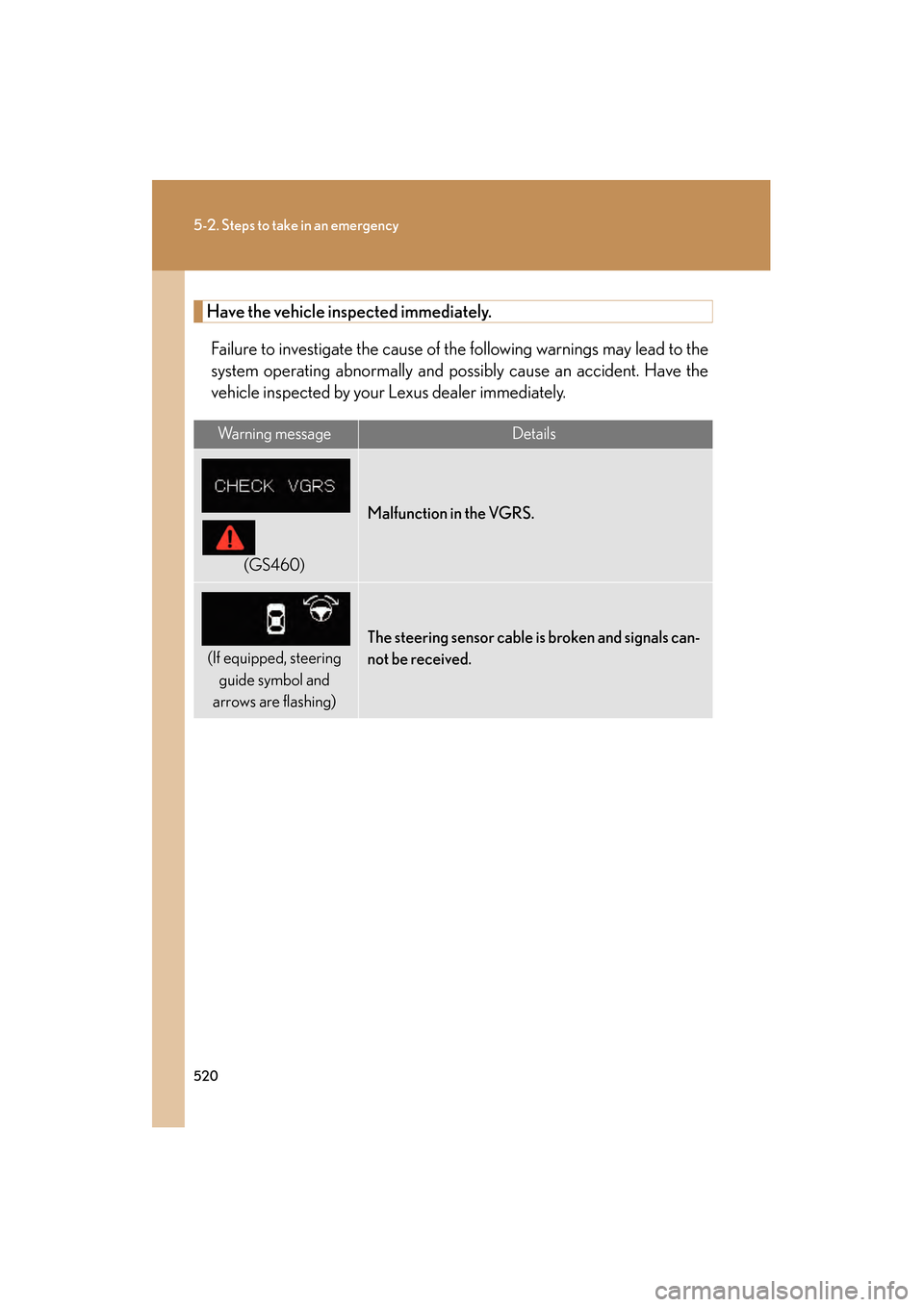

Have the vehicle inspected immediately.Failure to investigate th e cause of the following warnings may lead to the
system operating abnormally and possibly cause an accident. Have the
vehicle inspected by your Lexus dealer immediately.
Wa r n i n g m e s s a g eDetails
(GS460)
Malfunction in the VGRS.
(If equipped, steering
guide symbol and
arrows are flashing)
The steering sensor cable is broken and signals can-
not be received.
GS_U_G.book Page 520 Monday, April 27, 2009 10:50 AM

5
When trouble arises
521
5-2. Steps to take in an emergency
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
Have the malfunction repaired immediately.A buzzer sounds and a warning message is shown on the multi-informa-
tion display. After taking the spec ified steps to correct the suspected
problem, check that the warning message turns off.
Wa r n i n g m e s s a g eDetailsCorrection procedure
One or more of the doors
is not fully closed.
The system also indi-
cates which doors are
not fully closed.
flashes and a
buzzer sounds to indi-
cate that one or more of
the doors is not fully
closed (with the vehicle
having reached a speed
of 3 mph [5 km/h]).
Make sure that all of the
doors are closed.
The hood is not fully
closed.
flashes and a
buzzer sounds to indi-
cate that hood is not fully
closed (with the vehicle
having reached a speed
of 3 mph [5 km/h]).
Close the hood.
GS_U_G.book Page 521 Monday, April 27, 2009 10:50 AM

522
5-2. Steps to take in an emergency
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
Wa r n i n g m e s s a g eDetailsCorrection procedure
The trunk is not fully
closed. flashes and a
buzzer sounds to indi-
cate that trunk is not fully
closed (with the vehicle
having reached a speed
of 3 mph [5 km/h]).
Close the trunk.
(Flashing)
(If equipped)
The moon roof is not fully
closed (with the
“ENGINE START STOP”
switch is OFF and the
driver’s door opened).
Close the moon roof.
(Flashing)
The parking brake is still
engaged (with the vehicle
having reached a speed
of more than 3 mph [5
km/h]).
Release the parking
brake.
GS_U_G.book Page 522 Monday, April 27, 2009 10:50 AM

5
When trouble arises
523
5-2. Steps to take in an emergency
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
Wa r n i n g m e s s a g eDetailsCorrection procedure
The washer fluid level is
low.Add washer fluid.
The engine oil level is low.Check the engine oil level,
and add if necessary.
(U.S.A. only)
The engine oil should be
changed.
Check and change the
engine oil.
Comes on approximately
5000 miles (8000 km)
after the engine oil is
changed (and the oil
maintenance data has
been reset).
GS_U_G.book Page 523 Monday, April 27, 2009 10:50 AM

524
5-2. Steps to take in an emergency
GS_G_U (OM30B43U)
April 27, 2009 10:48 am

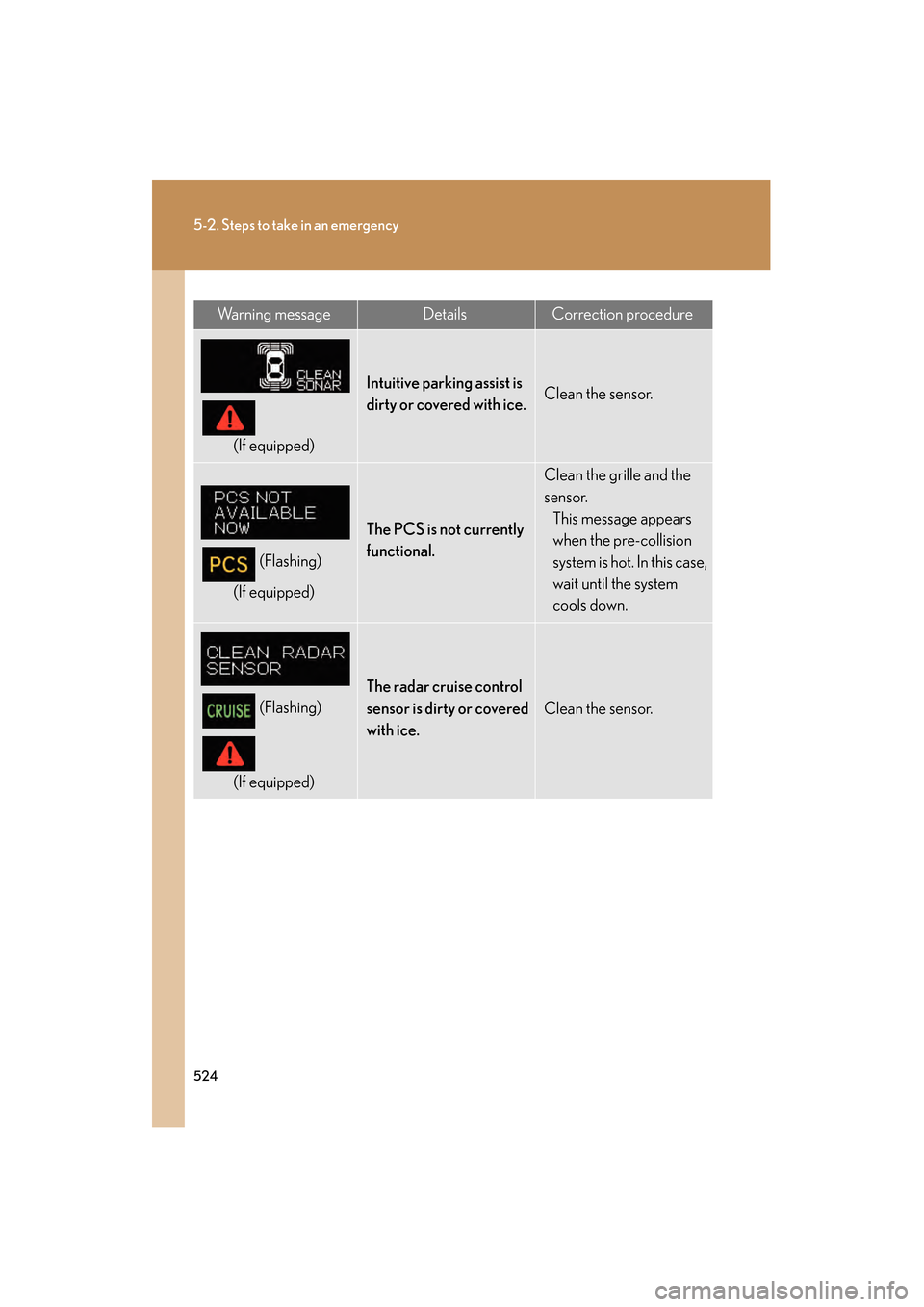

Wa r n i n g m e s s a g eDetailsCorrection procedure
(If equipped)
Intuitive parking assist is
dirty or covered with ice.Clean the sensor.
(Flashing)
(If equipped)
The PCS is not currently
functional.
Clean the grille and the
sensor. This message appears
when the pre-collision
system is hot. In this case,
wait until the system
cools down.
(Flashing)
(If equipped)
The radar cruise control
sensor is dirty or covered
with ice.
Clean the sensor.
GS_U_G.book Page 524 Monday, April 27, 2009 10:50 AM

5
When trouble arises
525
5-2. Steps to take in an emergency
GS_G_U (OM30B43U)
April 27, 2009 10:48 am

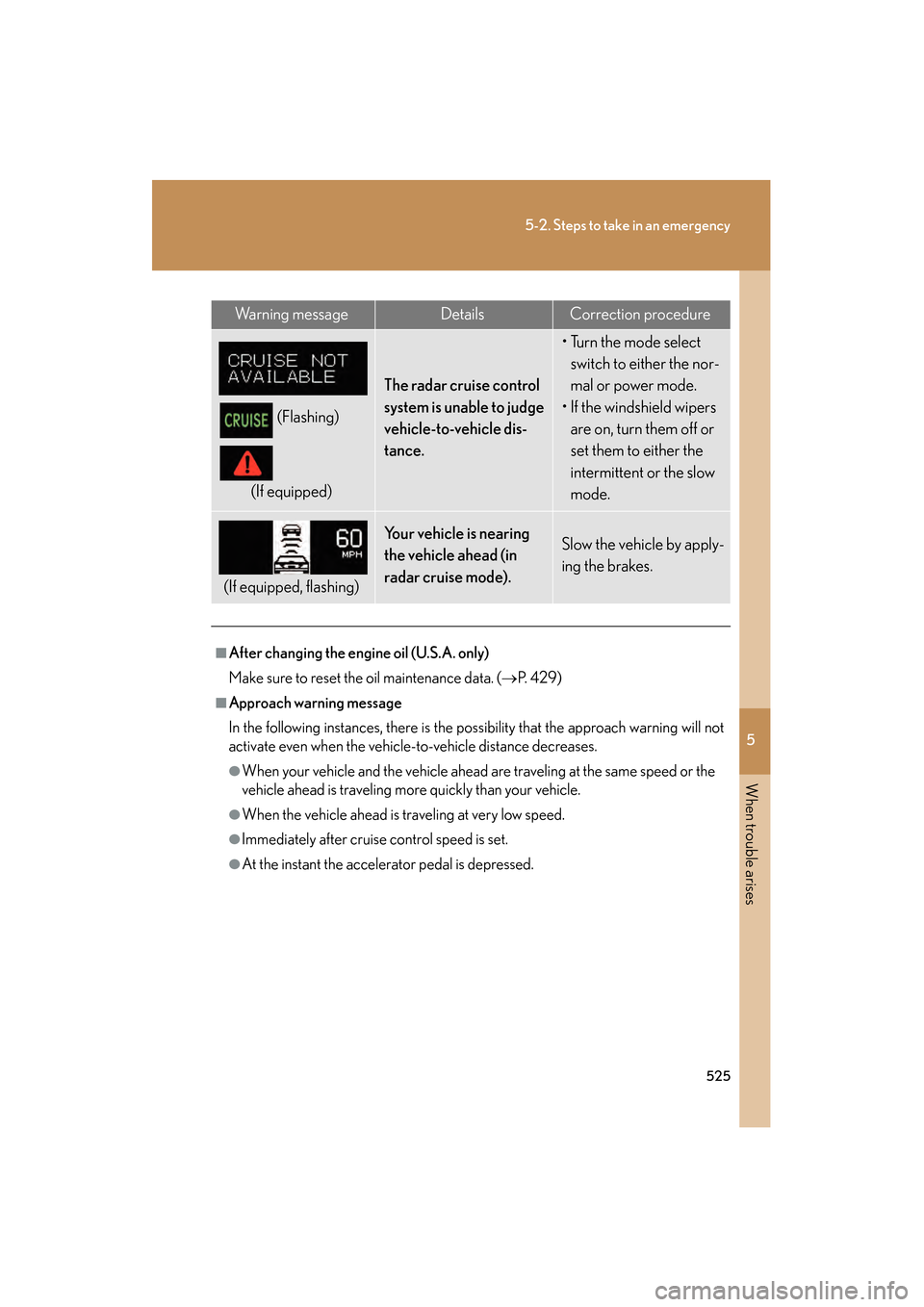

Wa r n i n g m e s s a g eDetailsCorrection procedure
(Flashing)
(If equipped)
The radar cruise control
system is unable to judge
vehicle-to-vehicle dis-
tance.
• Turn the mode select switch to either the nor-
mal or power mode.
• If the windshield wipers are on, turn them off or
set them to either the
intermittent or the slow
mode.
(If equipped, flashing)
Yo u r v e h i c l e i s n e a r i n g
the vehicle ahead (in
radar cruise mode).Slow the vehicle by apply-
ing the brakes.
■After changing the engine oil (U.S.A. only)
Make sure to reset the oil maintenance data. ( →P. 4 2 9 )
■Approach warning message
In the following instances, there is the possibility that the approach warning will not
activate even when the vehicle-to-vehicle distance decreases.
●When your vehicle and the vehicle ahead are traveling at the same speed or the
vehicle ahead is traveling more quickly than your vehicle.
●When the vehicle ahead is traveling at very low speed.
●Immediately after cruise control speed is set.
●At the instant the accelerator pedal is depressed.
GS_U_G.book Page 525 Monday, April 27, 2009 10:50 AM

526
5-2. Steps to take in an emergency
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
Other messagesIf the following message is displayed, take appropriate action and confirm
that the message has disappeared.
MessageDetails
(If equipped)
Calibrate the neutral position of the steering wheel.
■Initializing the steering sensor
Use one of the following methods.
●With the vehicle stopped, turn the steering wheel all the way to the left and right.
(The order is not important.)
●Drive for more than 5 minutes on an un-crowded road with as few curves and
corners as possible.
If the steering guide symbol disappears, th e steering sensor has been initialized. If
the steering guide symbol does not disappear, have the vehicle checked by your
Lexus dealer.
GS_U_G.book Page 526 Monday, April 27, 2009 10:50 AM

5
When trouble arises
527
5-2. Steps to take in an emergency
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
Have the malfunction repaired immediately.After taking the specified steps to co rrect the suspected problem, check
that the warning message and light turn off.
Interior
buzzerExterior buzzerWa r n i n g m e s s a g eDetailsCorrection procedure
Once(Comes on for 10 seconds.)
(Flashing)
The electronic key
is not detected
when attempting
to start the
engine.Confirm the
location of
the elec-
tronic key.
Once3 times
(Flashing)
An open door
other than the
driver’s door is
closed while the
electronic key is
outside the detec-
tion range and the
“ENGINE START
STOP” switch is in
ACCESSORY or
IGNITION ON
mode.
Confirm the
location of
the elec-
tronic key.
GS_U_G.book Page 527 Monday, April 27, 2009 10:50 AM

528
5-2. Steps to take in an emergency
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
InteriorbuzzerExterior buzzerWa r n i n g m e s s a g eDetailsCorrection procedure
Once3 times
(Flashing)
An open door
other than the
driver’s door is
closed while the
electronic key is
outside the detec-
tion range and the
“ENGINE START
STOP” switch is in
ACCESSORY or
IGNITION ON
mode with the
shift lever in “P”.
Tu r n t h e
“ENGINE
START
STOP”
switch to
OFF or con-
firm the
location of
the elec-
tronic key.
Contin-
uousContin-
uous
(Displayed alternately)
(Flashing)
An open door
other than the
driver’s door is
closed while the
electronic key is
outside the detec-
tion range and the
“ENGINE START
STOP” switch is in
ACCESSORY or
IGNITION ON
mode with the
shift lever not in
“P”.
•Shift the shift lever
to “P”.
•Confirm
the loca-
tion of the
electronic
key.
GS_U_G.book Page 528 Monday, April 27, 2009 10:50 AM

5
When trouble arises
529
5-2. Steps to take in an emergency
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
InteriorbuzzerExterior buzzerWa r n i n g m e s s a g eDetailsCorrection
procedure
Once
(Flashing)
The electronic key
battery is low.Replace the
battery.
(→ P. 4 5 8 )

An open door has
been closed and
the “ENGINE
START STOP”
switch has been
turned twice to
the ACCES-
SORY mode from
OFF.
Press the
“ENGINE
START
STOP”
switch while
applying the
brakes.

(Flashing)
The steering lock
has not released
within 3 seconds
of pressing the
“ENGINE START
STOP” switch.
The “ENGINE
START STOP”
switch indicator
will flash green for
15 seconds.Press the
“ENGINE
START
STOP”
switch again
while turn-
ing the
steering
wheel with
the brake
pedal
depressed.
GS_U_G.book Page 529 Monday, April 27, 2009 10:50 AM
