82
1-5. Refueling
GS_G_U (OM30B43U)
April 20, 2009 4:34 pm
Closing the fuel tank capAfter refueling, turn the fuel tank
cap clockwise until you hear a
click. The cap will revolve slightly in
the opposite direction once
released.
■Fuel types
Use premium unleaded gasoline. (Octane Rating 91 [Research Octane Number
96] or higher)
■Fuel tank capacity
Approximately 18.7 gal. (71 L, 15.6 Imp.gal.)
■When the fuel filler door opener switch is inoperable
The lever can be used to open the fuel filler
door if the fuel filler door cannot be opened
using the inside switch because the 12 volt
battery is discharged or for any other reason.
GS_U_G.book Page 82 Monday, April 27, 2009 10:50 AM
561
6-1. Specifications
6
Vehicle specifications
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
Engine
Fuel
GS460GS350
Model1UR-FSE2GR-FSE
Ty p e8-cylinder V type,
4-cycle, gasoline6-cylinder V type,
4-cycle, gasoline
Bore and stroke3.70 × 3.27 in. (94.0 × 83.0 mm)
Displacement281.2 cu.in. (4608 cm3)210.9 cu.in. (3456 cm3)
Drive belt tensionAutomatic adjustment
Fuel typePremium unleaded gasoline only
Octane Rating91 (Research Octane Number 96) or higher
Fuel tank capacity18.7 gal. (71 L, 15.6 Imp.gal.)
GS_U_G.book Page 561 Monday, April 27, 2009 10:50 AM
620
GS_G_U (OM30B43U)
April 27, 2009 10:48 am

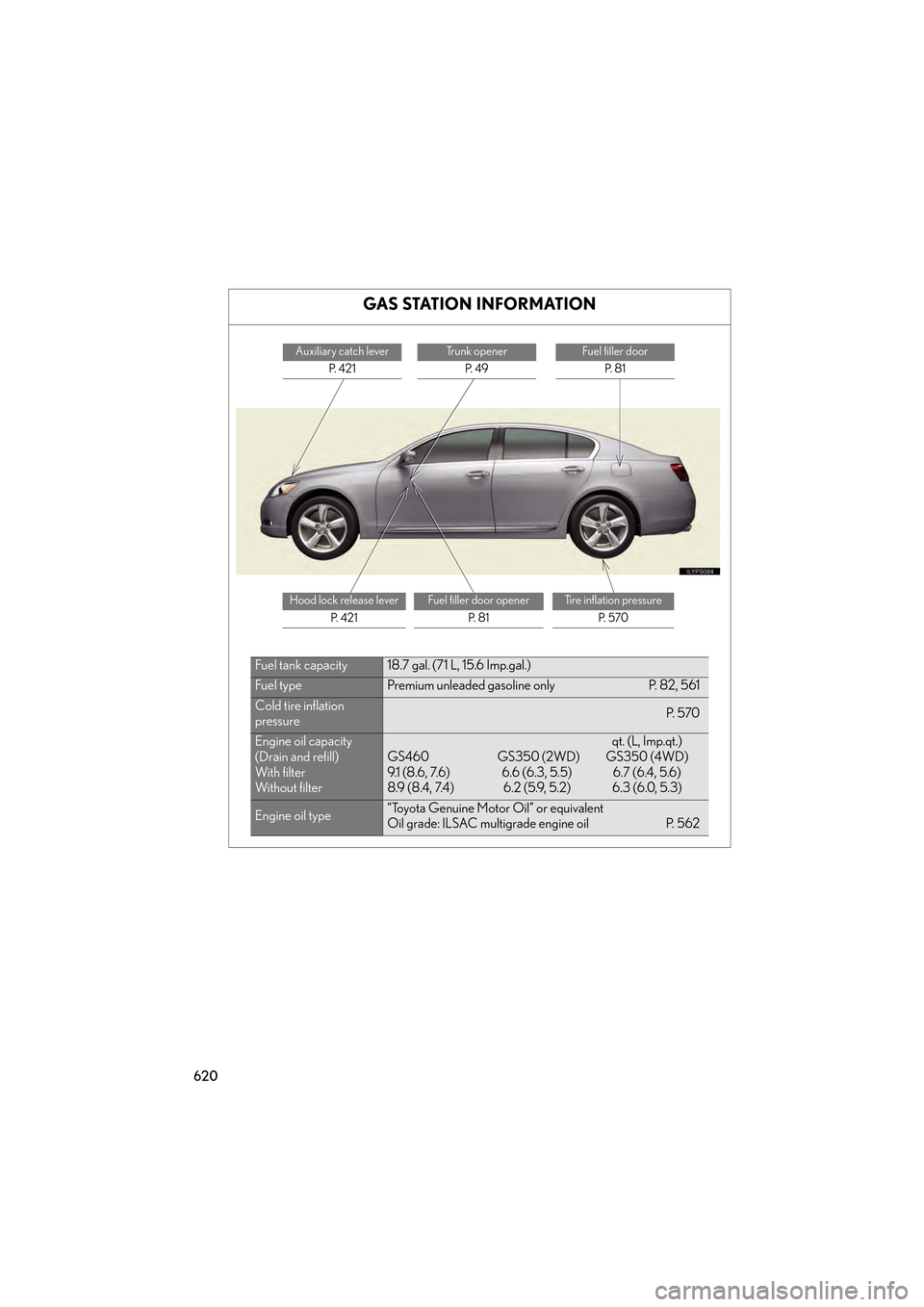

GAS STATION INFORMATION
Auxiliary catch lever
P. 4 2 1
Trunk opener
P. 4 9
Fuel filler door
P. 8 1
Hood lock release lever
P. 4 2 1
Fuel filler door opener
P. 8 1
Tire inflation pressure
P. 5 7 0
Fuel tank capacity18.7 gal. (71 L, 15.6 Imp.gal.)
Fuel typePremium unleaded gasoline onlyP. 82, 561
Cold tire inflation
pressureP. 5 7 0
Engine oil capacity
(Drain and refill)
With filter
Without filterqt. (L, Imp.qt.)
GS460 GS350 (2WD) GS350 (4WD)
9.1 (8.6, 7.6) 6.6 (6.3, 5.5) 6.7 (6.4, 5.6)
8.9 (8.4, 7.4) 6.2 (5.9, 5.2) 6.3 (6.0, 5.3)
Engine oil type“Toyota Genuine Motor Oil” or equivalent
Oil grade: ILSAC multigrade engine oil P. 562
GS_U_G.book Page 620 Monday, April 27, 2009 10:50 AM
