display Lexus GS350 2010 Owner's Manual

462
4-3. Do-it-yourself maintenance
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
Washer fluidIf any washer does not work or the
warning message appears on the
multi-information display, the
washer tank may be empty. Add
washer fluid.
CAUTION
■When refilling the washer fluid
Do not refill the washer fluid when the engine is hot or running, as the washer fluid
contains alcohol and may catch the fire if spilled on the engine etc.
NOTICE
■Do not use any fluid other than washer fluid
Do not use soapy water or engine antifreeze instead of washer fluid.
Doing so may cause streaking on the vehicle’s painted surfaces.
■Diluting washer fluid
Dilute washer fluid with water as necessary.
Refer to the freezing temperatures listed on the washer fluid tank.
GS_U_G.book Page 462 Wednesday, January 27, 2010 4:48 PM

465
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
■How to initialize the tire pressure warning system
Park the vehicle in safe place and turn the “ENGINE START
STOP” switch to OFF.
While the vehicle is moving, initialization is not performed.
Adjust the tire inflation pressure to the specified cold tire inflation
pressure level. ( →P. 5 9 8 )
Make sure to adjust the tire pressure to the specified cold tire inflation
pressure level. The tire pressure warning system will operate based on
this pressure level.
Turn the “ENGINE START STOP” switch to IGNITION ON
mode.
Push and hold the tire pressure
warning reset switch until the tire
pressure warning light blinks
slowly three times and the mes-
sage “PRESSURE INITIAL”
appears on the multi-information
display.
Wait for a few minutes with the IGNITION ON mode, and then
turn the “ENGINE START STOP” switch to OFF.
STEP1
STEP2
STEP3
STEP4
STEP5
GS_U_G.book Page 465 Wednesday, January 27, 2010 4:48 PM

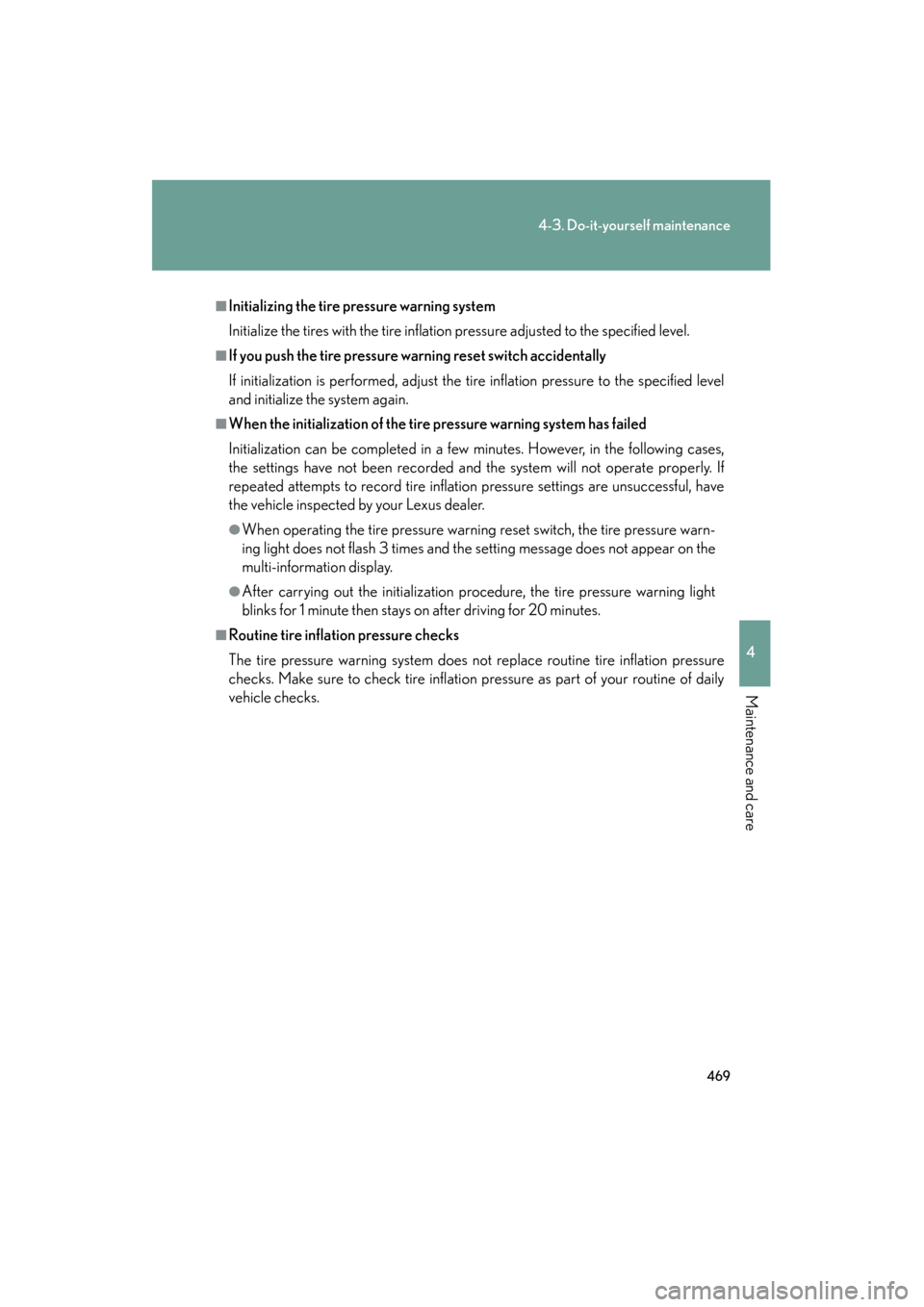

469
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
■Initializing the tire pressure warning system
Initialize the tires with the tire inflation pressure adjusted to the specified level.
■If you push the tire pressure warning reset switch accidentally
If initialization is performed, adjust the tire inflation pressure to the specified level
and initialize the system again.
■When the initialization of the tire pressure warning system has failed
Initialization can be completed in a few minutes. However, in the following cases,
the settings have not been recorded and the system will not operate properly. If
repeated attempts to record tire inflation pressure settings are unsuccessful, have
the vehicle inspected by your Lexus dealer.
●When operating the tire pressure warning reset switch, the tire pressure warn-
ing light does not flash 3 times and the setting message does not appear on the
multi-information display.
●After carrying out the initialization procedure, the tire pressure warning light
blinks for 1 minute then stays on after driving for 20 minutes.
■Routine tire inflation pressure checks
The tire pressure warning system does not replace routine tire inflation pressure
checks. Make sure to check tire inflation pressure as part of your routine of daily
vehicle checks.
GS_U_G.book Page 469 Wednesday, January 27, 2010 4:48 PM

When trouble arises5
519
GS_G_U (OM30C80U)
January 27, 2010 4:48 pm
5-1. Essential informationEmergency flashers.............. 520
If your vehicle needs to be towed ............................. 521
If you think something is wrong ..................................... 530
Fuel pump shut off system ...................................... 531
Event data recorder .............. 532 5-2. Steps to take in an
emergency
If a warning light turns on or a warning buzzer
sounds..................................... 534
If a warning message is displayed................................ 543
If you have a flat tire (Vehicles with standard tires) ............. 556
If you have a flat tire (Vehicles with run-flat tires)................ 566
If the engine will not start .... 568
If the shift lever cannot be shifted from “P”.................... 569
If you lose your keys .............. 570
If the electronic key does not operate properly............ 571
If the 12 volt battery is discharged ............................. 574
If your vehicle overheats ..... 578
If the vehicle becomes stuck......................................... 581
If your vehicle has to be stopped in an emergency .................. 583
GS_U_G.book Page 519 Wednesday, January 27, 2010 4:48 PM

5
When trouble arises

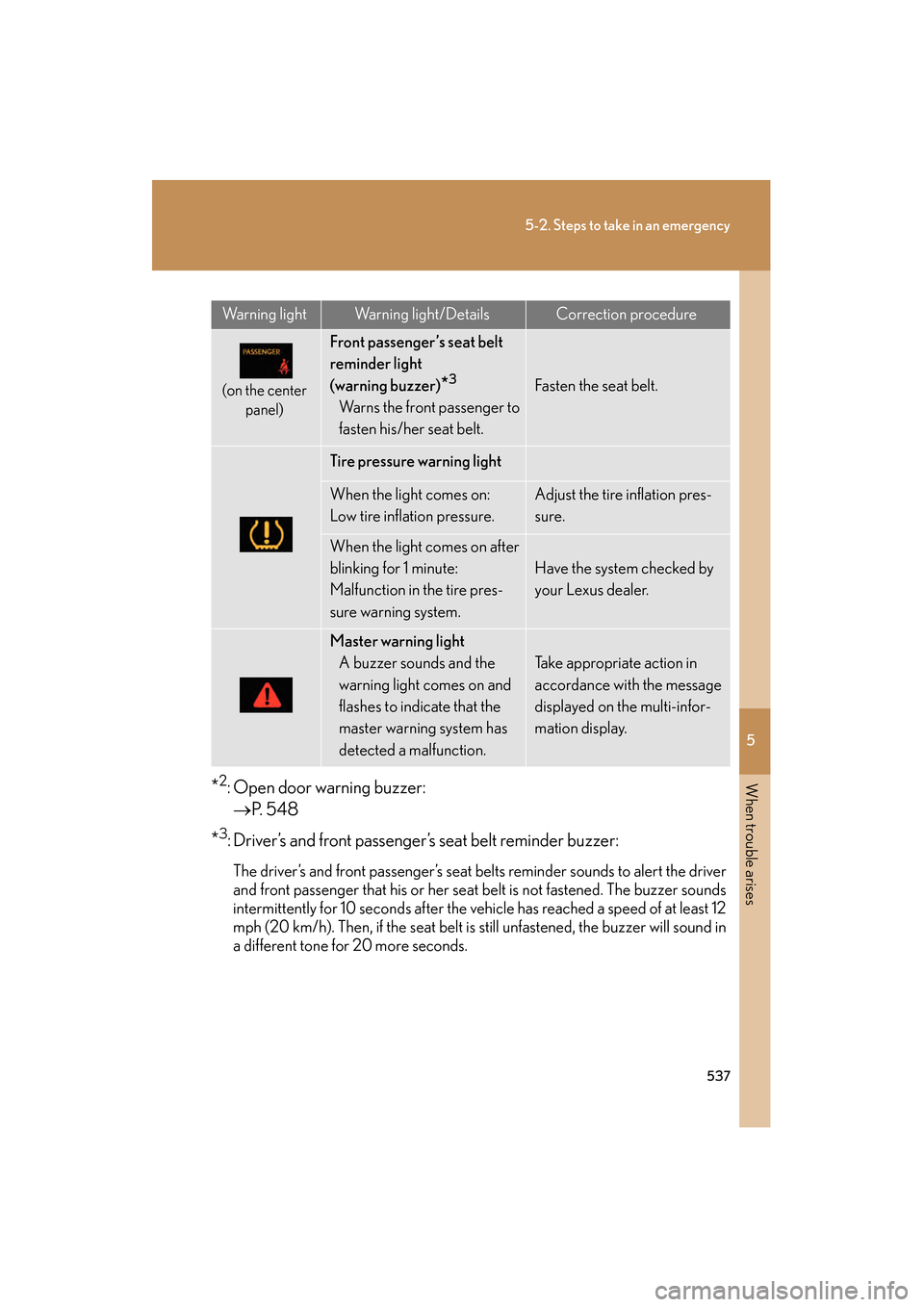

537
5-2. Steps to take in an emergency
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
*2: Open door warning buzzer:→ P. 548
*3: Driver’s and front passenger’s seat belt reminder buzzer:
The driver’s and front passenger’s seat belts reminder sounds to alert the driver
and front passenger that his or her seat belt is not fastened. The buzzer sounds
intermittently for 10 seconds after the vehicle has reached a speed of at least 12
mph (20 km/h). Then, if the seat belt is still unfastened, the buzzer will sound in
a different tone for 20 more seconds.
Warning lightWarning light/DetailsCorrection procedure
(on the center
panel)
Front passenger’s seat belt
reminder light
(warning buzzer)
*3
Warns the front passenger to
fasten his/her seat belt.
Fasten the seat belt.
Tire pressure warning light
When the light comes on:
Low tire inflation pressure.Adjust the tire inflation pres-
sure.
When the light comes on after
blinking for 1 minute:
Malfunction in the tire pres-
sure warning system.
Have the system checked by
your Lexus dealer.
Master warning light
A buzzer sounds and the
warning light comes on and
flashes to indicate that the
master warning system has
detected a malfunction.
Take appropriate action in
accordance with the message
displayed on the multi-infor-
mation display.
GS_U_G.book Page 537 Wednesday, January 27, 2010 4:48 PM

5
When trouble arises
543
5-2. Steps to take in an emergency
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
If a warning message is displayed
Stop the vehicle immediately.A buzzer sounds and a warning message is shown on the multi-informa-
tion display. The following warnings indicate the possibility of damage to
the vehicle that may lead to an accident. Immediately stop the vehicle in a
safe place and contact your Lexus dealer.
Wa r n i n g m e s s a g eDetails
(U.S.A.)
(Canada) (Flashing)
Abnormal engine oil pressure.The warning light may turn on if the engine oil pres-
sure is too low.
If a warning is shown on the multi-information display, stay calm and per-
form the following actions:
Multi-information display
Master warning light
The master warning light also
comes on or flashes in order to
indicate that a message is cur-
rently being displayed on the
multi-information display.
If any of the warning light turns on again after performing the following
actions, contact your Lexus dealer.
GS_U_G.book Page 543 Wednesday, January 27, 2010 4:48 PM

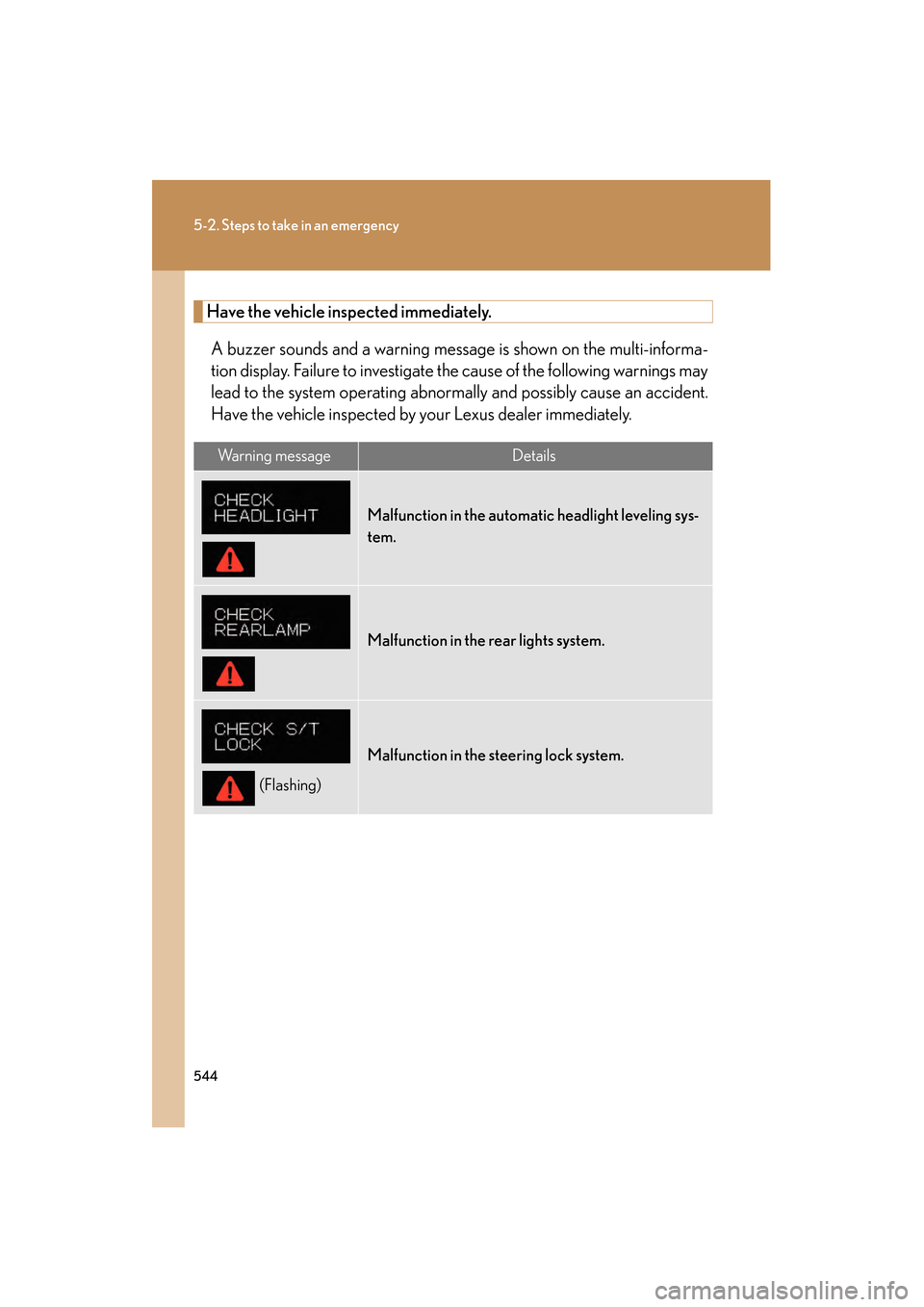

544
5-2. Steps to take in an emergency
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
Have the vehicle inspected immediately.A buzzer sounds and a warning message is shown on the multi-informa-
tion display. Failure to investigate the cause of the following warnings may
lead to the system operating abnormally and possibly cause an accident.
Have the vehicle inspected by your Lexus dealer immediately.
Wa r n i n g m e s s a g eDetails
Malfunction in the automatic headlight leveling sys-
tem.
Malfunction in the rear lights system.
(Flashing)
Malfunction in the steering lock system.
GS_U_G.book Page 544 Wednesday, January 27, 2010 4:48 PM

5
When trouble arises
545
5-2. Steps to take in an emergency
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
Wa r n i n g m e s s a g eDetails
(AWD models)
Malfunction in the AWD system.
(If equipped)
Intuitive parking assist malfunction.The malfunctioning sensor is shown flashing on the
display.
(If equipped)
Malfunction in the active stabilizer suspension sys-
tem.
(If equipped)
Malfunction in the PCS.
GS_U_G.book Page 545 Wednesday, January 27, 2010 4:48 PM

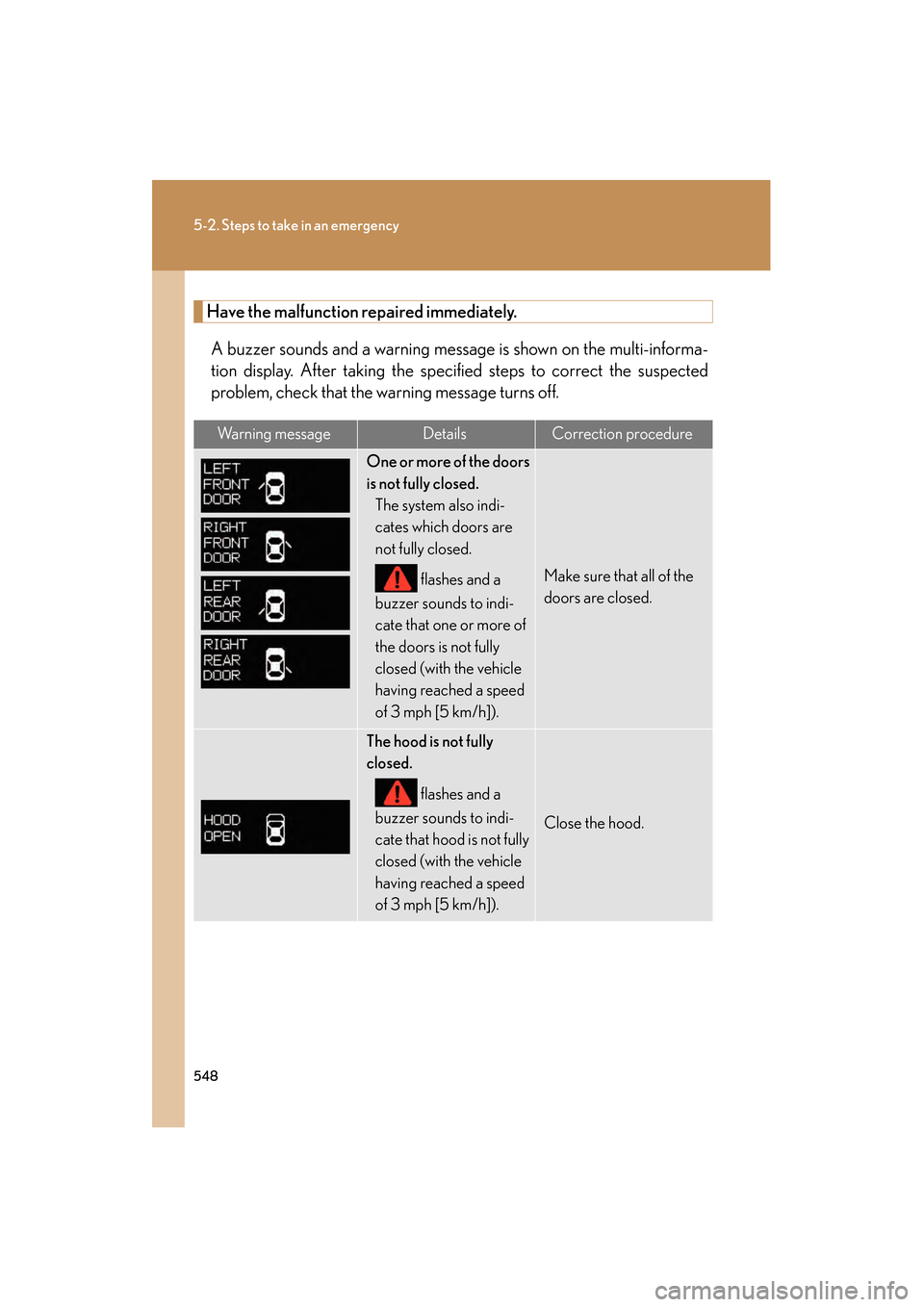

548
5-2. Steps to take in an emergency
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
Have the malfunction repaired immediately.A buzzer sounds and a warning message is shown on the multi-informa-
tion display. After taking the spec ified steps to correct the suspected
problem, check that the warning message turns off.
Wa r n i n g m e s s a g eDetailsCorrection procedure
One or more of the doors
is not fully closed.
The system also indi-
cates which doors are
not fully closed.
flashes and a
buzzer sounds to indi-
cate that one or more of
the doors is not fully
closed (with the vehicle
having reached a speed
of 3 mph [5 km/h]).
Make sure that all of the
doors are closed.
The hood is not fully
closed.
flashes and a
buzzer sounds to indi-
cate that hood is not fully
closed (with the vehicle
having reached a speed
of 3 mph [5 km/h]).
Close the hood.
GS_U_G.book Page 548 Wednesday, January 27, 2010 4:48 PM

552
5-2. Steps to take in an emergency
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
Other messagesIf the following message is displayed, take appropriate action and confirm
that the message has disappeared.
MessageDetails
(If equipped)
Calibrate the neutral position of the steering wheel.
■Initializing the steering sensor
Use one of the following methods.
●With the vehicle stopped, turn the steering wheel all the way to the left and right.
(The order is not important.)
●Drive for more than 5 minutes on an un-crowded road with as few curves and
corners as possible.
If the steering guide symbol disappears, the steering sensor has been initialized. If
the steering guide symbol does not disappear, have the vehicle checked by your
Lexus dealer.
