Lexus GS350 2010 Owner's Manual

140
2-1. Driving procedures
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm

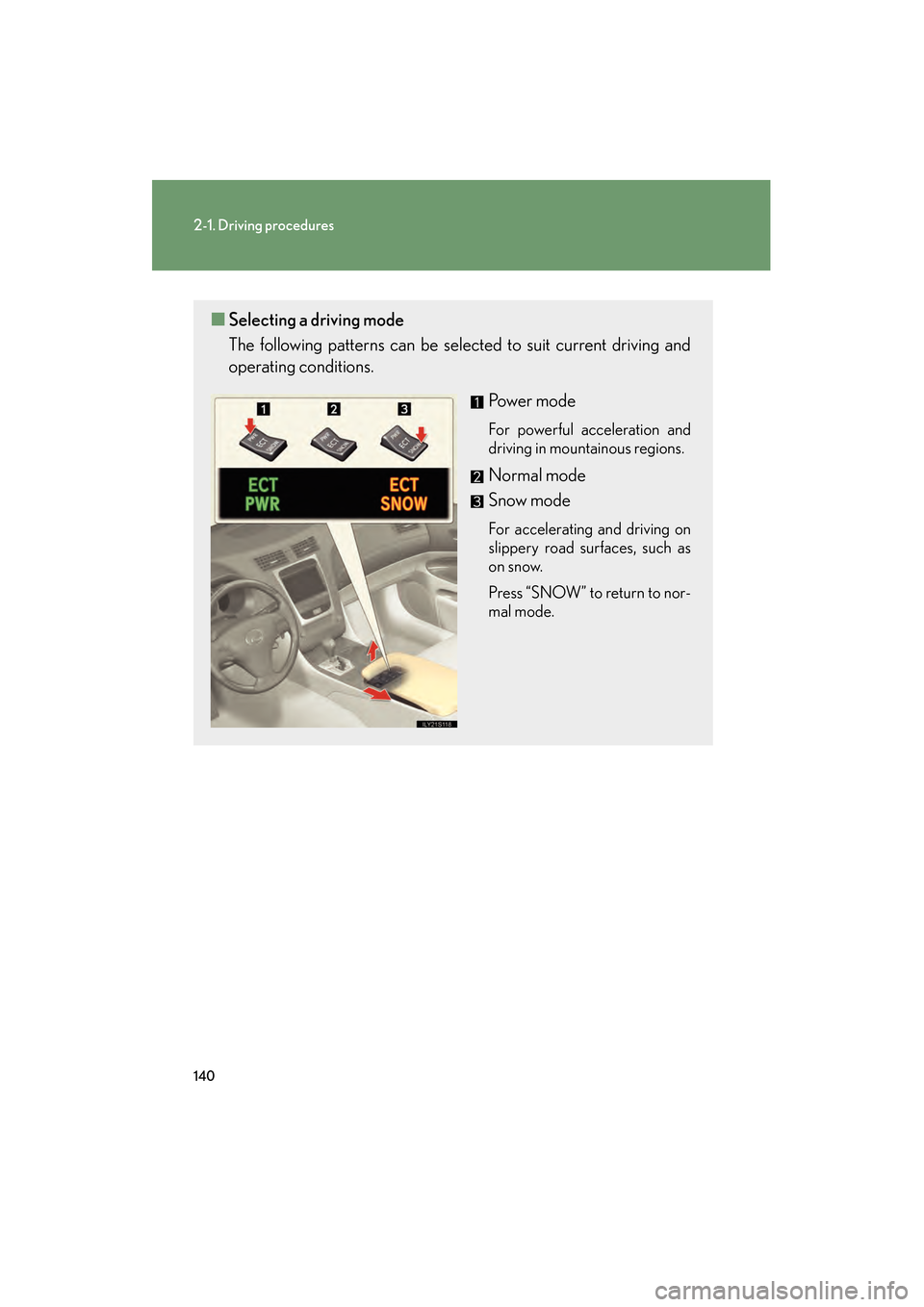

■Selecting a driving mode
The following patterns can be selected to suit current driving and
operating conditions.
Power mode
For powerful acceleration and
driving in mountainous regions.
Normal mode
Snow mode
For accelerating and driving on
slippery road surfaces, such as
on snow.
Press “SNOW” to return to nor-
mal mode.
GS_U_G.book Page 140 Wednesday, January 27, 2010 4:48 PM

141
2-1. Driving procedures
2
When driving
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm

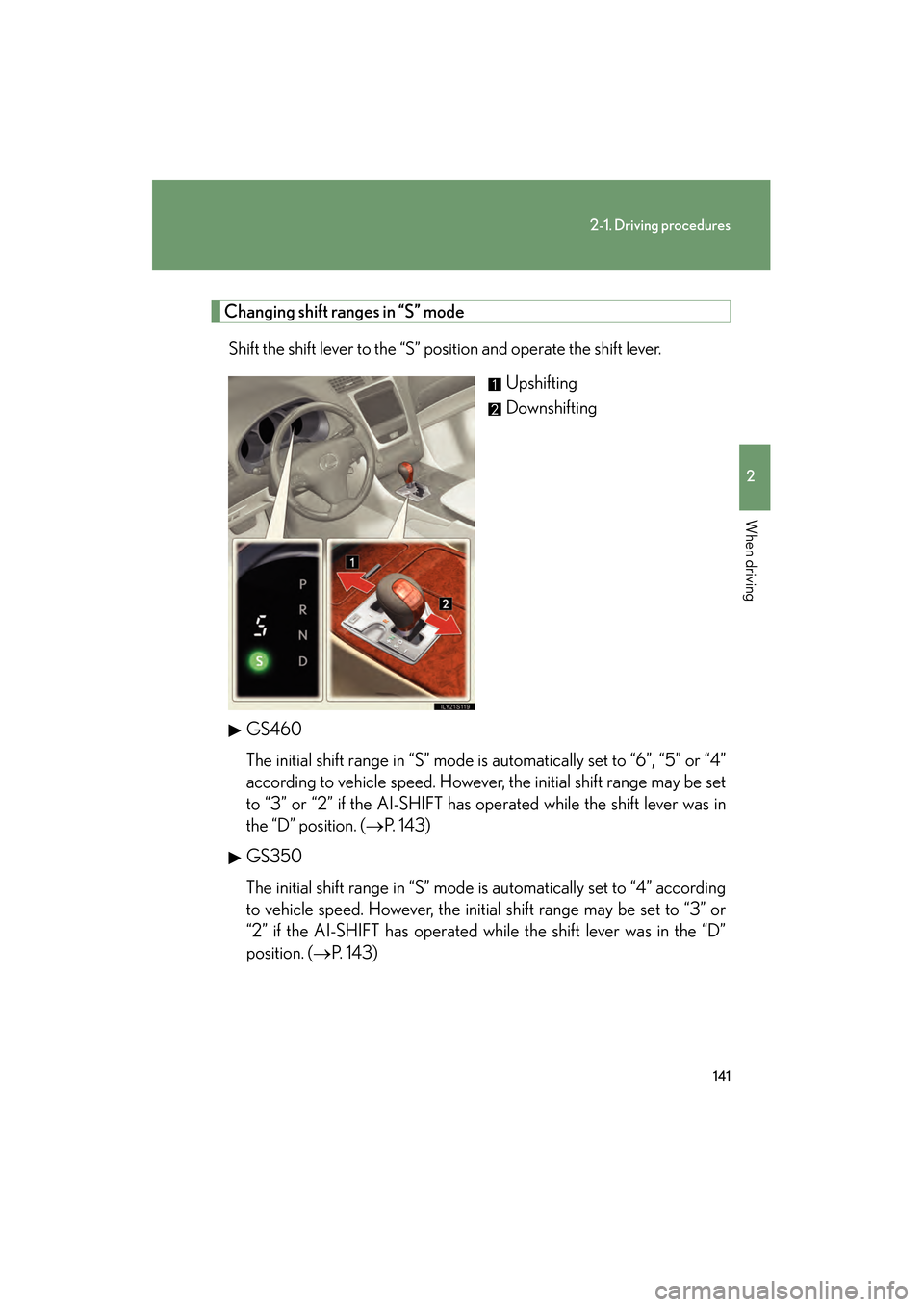

Changing shift ranges in “S” modeShift the shift lever to the “S” position and operate the shift lever. Upshifting
Downshifting
GS460
The initial shift range in “S” mode is automatically set to “6”, “5” or “4”
according to vehicle speed. However, the initial shift range may be set
to “3” or “2” if the AI-SHIFT has operated while the shift lever was in
the “D” position. ( →P. 143)
GS350
The initial shift range in “S” mode is automatically set to “4” according
to vehicle speed. However, the initial shift range may be set to “3” or
“2” if the AI-SHIFT has operated while the shift lever was in the “D”
position. (→ P. 143)
GS_U_G.book Page 141 Wednesday, January 27, 2010 4:48 PM

142
2-1. Driving procedures
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
■Shift ranges and their functions
●You can choose from 8 levels (GS460) or 6 levels (GS350) of
engine braking force.
● A lower shift range will provide greater engine braking force than a
higher shift range, and the engine revolutions will also increase.
● If you accelerate while in ranges “1” to “7” (GS460) or “1” to “5”
(GS350), the shift range may automatically range up in accordance
with the vehicle’s speed.
● A higher shift range is automatically selected when the automatic
transmission fluid temperature is high.
■“S” mode
●When the shift range is “6” (GS460) or “4” (GS350) or lower, holding the shift
lever toward “+” sets the shift range to “8” (GS460) or “6” (GS350).
●To prevent the engine from over-revving, upshifting may automatically occur.
■Downshifting restrictions warning buzzer (in the “S” mode)
To help ensure safety and driving performance, downshifting operation may some-
times be restricted. In some circumstances, downshifting may not be possible even
when the shift lever is operated. (The warning buzzer will sound twice.)
■When driving with the cruise control syst em (or dynamic radar cruise control sys-
tem)
The engine brake will not operate in the “S” mode, even when downshifting to “7”,
“6”, “5” or “4” (GS460) or “5” or “4” (GS350). ( →P. 167, 171)
■Snow mode automatic deactivation
Snow mode is automatically deactivated if the “ENGINE START STOP” switch is
turned to ACCESSORY or IGNITION ON mode after driving in snow mode.
■If the shift lever cannot be shifted from “P”
→ P. 5 6 9
GS_U_G.book Page 142 Wednesday, January 27, 2010 4:48 PM

143
2-1. Driving procedures
2
When driving
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm

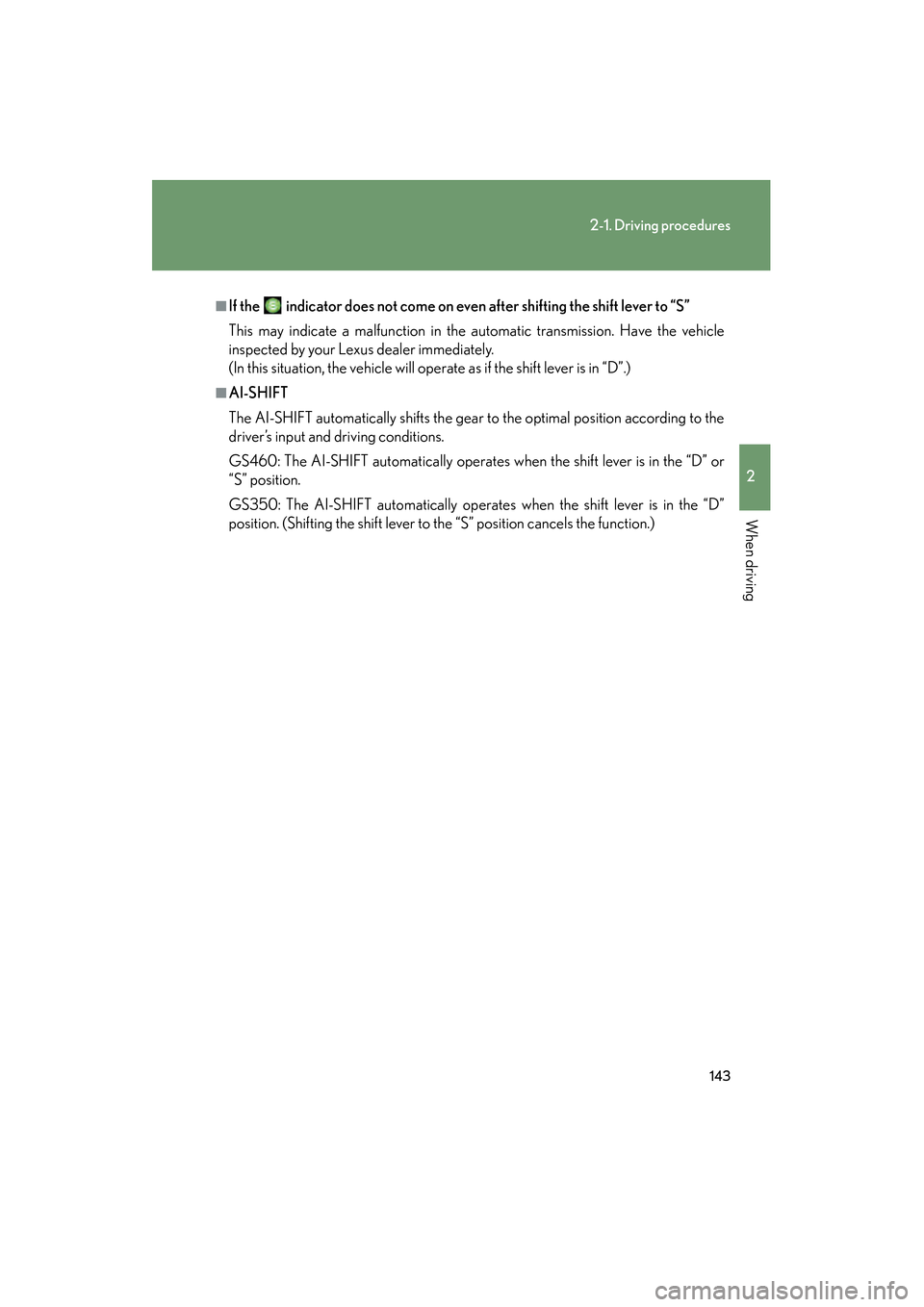

■If the indicator does not come on even after shifting the shift lever to “S”
This may indicate a malfunction in the automatic transmission. Have the vehicle
inspected by your Lexus dealer immediately.
(In this situation, the vehicle will operate as if the shift lever is in “D”.)
■AI-SHIFT
The AI-SHIFT automatically shifts the gear to the optimal position according to the
driver’s input and driving conditions.
GS460: The AI-SHIFT automatically operates when the shift lever is in the “D” or
“S” position.
GS350: The AI-SHIFT automatically operates when the shift lever is in the “D”
position. (Shifting the shift lever to the “S” position cancels the function.)
GS_U_G.book Page 143 Wednesday, January 27, 2010 4:48 PM

144
2-1. Driving procedures
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
Turn signal lever
■Turn signals can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■If the indicators flash faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned out.
Right turn
Left turn
Move and hold the lever part-
way to signal a lane change
The right hand signal will flash
until you release the lever.
Move and hold the lever part-
way to signal a lane change
The left hand signal will flash
until you release the lever.
GS_U_G.book Page 144 Wednesday, January 27, 2010 4:48 PM

145
2-1. Driving procedures
2
When driving
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
Parking brake
■Usage in winter time
See “Winter driving tips” for parking brake usage in winter time. (→P. 219)
NOTICE
■Before driving
Fully release the parking brake.
Driving the vehicle with the parking brake set will lead to brake components over-
heating, which may affect braking performance and increase brake wear.
Sets the parking brake*
(Depressing the pedal again
releases the parking brake.)
*: Fully depress the parking
brake pedal with your left
foot while depressing the
brake pedal with your right
foot.
Canada
U.S.A .
GS_U_G.book Page 145 Wednesday, January 27, 2010 4:48 PM

146
2-1. Driving procedures
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm

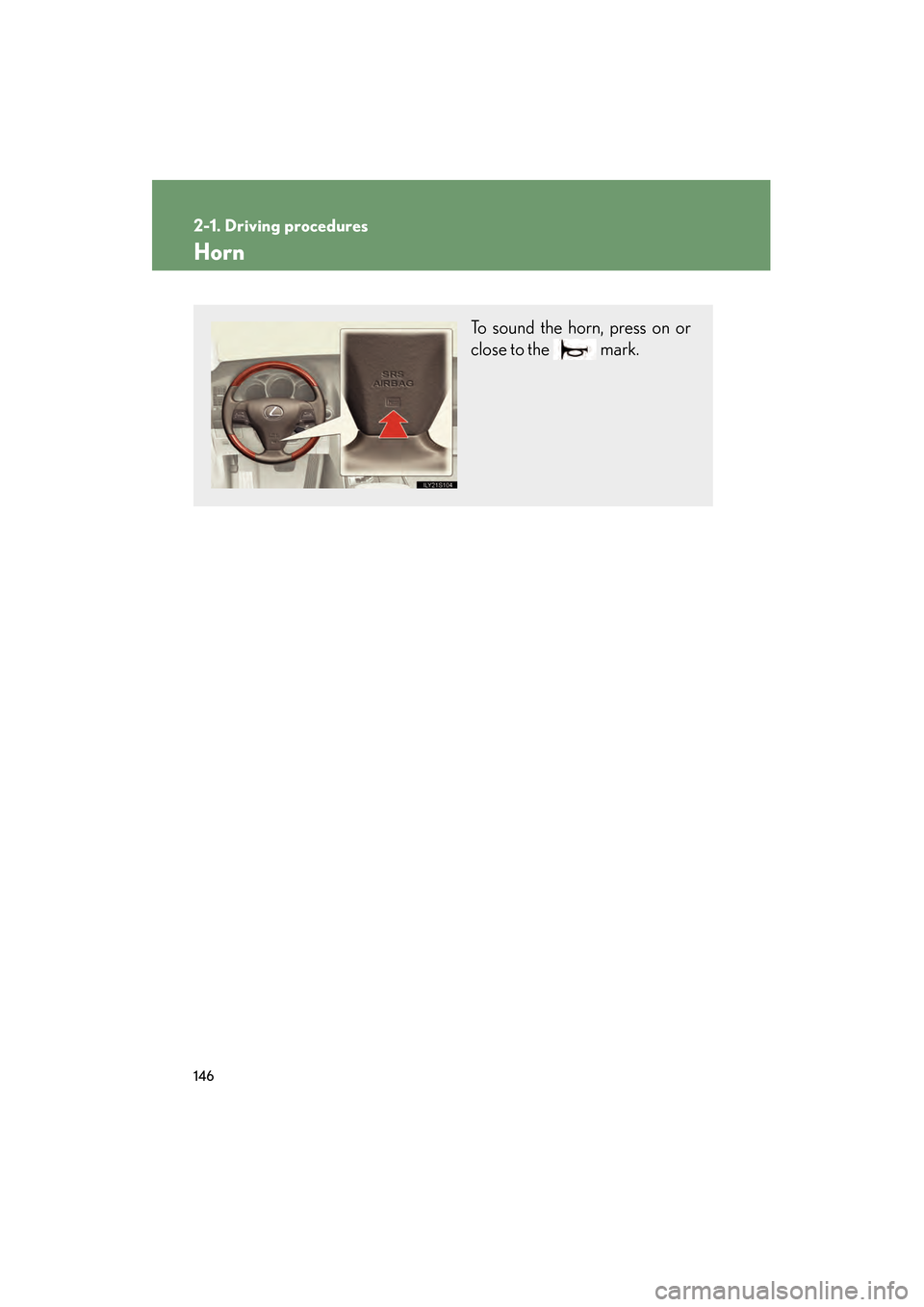

Horn
To sound the horn, press on or
close to the mark.
GS_U_G.book Page 146 Wednesday, January 27, 2010 4:48 PM

147
2
When driving
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
2-2. Instrument cluster
Gauges and meters
The units used on the speedometer may differ depending on the target
region.
The following gauges, meters and display illuminate when the
“ENGINE START STOP” switch is in IGNITION ON mode.Tachometer
Displays the engine speed in revolutions per minute.
Speedometer
Displays the vehicle speed.
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Engine coolant temperature gauge
Displays the engine coolant temperature.
Multi-information display
→ P. 1 5 4
GS_U_G.book Page 147 Wednesday, January 27, 2010 4:48 PM

148
2-2. Instrument cluster
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
M
Odometer/trip meter and trip meter reset buttons
Changes the display
Resets the trip meter driving
range to “0”.
Instrument panel light controlThe brightness of the instrument panel lights excluding the clock and out-
side temperature display, can be adjusted. Brighter
Darker
Maximum brightness
Odometer and trip meterOdometer
Displays the total distance the vehicle has been driven.
Trip meter
Displays the distance the vehicle has been driven since the meter was
last reset. Trip meters A and B can be used to record and display differ-
ent distances independently.
GS_U_G.book Page 148 Wednesday, January 27, 2010 4:48 PM

149
2-2. Instrument cluster
2
When driving
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
Light sensitive optitron meterTo reduce glare or reflection of the instrument cluster, the cluster glass is
tinted automatically or manually. Y ou can select a setting from 7 modes.
Display the present setting, then
change the mode.
To change the mode, press the but-
ton once and then again within 6
seconds.
Each time you press the button, the
mode changes in the following
order:
1. “AUTO - Norm.”
2. “AUTO - Lo”
3. “AUTO - Hi”
4. “MANUAL - 1”
5. “MANUAL - 2”
6. “MANUAL - 3”
7. “ M A N U A L - 4 ”
Mode 1 to 3: The cluster glass tint
will be adjusted automatically
depending on the intensity of sun-
light in the surrounding.
Mode 4 to 7: The cluster glass tint
will be fixed when a certain level of
sunlight is reached in the surround-
ing.
(“Norm.” to “Hi”, “1” to “4” referring
to the level of cluster glass tint.)
GS_U_G.book Page 149 Wednesday, January 27, 2010 4:48 PM
