479
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm

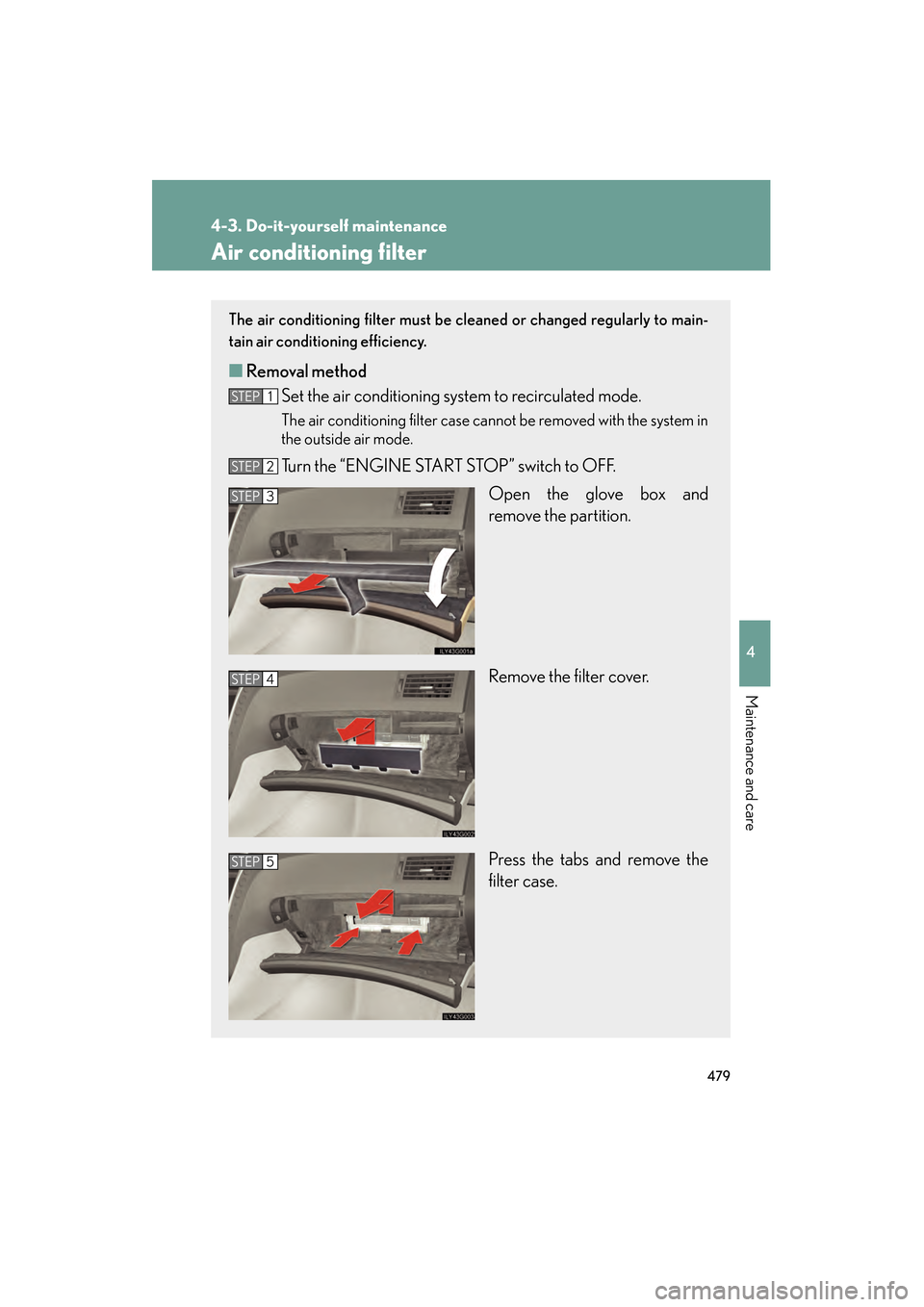

Air conditioning filter
The air conditioning filter must be cleaned or changed regularly to main-
tain air conditioning efficiency.
■ Removal method
Set the air conditioning system to recirculated mode.
The air conditioning filter case cannot be removed with the system in
the outside air mode.
Turn the “ENGINE START STOP” switch to OFF.
Open the glove box and
remove the partition.
Remove the filter cover.
Press the tabs and remove the
filter case.
STEP1
STEP2
STEP3
STEP4
STEP5
GS_U_G.book Page 479 Wednesday, January 27, 2010 4:48 PM

484
4-3. Do-it-yourself maintenance
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have blown.
If this happens, check and replace the fuses as necessary.
Turn the “ENGINE START STOP” switch to OFF.
Remove the engine compartment cover if necessary.
→P. 4 5 0
Open the fuse box cover.
■ Engine compartment
Ty p e A
Push the tabs in and lift the lid
off.
Ty p e B Push the tabs in and lift the lid
off.STEP1
STEP2
STEP3
GS_U_G.book Page 484 Wednesday, January 27, 2010 4:48 PM

491
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm

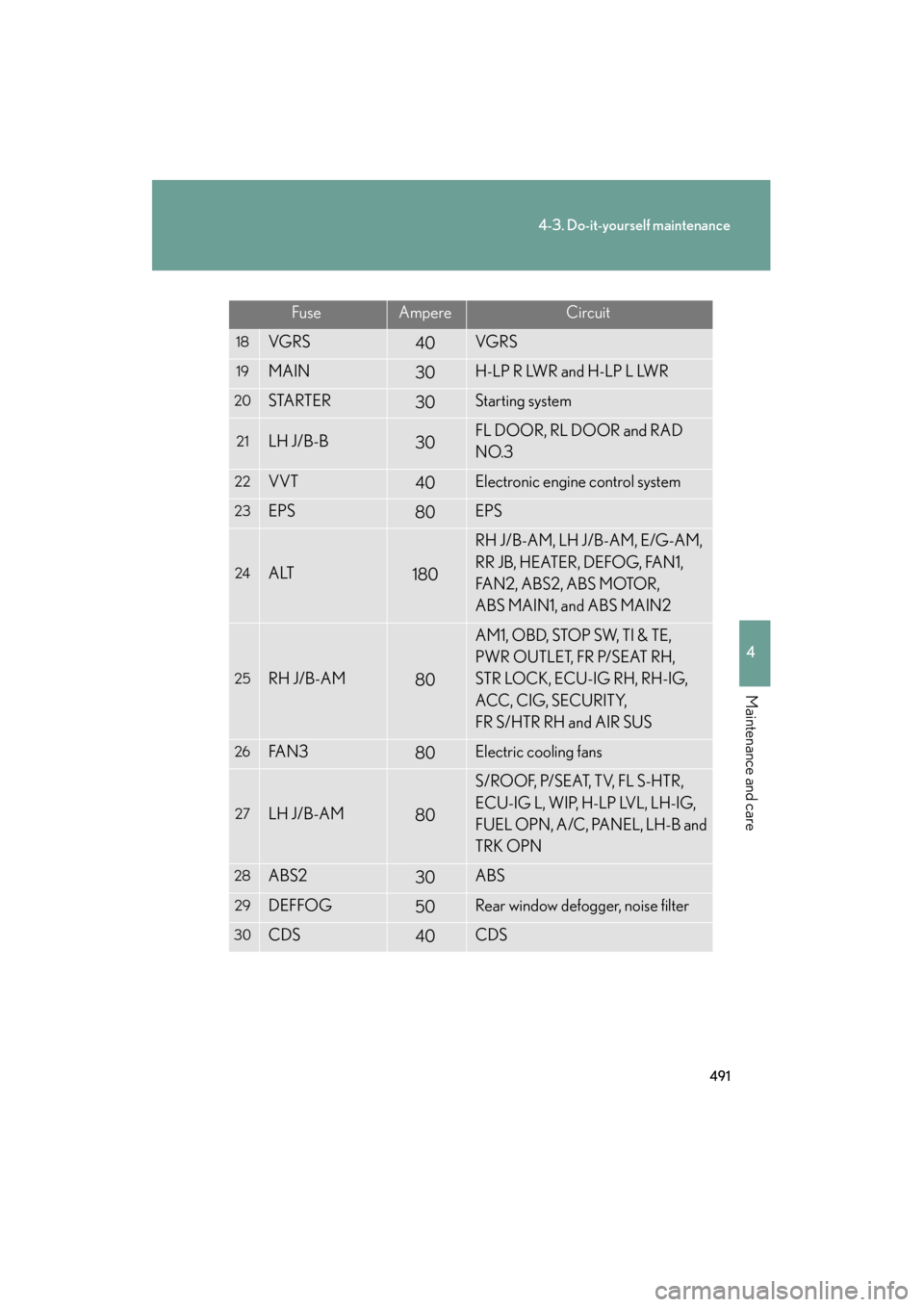

FuseAmpereCircuit
18VGRS40VGRS
19MAIN30H-LP R LWR and H-LP L LWR
20STARTER30Starting system
21LH J/B-B30FL DOOR, RL DOOR and RAD
NO.3
22VVT40Electronic engine control system
23EPS80EPS
24ALT180
RH J/B-AM, LH J/B-AM, E/G-AM,
RR JB, HEATER, DEFOG, FAN1,
FAN2, ABS2, ABS MOTOR,
ABS MAIN1, and ABS MAIN2
25RH J/B-AM80
AM1, OBD, STOP SW, TI & TE,
PWR OUTLET, FR P/SEAT RH,
STR LOCK, ECU-IG RH, RH-IG,
ACC, CIG, SECURITY,
FR S/HTR RH and AIR SUS
26FA N 380Electric cooling fans
27LH J/B-AM80
S/ROOF, P/SEAT, TV, FL S-HTR,
ECU-IG L, WIP, H-LP LVL, LH-IG,
FUEL OPN, A/C, PANEL, LH-B and
TRK OPN
28ABS230ABS
29DEFFOG50Rear window defogger, noise filter
30CDS40CDS
GS_U_G.book Page 491 Wednesday, January 27, 2010 4:48 PM

495
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm

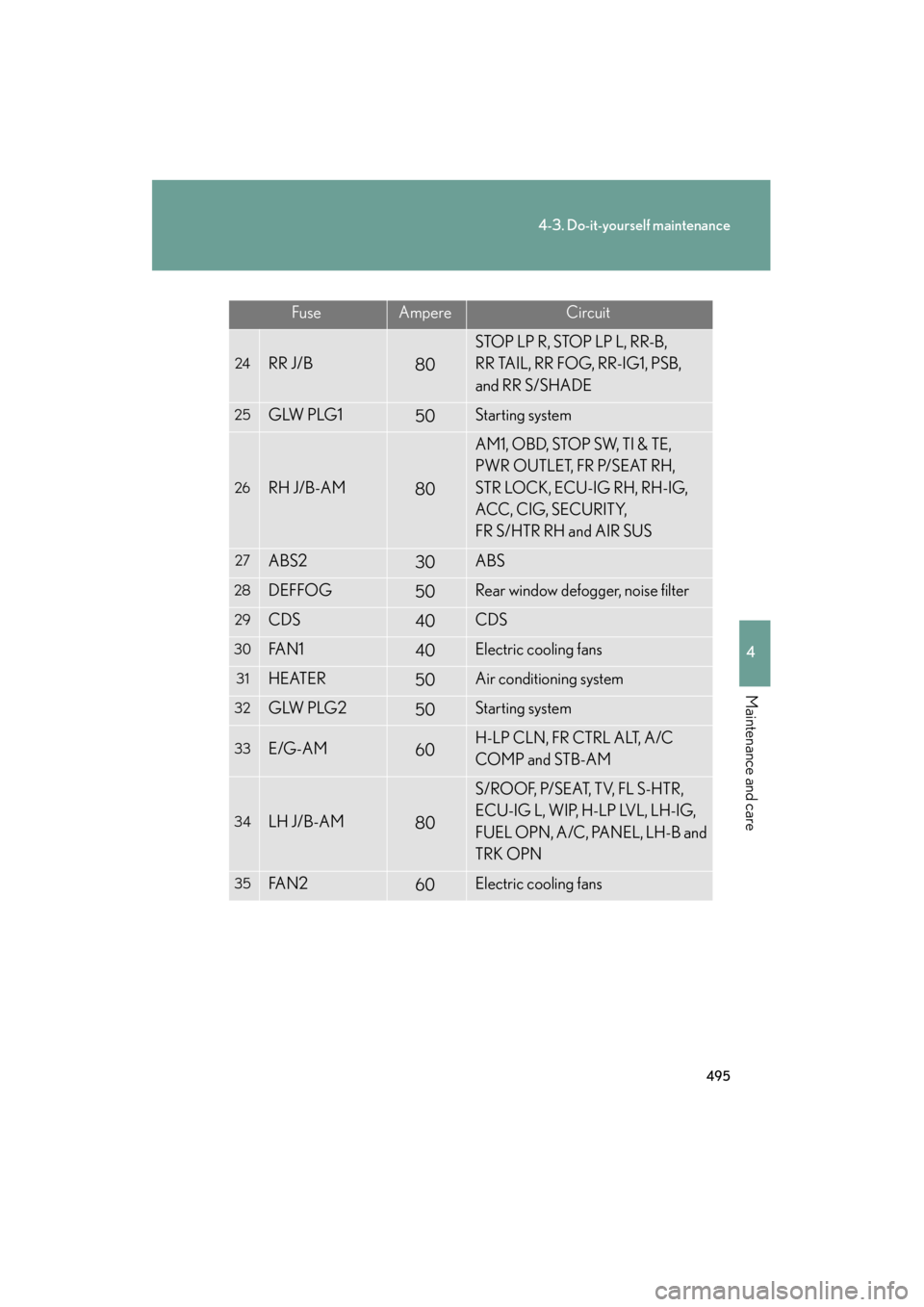

FuseAmpereCircuit
24RR J/B80
STOP LP R, STOP LP L, RR-B,
RR TAIL, RR FOG, RR-IG1, PSB,
and RR S/SHADE
25GLW PLG150Starting system
26RH J/B-AM80
AM1, OBD, STOP SW, TI & TE,
PWR OUTLET, FR P/SEAT RH,
STR LOCK, ECU-IG RH, RH-IG,
ACC, CIG, SECURITY,
FR S/HTR RH and AIR SUS
27ABS230ABS
28DEFFOG50Rear window defogger, noise filter
29CDS40CDS
30FA N 140Electric cooling fans
31HEATER50Air conditioning system
32GLW PLG250Starting system
33E/G-AM60H-LP CLN, FR CTRL ALT, A/C
COMP and STB-AM
34LH J/B-AM80
S/ROOF, P/SEAT, TV, FL S-HTR,
ECU-IG L, WIP, H-LP LVL, LH-IG,
FUEL OPN, A/C, PANEL, LH-B and
TRK OPN
35FA N 260Electric cooling fans
GS_U_G.book Page 495 Wednesday, January 27, 2010 4:48 PM

503
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
■Right side instrument panel
FuseAmpereCircuit
1FR P/SEAT RH30Power seat system
2OBD7. 5On-board diagnosis system
3STOP SW7. 5
Stop/tail lights, multi-port fuel injec-
tion system/sequential multiport fuel
injection system, starting system,
electronically controlled brake sys-
tem, Enhanced VSC system, shift
lock system, ECT ECU
4AM17. 5
5TI & TE20Tilt and telescopic steering wheel,
multiplex communication system
6SECURITY7. 5Smart access system with push-but-
ton start
7STR LOCK25Steering lock system
8GAUGE7. 5Gauges and meters
GS_U_G.book Page 503 Wednesday, January 27, 2010 4:48 PM

504
4-3. Do-it-yourself maintenance
GS_G_U (OM30C80U)
February 1, 2010 9:50 am

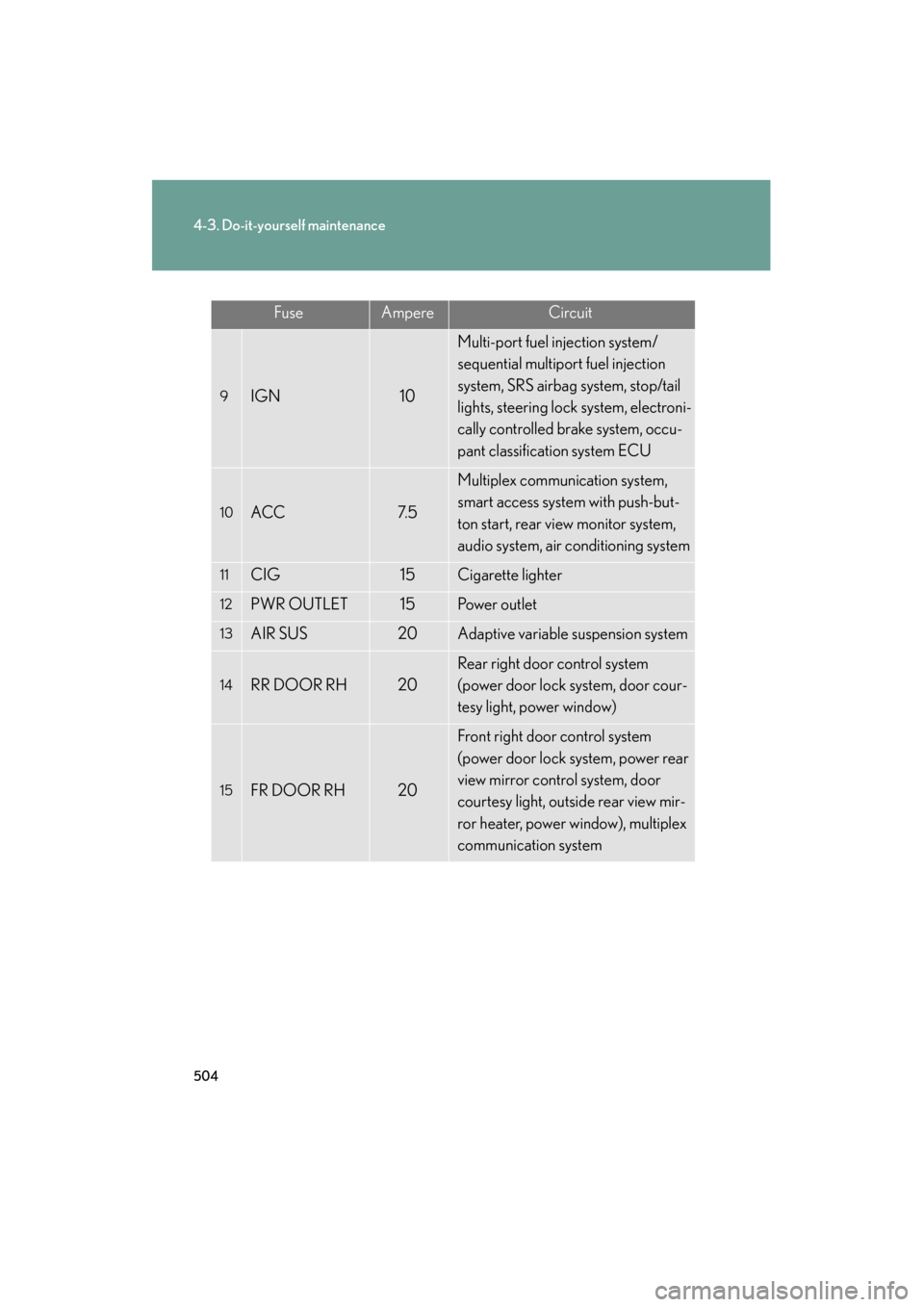

FuseAmpereCircuit
9IGN10
Multi-port fuel injection system/
sequential multiport fuel injection
system, SRS airbag system, stop/tail
lights, steering lock system, electroni-
cally controlled brake system, occu-
pant classification system ECU
10ACC7. 5
Multiplex communication system,
smart access system with push-but-
ton start, rear view monitor system,
audio system, air conditioning system
11CIG15Cigarette lighter
12PWR OUTLET15Po w e r o u t l e t
13AIR SUS20Adaptive variable suspension system
14RR DOOR RH20
Rear right door control system
(power door lock system, door cour-
tesy light, power window)
15FR DOOR RH20
Front right door control system
(power door lock system, power rear
view mirror control system, door
courtesy light, outside rear view mir-
ror heater, power window), multiplex
communication system
sec_04_03.fm Page 504 Monday, February 1, 2010 9:56 AM

When trouble arises5
519
GS_G_U (OM30C80U)
January 27, 2010 4:48 pm
5-1. Essential informationEmergency flashers.............. 520
If your vehicle needs to be towed ............................. 521
If you think something is wrong ..................................... 530
Fuel pump shut off system ...................................... 531
Event data recorder .............. 532 5-2. Steps to take in an
emergency
If a warning light turns on or a warning buzzer
sounds..................................... 534
If a warning message is displayed................................ 543
If you have a flat tire (Vehicles with standard tires) ............. 556
If you have a flat tire (Vehicles with run-flat tires)................ 566
If the engine will not start .... 568
If the shift lever cannot be shifted from “P”.................... 569
If you lose your keys .............. 570
If the electronic key does not operate properly............ 571
If the 12 volt battery is discharged ............................. 574
If your vehicle overheats ..... 578
If the vehicle becomes stuck......................................... 581
If your vehicle has to be stopped in an emergency .................. 583
GS_U_G.book Page 519 Wednesday, January 27, 2010 4:48 PM

522
5-1. Essential information
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm

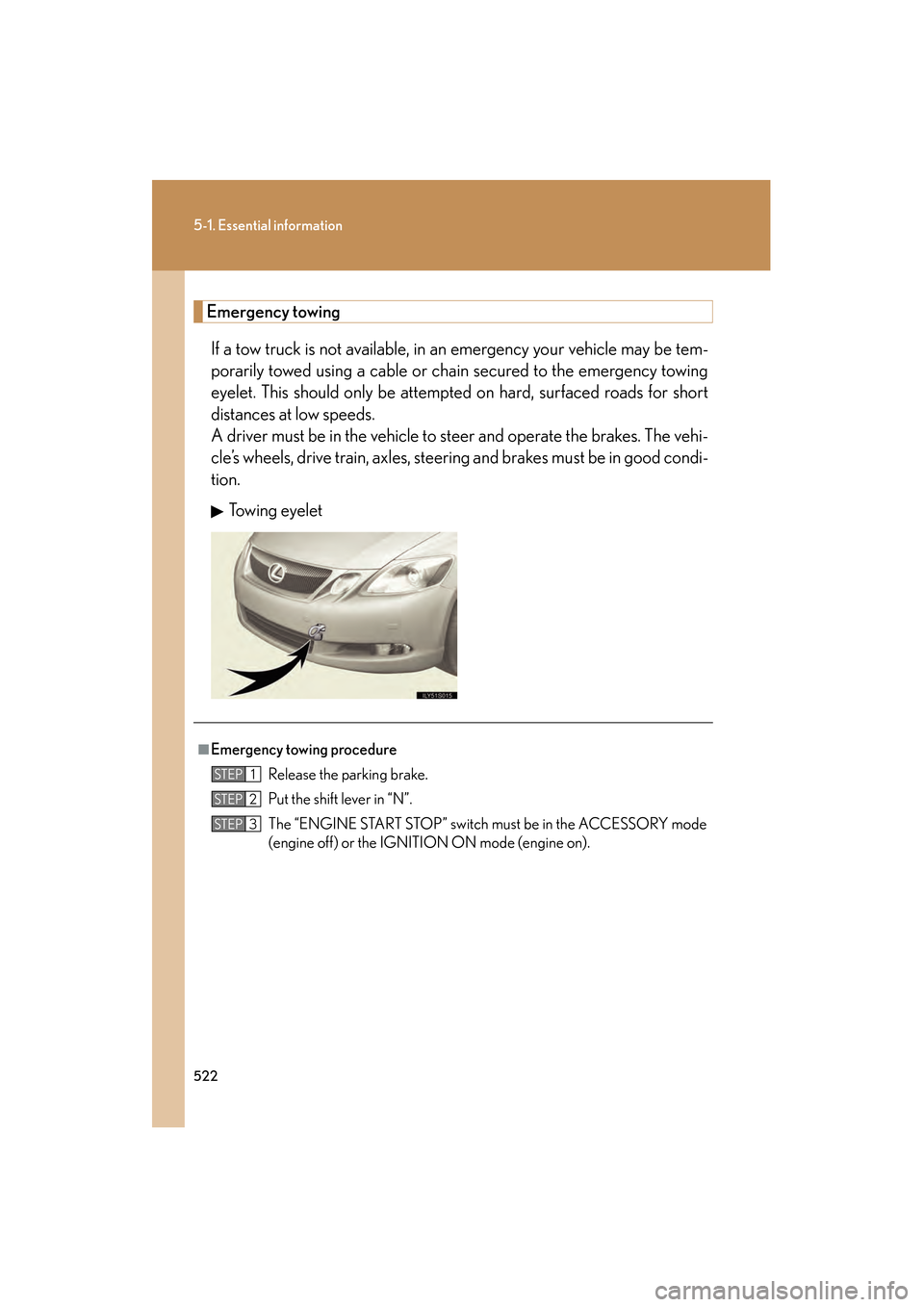

Emergency towingIf a tow truck is not available, in an emergency your vehicle may be tem-
porarily towed using a cable or chain secured to the emergency towing
eyelet. This should only be attempted on hard, surfaced roads for short
distances at low speeds.
A driver must be in the vehicle to steer and operate the brakes. The vehi-
cle’s wheels, drive train, axles, steer ing and brakes must be in good condi-
tion.
Towing eyelet
■Emergency towing procedure Release the parking brake.
Put the shift lever in “N”.
The “ENGINE START STOP” switch must be in the ACCESSORY mode
(engine off) or the IGNITION ON mode (engine on).
STEP1
STEP2
STEP3
GS_U_G.book Page 522 Wednesday, January 27, 2010 4:48 PM

5
When trouble arises
527
5-1. Essential information
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
Towing with a wheel lift-type truckFrom front Use a towing dolly under the rear
wheels.
From rear (2WD models) Turn the “ENGINE START STOP”
switch to the ACCESSORY mode
so that the steering wheel is
unlocked.
From rear (4WD models) Use a towing dolly under the front
wheels.
GS_U_G.book Page 527 Wednesday, January 27, 2010 4:48 PM

528
5-1. Essential information
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm

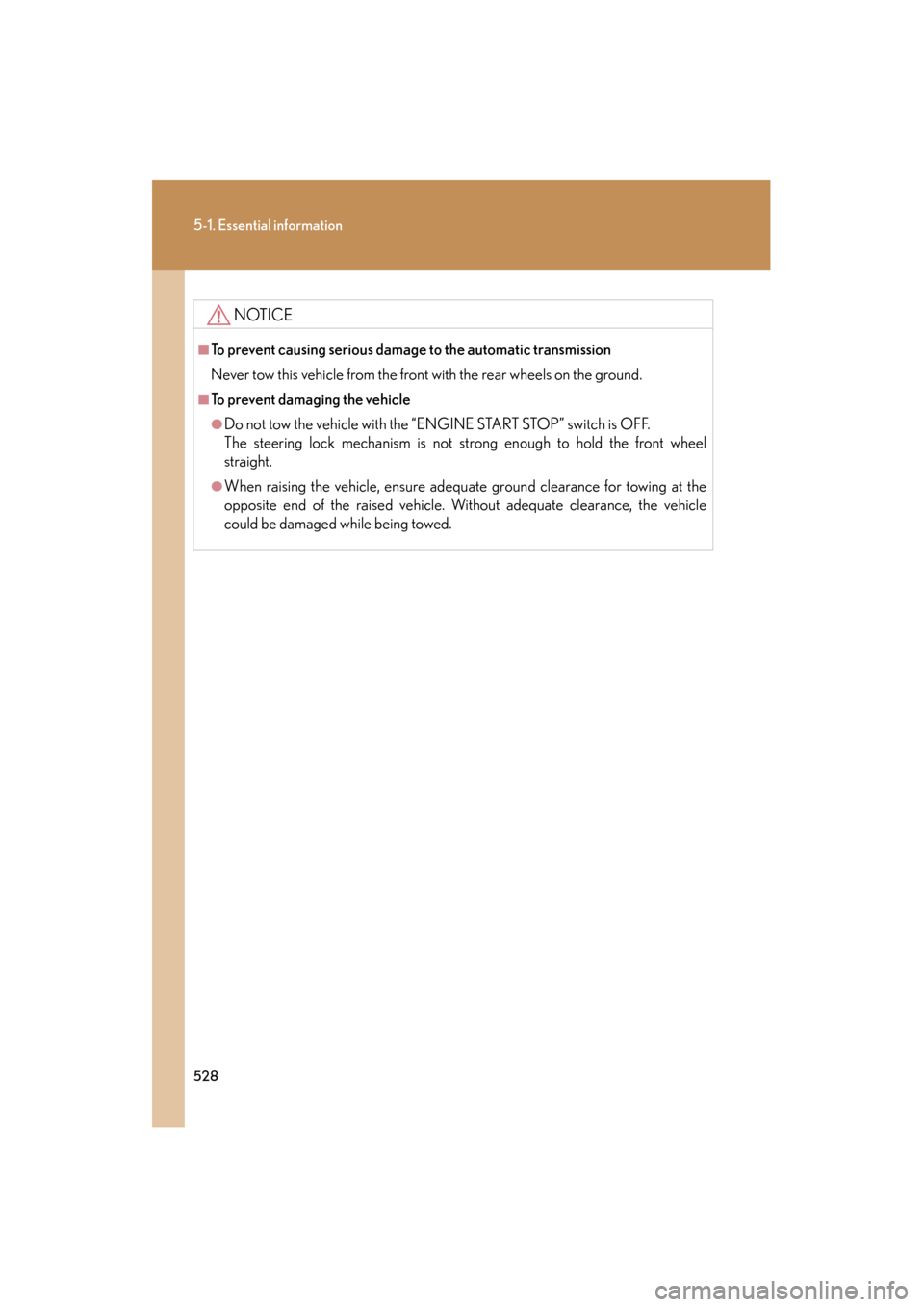

NOTICE
■To prevent causing serious damage to the automatic transmission
Never tow this vehicle from the front with the rear wheels on the ground.
■To prevent damaging the vehicle
●Do not tow the vehicle with the “ENGINE START STOP” switch is OFF.
The steering lock mechanism is not strong enough to hold the front wheel
straight.
●When raising the vehicle, ensure adequate ground clearance for towing at the
opposite end of the raised vehicle. Without adequate clearance, the vehicle
could be damaged while being towed.
GS_U_G.book Page 528 Wednesday, January 27, 2010 4:48 PM
