For your information
Main Owner’s Manual
Please note that this manual applies to all models and explains all equipment, includ-
ing options. Therefore, you may find some explanations for equipment not installed
on your vehicle.
All specifications provided in this manual are current at the time of printing. How-
ever, because of the Lexus policy of continual product improvement, we reserve the
right to make changes at any time without notice.
Depending on specifications, the vehicle shown in the illustration may differ from
your vehicle in terms of color and equipment.
Noise from under vehicle after turning off the engine
Approximately five hours after the engine is turned off, you may hear sound coming
from under the vehicle for several minutes. This is the sound of a fuel evaporation
leakage check and, it does not indicate a malfunction.
Accessories, spare parts and modification of your Lexus
A wide variety of non-genuine spare parts and accessories for Lexus vehicles are
currently available in the market. You should know that Toyota does not warrant
these products and is not responsible for their performance, repair, or replacement,
or for any damage they may cause to, or adverse effect they may have on, your
Lexus vehicle.
This vehicle should not be modified with non-genuine Lexus products. Modification
with non-genuine Lexus products could affect its performance, safety or durability,
and may even violate governmental regulations. In addition, damage or perfor-
mance problems resulting from the modification may not be covered under war-
ranty.
GS_U_G.book Page 18 Wednesday, January 27, 2010 4:48 PM

37
1-2. Opening, closing and locking the doors and trunk
1
Before driving
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
●Gripping the door handle when wearing a glove may not unlock the door.
●If the wireless remote control is used to lock the doors when the electronic key
is near the vehicle, there is a possibility that the door may not be unlocked by the
smart access system with push-button start. (Use the wireless remote control to
unlock the doors.)
●A sudden approach to the effective range or door handle operation may pre-
vent the doors from being unlocked. In this case, return the door handle to the
original position and check that the doors unlock before pulling the door handle
again.
■When the vehicle is not driven for extended periods
To prevent theft of the vehicle, do not leave the electronic key within 6 ft. (2 m) of
the vehicle.
■Security feature
If a door is not opened within approximately 60 seconds after the vehicle is
unlocked, the theft deterrent system automatically locks the vehicle again.
■Alarms and warn ing indicators
A combination of exterior and interior alarms as well as warnings displayed on the
multi-information display are used to prevent theft of the vehicle and unforeseeable
accidents resulting from erroneous operation. Take appropriate measures in
response to any warning indications on the multi-information display. ( →P. 5 5 3 )
The following table describes circumstances and correction procedures when only
alarms are sounded.
GS_U_G.book Page 37 Wednesday, January 27, 2010 4:48 PM

39
1-2. Opening, closing and locking the doors and trunk
1
Before driving
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
■If the smart access system with push-button start does not operate properly
●Locking and unlocking the doors and trunk: Use the mechanical key.
(→ P. 5 7 1 )
●Starting the engine: →P. 5 7 2
■When the electronic key battery is fully depleted
→P. 4 8 2
■Customization that can be configured at Lexus dealer
Settings (e.g. smart access system with push-button start) can be changed.
(Customizable features →P. 6 1 8 )
■Certification for the smart access system with push-button start
For vehicles sold in the U.S.A.
NOTE:
This device complies with part 15 of the FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment. For vehicles sold in Canada
NOTE:
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interfer-
ence that may cause undesired operation of the device.
FCC ID: NI4TMLF-1
FCC ID: HYQ14AAB
FCC ID: HYQ14ABB
FCC ID: HYQ13BZLFCC ID: HYQ14ABK
FCC ID: HYQ14ABS
FCC ID: HYQ13BZT
GS_U_G.book Page 39 Wednesday, January 27, 2010 4:48 PM

42
1-2. Opening, closing and locking the doors and trunk
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
■Security feature
→P. 3 7
■If the wireless remote control does not operate properly
● Locking and unlocking the doors and trunk: Use the mechanical key.
(→ P. 5 7 1 )
●Starting the engine. ( →P. 5 7 2 )
■Electronic key battery depletion
→ P. 3 5
■When the electronic key battery is fully depleted
→P. 4 8 2
■Conditions affecting operation
→P. 3 3
■Customization that can be configured at Lexus dealer
Settings (e.g. 2-step unlocking function, trunk unlocking function) can be changed.
(Customizable features →P. 6 1 8 )
■Certification for wireless remote control
For vehicles sold in the U.S.A
NOTE:
This device complies with part 15 of the FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
For vehicles sold in Canada
NOTE:
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interfer-
ence that may cause undesired operation of the device.
GS_U_G.book Page 42 Wednesday, January 27, 2010 4:48 PM

45
1-2. Opening, closing and locking the doors and trunk
1
Before driving
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
Automatic door locking and unlocking systems
The following functions can be set or canceled:
■ Setting and canceling the functions
To switch between setting and canceling, follow the procedure below:
Close all the doors and switch the “ENGINE START STOP”
switch to IGNITION ON mode. (Perform step 2 within 10 sec-
onds.) Shift the shift lever to “P” or “N”,
press and hold the driver’s door
lock switch (
or ) for
approximately 5 seconds and then
release.
The shift lever and switch positions
corresponding to the desired func-
tion to be set are shown as follows.
Use the same procedure to cancel
the function.
FunctionOperation
Shift position linked door
locking functionShifting the shift lever out of “P” locks all doors.
Shift position linked door
unlocking functionShifting the shift lever to “P” unlocks all doors.
Speed linked door locking
functionAll doors are locked when the vehicle speed is
approximately 12 mph (20 km/h) or higher.
Driver’s door linked door
unlocking functionAll doors are unlocked when the driver’s door is
opened within 10 seconds after turning the
“ENGINE START STOP” switch OFF.
STEP1
STEP2
GS_U_G.book Page 45 Wednesday, January 27, 2010 4:48 PM

47
1-2. Opening, closing and locking the doors and trunk
1
Before driving
GS_G_U (OM30C80U)
January 29, 2010 1:07 pm

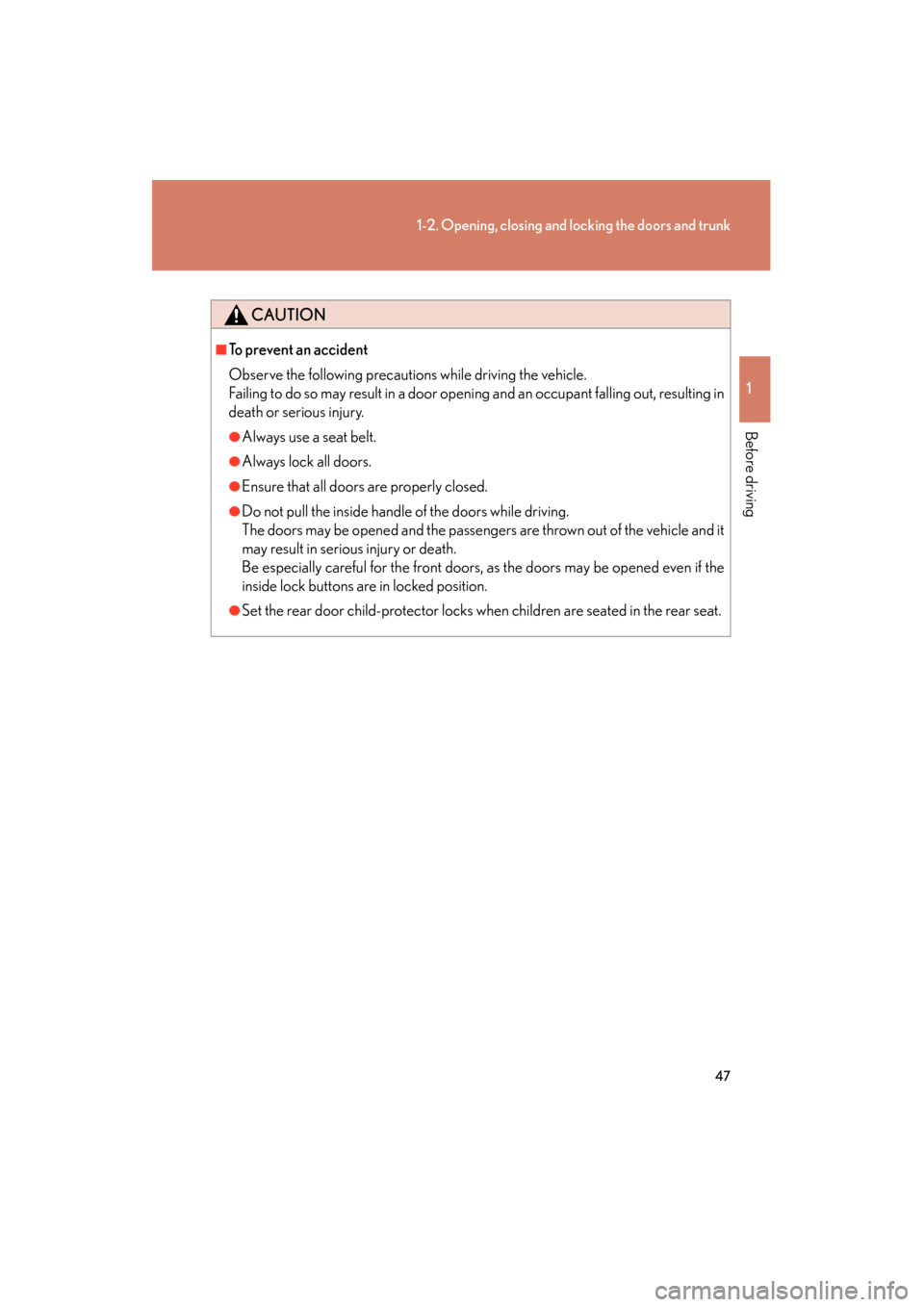

CAUTION
■To prevent an accident
Observe the following precautions while driving the vehicle.
Failing to do so may result in a door opening and an occupant falling out, resulting in
death or serious injury.
●Always use a seat belt.
●Always lock all doors.
●Ensure that all doors are properly closed.
●Do not pull the inside handle of the doors while driving.
The doors may be opened and the passengers are thrown out of the vehicle and it
may result in serious injury or death.
Be especially careful for the front doors, as the doors may be opened even if the
inside lock buttons are in locked position.
●Set the rear door child-protector locks when children are seated in the rear seat.
sec_01-02.fm Page 47 Friday, January 29, 2010 1:07 PM

58
1-3. Adjustable components (seats, mirrors, steering wheel)
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
■Canceling the linked door unlock operation
Close the driver’s door with the “ENGINE START STOP” switch set to
the OFF.
Push the “SET” button and the button on the wireless remote control
at the same time for about 1 second until you hear 2 beeps.
■Retained accessory power With front passenger’s seat memory
●Each memorized position (except for the tilt and telescopic steering column)
can be recalled within 3 minutes after the corresponding side door is opened,
even if the “ENGINE START STOP” switch is turned to OFF.
●Driver’s side: Each memorized position (except for the tilt and telescopic steer-
ing column) can be recalled within 60 seconds after the driver’s door is closed,
even if the “ENGINE START STOP” switch is turned to OFF.Without front passenger’s seat memory
●Each memorized position (except for the tilt and telescopic steering column)
can be recalled within 3 minutes after the driver’s door is opened, even if the
“ENGINE START STOP” switch is turned to OFF.
●Each memorized position (except for the tilt and telescopic steering column)
can be recalled within 60 seconds after the driver’s door is closed, even if the
“ENGINE START STOP” switch is turned to OFF.
■If any position memory button is push ed while the adjustments are being made
The operation will stop. To reactivate the system, push the desired button (“1”, “2” or
“3”) again.
■If the 12 volt battery is disconnected
The memorized positions must be reset because the computer’s memory is erased
when the 12 volt battery is disconnected.
STEP1
STEP2
GS_U_G.book Page 58 Wednesday, January 27, 2010 4:48 PM

62
1-3. Adjustable components (seats, mirrors, steering wheel)
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm

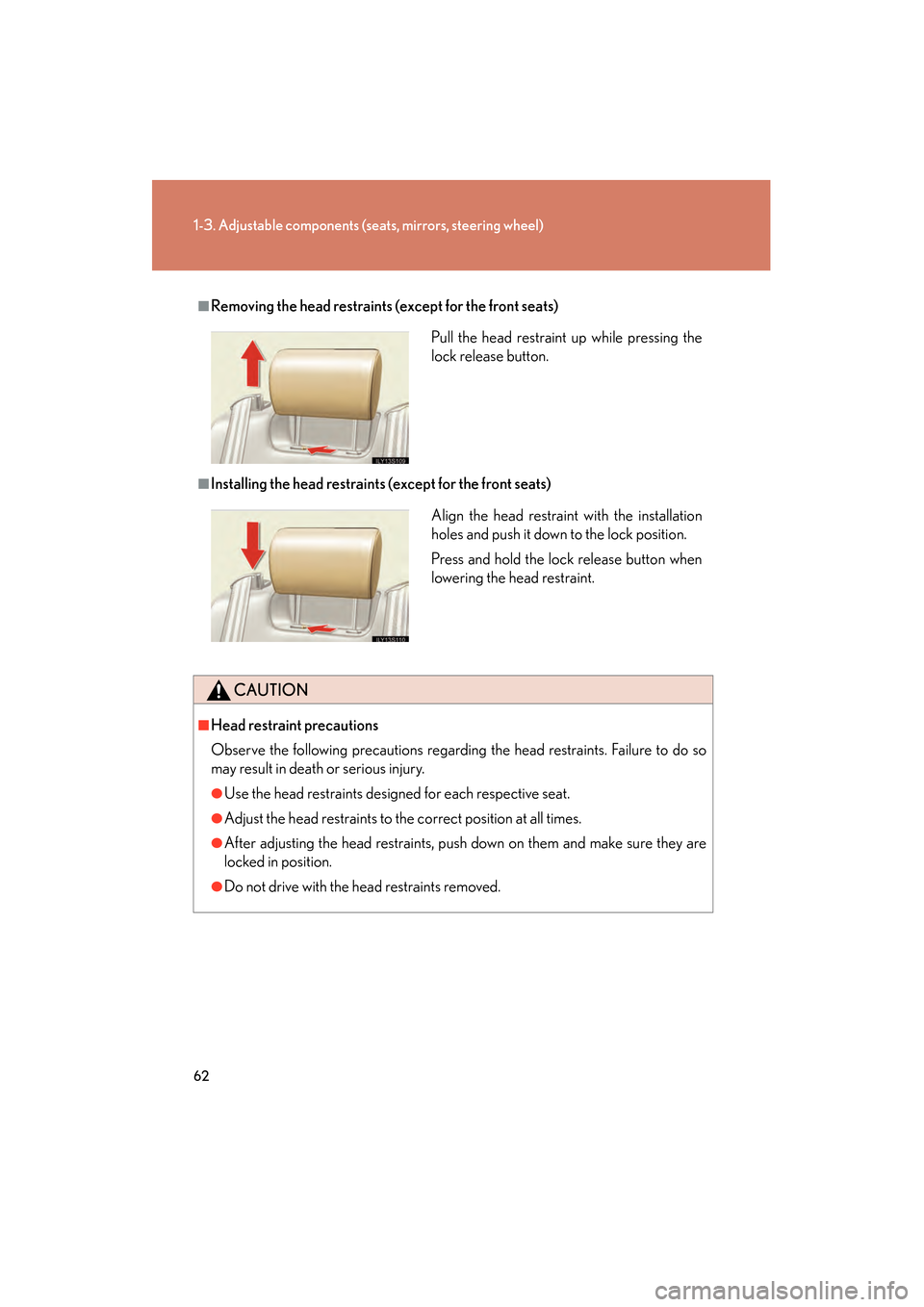

■Removing the head restraints (except for the front seats)
■Installing the head restraints (except for the front seats)
CAUTION
■Head restraint precautions
Observe the following precautions regarding the head restraints. Failure to do so
may result in death or serious injury.
●Use the head restraints designed for each respective seat.
●Adjust the head restraints to the correct position at all times.
●After adjusting the head restraints, push down on them and make sure they are
locked in position.
●Do not drive with the head restraints removed.
Pull the head restraint up while pressing the
lock release button.
Align the head restraint with the installation
holes and push it down to the lock position.
Press and hold the lock release button when
lowering the head restraint.
GS_U_G.book Page 62 Wednesday, January 27, 2010 4:48 PM

69
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm

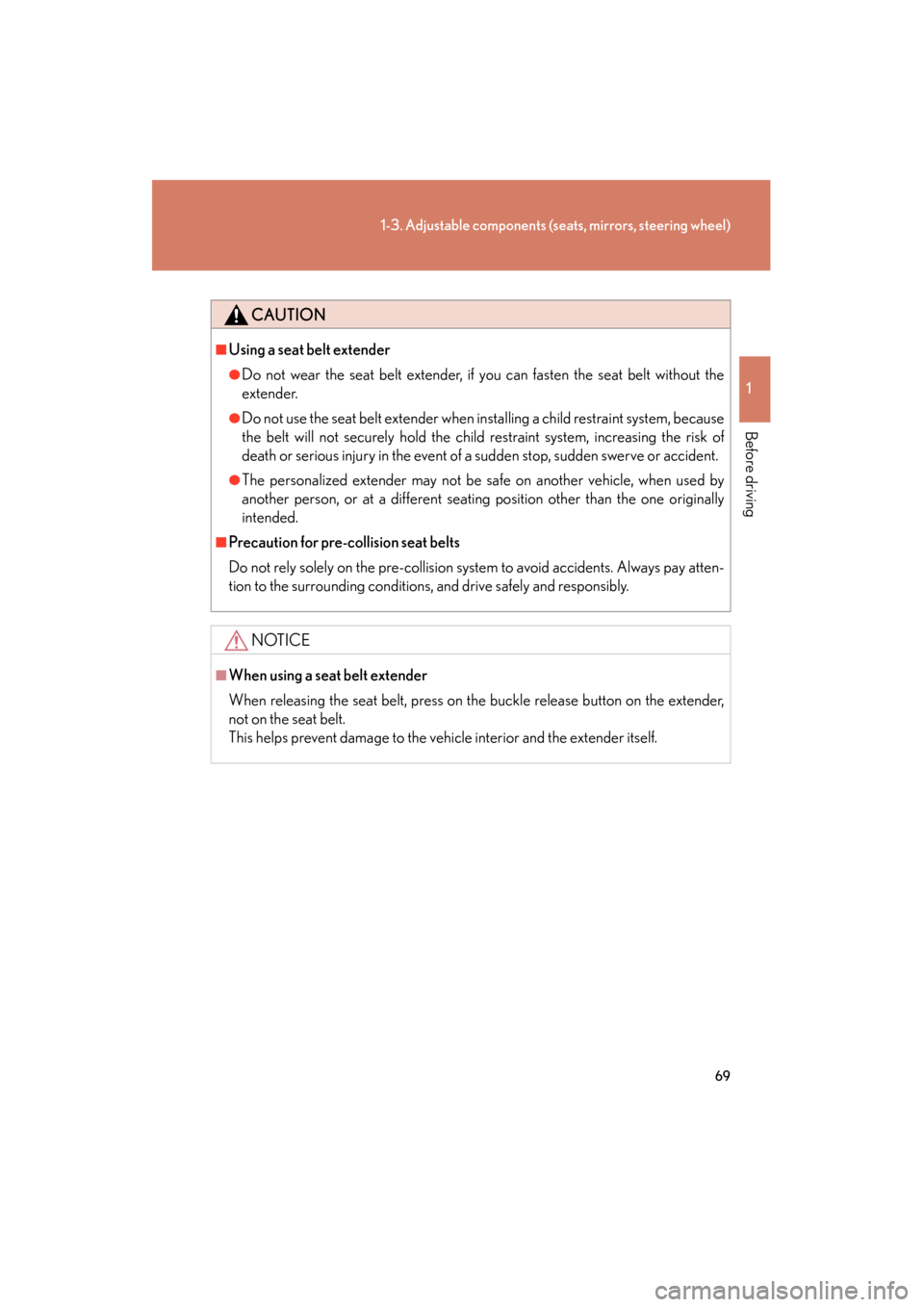

CAUTION
■Using a seat belt extender
●Do not wear the seat belt extender, if you can fasten the seat belt without the
extender.
●Do not use the seat belt extender when installing a child restraint system, because
the belt will not securely hold the child restraint system, increasing the risk of
death or serious injury in the event of a sudden stop, sudden swerve or accident.
●The personalized extender may not be safe on another vehicle, when used by
another person, or at a different seating position other than the one originally
intended.
■Precaution for pre-collision seat belts
Do not rely solely on the pre-collision system to avoid accidents. Always pay atten-
tion to the surrounding conditions, and drive safely and responsibly.
NOTICE
■When using a seat belt extender
When releasing the seat belt, press on the buckle release button on the extender,
not on the seat belt.
This helps prevent damage to the vehicle interior and the extender itself.
GS_U_G.book Page 69 Wednesday, January 27, 2010 4:48 PM

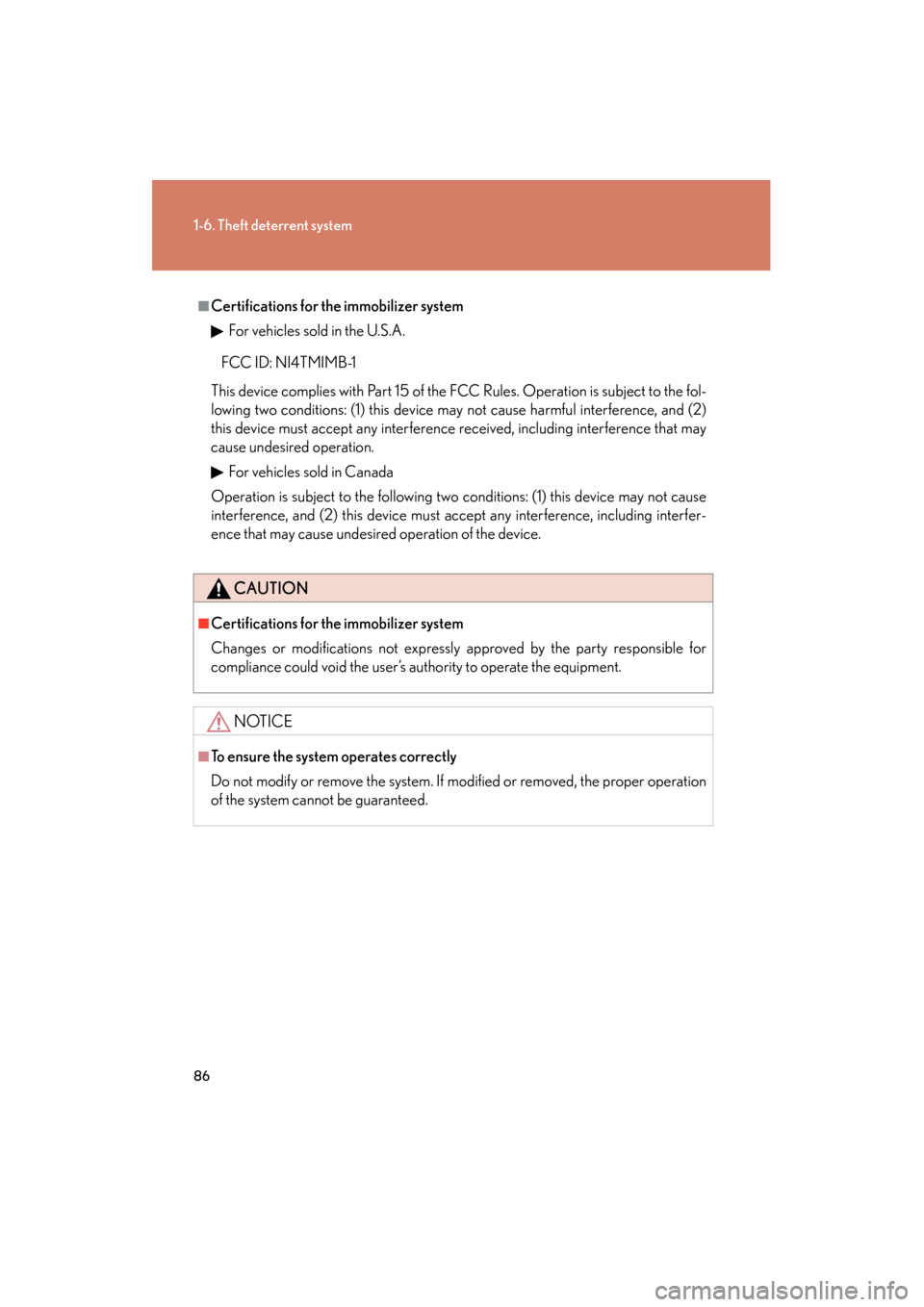

86
1-6. Theft deterrent system
GS_G_U (OM30C80U)
January 27, 2010 4:48 pm
■Certifications for the immobilizer system For vehicles sold in the U.S.A.
This device complies with Part 15 of the FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation. For vehicles sold in Canada
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interfer-
ence that may cause undesired operation of the device.
CAUTION
■Certifications for the immobilizer system
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper operation
of the system cannot be guaranteed.
FCC ID: NI4TMIMB-1
GS_U_G.book Page 86 Wednesday, January 27, 2010 4:48 PM
