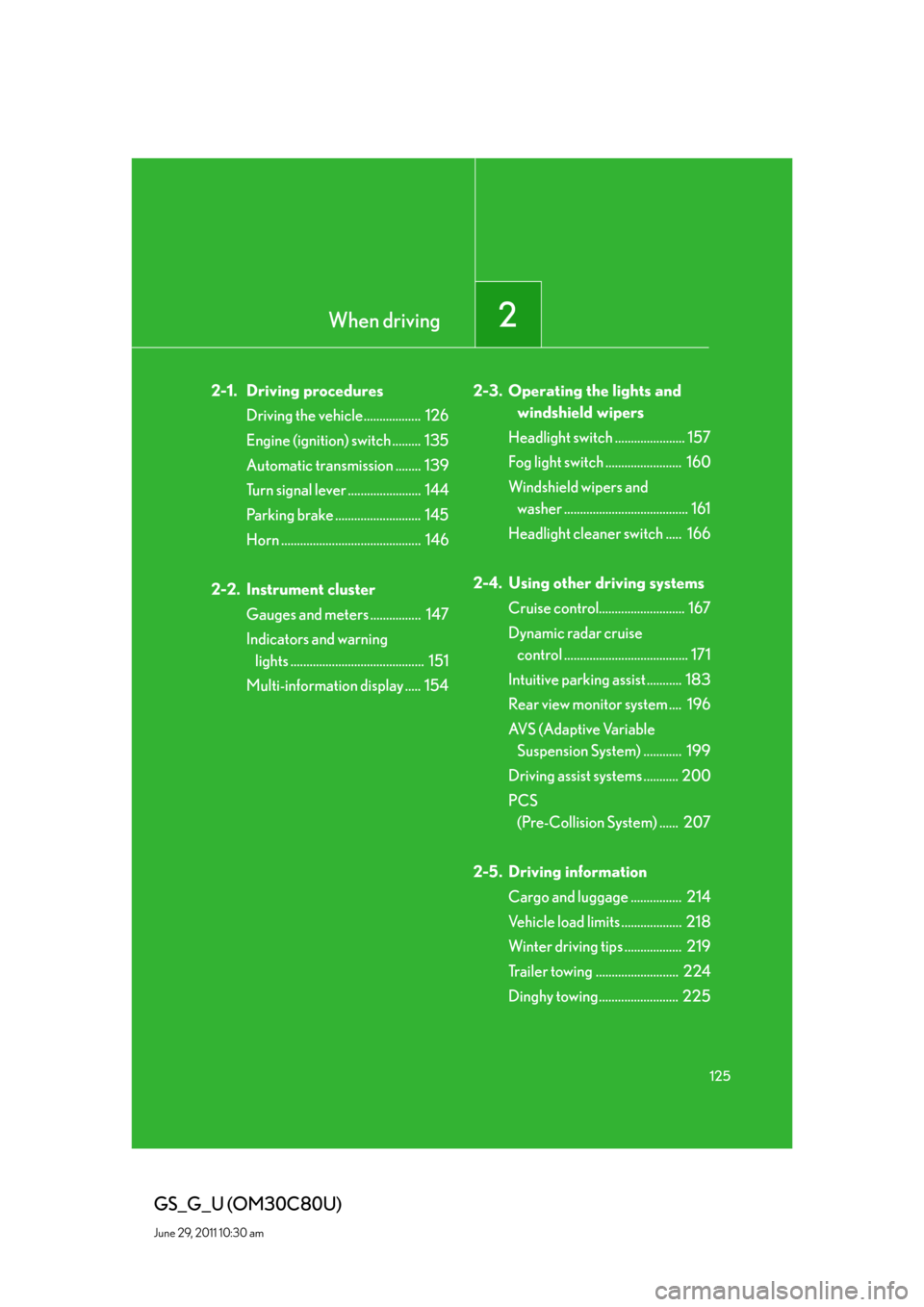

2-1. Driving procedures
Driving the vehicle.................. 126
Engine (ignition) switch ......... 135
Automatic transmission ........ 139
Turn signal lever ....................... 144
Parking brake ........................... 145
Horn ............................................ 146
2-2. Instrument cluster
Gauges and meters ................ 147
Indicators and warning 
lights .......................................... 151
Multi-information display ..... 1542-3. Operating the lights and 
windshield wipers
Headlight switch ...................... 157
Fog light switch ........................ 160
Windshield wipers and 
washer ....................................... 161
Headlight cleaner switch ..... 166
2-4. Using other driving systems
Cruise control........................... 167
Dynamic radar cruise 
control ....................................... 171
Intuitive parking assist ........... 183
Rear view monitor system .... 196
AVS (Adaptive Variable 
Suspension System) ............ 199
Driving assist systems ........... 200
PCS 
(Pre-Collision System) ...... 207
2-5. Driving information
Cargo and luggage ................ 214
Vehicle load limits ................... 218
Winter driving tips .................. 219
Trailer towing .......................... 224
Dinghy towing......................... 225

147
2
When driving
GS_G_U (OM30C80U)
June 29, 2011 10:30 am
2-2. Instrument cluster

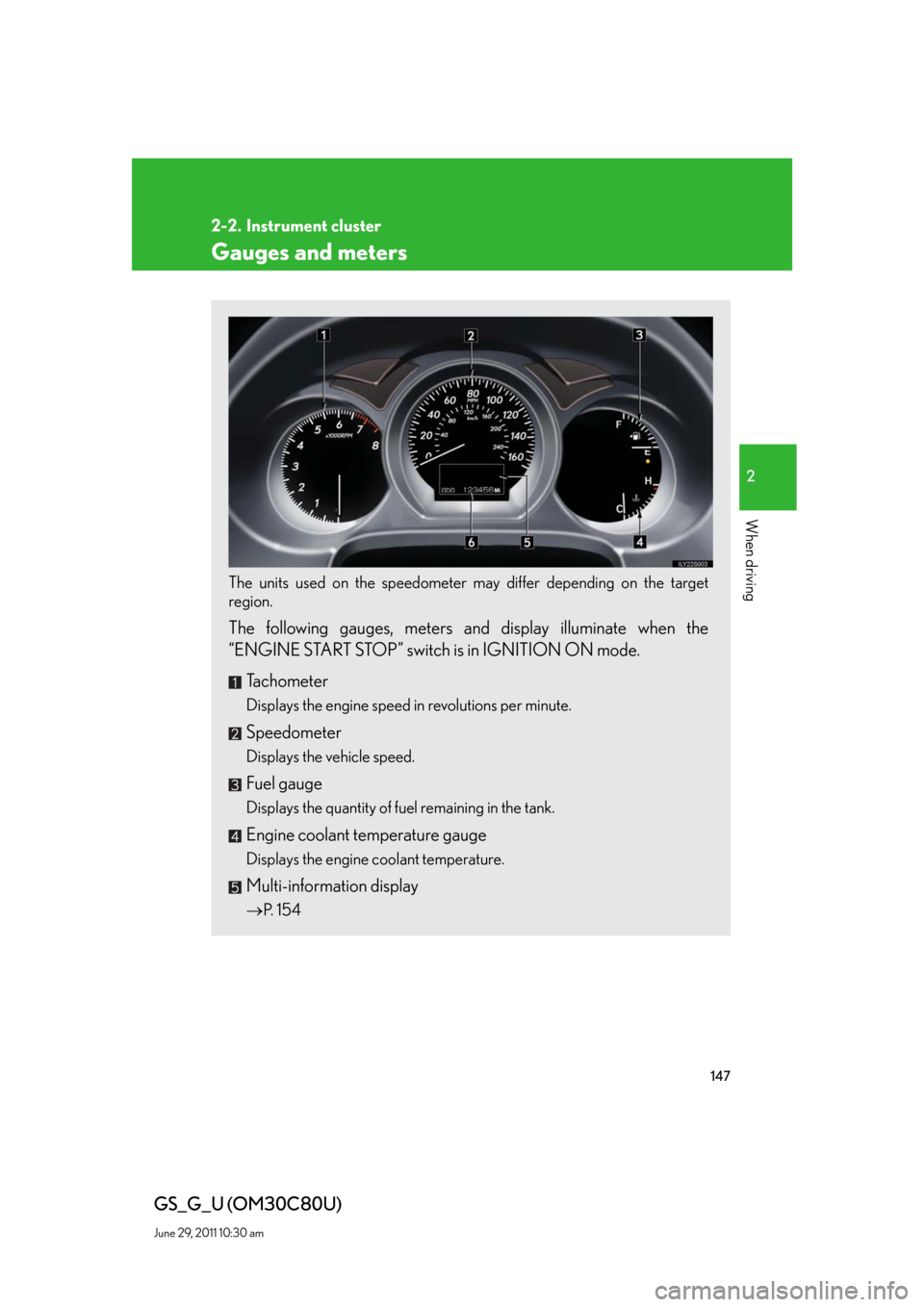

Gauges and meters
The units used on the speedometer may differ depending on the target
region.
The following gauges, meters and display illuminate when the
“ENGINE START STOP” switch is in IGNITION ON mode.
Tachometer
Displays the engine speed in revolutions per minute.
Speedometer
Displays the vehicle speed.
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Engine coolant temperature gauge
Displays the engine coolant temperature.
Multi-information display
P. 1 5 4

148
2-2. Instrument cluster
GS_G_U (OM30C80U)
June 29, 2011 10:30 am
M
Odometer/trip meter and trip meter reset buttons
Changes the display
Resets the trip meter driving
range to “0”.
Instrument panel light control
The brightness of the instrument panel lights excluding the clock and out-
side temperature display, can be adjusted.
Brighter
Darker
Maximum brightness
Odometer and trip meter
Odometer
Displays the total distance the vehicle has been driven.
Trip meter
Displays the distance the vehicle has been driven since the meter was
last reset. Trip meters A and B can be used to record and display differ-
ent distances independently.

149
2-2. Instrument cluster
2
When driving
GS_G_U (OM30C80U)
June 29, 2011 10:30 am

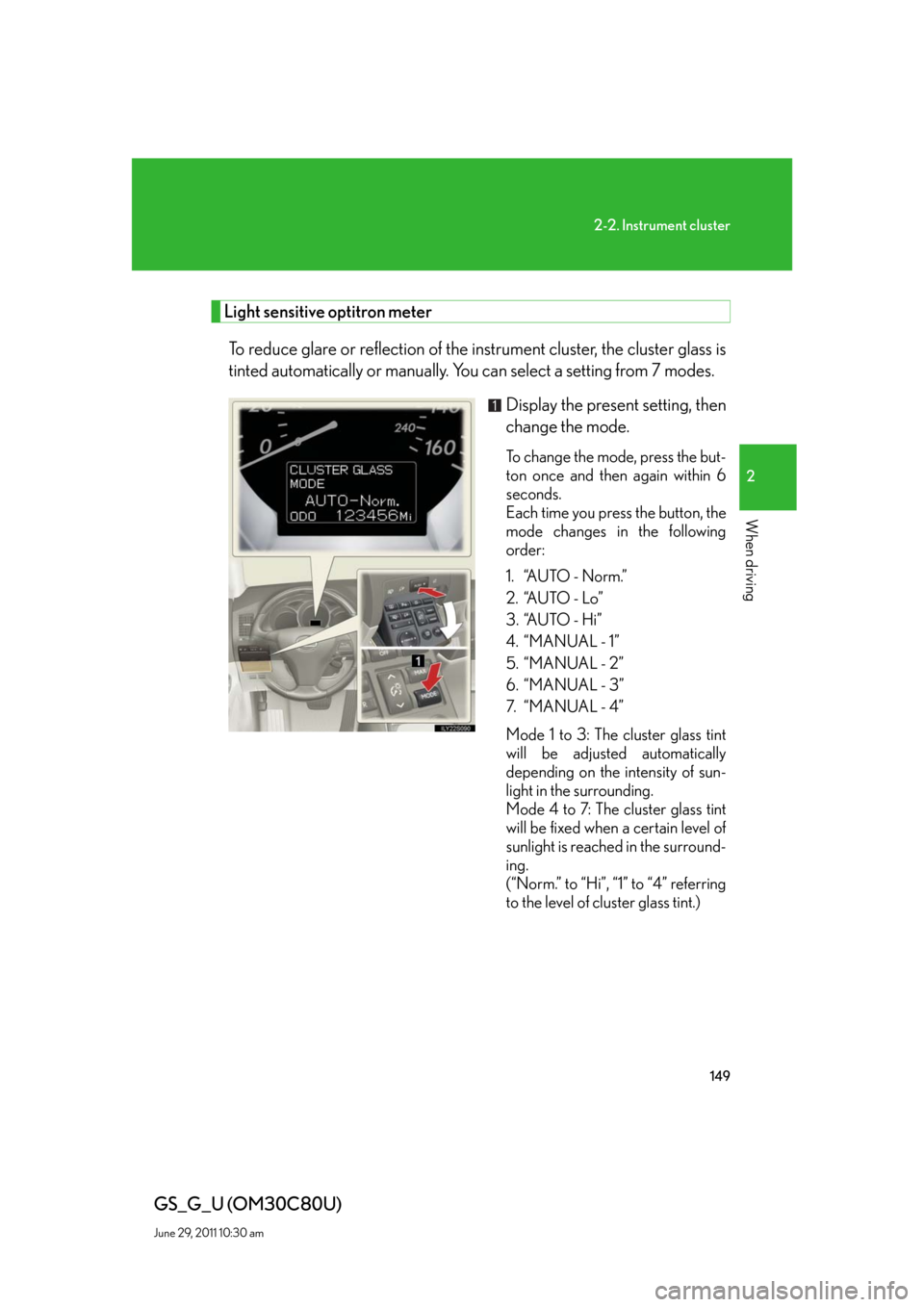

Light sensitive optitron meter
To reduce glare or reflection of the instrument cluster, the cluster glass is
tinted automatically or manually. You can select a setting from 7 modes.
Display the present setting, then
change the mode.
To change the mode, press the but-
ton once and then again within 6
seconds.
Each time you press the button, the
mode changes in the following
order:
1. “AUTO - Norm.”
2. “AUTO - Lo”
3. “AUTO - Hi”
4. “MANUAL - 1”
5. “MANUAL - 2”
6. “MANUAL - 3”
7. “ M A N U A L - 4 ”
Mode 1 to 3: The cluster glass tint
will be adjusted automatically
depending on the intensity of sun-
light in the surrounding.
Mode 4 to 7: The cluster glass tint
will be fixed when a certain level of
sunlight is reached in the surround-
ing.
(“Norm.” to “Hi”, “1” to “4” referring
to the level of cluster glass tint.)

150
2-2. Instrument cluster
GS_G_U (OM30C80U)
June 29, 2011 10:30 am
NOTICE
■To prevent damage to the engine and its components
●The engine may be overheating if the engine coolant temperature gauge is in the
red zone (“H”). In this case, immediately stop the vehicle in a safe place. Check
the engine after it has cooled completely. (P. 5 7 8 )
●Do not let the indicator needle of the tachometer enter the red zone, which indi-
cates the maximum engine speed.
■To activate the light sensitivity function properly
Do not affix a sticker or window tint to the rear window glass, or put an object
behind the rear seat.

151
2-2. Instrument cluster
2
When driving
GS_G_U (OM30C80U)
June 29, 2011 10:30 am
Indicators and warning lights
The indicator and warning lights on the instrument cluster and center
panel inform the driver of the status of the vehicle’s various systems.
Instrument cluster
The units used on the speedometer and some indicators may differ depend-
ing on the target region.
Center panel

152
2-2. Instrument cluster
GS_G_U (OM30C80U)
June 29, 2011 10:30 am

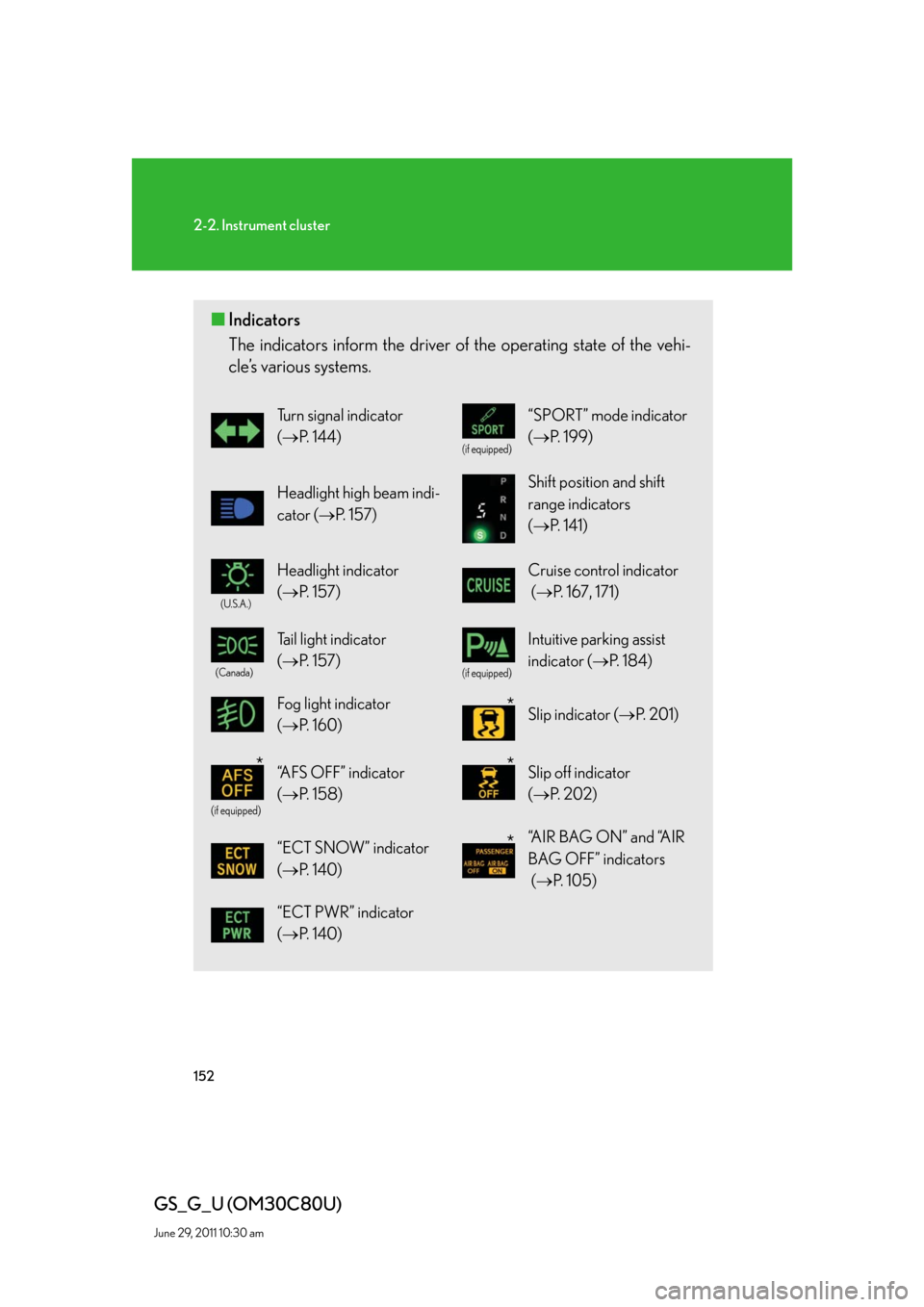

■Indicators
The indicators inform the driver of the operating state of the vehi-
cle’s various systems.
Turn signal indicator 
(P. 1 4 4 )
(if equipped)
“SPORT” mode indicator
(P. 199)
Headlight high beam indi-
cator (P. 1 5 7 )Shift position and shift
range indicators 
(P. 1 4 1 )
(U.S.A.)
Headlight indicator
(P. 1 5 7 )Cruise control indicator
(P. 167, 171)
(Canada)
Tail light indicator
(P. 1 5 7 )
(if equipped)
Intuitive parking assist
indicator (P. 1 8 4 )
Fog light indicator
(P. 1 6 0 ) Slip indicator (P. 2 0 1 )
(if equipped)
“AFS OFF” indicator 
(P. 1 5 8 ) Slip off indicator
(P. 202)
“ECT SNOW” indicator
(P. 1 4 0 )“AIR BAG ON” and “AIR
BAG OFF” indicators
(P. 1 0 5 )
“ECT PWR” indicator
(P. 1 4 0 )
*
**
*

153
2-2. Instrument cluster
2
When driving
GS_G_U (OM30C80U)
June 29, 2011 10:30 am
CAUTION
■If a safety system warning light does not come on
Should a safety system light such as ABS and the SRS airbag warning light not
come on when you turn to IGNITION ON mode, this could mean that these sys-
tems are not available to help protect you in an accident, which could result in death
or serious injury. Have the vehicle inspected by your Lexus dealer immediately if
this occurs.
■Warning lights
Warning lights inform the driver of malfunctions in the indicated
vehicle’s systems. (P. 5 3 4 )
*: These lights turn on when the “ENGINE START STOP” switch is turned
to IGNITION ON mode to indicate that a system check is being per-
formed. They will turn off after the engine is on, or after a few seconds.
There may be a malfunction in a system if the lights do not come on, or
turn off. Have the vehicle inspected by your Lexus dealer.
(U.S.A.)(Canada)(U.S.A.)(Canada)(GS460)
(U.S.A.)(Canada)(if equipped)
*******
*****
**

154
2-2. Instrument cluster
GS_G_U (OM30C80U)
June 29, 2011 10:30 am

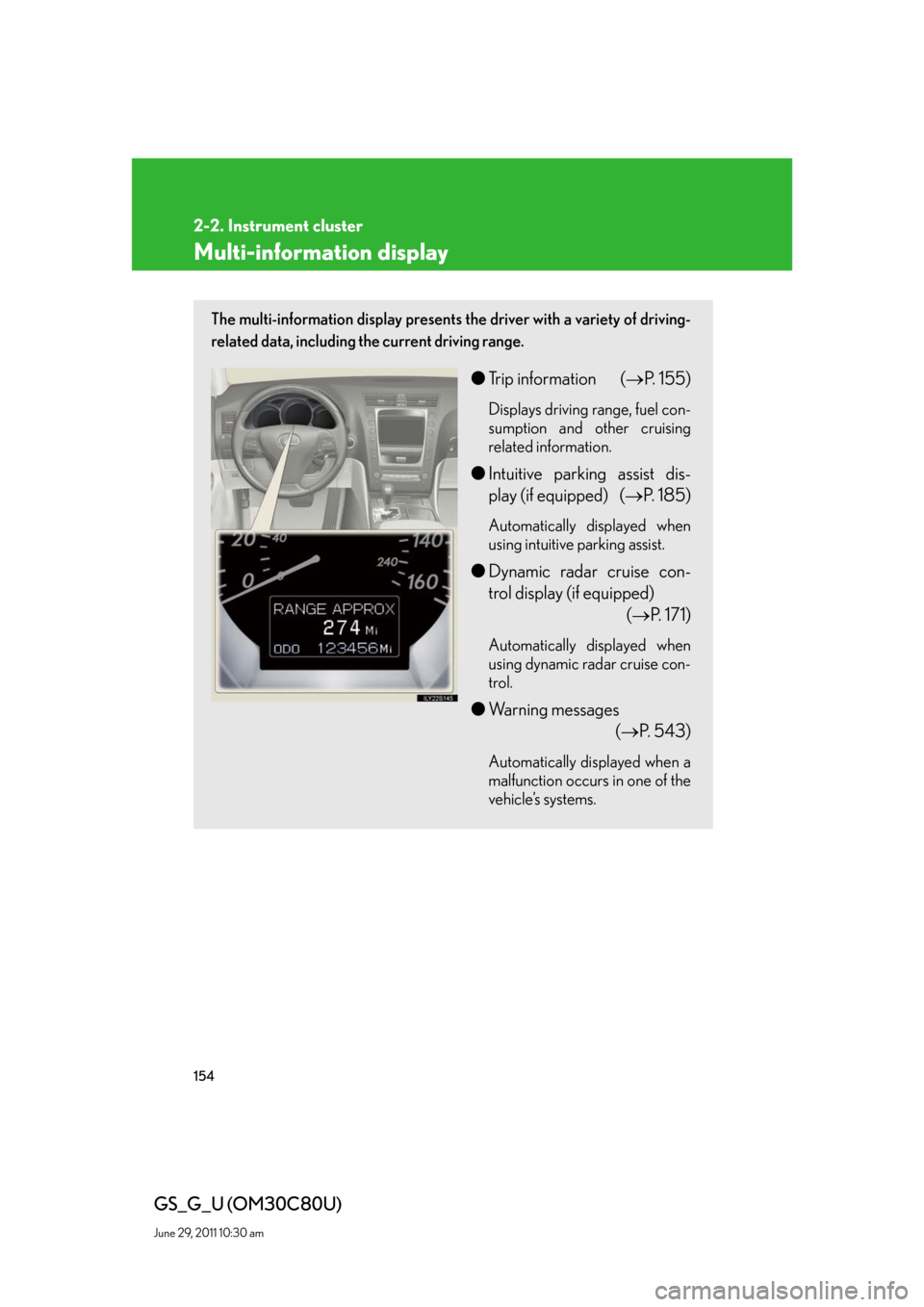

Multi-information display
The multi-information display presents the driver with a variety of driving-
related data, including the current driving range.
●Trip information (P. 155)
Displays driving range, fuel con-
sumption and other cruising
related information.
●Intuitive parking assist dis-
play (if equipped) (P. 185)
Automatically displayed when
using intuitive parking assist.
●Dynamic radar cruise con-
trol display (if equipped) 
(P. 171)
Automatically displayed when
using dynamic radar cruise con-
trol.
●Warning messages
(P. 543)
Automatically displayed when a
malfunction occurs in one of the
vehicle’s systems.
