1-2. Opening, closing and locking the doors and trunk
GS_G_U (OM30C11U)
October 28, 2011 5:15 pm
Locking the front doors from the outside without a key
Move the lock button to the lock position.
Close the door.
The door cannot be locked if the “ENGINE START STOP” switch is in the
ACCESSORY or IGNITION ON mode, or the electronic key is left
inside the vehicle.
The key may not be detected correc tly and the door may be locked.
Rear door child-protector lock
The door cannot be opened from
inside the vehicle when the locks
are set.
These locks can be set to prevent
children from opening the rear
doors. Push down on rear door
switches to lock the rear doors.
STEP1
STEP2

46
1-2. Opening, closing and locking the doors and trunk
GS_G_U (OM30C11U)
October 28, 2011 5:15 pm
When the setting or canceling operation is complete, all doors are locked
and then unlocked.
FunctionShift lever positionDriver’s door lock switch position
Shift position linked door locking
function
“P”Shift position linked door unlock-
ing function
Speed linked door locking function
“N”Driver’s door linked door unlocking
function
■Closing the front doors from outside with the inside lock button set in the locked
position
The door cannot be locked if the “ENGINE START STOP” switch is in ACCES-
SORY or IGNITION ON mode, or the electronic key is left in the vehicle. (How-
ever, depending on the key’s location, the system may not be able to detect it. In
these instances the door lock protection function will not operate properly.)
■Using the mechanical key
The doors can also be locked and unlocked with the mechanical key. ( →P. 5 7 1 )
■Customization that can be configured at Lexus dealer
Settings (e.g. unlocking function using a key) can be changed.
(Customizable features →P. 6 1 8 )

50
1-2. Opening, closing and locking the doors and trunk
GS_G_U (OM30C11U)
October 28, 2011 5:15 pm

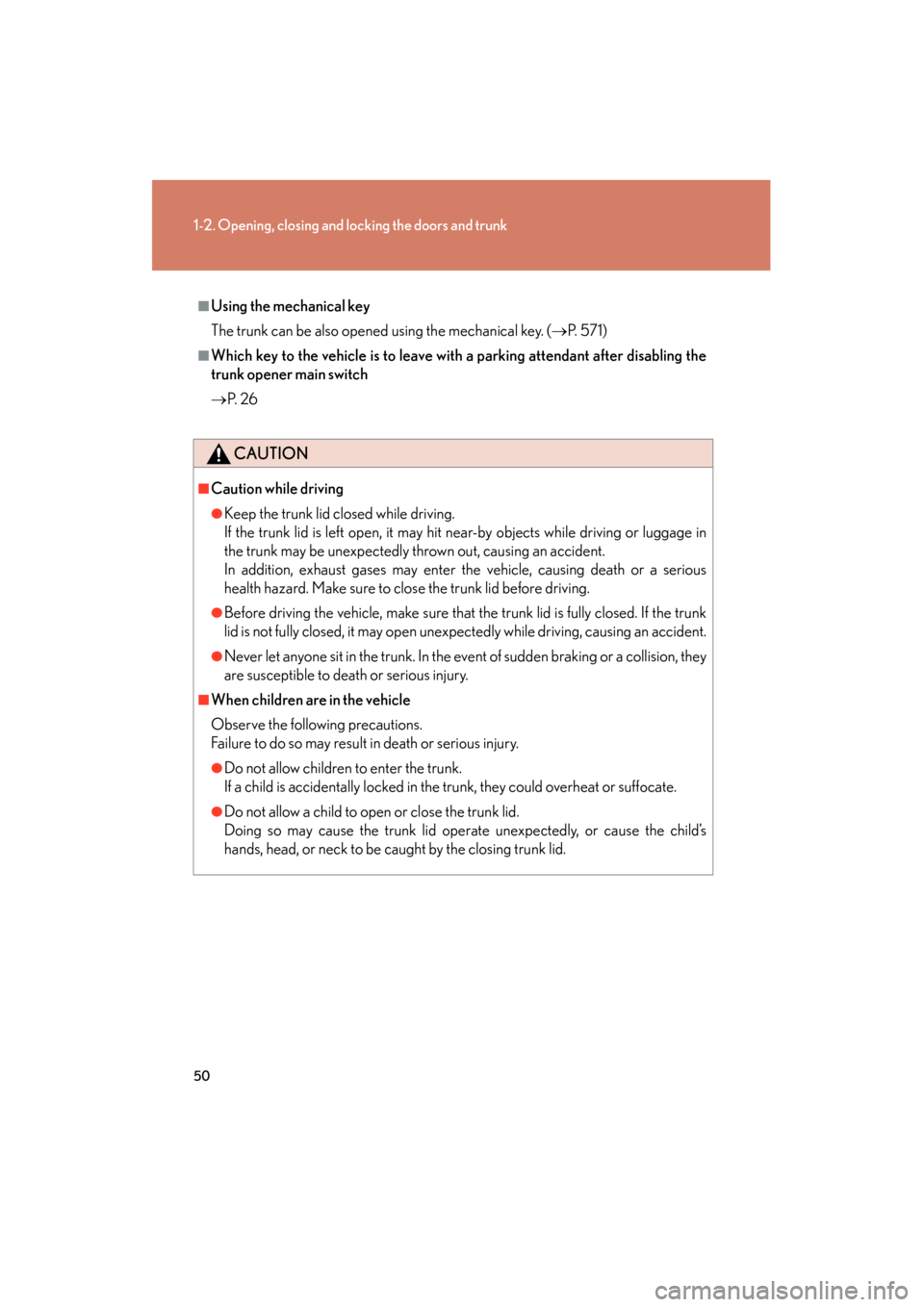

■Using the mechanical key
The trunk can be also opened using the mechanical key. (→P. 5 7 1 )
■Which key to the vehicle is to leave with a parking attendant after disabling the
trunk opener main switch
→ P. 2 6
CAUTION
■Caution while driving
●Keep the trunk lid closed while driving.
If the trunk lid is left open, it may hit near-by objects while driving or luggage in
the trunk may be unexpectedly thrown out, causing an accident.
In addition, exhaust gases may enter the vehicle, causing death or a serious
health hazard. Make sure to close the trunk lid before driving.
●Before driving the vehicle, make sure that the trunk lid is fully closed. If the trunk
lid is not fully closed, it may open unexpectedly while driving, causing an accident.
●Never let anyone sit in the trunk. In the event of sudden braking or a collision, they
are susceptible to death or serious injury.
■When children are in the vehicle
Observe the following precautions.
Failure to do so may result in death or serious injury.
●Do not allow children to enter the trunk.
If a child is accidentally locked in the trunk, they could overheat or suffocate.
●Do not allow a child to open or close the trunk lid.
Doing so may cause the trunk lid operate unexpectedly, or cause the child’s
hands, head, or neck to be caught by the closing trunk lid.

57
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
GS_G_U (OM30C11U)
October 28, 2011 5:15 pm
Open one of the doors.
If a door is not opened within 60 seconds after is pushed,
the doors will be locked again and the alarm will automatically be set.
In case that the alarm is triggered, immediately stop the alarm.
(
→P. 8 7 )
Using the door lock switch
Carry only the key (including the card key) to which you want to link
the driving position. If 2 or more keys are in the vehicle, the driving
position cannot be linked properly.Turn the “ENGINE START STOP” switch to OFF mode and close
the driver’s door. While pushing the desired button
(“1”, “2” or “3”), push the lock or
unlock side on the door lock
switch (either the driver or passen-
ger side) until the signal beeps.
The driving position is recalled
when the driver’s door is unlocked
using the entry function or wireless
remote control and the driver ’s
door is opened.
STEP3
STEP1
STEP2

75
1
Before driving
GS_G_U (OM30C11U)
October 28, 2011 5:15 pm
1-4. Opening and closing the windows and moon roof
Power windows
Lock switchPress the switch down to lock pas-
senger window switches.
Use this switch to prevent children
from accidentally opening or clos-
ing a passenger window.
The power windows can be opened and closed using the following
switches.
Closing
One-touch closing
*
Opening
One-touch opening
*
*
: Pushing the switch in the oppo- site direction will stop window
travel partway.
■The power windows can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■Linked door lock window operation
●The power windows can be opened and closed using the mechanical key.
(→ P. 5 7 1 )
●The power windows can be opened using the wireless remote control if custom-
ized at your Lexus dealer. ( →P. 4 1 )

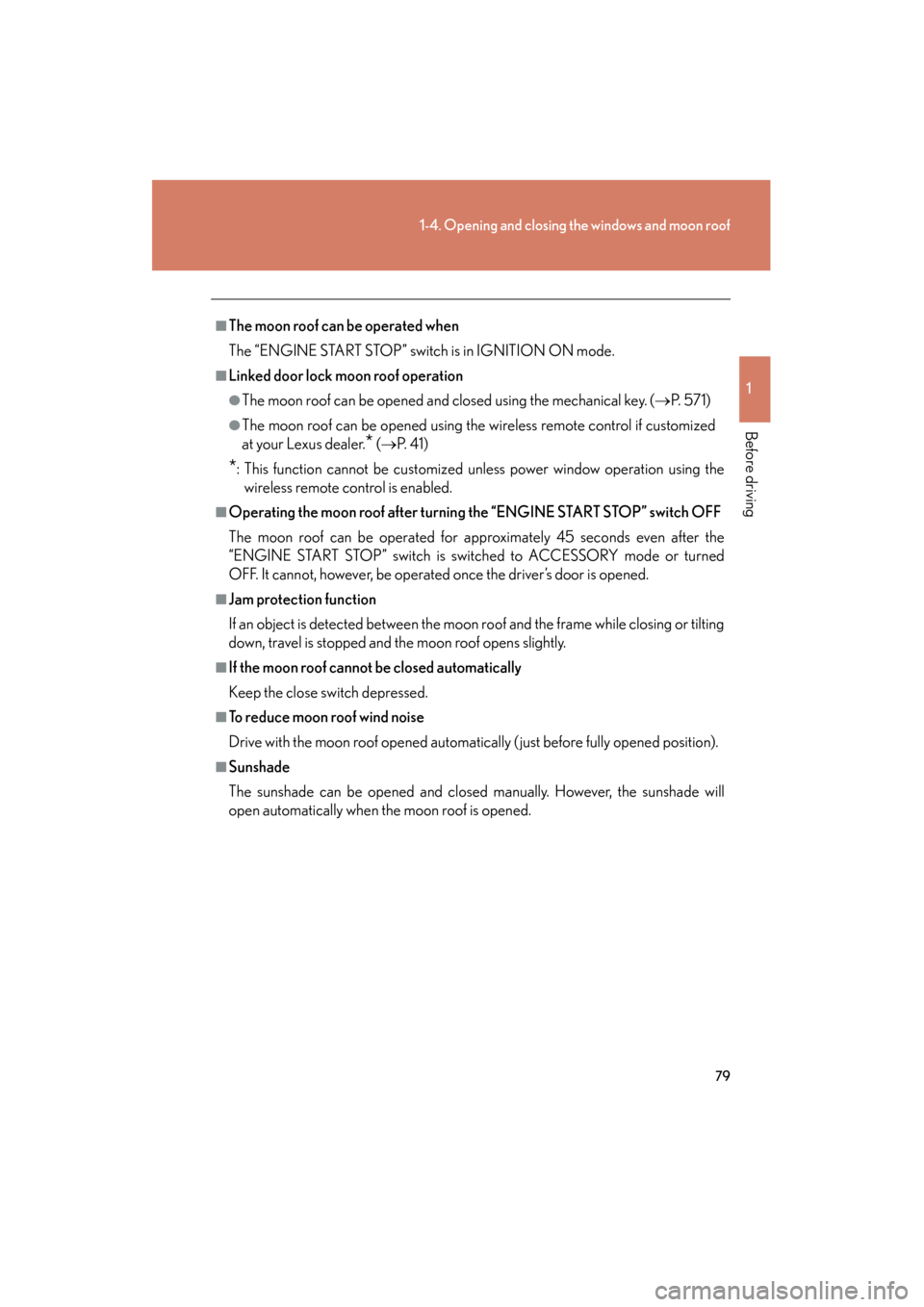

79
1-4. Opening and closing the windows and moon roof
1
Before driving
GS_G_U (OM30C11U)
October 28, 2011 5:15 pm
■The moon roof can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■Linked door lock moon roof operation
●The moon roof can be opened and closed using the mechanical key. (→P. 5 7 1 )
●The moon roof can be opened using the wireless remote control if customized
at your Lexus dealer.
* (→ P. 4 1 )
*: This function cannot be customized unless power window operation using the
wireless remote control is enabled.
■Operating the moon roof after turnin g the “ENGINE START STOP” switch OFF
The moon roof can be operated for approximately 45 seconds even after the
“ENGINE START STOP” switch is switched to ACCESSORY mode or turned
OFF. It cannot, however, be operated once the driver’s door is opened.
■Jam protection function
If an object is detected between the moon roof and the frame while closing or tilting
down, travel is stopped and th e moon roof opens slightly.
■If the moon roof cannot be closed automatically
Keep the close switch depressed.
■To reduce moon roof wind noise
Drive with the moon roof opened automatically (just before fully opened position).
■Sunshade
The sunshade can be opened and closed manually. However, the sunshade will
open automatically when the moon roof is opened.

85
1
Before driving
GS_G_U (OM30C11U)
May 21, 2010 12:06 pm
1-6. Theft deterrent system
Immobilizer system
■System maintenance
The vehicle has a maintenance-free type immobilizer system.
■Conditions that may cause the system to malfunction
●If the grip portion of the key is in contact with a metallic object.
●If the key is in close proximity to or touching a key to the security system (key
with a built-in transponder chip) of another vehicle.
The vehicle’s keys have built-in transponder chips that prevent the engine
from starting if the key has not been previously registered in the vehicle’s
on-board computer.
Never leave the keys inside the vehicle when you leave the vehicle.
The indicator light flashes after
the “ENGINE START STOP”
switch has been turned OFF to
indicate that the system is oper-
ating.
The indicator light stops flashing
after the “ENGINE START
STOP” switch has been turned
to ACCESSORY or IGNITION
ON mode to indicate that the
system has been canceled.

87
1
1-6. Theft deterrent system
Before driving
GS_G_U (OM30C11U)
May 21, 2010 12:06 pm
Alarm
The system sounds the alarm and flashes lights when forcible entry is
detected.
■Triggering of the alarm
The alarm is triggered in the following situations when the alarm is
set:
● A locked door or trunk is unlocked or opened in any way other
than by using the smart access system with push-button start,
wireless remote control or mechanical key. (The doors will lock
again automatically.)
● The hood is opened.
■ Setting the alarm system
Close the doors, trunk and
hood, and lock all doors.
The system will be set automati-
cally after 30 seconds.
The indicator light changes from
being on to flashing when the
system is set.
■Deactivating or stopping the alarm
Do one of the following to deactivate or stop the alarm.
● Unlock the doors or trunk.
● Turn the “ENGINE START STOP” switch to ACCESSORY or
IGNITION ON mode, or start the engine. (The alarm will be
deactivated or stopped after a few seconds.)

89
1-6. Theft deterrent system
1
Before driving
GS_G_U (OM30C11U)
May 21, 2010 12:06 pm
■When the 12 volt battery is disconnected
Be sure to cancel the alarm system.
If the 12 volt battery is disconnected before canceling the alarm, the system may be
triggered when the battery is reconnected.
■Alarm-operated door lock
●When the alarm is operating, the doors are locked automatically to prevent
intruders.
●Do not leave the key inside the vehicle when the alarm is operating, and make
sure the key is not inside the vehicle when recharging or replacing the 12 volt
battery.
■Pa n i c m o d e
NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper operation
of the system cannot be guaranteed.
When is pressed for longer than about
one second, an alarm will sound intermit-
tently and the vehicle lights will flash to deter
any person from trying to break into or dam-
age your vehicle.
To stop the alarm, press any button on the
electronic key.

124
GS_G_U (OM30C11U)
October 28, 2011 5:15 pm

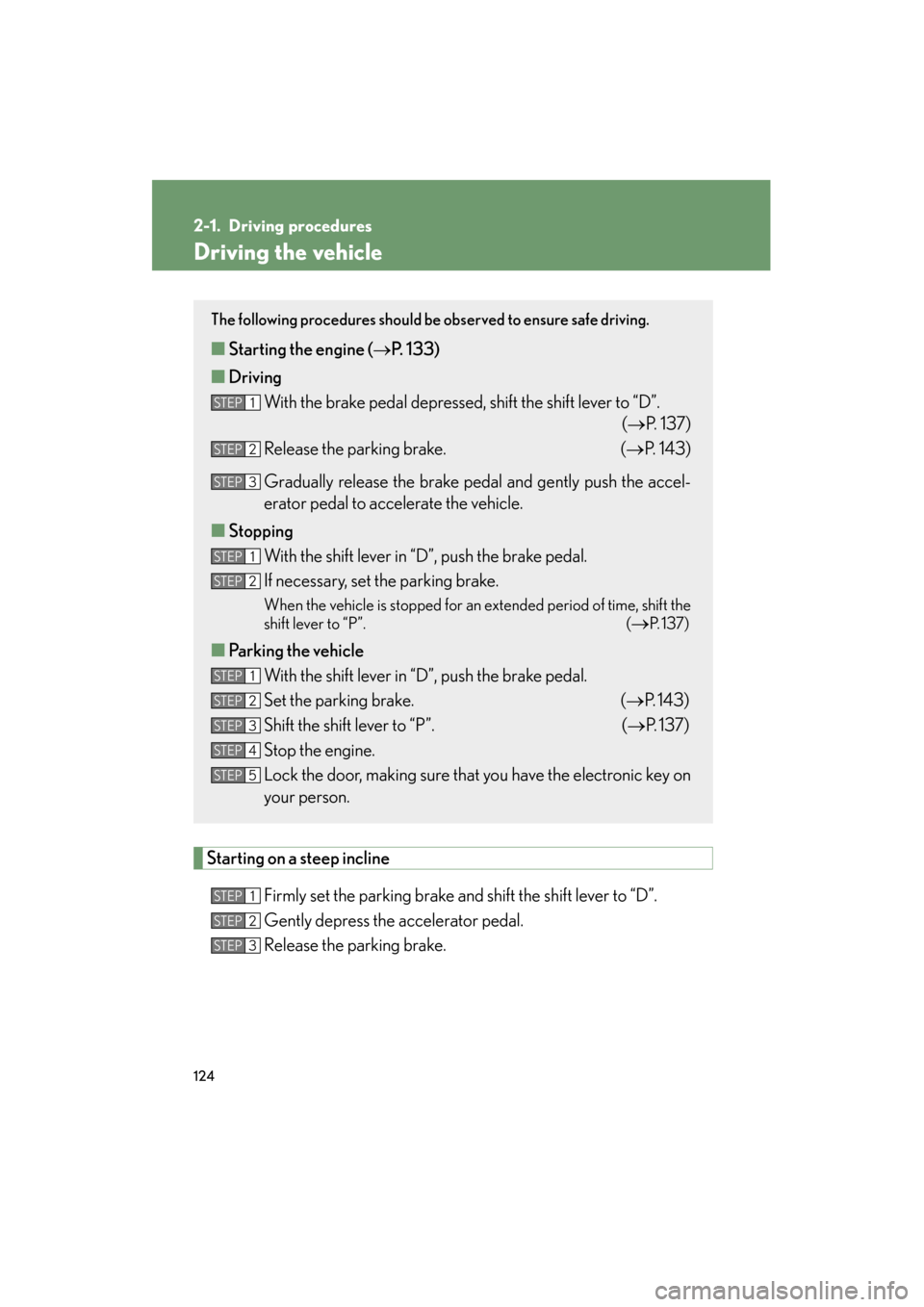

2-1. Driving procedures
Driving the vehicle
Starting on a steep inclineFirmly set the parking brake and shift the shift lever to “D”.
Gently depress the accelerator pedal.
Release the parking brake.
The following procedures should be observed to ensure safe driving.
■Starting the engine ( →P. 1 3 3 )
■ Driving
With the brake pedal depressed, shift the shift lever to “D”. (→P. 1 3 7 )
Release the parking brake. (→ P. 143)
Gradually release the brake pedal and gently push the accel-
erator pedal to accelerate the vehicle.
■ Stopping
With the shift lever in “D”, push the brake pedal.
If necessary, set the parking brake.
When the vehicle is stopped for an extended period of time, shift the
shift lever to “P”. (
→P. 1 3 7 )
■Parking the vehicle
With the shift lever in “D”, push the brake pedal.
Set the parking brake. (→ P. 143)
Shift the shift lever to “P”. (→ P. 1 3 7 )
Stop the engine.
Lock the door, making sure that you have the electronic key on
your person.
STEP1
STEP2
STEP3
STEP1
STEP2
STEP1
STEP2
STEP3
STEP4
STEP5
STEP1
STEP2
STEP3
