Lexus GS350 2011 Owner's Manual

520
GS_G_U (OM30C11U)
October 28, 2011 5:15 pm
5-1. Essential information
Emergency flashers
NOTICE
■To prevent 12 volt battery discharge
Do not leave the emergency flashers on longer than necessary when the engine is
not running.
Use the emergency flashers if the vehicle malfunctions or is involved in an
accident.
Press the switch to flash all the
turn signal lights. To turn them
off, press the switch once again.

5
When trouble arises
521
5-1. Essential information
GS_G_U (OM30C11U)
October 28, 2011 5:15 pm

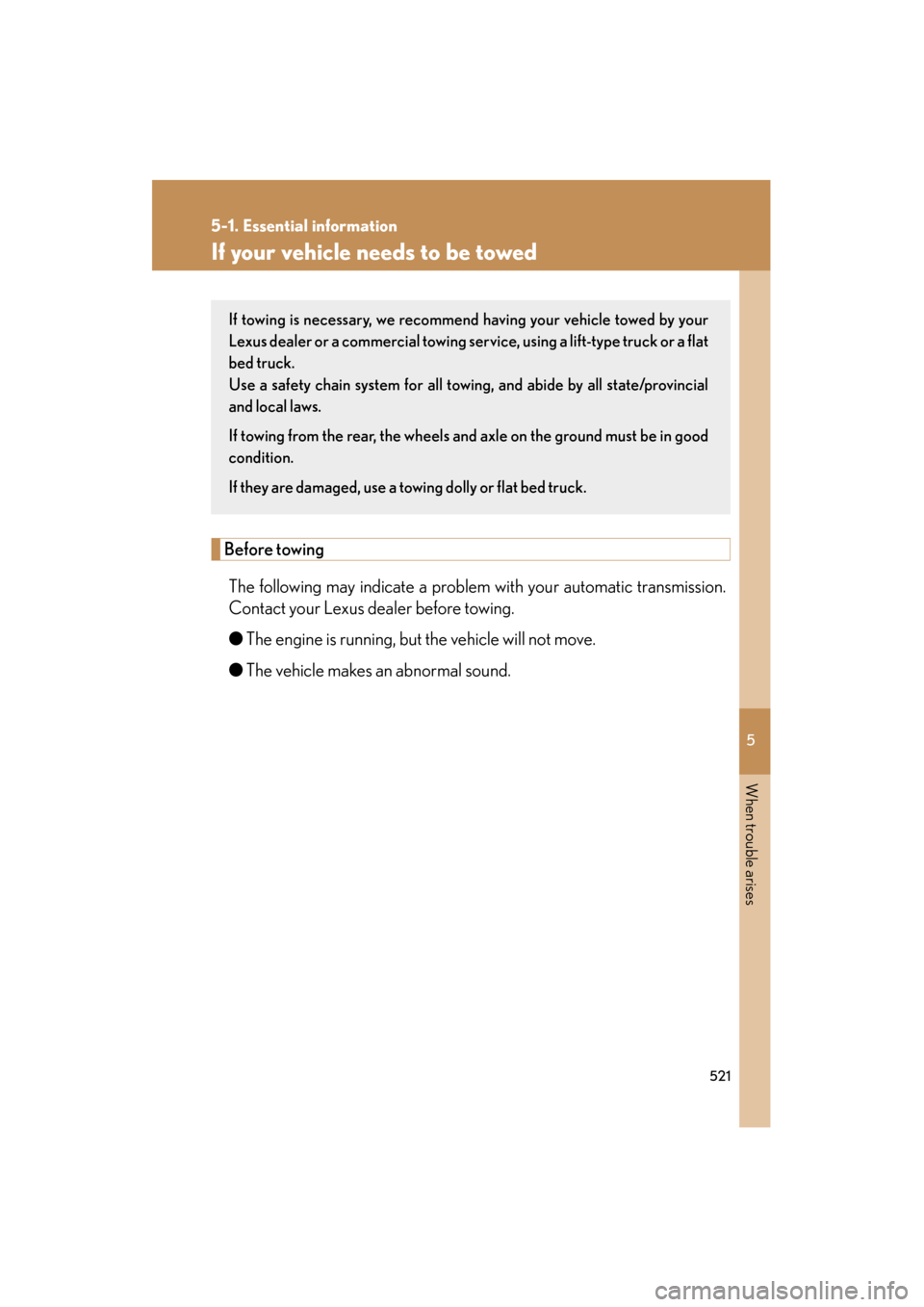

If your vehicle needs to be towed
Before towingThe following may indicate a problem with your automatic transmission.
Contact your Lexus dealer before towing.
● The engine is running, but the vehicle will not move.
● The vehicle makes an abnormal sound.
If towing is necessary, we recommend having your vehicle towed by your
Lexus dealer or a commercial towing se rvice, using a lift-type truck or a flat
bed truck.
Use a safety chain system for all towing, and abide by all state/provincial
and local laws.
If towing from the rear, the wheels and axle on the ground must be in good
condition.
If they are damaged, use a towing dolly or flat bed truck.

522
5-1. Essential information
GS_G_U (OM30C11U)
October 28, 2011 5:15 pm
Emergency towingIf a tow truck is not available, in an emergency your vehicle may be tem-
porarily towed using a cable or chain secured to the emergency towing
eyelet. This should only be attempted on hard, surfaced roads for short
distances at low speeds.
A driver must be in the vehicle to steer and operate the brakes. The vehi-
cle’s wheels, drive train, axles, steer ing and brakes must be in good condi-
tion.
Towing eyelet
■Emergency towing procedure Release the parking brake.
Put the shift lever in “N”.
The “ENGINE START STOP” switch must be in the ACCESSORY mode
(engine off) or the IGNITION ON mode (engine on).
STEP1
STEP2
STEP3

5
When trouble arises
523
5-1. Essential information
GS_G_U (OM30C11U)
October 28, 2011 5:15 pm

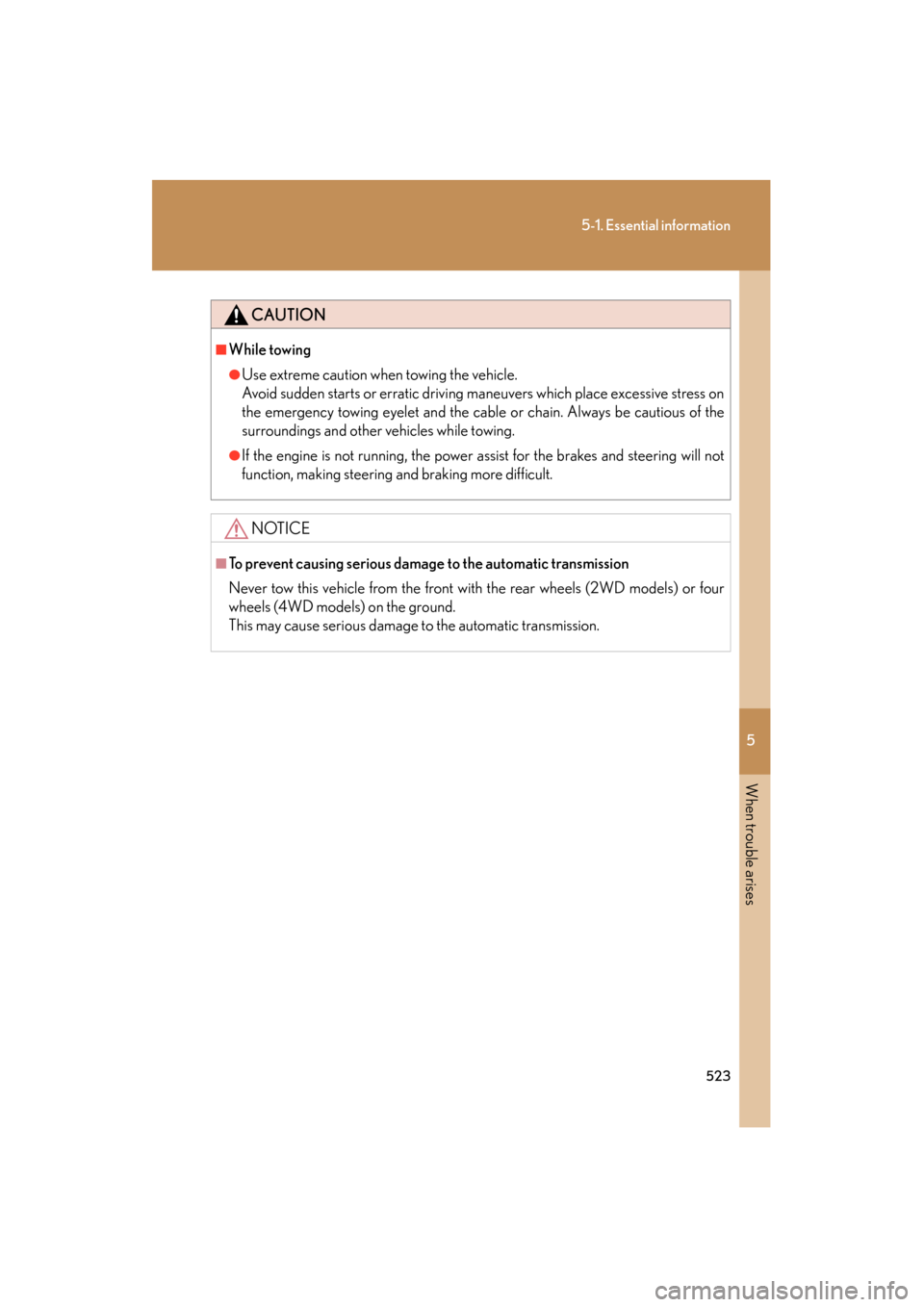

CAUTION
■While towing
●Use extreme caution when towing the vehicle.
Avoid sudden starts or erratic driving maneuvers which place excessive stress on
the emergency towing eyelet and the cable or chain. Always be cautious of the
surroundings and other vehicles while towing.
●If the engine is not running, the power assist for the brakes and steering will not
function, making steering and braking more difficult.
NOTICE
■To prevent causing serious damage to the automatic transmission
Never tow this vehicle from the front with the rear wheels (2WD models) or four
wheels (4WD models) on the ground.
This may cause serious damage to the automatic transmission.

524
5-1. Essential information
GS_G_U (OM30C11U)
October 28, 2011 5:15 pm
Installing towing eyeletRemove the eyelet cover using a
flathead screwdriver.
To protect the bodywork, place a
rag between the screwdriver and
the vehicle body, as shown in the
illustration.
Insert the towing eyelet into the
hole and tighten partially by hand.
Tighten down the towing eyelet
securely using a wheel nut wrench.
STEP1
STEP2
STEP3

5
When trouble arises
525
5-1. Essential information
GS_G_U (OM30C11U)
October 28, 2011 5:15 pm

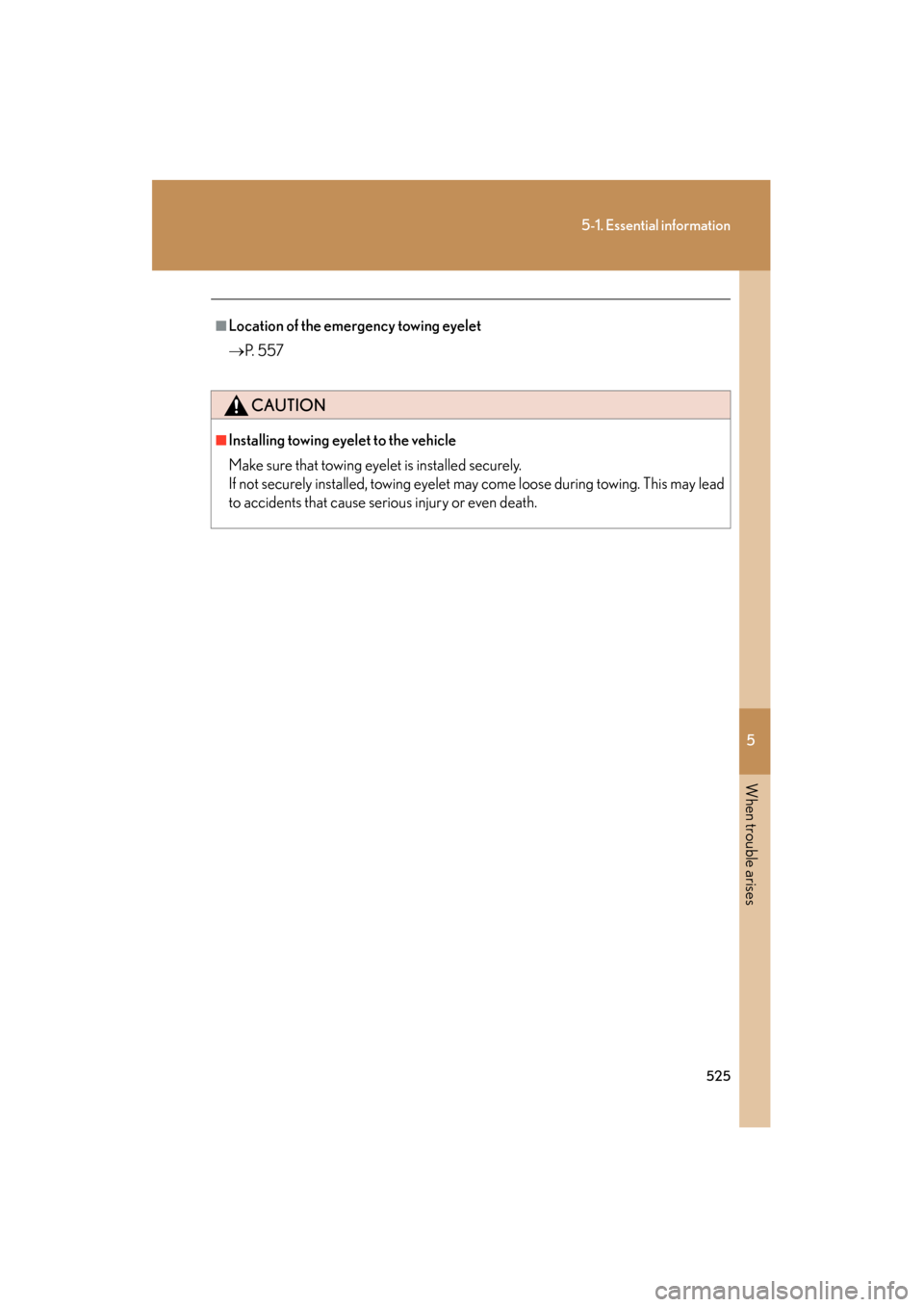

■Location of the emergency towing eyelet
→P. 5 5 7
CAUTION
■Installing towing eyelet to the vehicle
Make sure that towing eyelet is installed securely.
If not securely installed, towing eyelet may come loose during towing. This may lead
to accidents that cause serious injury or even death.

526
5-1. Essential information
GS_G_U (OM30C11U)
October 28, 2011 5:15 pm
Towing with a sling-type truck
NOTICE
■To prevent body damage
Do not tow with a sling-type truck, either from the front or rear.

5
When trouble arises
527
5-1. Essential information
GS_G_U (OM30C11U)
October 28, 2011 5:15 pm
Towing with a wheel lift-type truckFrom front Use a towing dolly under the rear
wheels.
From rear (2WD models) Turn the “ENGINE START STOP”
switch to the ACCESSORY mode
so that the steering wheel is
unlocked.
From rear (4WD models) Use a towing dolly under the front
wheels.

528
5-1. Essential information
GS_G_U (OM30C11U)
October 28, 2011 5:15 pm
NOTICE
■To prevent causing serious damage to the automatic transmission
Never tow this vehicle from the front with the rear wheels on the ground.
■To prevent damaging the vehicle
●Do not tow the vehicle with the “ENGINE START STOP” switch is OFF.
The steering lock mechanism is not strong enough to hold the front wheel
straight.
●When raising the vehicle, ensure adequate ground clearance for towing at the
opposite end of the raised vehicle. Without adequate clearance, the vehicle
could be damaged while being towed.

5
When trouble arises
529
5-1. Essential information
GS_G_U (OM30C11U)
October 28, 2011 5:15 pm
Using a flat bed truckIf your Lexus is transported by a
flat bed truck, it should be tied
down at the locations shown in the
illustration.
If you use chains or cables to tie
down your vehicle, the angles
shaded in black must be 45°.
Do not overly tighten the tie-
downs or the vehicle may be dam-
aged.
