1-2. Opening, closing and locking the doors and trunk
GS_G_U (OM30C11U)
October 28, 2011 5:15 pm
■Using the mechanical key
The trunk can be also opened using the mechanical key. (→P. 5 7 1 )
■Which key to the vehicle is to leave with a parking attendant after disabling the
trunk opener main switch
→ P. 2 6
CAUTION
■Caution while driving
●Keep the trunk lid closed while driving.
If the trunk lid is left open, it may hit near-by objects while driving or luggage in
the trunk may be unexpectedly thrown out, causing an accident.
In addition, exhaust gases may enter the vehicle, causing death or a serious
health hazard. Make sure to close the trunk lid before driving.
●Before driving the vehicle, make sure that the trunk lid is fully closed. If the trunk
lid is not fully closed, it may open unexpectedly while driving, causing an accident.
●Never let anyone sit in the trunk. In the event of sudden braking or a collision, they
are susceptible to death or serious injury.
■When children are in the vehicle
Observe the following precautions.
Failure to do so may result in death or serious injury.
●Do not allow children to enter the trunk.
If a child is accidentally locked in the trunk, they could overheat or suffocate.
●Do not allow a child to open or close the trunk lid.
Doing so may cause the trunk lid operate unexpectedly, or cause the child’s
hands, head, or neck to be caught by the closing trunk lid.

51
1-2. Opening, closing and locking the doors and trunk
1
Before driving
GS_G_U (OM30C11U)
October 28, 2011 5:15 pm
CAUTION
■Using the trunk
Observe the following precautions.
Failure to do so may cause parts of the body to be caught, resulting in serious injury.
●Remove any heavy loads, such as snow and ice, from the trunk lid before opening
it. Failure to do so may cause the trunk lid to fall closed again after it is opened.
●When opening or closing the trunk lid, thoroughly check to make sure the sur-
rounding area is safe.
●If anyone is in the vicinity, make sure they are safe and let them know that the
trunk is about to open or close.
●Use caution when opening or closing the trunk lid in windy weather as it may
move abruptly in strong wind.
●Do not attach any accessories other than genuine Lexus parts to the trunk lid.
Such additional weight on the trunk lid may cause the lid to fall closed again after
it is opened.
●The trunk lid may fall if it is not opened
fully. It is more difficult to open or close
the trunk lid on an incline than on a level
surface, so beware of the trunk lid unex-
pectedly opening or closing by itself.
Make sure that the trunk lid is fully open
and secure before using the trunk.
●When closing the trunk lid, take extra
care to prevent your fingers etc. from
being caught.
●When closing the trunk lid, make sure to
press it lightly on its outer surface. If the
trunk handle is used to fully close the
trunk lid, it may result in hands or arms
being caught.

52
1-2. Opening, closing and locking the doors and trunk
GS_G_U (OM30C11U)
October 28, 2011 5:15 pm
CAUTION
■Trunk easy closer
NOTICE
■To prevent trunk easy closer malfunction
Do not apply excessive force to the trunk lid while the trunk easy closer is operating.
In the event that the trunk lid is left slightly
open, the trunk easy closer will automatically
close it to the fully closed position. It takes
several seconds before the trunk easy closer
begins to operate. Be careful not to catch fin-
gers or anything else in the trunk lid, as this
may cause bone fractures or other serious
injuries.

53
1
Before driving
GS_G_U (OM30C11U)
October 28, 2011 5:15 pm
1-3. Adjustable components (seats, mirrors, steering wheel)
Front seats
Active head restraintsWhen the occupant’s lower back
presses against the seatback dur-
ing a rear-end collision, the front
portion of the head restraint moves
slightly forward and upward to
help reduce the risk of whiplash on
the seat occupant.
Seat position fore/aft control switch
Seatback angle control switch
Seat cushion (front) angle control switch
Vertical height control switch
Lumbar support control switch

54
1-3. Adjustable components (seats, mirrors, steering wheel)
GS_G_U (OM30C11U)
October 28, 2011 5:15 pm
■Active head restraints
■When the active head restraint has been operated
If the active head restraint has been operated, you will not be able to return it to its
original position.
After operation, contact your Lexus dealer.
CAUTION
■Reclining adjustment
Do not recline the seat more than necessary when the vehicle is in motion, to
reduce the risk of sliding under the lap belt.
If the seat is too reclined, during an accident the lap belt may slide past the hips and
apply restraint forces directly to the abdomen or your neck may contact the shoul-
der belt, increasing the risk of death or serious injury.
Adjustments should not be made while driving as the seat may unexpectedly move
and cause the driver to lose control of the vehicle.
Even small forces applied to the seatback
may cause the head restraint to move.During
rear-end
collision

55
1
1-3. Adjustable components (seats, mirrors, steering wheel)
Before driving
GS_G_U (OM30C11U)
October 28, 2011 5:15 pm
Driving position memory system
Your preferred driving position (the position of the driver’s seat, steering
wheel and outside rear view mirrors) can be entered into the computer’s
memory and recalled with the touch of a button. It is also possible to set this
function to activate automatically when the doors are unlocked.
Three different driving positions can be entered into memory.
The same buttons are found on the front passenger’s side, allowing the
position of the front passenger’s se at to be memorized. (if equipped)
■Entering a position to memory
Turn the “ENGINE START STOP” switch to IGNITION ON
mode.
Adjust the driver’s seat, steering wheel, and outside rear view
mirrors to the desired positions.
While pushing the “SET” button,
or within 3 seconds after the
“SET” button is pushed, push
button “1”, “2” or “3” until the
signal beeps.
If the selected button has
already been preset, the previ-
ously recorded position will be
overwritten.
STEP1
STEP2
STEP3STEP3

56
1-3. Adjustable components (seats, mirrors, steering wheel)
GS_G_U (OM30C11U)
October 28, 2011 5:15 pm
Linking driving position memory with door unlock operation
Record your driving position to button “1”, “2” or “3” before performing
the following: Using the wireless remote control Turn the “ENGINE START STOP” switch to OFF and close the
driver’s door.
While pushing the desired button
(“1”, “2” or “3”), push on the
wireless remote control until the
signal beeps.
The driving position is recalled
when the driver’s door is unlocked
using the entry function or wireless
remote control and the driver’s
door is opened.
■Recalling the memorized position
Check that the shift lever is set in “P”.
Turn the “ENGINE START STOP” switch to IGNITION ON
mode. Push button “1”, “2” or “3” to
recall the memorized position.
STEP1
STEP2
STEP1
STEP2

57
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
GS_G_U (OM30C11U)
October 28, 2011 5:15 pm
Open one of the doors.
If a door is not opened within 60 seconds after is pushed,
the doors will be locked again and the alarm will automatically be set.
In case that the alarm is triggered, immediately stop the alarm.
(
→P. 8 7 )
Using the door lock switch
Carry only the key (including the card key) to which you want to link
the driving position. If 2 or more keys are in the vehicle, the driving
position cannot be linked properly.Turn the “ENGINE START STOP” switch to OFF mode and close
the driver’s door. While pushing the desired button
(“1”, “2” or “3”), push the lock or
unlock side on the door lock
switch (either the driver or passen-
ger side) until the signal beeps.
The driving position is recalled
when the driver’s door is unlocked
using the entry function or wireless
remote control and the driver ’s
door is opened.
STEP3
STEP1
STEP2

58
1-3. Adjustable components (seats, mirrors, steering wheel)
GS_G_U (OM30C11U)
October 28, 2011 5:15 pm
■Canceling the linked door unlock operation
Close the driver’s door with the “ENGINE START STOP” switch set to
the OFF.
Push the “SET” button and the button on the wireless remote control
at the same time for about 1 second until you hear 2 beeps.
■Retained accessory power With front passenger’s seat memory
●Each memorized position (except for the tilt and telescopic steering column)
can be recalled within 3 minutes after the corresponding side door is opened,
even if the “ENGINE START STOP” switch is turned to OFF.
●Driver’s side: Each memorized position (except for the tilt and telescopic steer-
ing column) can be recalled within 60 seconds after the driver’s door is closed,
even if the “ENGINE START STOP” switch is turned to OFF.Without front passenger’s seat memory
●Each memorized position (except for the tilt and telescopic steering column)
can be recalled within 3 minutes after the driver’s door is opened, even if the
“ENGINE START STOP” switch is turned to OFF.
●Each memorized position (except for the tilt and telescopic steering column)
can be recalled within 60 seconds after the driver’s door is closed, even if the
“ENGINE START STOP” switch is turned to OFF.
■If any position memory button is push ed while the adjustments are being made
The operation will stop. To reactivate the system, push the desired button (“1”, “2” or
“3”) again.
■If the 12 volt battery is disconnected
The memorized positions must be reset because the computer’s memory is erased
when the 12 volt battery is disconnected.
STEP1
STEP2

59

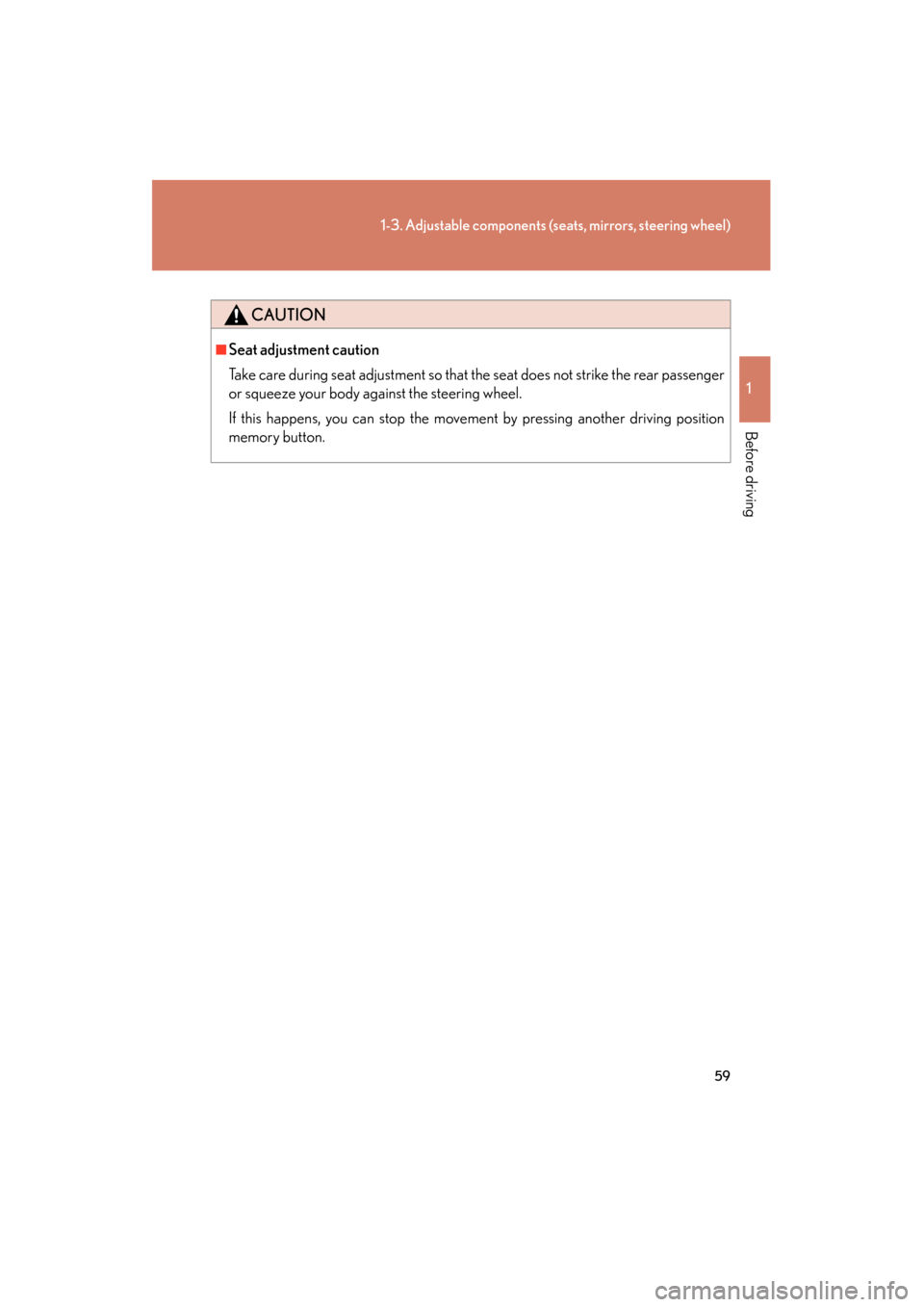

1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
GS_G_U (OM30C11U)
October 28, 2011 5:15 pm
CAUTION
■Seat adjustment caution
Take care during seat adjustment so that the seat does not strike the rear passenger
or squeeze your body against the steering wheel.
If this happens, you can stop the movement by pressing another driving position
memory button.
