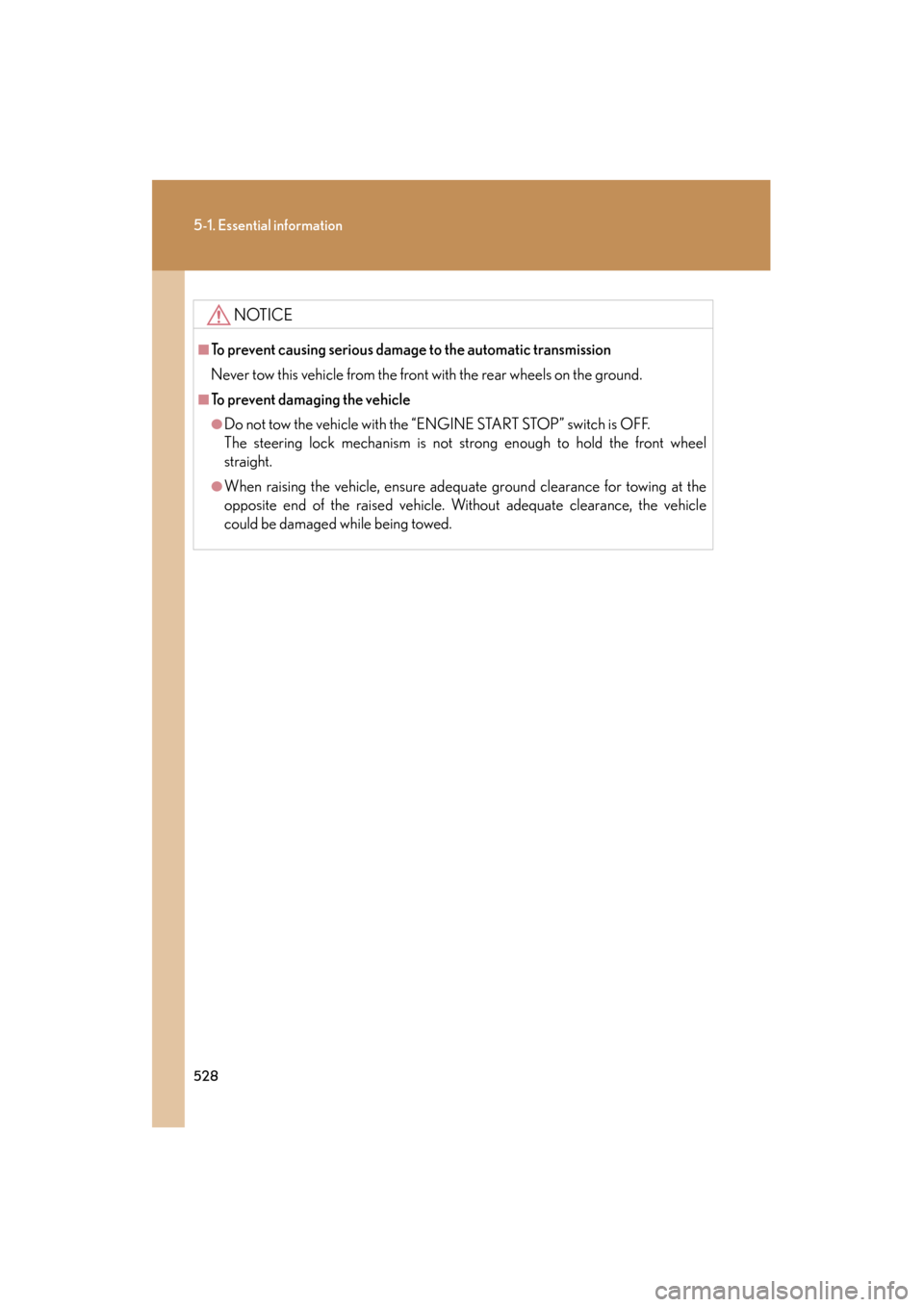

528
5-1. Essential information
GS_G_U (OM30C11U)
October 28, 2011 5:15 pm
NOTICE
■To prevent causing serious damage to the automatic transmission
Never tow this vehicle from the front with the rear wheels on the ground.
■To prevent damaging the vehicle
●Do not tow the vehicle with the “ENGINE START STOP” switch is OFF.
The steering lock mechanism is not strong enough to hold the front wheel
straight.
●When raising the vehicle, ensure adequate ground clearance for towing at the
opposite end of the raised vehicle. Without adequate clearance, the vehicle
could be damaged while being towed.

5
When trouble arises

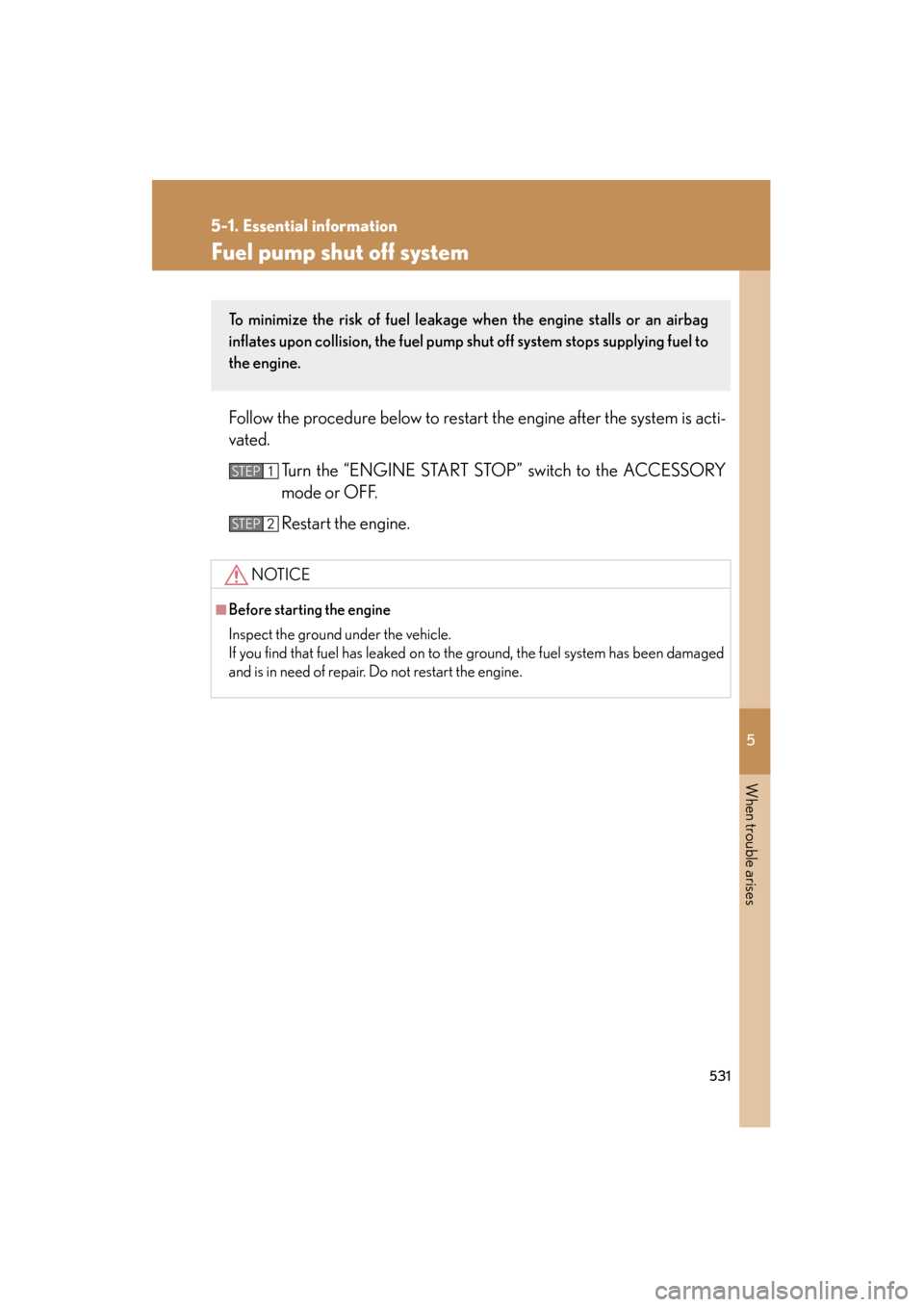

531
5-1. Essential information
GS_G_U (OM30C11U)
October 28, 2011 5:15 pm
Fuel pump shut off system
Follow the procedure below to restart the engine after the system is acti-
vated.Turn the “ENGINE START STOP” switch to the ACCESSORY
mode or OFF.
Restart the engine.
NOTICE
■Before starting the engine
Inspect the ground under the vehicle.
If you find that fuel has leaked on to the ground, the fuel system has been damaged
and is in need of repair. Do not restart the engine.
To minimize the risk of fuel leakage when the engine stalls or an airbag
inflates upon collision, the fuel pump shut off system stops supplying fuel to
the engine.
STEP1
STEP2

540
5-2. Steps to take in an emergency
GS_G_U (OM30C11U)
October 28, 2011 5:15 pm
■If the tire pressure warning system is inoperative
The tire pressure warning system will be disabled in the following conditions:
(When the condition becomes normal, the system will work properly.)
●If tires not equipped with tire pressure warning valves and transmitters are used.
●If the ID code on the tire pressure warning valves and transmitters is not regis-
tered in the tire pressure warning computer.
●If the tire pressure warning select switch is set to a different tire setting.
●If the tire inflation pressure is 73 psi (500 kPa, 5.1 kgf/cm2 or bar) or higher.
The tire pressure warning system may be disabled in the following conditions:
(When the condition becomes normal, the system will work properly.)
●If electronic devices or facilities using similar radio wave frequencies are nearby.
●If a radio set at similar frequencies is in use in the vehicle.
●If a window tint that affects the radio wave signals is installed.
●If there is a lot of snow or ice on the vehicle, in particular around the wheels or
wheel housings.
●If non-genuine Lexus wheels are used. (Even if you use Lexus wheels, the tire
pressure warning system may not work properly with some types of tires.)
●If tire chains are used.
■If the tire pressure warning light comes on after blinking for 1 minute frequently
If the tire pressure warning light comes on after blinking for 1 minute frequently
when the “ENGINE START STOP” switch is turned to IGNITION ON mode, have
it checked by your Lexus dealer.

542
5-2. Steps to take in an emergency
GS_G_U (OM30C11U)
October 28, 2011 5:15 pm
CAUTION
■Maintenance of the tires
Each tire, including the spare (if provided), should be checked monthly when cold
and inflated to the inflation pressure recommended by the vehicle manufacturer on
the vehicle placard or tire inflation pressure label (tire and load information label).
(If your vehicle has tires of a different size than the size indicated on the vehicle
placard or tire inflation pressure label [tire and load information label], you should
determine the proper tire inflation pressure for those tires.)
As an added safety feature, your vehicle has been equipped with a tire pressure
monitoring system (TPMS-tire pressure warning system) that illuminates a low tire
pressure telltale (tire pressure warning light) when one or more of your tires is sig-
nificantly under-inflated. Accordingly, when the low tire pressure telltale (tire pres-
sure warning light) illuminates, you should stop and check your tires as soon as
possible, and inflate them to the proper pressure. Driving on a significantly under-
inflated tire causes the tire to overheat and can lead to tire failure. Under-inflation
also reduces fuel efficiency and tire tread life, and may affect the vehicle’s handling
and stopping ability.
Please note that the TPMS (tire pressure warning system) is not a substitute for
proper tire maintenance, and it is the driver’s responsibility to maintain correct tire
pressure, even if under-inflation has not reached the level to trigger illumination of
the TPMS low tire pressure telltale (tire pressure warning light).
Your vehicle has also been equipped with a TPMS (tire pressure warning system)
malfunction indicator to indicate when the system is not operating properly. The
TPMS (tire pressure warning system) malfunction indicator is combined with the
low tire pressure telltale (tire pressure warning light). When the system detects a
malfunction, the telltale will flash for approximately one minute and then remain
continuously illuminated. This sequence will continue upon subsequent vehicle
start-ups as long as the malfunction exists. When the malfunction indicator is illumi-
nated, the system may not be able to detect or signal low tire pressure as intended.
TPMS (tire pressure warning system) malfunctions may occur for a variety of rea-
sons, including the installation of replacement or alternate tires or wheels on the
vehicle that prevent the TPMS (tire pressure warning system) from functioning
properly. Always check the TPMS (tire pressure warning system) malfunction tell-
tale after replacing one or more tires or wheels on your vehicle to ensure that the
replacement or alternate tires and wheels allow the TPMS (tire pressure warning
system) to continue to function properly.

550
5-2. Steps to take in an emergency
GS_G_U (OM30C11U)
October 28, 2011 5:15 pm
Wa r n i n g m e s s a g eDetailsCorrection procedure
The trunk is not fully
closed. flashes and a
buzzer sounds to indi-
cate that trunk is not fully
closed (with the vehicle
having reached a speed
of 3 mph [5 km/h]).
Close the trunk.
(Flashing)
(If equipped)
The moon roof is not fully
closed (with the
“ENGINE START STOP”
switch is OFF and the
driver’s door opened).
Close the moon roof.
(Flashing)
The parking brake is still
engaged (with the vehicle
having reached a speed
of more than 3 mph [5
km/h]).
Release the parking
brake.
The washer fluid level is
low.Add washer fluid.
The engine oil level is low.Check the engine oil level,
and add if necessary.

554
5-2. Steps to take in an emergency
GS_G_U (OM30C11U)
October 28, 2011 5:15 pm
Have the malfunction repaired immediately.After taking the specified steps to correct the suspected problem, check
that the warning message and light turn off.
InteriorbuzzerExterior buzzerWarning messageDetailsCorrection procedure
Once(Comes on for 10 seconds)
(Flashing)
The electronic key
is not detected
when attempting
to start the
engine.Confirm the
location of
the elec-
tronic key.
Once3 times
(Flashing)
An open door
other than the
driver’s door is
closed while the
electronic key is
outside the detec-
tion range and the
“ENGINE START
STOP” switch is in
ACCESSORY or
IGNITION ON
mode.
Confirm the
location of
the elec-
tronic key.

5
When trouble arises
555
5-2. Steps to take in an emergency
GS_G_U (OM30C11U)
October 28, 2011 5:15 pm
InteriorbuzzerExterior buzzerWa r n i n g m e s s a g eDetailsCorrection procedure
Once3 times
(Flashing)
The electronic key
was carried out-
side the vehicle
and the driver’s
door was opened
and closed with
the shift lever in P
without turning off
the “ENGINE
START STOP”
switch.Tu r n t h e
“ENGINE
START
STOP”
switch to
OFF or con-
firm the
location of
the elec-
tronic key.
Contin-
uousContin-
uous
(Displayed alternately)
(Flashing)
The electronic key
was carried out-
side the vehicle
and the driver’s
door was opened
and closed while
any shift position
other than P was
selected without
turning off the
“ENGINE START
STOP” switch.
•Shift the shift lever
to “P”.
•Confirm the loca-
tion of the
electronic
key.
Once(Comes on for 10 seconds)
(Flashing)
The electronic key
battery is low.Replace the
battery.
(→ P. 4 8 2 )

556
5-2. Steps to take in an emergency
GS_G_U (OM30C11U)
October 28, 2011 5:15 pm
InteriorbuzzerExterior buzzerWarning messageDetailsCorrection procedure

An open door has
been closed and
the “ENGINE
START STOP”
switch has been
turned twice to
the ACCES-
SORY mode from
OFF.
Press the
“ENGINE
START
STOP”
switch while
applying the
brakes.

(Flashing)
The steering lock
has not released
within 3 seconds
of pressing the
“ENGINE START
STOP” switch.
The “ENGINE
START STOP”
switch indicator
will flash green for
15 seconds.Press the
“ENGINE
START
STOP”
switch again
while turn-
ing the
steering
wheel with
the brake
pedal
depressed.
Once
(Comes on for 60 seconds)The electronic key
does not operate
properly.
→ P. 5 7 1

(Comes on for 10 seconds)

5
When trouble arises
569
5-2. Steps to take in an emergency
GS_G_U (OM30C11U)
October 28, 2011 5:15 pm
If the shift lever cannot be shifted from “P”
If the shift lever cannot be shifted with your foot on the brake, there may be
a problem with the shift lock system (a system to prevent accidental opera-
tion of the shift lever). Have the vehicle inspected by your Lexus dealer
immediately.
The following steps may be used as an emergency measure to ensure that
the shift lever can be shifted.
Set the parking brake.
Turn the “ENGINE START STOP” switch to the ACCESSORY
mode.
Depress the brake pedal.
Pry the cover up with a flathead
screwdriver or equivalent.
Press the shift lock override but-
ton.
The shift lever can be shifted
while the button is pressed.
STEP1
STEP2
STEP3
STEP4
STEP5

572
5-2. Steps to take in an emergency
GS_G_U (OM30C11U)
October 28, 2011 5:15 pm
Tr u n kTurn the mechanical key clock-
wise to open.
Changing “ENGINE START STOP” sw itch modes and starting the
engine
Put the shift lever in “P” and apply the brakes. Touch the Lexus emblem side of
the electronic key to the
“ENGINE START STOP” switch.
An alarm will sound to indicate that
the start function cannot detect the
electronic key that is touched to
the “ENGINE START STOP”
switch if any of the doors is opened
and closed while the key is touched
to the switch.
To change the “ENGINE START STOP” switch modes: Within 10
seconds of the buzzer sounding, release the brake pedal and
press the “ENGINE START STOP” switch. Modes can be
changed each time the switch is pressed. (
→P. 1 3 4 )
To start the engine: Press the “ENGINE START STOP” switch
within 10 seconds after the buzzer sounds, keeping the brake
pedal depressed.
If the “ENGINE START STOP” switch still cannot be operated, contact
your Lexus dealer.
STEP1
STEP2
STEP3
