448
4-3. Do-it-yourself maintenance
GS_G_U (OM30C11U)
October 28, 2011 5:15 pm
Engine compartment
GS460
Engine oil level dipstick(→P. 4 5 1 )
Engine oil filler cap (→P. 4 5 2 )
Brake fluid reservoir (→P. 4 5 7 )
Fuse box ( →P. 484)
Washer fluid tank ( →P. 4 6 2 )Engine coolant reservoir
(→P. 455)
Electric cooling fans
Condenser ( →P. 4 5 7 )
Radiator ( →P. 4 5 7 )
Fuse box ( →P. 4 8 4 )
12 volt battery ( →P. 4 5 9 )
449
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U (OM30C11U)
October 28, 2011 5:15 pm
GS350
Engine oil level dipstick(→P. 4 5 1 )
Engine oil filler cap (→P. 4 5 2 )
Brake fluid reservoir (→P. 4 5 7 )
Fuse box ( →P. 484)
Washer fluid tank ( →P. 4 6 2 )Engine coolant reservoir
(→P. 455)
Electric cooling fans
Condenser ( →P. 4 5 7 )
Radiator ( →P. 4 5 7 )
Fuse box ( →P. 4 8 4 )
12 volt battery ( →P. 4 5 9 )

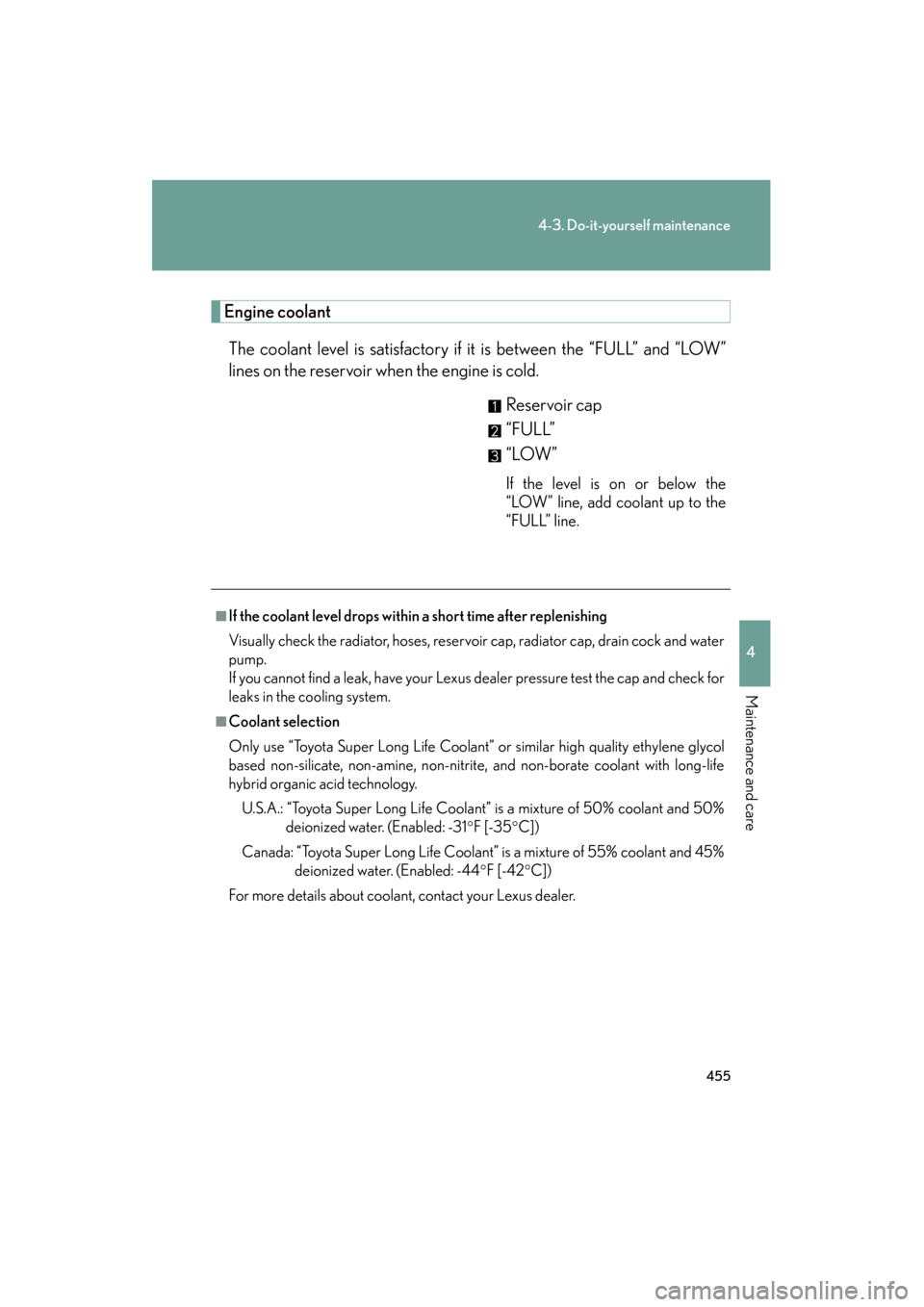

455
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U (OM30C11U)
October 28, 2011 5:15 pm
Engine coolantThe coolant level is satisfactory if it is between the “FULL” and “LOW”
lines on the reservoir when the engine is cold. Reser voir cap
“FULL”
“LOW”
If the level is on or below the
“LOW” line, add coolant up to the
“FULL” line.
■If the coolant level drops within a short time after replenishing
Visually check the radiator, hoses, reservoir cap, radiator cap, drain cock and water
pump.
If you cannot find a leak, have your Lexus dealer pressure test the cap and check for
leaks in the cooling system.
■Coolant selection
Only use “Toyota Super Long Life Coolant” or similar high quality ethylene glycol
based non-silicate, non-amine, non-nitrite, and non-borate coolant with long-life
hybrid organic acid technology.U.S.A.: “Toyota Super Long Life Coolant” is a mixture of 50% coolant and 50% deionized water. (Enabled: -31 °F [-35 °C])
Canada: “Toyota Super Long Life Coolant” is a mixture of 55% coolant and 45% deionized water. (Enabled: -44 °F [-42 °C])
For more details about coolant, contact your Lexus dealer.

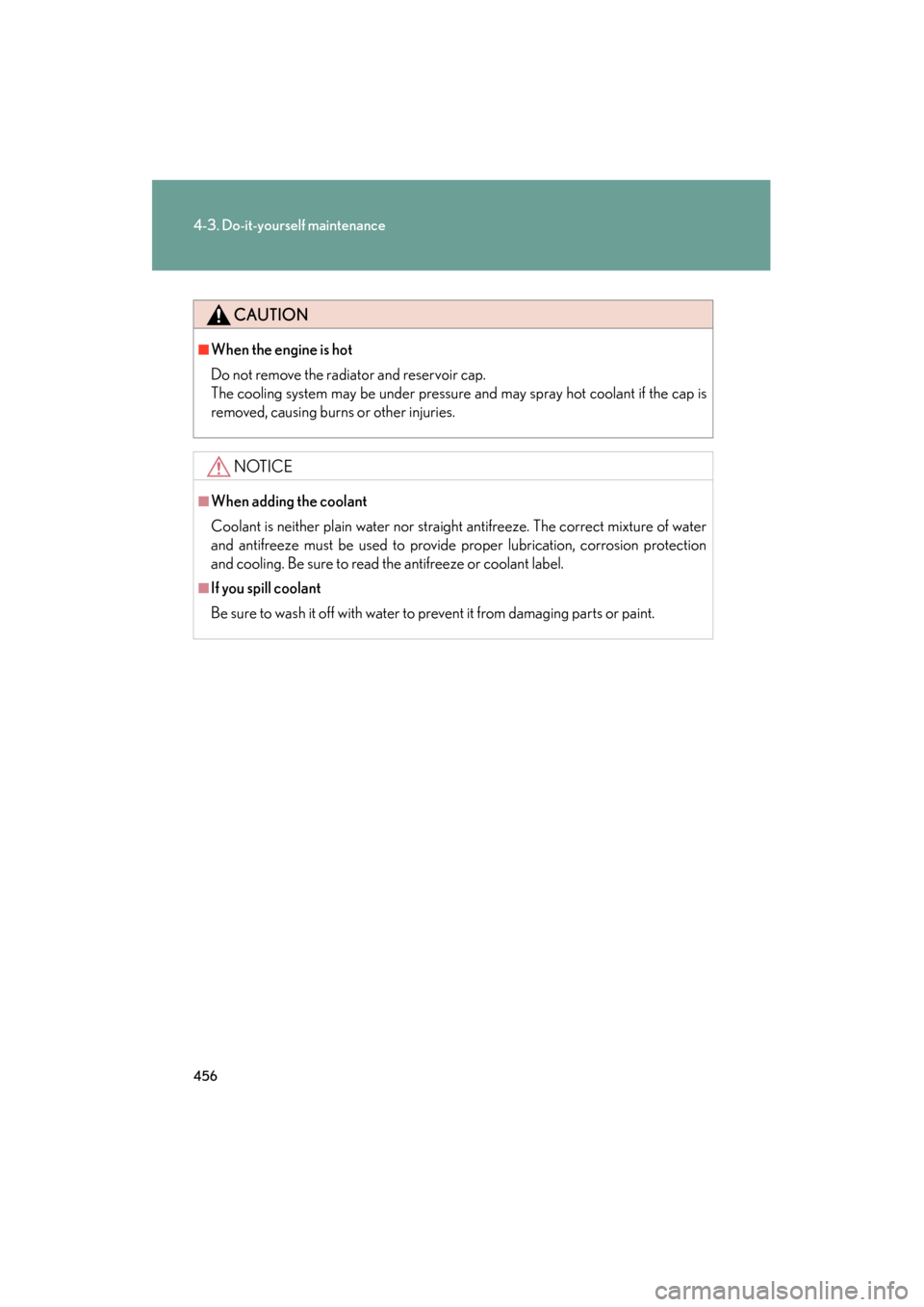

456
4-3. Do-it-yourself maintenance
GS_G_U (OM30C11U)
October 28, 2011 5:15 pm
CAUTION
■When the engine is hot
Do not remove the radiator and reservoir cap.
The cooling system may be under pressure and may spray hot coolant if the cap is
removed, causing burns or other injuries.
NOTICE
■When adding the coolant
Coolant is neither plain water nor straight antifreeze. The correct mixture of water
and antifreeze must be used to provide proper lubrication, corrosion protection
and cooling. Be sure to read the antifreeze or coolant label.
■If you spill coolant
Be sure to wash it off with water to prevent it from damaging parts or paint.
