GS350_U (OM30C34U)
7818-2. Customization
8
Vehicle specifications

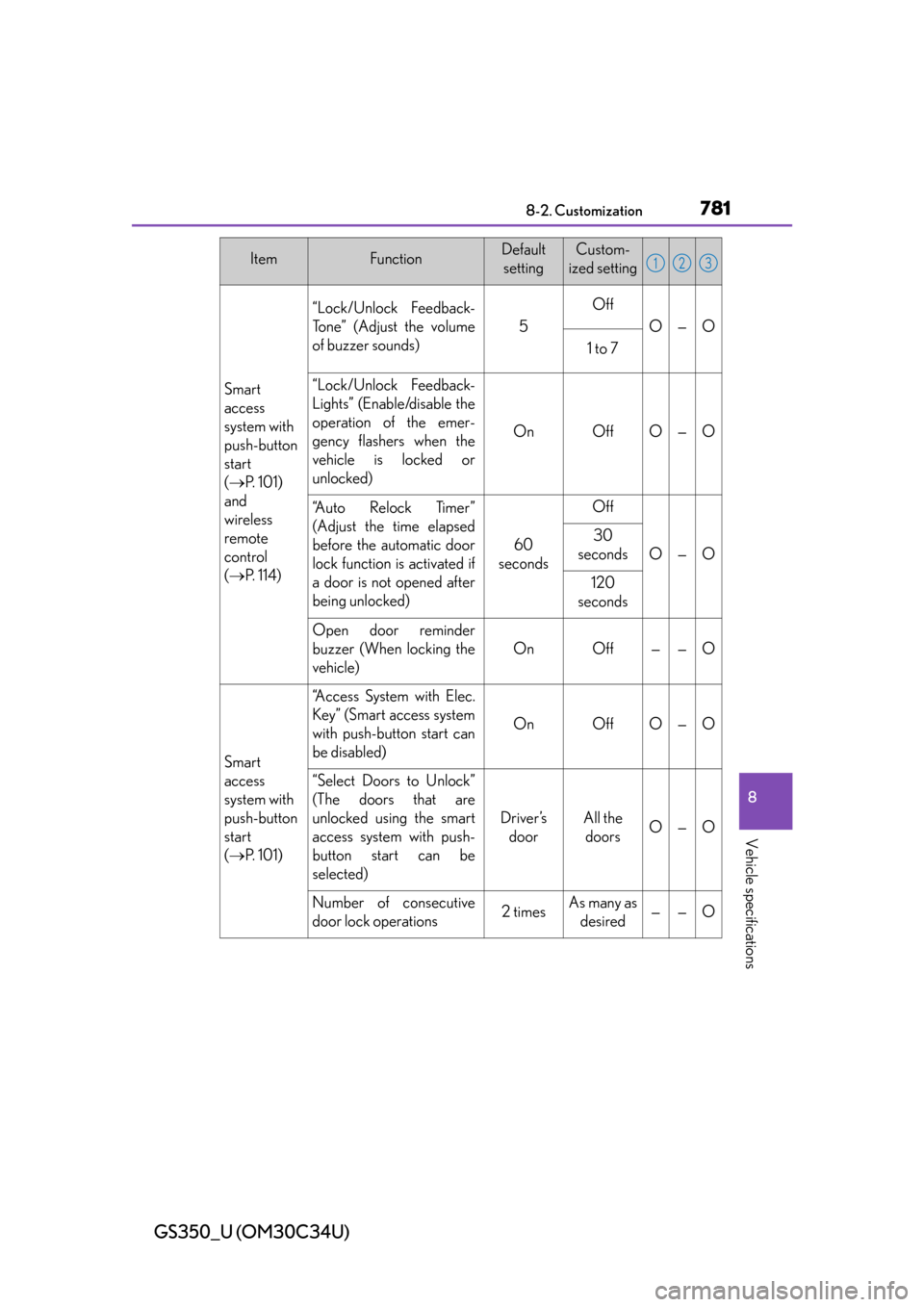

Smart
access
system with
push-button
start
( P. 1 0 1 )
and
wireless
remote
control
(  P. 114)
“Lock/Unlock Feedback-
To n e ” ( A d j u s t t h e v o l u m e
of buzzer sounds)
5
Off
O—O
1 to 7
“Lock/Unlock Feedback-
Lights” (Enable/disable the
operation of the emer-
gency flashers when the
vehicle is locked or
unlocked)
OnOffO—O
“A u t o R e l o c k T i m e r ”
(Adjust the time elapsed
before the automatic door
lock function is activated if
a door is not opened after
being unlocked)
60
seconds
Off
O—O
30
seconds
120
seconds
Open door reminder
buzzer (When locking the
vehicle)
OnOff——O
Smart
access
system with
push-button
start
(  P. 1 0 1 )
“Access System with Elec.
Key” (Smart access system
with push-button start can
be disabled)
OnOffO—O
“Select Doors to Unlock”
(The doors that are
unlocked using the smart
access system with push-
button start can be
selected)
Driver’s
doorAll the doorsO—O
Number of consecutive
door lock operations2 timesAs many as desired——O
ItemFunctionDefaultsettingCustom-
ized setting123

782
GS350_U (OM30C34U)
8-2. Customization

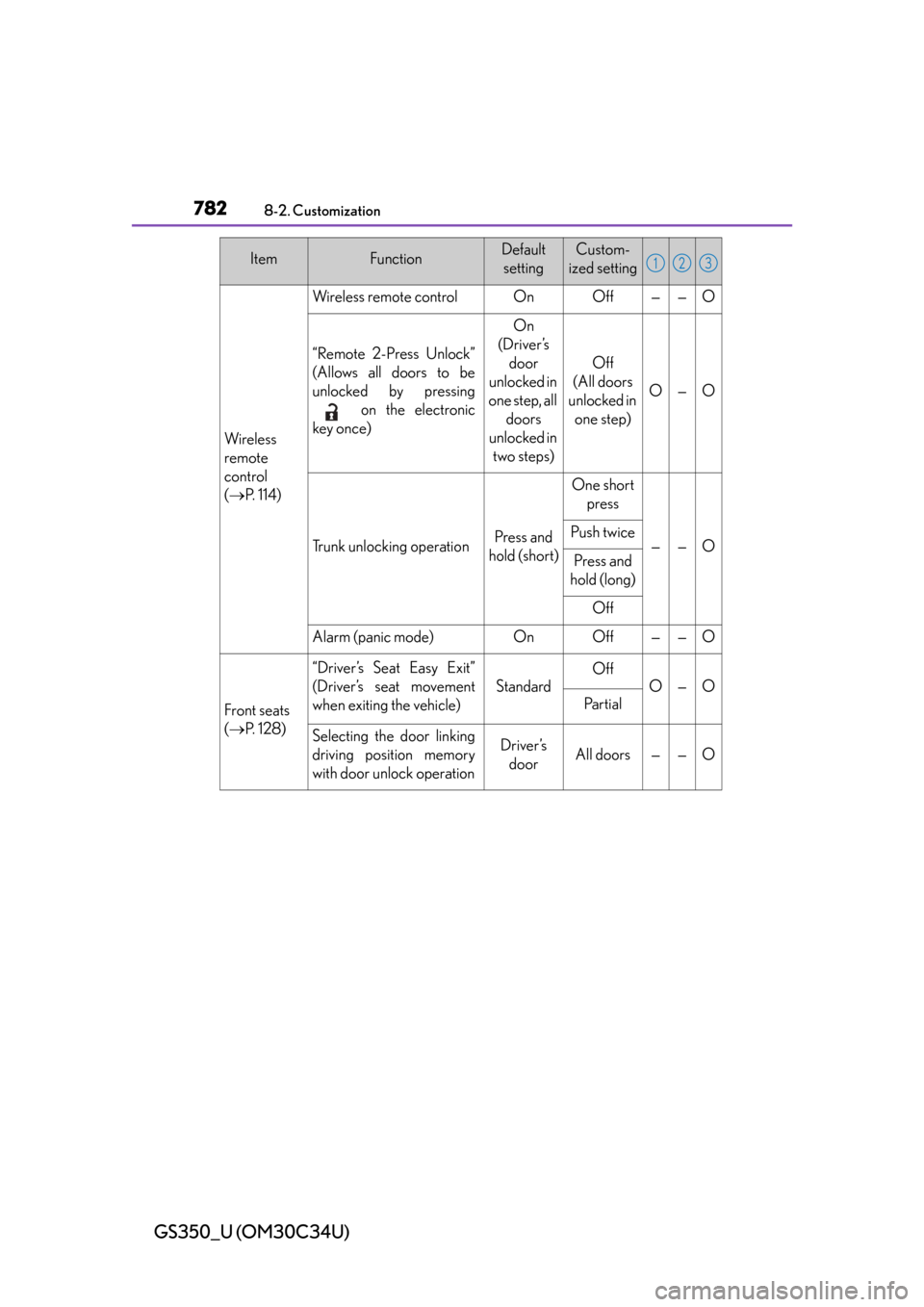

Wi re less
remote
control
( P. 114)
Wireless remote controlOnOff——O
“Remote 2-Press Unlock”
(Allows all doors to be
unlocked by pressing
on the electronic
key once)
On
(Driver’s door
unlocked in
one step, all doors
unlocked in two steps)
Off
(All doors
unlocked in one step)
O—O
Trunk unlocking operationPress and
hold (short)
One short press
——OPush twice
Press and
hold (long)
Off
Alarm (panic mode)OnOff——O
Front seats
(  P. 1 2 8 )
“Driver’s Seat Easy Exit”
(Driver’s seat movement
when exiting the vehicle)
Standard
Off
O—O
Pa r t i a l
Selecting the door linking
driving position memory
with door unlock operationDriver’s
doorAll doors——O
ItemFunctionDefaultsettingCustom-
ized setting123

GS350_U (OM30C34U)
7838-2. Customization
8
Vehicle specifications

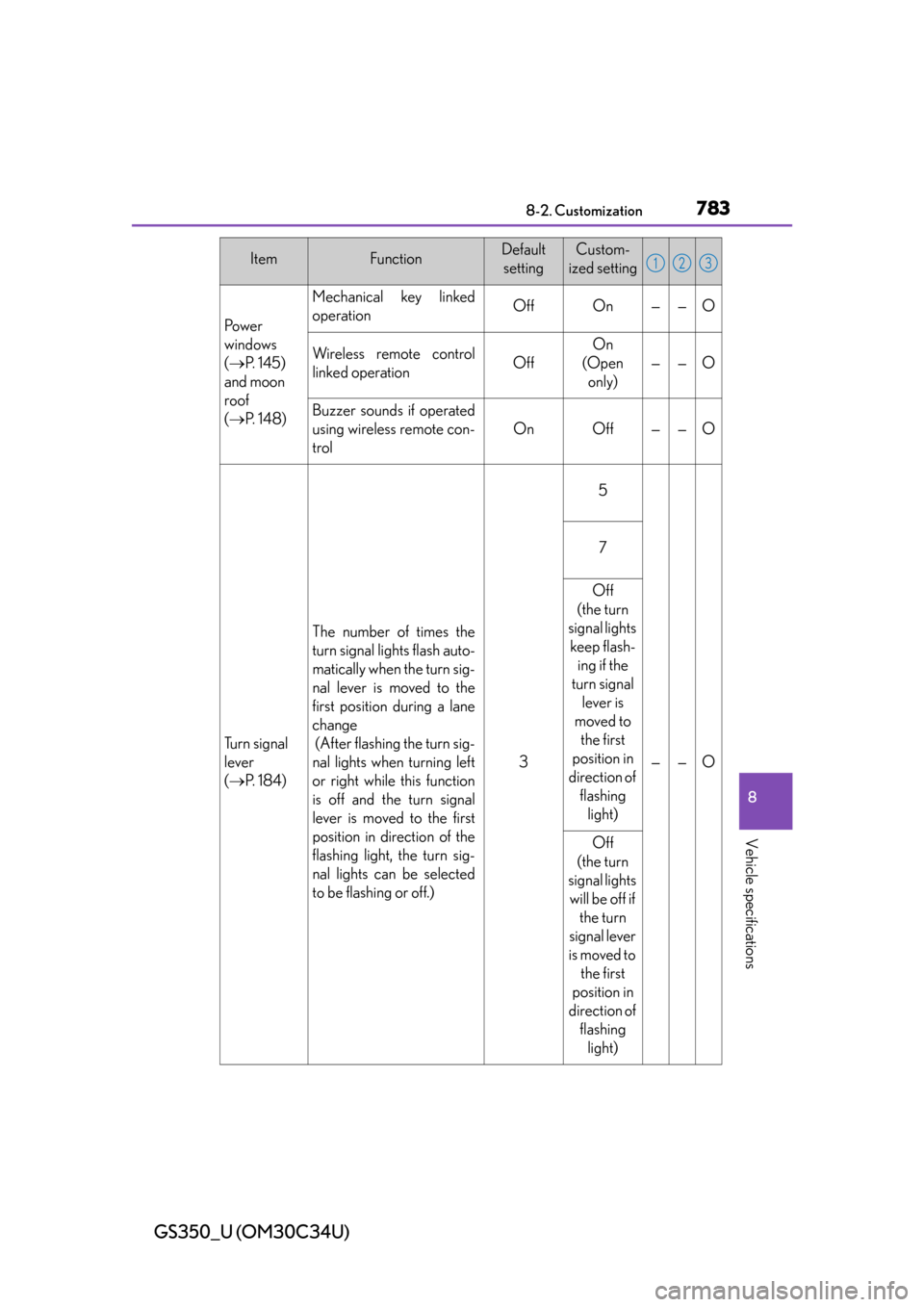

Po w e r
windows
( P. 1 4 5 )
and moon
roof
(  P. 1 4 8 )
Mechanical key linked
operationOffOn——O
Wireless remote control
linked operationOff
On
(Open only)
——O
Buzzer sounds if operated
using wireless remote con-
trol
OnOff——O
Tu r n s i g n a l
lever
( P. 1 8 4 )
The number of times the
turn signal lights flash auto-
matically when the turn sig-
nal lever is moved to the
first position during a lane
change
(After flashing the turn sig-
nal lights when turning left
or right while this function
is off and the turn signal
lever is moved to the first
position in direction of the
flashing light, the turn sig-
nal lights can be selected
to be flashing or off.)
3
5
——O
7
Off
(the turn
signal lights keep flash- ing if the
turn signal lever is
moved to the first
position in
direction of flashing light)
Off
(the turn
signal lights will be off if the turn
signal lever
is moved to the first
position in
direction of flashing light)
ItemFunctionDefaultsettingCustom-
ized setting123

784
GS350_U (OM30C34U)
8-2. Customization

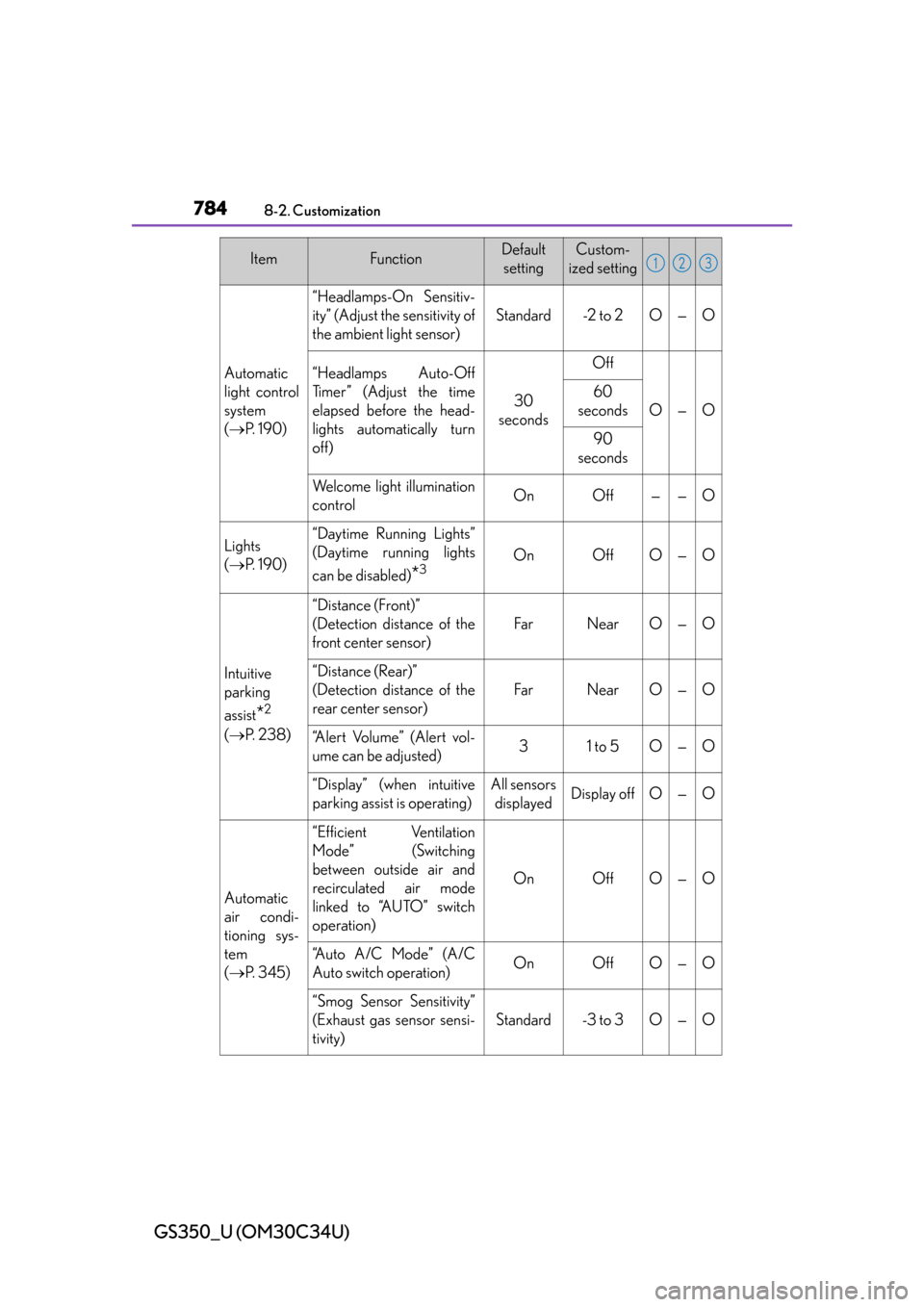

Automatic
light control
system
( P. 1 9 0 )
“Headlamps-On Sensitiv-
ity” (Adjust the sensitivity of
the ambient light sensor)
Standard-2 to 2O—O
“Headlamps Auto-Off
Timer” (Adjust the time
elapsed before the head-
lights automatically turn
off)
30
seconds
Off
O—O
60
seconds
90
seconds
Welcome light illumination
controlOnOff——O
Lights
(  P. 1 9 0 )“Daytime Running Lights”
(Daytime running lights
can be disabled)
*3OnOffO—O
Intuitive
parking
assist
*2
( P. 2 3 8 )
“Distance (Front)”
(Detection distance of the
front center sensor)
FarNearO—O
“Distance (Rear)”
(Detection distance of the
rear center sensor)
FarNearO—O
“Alert Volume” (Alert vol-
ume can be adjusted)31 to 5O—O
“Display” (when intuitive
parking assist is operating)All sensors
displayedDisplay offO—O
Automatic
air condi-
tioning sys-
tem
(  P. 345)
“Efficient Ventilation
Mode” (Switching
between outside air and
recirculated air mode
linked to “AUTO” switch
operation)
OnOffO—O
“A u t o A / C M o d e ” ( A / C
Auto switch operation)OnOffO—O
“Smog Sensor Sensitivity”
(Exhaust gas sensor sensi-
tivity)
Standard-3 to 3O—O
ItemFunctionDefault
settingCustom-
ized setting123

GS350_U (OM30C34U)
7858-2. Customization
8
Vehicle specifications

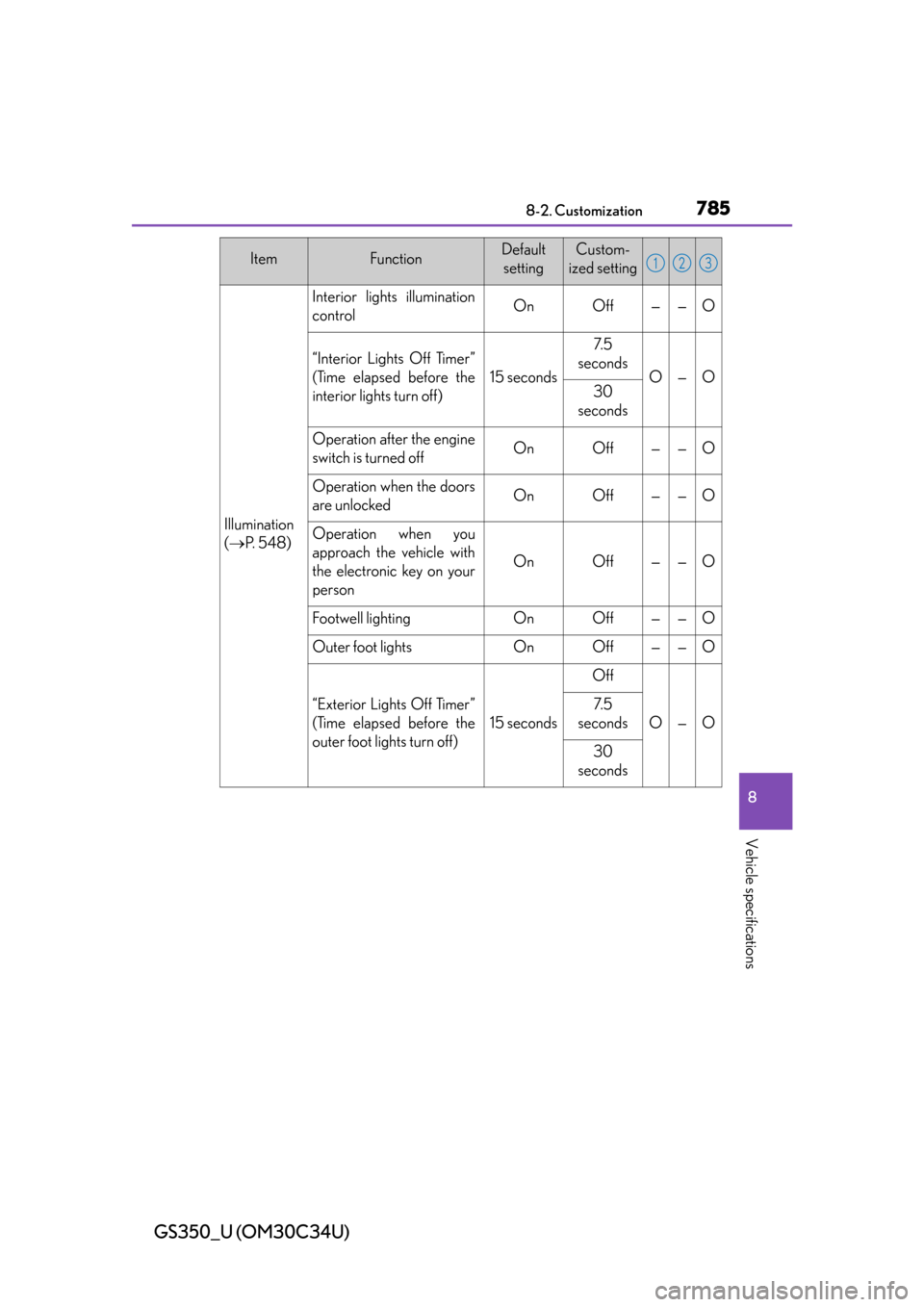

Illumination
( P. 548)
Interior lights illumination
controlOnOff——O
“Interior Lights Off Timer”
(Time elapsed before the
interior lights turn off)
15 seconds
7. 5
seconds
O—O30
seconds
Operation after the engine
switch is turned offOnOff——O
Operation when the doors
are unlockedOnOff——O
Operation when you
approach the vehicle with
the electronic key on your
person
OnOff——O
Footwell lightingOnOff——O
Outer foot lightsOnOff——O
“Exterior Lights Off Timer”
(Time elapsed before the
outer foot lights turn off)
15 seconds
Off
O—O
7. 5
seconds
30
seconds
ItemFunctionDefault settingCustom-
ized setting123

786
GS350_U (OM30C34U)
8-2. Customization
*1: The default setting varies according to countries.
*2:If equipped
*3: U.S.A. only

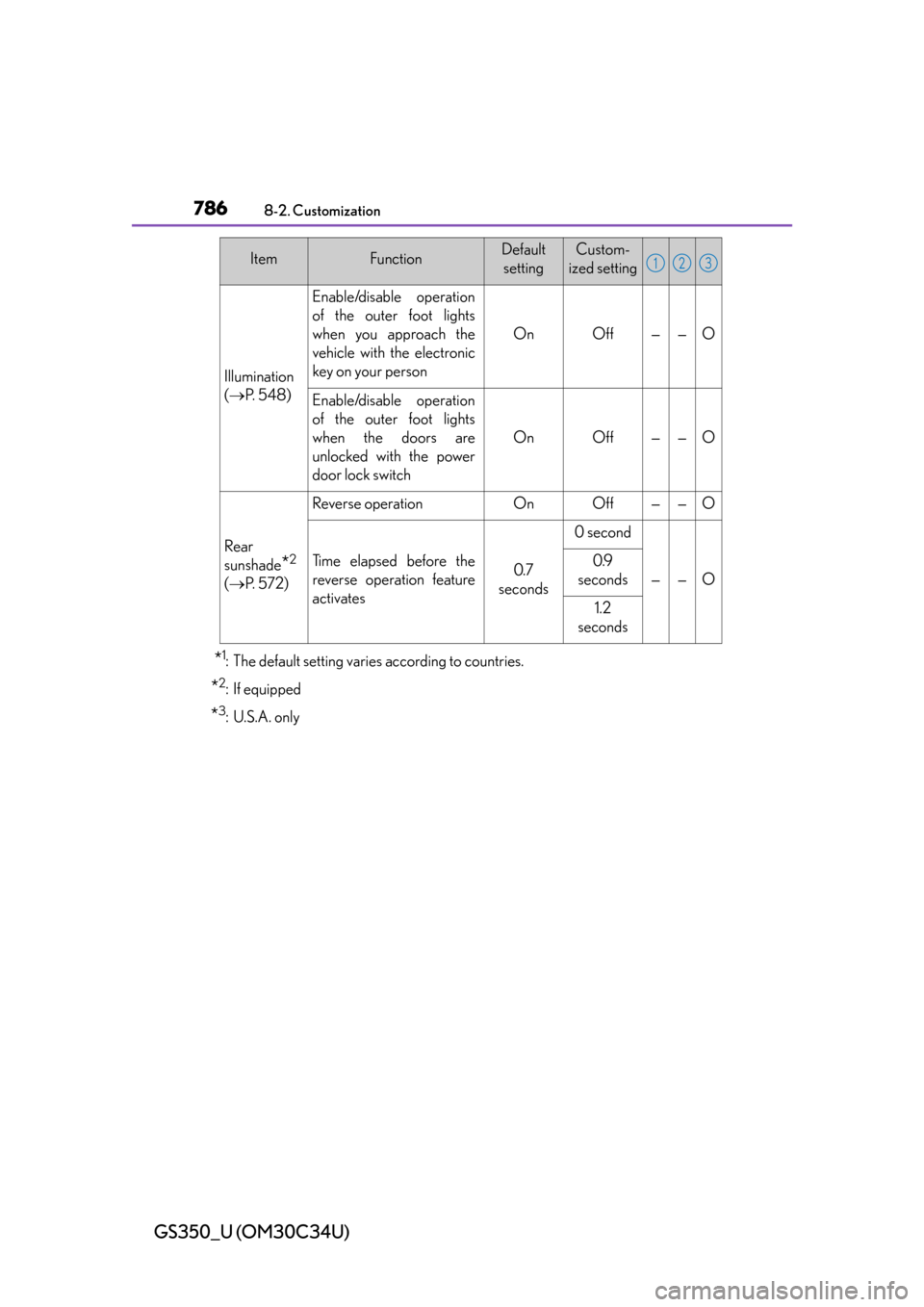

Illumination
( P. 548)
Enable/disable operation
of the outer foot lights
when you approach the
vehicle with the electronic
key on your person
OnOff——O
Enable/disable operation
of the outer foot lights
when the doors are
unlocked with the power
door lock switch
OnOff——O
Rear
sunshade
*2
( P. 5 7 2 )
Reverse operationOnOff——O
Ti m e e l a p s e d b e f o r e t h e
reverse operation feature
activates0.7
seconds
0 second
——O
0.9
seconds
1.2
seconds
ItemFunctionDefault settingCustom-
ized setting123

GS350_U (OM30C34U)
7878-2. Customization
8
Vehicle specifications
■Vehicle customization
●When the “Auto Lock by Speed” and “Auto Lock by Shift from P” are both on, the
door lock operates as follows.
• When shifting the shift lever to any position other than P, all the doors will be
locked.
• If the vehicle is started with all the door s locked, the “Auto Lock by Speed” would
not operate.
• If the vehicle is started with any door unlocked, the “Auto Lock by Speed” will operate.
●When the smart access system with push-b utton start is off, the “Select Doors to
Unlock” cannot be customized.
●When the doors remain closed after un locking the doors and the “Auto Relock
Timer” activates, the signals will be generated in accordance with the “Lock/
Unlock Feedback-Tone” and the “Lock/Unlock Feedback-Lights” settings.
■When customizing using the Remote Touch
Stop the vehicle in a safe place, apply the parking brake, and shift the shift lever to P.
Also, to prevent battery discharge, leave the engine running while customizing the
features.
CAUTION
■During customization
As the engine needs to be running during customization, ensure that the vehicle is
parked in a place with adequate ventilatio n. In a closed area such as a garage,
exhaust gases including harmful carbon mo noxide (CO) may collect and enter the
vehicle. This may lead to death or a serious health hazard.
NOTICE
■During customization
To prevent battery discharge, ensure that the engine is running while customizing
features.

788
GS350_U (OM30C34U)
8-3. Items to initialize
Items to initialize
The following items must be initialized for normal system operation
after such cases as the batter y being reconnected, or maintenance
being performed on the vehicle:
ItemWhen to initializeReference
Maintenance data• After the maintenance is per- formedP. 6 0 2
Tire pressure warning system
• When rotating the tires
• When changing the tire infla-tion pressure by changing trav-
eling speed or load weight, etc.
P. 6 3 2

789
GS350_U (OM30C34U)
For owners9
Reporting safety defects for U.S. owners ..................................... 790
Seat belt instructions for Canadian owners
(in French) ................................................791
SRS airbag instructions for Canadian owners
(in French) ............................................. 793

790
GS350_U (OM30C34U)

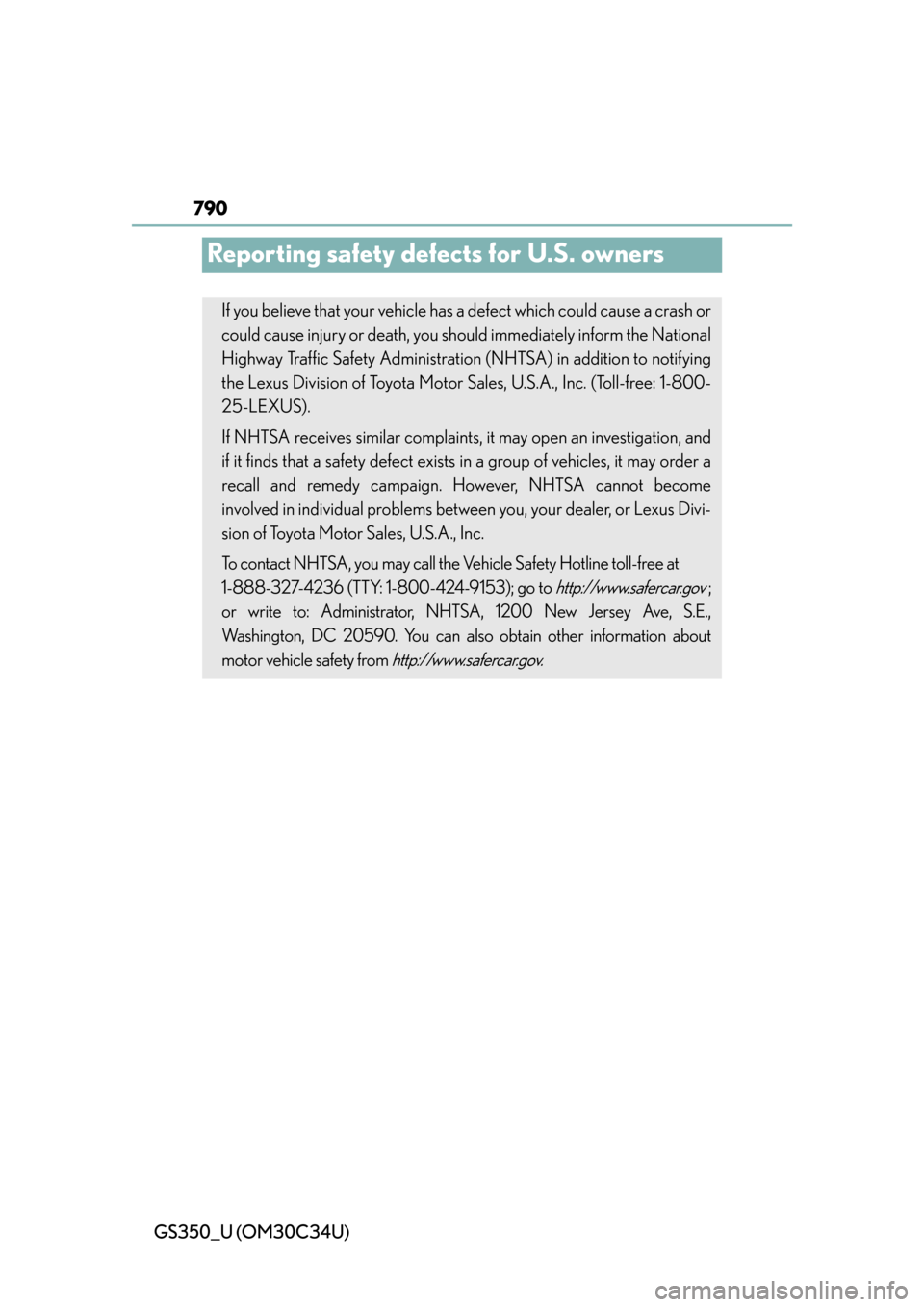

Reporting safety defects for U.S. owners
If you believe that your vehicle has a defect which could cause a crash or
could cause injury or death, you sh ould immediately inform the National
Highway Traffic Safety Ad ministration (NHTSA) in addition to notifying
the Lexus Division of Toyota Motor Sa les, U.S.A., Inc. (Toll-free: 1-800-
25-LEXUS).
If NHTSA receives similar complaints , it may open an investigation, and
if it finds that a safety defect exists in a group of vehicles, it may order a
recall and remedy campaign. However, NHTSA cannot become
involved in individual problems between you, your dealer, or Lexus Divi-
sion of Toyota Motor Sales, U.S.A., Inc.
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at
1-888-327-4236 (TTY: 1-800-424-9153); go to
http://www.safercar.gov ;
or write to: Administrator, NHTS A, 1200 New Jersey Ave, S.E.,
Washington, DC 20590. You can a lso obtain other information about
motor vehicle safety from
http://www.safercar.gov.
