sensor Lexus GS350 2013 Opening, closing and locking the doors and trunk / LEXUS 2013 GS350 (OM30C34U) Repair Manual

777
GS350_U (OM30C34U)8-2. Customization
8
Vehicle specifications
Customizable features
■Changing by using the Remote Touch
Vehicles without a navigation system
“Vehicle Settings” screen displayed on the Remote Touch screen.
( P. 317)
Select “Vehicle Customiza-
tion” on the “Vehicle Settings”
screen.
“Vehicle Customization” screen
will appear.
Choose a category displayed on the screen to display the settings.
Select the setting to be changed. Change each setting.
For items that can be enabled/disabled , and for items with an operating time
that can be changed, select “On” or “Off”, or select the desired operating time.
For items with sensor sensitivity that can be changed, select “+” or “-” to
choose the desired level, then select “OK”.
A message indicating that the settings are being saved will appear.
Do not perform any other operations while this message is dis-
played.
Your vehicle includes a variety of electronic features that can be per-
sonalized to your preferences. Th ese preferences can be changed by
using the “DISP” button, by using the Remote Touch, or at your Lexus
dealer.
Customizing vehicle features
1
2
3
4
5

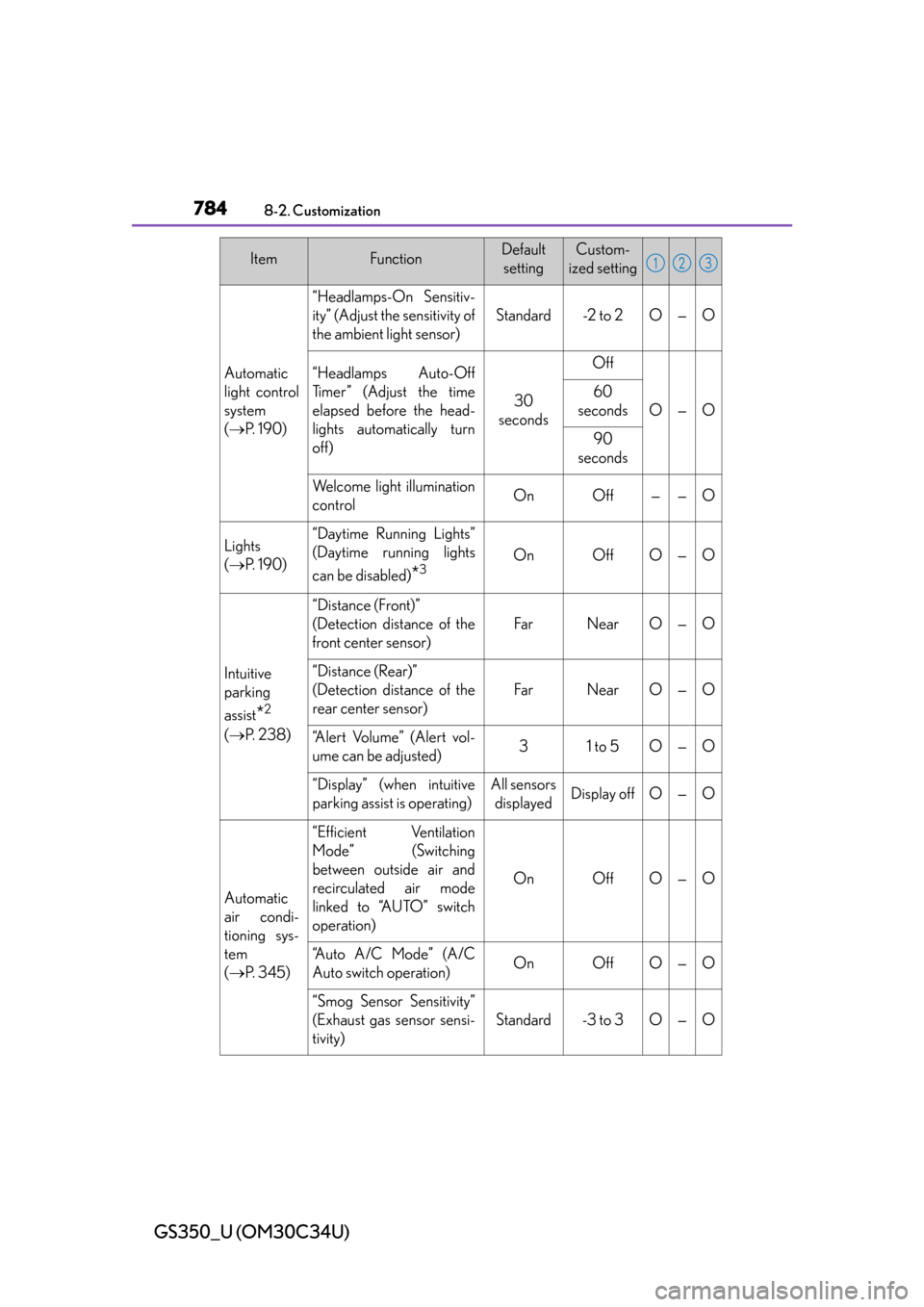

784
GS350_U (OM30C34U)
8-2. Customization
Automatic
light control
system
( P. 1 9 0 )
“Headlamps-On Sensitiv-
ity” (Adjust the sensitivity of
the ambient light sensor)
Standard-2 to 2O—O
“Headlamps Auto-Off
Timer” (Adjust the time
elapsed before the head-
lights automatically turn
off)
30
seconds
Off
O—O
60
seconds
90
seconds
Welcome light illumination
controlOnOff——O
Lights
(  P. 1 9 0 )“Daytime Running Lights”
(Daytime running lights
can be disabled)
*3OnOffO—O
Intuitive
parking
assist
*2
( P. 2 3 8 )
“Distance (Front)”
(Detection distance of the
front center sensor)
FarNearO—O
“Distance (Rear)”
(Detection distance of the
rear center sensor)
FarNearO—O
“Alert Volume” (Alert vol-
ume can be adjusted)31 to 5O—O
“Display” (when intuitive
parking assist is operating)All sensors
displayedDisplay offO—O
Automatic
air condi-
tioning sys-
tem
(  P. 345)
“Efficient Ventilation
Mode” (Switching
between outside air and
recirculated air mode
linked to “AUTO” switch
operation)
OnOffO—O
“A u t o A / C M o d e ” ( A / C
Auto switch operation)OnOffO—O
“Smog Sensor Sensitivity”
(Exhaust gas sensor sensi-
tivity)
Standard-3 to 3O—O
ItemFunctionDefault
settingCustom-
ized setting123

808What to do if... (Troubleshooting)
GS350_U (OM30C34U)

●Did anyone inside the vehicle open a door during setting the
alarm?
The sensor detects it and the alarm sounds. ( P. 7 0 )
To stop the alarm, turn the engi ne switch to IGNITION ON mode
or start the engine.
●Is the electronic key left insid e the vehicle or the moon roof
opened?
Check the message on the multi-information display.
( P. 7 0 4 )
●When a warning light turns on or a warning message is dis-
played, refer to P. 686, 697.
An alarm is activated and the horn sounds
A warning buzzer sounds when leaving the vehicle
A warning light turns on or a warning message is displayed

819Alphabetical index
GS350_U (OM30C34U)
Paddle shift switches ............................ 180
Parking assist sensors (intuitive parking assist) .................. 238
Parking brake.......................................... 186 If the parking brake cannot be released........................738
Operation ............................................... 186
Parking brake engaged warning buzzer .............................. 706
Parking brake engaged warning message .......................... 706
Parking lights ........................................... 190 Light switch ............................................ 190
Replacing light bulbs ..........................671
Welcome light illumination control ........................... 101
PCS (Pre-Collision System) ............ 278 Function ..................................................278
PCS OFF switch ............................... 280
Warning light ...................................... 688
Warning message .......................699, 708, 714
Personal lights........................................ 549
Power easy access system .................133
Power outlets ......................................... 564
Power steering (Electric Power
Steering system) ................................ 269 Warning light ...................................... 687
Warning message .............................702
Power trunk opener and closer ........ 121 Power windows....................................... 145
Door lock linked window operation ........................... 147
Jam protection function....................146
Operation................................................145
Window lock switch ..........................145
Pre-Collision System (PCS).............278 Function .................................................. 278
PCS OFF switch ................................280
Warning light ...................................... 688
Warning message....................... 699, 708, 714
Radar cruise control (dynamic radar cruise control).......................... 213
Radiator.....................................................622
Radio ......................................................... 390
RBDS (Radio Broadcast Data Systems) .................................... 393
Rear air conditioning system........... 360
Rear personal lights ............................ 549
Rear side marker lights ........................190 Light switch............................................ 190
Replacing light bulbs ......................... 671
Welcome light illumination control ........................... 101
Rear door sunshades...........................573
Rear seat heaters ................................. 568
Rear sunshade ........................................572 Operation.............................................. 572
Reverse operation feature ............ 573
P
R
*: For vehicles with a navigation system, refer to the “Navigation System Owner’s Manual”.

821Alphabetical index
GS350_U (OM30C34U)
Seats............................................................ 128Adjustment ............................................. 128
Adjustment precautions .................. 129
Child seats/child restraint system installation.............................. 57
Cleaning ................................................ 598
Driving position memory ................ 130
Head restraints ..................................... 136
Power easy access system ............ 133
Properly sitting in the seat ................ 28
Seat heaters ......................................... 568
Seat position memory....................... 130
Seat ventilators ................................... 569
Sensor Automatic headlight system .......... 193
Humidity sensor .................................357
Inside rear view mirror ....................... 141
Intuitive parking assist ..................... 238
Lexus night view ................................. 297
LKA (Lane-Keeping Assist) .........236
Radar sensor ................222, 280, 292
Rain-sensing windshield wipers .................................................... 201
Service reminder indicators ................74
S-FLOW mode ..................................... 355
Shift lever ...................................................178 Automatic transmission ................... 178
If the shift lever cannot be shifted from P ............ 737
Shift lever light ....................................... 548
Shift lock system.....................................737
Side airbags ............................................... 37
Side marker lights.................................. 190 Light switch ............................................ 190
Replacing light bulbs ..........................671
Welcome light illumination control ..................................................... 101 Side mirrors .............................................. 142
Adjusting and folding ........................ 142
Blind Spot Monitor ........................... 287
Linked mirror function when reversing.................................. 143
Mirror position memory ................. 130
Side turn signal lights ............................184 Replacing light bulbs ......................... 671
Turn signal lever ...................................184
Smart access system with push-button start ........................ 101Antenna location................................. 103
Entry functions ....................................... 101
Starting the engine ................................171
Warning message............................. 703
Snow tires ................................................ 302
Spare tire .................................................. 722 Inflation pressure................................ 760
Storage location ..................................723
Spark plug ................................................756
Specifications..........................................752
Speedometer ............................................. 79
Steering lock ............................................ 174 Column lock release ......................... 175
Steering lock system warning message........................... 720
Steering wheel ........................................ 139 Adjustment..............................................139
Audio switches ................................... 482
Heated steering wheel ...................566
Power easy access system .............133
Steering wheel position memory ............................. 130
Stop lights Replacing light bulbs ......................... 671
Storage feature ....................................... 551
