engine Lexus GS350 2013 Using the audio system / LEXUS 2013 GS350 OWNERS MANUAL (OM30C34U)

7147-2. Steps to take in an emergency
GS350_U (OM30C34U)
*: Refer to the separate “Scheduled Maintenance” or “Owner’s Manual Supple-ment” for the maintenance interval applicable to your vehicle.
Wa r n i n g m e s s a g eDetailsCorrection procedure
Indicates that the tire
position information can-
not be recognized
Drive for a short while
and check if the display
updates. If the radio wave condi-
tions improve, the dis-
play may return to
normal. If the tire pres-
sure is still not dis-
played after driving for
several minutes, stop
the vehicle in a safe
place, turn the engine
switch off then on
again, and start driving.
If the tire pressure is still
not displayed even
after repeating this sev-
eral times, have the
vehicle inspected at
your Lexus dealer.
Indicates that the pre-col-
lision system is not cur-
rently functional because
the grille cover or the
sensor is dirtyThis message also
appears when the pre-
collision system is not
functional due to over-
heating.
Check the grille cover
and the sensor and clean
them if they are dirty. In case of overheating,
the system will become
functional once the sys-
tem cools down.
(If equipped)
(Flashes)
(If equipped)

7157-2. Steps to take in an emergency
GS350_U (OM30C34U)
7
When trouble arises
After taking the specified steps to correct the suspected problem, check
that the warning message and light go off.
Have the malfunction repaired immediately.
Interior buzzerExterior
buzzerWa r n i n g m e s s a g eDetailsCorrection procedure
Once
The electronic key
is not detected
when an attempt is
made to start the
engine.Start the
engine with
the elec-
tronic key
present.
Once3
times
The electronic key
was carried out-
side the vehicle and
a door other than
the driver’s door
was opened and
closed while the
engine switch was
in a mode other
than off.
Bring the
electronic
key back
into the
vehicle.
The driver’s door
was opened and
closed while the
electronic key was
not in the vehicle,
the shift lever was in
P and the engine
switch was not
turned off.Tu r n t h e
engine
switch off or
bring the
electronic
key back
into the
vehicle.
(Flashes)
(Flashes)

7167-2. Steps to take in an emergency
GS350_U (OM30C34U)

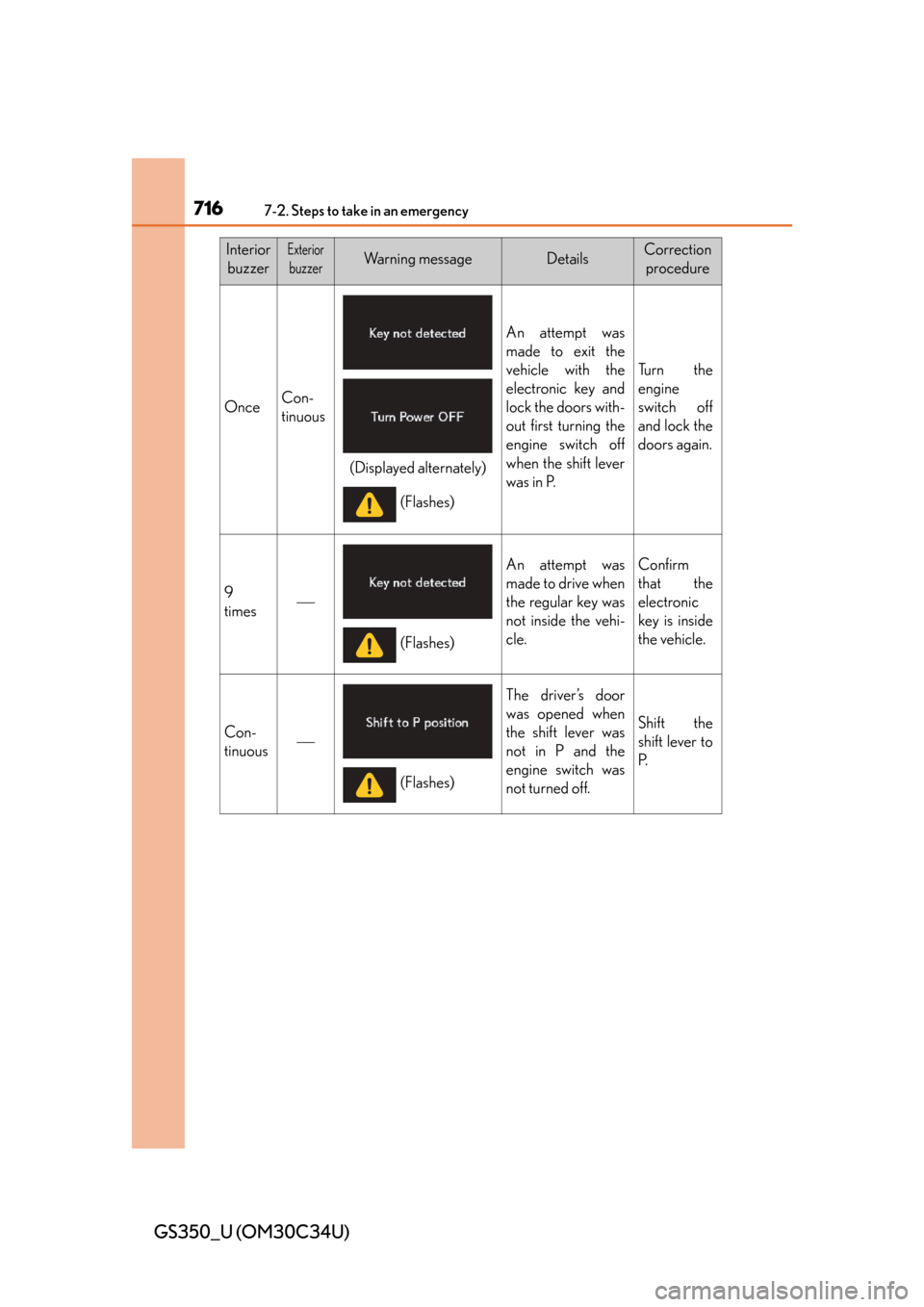

InteriorbuzzerExterior
buzzerWa r n i n g m e s s a g eDetailsCorrection procedure
OnceCon-
tinuous
An attempt was
made to exit the
vehicle with the
electronic key and
lock the doors with-
out first turning the
engine switch off
when the shift lever
was in P.
Tu r n t h e
engine
switch off
and lock the
doors again.
9
times
An attempt was
made to drive when
the regular key was
not inside the vehi-
cle.Confirm
that the
electronic
key is inside
the vehicle.
Con-
tinuous
The driver’s door
was opened when
the shift lever was
not in P and the
engine switch was
not turned off.
Shift the
shift lever to
P.
(Displayed alternately)
(Flashes)
(Flashes)
(Flashes)

7177-2. Steps to take in an emergency
GS350_U (OM30C34U)
7
When trouble arises
InteriorbuzzerExterior
buzzerWa r n i n g m e s s a g eDetailsCorrection procedure
Con-
tinuousCon-
tinuous
The driver’s door
was opened and
closed while the
electronic key was
not in the vehicle,
the shift lever was
not in P and the
engine switch was
not turned off.• Shift the shift lever
to P.
•Bring the elec-
tronic key
back into
the vehi-
cle.
Con-
tinuous
An attempt was
made to lock the
doors using the
smart access sys-
tem with push-but-
ton start while the
electronic key was
still inside the vehi-
cle.
Retrieve the
electronic
key from the
vehicle and
lock the
doors again.
OnceCon-
tinuous
An attempt was
made to lock either
front door by open-
ing a door and put-
ting the inside lock
button into the lock
position, then clos-
ing the door with
the electronic key
still inside the vehi-
cle.
Retrieve the
electronic
key from the
vehicle and
lock the
doors again.
(Displayed alternately)
(Flashes)
(Flashes)
(Flashes)

7187-2. Steps to take in an emergency
GS350_U (OM30C34U)

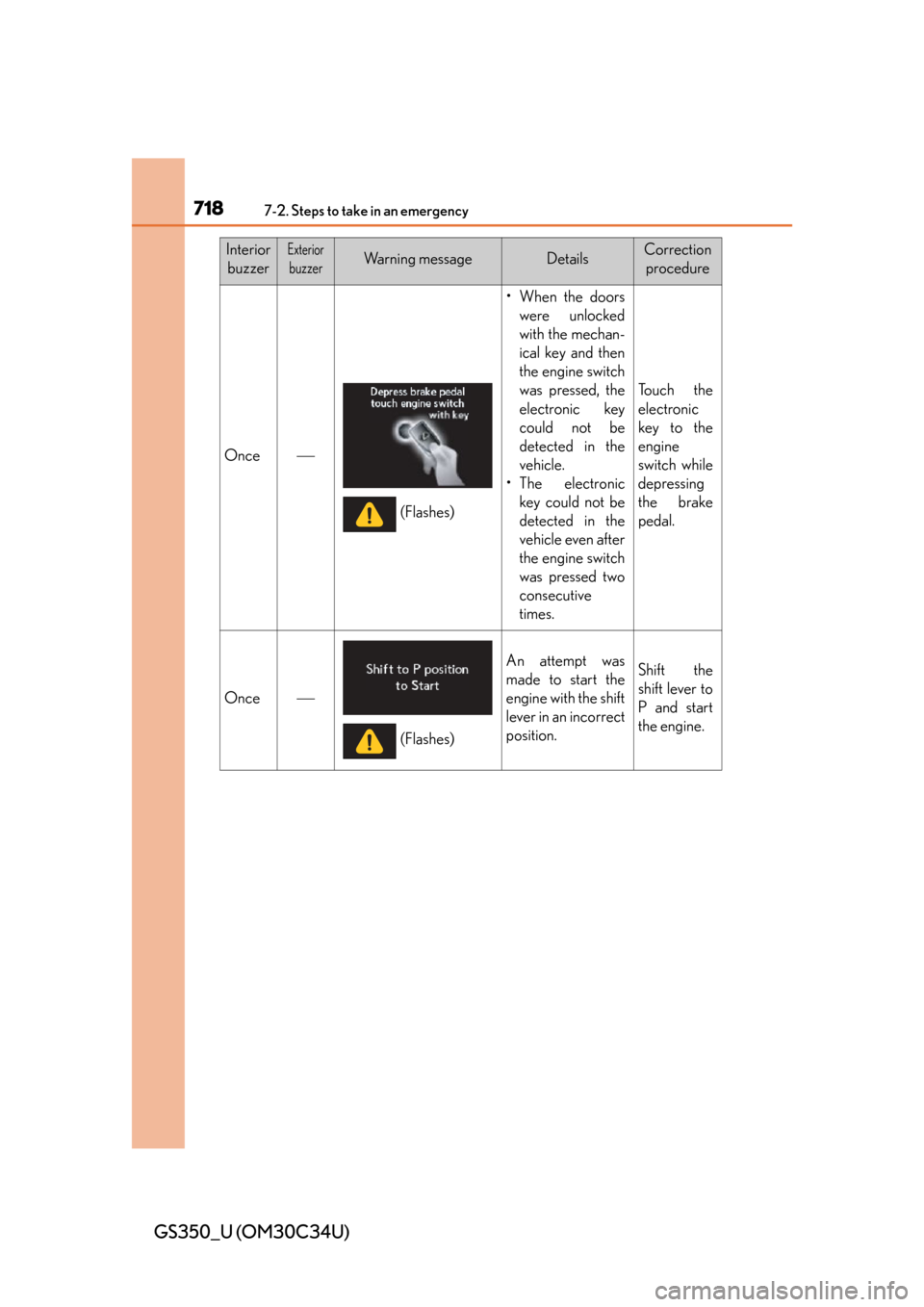

InteriorbuzzerExterior
buzzerWa r n i n g m e s s a g eDetailsCorrection procedure
Once
•When the doors were unlocked
with the mechan-
ical key and then
the engine switch
was pressed, the
electronic key
could not be
detected in the
vehicle.
• The electronic key could not be
detected in the
vehicle even after
the engine switch
was pressed two
consecutive
times.
To u c h t h e
electronic
key to the
engine
switch while
depressing
the brake
pedal.
Once
An attempt was
made to start the
engine with the shift
lever in an incorrect
position.Shift the
shift lever to
P and start
the engine.
(Flashes)
(Flashes)

7197-2. Steps to take in an emergency
GS350_U (OM30C34U)
7
When trouble arises

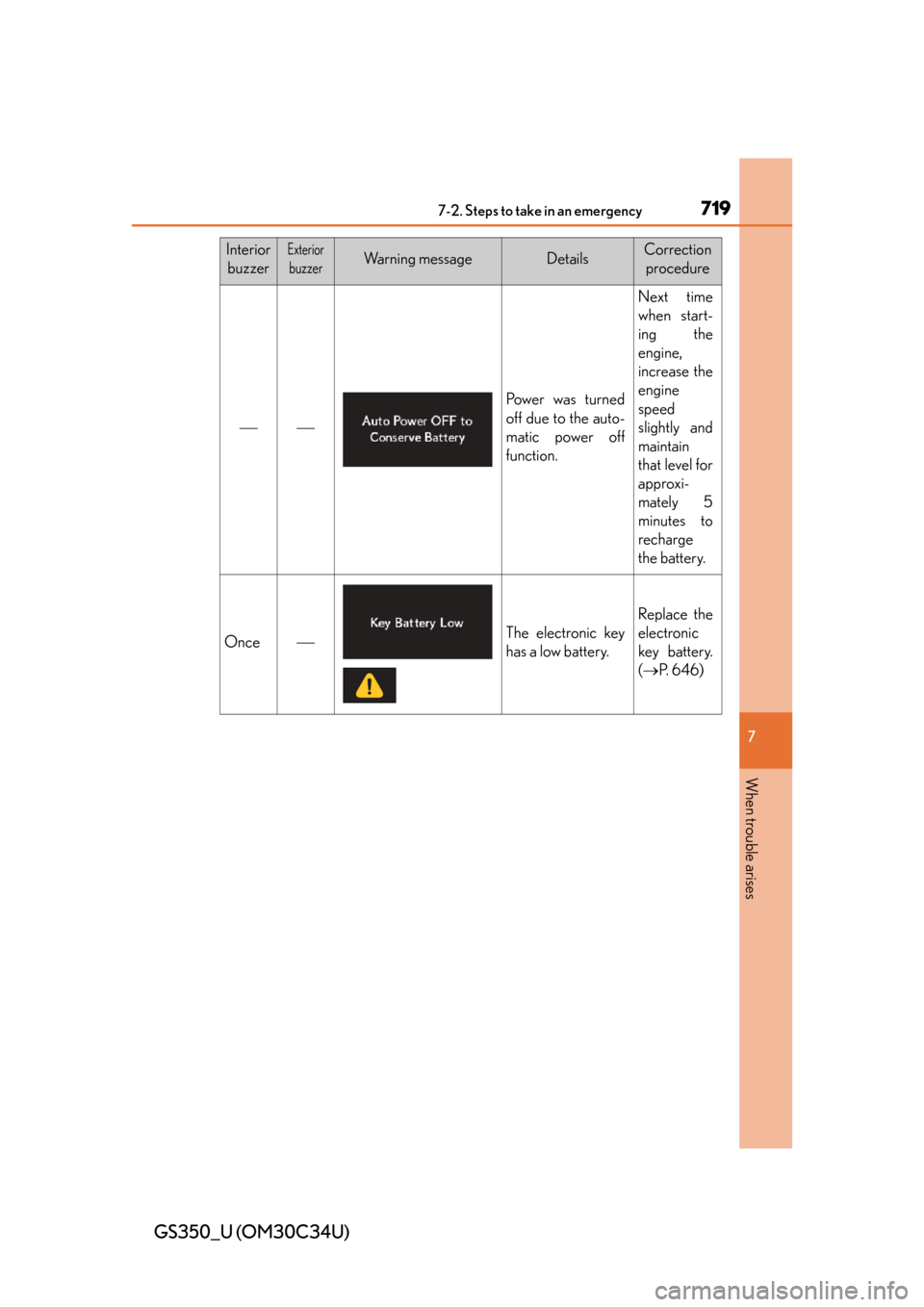

InteriorbuzzerExterior
buzzerWa r n i n g m e s s a g eDetailsCorrection procedure

Power was turned
off due to the auto-
matic power off
function.
Next time
when start-
ing the
engine,
increase the
engine
speed
slightly and
maintain
that level for
approxi-
mately 5
minutes to
recharge
the battery.
OnceThe electronic key
has a low battery.
Replace the
electronic
key batter y.
(  P. 646)

7207-2. Steps to take in an emergency
GS350_U (OM30C34U)

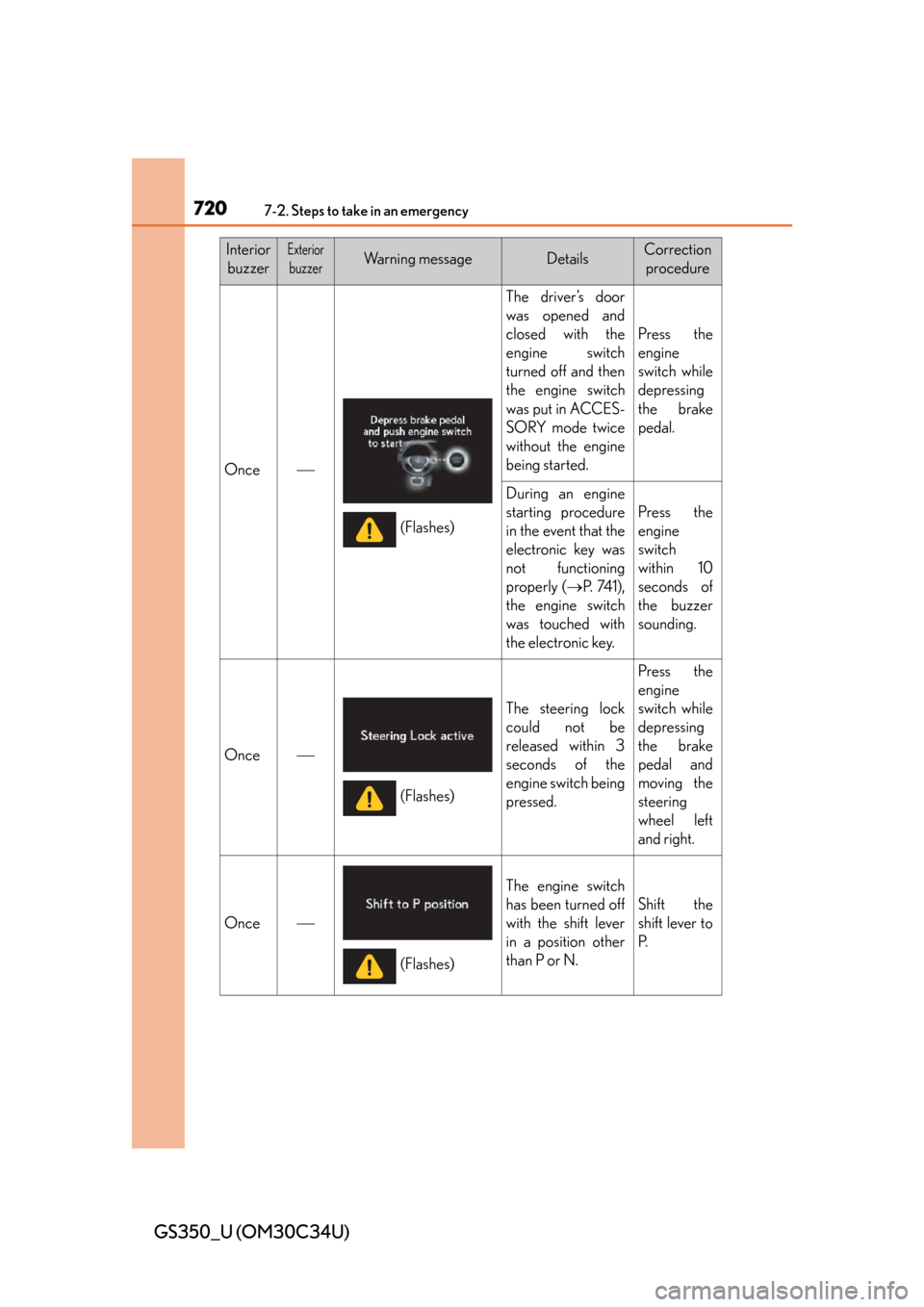

InteriorbuzzerExterior
buzzerWa r n i n g m e s s a g eDetailsCorrection procedure
Once
The driver’s door
was opened and
closed with the
engine switch
turned off and then
the engine switch
was put in ACCES-
SORY mode twice
without the engine
being started.
Press the
engine
switch while
depressing
the brake
pedal.
During an engine
starting procedure
in the event that the
electronic key was
not functioning
properly ( P. 74 1 ) ,
the engine switch
was touched with
the electronic key.
Press the
engine
switch
within 10
seconds of
the buzzer
sounding.
Once
The steering lock
could not be
released within 3
seconds of the
engine switch being
pressed.
Press the
engine
switch while
depressing
the brake
pedal and
moving the
steering
wheel left
and right.
Once
The engine switch
has been turned off
with the shift lever
in a position other
than P or N.
Shift the
shift lever to
P.
(Flashes)
(Flashes)
(Flashes)

7217-2. Steps to take in an emergency
GS350_U (OM30C34U)
7
When trouble arises

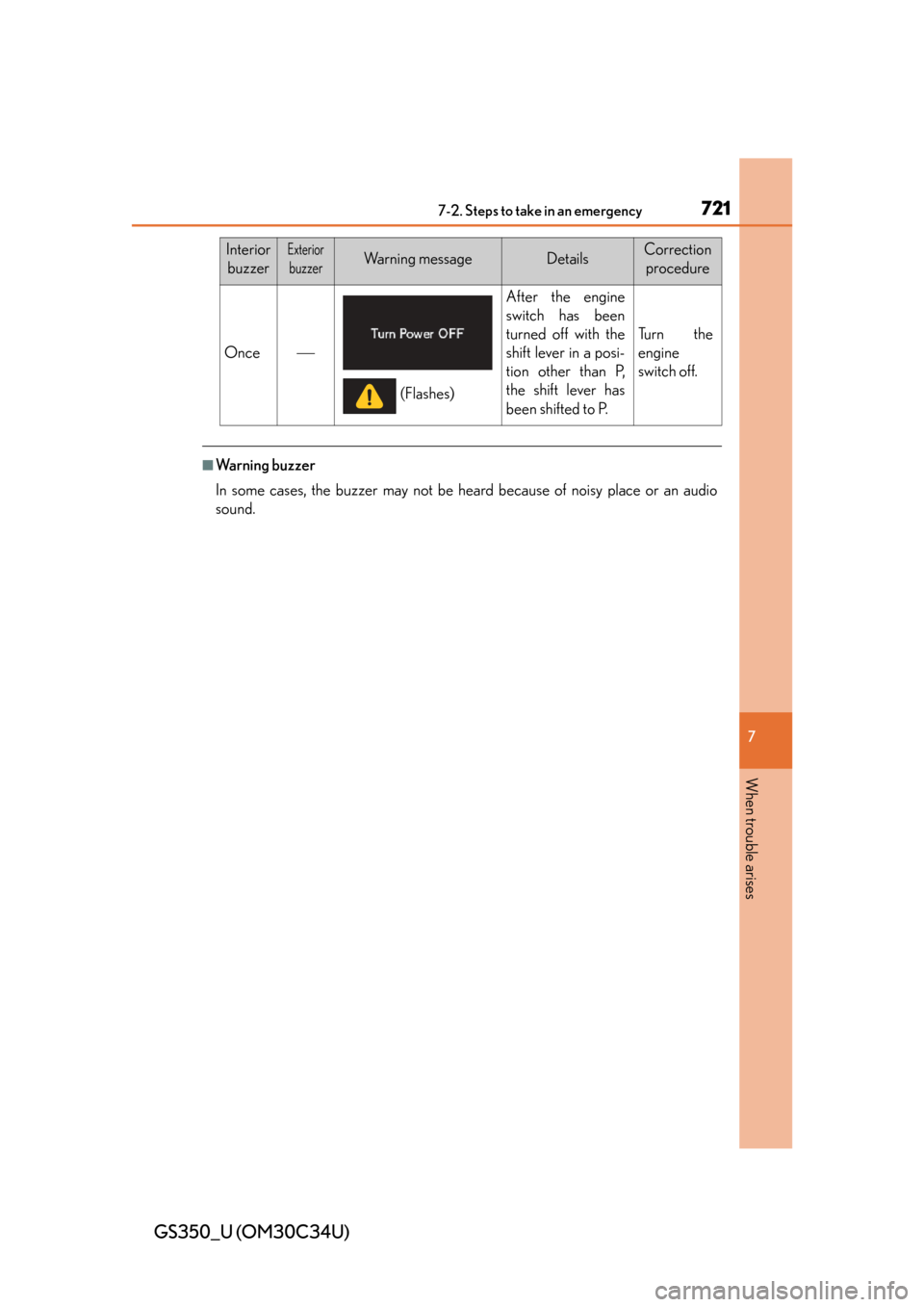

■Warning buzzer
In some cases, the buzzer may not be heard because of noisy place or an audio
sound.
Once
After the engine
switch has been
turned off with the
shift lever in a posi-
tion other than P,
the shift lever has
been shifted to P.
Tu r n t h e
engine
switch off.
Interior buzzerExterior
buzzerWa r n i n g m e s s a g eDetailsCorrection procedure
(Flashes)

722
GS350_U (OM30C34U)
7-2. Steps to take in an emergency
If you have a flat tire
●Stop the vehicle on a hard, flat surface.
●Set the parking brake.
●Shift the shift lever to P.
●Stop the engine.
●Turn on the emergency flashers. (P. 6 76 )
Remove the flat tire and replace it with the spare tire provided.
For details about tires: P. 6 2 9
CAUTION
■If you have a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the wheel
beyond repair, which could result in an accident.
Before jacking up the vehicle

7247-2. Steps to take in an emergency
GS350_U (OM30C34U)
CAUTION
■Using the tire jack
Observe the following precautions.
Improper use of the tire jack may cause the vehicle to suddenly fall off the jack,
leading to death or serious injury.
●Do not use the tire jack for any purpose other than replacing tires or installing and
removing tire chains.
●Only use the tire jack that comes with this vehicle for replacing a flat tire.
Do not use it on other vehicles, and do not use other tire jacks for replacing tires
on this vehicle.
●Put the jack properly in its jack point.
●Do not put any part of your body under the vehicle while it is supported by the
jack.
●Do not start the engine or drive the vehicle while the vehicle is supported by the
jack.
●Do not raise the vehicle while someone is inside.
●When raising the vehicle, do not put an object on or under the jack.
●Do not raise the vehicle to a height greater than that required to replace the tire.
●Use a jack stand if it is necessary to get under the vehicle.
●When lowering the vehicle, make sure that there is no-one near the vehicle. If
there are people nearby, warn them vocally before lowering.
