6-1. Maintenance and care
NOTICE
■Cleaning detergents
●Do not use the following types of detergent, as they may discolor the vehicle inte-
rior or cause streaks or damage to painted surfaces:
• Non-seat portions: Organic substances such as benzene or gasoline, alkalineor acidic solutions, dye, and bleach
• Seats: Alkaline or acidic solutions, such as thinner, benzene, and alcohol
●Do not use polish wax or polish cleaner. The instrument panel’s or other interior
part’s painted surf ace may be damaged.
■Preventing damage to leather surfaces
Observe the following precautions to avoid damage to and deterioration of
leather surfaces:
●Remove any dust or dirt from leather surfaces immediately.
●Do not expose the vehicle to direct sunlight for extended periods of time. Park
the vehicle in the shade, especially during summer.
●Do not place items made of vinyl, plastic, or containing wax on the upholstery, as
they may stick to the leather surface if the vehicle interior heats up significantly.
■Water on the floor
Do not wash the vehicle floor with water.
Vehicle systems such as the audio syst em may be damaged if water comes into
contact with electrical components such as the audio system above or under the
floor of the vehicle. Water may also cause the body to rust.
■When cleaning the inside of the windsh ield (vehicles with LKA [Lane-Keeping
Assist])
Be careful not to touch the camera sensor ( P. 2 3 6 ) .
If the camera is accidentally scratched or hit, LKA may not operate properly or
may cause a malfunction.
■Cleaning the inside of the rear window
●Do not use glass cleaner to clean the rear window, as this may cause damage to
the rear window defogger heater wires or antenna. Use a cloth dampened with
lukewarm water to gently wipe the window clean. Wipe the window in strokes
running parallel to the heater wires or antenna.
●Be careful not to scratch or damage the heater wires or antenna.

GS350_U (OM30C34U)
6516-3. Do-it-yourself maintenance
6
Maintenance and care
■Engine compartment (type A fuse box)
Fuse layout and amperage ratings
FuseAmpereCircuit
1LH J/B-B40Left-hand junction block
2VGRS40VGRS
3RH J/B-B40Right-hand junction block
4P/ I - B N O. 280F/PMP, EFI MAIN, A/F HTR, EDU, IG2
MAIN
5ALT150RH J/B ALT, P/I ALT, LH J/B ALT, LUG J/B
ALT
6P/ I A LT100RR DEF, TAIL, FR FOG, DEICER, PANEL,
RR S/SHADE
7RH J/B ALT80Right-hand junction block
8MPX-B10
Smart access system with push-button start,
electric tilt and telescopic steering column,
power seats, head-up display, front right-
hand door ECU, gauges and meters, steer-
ing sensor, yaw rate and G sensor, overhead
module, front left-hand door ECU, power
trunk opener and closer, RR CTRL SW,
clock, body ECU, CAN gateway ECU

GS350_U (OM30C34U)
6556-3. Do-it-yourself maintenance
6
Maintenance and care
■Driver’s side instrument panel
FuseAmpereCircuit
1STOP7. 5Stop lights, high mounted stoplight
2P/ W- B5Po w e r w i n d o w m a s t e r s w i t c h
3P/ S E AT 1 F/ L30Po w e r s e a t s
4D/L NO.125Power door lock system
5NV-IR10Lexus night view
6FL S/HTR10Seat heaters/ventilators
7WIPER30Windshield wipers
8WIPER-IG5Windshield wipers
9LH-IG10
Seat belts, body ECU, AFS, overhead mod-
ule, raindrop sensor, inside rear view mirror,
lane camera sensor (LKA), head-up display,
shift lock system, intuitive parking assist, front
left-hand door ECU, driver monitor system,
Remote Touch screen, electric tilt and tele-
scopic steering column, power seats, moon
roof, intuitive parking assist switch
10LH ECU-IG10
VDIM, D-SW MODULE (Blind Spot Moni-
tor, heated steering wheel), driver support
system, AFS, EPB

GS350_U (OM30C34U)
6596-3. Do-it-yourself maintenance
6
Maintenance and care
■Trunk
FuseAmpereCircuit
1PSB30Pre-collision seat belts
2PTL25Power trunk opener and closer
3RR J/B-B10Smart access system with push-button start
4RR S/HTR20Seat heaters (rear)
5FR S/HTR10Seat heaters/ventilators (front)
6RR FOG10No circuit
7DC/DC-S (HV)7. 5No circuit
8BATT FAN (HV)20No circuit
9SECURITY7. 5SECURITY
10ECU-B NO.37. 5Parking brake
11TRK OPN7. 5Power trunk opener and closer
12DCM (HV)7. 5No circuit
13AC INV (HV )20No circuit
14RR-IG15Radar sensor, Blind Spot Monitor
15RR ECU-IG10
Power trunk opener and closer, parking
brake, tension reducer (rear left-hand), RR
CTRL SW, tire pressure warning system,
DRS
16EPS-IG5Electric power steering system
17BACK UP7. 5Back-up lights

6927-2. Steps to take in an emergency
GS350_U (OM30C34U)
■SRS warning light
This warning light system monitors the airbag sensor assembly, front impact sensors,
side impact sensors (front door), side impact sensors (front), side impact sensors
(rear), driver’s seat position sensor, driver’s seat belt buckle switch, front passenger
occupant classification system, “AIR BAG ON” indicator light, “AIR BAG OFF” indi-
cator light, front passenger’s seat belt buckle switch, seat belt pretensioner assem-
blies, inflators, interconnectin g wiring and power sources. ( P. 38)
■Front passenger detection sensor, seat belt reminder and warning buzzer
If luggage is placed on the front passen ger seat, the front passenger detection sen-
sor may cause the warning light to flash and the warning buzzer to sound even if a
passenger is not sitting in the seat.
■If the malfunction indicator lamp comes on while driving
First check the following:
●Is the fuel tank empty?
If it is, fill the fuel tank immediately.
●Is the fuel tank cap loose?
If it is, tighten it securely.
The light will go off after several driving trips.
If the light does not go off even after several trips, contact your Lexus dealer as soon
as possible.
■Changing the engine oil (U.S.A. only)
Make sure to reset th e oil change system. ( P. 6 0 2 )
■When the tire pressure warning light comes on
Check the tire inflation pressure and adjust to the appropriate level. Pushing the tire
pressure warning reset switch will not turn off the tire pressure warning light.

7007-2. Steps to take in an emergency
GS350_U (OM30C34U)
Indicates a malfunction in the intuitive parking assistThe malfunctioning assist-sensor is flashing.
Indicates a malfunction in the dynamic radar cruise
control system (if equipped) or the cruise control sys-
tem Press the “ON-OFF” button once to deactivate the
system, and then press the button again to reacti-
vate the system.
Indicates a malfunction in the LKA (Lane-Keeping
Assist)
Indicates a malfunction in the automatic headlight lev-
eling system
Wa r n i n g m e s s a g eDetails
(If equipped)
(If equipped)
(If equipped)

7077-2. Steps to take in an emergency
GS350_U (OM30C34U)
7
When trouble arises
Indicates that intuitive
parking assist sensor is
dirty or covered with ice
Clean the sensor.
Indicates that the radar
sensor is dirty or covered
with ice
Clean the sensor.
Indicates that the radar
cruise control system is
unable to judge vehicle-
to-vehicle distance
•Turn off the snowmode.
• If the windshield wip- ers are on, turn them
off or set them to a
mode other than
AUTO or high speed
wiper operation.
Indicates that your vehi-
cle is nearing the vehicle
ahead (in vehicle-to-vehi-
cle distance mode)
At the same time,
will appear on the
head-up display (the
image flashes).
Slow the vehicle by
applying the brakes.
Wa r n i n g m e s s a g eDetailsCorrection procedure
(If equipped)
(If equipped)
(If equipped)
(If equipped)

7087-2. Steps to take in an emergency
GS350_U (OM30C34U)
Indicates that there is a
high possibility of a frontal
collision, or that the pre-
collision braking function
is operatingAt the same time,
will appear
on the head-up dis-
play too (the image
flashes).
Slow the vehicle by
applying the brakes.
Indicates that the LKA
(Lane-Keeping Assist) is
suspended
•The camera sensor temperature is higher
than the operation tem-
perature range.
•The power steering system operation is
restricted.
Restart the LKA after
driving for a while.
Wa r n i n g m e s s a g eDetailsCorrection procedure
(Flashes)
(If equipped)
(If equipped)

7097-2. Steps to take in an emergency
GS350_U (OM30C34U)
7
When trouble arises

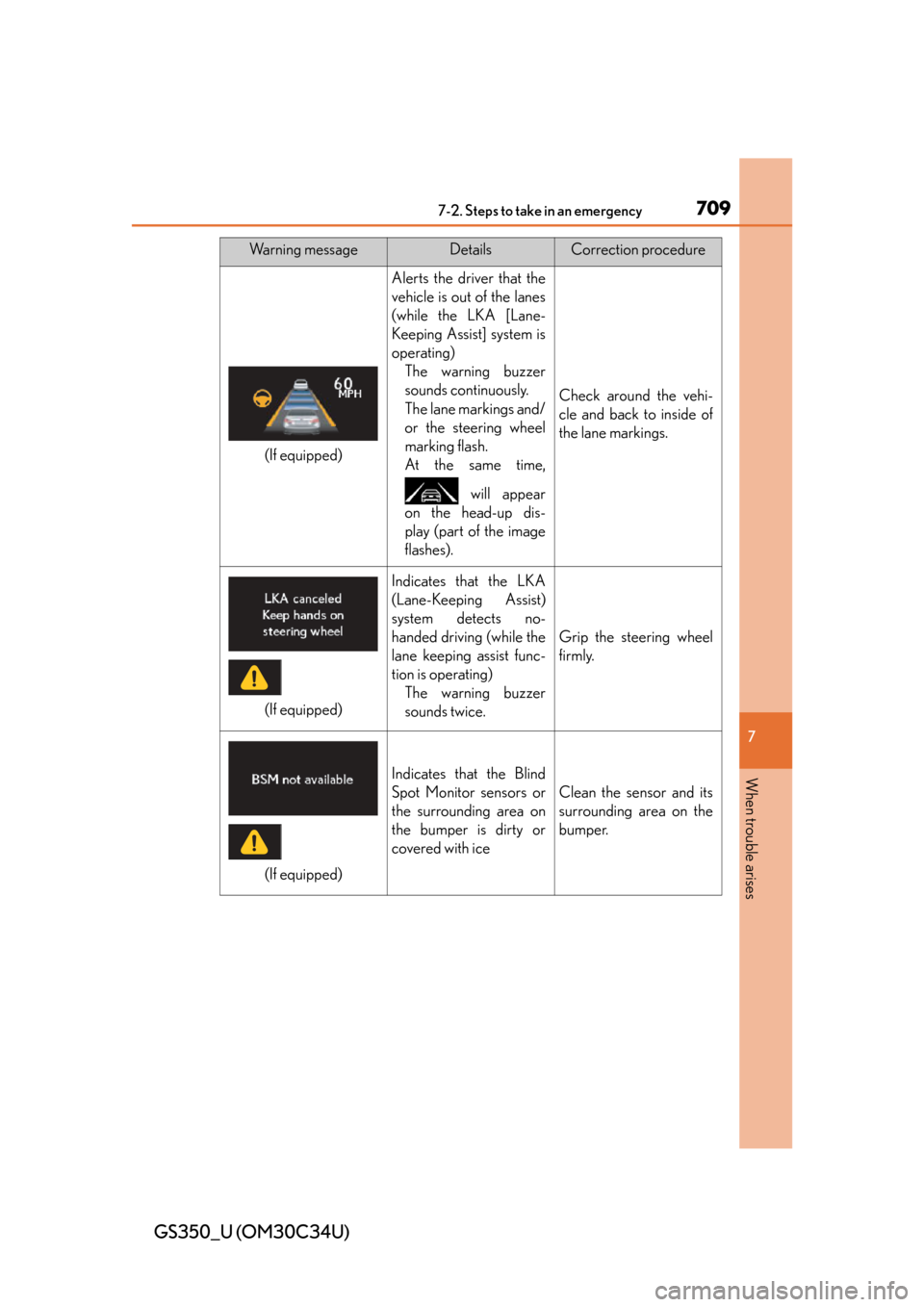

Alerts the driver that the
vehicle is out of the lanes
(while the LKA [Lane-
Keeping Assist] system is
operating)The warning buzzer
sounds cont inuously.
The lane markings and/
or the steering wheel
marking flash.
At the same time,
will appear
on the head-up dis-
play (part of the image
flashes).
Check around the vehi-
cle and back to inside of
the lane markings.
Indicates that the LKA
(Lane-Keeping Assist)
system detects no-
handed driving (while the
lane keeping assist func-
tion is operating) The warning buzzer
sounds twice.
Grip the steering wheel
firmly.
Indicates that the Blind
Spot Monitor sensors or
the surrounding area on
the bumper is dirty or
covered with ice
Clean the sensor and its
surrounding area on the
bumper.
Wa r n i n g m e s s a g eDetailsCorrection procedure
(If equipped)
(If equipped)
(If equipped)

7147-2. Steps to take in an emergency
GS350_U (OM30C34U)
*: Refer to the separate “Scheduled Maintenance” or “Owner’s Manual Supple-ment” for the maintenance interval applicable to your vehicle.
Wa r n i n g m e s s a g eDetailsCorrection procedure
Indicates that the tire
position information can-
not be recognized
Drive for a short while
and check if the display
updates. If the radio wave condi-
tions improve, the dis-
play may return to
normal. If the tire pres-
sure is still not dis-
played after driving for
several minutes, stop
the vehicle in a safe
place, turn the engine
switch off then on
again, and start driving.
If the tire pressure is still
not displayed even
after repeating this sev-
eral times, have the
vehicle inspected at
your Lexus dealer.
Indicates that the pre-col-
lision system is not cur-
rently functional because
the grille cover or the
sensor is dirtyThis message also
appears when the pre-
collision system is not
functional due to over-
heating.
Check the grille cover
and the sensor and clean
them if they are dirty. In case of overheating,
the system will become
functional once the sys-
tem cools down.
(If equipped)
(Flashes)
(If equipped)
