Lexus GS350 2013 Using the driving support systems / LEXUS 2013 GS350 OWNERS MANUAL (OM30C34U)

GS350_U (OM30C34U)
1313-3. Adjusting the seats
3
Operation of each component
Check that the shift lever is in P.
Turn the engine switch to IGNITION ON mode.
Press button “1”, “2” or “3” to
recall the desired position.
■When you want to stop the position recall operation part-way through
Perform any of the following operations:
●Press the “SET” button.
●Press button “1”, “2” or “3”.
●Adjust the seat using the switches (only cancels seat position recall).
■The adjusted positions that can be memorized
Vehicles without seatback side support adjustment switch
The adjusted positions other than the positi on adjusted by lumber support switch can
be memorized.
Vehicles with seatback side support adjustment switch
All adjusted positions can be memorized.
Recalling the memorized position
1
2
3

132
GS350_U (OM30C34U)
3-3. Adjusting the seats
A desired driving position can be recalled linked with the unlocking of the
door.
■Setting procedure
Record your driving position to button “1”, “2” or “3” before performing
the following:
Carrying only the key to which you wa nt to link the driving position, shift
the shift lever to P and then close the driver’s door.
If 2 or more keys are in the vehicl e, the driving position cannot be linked
properly.
Turn the engine switch to IGNI TION ON mode and recall the posi-
tion which you want to link.
While pressing the button to
recall the position, press the
driver’s door lock switch
(either lock or unlock) until the
signal beeps.
The driving position is recalled
when the driver’s door is unlocked
using the entry function or wireless
remote control and the driver’s
door is opened.
Linking driving position memory with door unlock operation
(driver’s side only)
1
2

GS350_U (OM30C34U)
1333-3. Adjusting the seats
3
Operation of each component
■Cancelation procedure
Carry only the key for which you want to cancel the linked door unlock
operation.
If 2 or more keys are in the vehi cle, the driving position cannot be can-
celed properly.
Turn the engine switch to IGNITION ON mode.
While pressing the “SET” button, pres s the driver’s door lock switch
(either lock or unlock) until the signal beeps.
The auto away/return function
enables easy access by activating
when the driver or front passenger
attempts to enter or exit the vehicle.
■Auto away function when exiting th e vehicle (driver’s/front passen-
ger’s seat)
Driver’s seat
When all of the following actions have been performed, the steering
wheel will move up and back to the point farthest away from the driver
and the seat will move backward:
• The shift lever has been shifted to P.
• The engine switch has been turned off.
• The driver seat belt has been unfastened.
Front passenger’s seat (if equipped)
If the lumbar support, side support (if equipped), etc. of the front pas-
senger’s seat has been adjusted, the se at will return to its original state if
the front passenger’s door is opened while the vehicle is stopped to
allow easy exit from the vehicle.
Power easy access system
1
2

134
GS350_U (OM30C34U)
3-3. Adjusting the seats
■Auto return function when entering the vehicle (driver’s seat only)
When either of the following actions has been performed, the steering
wheel will move toward the driver and seat will move forward:• The engine switch has been turned to ACCESSORY mode.
• The driver’s seat belt has been fastened.
■When driving position memory is linked with door unlock operation
If the driver’s door is opened, the driver’s seat will move toward the memorized posi-
tion but stop slightly beforehand to allow easy access to the vehicle.
Turning the engine switch to ACCESSOR Y or IGNITION ON mode, or fastening
the driver’s seat belt moves the seat fully into the memorized position.
■Operating the driving position memory after turning the engine switch off
Driver’s seat:
Memorized seat positions can be activated up to 180 seconds after the driver’s door
is opened and another 60 seconds after it is closed again. Memorized steering
wheel position can be activated by pressing the engine switch.
Front passenger’s seat:
Memorized positions can be activated up to 180 seconds after the front passenger’s
door is opened by pressing button “1”, “2” or “3”.
■Correct seat position
When the seat is in the most forward or most backward position, and the seat is
being moved in those directions, the system may not correctly recognize the current
position and the memorized position will not be correctly recalled.
■The auto away function for exiting the driver’s seat
If the seat is already close to the rearmost position, the auto away function may not
operate when the driver exits the vehicle.
■Customization
The distance that the driver’s seat moves backward during the auto away function
can be changed. (Customizable features: P. 777)

GS350_U (OM30C34U)
1353-3. Adjusting the seats
3
Operation of each component
CAUTION
■Seat adjustment caution
Take care during seat adjustment so that the seat does not strike the rear passen-
ger or squeeze your body against the steering wheel.

136
GS350_U (OM30C34U)
3-3. Adjusting the seats

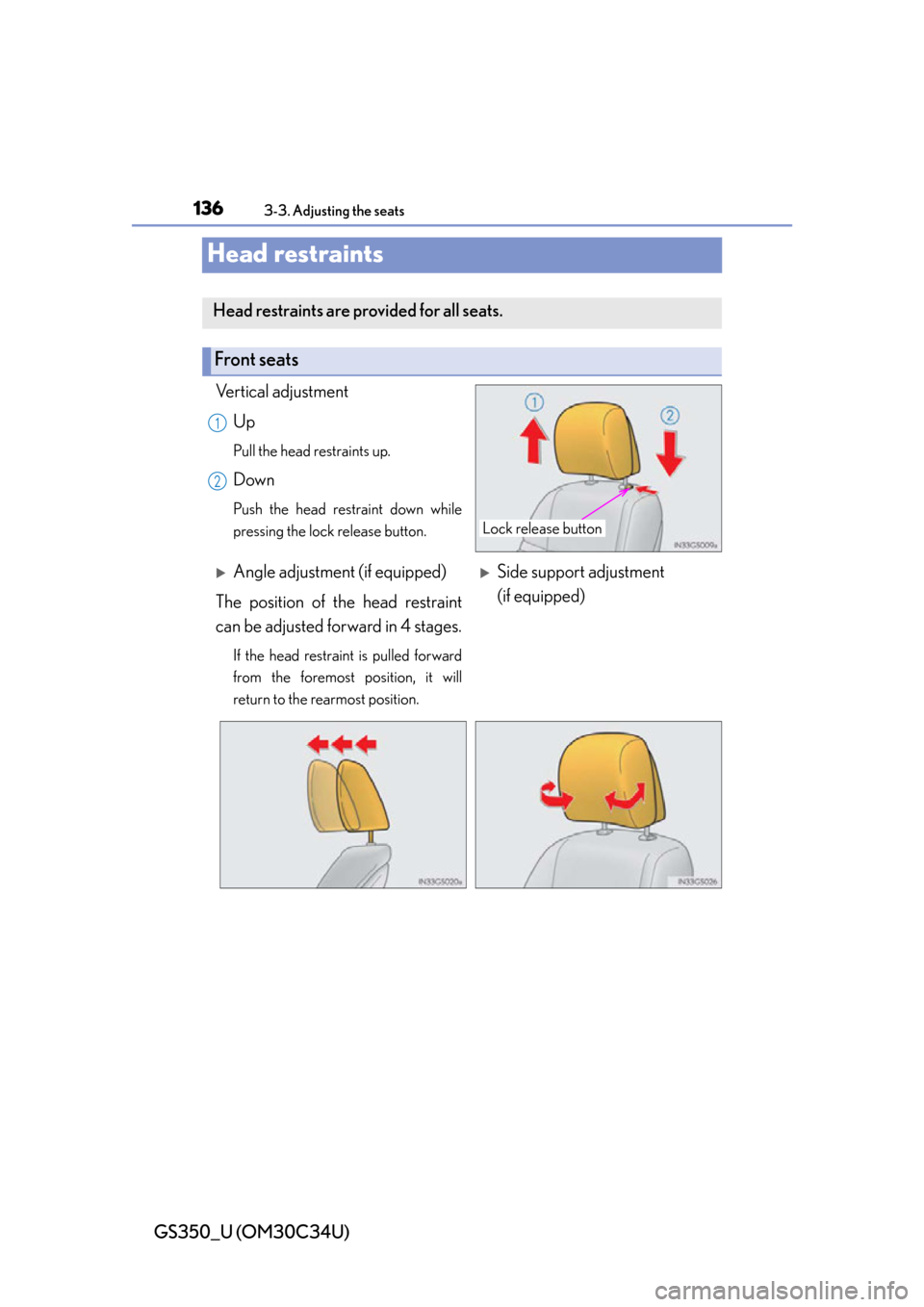

Head restraints
Vertical adjustmentUp
Pull the head restraints up.
Down
Push the head restraint down while
pressing the lock release button.
Head restraints are provided for all seats.
Front seats
Lock release button
1
2
Angle adjustment (if equipped)Side support adjustment
(if equipped)
The position of the head restraint
can be adjusted forward in 4 stages.
If the head restraint is pulled forward
from the foremost position, it will
return to the rearmost position.

GS350_U (OM30C34U)
1373-3. Adjusting the seats
3
Operation of each component
Up
Pull the head restraints up.
Down
Push the head restraint down while
pressing the lock release button.
■Removing the head restraints
■Installing the head restraints
Front seats
Rear seats
Rear seats
Lock release button
1
2
Pull the head restraint up while pressing the
lock release button.
Align the head restraint with the installation
holes and push it down to the lock position.
Press and hold the lock release button when
lowering the head restraint.
Align the head restraint with the installation
holes and push it down to the lowest lock
position while pressing the lock release but-
ton.
Lock release button
Lock release button
Lock release button

138
GS350_U (OM30C34U)
3-3. Adjusting the seats
■Adjusting the height of the head restraints
■Adjusting the rear seat head restraint
Always raise the head restraint one level from the stowed position when using. Make sure that the head restraints are
adjusted so that the center of the head
restraint is closest to the top of your ears.
CAUTION
■Head restraint precautions
Observe the following precautions regarding the head restraints. Failure to do so
may result in death or serious injury.
●Use the head restraints designed for each respective seat.
●Adjust the head restraints to the correct position at all times.
●After adjusting the head restraints, push down on them and make sure they are
locked in position.
●Do not drive with the head restraints removed.

1393-4. Adjusting the steering wheel and mirrors
3
Operation of each component
GS350_U (OM30C34U)
Steering wheel
Operating the switch moves the steering wheel in the following directions:
Up
Down
Toward the driver
Away from the driver
■The steering wheel can be adjusted when
The engine switch is in AC CESSORY or IGNITION ON mode
*.
*: If the driver’s seat belt is fastened, the steering wheel can be adjusted regardless of
engine switch mode.
■Automatic adjustment of the steering position
A desired steering position can be entered to memory and recalled automatically by
the driving position memory system. ( P. 1 3 0 )
■Power easy access system
The steering wheel and driver’s seat move in accordance with engine switch mode
and the driver’s seat belt condition. ( P. 1 3 3 )
Adjustment procedure
1
2
3
4
CAUTION
Do not adjust the steering wheel while driving.
Doing so may cause the driver to mishandle the vehicle and cause an accident,
resulting in death or serious injury.

1403-4. Adjusting the steering wheel and mirrors
GS350_U (OM30C34U)
Inside rear view mirror
The height of the rear view mirror can be adjusted to suit your driving pos-
ture.
Adjust the height of the rear view
mirror by moving it up and down.
Responding to the level of brightness of the headlights of vehicles behind,
the reflected light is automatically reduced.
Changing automatic anti-glare
function mode
ON
OFF
When the automatic anti-glare func-
tion is in ON mode, the indicator illu-
minates.
The function will set to ON mode
each time the engine switch is turned
to IGNITION ON mode.
Pressing the button turns the function
to OFF mode. (The indicator also
turns off.)
The rear view mirror’s position can be adjusted to enable sufficient
confirmation of the rear view.
Adjusting the height of rear view mirror
Anti-glare function
Indicator
1
2
