audio Lexus GS350 2014 Navigation manual

280
6. TIPS FOR OPERATING THE AUDIO/VISUAL SYSTEM
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
zWMA (Windows Media Audio) is an audio
compression format developed by
Microsoft
®. It compresses files into a size
smaller than that of MP3 files. The decod-
ing formats for WMA files are Ver. 7, 8 and
9.
z AAC is short for Advanced Audio Coding
and refers to an audio compression tech-
nology standard used with MPEG2 and
MPEG4.
WMA
AAC
GS_Navi+MM_OM30E40E_(EE).book Page 280 Thursday, July 24, 201 4 3:57 PM

281
6. TIPS FOR OPERATING THE AUDIO/VISUAL SYSTEM
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
AUDIO/VISUAL SYSTEM
4
ERROR MESSAGES
ModeMessageExplanation
CD/DVD
“No disc found.”It indicates that there is no disc in the DVD player.
“Check disc”
It indicates that the disc is dirty, damaged, or it was
inserted upside down. Clean the disc or insert it
correctly.
It indicates a disc which is not playable is inserted.
“DISC error”There is a trouble inside the system.
Eject the disc.
“Region code error”It indicates that the DVD region code is not set
properly.
USB
“USB error”This indicates a problem in the USB memory or its
connection.
“No music files found.”This indicates that no MP3/WMA/AAC files are
included in the USB memory.
“No video files found.”This indicates that no video files are included in the
USB memory.
“No image files found.”This indicates that no image files are included in the
USB memory.
iPod
“iPod error.”This indicates a problem in the iPod or its connec-
tion.
“No music files found.”This indicates that there is no music data in the iPod.
“No video files found.”This indicates that no video files are included in the
iPod.
“Check the iPod firm-
ware version.”This indicates that the software version is not com-
patible. Perform the iPod firmware updates and try
again.
“iPod authorisation un-
successful.”This indicates that it failed to authorize the iPod.
Please check your iPod.
GS_Navi+MM_OM30E40E_(EE).book Page 281 Thursday, July 24, 201 4 3:57 PM

282
6. TIPS FOR OPERATING THE AUDIO/VISUAL SYSTEM
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
Bluetooth®
Audio“Music tracks not sup-
ported. Check your
portable player.”
This indicates a problem in the Bluetooth® device.
INFORMATION
●
If the malfunction is not rectified: Take your vehicle to any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.
ModeMessageExplanation
GS_Navi+MM_OM30E40E_(EE).book Page 282 Thursday, July 24, 201 4 3:57 PM

284
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
1. SPEECH COMMAND SYSTEM OPERATION
1. SPEECH COMMAND SYSTEM
Talk switch
zPress the talk switch to start the speech
command system.
z To cancel voice recognition, press and hold
the talk switch.
Back switch
zPress the back switch to return to the previ-
ous screen. z
It is unnecessary to speak directly into the
microphone when giving a command.
The speech command system enables
the navigation, audio/visual and hands-
free systems to be operated using
speech commands.
Refer to the command list for samples of
speech commands. ( →P.292)
INFORMATION
●
Commands that are not displayed in the
“Shortcuts” screen can be operated from
the “Main menu” screen.
USING THE SPEECH
COMMAND SYSTEM
STEERING SWITCH
MICROPHONE
INFORMATION
●
Wait for the confirmation beep before
speaking a command.
●Speech commands may not be recog-
nized if:
• Spoken too quickly.
• Spoken at a low or high volume.
• The roof or windows are open.
• Passengers are talking while speech commands are spoken.
• The air conditioning speed is set high.
• The air conditioning vents are turned towards the microphone.
●In the following co nditions, the system
may not recognize the command prop-
erly and using speech commands may
not be possible:
• The command is incorrect or unclear. Note that certain words, accents or
speech patterns may be difficult for the
system to recognize.
• There is excessive background noise, such as wind noise.
GS_Navi+MM_OM30E40E_(EE).book Page 284 Thursday, July 24, 201 4 3:57 PM

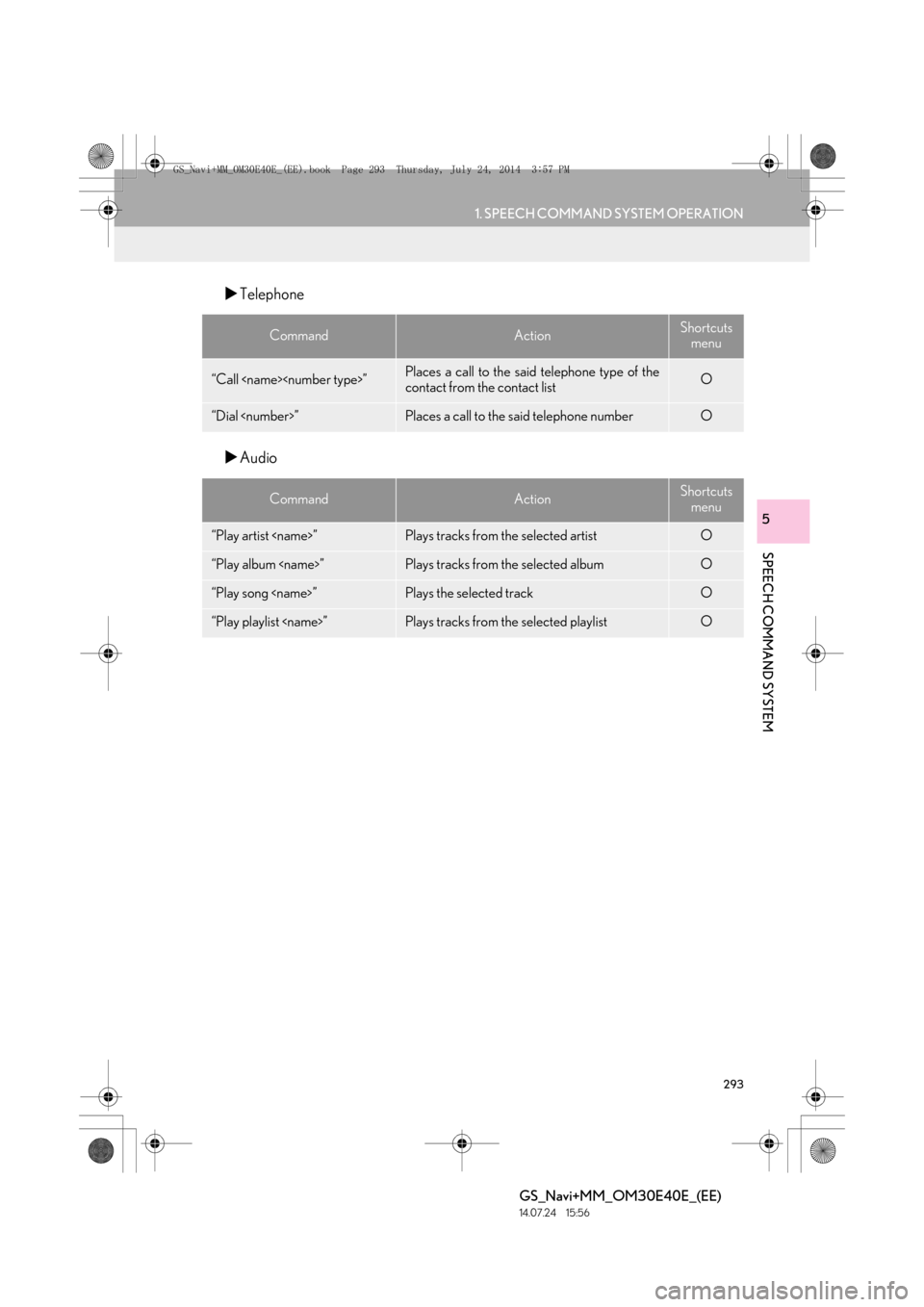

293
1. SPEECH COMMAND SYSTEM OPERATION
SPEECH COMMAND SYSTEM
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
5
XTelephone
X Audio
CommandActionShortcuts
menu
“Call ”Places a call to the said telephone type of the
contact from the contact listO
“Dial ”Places a call to the said telephone numberO
CommandActionShortcuts menu
“Play artist ”Plays tracks from the selected artistO
“Play album ”Plays tracks from the selected albumO
“Play song ”Plays the selected trackO
“Play playlist ”Plays tracks from the selected playlistO
GS_Navi+MM_OM30E40E_(EE).book Page 293 Thursday, July 24, 201 4 3:57 PM

332
2. LEXUS PARKING ASSIST-SENSOR
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
zThe bumper or sensor receives a strong
impact.
z The vehicle is approaching a tall or curved
curb.
z In harsh sunlight or intense cold weather.
z The area directly under the bumpers is not
detected.
z If obstacles draw too close to the sensor.
z A non-genuine Lexus suspension (lowered
suspension etc.) is installed.
People may not be detected if they are
wearing certain types of clothing.
z The shape of the obstacle may prevent a
sensor from detecting it. Pay particular
attention to the following obstacles:
• Wires, fences, ropes, etc.
• Cotton, snow and other materials that
absorb sound waves
• Sharply-angled objects
•Low obstacles
• Tall obstacles with upper sections project- ing outwards in the direction of your vehi-
cle
z The following situations may occur during
use.
• Depending on the shape of the obstacle
and other factors, the detection distance
may shorten, or detection may be impos-
sible.
• Obstacles may not be detected if they are too close to the sensor. • There will be a short delay between
obstacle detection and display. Even at
slow speeds, there is a possibility that the
obstacle will come within the sensor’s
detection areas before the display is
shown and the warning beep sounds.
• Thin posts or objects lower than the sen- sor may not be detected for collision
when approached, even if they have been
detected once.
• It might be difficult to hear beeps due to the volume of audio system or air flow
noise of air conditioning system.
z In addition to the examples above, there
are instances in which, because of their
shapes, signs and other objects may be
judged by the sensor to be closer than
they are.CAUTION
●When using the Lexus parking assist-sen-
sor
Observe the following precautions.
Failing to do so may result in the vehicle
being unable to be driven safely and pos-
sibly cause an accident.
• Do not use the sensor at speeds in
excess of 10 km/h (6 mph).
• The sensors’ detection areas and reac- tion times are limited. When moving
forward or reversing, check the areas
surrounding the vehicle (especially the
sides of the vehicle) for safety, and drive
slowly, using the brake to control the
vehicle’s speed.
• Do not install accessories within the sensors’ detection areas.
GS_Navi+MM_OM30E40E_(EE).book Page 332 Thursday, July 24, 201 4 3:57 PM

341
1. TELEPHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
TELEPHONE
7
2. SOME BASICS
The hands-free system enables calls to
be made and received without having to
take your hands off the steering wheel.
This system supports Bluetooth
®.
Bluetooth® is a wireless data system
that enables cellular phones to be used
without being connected by a cable or
placed in a cradle.
The operating procedure of the tele-
phone is explained here.
CAUTION
●Use a cellular phone or connect the
Bluetooth® phone only when safe and
legal to do so.
●Your audio unit is fitted with Bluetooth®
antennas. People with implantable car-
diac pacemakers, cardiac resynchroniza-
tion therapy-pacemakers or implantable
cardioverter defibrillators should main-
tain a reasonable distance between
themselves and the Bluetooth
® antennas.
The radio waves may affect the operation
of such devices.
●Before using Bluetooth® devices, users
of any electrical medical device other
than implantable cardiac pacemakers,
cardiac resynchronization therapy-pace-
makers or implantable cardioverter
defibrillators should consult the manufac-
turer of the device for information about
its operation under the influence of radio
waves. Radio waves could have unex-
pected effects on the operation of such
medical devices.
NOTICE
●Do not leave your cellular phone in the
vehicle. The temperature inside may rise
to a level that could damage the tele-
phone.
GS_Navi+MM_OM30E40E_(EE).book Page 341 Thursday, July 24, 201 4 3:57 PM

342
1. TELEPHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
INFORMATION
●
If your cellular phone does not support
Bluetooth®, this system cannot function.
●In the following conditions, the system
may not function:
• The cellular phone is turned off.
• The current position is outside the com- munication area.
• The cellular phone is not connected.
• The cellular phone has a low battery.
●When using Bluetooth® audio and
hands-free system at the same time, the
following problems may occur:
•The Bluetooth
® connection may be cut.
• Noise may be heard on the Bluetooth
®
audio playback.
REGISTERING/
CONNECTING A Bluetooth®
PHONE
To use the hands-free system for cellular
phones, it is necessary to register a cel-
lular phone with the system. ( →
P. 5 1)
Bluetooth® PHONE
CONDITION DISPLAY
The condition of the Bluetooth
® phone
appears on the upper right side of the
screen. ( →P.20)
GS_Navi+MM_OM30E40E_(EE).book Page 342 Thursday, July 24, 201 4 3:57 PM

344
1. TELEPHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
SPEECH COMMAND SYSTEM
Press this switch to operate the speech
command system.
zThe speech command system and its list
of commands can be operated.
( → P. 2 8 4 )
INFORMATION
●
The other party’s voice will be heard from
the front speakers. The audio/visual sys-
tem will be muted during telephone calls
or when hands-free speech commands
are used.
●Talk alternately with the other party on
the telephone. If both parties speak at the
same time, the other party may not hear
what has been said. (This is not a malfunc-
tion.)
●Keep call volume down. Otherwise, the
other party’s voice may be audible out-
side the vehicle and voice echo may
increase. When talking on the telephone,
speak clearly towards the microphone.
●The other party may not hear you clearly
when:
• Driving on an unpaved road. (Making excessive traffic noise.)
• Driving at high speeds.
• The roof or windows are open.
• The air conditioning vents are pointed towards the microphone.
• The sound of the air conditioning fan is loud.
•There is a negative effect on sound quality due to the telephone and/or net-
work being used.
GS_Navi+MM_OM30E40E_(EE).book Page 344 Thursday, July 24, 201 4 3:57 PM

9
417
GS_Navi+MM_OM30E40E_(EE)
14.07.24 15:56
1
2
3
4
5 6
7
89
1. 12.3-INCH DISPLAY-OVERVIEW ........................ 418
12.3-INCH DISPLAY OPERATION .............. 419
2. “Menu” SCREEN ...................................... 420
3. BASIC SCREENS ..................................... 421
SWITCHING THE BASIC SCREEN.............. 421
TO DISPLAY ON THE MAIN
DISPLAY .................................................................. 421
AUDIO/VIDEO SYSTEM .................................. 422
VEHICLE INFORMATION ............................... 423
4. INTERRUPTION SCREENS................ 424
SWITCHING THE INTERRUPTION SCREEN .................................................................. 424
HANDS-FREE SYSTEM (FOR CELLULAR PHONE) .......................... 424
112.3-INCH DISPLAY
OPERATION
*: Vehicles with navigation system
12.3-INCH DISPLAY *
GS_Navi+MM_OM30E40E_(EE).book Page 417 Thursday, July 24, 201
4 3:57 PM
