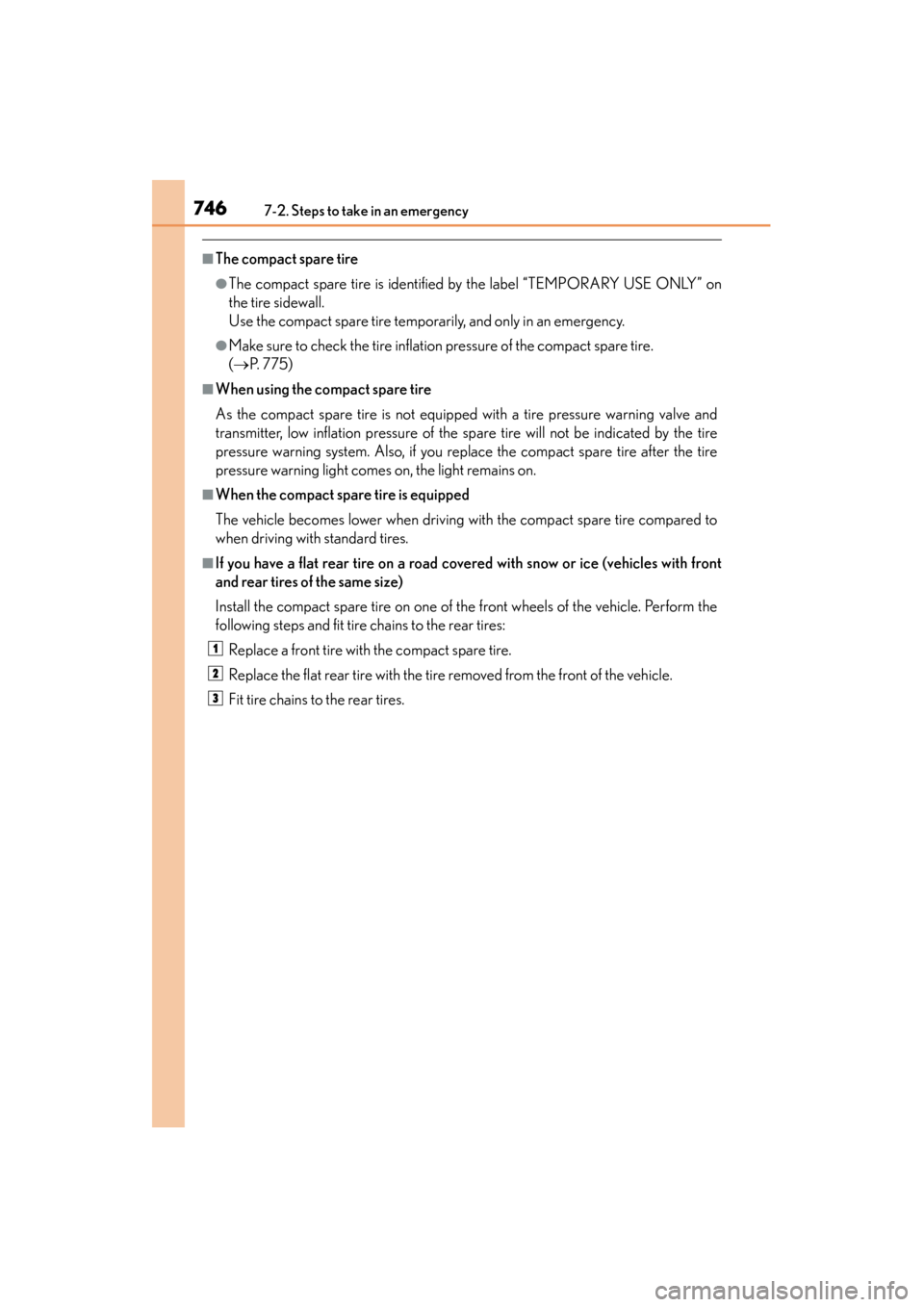

7467-2. Steps to take in an emergency
GS350_OM_OM30D41U_(U)
■The compact spare tire
●The compact spare tire is identified by the label “TEMPORARY USE ONLY” on
the tire sidewall.
Use the compact spare tire temporarily, and only in an emergency.
●Make sure to check the tire inflation pressure of the compact spare tire.
(→ P. 7 7 5 )
■When using the compact spare tire
As the compact spare tire is not equipped with a tire pressure warning valve and
transmitter, low inflation pressure of the spare tire will not be indicated by the tire
pressure warning system. Also, if you replace the compact spare tire after the tire
pressure warning light comes on, the light remains on.
■When the compact spare tire is equipped
The vehicle becomes lower when driving with the compact spare tire compared to
when driving with standard tires.
■If you have a flat rear tire on a road covered with snow or ice (vehicles with front
and rear tires of the same size)
Install the compact spare tire on one of the front wheels of the vehicle. Perform the
following steps and fit tire chains to the rear tires:
Replace a front tire with the compact spare tire.
Replace the flat rear tire with the tire removed from the front of the vehicle.
Fit tire chains to the rear tires.
1
2
3
GS350_OM_OM30D41U_(U).book Page 746 Monday, July 29, 2013 2:22 PM

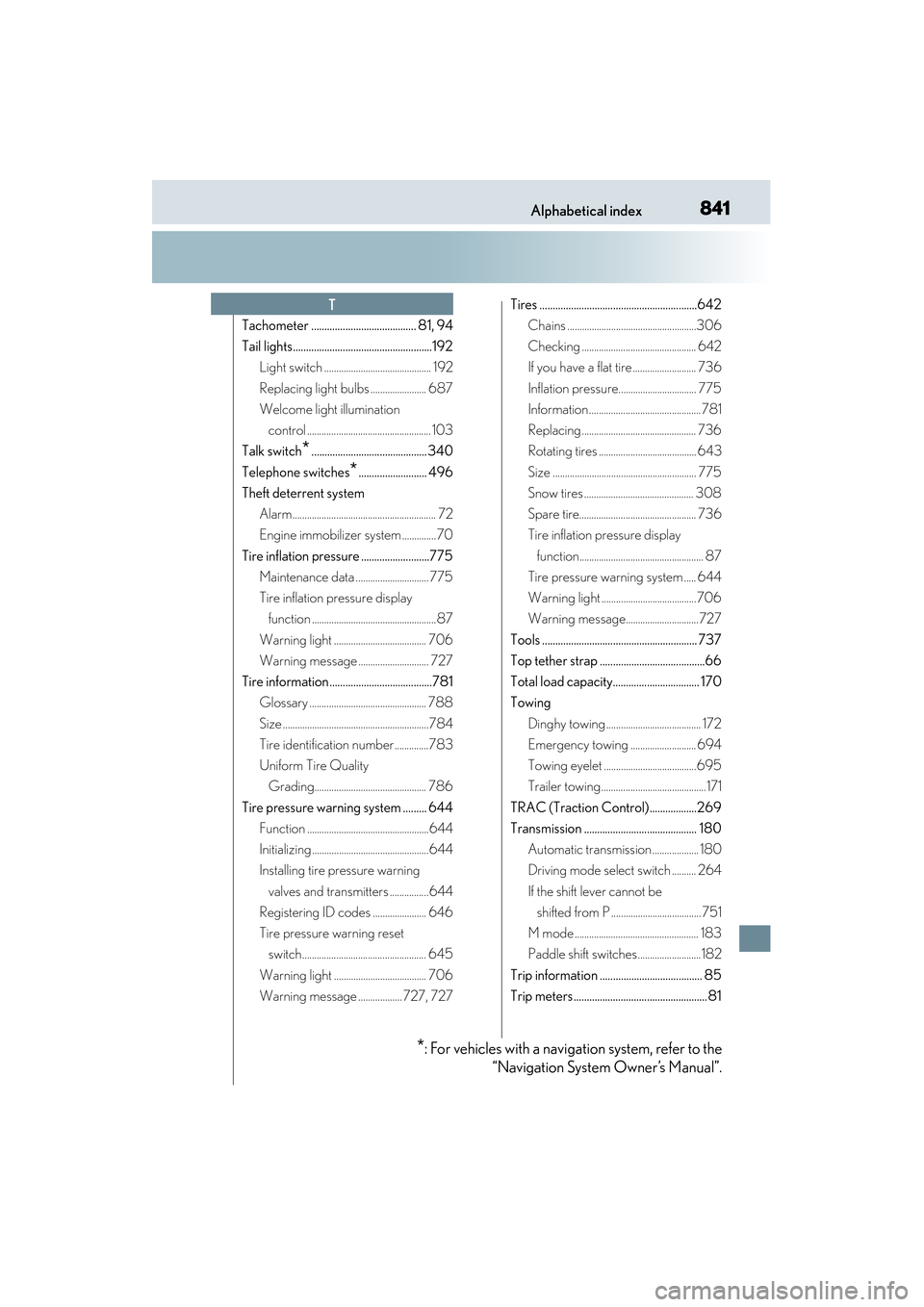

841Alphabetical index
GS350_OM_OM30D41U_(U)
Tachometer ........................................ 81, 94
Tail lights.....................................................192Light switch ............................................ 192
Replacing light bulbs ....................... 687
Welcome light illumination
control ................................................... 103
Talk switch
*............................................ 340
Telephone switches
*.......................... 496
Theft deterrent system
Alarm........................................................... 72
Engine immobilizer system .............. 70
Tire inflation pressure ..........................775 Maintenance data .............................. 775
Tire inflation pressure display function ...................................................87
Warning light ...................................... 706
Warning message ............................. 727
Tire information .......................................781 Glossary ................................................ 788
Size ............................................................784
Tire identification number..............783
Uniform Tire Quality Grading.............................................. 786
Tire pressure warning system ......... 644 Function ..................................................644
Initializing ................................................644
Installing tire pressure warning
valves and transmitters ................644
Registering ID codes ...................... 646
Tire pressure warning reset switch................................................... 645
Warning light ...................................... 706
Warning message .................. 727, 727 Tires ............................................................642
Chains .....................................................306
Checking ............................................... 642
If you have a flat tire .......................... 736
Inflation pressure................................ 775
Information..............................................781
Replacing ............................................... 736
Rotating tires ........................................ 643
Size ........................................................... 775
Snow tires ............................................. 308
Spare tire................................................ 736
Tire inflation pressure display
function................................................... 87
Tire pressure warning system ..... 644
Warning light ....................................... 706
Warning message.............................. 727
Tools ........................................................... 737
Top tether strap ........................................66
Total load capacity................................. 170
Towing Dinghy towing ....................................... 172
Emergency towing ........................... 694
Towing eyelet ......................................695
Trailer towing...........................................171
TRAC (Traction Control)..................269
Transmission ........................................... 180 Automatic transmission ................... 180
Driving mode select switch .......... 264
If the shift lever cannot be shifted from P ..................................... 751
M mode ................................................... 183
Paddle shift switches..........................182
Trip information ....................................... 85
Trip meters................................................... 81
T
*: For vehicles with a navigation system, refer to the “Navigation System Owner’s Manual”.
GS350_OM_OM30D41U_(U).book Page 841 Monday, July 29, 2013 2:22 PM
