4-5. Using the driving support systems

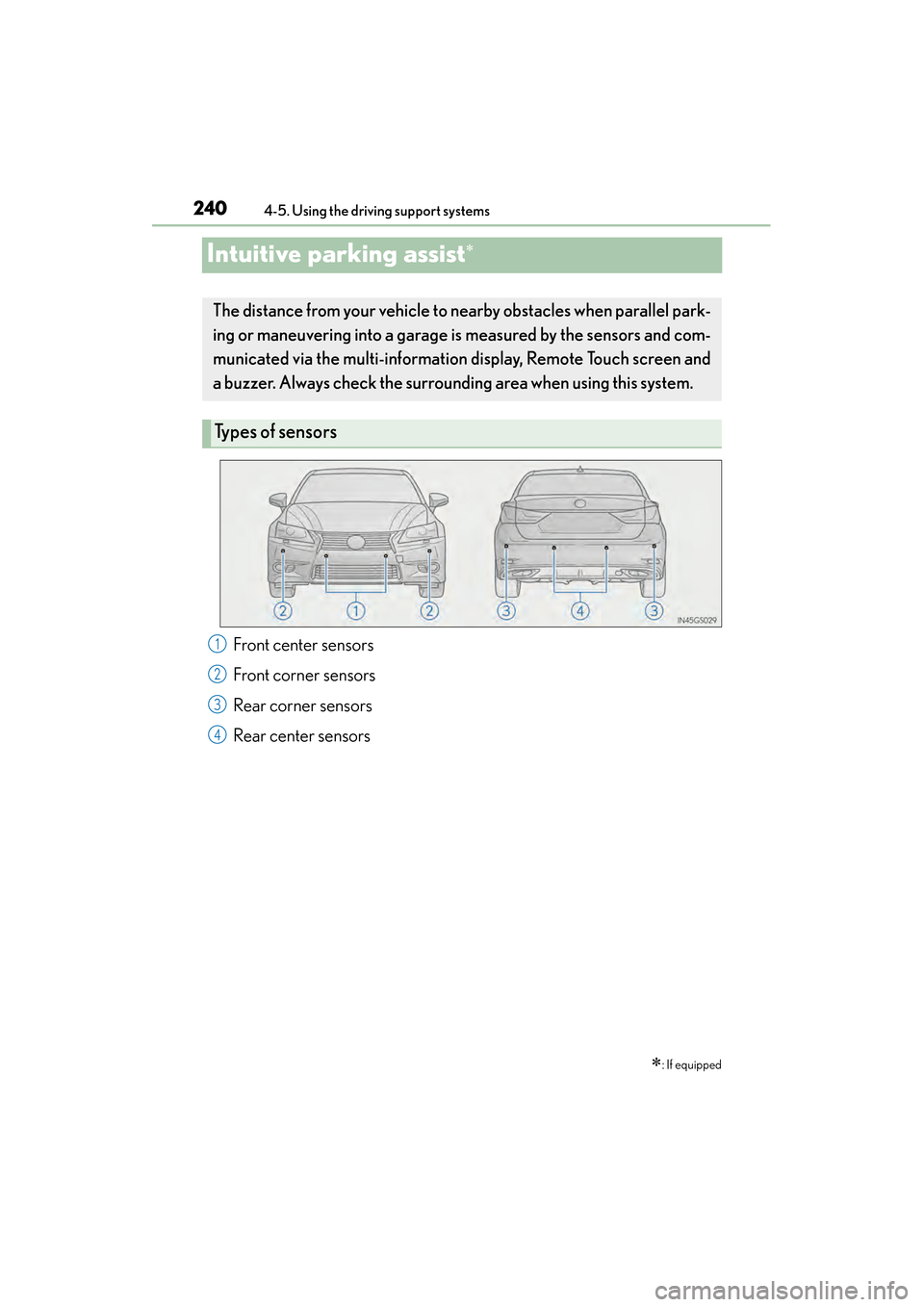

Intuitive parking assist∗
Front center sensors
Front corner sensors
Rear corner sensors
Rear center sensors
∗: If equipped
The distance from your vehicle to nearby obstacles when parallel park-
ing or maneuvering into a garage is measured by the sensors and com-
municated via the multi-information display, Remote Touch screen and
a buzzer. Always check the surrounding area when using this system.
Types of sensors
1
2
3
4
GS350_OM_OM30D41U_(U).book Page 240 Monday, July 29, 2013 2:22 PM

GS350_OM_OM30D41U_(U)
2414-5. Using the driving support systems
4
Driving
Turns the intuitive parking assist on/
off
When on, the indicator light comes on
to inform the driver that the system is
operational.
Intuitive parking assist switch
GS350_OM_OM30D41U_(U).book Page 241 Monday, July 29, 2013 2:22 PM

242
GS350_OM_OM30D41U_(U)
4-5. Using the driving support systems

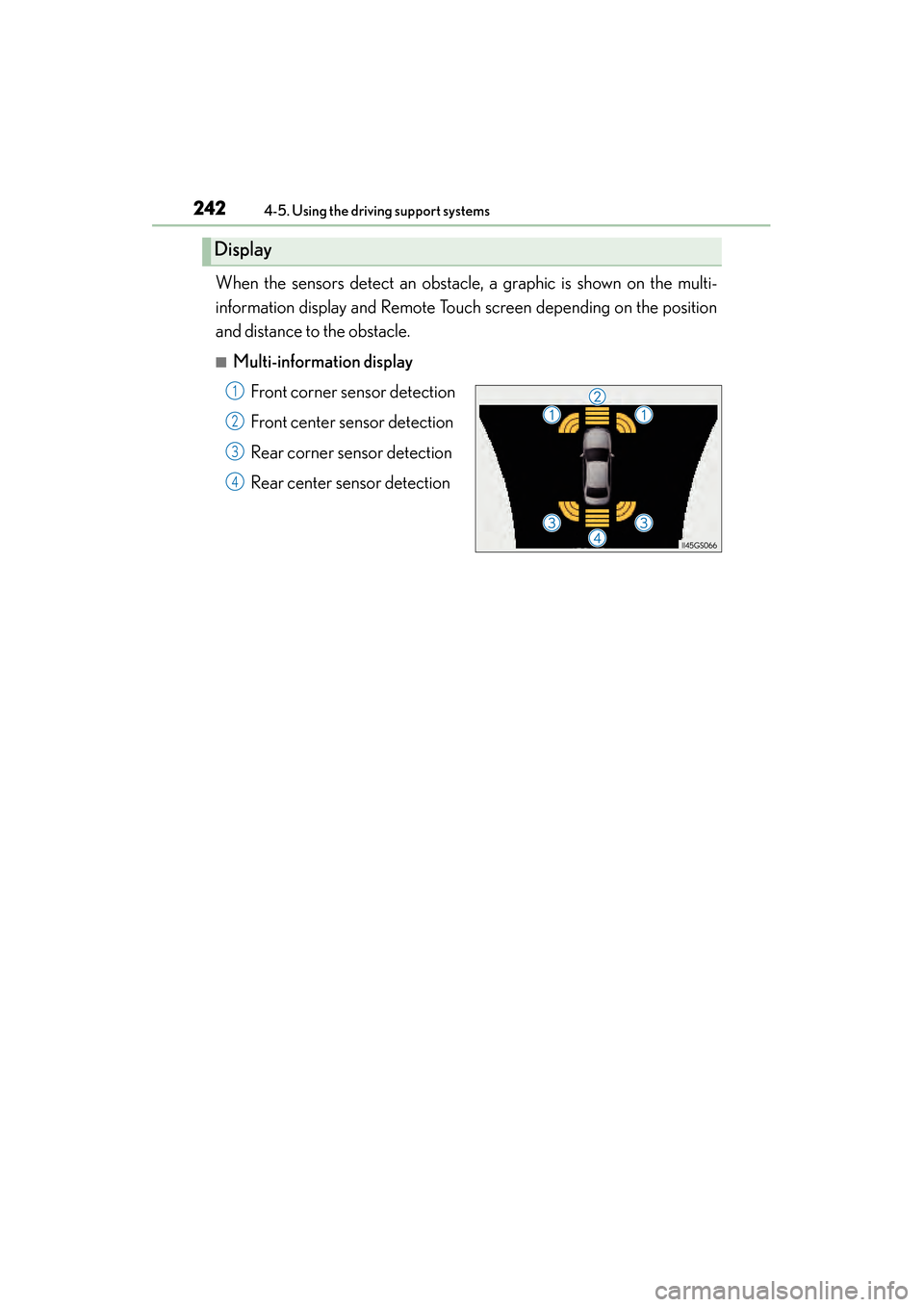

When the sensors detect an obstacle, a graphic is shown on the multi-
information display and Remote Touch screen depending on the position
and distance to the obstacle.
■Multi-information displayFront corner sensor detection
Front center sensor detection
Rear corner sensor detection
Rear center sensor detection
Display
1
2
3
4
GS350_OM_OM30D41U_(U).book Page 242 Monday, July 29, 2013 2:22 PM

GS350_OM_OM30D41U_(U)
2434-5. Using the driving support systems
4
Driving
■Remote Touch screen
XFor 8-inch display
When the rear view monitor
system is not displayed
A graphic is automatically dis-
played when an obstacle is
detected. The screen can be set so
that the graphic is not displayed.
(→ P. 2 4 8 )
When the rear view monitor
system is displayed (insert dis-
play)
A simplified image is displayed on
the right upper corner of the
Remote Touch screen when an
obstacle is detected.
XFor 12.3-inch display
A graphic will be shown on the
side display
A graphic is automatically dis-
played when an obstacle is
detected. The screen can be set so
that the graphic is not displayed.
( → P. 2 4 8 )
1
2
GS350_OM_OM30D41U_(U).book Page 243 Monday, July 29, 2013 2:22 PM

244
GS350_OM_OM30D41U_(U)
4-5. Using the driving support systems

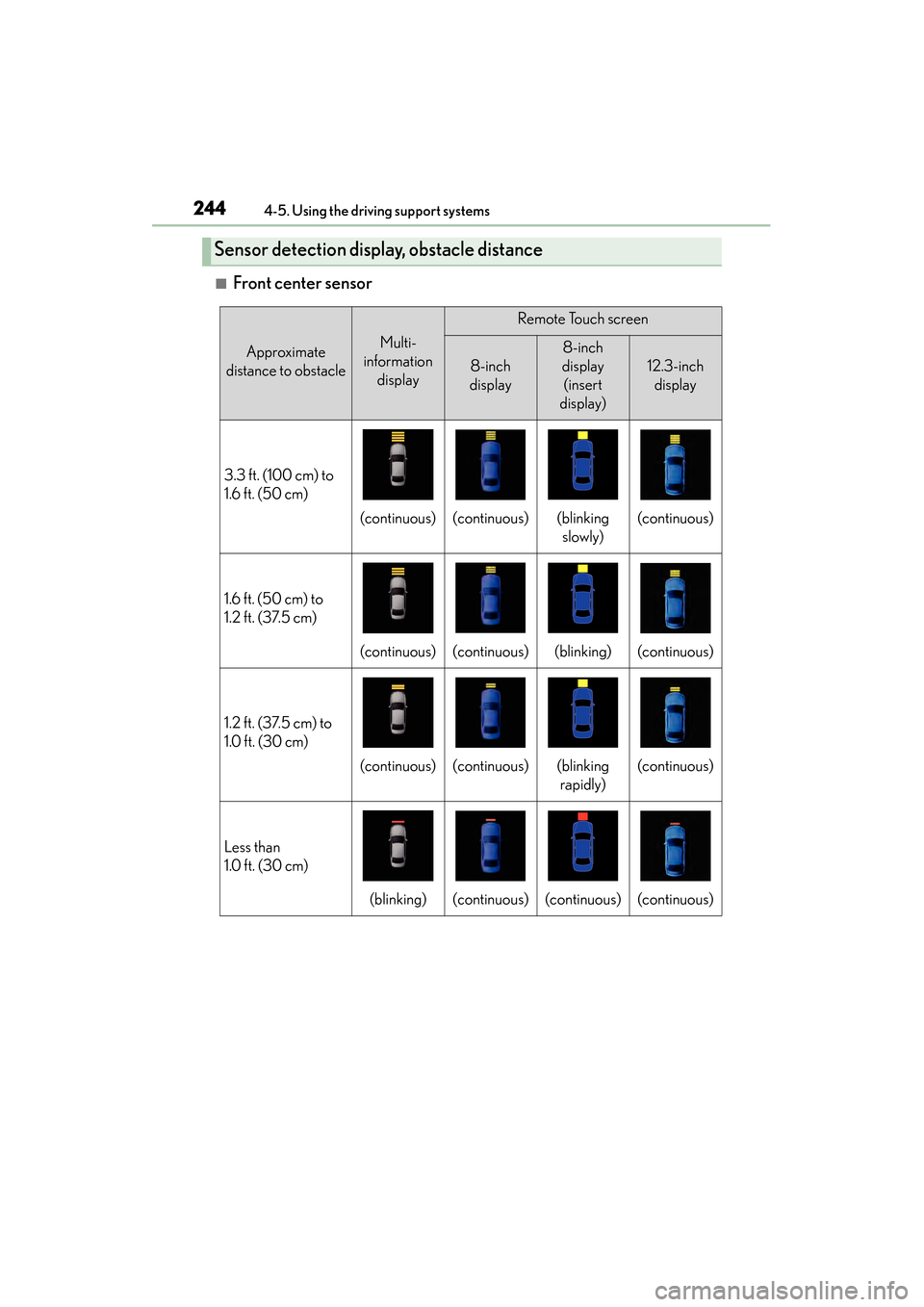

■Front center sensor
Sensor detection display, obstacle distance
Approximate
distance to obstacleMulti-
information display
Remote Touch screen
8-inch
display
8-inch
display (insert
display)
12.3-inch display
3.3 ft. (100 cm) to
1.6 ft. (50 cm)
(continuous)(continuous)(blinking slowly)(continuous)
1.6 ft. (50 cm) to
1.2 ft. (37.5 cm)
(continuous)(continuous)(blinking)(continuous)
1.2 ft. (37.5 cm) to
1.0 ft. (30 cm)
(continuous)(continuous)(blinking rapidly)(continuous)
Less than
1.0 ft. (30 cm)
(blinking)(continuous)(continuous)(continuous)
GS350_OM_OM30D41U_(U).book Page 244 Monday, July 29, 2013 2:22 PM

GS350_OM_OM30D41U_(U)
2454-5. Using the driving support systems
4
Driving

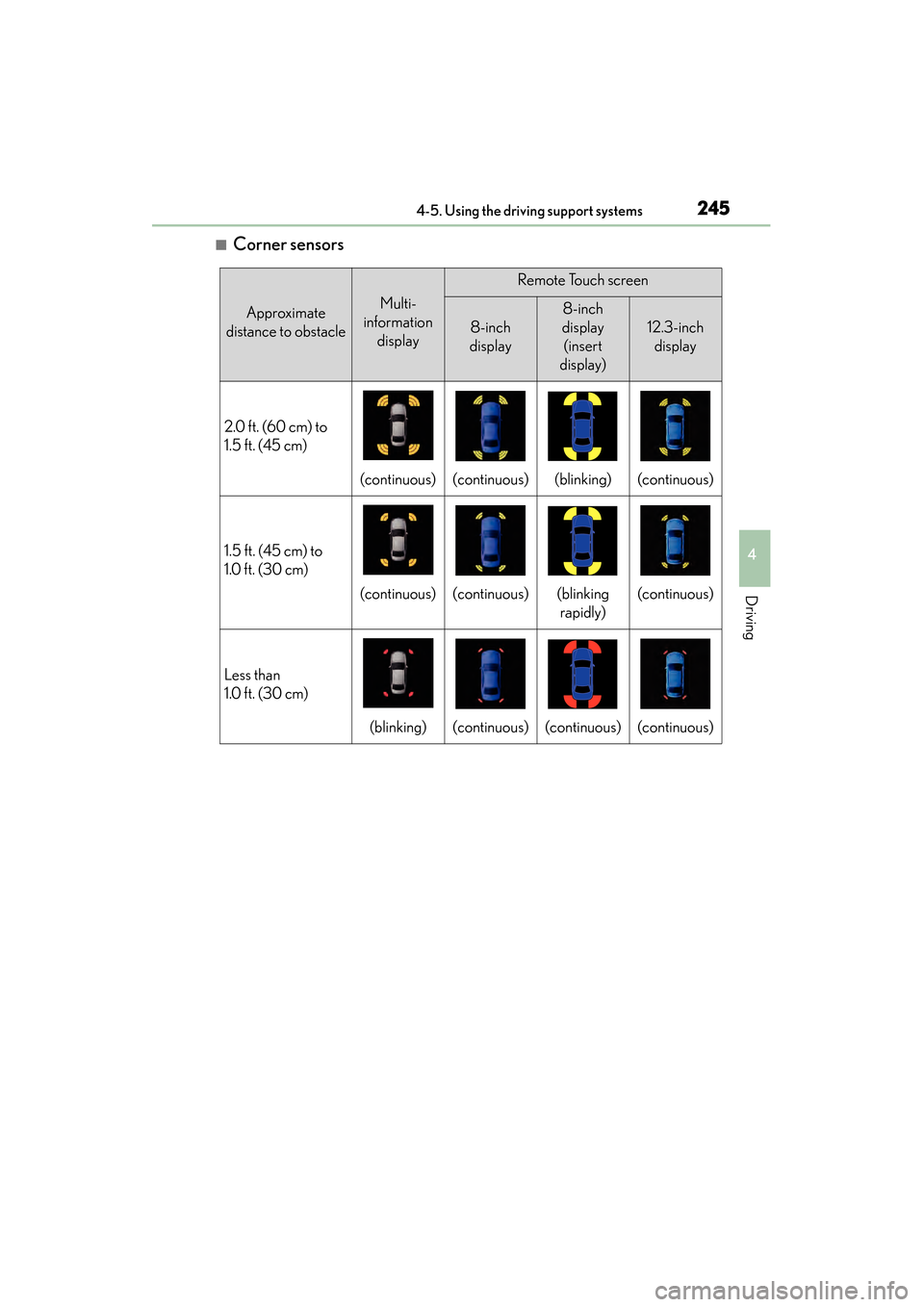

■Corner sensors
Approximate
distance to obstacleMulti-
information display
Remote Touch screen
8-inch
display
8-inch
display (insert
display)
12.3-inch display
2.0 ft. (60 cm) to
1.5 ft. (45 cm)
(continuous)(continuous)(blinking)(continuous)
1.5 ft. (45 cm) to
1.0 ft. (30 cm)
(continuous)(continuous)(blinking rapidly)(continuous)
Less than
1.0 ft. (30 cm)
(blinking)(continuous)(continuous)(continuous)
GS350_OM_OM30D41U_(U).book Page 245 Monday, July 29, 2013 2:22 PM

246
GS350_OM_OM30D41U_(U)
4-5. Using the driving support systems

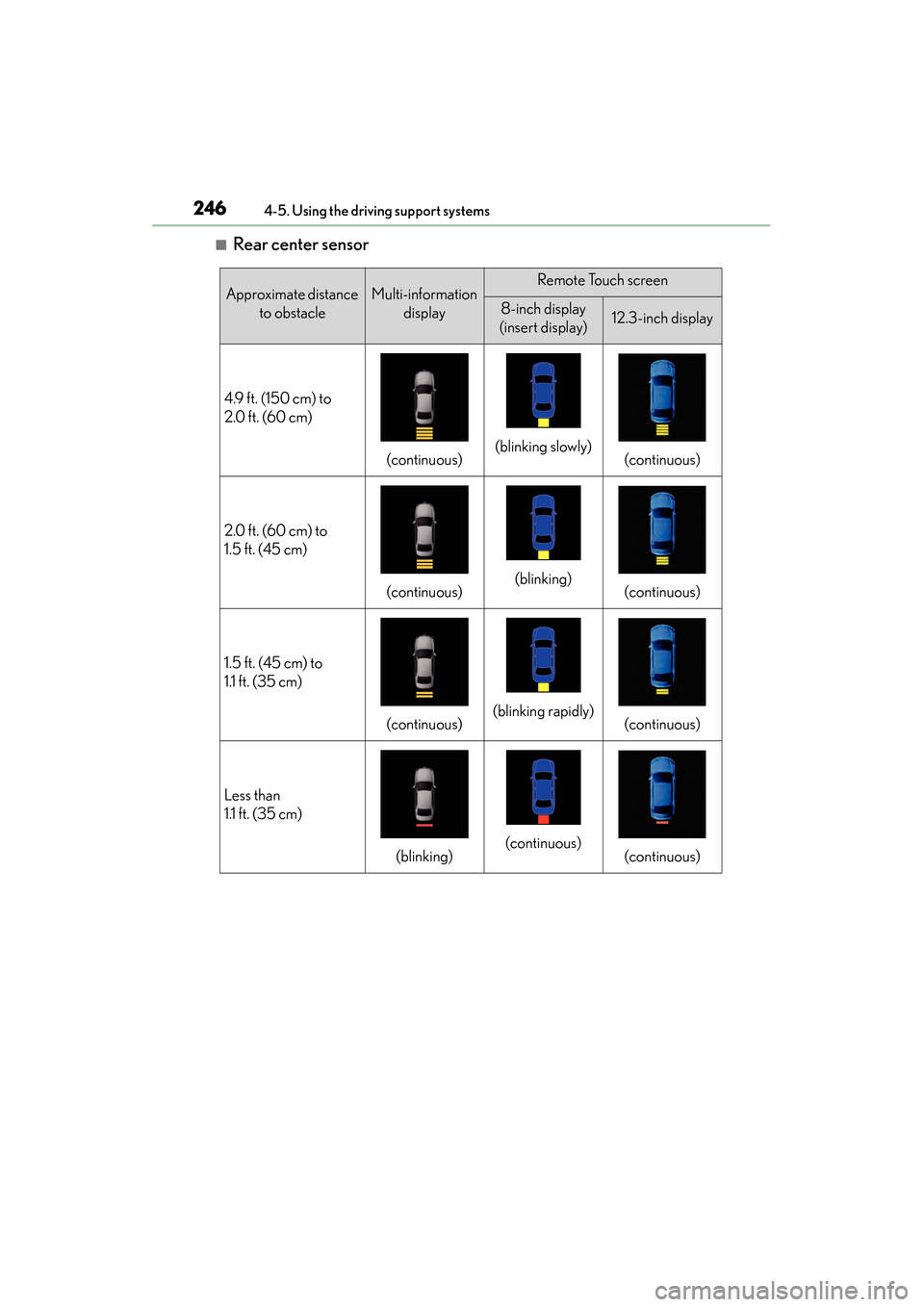

■Rear center sensor
Approximate distance to obstacleMulti-information displayRemote Touch screen
8-inch display
(insert display)12.3-inch display
4.9 ft. (150 cm) to
2.0 ft. (60 cm)
(continuous)(blinking slowly)(continuous)
2.0 ft. (60 cm) to
1.5 ft. (45 cm)
(continuous)(blinking)(continuous)
1.5 ft. (45 cm) to
1.1 ft. (35 cm)
(continuous)(blinking rapidly)(continuous)
Less than
1.1 ft. (35 cm)
(blinking)(continuous)(continuous)
GS350_OM_OM30D41U_(U).book Page 246 Monday, July 29, 2013 2:22 PM

GS350_OM_OM30D41U_(U)
2474-5. Using the driving support systems
4
Driving
■Buzzer operation and distance to an obstacle
A buzzer sounds when the sensors are operating.
●The buzzer beeps faster as the vehicle approaches an obstacle.
When the vehicle comes within the following distance of the obsta-
cle, the buzzer sounds continuously:• Front center sensors: Approximately 1.0 ft. (30 cm)
• Corner sensors: Approximately 1.0 ft. (30 cm)
• Rear center sensors: Approximately 1.1 ft. (35 cm)
●When 2 or more obstacles are detected simultaneously, the buzzer
system responds to the nearest obstacle. If one or both come within
the above distances, the beep will repeat a long tone, followed by fast
beeps.
Approximately 3.3 ft. (100 cm)
Approximately 4.9 ft. (150 cm)
Approximately 2.0 ft. (60 cm)
The diagram shows the detection
range of the sensors. Note that the
sensors cannot detect obstacles that
are extremely close to the vehicle.
The range of the sensors may change
depending on the shape of the object
etc.
Detection range of the sensors
1
2
3
GS350_OM_OM30D41U_(U).book Page 247 Monday, July 29, 2013 2:22 PM

248
GS350_OM_OM30D41U_(U)
4-5. Using the driving support systems

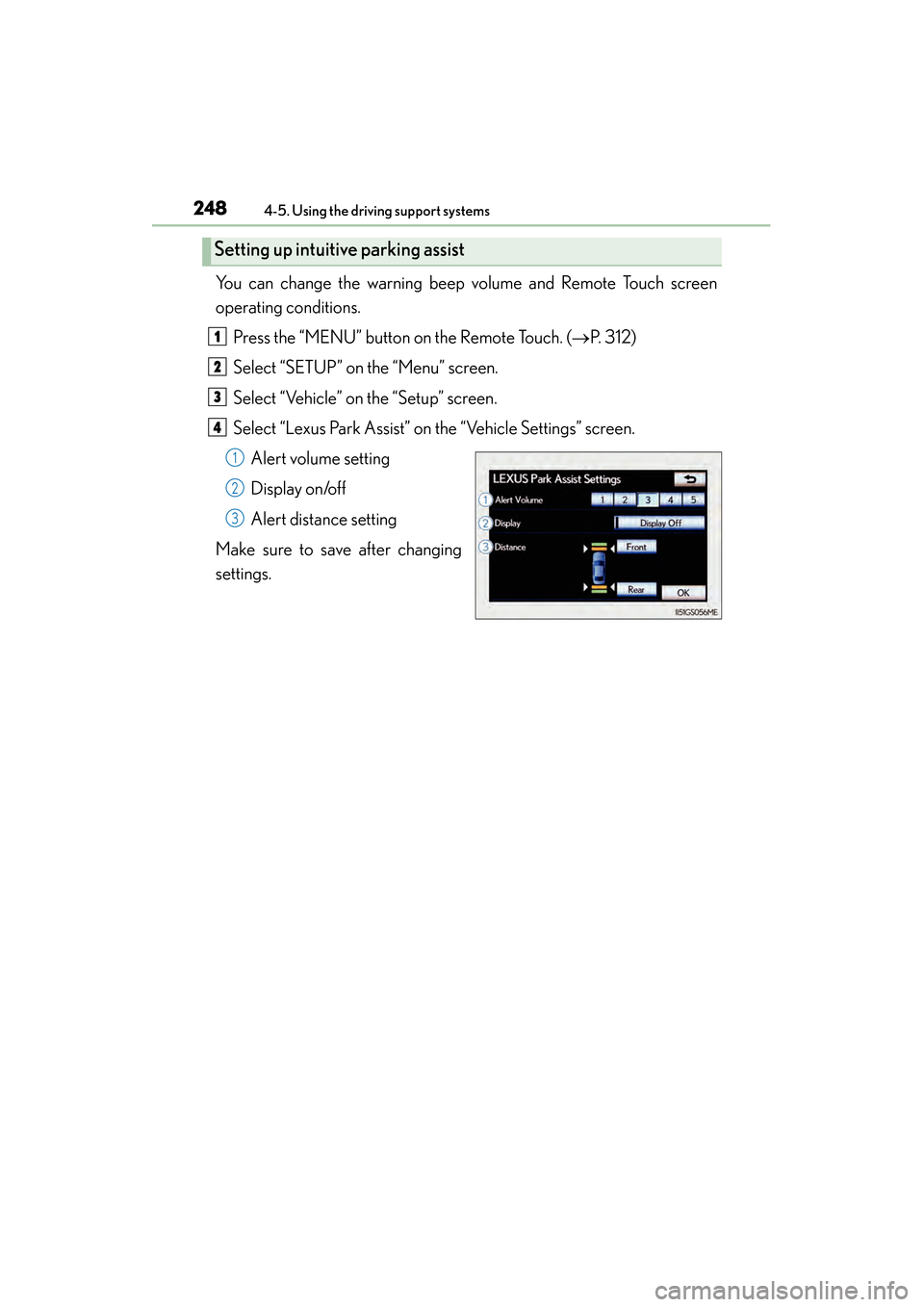

You can change the warning beep volume and Remote Touch screen
operating conditions.Press the “MENU” button on the Remote Touch. ( →P. 312)
Select “SETUP” on the “Menu” screen.
Select “Vehicle” on the “Setup” screen.
Select “Lexus Park Assist” on the “Vehicle Settings” screen.
Alert volume setting
Display on/off
Alert distance setting
Make sure to save after changing
settings.
Setting up intuitive parking assist
1
2
3
4
1
2
3
GS350_OM_OM30D41U_(U).book Page 248 Monday, July 29, 2013 2:22 PM

GS350_OM_OM30D41U_(U)
2494-5. Using the driving support systems
4
Driving

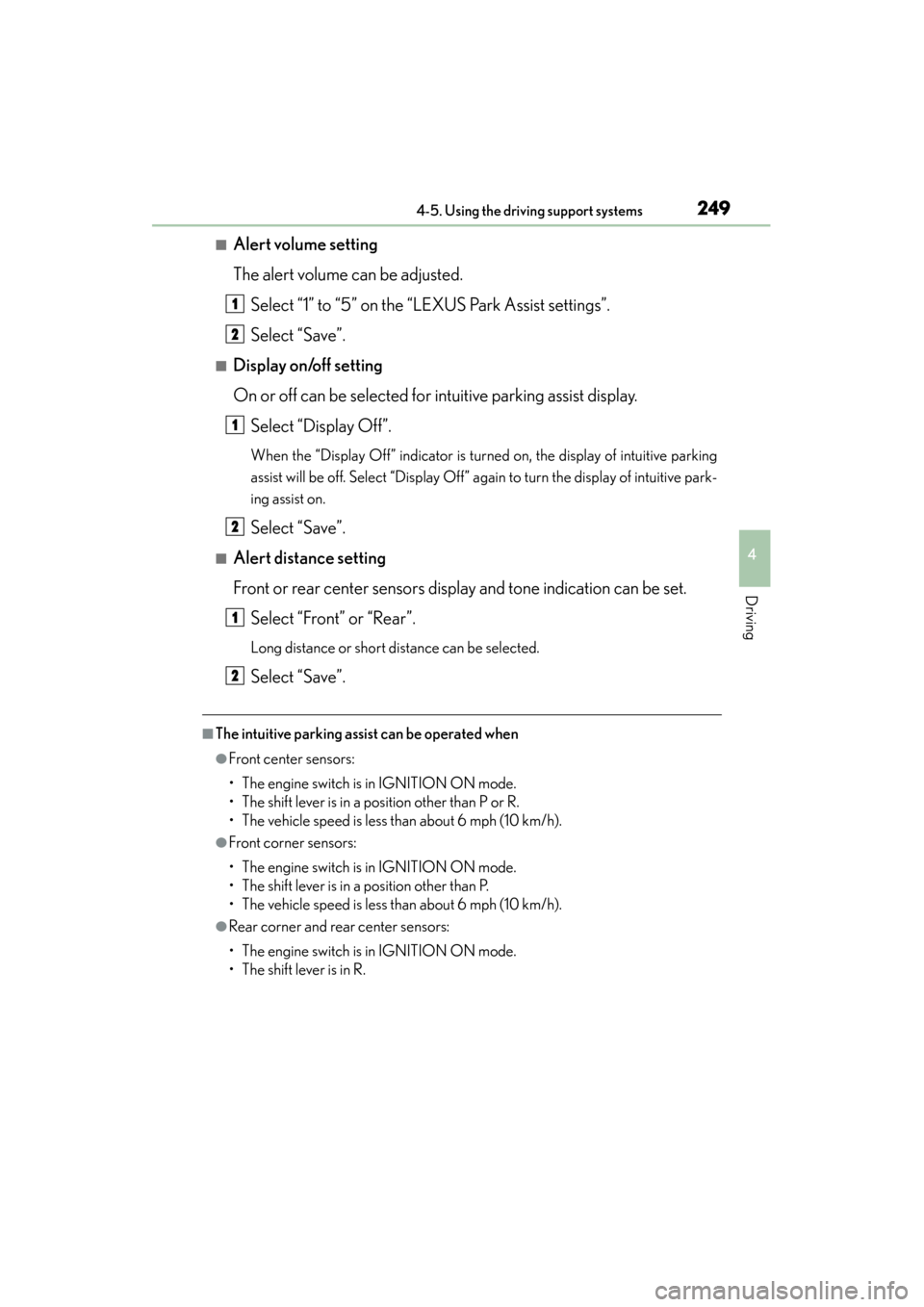

■Alert volume setting
The alert volume can be adjusted.Select “1” to “5” on the “LEXUS Park Assist settings”.
Select “Save”.
■Display on/off setting
On or off can be selected for intuitive parking assist display.Select “Display Off”.
When the “Display Off” indicator is turned on, the display of intuitive parking
assist will be off. Select “Display Off” again to turn the display of intuitive park-
ing assist on.
Select “Save”.
■Alert distance setting
Front or rear center sensors display and tone indication can be set.Select “Front” or “Rear”.
Long distance or short distance can be selected.
Select “Save”.
■The intuitive parking assist can be operated when
●Front center sensors:
• The engine switch is in IGNITION ON mode.
• The shift lever is in a position other than P or R.
• The vehicle speed is less than about 6 mph (10 km/h).
●Front corner sensors:
• The engine switch is in IGNITION ON mode.
• The shift lever is in a position other than P.
• The vehicle speed is less than about 6 mph (10 km/h).
●Rear corner and rear center sensors:
• The engine switch is in IGNITION ON mode.
• The shift lever is in R.
1
2
1
2
1
2
