Lexus GS350 2014 Owner's Manual

370
GS350_OM_OM30D41U_(U)
5-2. Using the air conditioning system and defogger
Press .
The air conditioning system will operate, and air outlets and fan speed will be
adjusted automatically.
“AUTO” will be displayed on the control panel.
Press “∧” on to increase the temperature and “ ∨” to decrease
the temperature.
When the rear seat heaters are set to “AUTO” mode, the system is
operated automatically according to the set temperature, outside tem-
perature, etc.
Using automatic air conditioning system
1
2
GS350_OM_OM30D41U_(U).book Page 370 Monday, July 29, 2013 2:22 PM

GS350_OM_OM30D41U_(U)
3715-2. Using the air conditioning system and defogger
5
Interior features

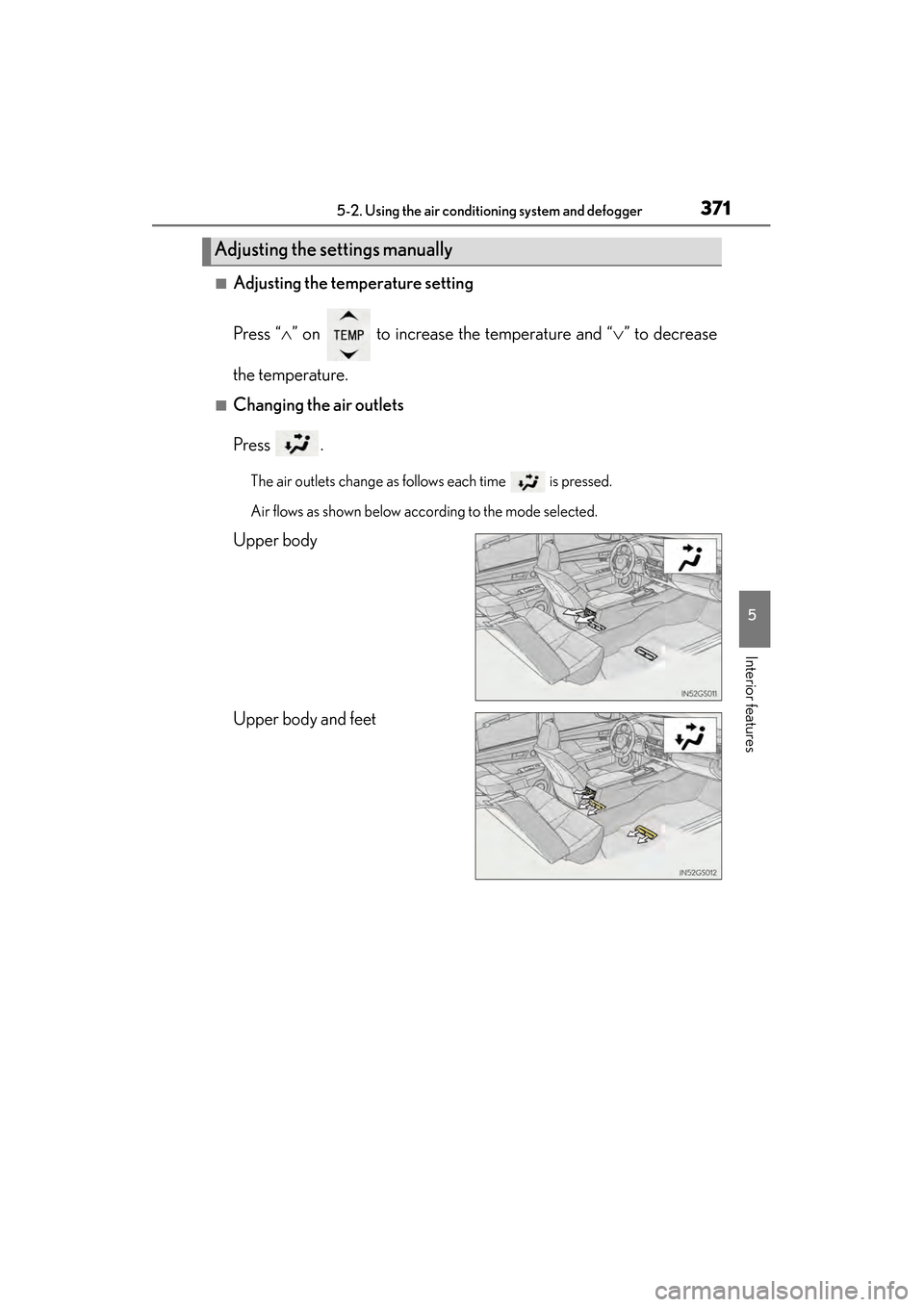

■Adjusting the temperature setting
Press “∧” on to increase the temperature and “ ∨” to decrease
the temperature.
■Changing the air outlets
Press .
The air outlets change as follows each time is pressed.
Air flows as shown below according to the mode selected.
Upper body
Upper body and feet
Adjusting the settings manually
GS350_OM_OM30D41U_(U).book Page 371 Monday, July 29, 2013 2:22 PM

372
GS350_OM_OM30D41U_(U)
5-2. Using the air conditioning system and defogger

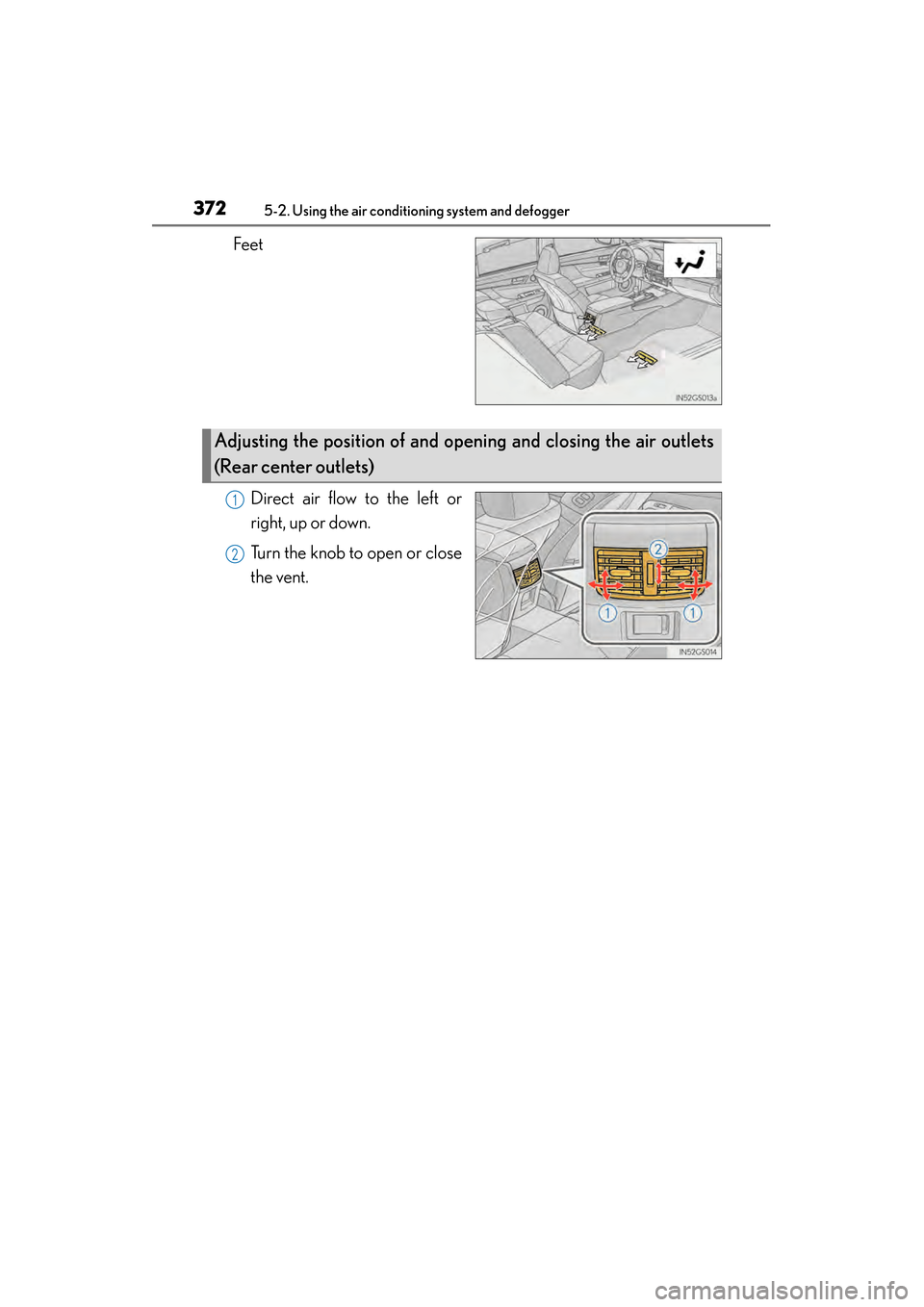

FeetDirect air flow to the left or
right, up or down.
Turn the knob to open or close
the vent.
Adjusting the position of and opening and closing the air outlets
(Rear center outlets)
1
2
GS350_OM_OM30D41U_(U).book Page 372 Monday, July 29, 2013 2:22 PM

GS350_OM_OM30D41U_(U)
3735-2. Using the air conditioning system and defogger
5
Interior features

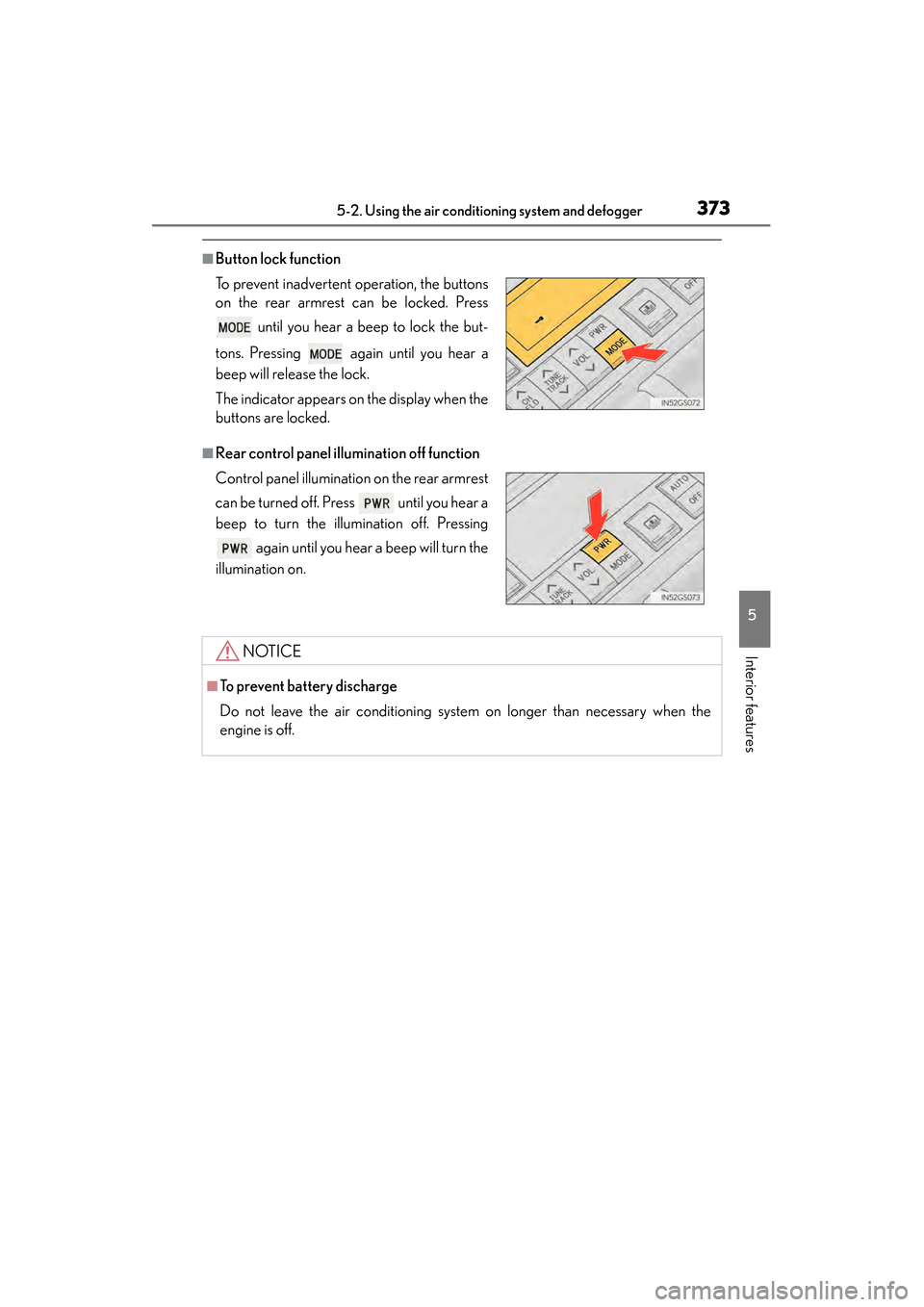

■Button lock function
■Rear control panel illumination off function To prevent inadvertent operation, the buttons
on the rear armrest can be locked. Press until you hear a beep to lock the but-
tons. Pressing again until you hear a
beep will release the lock.
The indicator appears on the display when the
buttons are locked.
Control panel illumination on the rear armrest
can be turned off. Press until you hear a
beep to turn the illumination off. Pressing again until you hear a beep will turn the
illumination on.
NOTICE
■To prevent battery discharge
Do not leave the air conditioning system on longer than necessary when the
engine is off.
GS350_OM_OM30D41U_(U).book Page 373 Monday, July 29, 2013 2:22 PM

374
GS350_OM_OM30D41U_(U)
5-2. Using the air conditioning system and defogger

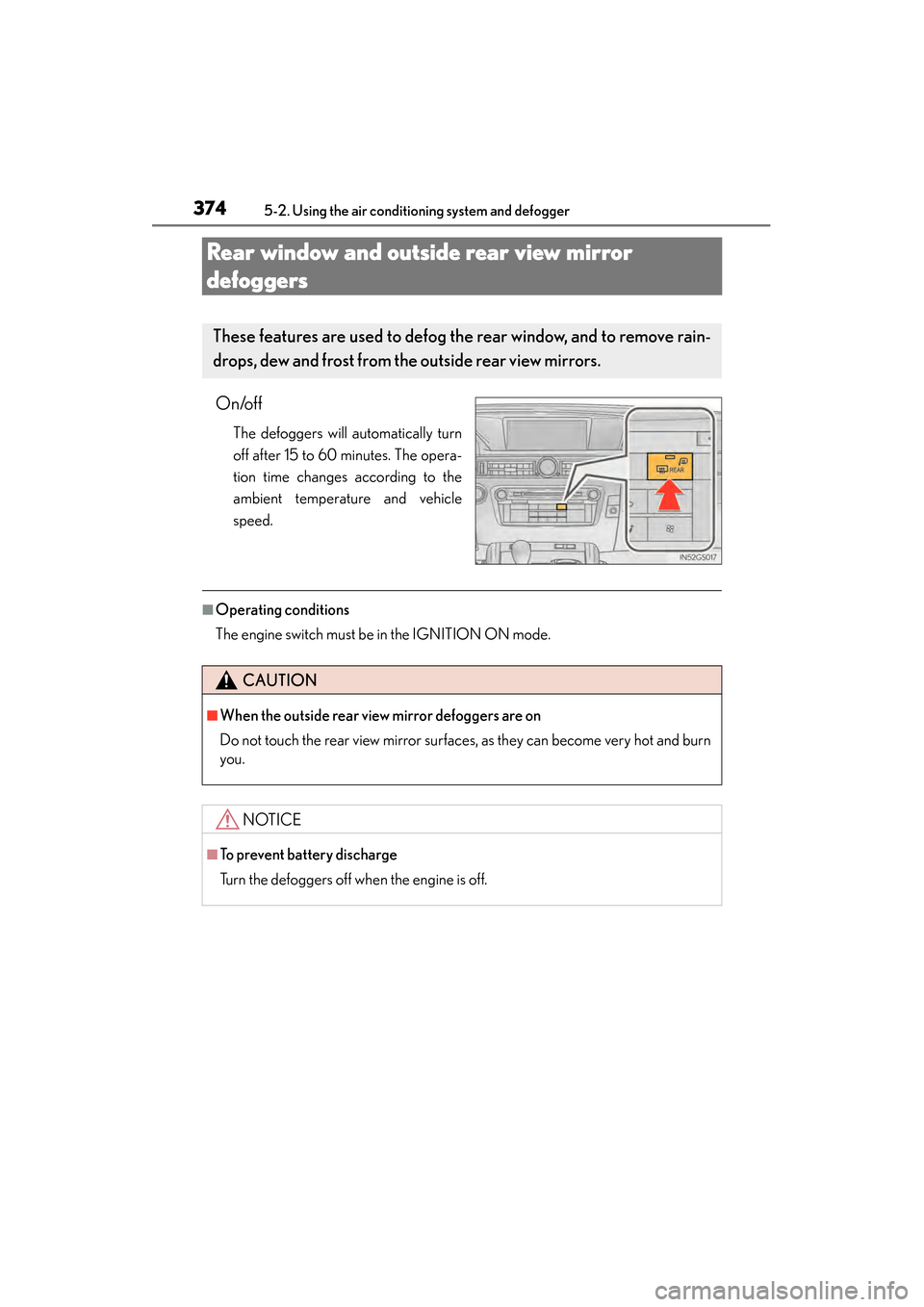

Rear window and outside rear view mirror
defoggers
On/off
The defoggers will automatically turn
off after 15 to 60 minutes. The opera-
tion time changes according to the
ambient temperature and vehicle
speed.
■Operating conditions
The engine switch must be in the IGNITION ON mode.
These features are used to defog the rear window, and to remove rain-
drops, dew and frost from the outside rear view mirrors.
CAUTION
■When the outside rear view mirror defoggers are on
Do not touch the rear view mirror surfaces, as they can become very hot and burn
you.
NOTICE
■To prevent battery discharge
Turn the defoggers off when the engine is off.
GS350_OM_OM30D41U_(U).book Page 374 Monday, July 29, 2013 2:22 PM

375
GS350_OM_OM30D41U_(U)5-2. Using the air conditioning system and defogger
5
Interior features

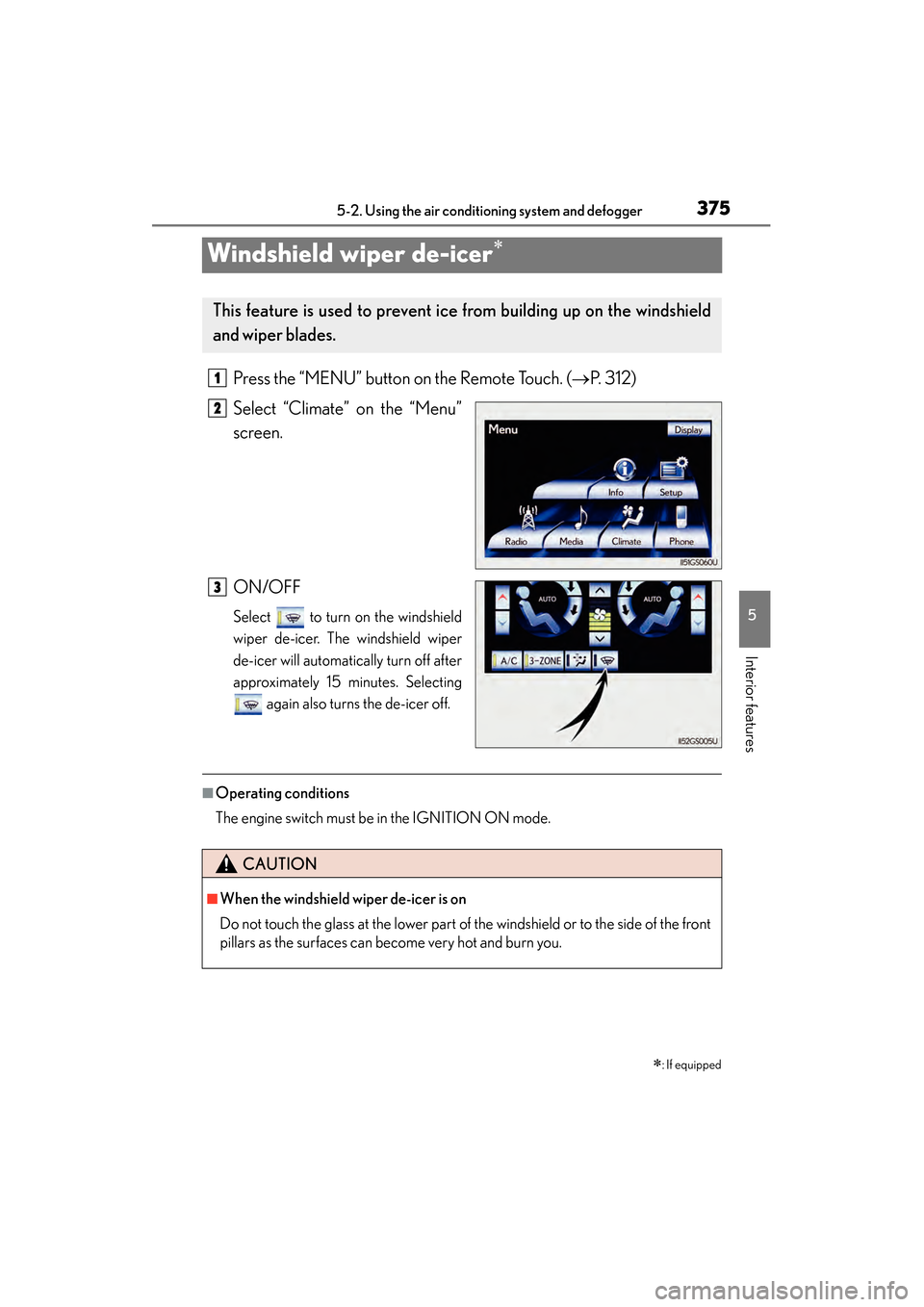

Windshield wiper de-icer∗
Press the “MENU” button on the Remote Touch. ( →P. 312)
Select “Climate” on the “Menu”
screen.
ON/OFF
Select to turn on the windshield
wiper de-icer. The windshield wiper
de-icer will automatically turn off after
approximately 15 minutes. Selecting again also turns the de-icer off.
■Operating conditions
The engine switch must be in the IGNITION ON mode.
∗: If equipped
This feature is used to prevent ice from building up on the windshield
and wiper blades.
1
2
3
CAUTION
■When the windshield wiper de-icer is on
Do not touch the glass at the lower part of the windshield or to the side of the front
pillars as the surfaces can become very hot and burn you.
GS350_OM_OM30D41U_(U).book Page 375 Monday, July 29, 2013 2:22 PM

376
GS350_OM_OM30D41U_(U)
5-3. Using the audio system
Audio system type
CD and DVD player with AM/FM radio
Vehicles with a navigation system: The audio fun ctions can be displayed
and operated on the “Side Display”. For details, refer to the “Navigation
System Owner’s Manual”.
XUsing the instrument panel
Press the “RADIO” or “MEDIA” button to display the audio control
screen.
XUsing the Remote Touch
Press the “MENU” button on the Remote Touch, select “Radio” or
“Media” and select each tab to display the audio control screen.
GS350_OM_OM30D41U_(U).book Page 376 Monday, July 29, 2013 2:22 PM

GS350_OM_OM30D41U_(U)
3775-3. Using the audio system
5
Interior features
GS350_OM_OM30D41U_(U).book Page 377 Monday, July 29, 2013 2:22 PM

378
GS350_OM_OM30D41U_(U)
5-3. Using the audio system
Press to operate the voice
command system. (→P. 3 4 0 /
“Navigation System Owner’s Man-
ual”)
Ti t l ePa g e
Using the radioP. 3 9 9
Using the CD/DVD playerP. 4 2 1
Playing an audio CD and MP3/WMA discsP. 4 2 3
Playing DVD videoP. 4 2 9
CD/DVD player and DVD video disc informationP. 441
Listening to Bluetooth® audioP. 4 5 2
Listening to a USB memoryP. 4 6 3
Listening to an iPodP. 4 7 3
Optimal use of the audio/video systemP. 4 8 3
Using the AUX portP. 4 8 5
Using the steering wheel audio switchesP. 4 9 2
Using the voice command system
GS350_OM_OM30D41U_(U).book Page 378 Monday, July 29, 2013 2:22 PM

GS350_OM_OM30D41U_(U)
3795-3. Using the audio system
5
Interior features

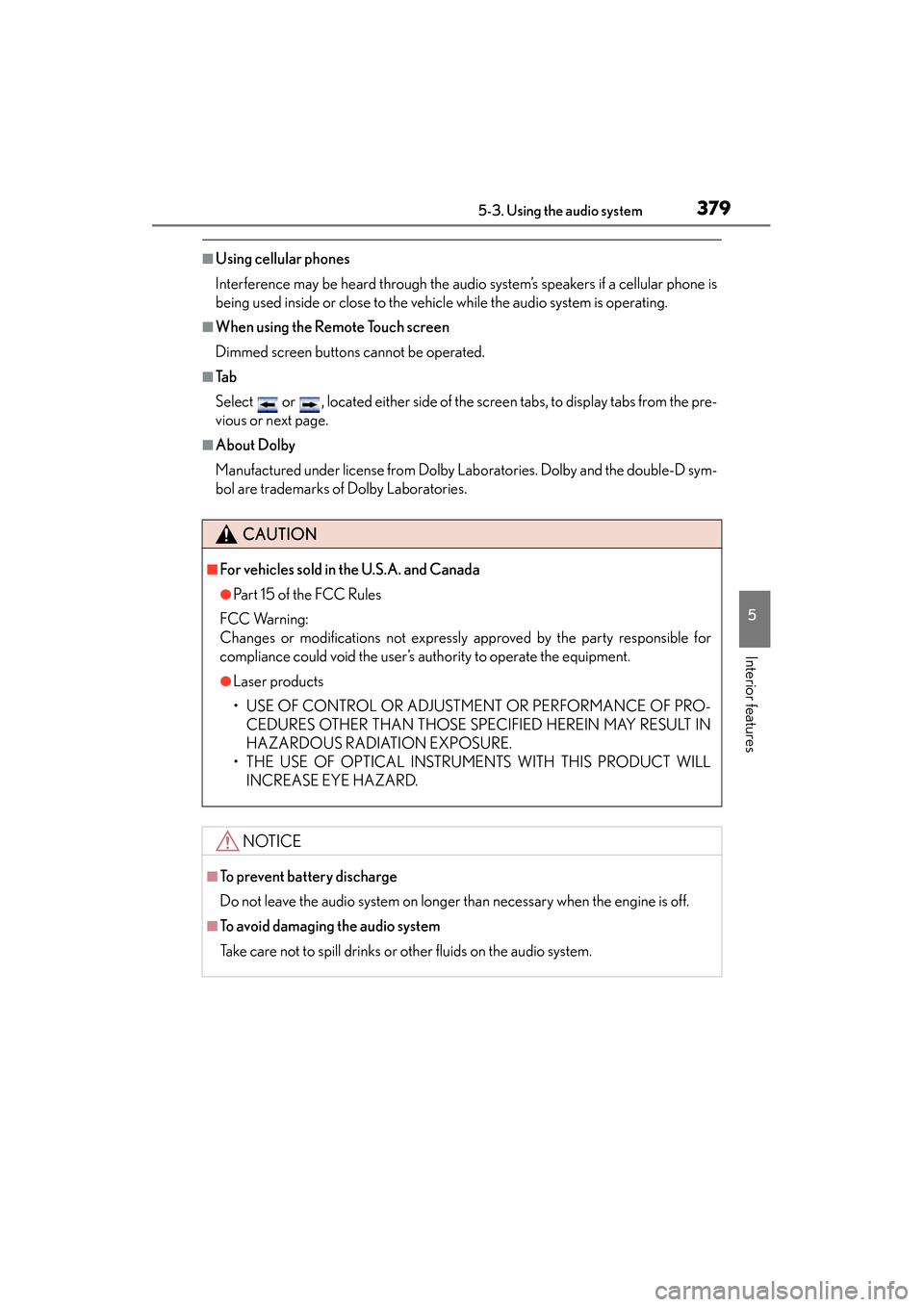

■Using cellular phones
Interference may be heard through the audio system’s speakers if a cellular phone is
being used inside or close to the vehicle while the audio system is operating.
■When using the Remote Touch screen
Dimmed screen buttons cannot be operated.
■Ta b
Select or , located either side of the screen tabs, to display tabs from the pre-
vious or next page.
■About Dolby
Manufactured under license from Dolby Laboratories. Dolby and the double-D sym-
bol are trademarks of Dolby Laboratories.
CAUTION
■For vehicles sold in the U.S.A. and Canada
●Part 15 of the FCC Rules
FCC Warning:
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
●Laser products
• USE OF CONTROL OR ADJUSTMENT OR PERFORMANCE OF PRO- CEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN
HAZARDOUS RADIATION EXPOSURE.
• THE USE OF OPTICAL INSTRUMENTS WITH THIS PRODUCT WILL INCREASE EYE HAZARD.
NOTICE
■To prevent battery discharge
Do not leave the audio system on longer than necessary when the engine is off.
■To avoid damaging the audio system
Take care not to spill drinks or other fluids on the audio system.
GS350_OM_OM30D41U_(U).book Page 379 Monday, July 29, 2013 2:22 PM
