Lexus GS350 2014 Manual PDF

701-2. Theft deterrent system
GS350_OM_OM30D41U_(U)

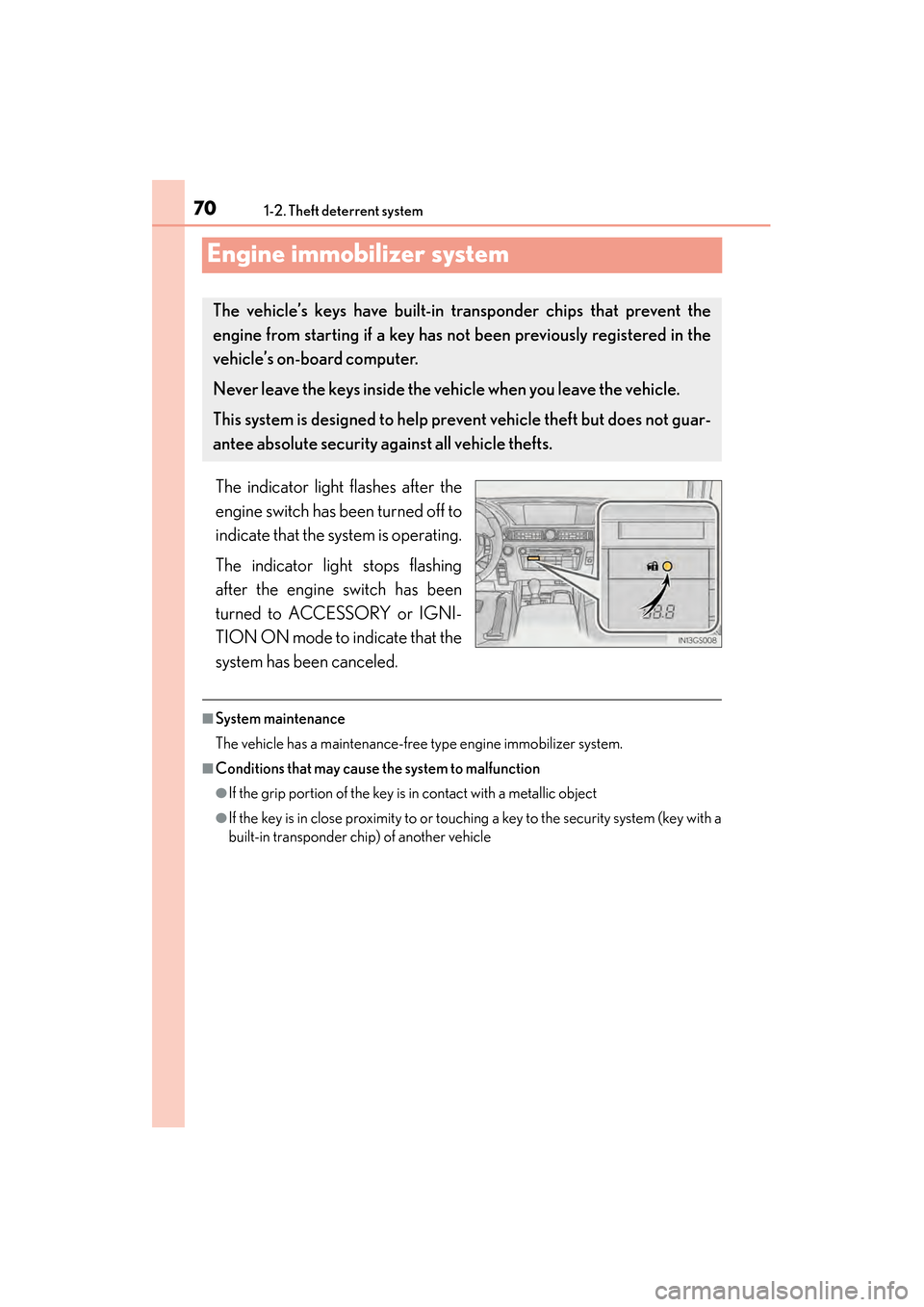

Engine immobilizer system
The indicator light flashes after the
engine switch has been turned off to
indicate that the system is operating.
The indicator light stops flashing
after the engine switch has been
turned to ACCESSORY or IGNI-
TION ON mode to indicate that the
system has been canceled.
■System maintenance
The vehicle has a maintenance-free type engine immobilizer system.
■Conditions that may cause the system to malfunction
●If the grip portion of the key is in contact with a metallic object
●If the key is in close proximity to or touching a key to the security system (key with a
built-in transponder chip) of another vehicle
The vehicle’s keys have built-in transponder chips that prevent the
engine from starting if a key has no t been previously registered in the
vehicle’s on-board computer.
Never leave the keys inside the vehicle when you leave the vehicle.
This system is designed to help pr event vehicle theft but does not guar-
antee absolute security agai nst all vehicle thefts.
GS350_OM_OM30D41U_(U).book Page 70 Monday, July 29, 2013 2:22 PM

711-2. Theft deterrent system
GS350_OM_OM30D41U_(U)
1
For safety and security

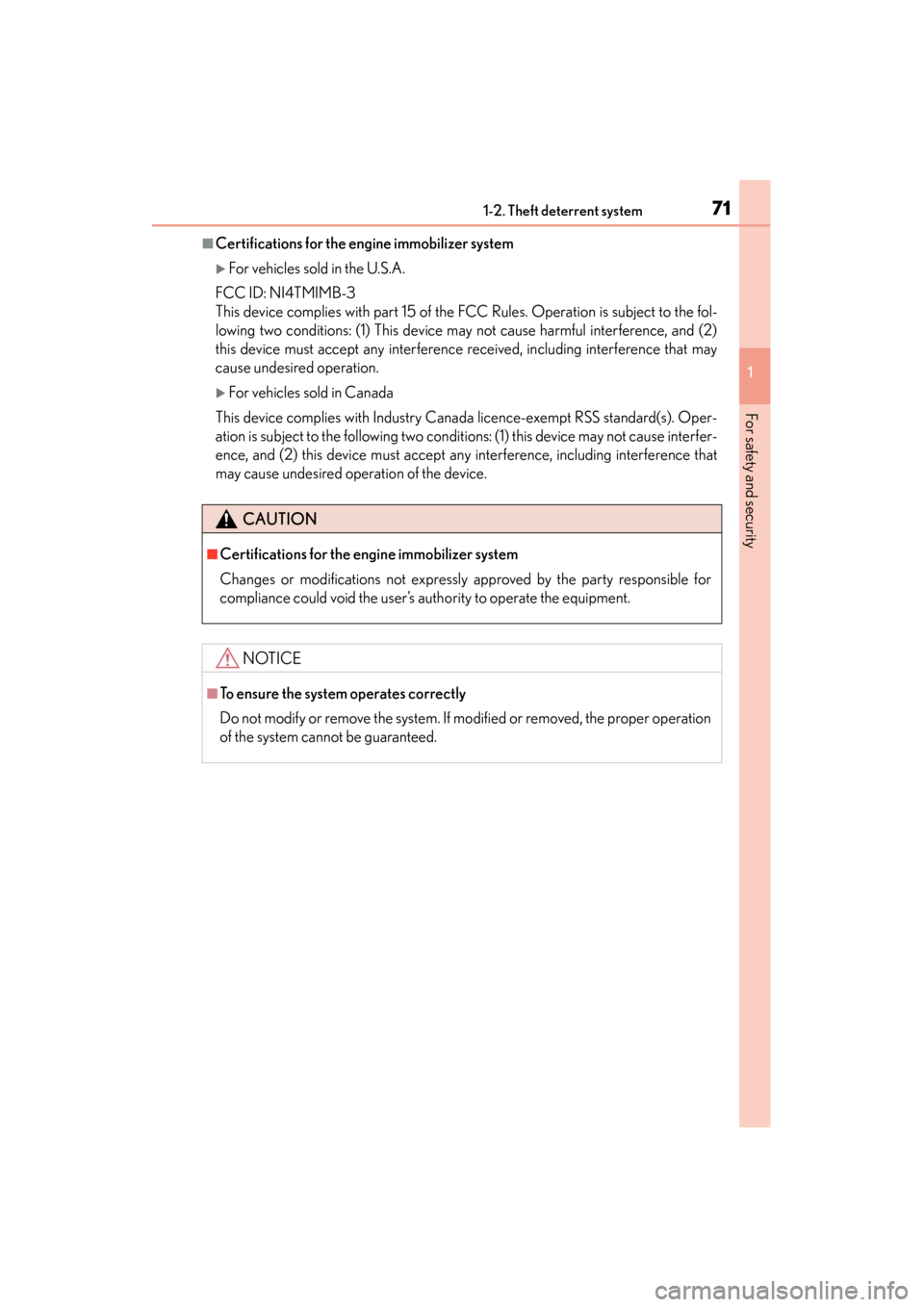

■Certifications for the engine immobilizer system
XFor vehicles sold in the U.S.A.
FCC ID: NI4TMIMB-3
This device complies with part 15 of the FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
XFor vehicles sold in Canada
This device complies with Industry Canada licence-exempt RSS standard(s). Oper-
ation is subject to the following two condit ions: (1) this device may not cause interfer-
ence, and (2) this device must accept any interference, including interference that
may cause undesired operation of the device.
CAUTION
■Certifications for the engine immobilizer system
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper operation
of the system cannot be guaranteed.
GS350_OM_OM30D41U_(U).book Page 71 Monday, July 29, 2013 2:22 PM

721-2. Theft deterrent system
GS350_OM_OM30D41U_(U)

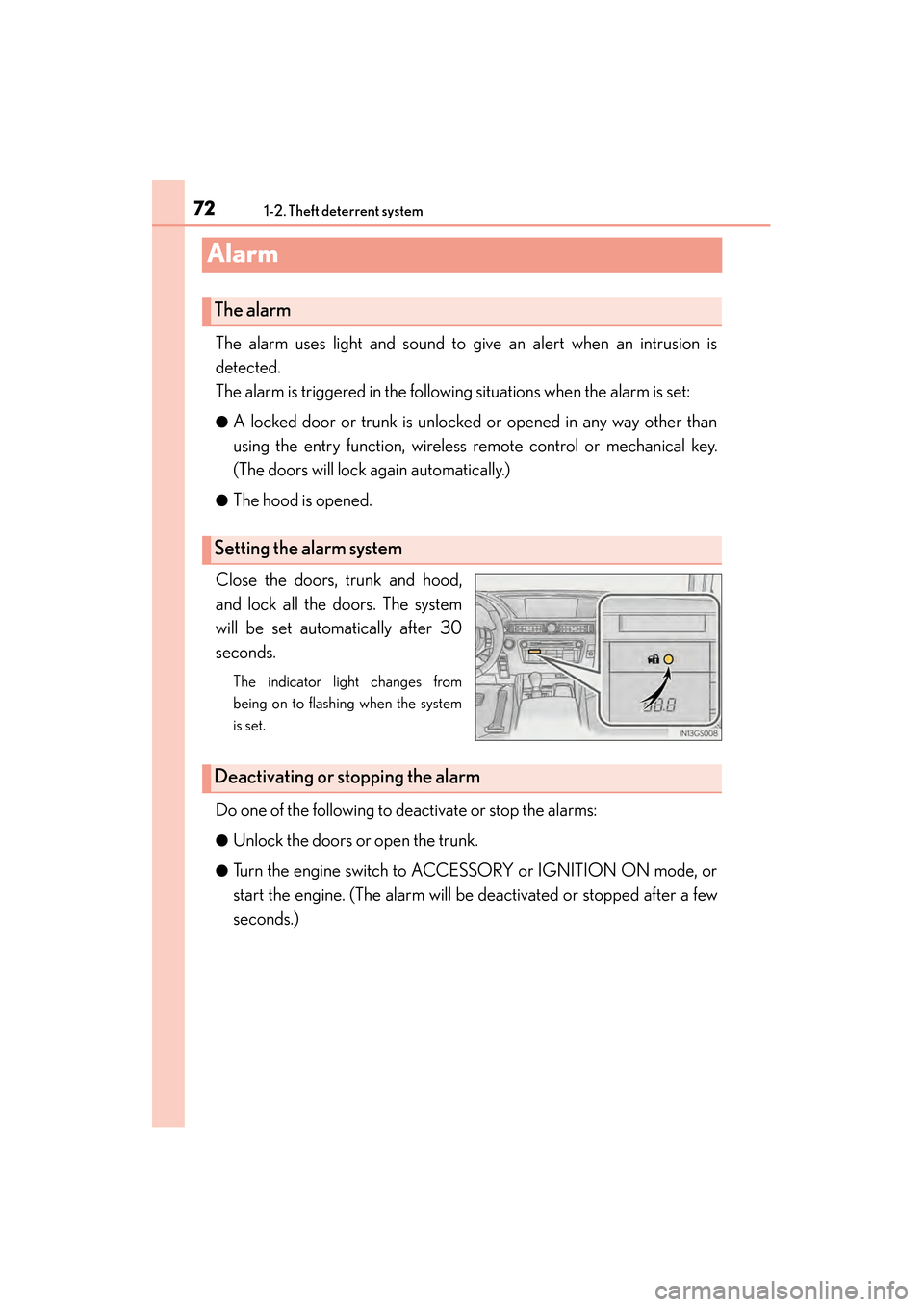

Alarm
The alarm uses light and sound to give an alert when an intrusion is
detected.
The alarm is triggered in the following situations when the alarm is set:
●A locked door or trunk is unlocked or opened in any way other than
using the entry function, wireless remote control or mechanical key.
(The doors will lock again automatically.)
●The hood is opened.
Close the doors, trunk and hood,
and lock all the doors. The system
will be set automatically after 30
seconds.
The indicator light changes from
being on to flashing when the system
is set.
Do one of the following to deactivate or stop the alarms:
●Unlock the doors or open the trunk.
●Turn the engine switch to ACCESSORY or IGNITION ON mode, or
start the engine. (The alarm will be deactivated or stopped after a few
seconds.)
The alarm
Setting the alarm system
Deactivating or stopping the alarm
GS350_OM_OM30D41U_(U).book Page 72 Monday, July 29, 2013 2:22 PM

731-2. Theft deterrent system
GS350_OM_OM30D41U_(U)
1
For safety and security

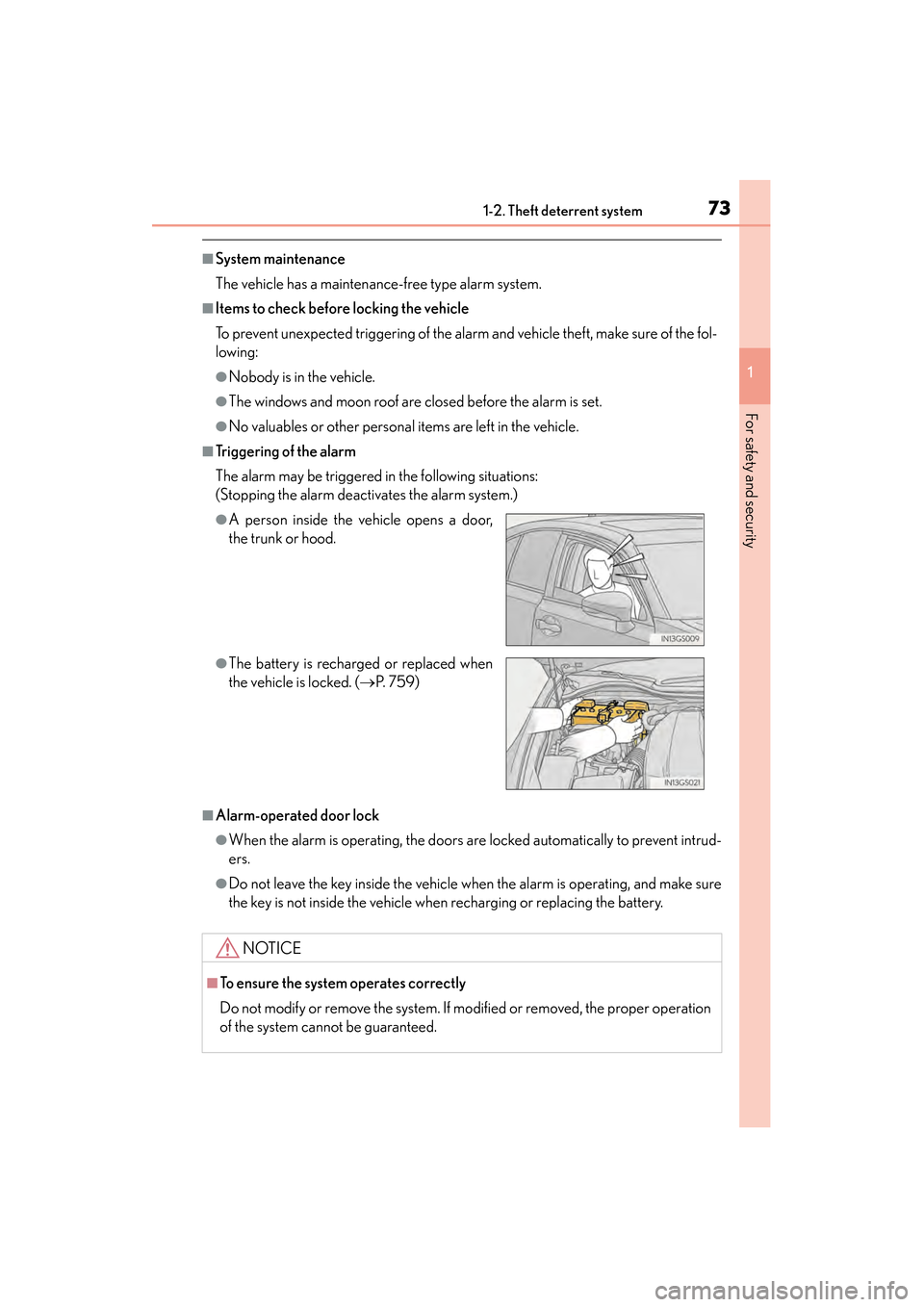

■System maintenance
The vehicle has a maintenance-free type alarm system.
■Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft, make sure of the fol-
lowing:
●Nobody is in the vehicle.
●The windows and moon roof are closed before the alarm is set.
●No valuables or other personal items are left in the vehicle.
■Triggering of the alarm
The alarm may be triggered in the following situations:
(Stopping the alarm deactivates the alarm system.)
■Alarm-operated door lock
●When the alarm is operating, the doors are locked automatically to prevent intrud-
ers.
●Do not leave the key inside the vehicle when the alarm is operating, and make sure
the key is not inside the vehicle when recharging or replacing the battery.
●A person inside the vehicle opens a door,
the trunk or hood.
●The battery is recharged or replaced when
the vehicle is locked. (→P. 7 5 9 )
NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper operation
of the system cannot be guaranteed.
GS350_OM_OM30D41U_(U).book Page 73 Monday, July 29, 2013 2:22 PM

741-2. Theft deterrent system
GS350_OM_OM30D41U_(U)

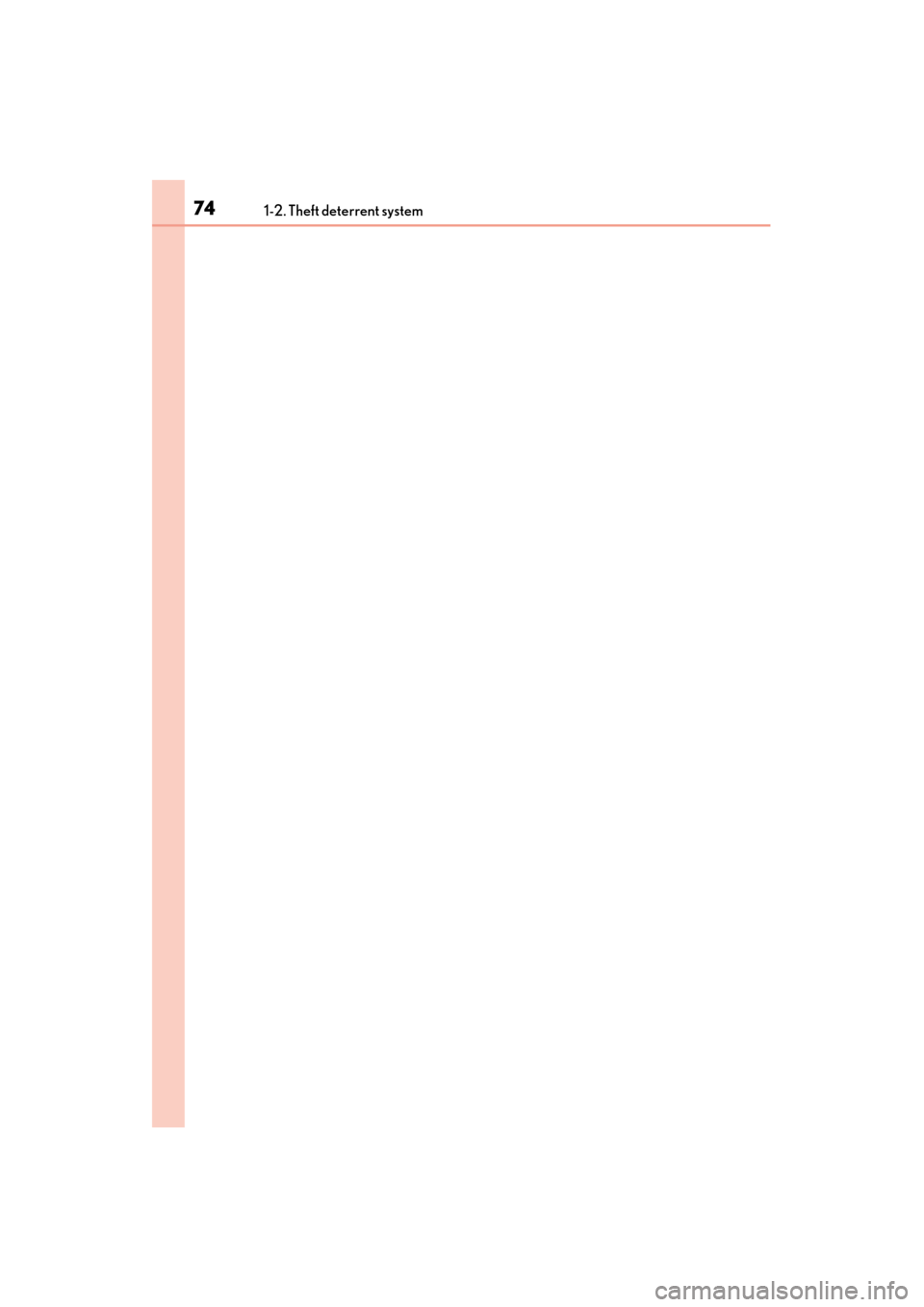

GS350_OM_OM30D41U_(U).book Page 74 Monday, July 29, 2013 2:22 PM

75
GS350_OM_OM30D41U_(U)
Instrument cluster2
2. Instrument cluster Warning lights and indicators ............................... 76
Gauges and meters ...................... 81
Multi-information display .......... 84
Head-up display ............................ 92
GS350_OM_OM30D41U_(U).book Page 75 Monday, July 29, 2013 2:22 PM

76
GS350_OM_OM30D41U_(U)
2. Instrument cluster
Warning lights and indicators
◆Instrument cluster
The units used on the speedometer and some indicators may differ depending on
the target region.
◆Center panel
The warning lights and indicators on the instrument cluster, center
panel and outside rear view mirrors inform the driver of the status of
the vehicle’s various systems.
For the purpose of explanation, the following illustration displays all
warning lights and in dicators illuminated.
GS350_OM_OM30D41U_(U).book Page 76 Monday, July 29, 2013 2:22 PM

GS350_OM_OM30D41U_(U)
772. Instrument cluster
2
Instrument cluster

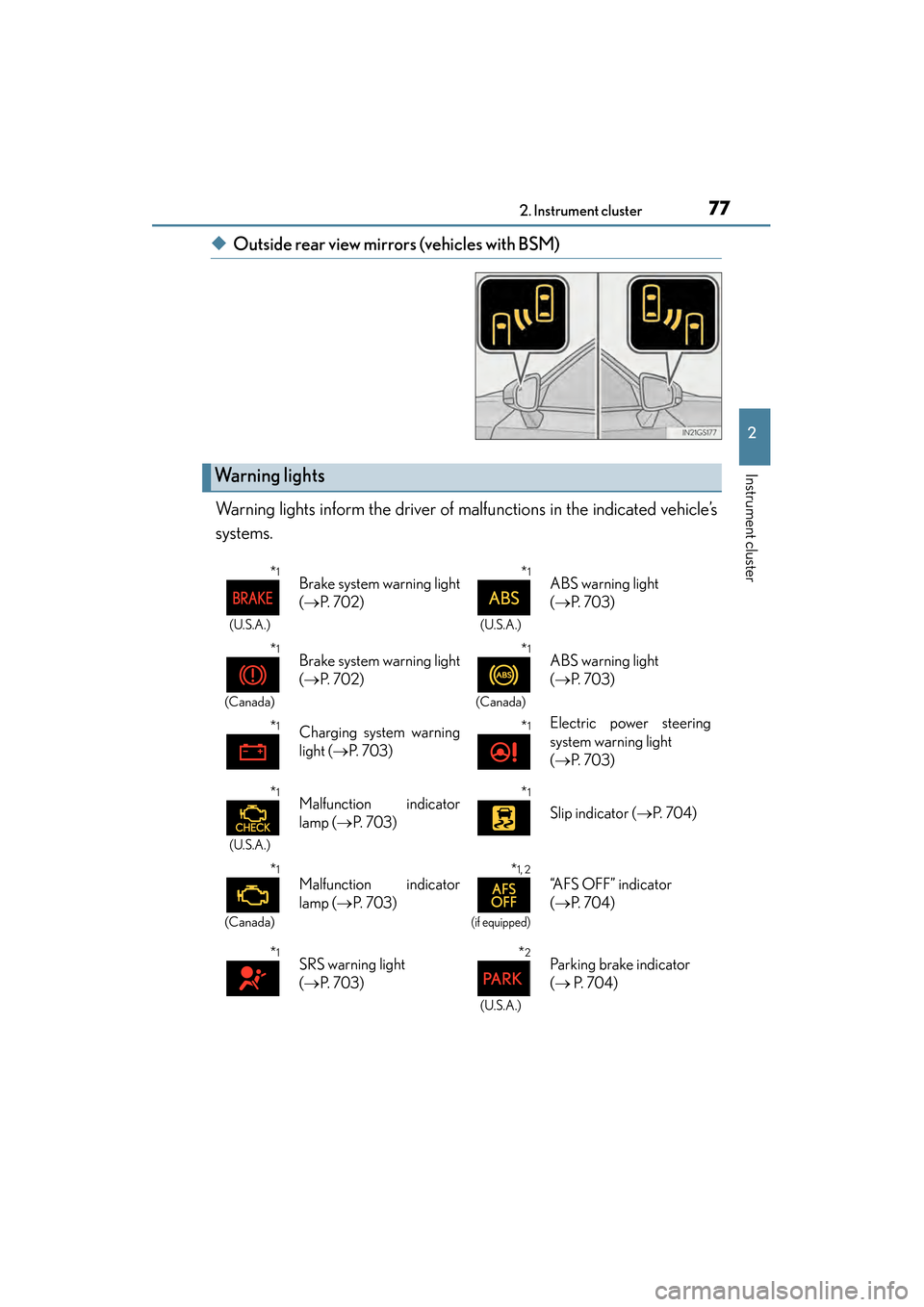

◆Outside rear view mirrors (vehicles with BSM)
Warning lights inform the driver of malfunctions in the indicated vehicle’s
systems.
Warning lights
*1
(U.S.A.)
Brake system warning light
( → P. 7 0 2 )*1
(U.S.A.)
ABS warning light
(→ P. 7 0 3 )
*1
(Canada)
Brake system warning light
(→ P. 7 0 2 )*1
(Canada)
ABS warning light
(→ P. 7 0 3 )
*1Charging system warning
light ( →P. 7 0 3 )*1Electric power steering
system warning light
(→ P. 7 0 3 )
*1
(U.S.A.)
Malfunction indicator
lamp ( →P. 7 0 3 )*1
Slip indicator ( →P. 7 0 4 )
*1
(Canada)
Malfunction indicator
lamp ( →P. 7 0 3 )*1, 2
(if equipped)
“AFS OFF” indicator
(→ P. 7 0 4 )
*1SRS warning light
(→ P. 7 0 3 )*2
(U.S.A.)
Parking brake indicator
(→ P. 7 0 4 )
GS350_OM_OM30D41U_(U).book Page 77 Monday, July 29, 2013 2:22 PM

78
GS350_OM_OM30D41U_(U)
2. Instrument cluster

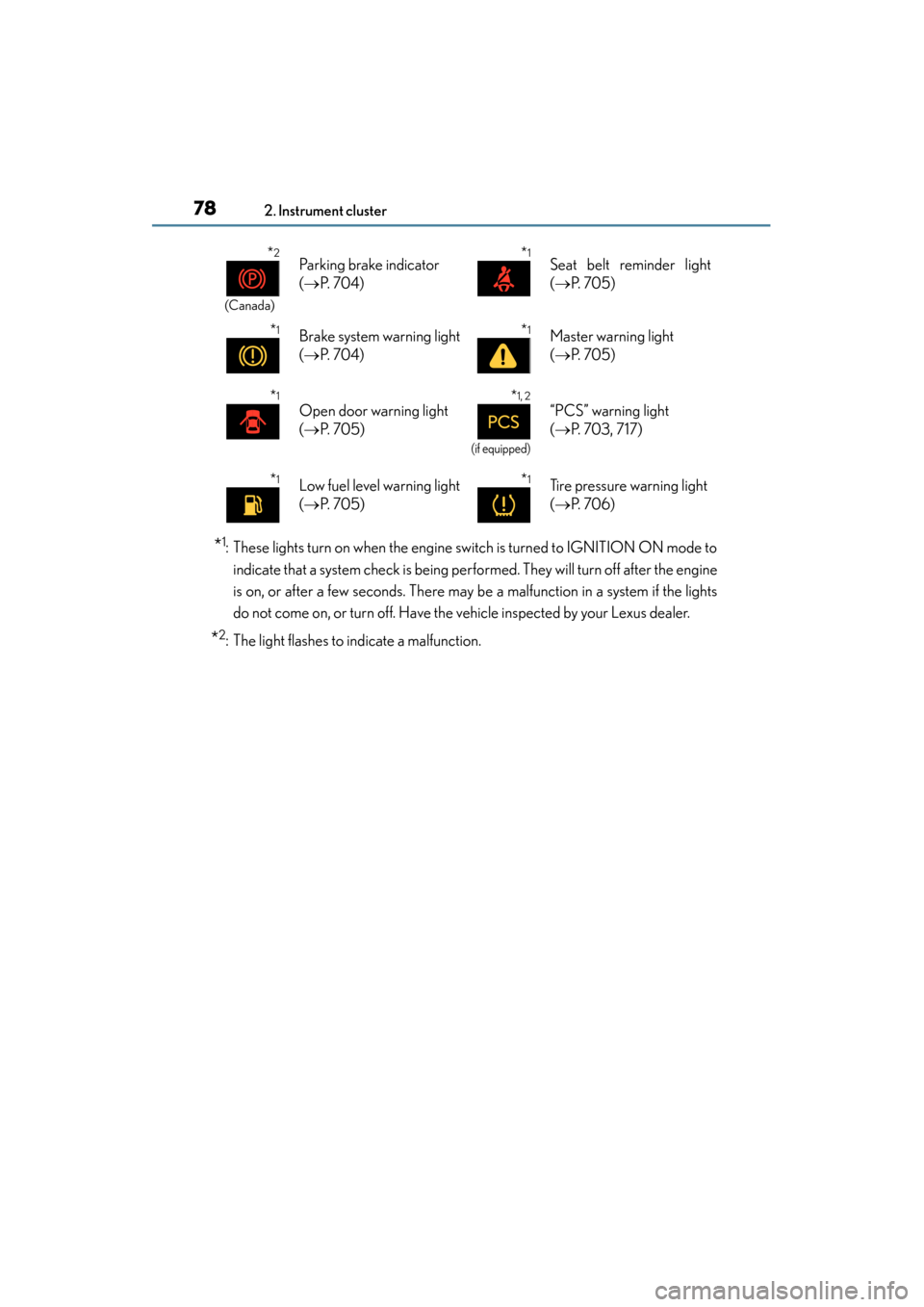

*1: These lights turn on when the engine switch is turned to IGNITION ON mode toindicate that a system check is being performed. They will turn off after the engine
is on, or after a few seconds. There may be a malfunction in a system if the lights
do not come on, or turn off. Have the vehicle inspected by your Lexus dealer.
*2: The light flashes to indicate a malfunction.
*2
(Canada)
Parking brake indicator
(→ P. 7 0 4 )*1Seat belt reminder light
(→ P. 7 0 5 )
*1Brake system warning light
(→ P. 7 0 4 )*1Master warning light
(→ P. 7 0 5 )
*1
Open door warning light
(→ P. 7 0 5 )*1, 2
(if equipped)
“PCS” warning light
(→ P. 703, 717)
*1Low fuel level warning light
(→ P. 7 0 5 )*1Tire pressure warning light
(→ P. 706)
GS350_OM_OM30D41U_(U).book Page 78 Monday, July 29, 2013 2:22 PM

GS350_OM_OM30D41U_(U)
792. Instrument cluster
2
Instrument cluster

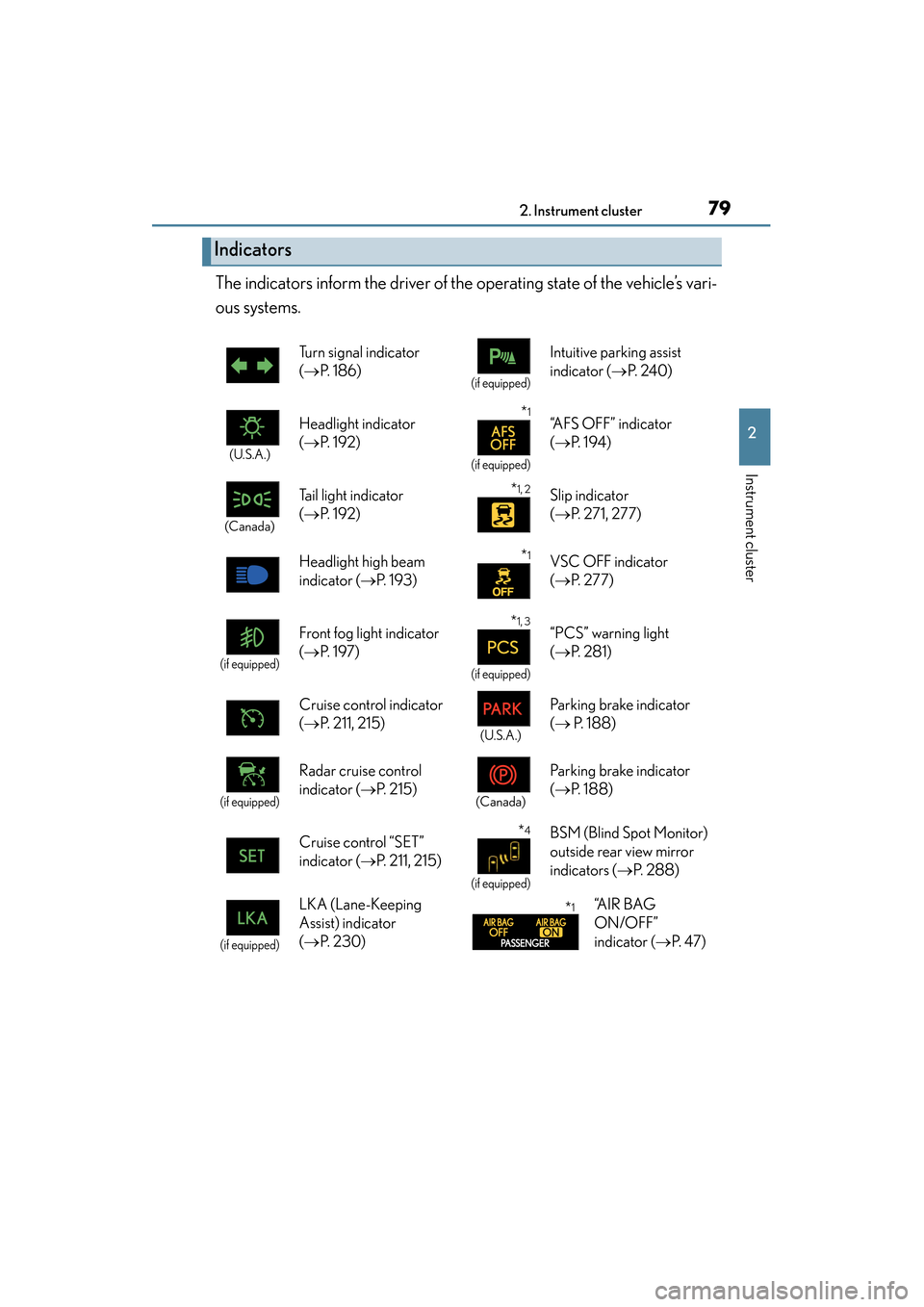

The indicators inform the driver of the operating state of the vehicle’s vari-
ous systems.
Indicators
Turn signal indicator
(→ P. 1 8 6 )
(if equipped)
Intuitive parking assist
indicator ( →P. 2 4 0 )
(U.S.A.)
Headlight indicator
(→ P. 1 9 2 )*1
(if equipped)
“AFS OFF” indicator
(→ P. 1 9 4 )
(Canada)
Tail light indicator
(→ P. 1 9 2 ) *1, 2Slip indicator
(→ P. 271, 277)
Headlight high beam
indicator ( →P. 1 9 3 )
*1VSC OFF indicator
(→ P. 2 7 7 )
(if equipped)
Front fog light indicator
(→ P. 1 9 7 )*1, 3
(if equipped)
“PCS” warning light
(→ P. 2 8 1 )
Cruise control indicator
( → P. 211, 215)
(U.S.A.)
Parking brake indicator
(→ P. 1 8 8 )
(if equipped)
Radar cruise control
indicator ( →P. 2 1 5 )
(Canada)
Parking brake indicator
(→ P. 1 8 8 )
Cruise control “SET”
indicator ( →P. 211, 215)
*4
(if equipped)
BSM (Blind Spot Monitor)
outside rear view mirror
indicators ( →P. 2 8 8 )
(if equipped)
LKA (Lane-Keeping
Assist) indicator
(→ P. 2 3 0 )*1“A I R B A G
ON/OFF”
indicator ( →P. 4 7 )
GS350_OM_OM30D41U_(U).book Page 79 Monday, July 29, 2013 2:22 PM
