low beam Lexus GS350 2014 Owner's Manual

197
GS350_OM_OM30D41U_(U)4-3. Operating the lights and wipers
4
Driving

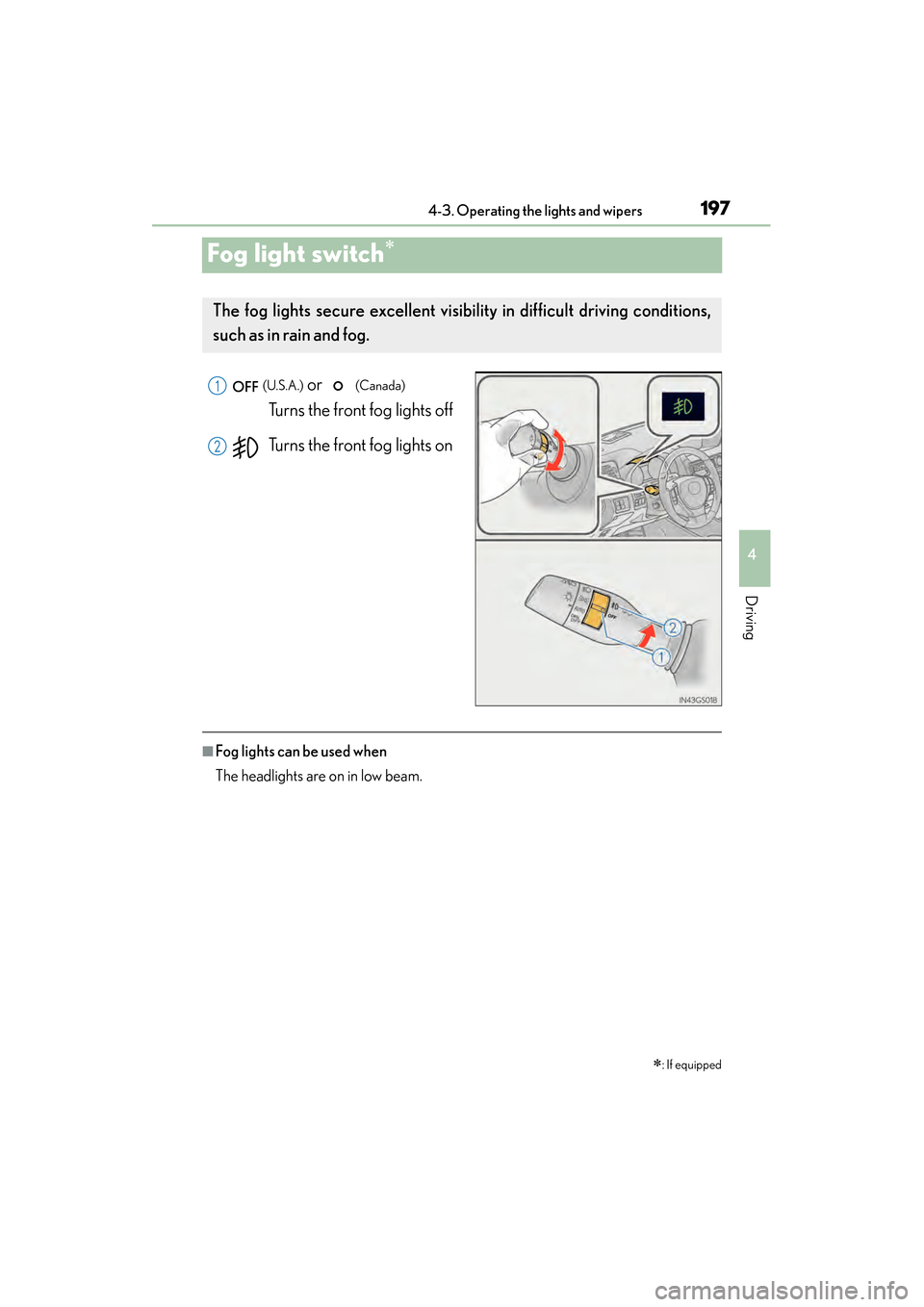

Fog light switch∗
(U.S.A.) or (Canada)
Turns the front fog lights off
Turns the front fog lights on
■Fog lights can be used when
The headlights are on in low beam.
∗: If equipped
The fog lights secure excellent visibi lity in difficult driving conditions,
such as in rain and fog.
1
2
GS350_OM_OM30D41U_(U).book Page 197 Monday, July 29, 2013 2:22 PM

300
GS350_OM_OM30D41U_(U)
4-5. Using the driving support systems

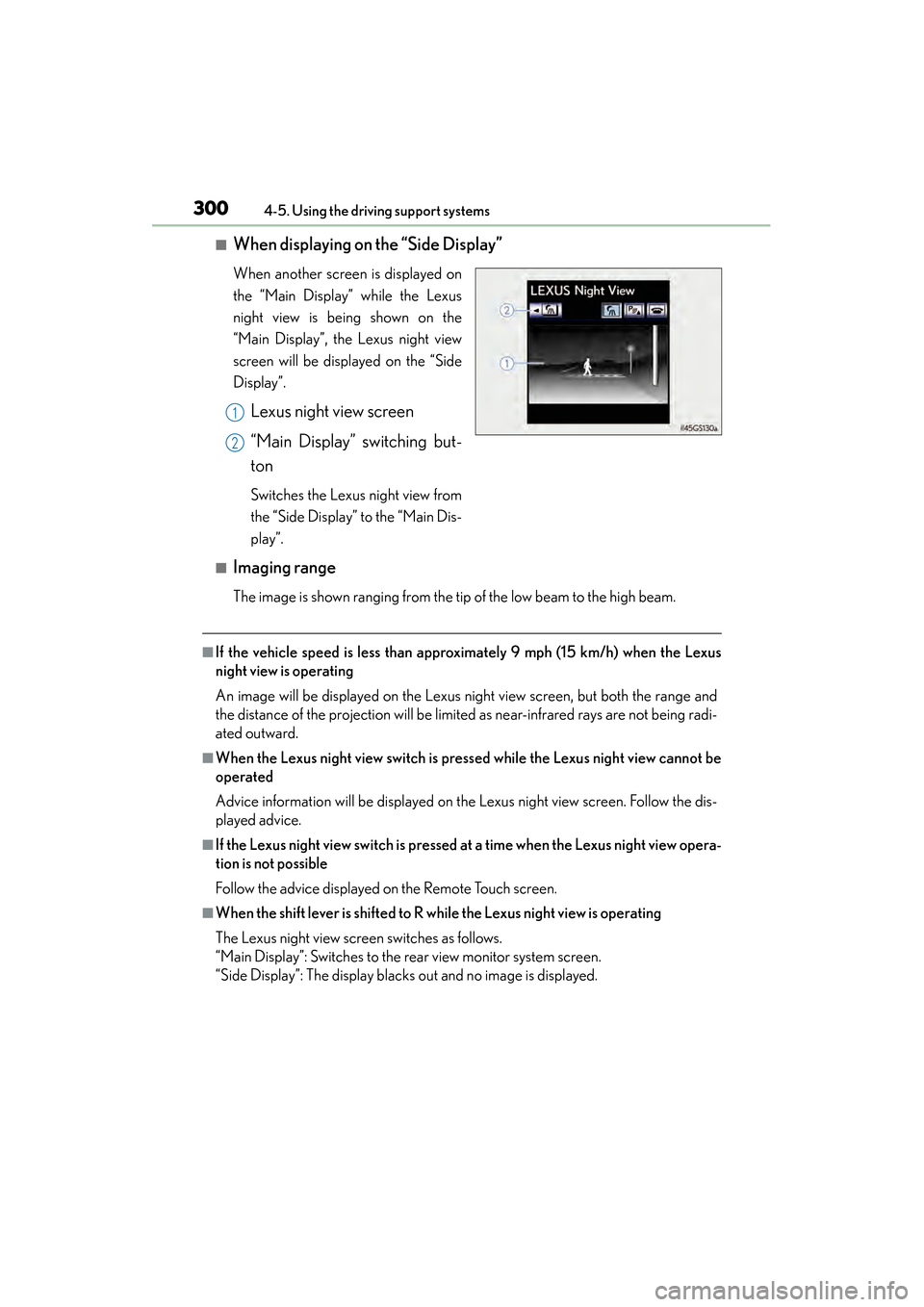

■When displaying on the “Side Display”
When another screen is displayed on
the “Main Display” while the Lexus
night view is being shown on the
“Main Display”, the Lexus night view
screen will be displayed on the “Side
Display”.
Lexus night view screen
“Main Display” switching but-
ton
Switches the Lexus night view from
the “Side Display” to the “Main Dis-
play”.
■Imaging range
The image is shown ranging from the tip of the low beam to the high beam.
■If the vehicle speed is less than approximately 9 mph (15 km/h) when the Lexus
night view is operating
An image will be displayed on the Lexus night view screen, but both the range and
the distance of the projection will be limited as near-infrared rays are not being radi-
ated outward.
■When the Lexus night view switch is pressed while the Lexus night view cannot be
operated
Advice information will be displayed on the Lexus night view screen. Follow the dis-
played advice.
■If the Lexus night view switch is pressed at a time when the Lexus night view opera-
tion is not possible
Follow the advice displayed on the Remote Touch screen.
■When the shift lever is shifted to R while the Lexus night view is operating
The Lexus night view screen switches as follows.
“Main Display”: Switches to the rear view monitor system screen.
“Side Display”: The display blacks out and no image is displayed.
1
2
GS350_OM_OM30D41U_(U).book Page 300 Monday, July 29, 2013 2:22 PM
