start stop button Lexus GS350 2014 Using the air conditioning system and defogger / LEXUS 2014 GS350 OWNERS MANUAL (OM30D41U)

GS350_OM_OM30D41U_(U)
1093-2. Opening, closing and locking the doors and trunk
3
Operation of each component
■Battery-saving function
The battery-saving function will be activated in order to prevent the electronic key
battery and the vehicle batte ry from being discharged while the vehicle is not in
operation for a long time.
●In the following situations, the smart acce ss system with push-button start may take
some time to unlock the doors.
• The electronic key has been left in an area of approximately 6 ft. (2 m) of the outside of the vehicle for 10 minutes or longer.
• The smart access system with push-butto n start has not been used for 5 days or
longer.
●If the smart access system with push-butto n start has not been used for 14 days or
longer, the doors cannot be unlocked at an y doors except the driver’s door. In this
case, take hold of the driver’s door handle, or use the wireless remote control or the
mechanical key, to unlock the doors.
■Electronic Key Battery-Saving Function
When battery-saving mode is set, battery depletion is minimized by stopping the
electronic key from receiving radio waves.
Press twice while pressing and holding
. Confirm that the electronic key indi-
cator flashes 4 times.
While the battery-saving mode is set, the
smart access system wi th push-button start
cannot be used. To cancel the function, press
any of the electronic key buttons.

114
GS350_OM_OM30D41U_(U)
3-2. Opening, closing and locking the doors and trunk
■Electronic key battery depletion
●The standard battery life is 1 to 2 years.
●If the battery becomes low, an alarm will sound in the cabin when the engine stops.
( P. 7 3 3 )
●As the electronic key always receives radio waves, the battery will become
depleted even if the electronic key is not used. The following symptoms indicate
that the electronic key battery may be depleted. Replace the battery when neces-
sary. ( P. 6 5 9 )
• The smart access system with push-button start or the wireless remote control does not operate.
• The detection area becomes smaller.
• The LED indicator on the key surface does not turn on.
●To avoid serious deterioration, do not leave the electronic key within 3 ft. (1 m) of
the following electrical appliances that produce a magnetic field:
•TVs
•Personal computers
• Cellular phones, cordless phones and battery chargers
• Recharging cellular phones or cordless phones
•Table lamps
• Induction cookers
■When the electronic key battery is fully depleted
 P. 6 5 9
■Customization
Settings (e. g. smart access system with push-button start) can be changed.
(Customizable features: P. 7 9 3 )
■If the smart access system with push-but ton start has been deactivated in a cus-
tomized setting
●Locking and unlocking the doors and opening the trunk:
Use the wireless remote control or mechanical key. ( P. 1 1 6 , 7 5 4 )
●Starting the engine and changing engine switch modes: P. 7 5 5
●Stopping the engine: P. 1 74

GS350_OM_OM30D41U_(U)
3655-2. Using the air conditioning system and defogger
5
Interior features
■Registering air conditioning settings to electronic keys
●Unlocking the vehicle using an electronic key and turning the engine switch to
IGNITION ON mode will recall that ke y’s registered air conditioning settings.
●When the engine switch is turned off, the current air conditioning settings will auto-
matically be registered to the electronic key that was used to unlock the vehicle.
The system may not operate correctly if more than one electronic key is in the vicinity
or if the smart access system with push-button start is used to unlock a passenger
door.
Settings for the electronic key and the co rresponding door can be changed. Contact
your Lexus dealer.
■Using automatic mode
Fan speed is adjusted automatically according to the temperature setting and the
ambient conditions.
Therefore, the fan may stop for a while until warm or cool air is ready to flow immedi-
ately after is pressed.
■Humidity sensor
A sensor, which detects humidity inside the
vehicle and the temperature of the wind-
shield, is provided to detect fog on the front
windscreen. Due to the sensor, when auto-
matic mode is set the air conditioning may
make the following controls:
●Changing the amount of air flow
●Changing the amount of air introduced from
outside when in outside air mode with the air
vents in the position
●Changing the settings of the air vents to
when the is set

GS350_OM_OM30D41U_(U)
4315-3. Using the audio system
5
Interior features
Select “Options” on “DVD” screen, the following screen appears.Returns to the full screen (only when the vehicle is completely stopped
and the parking brake is applied)
Search by title number
Change audio language
Change angle
Display the predetermined scene and start playing from there
Change subtitle language
Change screen size
Display the image quality adjustment screen
Change initial setting
If appears on the screen when a control is sele cted the operation rele-
vant to the control is not permitted.
Select and hold or on the cont rol icon screen, or press and hold
“<” or “>” on the “PRST•TRACK” button.
DVD options screen
Vehicles without a navigation
systemVehicles with a navigation sys-
tem
Fast forwarding/rewinding a disc
1
2
3
4
5
6
7
8
9

GS350_OM_OM30D41U_(U)
6696-3. Do-it-yourself maintenance
6
Maintenance and care

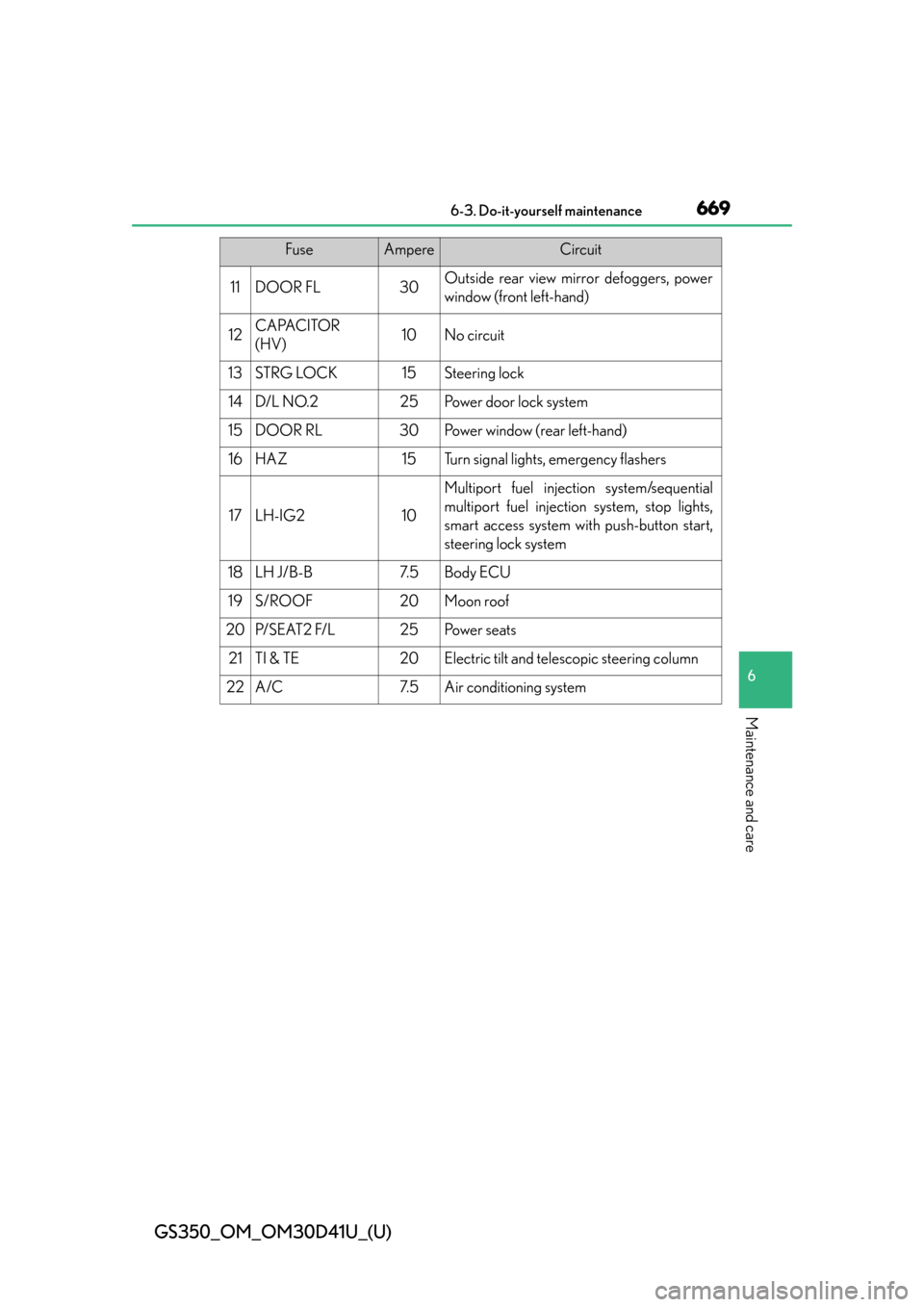

11DOOR FL30Outside rear view mirror defoggers, power
window (front left-hand)
12CAPACITOR
(HV)10No circuit
13STRG LOCK15Steering lock
14D/L NO.225Power door lock system
15DOOR RL30Power window (rear left-hand)
16HAZ15Turn signal lights, emergency flashers
17LH-IG210
Multiport fuel injection system/sequential
multiport fuel injection system, stop lights,
smart access system with push-button start,
steering lock system
18LH J/B-B7. 5Body ECU
19S/ROOF20Moon roof
20P/ S E AT 2 F/ L25Po w e r s e a t s
21TI & TE20Electric tilt and telescopic steering column
22A/C7. 5Air conditioning system
FuseAmpereCircuit

7567-2. Steps to take in an emergency
GS350_OM_OM30D41U_(U)
■Stopping the engine
Shift the shift lever to P and press the engine switch as you normally do when stop-
ping the engine.
■Replacing the key battery
As the above procedure is a temporary measure, it is recommended that the elec-
tronic key battery be replaced immediately when the battery is depleted. ( P. 6 5 9 )
■Changing engine switch modes
Release the brake pedal and press the engine switch in step above.
The engine does not start and modes will be changed each time the switch is
pressed.( P. 1 74 )
■When the electronic key does not work properly
●Make sure that the smart access system with push-button start has not been deac-
tivated in the customization setting. If it is off, turn the function on.
(Customizable features:  P. 7 9 3 )
●Check if battery-saving mode is set. If it is set, cancel the function. ( P. 1 0 9 )
3

GS350_OM_OM30D41U_(U)
8038-2. Customization
8
Vehicle specifications
■Vehicle customization
●When the speed linked door locking function and shift position linked door locking
function are both on, the door lock operates as follows.
• When shifting the shift lever to any position other than P, all the doors will be
locked.
• If the vehicle is started with all the d oors locked, the speed linked door locking
function would not operate.
• If the vehicle is started with any door unlocked, the speed linked door locking
function will operate.
●When the smart access system with push-button start is off, the selecting door to
unlock cannot be customized.
●When the doors remain closed after unlocking the doors and the automatic door
lock function (time elapsed before the automatic door lock function is activated if a
door is not opened after being unlocked) ac tivates, the signals will be generated in
accordance with the operation signal (buzzers) and the operation signal (emer-
gency flashers) settings.
■When customizing using the Remote Touch
Stop the vehicle in a safe place, apply the parking brake, and shift the shift lever to P.
Also, to prevent battery discharge, leave the engine running while customizing the
features.
CAUTION
■During customization
As the engine needs to be running during customization, ensure that the vehicle is
parked in a place with adequate ventilatio n. In a closed area such as a garage,
exhaust gases including harmful carbon mo noxide (CO) may collect and enter the
vehicle. This may lead to death or a serious health hazard.
NOTICE
■During customization
To prevent battery discharge, ensure that the engine is running while customizing
features.

839Alphabetical index
GS350_OM_OM30D41U_(U)
Seats............................................................ 130Adjustment ............................................. 130
Adjustment precautions .................... 131
Child seats/child restraint system installation..............................59
Cleaning .................................................. 612
Driving position memory .................132
Head restraints ..................................... 138
Power easy access system .............132
Properly sitting in the seat ................ 28
Seat heaters ........................................... 581
Seat position memory........................132
Seat ventilators ..................................... 581
Sensor Automatic headlight system .......... 195
Humidity sensor ................................ 365
Inside rear view mirror ..................... 143
Intuitive parking assist ......................240
Lexus night view ................................ 302
LKA (Lane-Keeping Assist) .........239
Radar sensor ................... 224, 281, 291
Rain-sensing windshield wipers .................................................. 203
Service reminder indicators ................76
S-FLOW mode ..................................... 363
Shift lever .................................................. 180 Automatic transmission ...................180
If the shift lever cannot be shifted from P ............. 751
Shift lever light .........................................561
Shift lock system......................................751
Side airbags ............................................... 37
Side marker lights...................................192 Light switch ............................................ 192
Replacing light bulbs ....................... 687
Welcome light illumination control ................................................... 103 Side mirrors .............................................. 144
Adjusting and folding ........................ 144
Blind Spot Monitor ...........................288
Linked mirror function when reversing..................................145
Mirror position memory .................. 132
Side turn signal lights ............................186 Replacing light bulbs ....................... 687
Turn signal lever .................................. 186
Smart access system with push-button start .......................103 Antenna location................................. 105
Entry functions ..................................... 103
Starting the engine .............................. 173
Warning message...............................718
Snow tires ................................................ 308
Spare tire ..................................................736 Inflation pressure................................ 776
Storage location ..................................737
Spark plug ................................................ 772
Specifications......................................... 768
Speedometer .............................................. 81
Steering lock ............................................ 176 Column lock release ......................... 177
Steering lock system warning message........................... 734
Steering wheel ..........................................141 Adjustment................................................141
Audio switches ................................... 492
Heated steering wheel ................... 579
Power easy access system ............. 132
Steering wheel position memory .............................. 132
Stop lights Replacing light bulbs ....................... 687
Storage feature ..................................... 564
