Lexus GS350 2015 Owner's Manual

99
GS350_OM_OM30F69U_(U)2. Instrument cluster
2
Instrument cluster

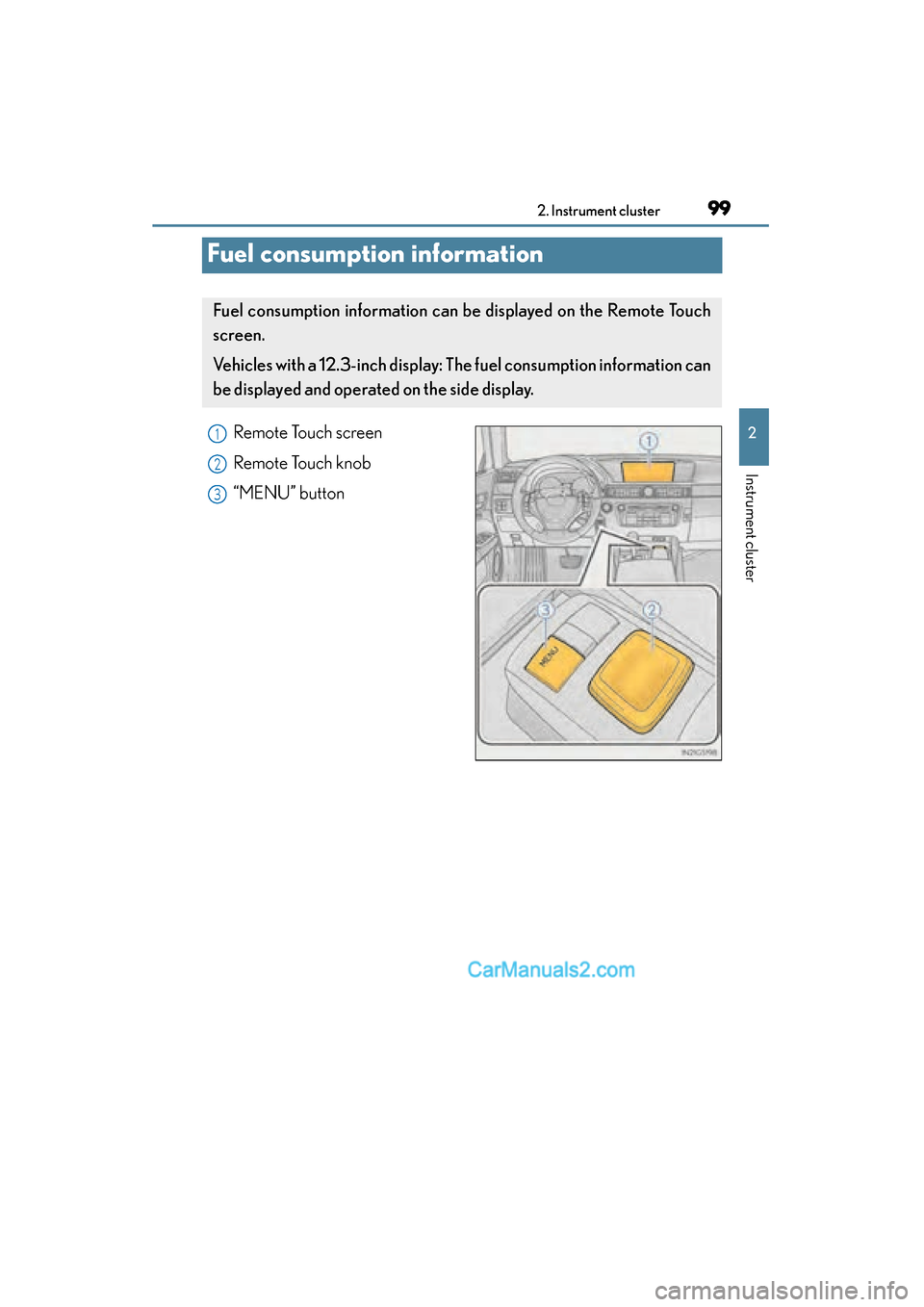

Fuel consumption information
Remote Touch screen
Remote Touch knob
“MENU” button
Fuel consumption information can be displayed on the Remote Touch
screen.
Vehicles with a 12.3-inch display: The fuel consumption information can
be displayed and operated on the side display.
1
2
3
GS350_OM_OM30F69U_(U).book Page 99 Monday, January 19, 2015 2:53 PM

100
GS350_OM_OM30F69U_(U)
2. Instrument cluster

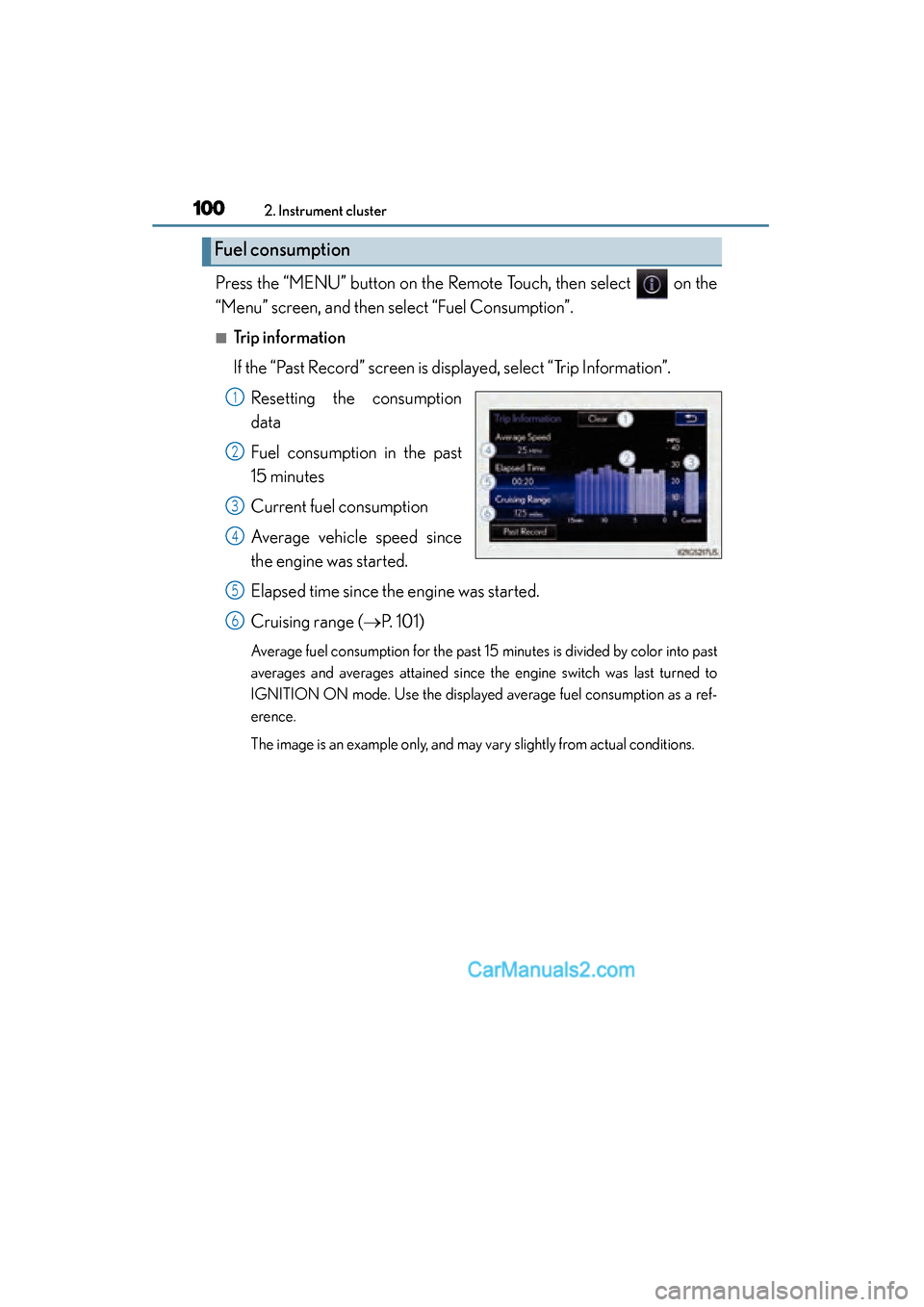

Press the “MENU” button on the Remote Touch, then select on the
“Menu” screen, and then select “Fuel Consumption”.
■Trip information
If the “Past Record” screen is displayed, select “Trip Information”.Resetting the consumption
data
Fuel consumption in the past
15 minutes
Current fuel consumption
Average vehicle speed since
the engine was started.
Elapsed time since the engine was started.
Cruising range ( →P. 1 0 1 )
Average fuel consumption for the past 15 minutes is divided by color into past
averages and averages attained since the engine switch was last turned to
IGNITION ON mode. Use the displayed average fuel consumption as a ref-
erence.
The image is an example only, and may vary slightly from actual conditions.
Fuel consumption
1
2
3
4
5
6
GS350_OM_OM30F69U_(U).book Page 100 Monday, January 19, 2015 2:53 PM

GS350_OM_OM30F69U_(U)
1012. Instrument cluster
2
Instrument cluster

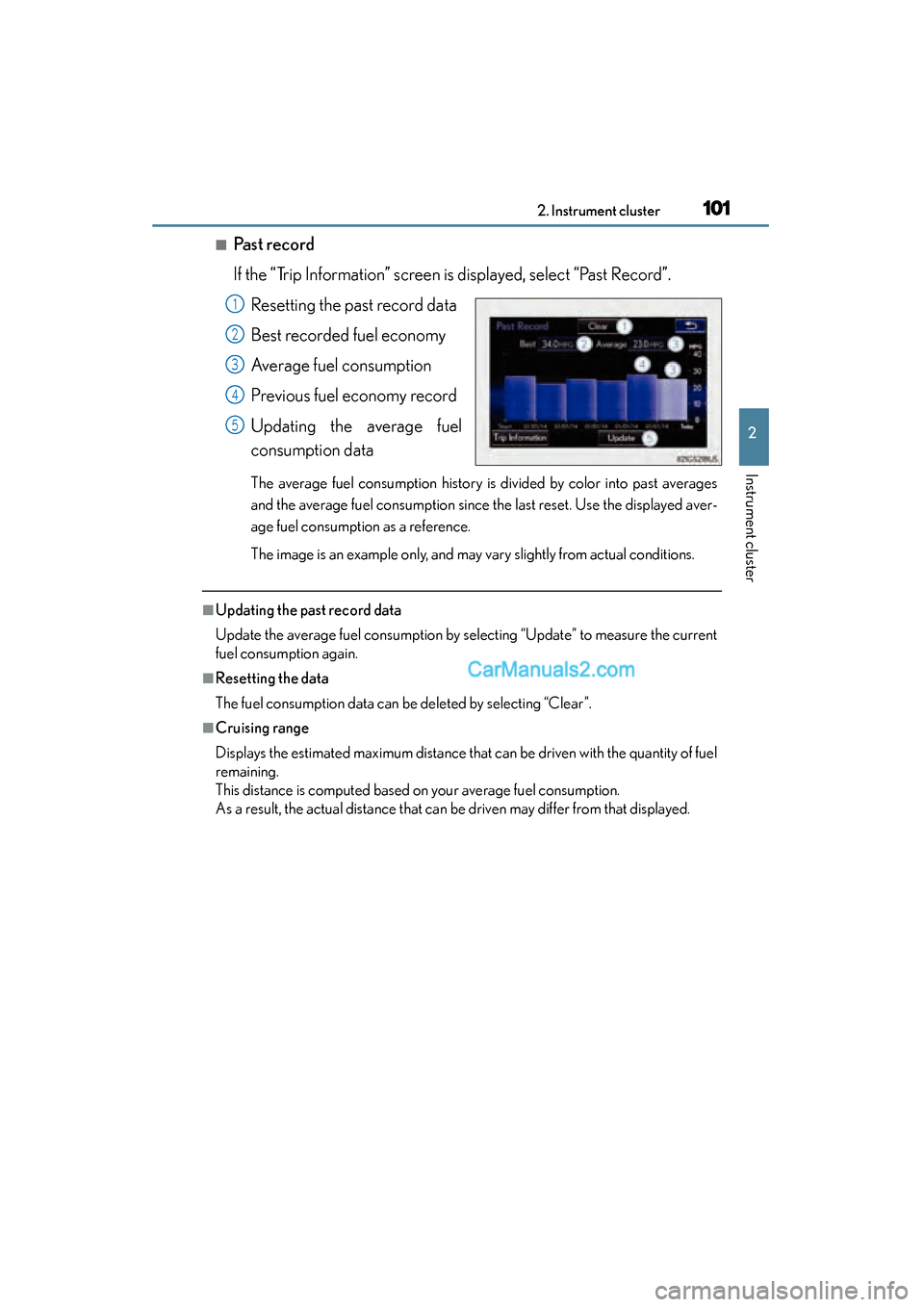

■Past record
If the “Trip Information” screen is displayed, select “Past Record”.Resetting the past record data
Best recorded fuel economy
Average fuel consumption
Previous fuel economy record
Updating the average fuel
consumption data
The average fuel consumption history is divided by color into past averages
and the average fuel consumption since the last reset. Use the displayed aver-
age fuel consumption as a reference.
The image is an example only, and may vary slightly from actual conditions.
■Updating the past record data
Update the average fuel consumption by selecting “Update” to measure the current
fuel consumption again.
■Resetting the data
The fuel consumption data can be deleted by selecting “Clear”.
■Cruising range
Displays the estimated maximum distance that can be driven with the quantity of fuel
remaining.
This distance is computed based on your average fuel consumption.
As a result, the actual distance that can be driven may differ from that displayed.
1
2
3
4
5
GS350_OM_OM30F69U_(U).book Page 101 Monday, January 19, 2015 2:53 PM

102
GS350_OM_OM30F69U_(U)
2. Instrument cluster

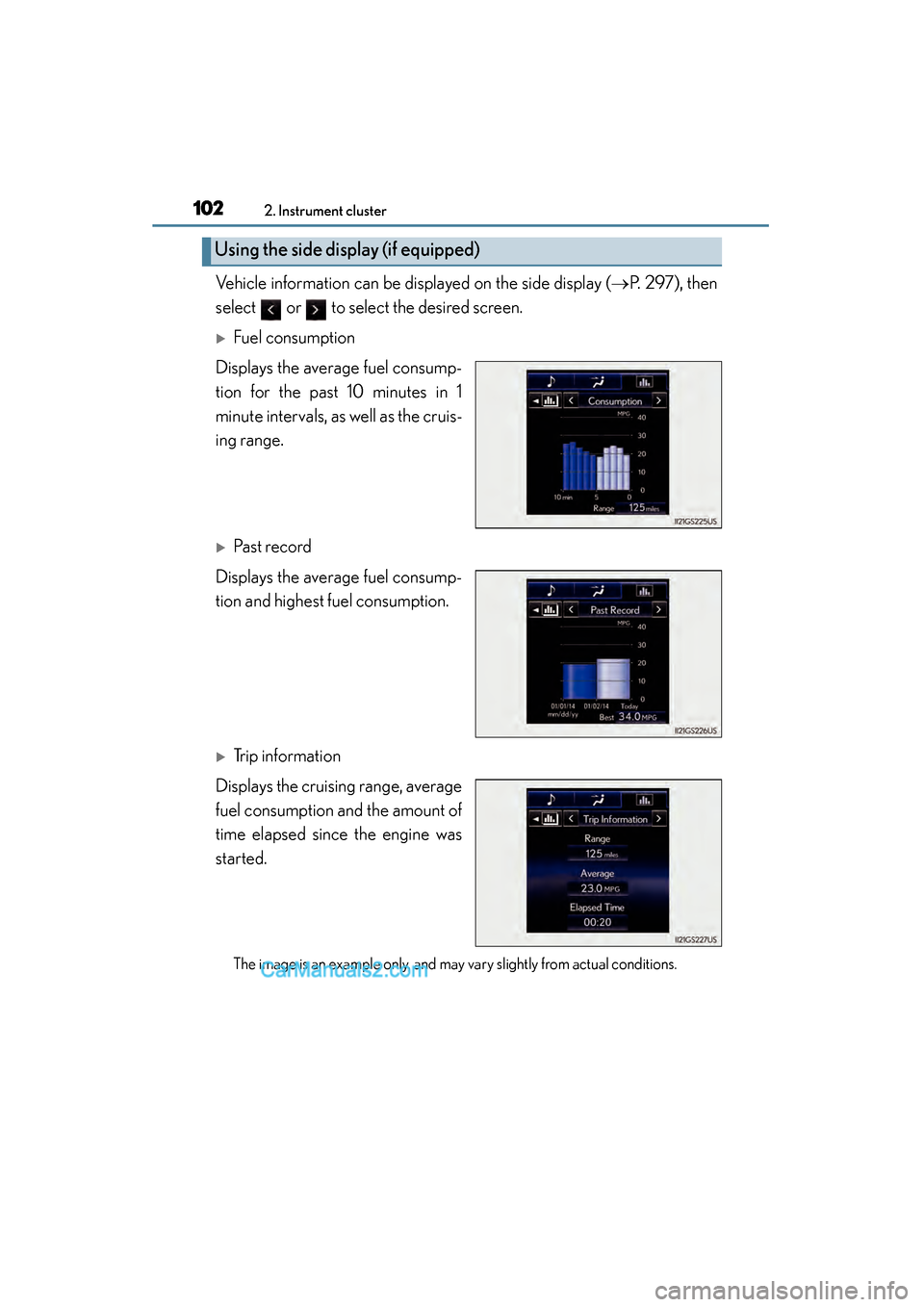

Vehicle information can be displayed on the side display (→P. 297), then
select or to select the desired screen.
XFuel consumption
Displays the average fuel consump-
tion for the past 10 minutes in 1
minute intervals, as well as the cruis-
ing range.
XPast record
Displays the average fuel consump-
tion and highest fuel consumption.
XTrip information
Displays the cruising range, average
fuel consumption and the amount of
time elapsed since the engine was
started.
The image is an example only, and may vary slightly from actual conditions.
Using the side display (if equipped)
GS350_OM_OM30F69U_(U).book Page 102 Monday, January 19, 2015 2:53 PM

103
GS350_OM_OM30F69U_(U)

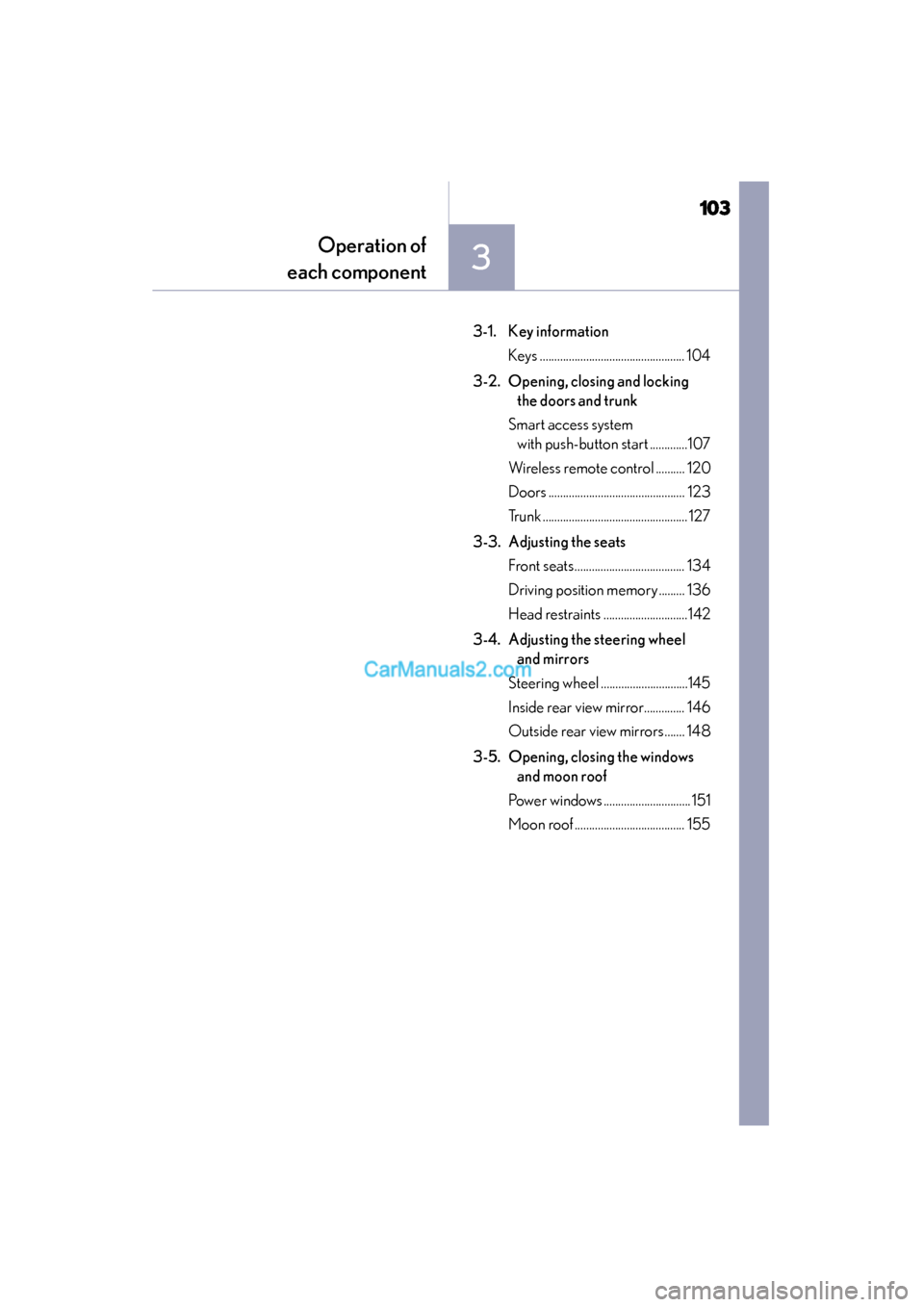

Operation of
each component
3
3-1. Key information
Keys .................................................. 104
3-2. Opening, closing and locking the doors and trunk
Smart access system with push-button start .............107
Wireless remote control .......... 120
Doors ............................................... 123
Trunk .................................................. 127
3-3. Adjusting the seats Front seats...................................... 134
Driving position memory ......... 136
Head restraints .............................142
3-4. Adjusting the steering wheel and mirrors
Steering wheel ..............................145
Inside rear view mirror.............. 146
Outside rear view mirrors ....... 148
3-5. Opening, closing the windows and moon roof
Power windows .............................. 151
Moon roof ...................................... 155
GS350_OM_OM30F69U_(U).book Page 103 Monday, January 19, 2015 2:53 PM

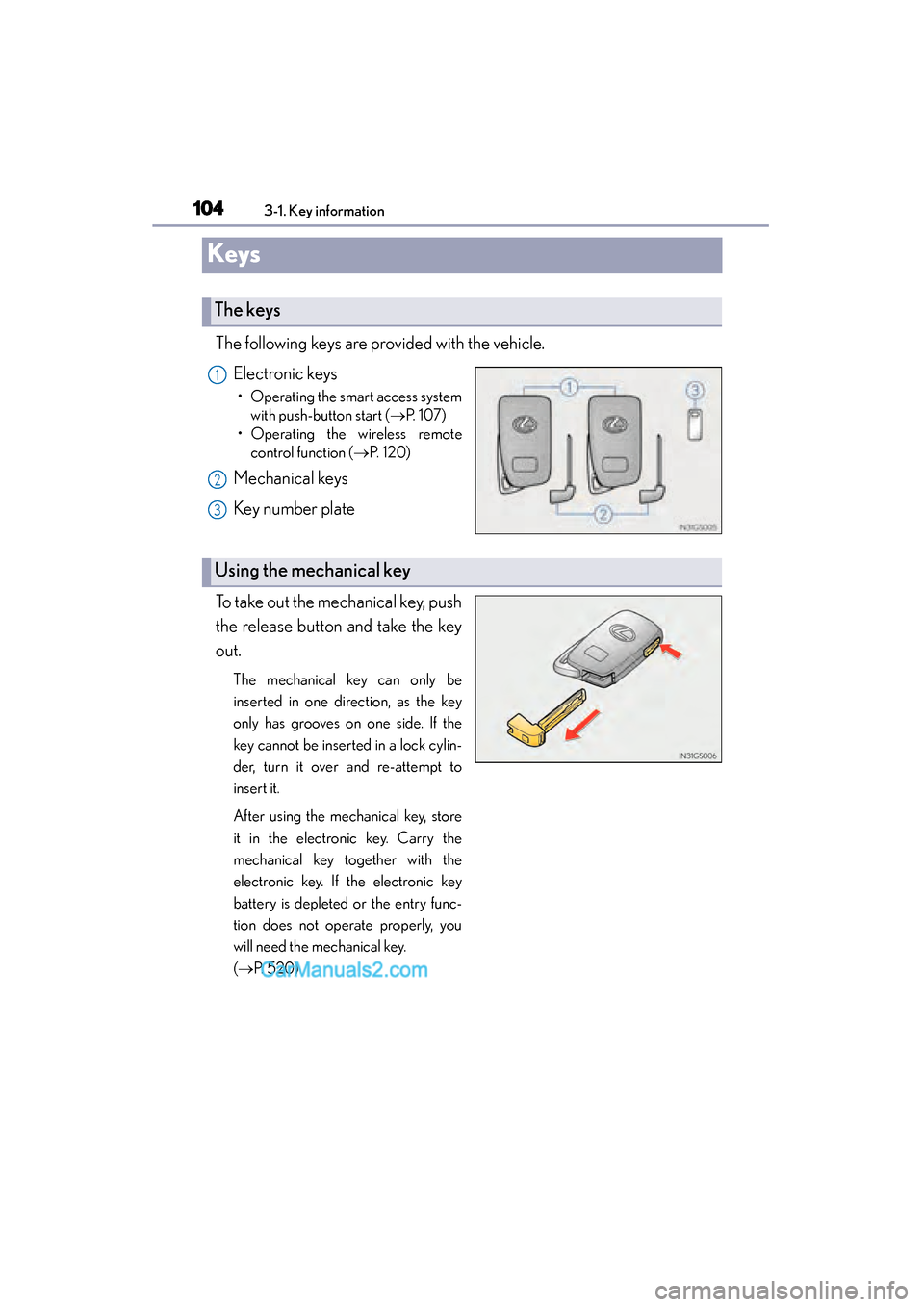

104
GS350_OM_OM30F69U_(U)
3-1. Key information
Keys
The following keys are provided with the vehicle.Electronic keys
• Operating the smart access systemwith push-button start ( →P. 1 0 7 )
• Operating the wireless remote control function ( →P. 1 2 0 )
Mechanical keys
Key number plate
To take out the mechanical key, push
the release button and take the key
out.
The mechanical key can only be
inserted in one direction, as the key
only has grooves on one side. If the
key cannot be inserted in a lock cylin-
der, turn it over and re-attempt to
insert it.
After using the mechanical key, store
it in the electronic key. Carry the
mechanical key together with the
electronic key. If the electronic key
battery is depleted or the entry func-
tion does not operate properly, you
will need the mechanical key.
( → P. 5 2 0 )
The keys
1
2
3
Using the mechanical key
GS350_OM_OM30F69U_(U).book Page 104 Monday, January 19, 2015 2:53 PM

GS350_OM_OM30F69U_(U)
1053-1. Key information
3
Operation of each component

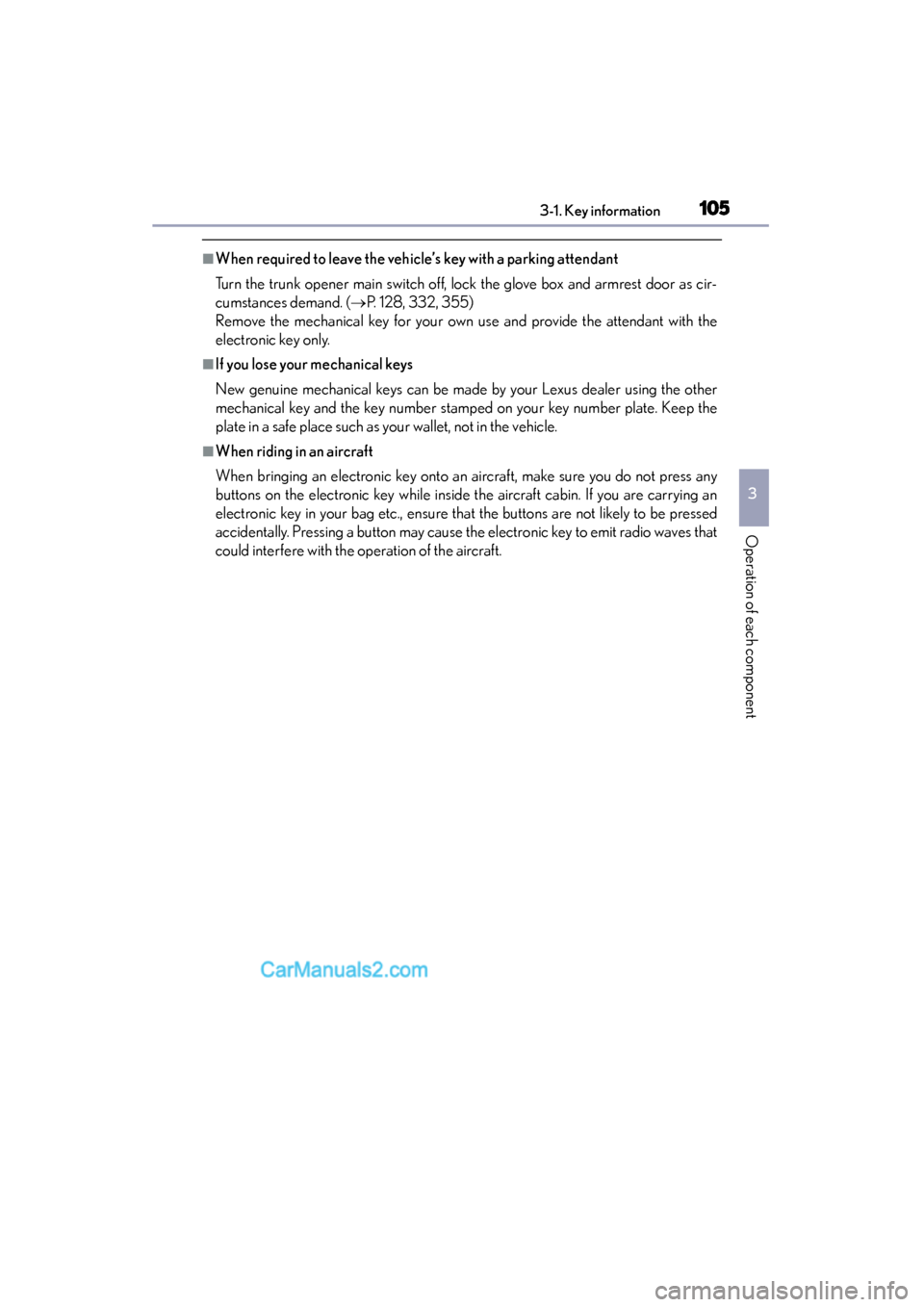

■When required to leave the vehicle’s key with a parking attendant
Turn the trunk opener main switch off, lock the glove box and armrest door as cir-
cumstances demand. (→P. 1 2 8 , 3 3 2 , 3 5 5 )
Remove the mechanical key for your own use and provide the attendant with the
electronic key only.
■If you lose your mechanical keys
New genuine mechanical keys can be made by your Lexus dealer using the other
mechanical key and the key number stamped on your key number plate. Keep the
plate in a safe place such as your wallet, not in the vehicle.
■When riding in an aircraft
When bringing an electronic key onto an aircraft, make sure you do not press any
buttons on the electronic key while inside the aircraft cabin. If you are carrying an
electronic key in your bag etc., ensure that the buttons are not likely to be pressed
accidentally. Pressing a button may cause the electronic key to emit radio waves that
could interfere with the operation of the aircraft.
GS350_OM_OM30F69U_(U).book Page 105 Monday, January 19, 2015 2:53 PM

106
GS350_OM_OM30F69U_(U)
3-1. Key information

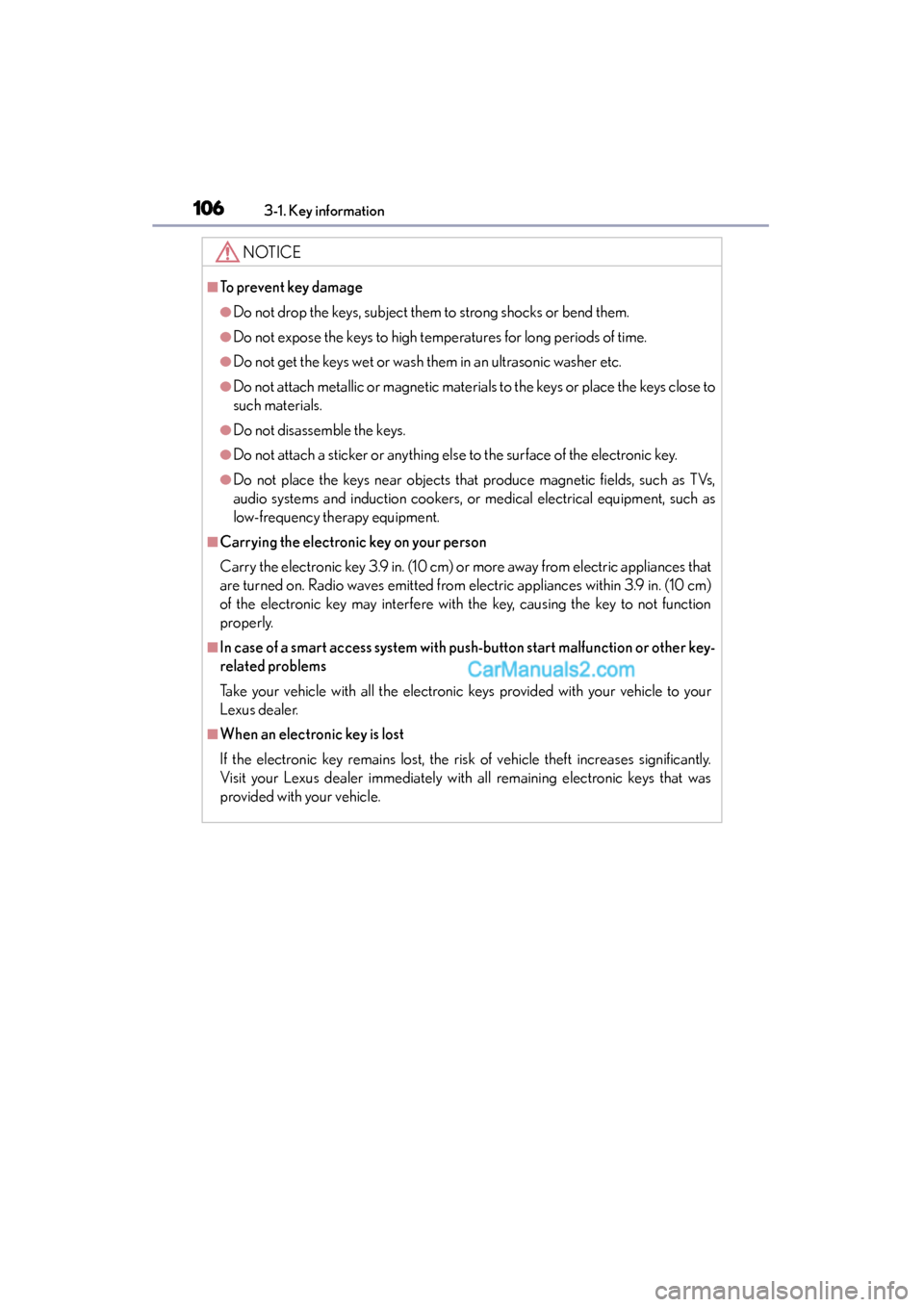

NOTICE
■To prevent key damage
●Do not drop the keys, subject them to strong shocks or bend them.
●Do not expose the keys to high temperatures for long periods of time.
●Do not get the keys wet or wash them in an ultrasonic washer etc.
●Do not attach metallic or magnetic materials to the keys or place the keys close to
such materials.
●Do not disassemble the keys.
●Do not attach a sticker or anything else to the surface of the electronic key.
●Do not place the keys near objects that produce magnetic fields, such as TVs,
audio systems and induction cookers, or medical electrical equipment, such as
low-frequency therapy equipment.
■Carrying the electronic key on your person
Carry the electronic key 3.9 in. (10 cm) or more away from electric appliances that
are turned on. Radio waves emitted from electric appliances within 3.9 in. (10 cm)
of the electronic key may interfere with the key, causing the key to not function
properly.
■In case of a smart access system with push-button start malfunction or other key-
related problems
Take your vehicle with all the electronic keys provided with your vehicle to your
Lexus dealer.
■When an electronic key is lost
If the electronic key remains lost, the risk of vehicle theft increases significantly.
Visit your Lexus dealer immediately with all remaining electronic keys that was
provided with your vehicle.
GS350_OM_OM30F69U_(U).book Page 106 Monday, January 19, 2015 2:53 PM

107
GS350_OM_OM30F69U_(U)3-2. Opening, closing and locking the doors and trunk
3
Operation of each component

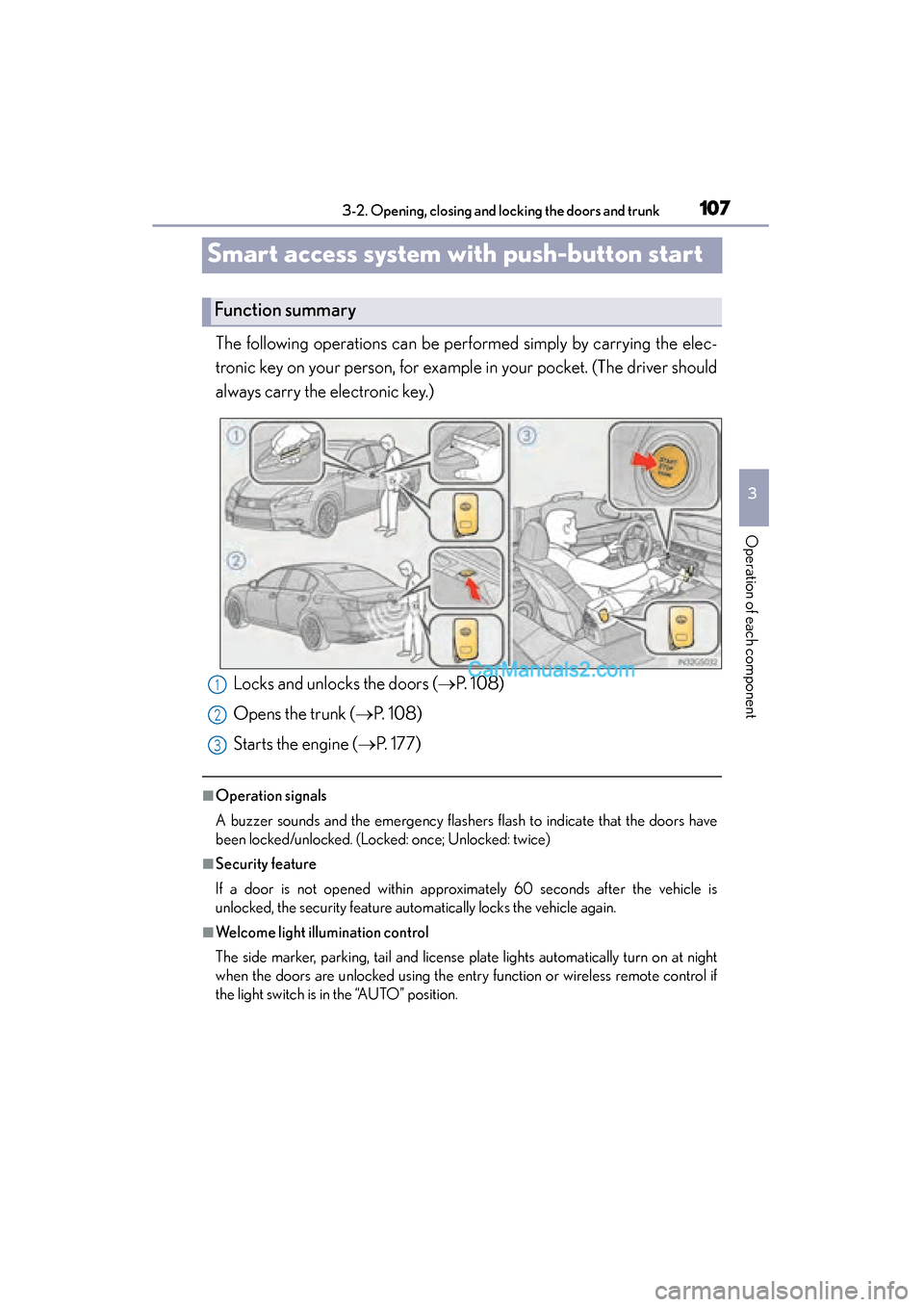

Smart access system with push-button start
The following operations can be performed simply by carrying the elec-
tronic key on your person, for example in your pocket. (The driver should
always carry the electronic key.)
■Operation signals
A buzzer sounds and the emergency flashers flash to indicate that the doors have
been locked/unlocked. (Locked: once; Unlocked: twice)
■Security feature
If a door is not opened within approximately 60 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.
■Welcome light illumination control
The side marker, parking, tail and license plate lights automatically turn on at night
when the doors are unlocked using the entry function or wireless remote control if
the light switch is in the “AUTO” position.
Function summary
Locks and unlocks the doors ( →P. 1 0 8 )
Opens the trunk ( →P. 1 0 8 )
Starts the engine ( →P. 177)1
2
3
GS350_OM_OM30F69U_(U).book Page 107 Monday, January 19, 2015 2:53 PM

108
GS350_OM_OM30F69U_(U)
3-2. Opening, closing and locking the doors and trunk
Grip the driver’s door handle to
unlock the door. Grip the passen-
ger’s door handle to unlock all the
doors.*
Make sure to touch the sensor on the
back of the handle.
The doors cannot be unlocked for 3
seconds after the doors are locked.
*: The door unlock settings can bechanged. ( →P. 1 1 2 )
Touch the lock sensor (the indenta-
tion on the upper part of the door
handle) to lock all the doors.
Check that the door is securely
locked.
Press the button.
If the vehicle is equipped with power
trunk opener and closer, the trunk lid
automatically opens fully.
Unlocking and locking the doors
Opening the trunk
GS350_OM_OM30F69U_(U).book Page 108 Monday, January 19, 2015 2:53 PM
