Lexus GS350 2015 Quick Guide

70
GS350_QG_OM30F71U_(U)
■Option control screen
Select on the operation screen to display the option control screen. The functions
can be switched on and off.
Without rear air conditioning system
Select to set cooling and dehumidifi-
cation function on/off
Vehicles without rear air conditioning
system:
The temperature for the driver’s and
front passenger’s seats can be
adjusted separately (DUAL mode)
Vehicles with rear air conditioning sys-
tem:
The temperature for the driver’s, front
passenger’s and rear seats (→P. 7 3 )
can be adjusted separately (3-ZONE
mode)
Prevent ice from building up on the
windshield and wiper blades (if
equipped)
Remove pollen from the air (Micro
dust and pollen filter)
With rear air conditioning system1
2
3
4
GS350_QG_OM30F71U_(U).book Page 70 Monday, January 19, 2015 4:43 PM

71
GS350_QG_OM30F71U_(U)
■Side display (if equipped)
Without rear air conditioning system
Front seat air outlet selector
Fan speed control
Fan speed display
Left-hand front seat side temperature
control
Left-hand front seat side temperature
display
Right-hand front seat side temperature
display
Right-hand front seat side temperature
control
Cooling and dehumidification func-
tion on/off
Automatic mode
DUAL mode
Left-hand front seat side air outlet
selector
Right-hand front seat side air outlet
selector
3-ZONE mode
With rear air conditioning system1
2
3
4
5
6
7
8
9
10
11
12
13
GS350_QG_OM30F71U_(U).book Page 71 Monday, January 19, 2015 4:43 PM

72
GS350_QG_OM30F71U_(U)

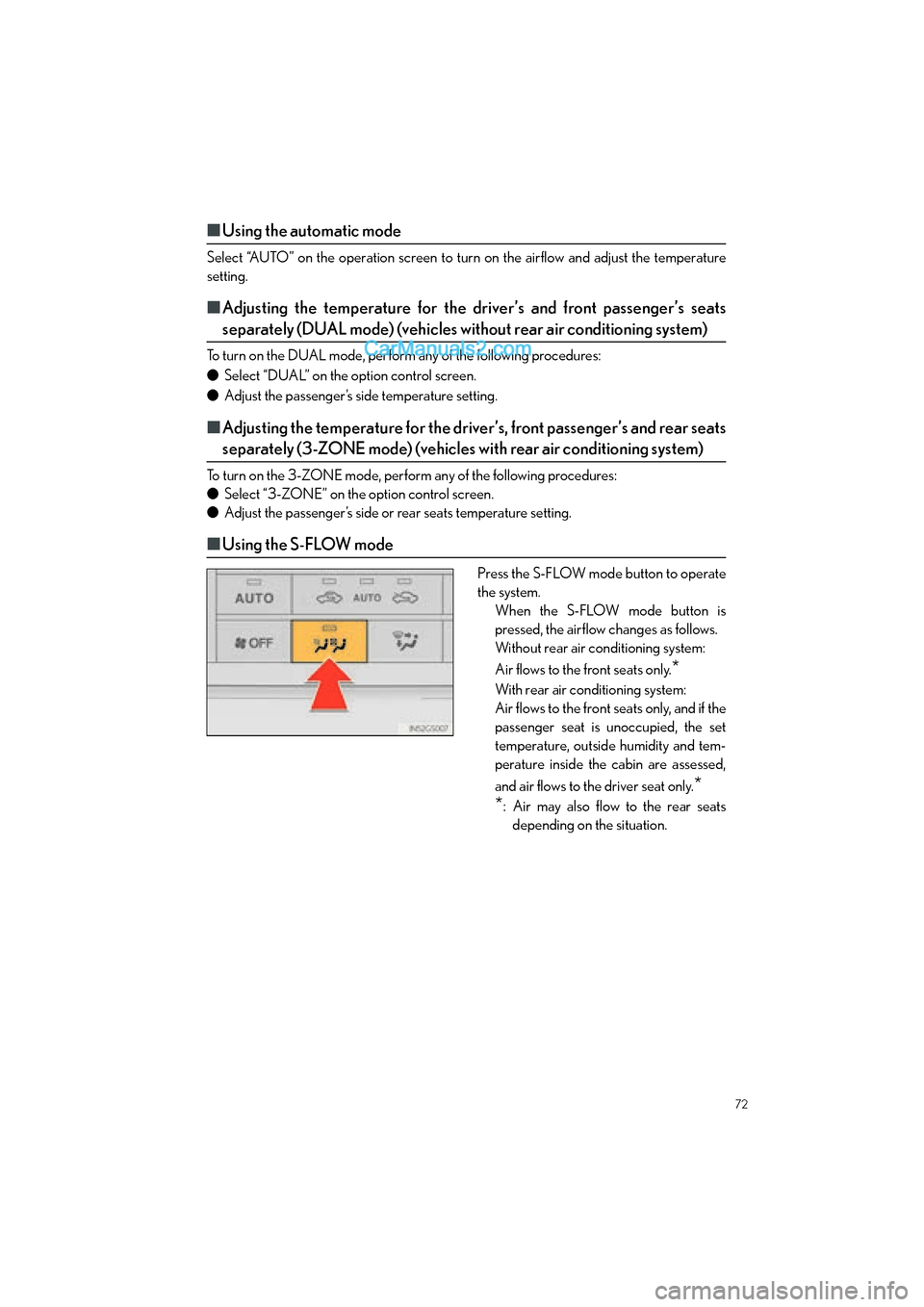

■Using the automatic mode
Select “AUTO” on the operation screen to turn on the airflow and adjust the temperature
setting.
■Adjusting the temperature for the driver’s and front passenger’s seats
separately (DUAL mode) (vehicles without rear air conditioning system)
To turn on the DUAL mode, perform any of the following procedures:
● Select “DUAL” on the option control screen.
● Adjust the passenger’s side temperature setting.
■Adjusting the temperature for the driver’s, front passenger’s and rear seats
separately (3-ZONE mode) (vehicles wi th rear air conditioning system)
To turn on the 3-ZONE mode, perform any of the following procedures:
●Select “3-ZONE” on the option control screen.
● Adjust the passenger’s side or rear seats temperature setting.
■Using the S-FLOW mode
Press the S-FLOW mode button to operate
the system.
When the S-FLOW mode button is
pressed, the airflow changes as follows.
Without rear air conditioning system:
Air flows to the front seats only.
*
With rear air conditioning system:
Air flows to the front seats only, and if the
passenger seat is unoccupied, the set
temperature, outside humidity and tem-
perature inside the cabin are assessed,
and air flows to the driver seat only.
*
*
: Air may also flow to the rear seats
depending on the situation.
GS350_QG_OM30F71U_(U).book Page 72 Monday, January 19, 2015 4:43 PM

73
GS350_QG_OM30F71U_(U)
Rear Air Conditioning System (if equipped)
Air outlet mode display
Temperature display
Temperature control
Air outlet selector
Off
Automatic mode
■Front controller
Temperature control
Off
Automatic mode
Disabling the switches on the rear arm-
rest
1
2
3
4
5
6
1
2
3
4
GS350_QG_OM30F71U_(U).book Page 73 Monday, January 19, 2015 4:43 PM

74
GS350_QG_OM30F71U_(U)
Seat Heaters/Seat Ventilators (if equipped)
■Front seat heaters and ventilators (if equipped)/rear seat heaters (if
equipped)
The seat can be warmed and air from the seat can improve ventilation.
Front seats Seat heater switches
The indicator light (yellow) on the
switch comes on when the seat
heater is operating.
Seat ventilator switches (front seats
only)
The indicator light (green) on the
switch comes on when the seat ven-
tilator is operating.
Level indicator lights
The seat heater temperature level
or the seat ventilator fan speed level
(for front seats only) is displayed.
“AUTO” indicator lights
Rear seats
1
2
3
4
GS350_QG_OM30F71U_(U).book Page 74 Monday, January 19, 2015 4:43 PM

75
GS350_QG_OM30F71U_(U)
●Modes and indicators
The mode can be changed by pressing the switch.
*: When automatic mode is selected, the level automatically changes depending on the air
conditioning settings.
Mode“AUTO” indicator lightLevel indicator lights
OffOffOff
Automatic*On3 to 1, or off
HiOff3
MidOff2
LoOff1
If the driving mode select switch is switched to Eco drive mode in cold temperatures, the
seat heater may be automatically operated to assist heating performance. ( →P. 4 0 )
GS350_QG_OM30F71U_(U).book Page 75 Monday, January 19, 2015 4:43 PM

76
GS350_QG_OM30F71U_(U)
Voice Command System
■Basic operation
Press the talk switch.
To cancel the voice command system,
press and hold the talk switch.
After a beep sounds, say the desired
command.
On the list screen, you can select the
desired command.
Continue on to pages 77-80 for a detailed list of Voice Commands for the following cate-
gories: Basic. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.77
Apps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.77
Navi . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.77
Phone. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.78
Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.78
Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.79
Info . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.79
Other . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P.80
1
2
■Important voice commands information and tips
• Voice commands can be used while driving.
• You must wait until after the beep to say a command.
• In vehicles with a navigation system, a large (TALK icon) will appear on the navi-
gation screen to prompt you to say a command.
• If you know what command to use, you can press at any time to interrupt the
voice guidance.
• If a desired outcome is not shown, or if no selections are available, press on the
steering wheel to return to the previous screen.
NOTE: When inputting voice commands you must wait until after the beep to speak.
GS350_QG_OM30F71U_(U).book Page 76 Monday, January 19, 2015 4:43 PM

77
GS350_QG_OM30F71U_(U)
■Command list
Basic
Apps (vehicles with a navigation system) (if equipped)
Navi (vehicles with a navigation system)
*1: For example; “Gas stations”, “Restaurants”, etc.
*2: Depending on the search results, a POI list may be provided by a relevant POI applica-
tion of the LEXUS App suite.
CommandAction
“Help”Prompts voice guidance to offer examples of com-
mands or operation methods
“Go Back”Returns to the previous screen
“Go to ”Displays the command list of the selected tab
“More Hints”Displays more commonly used commands
“Cancel”Cancels the voice command system
CommandAction
“Launch ”Activates the LEXUS App Suite application
CommandAction
“Find ”Displays a list of near the current
position
*2
“Enter an Address”Enables setting a destination by saying the address
“Go Home”Displays the route to home
“Pause Route Guidance”Stops the route guidance
“Resume Route Guidance”Resumes the route guidance
“Show icons”Displays the specified POI icons
“Delete Destination”Deletes the destination
“Previous Destination”Displays previous destinations
GS350_QG_OM30F71U_(U).book Page 77 Monday, January 19, 2015 4:43 PM

78
GS350_QG_OM30F71U_(U)
Phone
Radio
CommandAction
“Redial”Places a call to the phone number of the latest outgo-
ing call
“Call Back”Places a call to the phone number of latest incoming
call
“Show Recent Calls”Displays the call history screen
“Dial ”Places a call to the said phone number
“Call ”Place a call to the said phone type of the contact from
the phone book
CommandAction
“Tune to AM”Changes the radio to the specified AM frequency
“Tune to FM”Changes the radio to the specified FM frequency
“Play station”Changes the radio to an FM station of the specified
genre
“Tune to FM
HD ”Changes the radio to the specified HD radio station
“Tune to preset ”Changes the radio to the specified preset radio sta-
tion
“Tune to ” Changes the radio to the satellite radio channel with
the specified name
“Tune to channel ” Changes the radio to the specified satellite radio
channel number
“Play satellite station”Changes the radio to a sate llite radio channel of the
specified genre
GS350_QG_OM30F71U_(U).book Page 78 Monday, January 19, 2015 4:43 PM

79
GS350_QG_OM30F71U_(U)
Audio
Info
*: Vehicles with a navigation system
CommandAction
“Play Playlist ”Plays tracks from the selected playlist
“Play Artist ”Plays tracks from the selected artist
“Play Song ”Plays the selected track
“Play Album ”Plays tracks from the selected album
CommandAction
“Destination Assist”*Connects the system to the Lexus response center
“Show Forecast”Displays weather information
“Show Traffic”Displays traffic information
“Lexus Insider”*Displays the Lexus insider list
GS350_QG_OM30F71U_(U).book Page 79 Monday, January 19, 2015 4:43 PM
