fog light bulb Lexus GS350 2015 RADIO OPERATION / LEXUS 2015 GS350 OWNERS MANUAL (OM30E15U)

15Pictorial index
GS350_OM_OM30E15U_(U)
Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 202
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 284
To prevent freezing (windshield wiper de-icer)
* . . . . . . . . . . . . . . . . . . . . P. 327
Precautions against car wash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 378
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 210
Refueling method. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 210
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 538
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 410
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 543
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 284
Checking/rotation/tire pressure warning system. . . . . . . . . . . . . . . . . . . . .P. 410
Coping with flat tires. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 504
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 394
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 394
Engine compartment cover. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 398
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 5 3 8
Coping with overheat. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 529
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 487
Headlights/parking lights/daytime running ligh ts . . . . . . . . . . . . . . . . . . . P. 196
Fog lights
* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 201
Turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 190
Tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 196
Stop lights
Hill-start assist control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 257
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 19 6
Back-up lights
Shifting the shift lever to R . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 184
Side marker lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 19 6
4
5
6
7
Light bulbs of the exterior lights for driving
(Replacing method: P. 444, Watts: P. 545)
*: If equipped
8
9
10
11
12
13
14
15

GS350_OM_OM30E15U_(U)
4456-3. Do-it-yourself maintenance
6
Maintenance and care
■Front
Vehicles with discharge headlights
Front turn signal light
Halogen fog light (if equipped)
Vehicles with LED headlights
Halogen fog light (if equipped)
Front turn signal light
Bulb locations
1
2
1
2

GS350_OM_OM30E15U_(U)
4476-3. Do-it-yourself maintenance
6
Maintenance and care
■Halogen fog lights (if equipped)To allow enough working
space, turn the steering wheel
to the opposite side of the bulb
to be replaced.
Remove the 2 fender liner
clips.
Turn the steering wheel to the left
when replacing the right side light
bulb, and turn the steering wheel to
the right when replacing the left
side light bulb.
To take out the clips, turn the head
of the clip to unlock, then remove
by pulling.
While holding the clamp open,
pull and remove the tabs and
open the fender liner.
Unplug the connector while
pressing the lock release.
Replacing light bulbs
1
2
3

448
GS350_OM_OM30E15U_(U)
6-3. Do-it-yourself maintenance
Turn the bulb base counter-
clockwise.
Set the new light bulb.
Align the 3 tabs on the light bulb
with the mounting, and insert. Turn
it clockwise to set.
Set the connector.
After installing the connector,
shake the bulb base gently to check
that it is not loose, turn the fog lights
on once and visually confirm that
no light is leaking through the
mounting.
Reinstall the fender liner and
install the clips.
Insert the clips and turn to lock.
4
5
6
7

GS350_OM_OM30E15U_(U)
4556-3. Do-it-yourself maintenance
6
Maintenance and care
■Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by your
Lexus dealer.
●Headlights
●Parking lights/daytime running lights
●Front side marker lights
●LED fog lights (if equipped)
●Side turn signal lights
●Stop/tail lights
●Tail lights
●Rear side marker lights
●High mounted stoplight
●License plate lights
●Outer foot lights
■Discharge headlights (if equipped)
If voltage to the discharge bulbs is insufficient, the bulbs may not come on, or may go
out temporarily. The discharge bulbs will come on when normal power is restored.
■LED lights
The lights other than the discharge headlig hts (if equipped), halogen fog lights (if
equipped), front turn signal lights, rear turn signal lights, back-up lights and outer
foot lights each consist of a number of LE Ds. If any of the LEDs burn out, take your
vehicle to your Lexus dealer to have the light replaced.
■Condensation build-up on the inside of the lens
Temporary condensation build-up on the insi de of the headlight lens does not indi-
cate a malfunction. Contact your Lexus dealer for more information in the following
situations:
●Large drops of water have built up on the inside of the lens.
●Water has built up inside the headlight.
■When replacing light bulbs
 P. 4 4 1

GS350_OM_OM30E15U_(U)
5458-1. Specifications
8
Vehicle specifications
A: D4S discharge bulbsB: H16 halogen bulbs
C: Wedge base bulbs (amber) D: Wedge base bulbs (clear)
*: If equipped

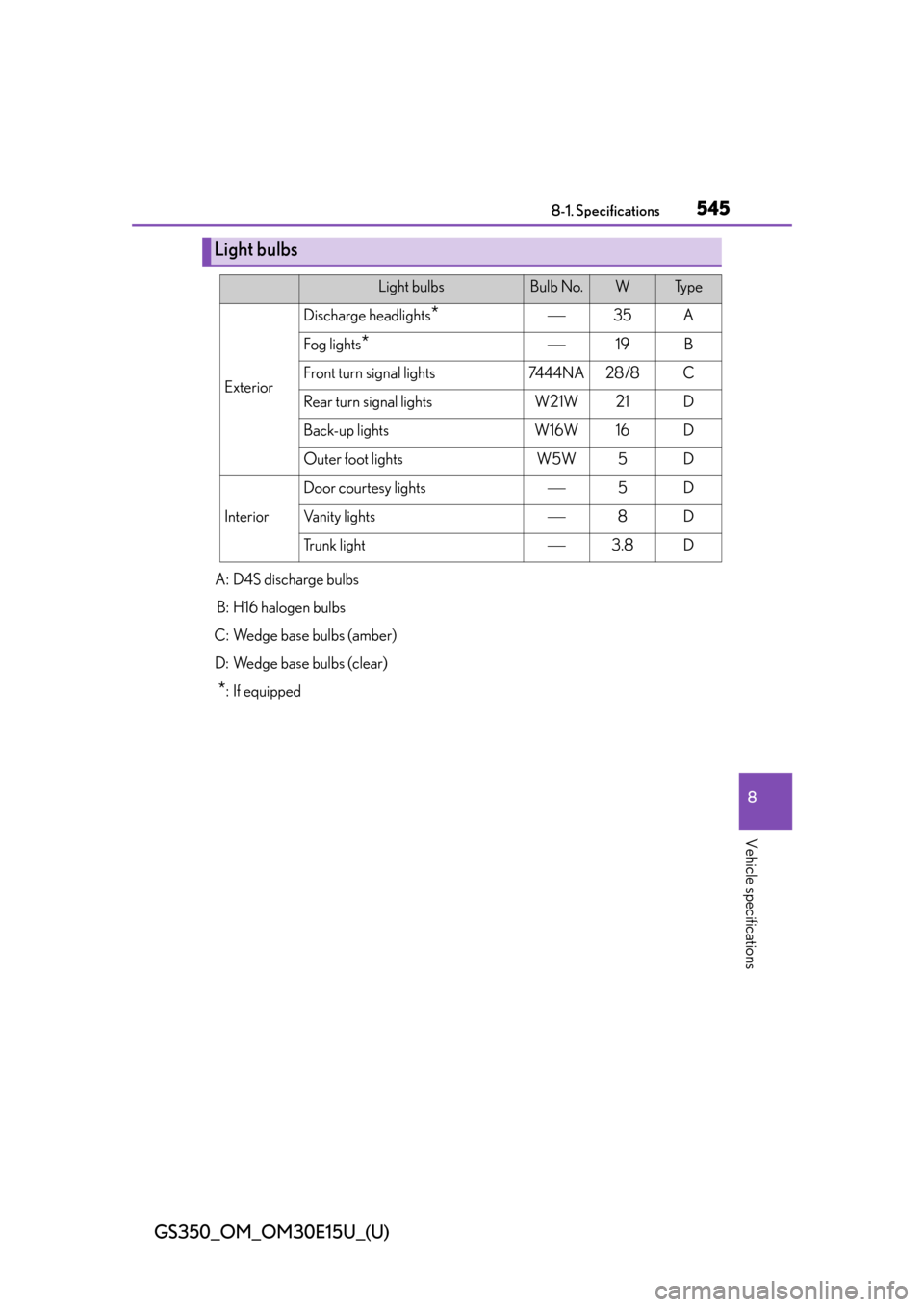

Light bulbs
Light bulbsBulb No.WTy p e
Exterior
Discharge headlights*35A
Fog lights*19B
Front turn signal lights7444NA28 /8C
Rear turn signal lightsW21W21D
Back-up lightsW16W16D
Outer foot lightsW5W5D
Interior
Door courtesy lights5D
Vanity lights8D
Tr u n k l i g h t3.8D

601Alphabetical index
GS350_OM_OM30E15U_(U)
First-aid kit storage net ...................... 339
Flat tire ...................................................... 504
Floor mats ................................................... 26
FluidAutomatic transmission ................... 541
Brake ........................................................542
Washer .................................................. 409
Fog lights ................................................... 201 Replacing light bulbs ............447, 455
Switch........................................................ 201
Wattage ................................................. 545
Footwell light .......................................... 329
Front passenger occupant classification system .............................47
Front personal lights............................ 330
Front seats .................................................134 Adjustment ............................................. 134
Cleaning ................................................ 380
Correct driving posture .................... 28
Driving position memory ................ 136
Head restraints ......................................142
Power easy access system ............ 136
Seat heaters ..........................................349
Seat position memory....................... 136
Seat ventilators ....................................349
Front side marker lights .......................196 Light switch ............................................ 196
Replacing light bulbs ....................... 455
Welcome light illumination control ................................................... 107 Front turn signal lights ..........................190
Replacing light bulbs ....................... 449
Turn signal lever .................................. 190
Wattage .................................................545
Fuel............................................................... 210 Capacity.................................................538
Fuel gauge .................................................81
Fuel pump shut off system ............ 469
Information............................................ 546
Refueling ..................................................210
Type............................................... 210, 538
Warning light ....................................... 473
Warning messages .......................... 492
Fuel filler door.......................................... 210 Refueling ..................................................210
When the fuel filler door cannot be opened ........................... 213
Fuel pump shut off system .................469
Fuses...........................................................429
Garage door opener............................ 361
Gauges.......................................................... 81
Glove box ............................................... 334
Glove box light...................................... 334
F
G

603Alphabetical index
GS350_OM_OM30E15U_(U)
Keyless entry ............................................107Smart access system with push-button start ................... 107
Wireless remote control ................. 120
Keys............................................................. 104 Battery-saving function ...................... 113
Electronic key ....................................... 104
Engine switch ......................................... 177
If the electronic key does not operate properly ........ 522
Key number plate ............................... 104
Keyless entry ...............................107, 120
Mechanical key .................................... 104
Replacing the battery ....................... 427
Warning buzzer ...................................... 111
Wireless remote control key ........ 120
Knee airbags ............................................. 36
Language (multi-information display) ............... 88
LATCH anchors ...................................... 60
LDH (Lexus Dynamic Handling system) .............................. 250
Lever Auxiliary catch lever .........................394
Hood lock release lever .................394
Internal trunk release lever............. 130
Shift lever ................................................. 184
Turn signal lever .................................. 190
Wiper lever ...........................................202
Lexus Dynamic Handling system (LDH)...................................... 250 Lexus Enform
*
Lexus Enform Safety Connect ....... 368
Lexus night view ....................................278
Lexus parking assist monitor
*
License plate lights ................................ 196
Light switch.............................................196
Replacing light bulbs .......................455
Welcome light illumination control ..........................107
Lights Fog light switch .....................................201
Headlight switch ..................................196
Illuminated entry system................... 331
Interior light...........................................330
Interior lights list.................................. 329
Personal lights .....................................330
Replacing light bulbs ....................... 447
Trunk light................................................128
Turn signal lever .................................. 190
Vanity lights .......................................... 342
Wattage .................................................545
Welcome light illumination control....................................................107
Light bulbs Replacing ............................................... 447
Wattage .................................................545
LKA (Lane-Keeping Assist) .............234 Operation.............................................. 236
Warning messages .................... 483, 491, 492
Lock steering column.......................... 180
Low profile tire ........................................ 415
Luggage hook ....................................... 339
Luggage security system .................... 128
K
L
*: Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.

604Alphabetical index
GS350_OM_OM30E15U_(U)
Main display............................................ 298
MaintenanceDo-it-yourself maintenance........... 391
General maintenance .................... 386
Maintenance data ............................. 536
Maintenance requirements.......... 383
Malfunction indicator lamp ................ 471
Master warning light ........................... 473
Meter ..............................................................81 Head-up display.................................... 92
Indicators................................................... 79
Instrument panel light control ......... 82
Meters.......................................................... 81
Multi-information display ..................84
Warning lights ........................................ 77
Micro dust and pollen filter ............... 315
Mirrors Inside rear view mirror ..................... 146
Outside rear view mirror defoggers ...........................................326
Outside rear view mirrors .............. 148
Vanity mirrors ...................................... 342
Moon roof................................................. 155 Door lock linked moon roof operation ..................... 156
Jam protection function ................... 156
Operation ............................................... 155
Warning message ............................ 488
MP3 disc
*
Multi-information display..................... 84 Dynamic radar cruise control ....... 219
Lane-Keeping Assist ....................... 238
Language..................................................88
Switching the display .......................... 85
Trip information ..................................... 85
Warning message............................ 480
Navigation system
*
Noise from under vehicle ........................8
Odometer .................................................... 81
Oil Engine oil ...............................................538
Front differential oil ........................... 542
Rear differential oil ............................ 542
Opener Hood........................................................ 394
Trunk .......................................................... 127
Outer foot lights Outer foot lights ................................. 329
Replacing light bulbs .......................455
Wattage .................................................545
Outside rear view mirrors ..................148 Adjusting and folding ........................148
Blind spot monitor ............................268
Linked mirror function when reversing..................................149
Mirror position memory ..................136
Outside rear view mirror defoggers............................ 326
Outside temperature display ............. 85
Overheating, Engine .......................... 529
M
N
O

606Alphabetical index
GS350_OM_OM30E15U_(U)
Rear turn signal lights .......................... 190Replacing light bulbs ........................453
Turn signal lever .................................. 190
Wattage ................................................. 545
Rear view mirror Inside rear view mirror ..................... 146
Outside rear view mirrors .............. 148
Rear view monitor system
*
Rear window defoggers .................... 326
Refueling ................................................... 210 Capacity ................................................ 538
Fuel types .............................................. 538
Opening the fuel tank cap...............212
When the fuel filler door cannot be opened ...........................213
Remote Touch
*.................................... 292
Replacing Electronic key battery ...................... 427
Fuses.........................................................429
Light bulbs ............................................. 444
Tires ......................................................... 504
Reporting safety defects for U.S. owners................................... 574
Resetting the message indicating maintenance is required ................ 384 Seat belts .................................................... 30
Adjusting the seat belt.......................... 31
Automatic Locking Retractor .........32
Child restraint system installation ............................................. 62
Cleaning and maintaining the seat belt ........................................ 381
Emergency Locking Retractor (ELR) ..................................32
How to wear your seat belt............. 30
How your child should wear the seat belt ...........................................32
Pre-collision seat belts ........................32
Pregnant women, proper seat belt use ......................................... 33
Reminder light and buzzer ........... 473
Seat belt extender .................................32
Seat belt pretensioners........................ 31
SRS warning light ................................ 471
Seat heaters............................................ 349
Seat position memory .......................... 136
Seat ventilators...................................... 349
Seating capacity ..................................... 174
S
