4416-3. Do-it-yourself maintenance
6
Maintenance and care
Using a Phillips-head screwdriver, turn bolt A in either direction.
Remember the turning direction and the number of turns.
Turn bolt B the same number of turns and in the same direction as step
.
If the headlight cannot be adjusted using this procedure, take the vehicle to your
Lexus dealer to adjust the headlight aim.

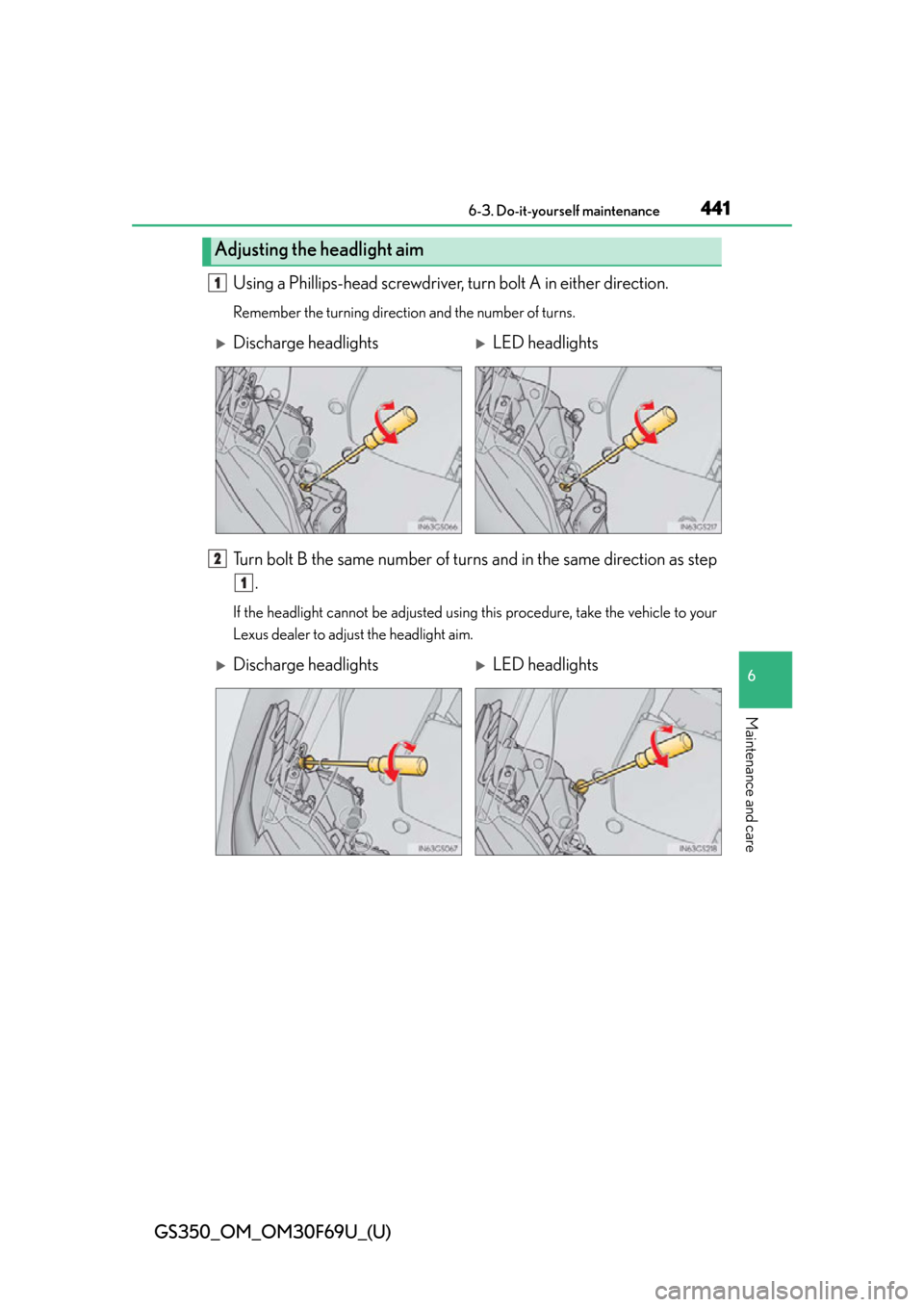

Adjusting the headlight aim
1
Discharge headlightsLED headlights
2
1
Discharge headlightsLED headlights

442
GS350_OM_OM30F69U_(U)
6-3. Do-it-yourself maintenance
Light bulbs
Check the wattage of the light bulb to be replaced. (P. 543)
 P. 396
You may replace the following bulbs by yourself. The difficulty level of
replacement varies depending on the bulb. If necessary bulb replace-
ment seems difficult to perform, contact your Lexus dealer.
For more information about replacin g other light bulbs, contact your
Lexus dealer.
Preparing for light bulb replacement
Removing the engine compartment covers

GS350_OM_OM30F69U_(U)
4436-3. Do-it-yourself maintenance
6
Maintenance and care
■Front
Vehicles with discharge headlights
Front turn signal light
Halogen fog light (if equipped)
Vehicles with LED headlights
Halogen fog light (if equipped)
Front turn signal light

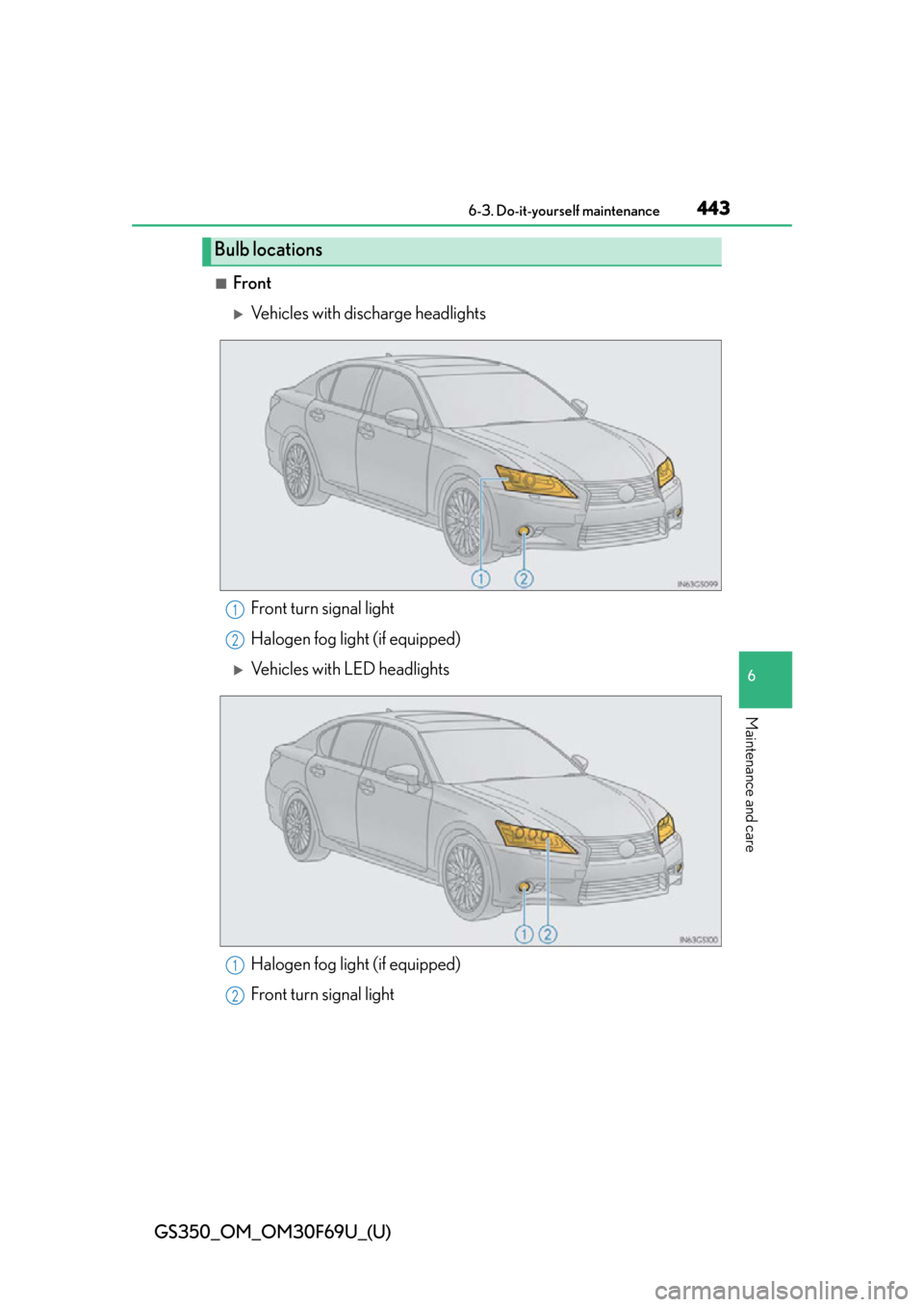

Bulb locations
1
2
1
2

444
GS350_OM_OM30F69U_(U)
6-3. Do-it-yourself maintenance

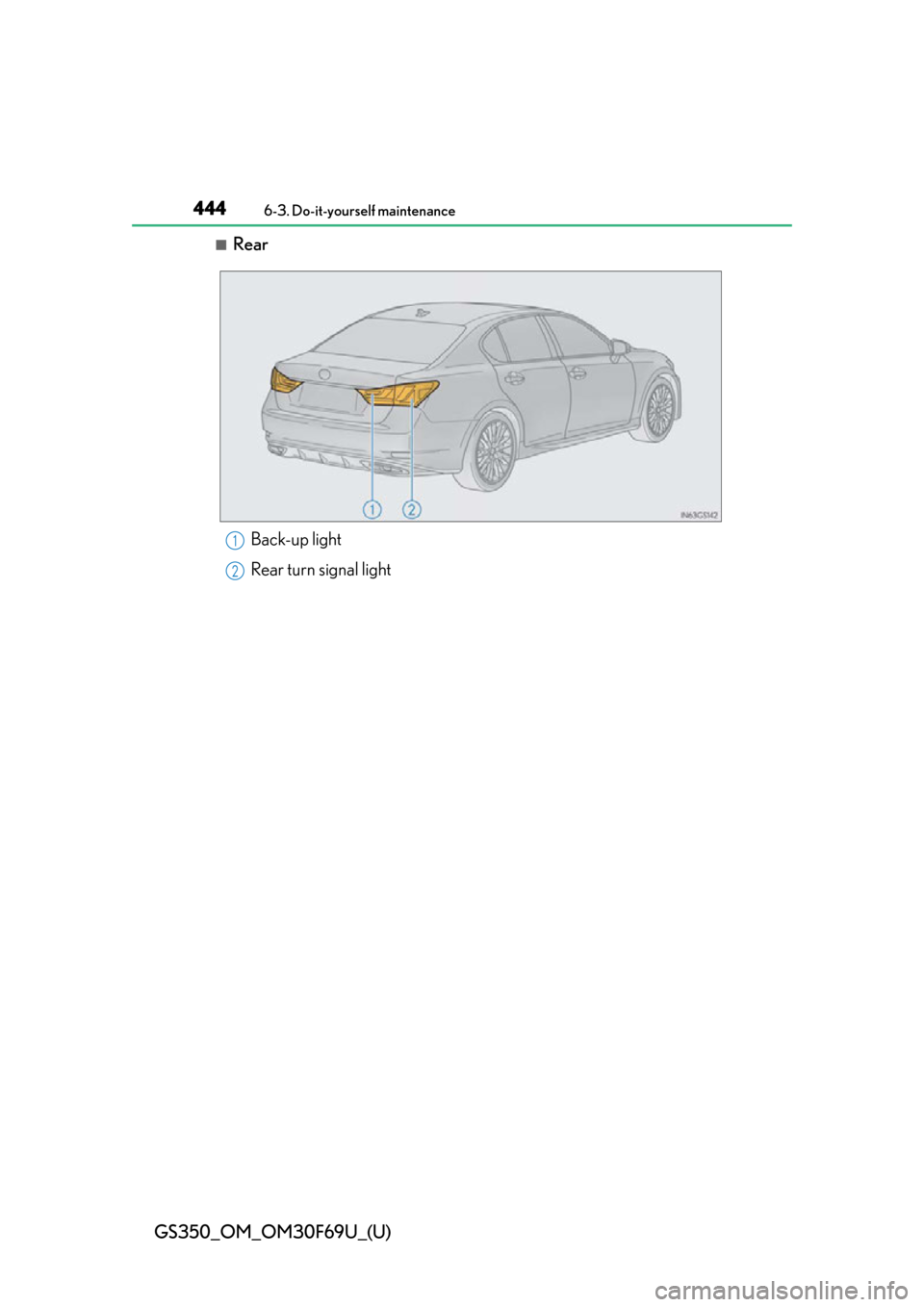

■RearBack-up light
Rear turn signal light
1
2

GS350_OM_OM30F69U_(U)
4456-3. Do-it-yourself maintenance
6
Maintenance and care

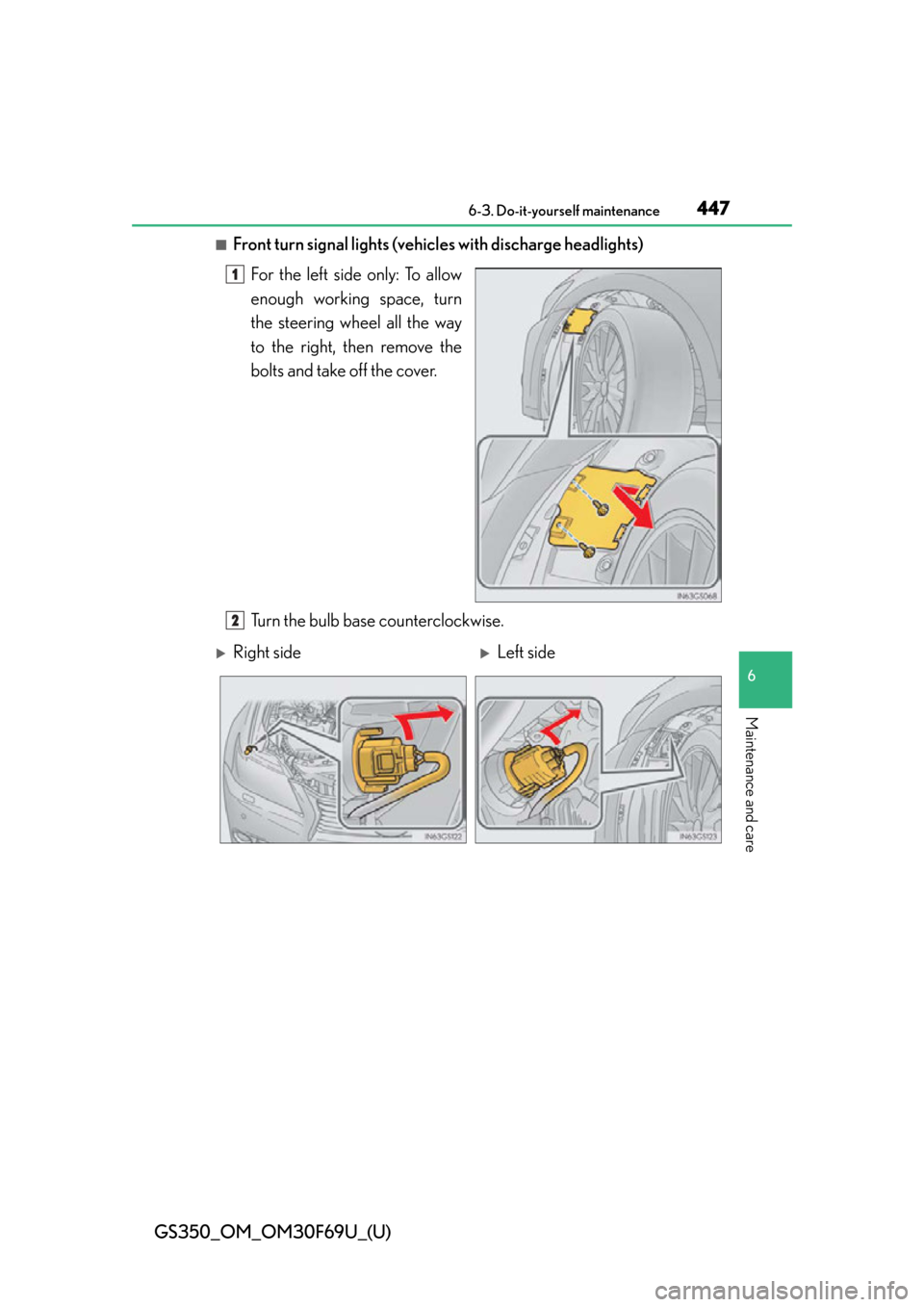

■Halogen fog lights (if equipped)To allow enough working
space, turn the steering wheel
to the opposite side of the bulb
to be replaced.
Remove the 2 fender liner
clips.
Turn the steering wheel to the left
when replacing the right side light
bulb, and turn the steering wheel to
the right when replacing the left
side light bulb.
To take out the clips, turn the head
of the clip to unlock, then remove
by pulling.
While holding the clamp open,
pull and remove the tabs and
open the fender liner.
Unplug the connector while
pressing the lock release.

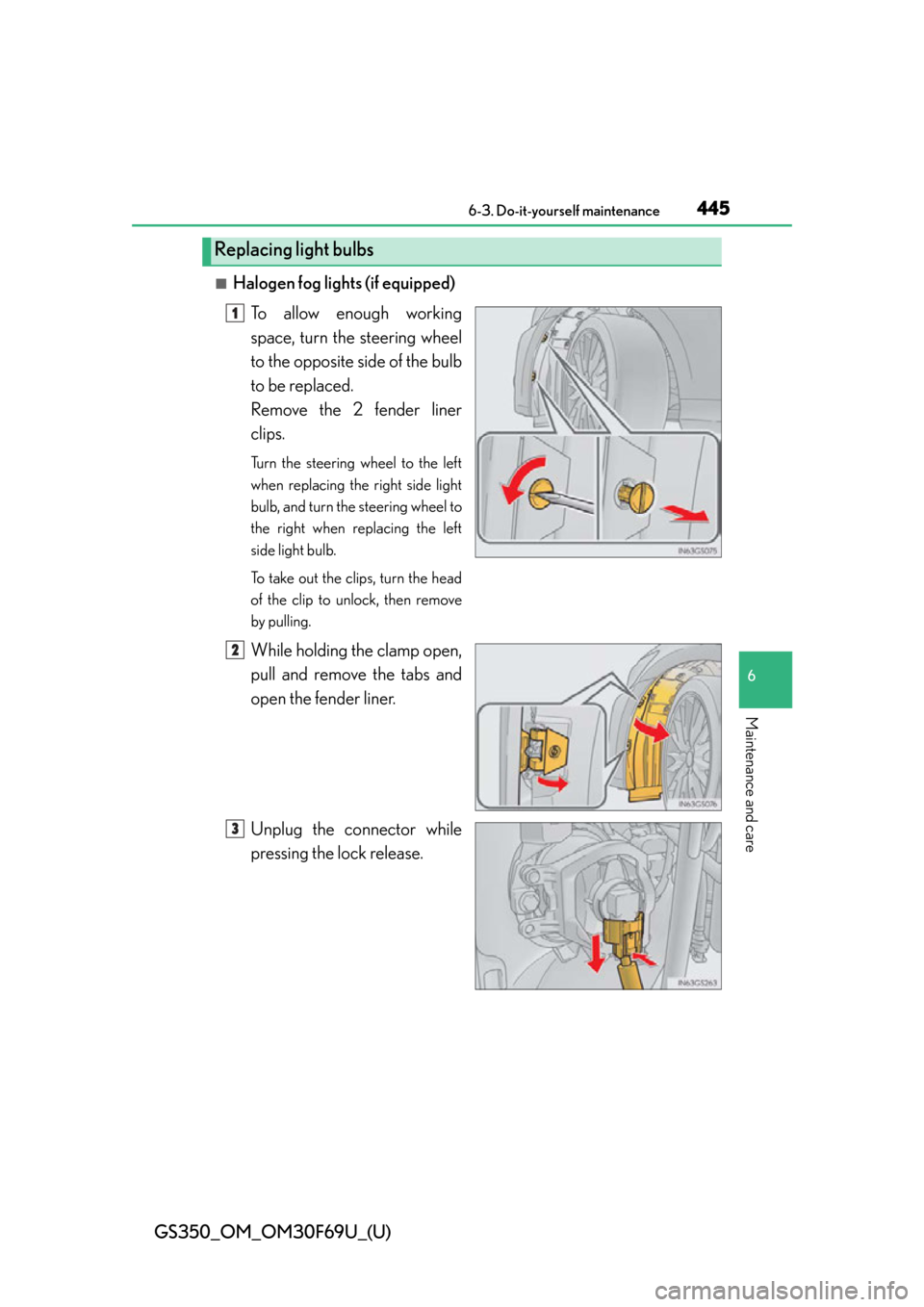

Replacing light bulbs
1
2
3

446
GS350_OM_OM30F69U_(U)
6-3. Do-it-yourself maintenance
Turn the bulb base counter-
clockwise.
Set the new light bulb.
Align the 3 tabs on the light bulb
with the mounting, and insert. Turn
it clockwise to set.
Set the connector.
After installing the connector,
shake the bulb base gently to check
that it is not loose, turn the fog lights
on once and visually confirm that
no light is leaking through the
mounting.
Reinstall the fender liner and
install the clips.
Insert the clips and turn to lock.

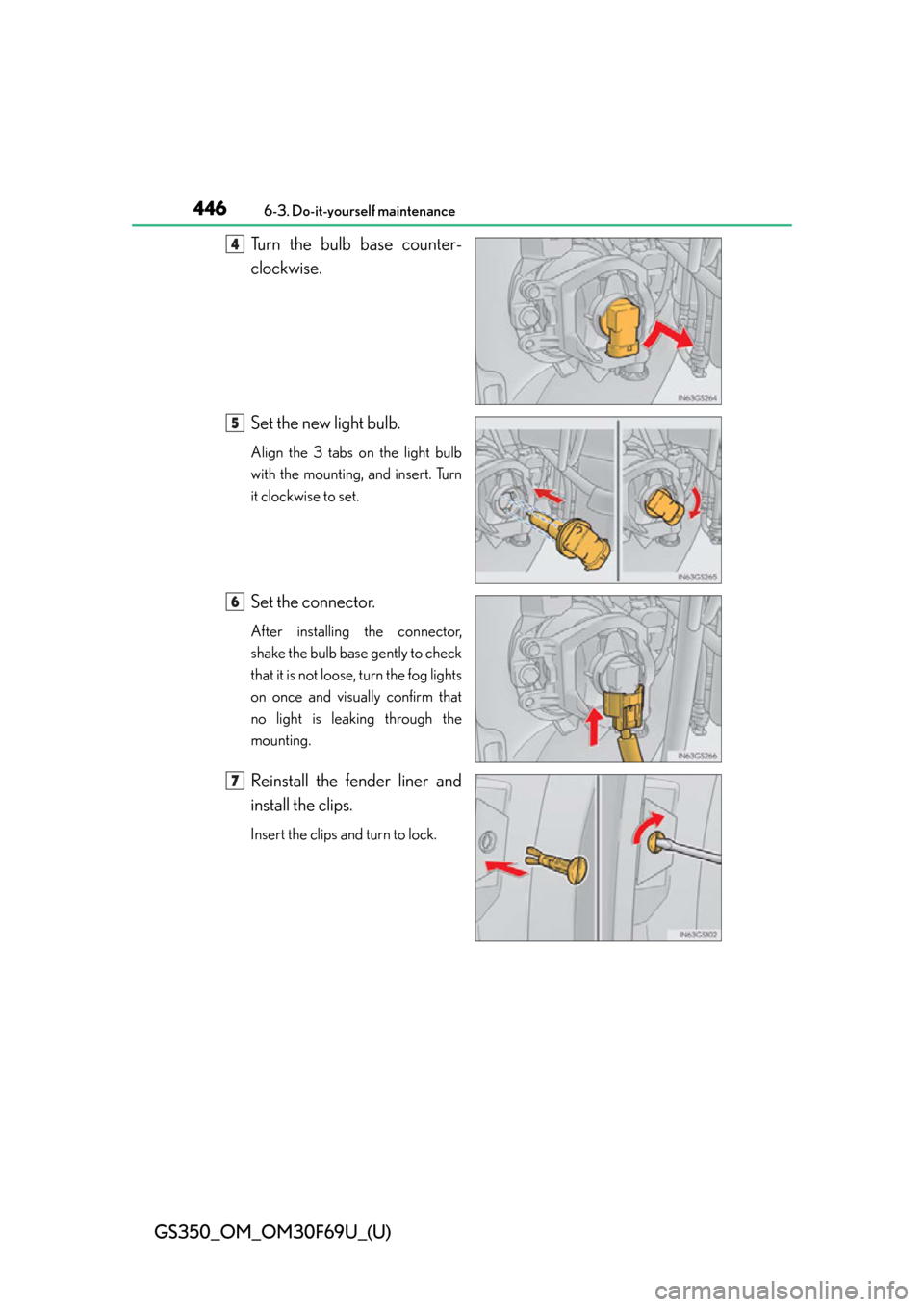

4
5
6
7

GS350_OM_OM30F69U_(U)
4476-3. Do-it-yourself maintenance
6
Maintenance and care

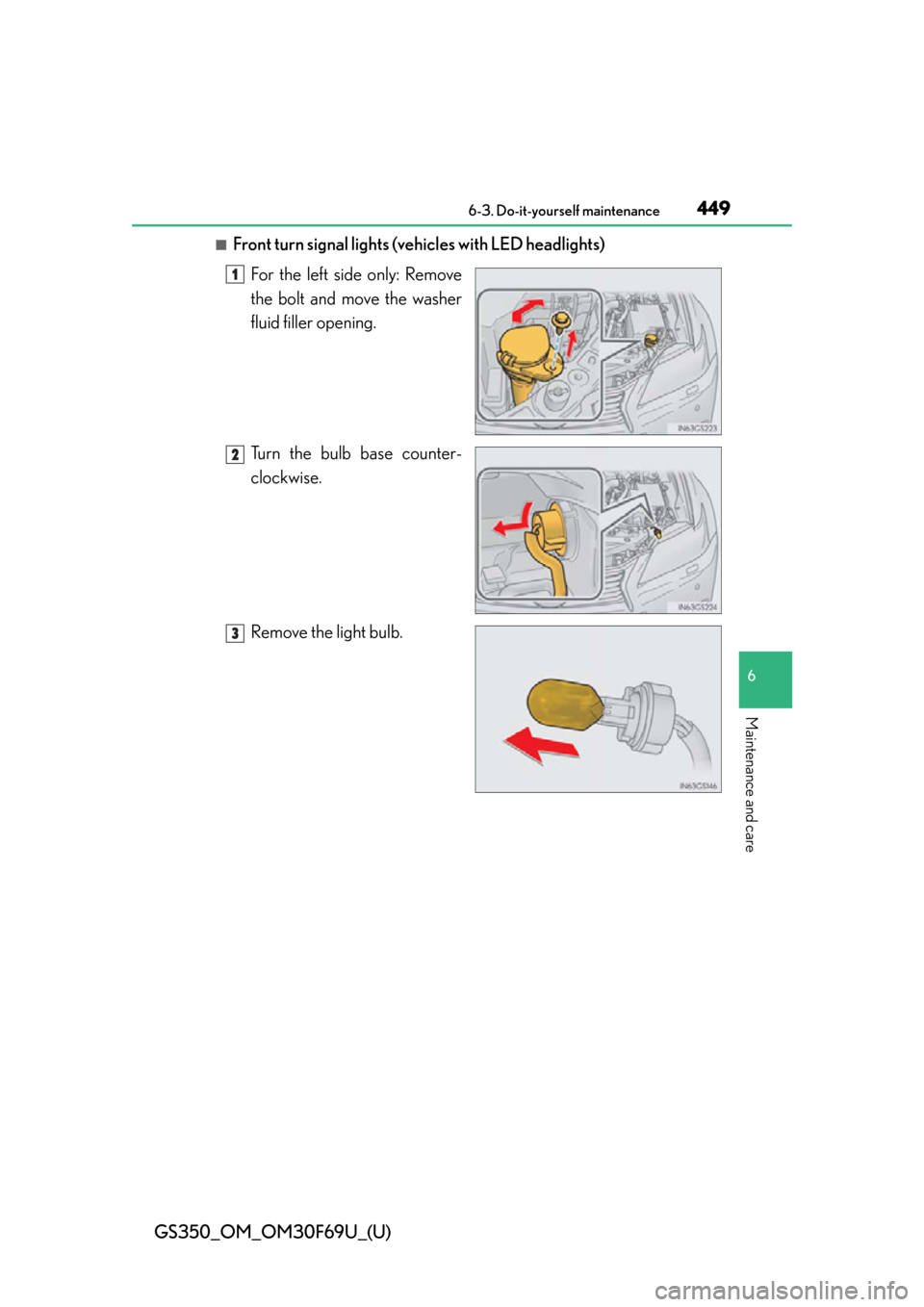

■Front turn signal lights (vehicles with discharge headlights)For the left side only: To allow
enough working space, turn
the steering wheel all the way
to the right, then remove the
bolts and take off the cover.
Turn the bulb base counterclockwise.
1
2
Right sideLeft side

448
GS350_OM_OM30F69U_(U)
6-3. Do-it-yourself maintenance
Remove the light bulb.
When installing, reverse the
steps listed.
After installing the bulb base,
secure the cord with the clips and
install the cover
* in its original posi-
tion.
*: For the left side only
3
4

GS350_OM_OM30F69U_(U)
4496-3. Do-it-yourself maintenance
6
Maintenance and care
■Front turn signal lights (vehicles with LED headlights)For the left side only: Remove
the bolt and move the washer
fluid filler opening.
Turn the bulb base counter-
clockwise.
Remove the light bulb.
1
2
3

450
GS350_OM_OM30F69U_(U)
6-3. Do-it-yourself maintenance
When installing, reverse the steps listed.

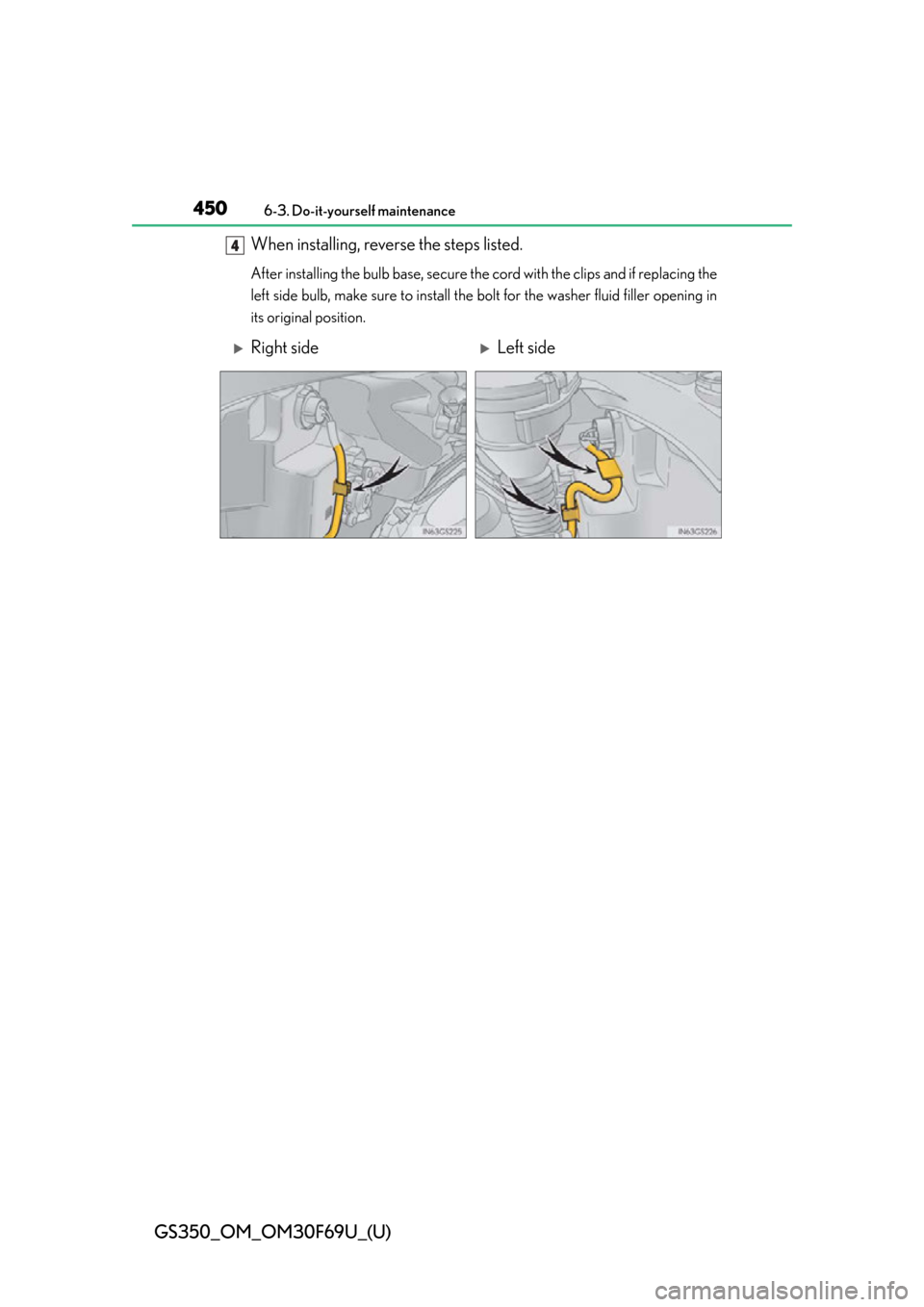

After installing the bulb base, secure the cord with the clips and if replacing the
left side bulb, make sure to install the bolt for the washer fluid filler opening in
its original position.
4
Right sideLeft side
