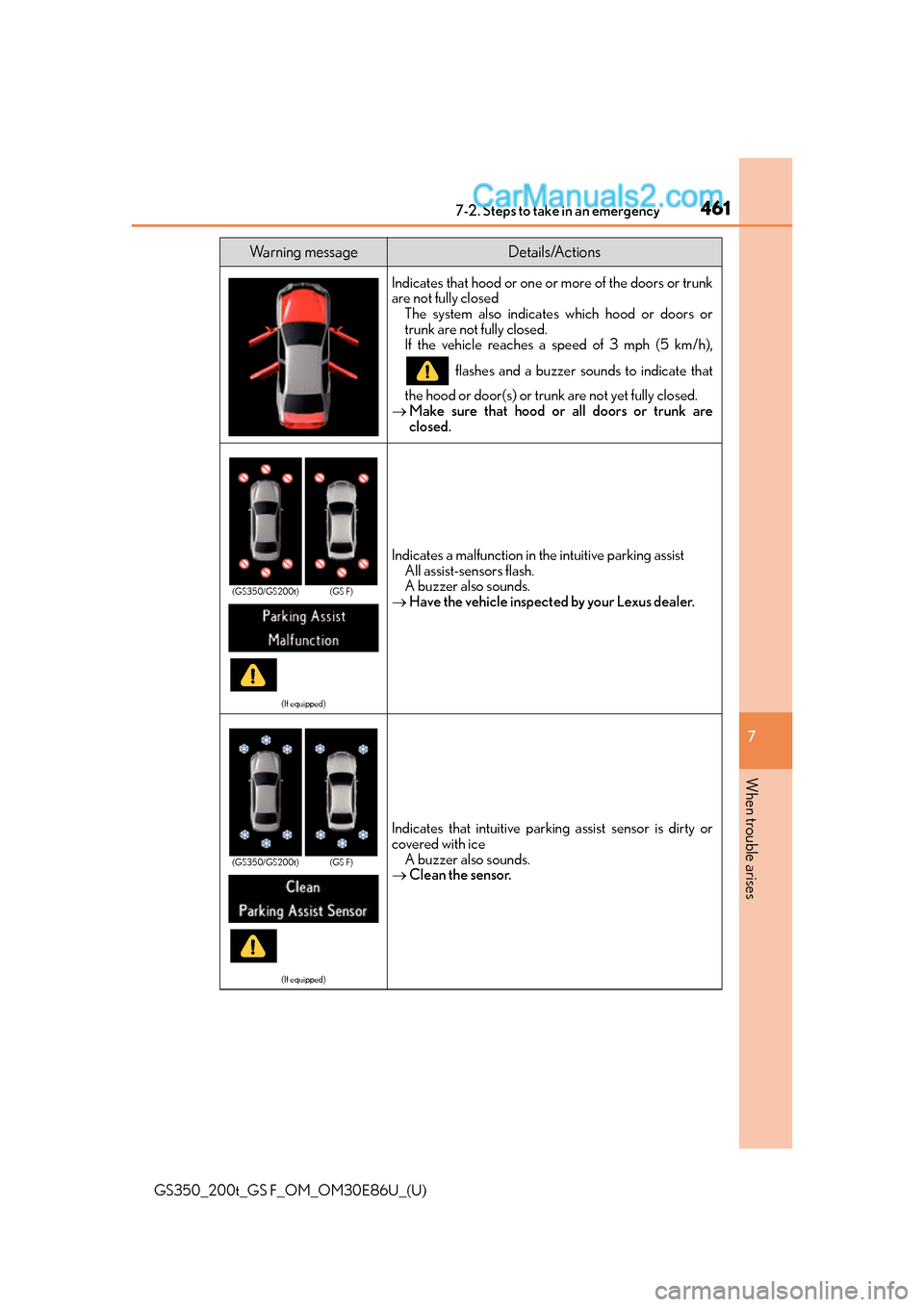

4617-2. Steps to take in an emergency
GS350_200t_GS F_OM_OM30E86U_(U)
7
When trouble arises
Indicates that hood or one or more of the doors or trunk
are not fully closed The system also indicate s which hood or doors or
trunk are not fully closed.
If the vehicle reaches a speed of 3 mph (5 km/h),
flashes and a buzzer sounds to indicate that
the hood or door(s) or trunk are not yet fully closed.
 Make sure that hood or all doors or trunk are
closed.
(If equipped)
Indicates a malfunction in the intuitive parking assist
All assist-sensors flash.
A buzzer also sounds.
 Have the vehicle inspected by your Lexus dealer.
(If equipped)
Indicates that intuitive parkin g assist sensor is dirty or
covered with ice
A buzzer also sounds.
 Clean the sensor.
Wa r n i n g m e s s a g eDetails/Actions
(GS350/GS200t) (GS F)
(GS350/GS200t) (GS F)

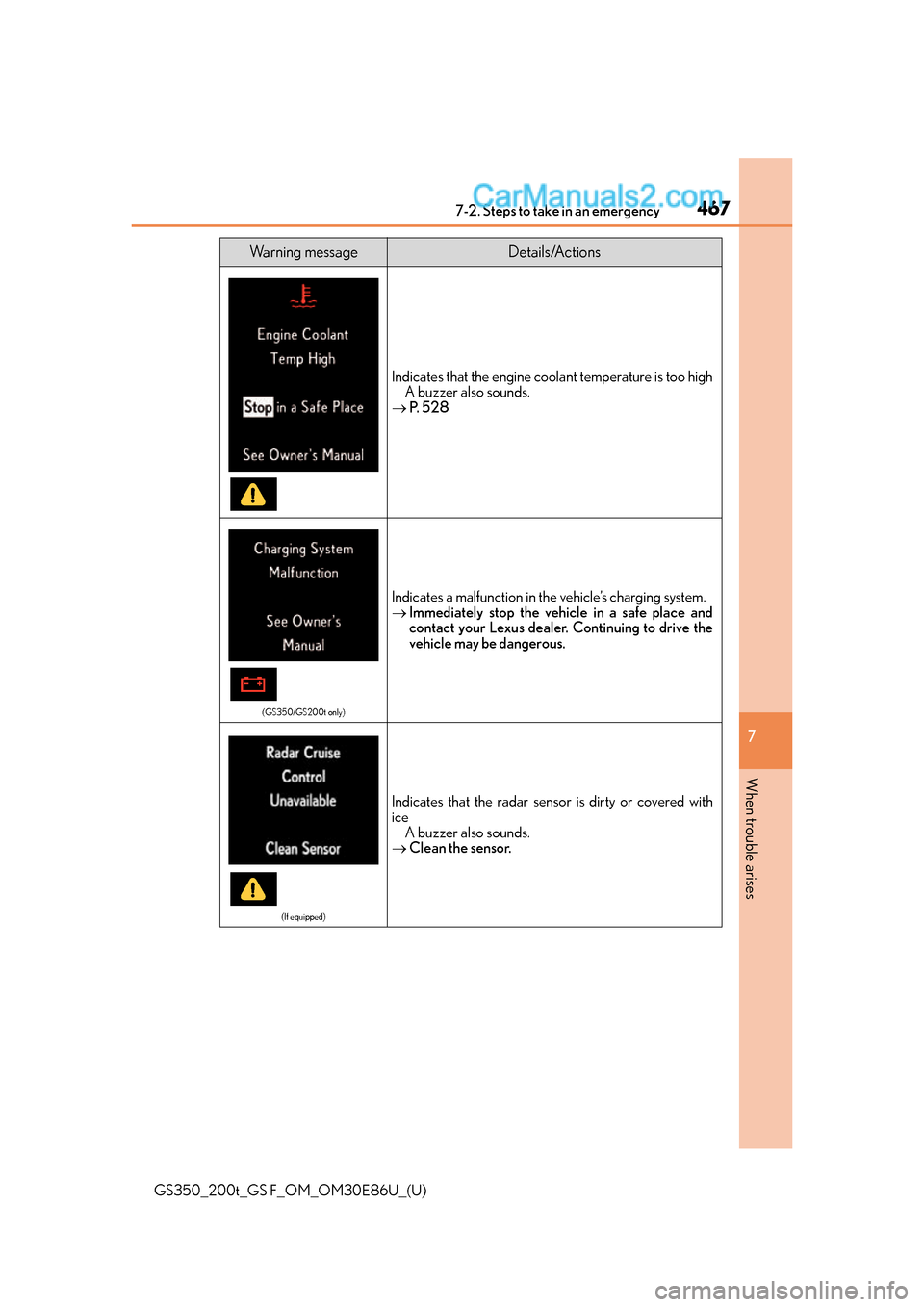

4677-2. Steps to take in an emergency
GS350_200t_GS F_OM_OM30E86U_(U)
7
When trouble arises
Indicates that the engine coolant temperature is too high A buzzer also sounds.
 P. 5 2 8
(GS350/GS200t only)
Indicates a malfunction in the vehicle’s charging system.
Immediately stop the vehicle in a safe place and
contact your Lexus dealer. Continuing to drive the
vehicle may be dangerous.
(If equipped)
Indicates that the radar sensor is dirty or covered with
ice A buzzer also sounds.
 Clean the sensor.
Wa r n i n g m e s s a g eDetails/Actions

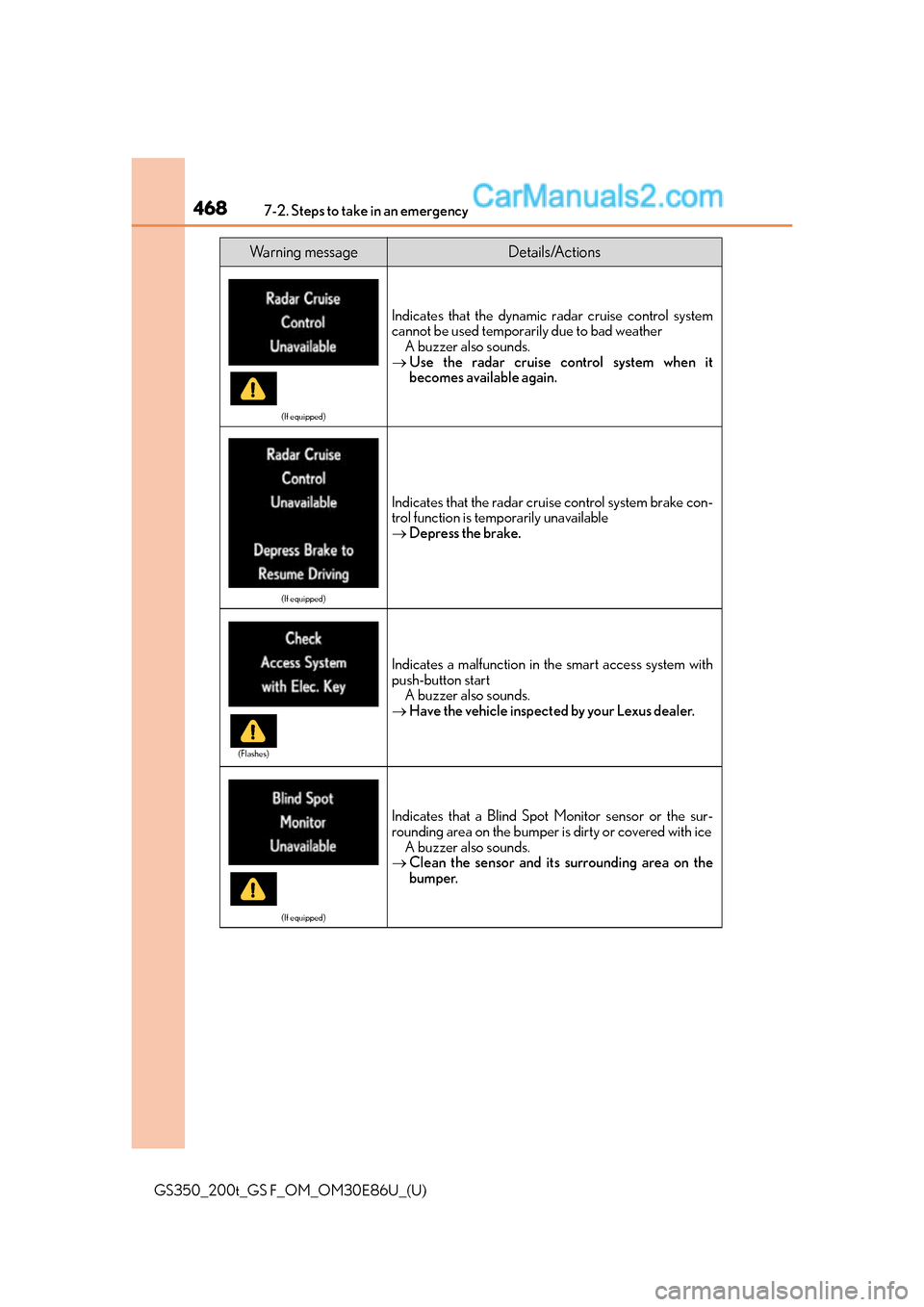

4687-2. Steps to take in an emergency
GS350_200t_GS F_OM_OM30E86U_(U)
(If equipped)
Indicates that the dynamic radar cruise control system
cannot be used temporarily due to bad weatherA buzzer also sounds.
 Use the radar cruise control system when it
becomes available again.
(If equipped)
Indicates that the radar crui se control system brake con-
trol function is temporarily unavailable
 Depress the brake.
Indicates a malfunction in the smart access system with
push-button start
A buzzer also sounds.
 Have the vehicle inspected by your Lexus dealer.
(If equipped)
Indicates that a Blind Spot Monitor sensor or the sur-
rounding area on the bumper is dirty or covered with ice
A buzzer also sounds.
 Clean the sensor and its surrounding area on the
bumper.
Wa r n i n g m e s s a g eDetails/Actions
(Flashes)

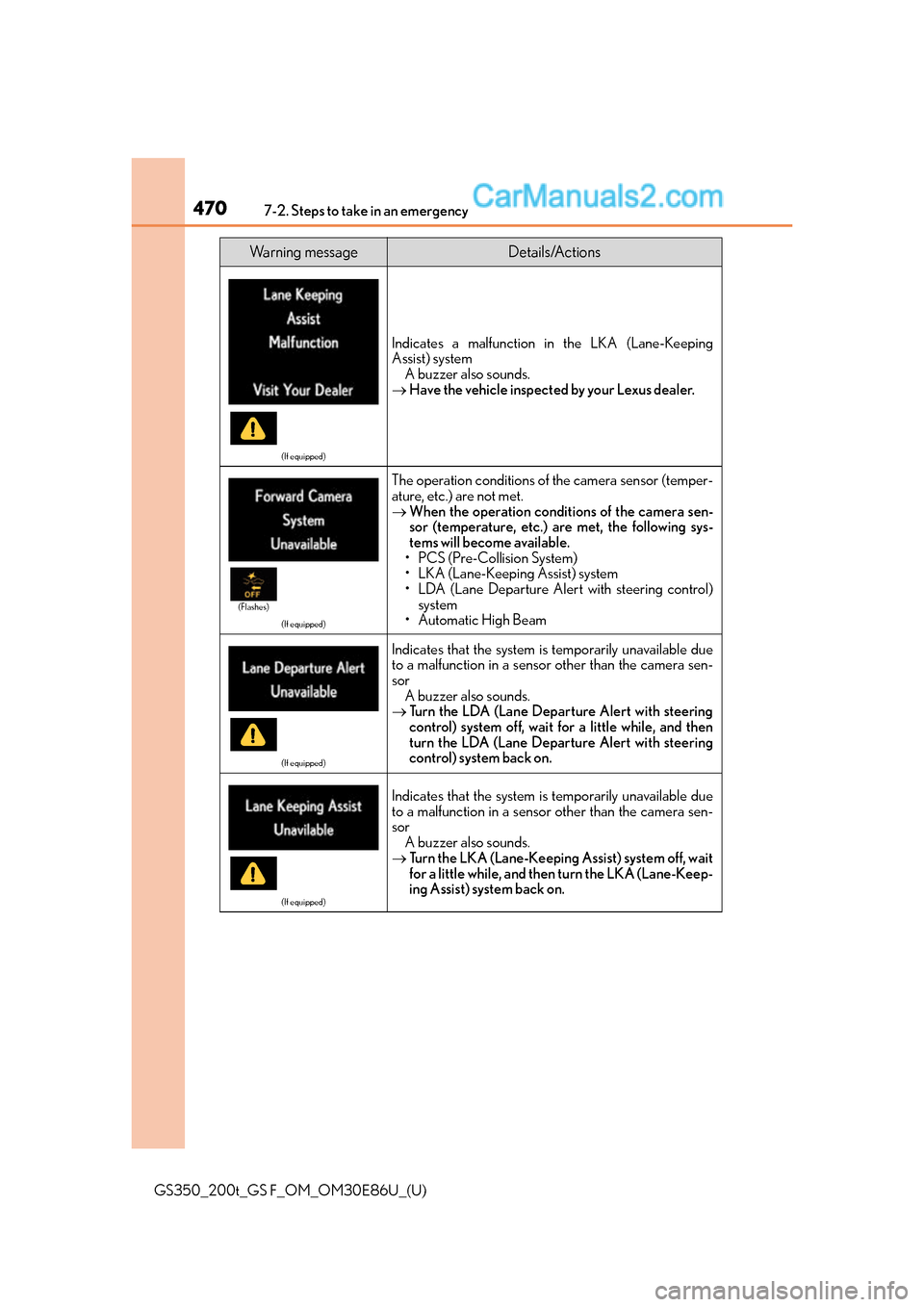

4707-2. Steps to take in an emergency
GS350_200t_GS F_OM_OM30E86U_(U)
(If equipped)
Indicates a malfunction in the LKA (Lane-Keeping
Assist) systemA buzzer also sounds.
 Have the vehicle inspected by your Lexus dealer.
(If equipped)
The operation conditions of the camera sensor (temper-
ature, etc.) are not met.
 When the operation conditions of the camera sen-
sor (temperature, etc.) are met, the following sys-
tems will become available.
• PCS (Pre-Collision System)
• LKA (Lane-Keeping Assist) system
• LDA (Lane Departure Alert with steering control) system
• Automatic High Beam
(If equipped)
Indicates that the system is temporarily unavailable due
to a malfunction in a sensor other than the camera sen-
sor A buzzer also sounds.
 Turn the LDA (Lane Departure Alert with steering
control) system off, wait for a little while, and then
turn the LDA (Lane Departure Alert with steering
control) system back on.
(If equipped)
Indicates that the system is temporarily unavailable due
to a malfunction in a sensor other than the camera sen-
sor
A buzzer also sounds.
 Turn the LKA (Lane-Keeping Assist) system off, wait
for a little while, and then turn the LKA (Lane-Keep-
ing Assist) system back on.
Wa r n i n g m e s s a g eDetails/Actions
(Flashes)

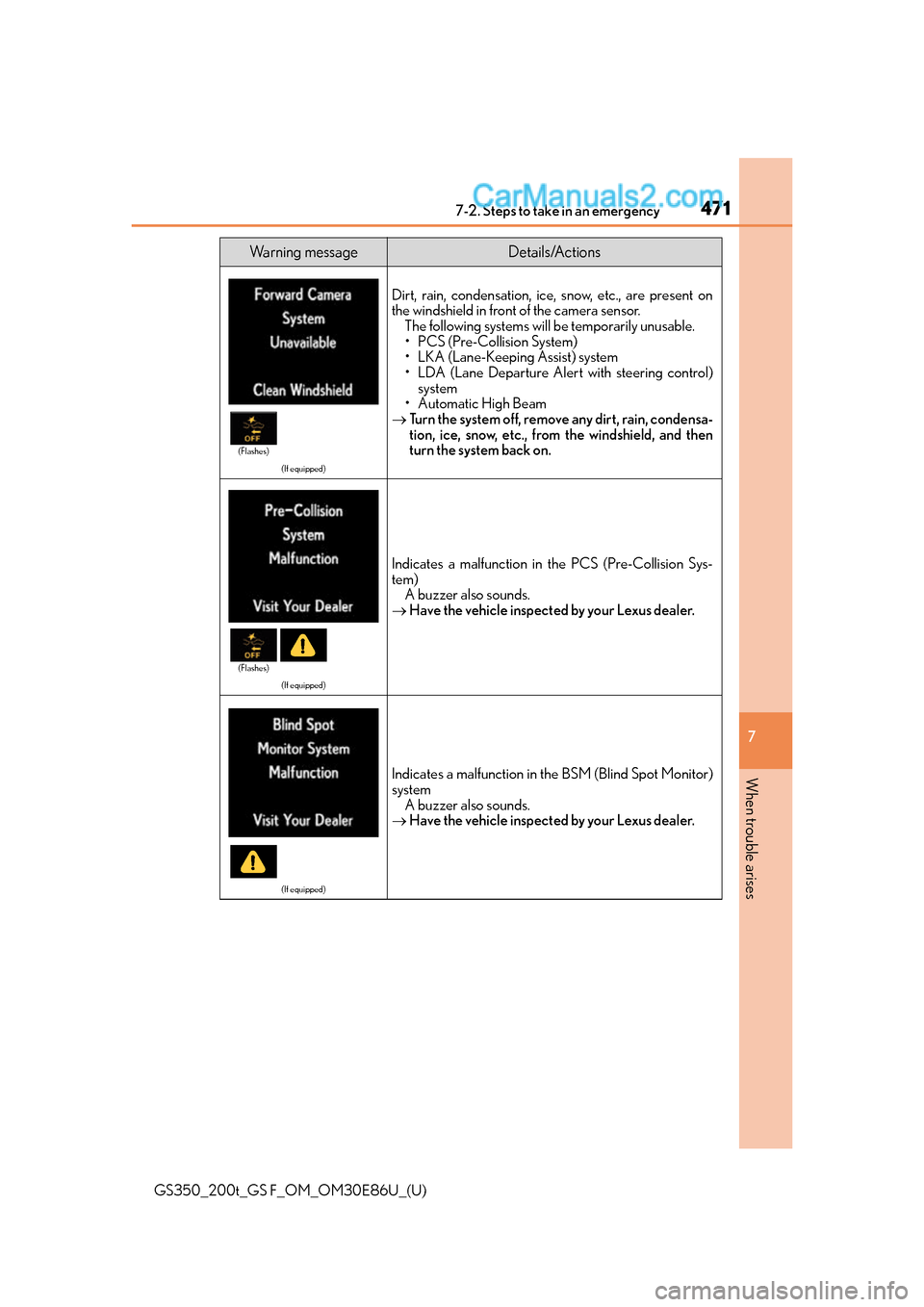

4717-2. Steps to take in an emergency
GS350_200t_GS F_OM_OM30E86U_(U)
7
When trouble arises
(If equipped)
Dirt, rain, condensation, ice, snow, etc., are present on
the windshield in front of the camera sensor. The following systems will be temporarily unusable.
• PCS (Pre-Collision System)
• LKA (Lane-Keeping Assist) system
• LDA (Lane Departure Alert with steering control) system
• Automatic High Beam
 Turn the system off, remove any dirt, rain, condensa-
tion, ice, snow, etc., from the windshield, and then
turn the system back on.
(If equipped)
Indicates a malfunction in the PCS (Pre-Collision Sys-
tem)
A buzzer also sounds.
 Have the vehicle inspected by your Lexus dealer.
(If equipped)
Indicates a malfunction in the BSM (Blind Spot Monitor)
system
A buzzer also sounds.
 Have the vehicle inspected by your Lexus dealer.
Wa r n i n g m e s s a g eDetails/Actions
(Flashes)
(Flashes)

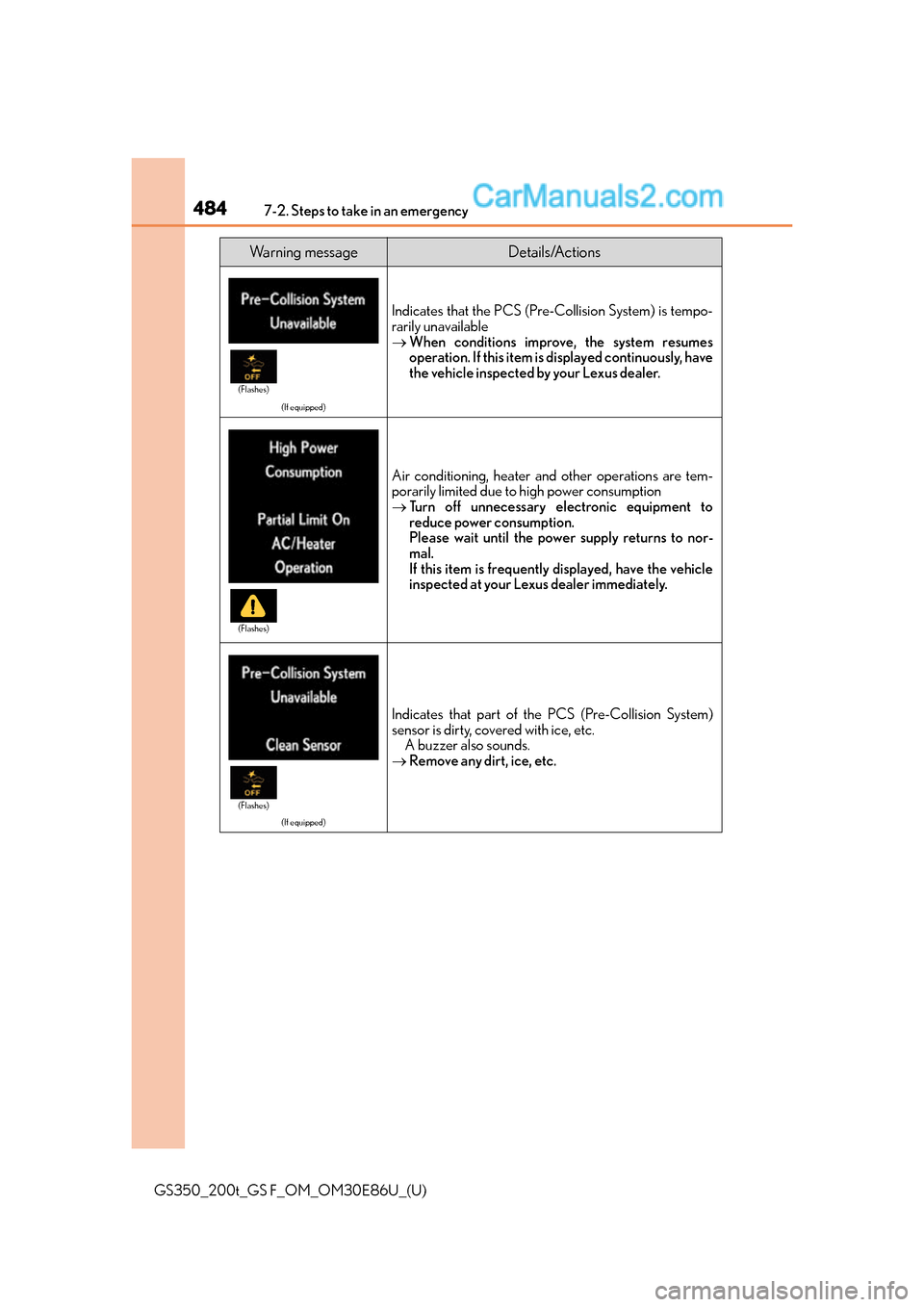

4847-2. Steps to take in an emergency
GS350_200t_GS F_OM_OM30E86U_(U)
Wa r n i n g m e s s a g eDetails/Actions
(If equipped)
Indicates that the PCS (Pre-Collision System) is tempo-
rarily unavailable
When conditions improve, the system resumes
operation. If this item is displayed continuously, have
the vehicle inspected by your Lexus dealer.
Air conditioning, heater and other operations are tem-
porarily limited due to high power consumption
 Turn off unnecessary electronic equipment to
reduce power consumption.
Please wait until the power supply returns to nor-
mal.
If this item is frequently displayed, have the vehicle
inspected at your Lexus dealer immediately.
(If equipped)
Indicates that part of the PCS (Pre-Collision System)
sensor is dirty, covered with ice, etc.
A buzzer also sounds.
 Remove any dirt, ice, etc.
(Flashes)
(Flashes)
(Flashes)

GS350_200t_GS F_OM_OM30E86U_(U)

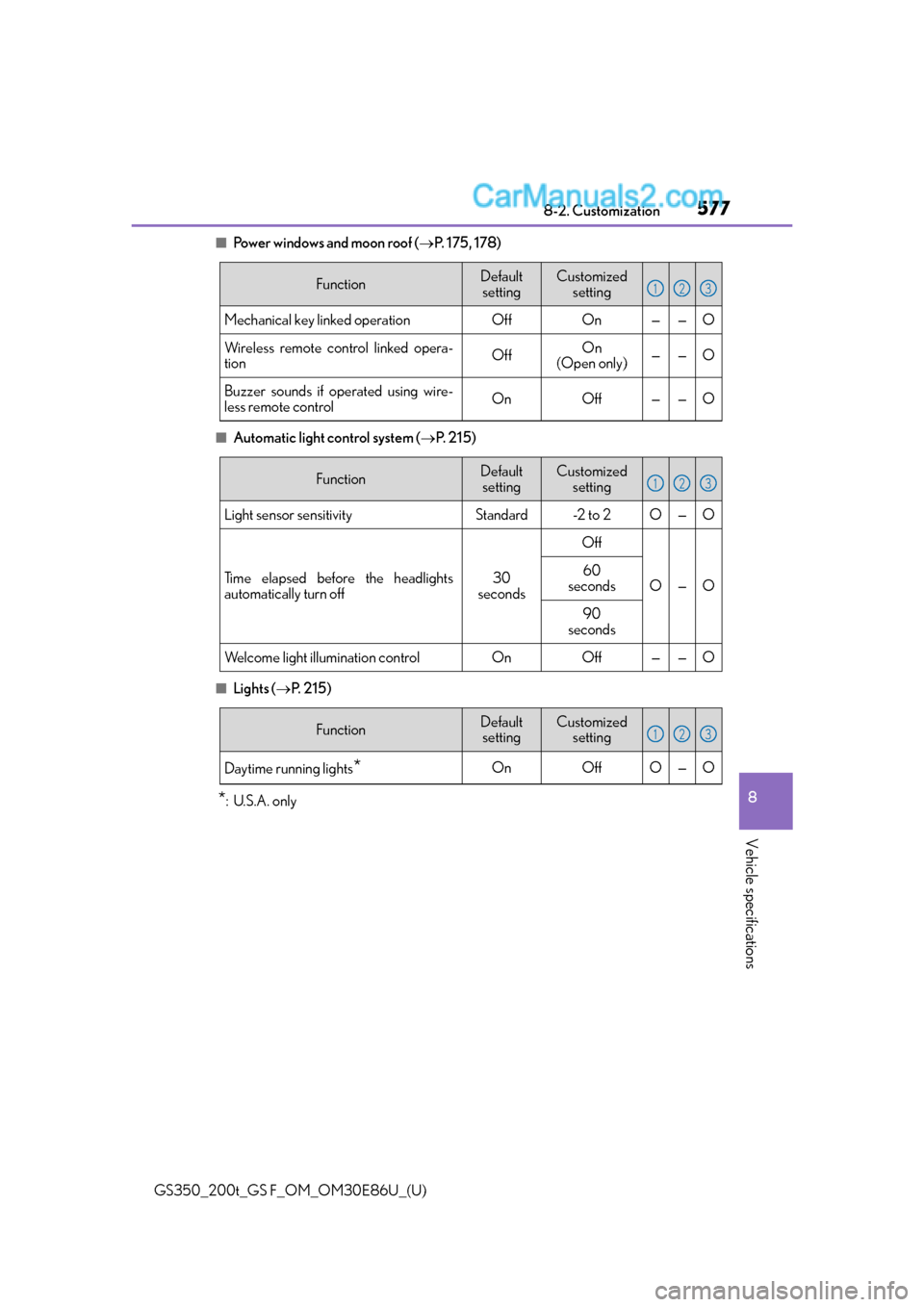

5778-2. Customization
8
Vehicle specifications
■Power windows and moon roof (P. 175, 178)
■Automatic light control system ( P. 215)
■Lights ( P. 215)
*: U.S.A. only
FunctionDefault
settingCustomized setting
Mechanical key linked operationOffOn——O
Wireless remote control linked opera-
tionOffOn
(Open only)——O
Buzzer sounds if operated using wire-
less remote controlOnOff——O
123
FunctionDefault settingCustomized setting
Light sensor sensitivityStandard-2 to 2O—O
Time elapsed before the headlights
automatically turn off30
seconds
Off
O—O60
seconds
90
seconds
Welcome light illumination controlOnOff——O
123
FunctionDefault settingCustomized setting
Daytime running lights*OnOffO—O
123

578

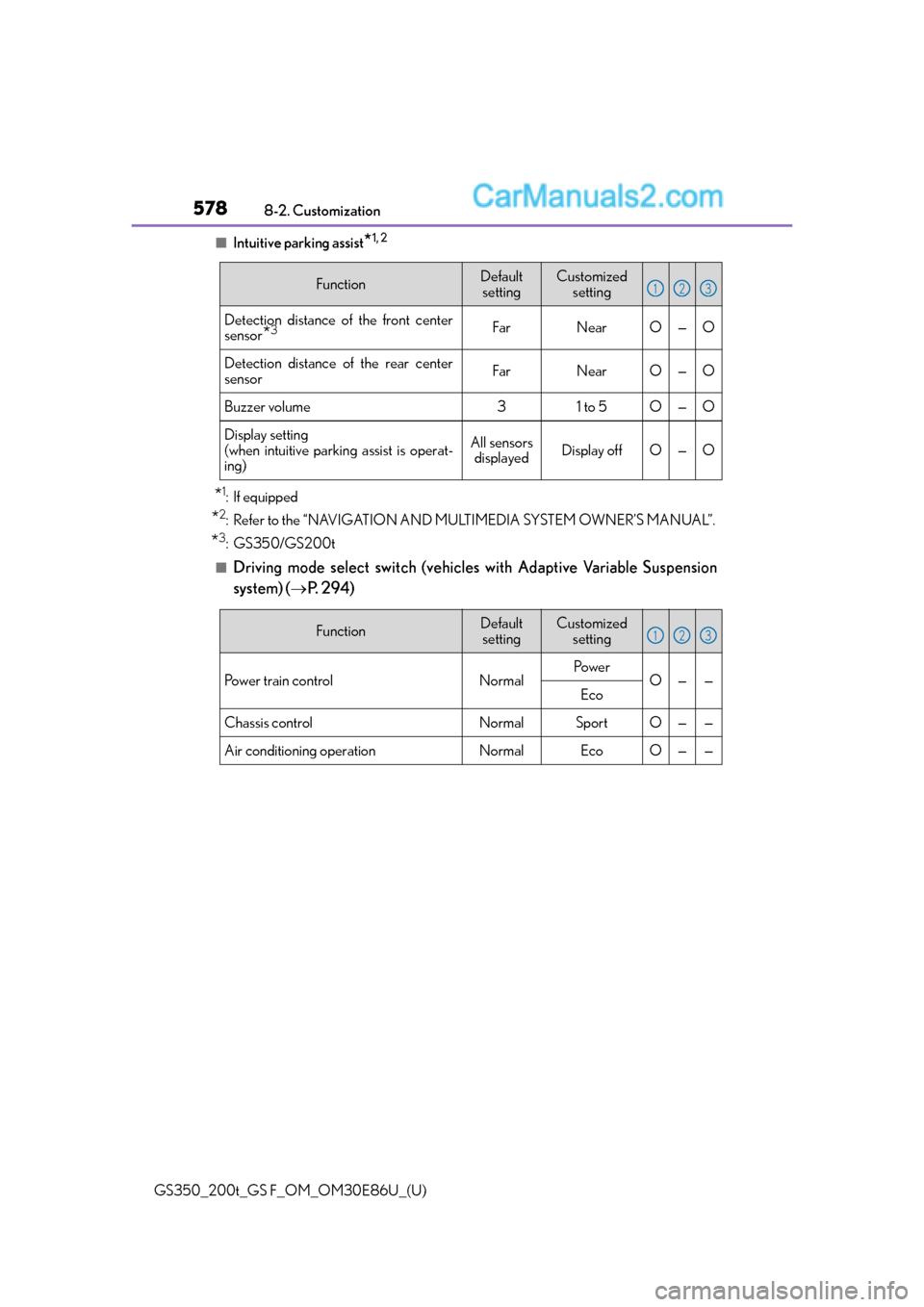

GS350_200t_GS F_OM_OM30E86U_(U)8-2. Customization
■Intuitive parking assist*1, 2
*1:If equipped
*2: Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
*3:GS350/GS200t
■Driving mode select switch (vehicles with Adaptive Variable Suspension
system) (
P. 2 9 4 )
FunctionDefault
settingCustomized setting
Detection distance of the front center
sensor
*3FarNearO—O
Detection distance of the rear center
sensorFarNearO—O
Buzzer volume31 to 5O—O
Display setting
(when intuitive parking assist is operat-
ing)All sensors displayedDisplay offO—O
123
FunctionDefault
settingCustomized setting
Power train controlNormalPo w e rO——Eco
Chassis controlNormalSportO——
Air conditioning operationNormalEcoO——
123

GS350_200t_GS F_OM_OM30E86U_(U)

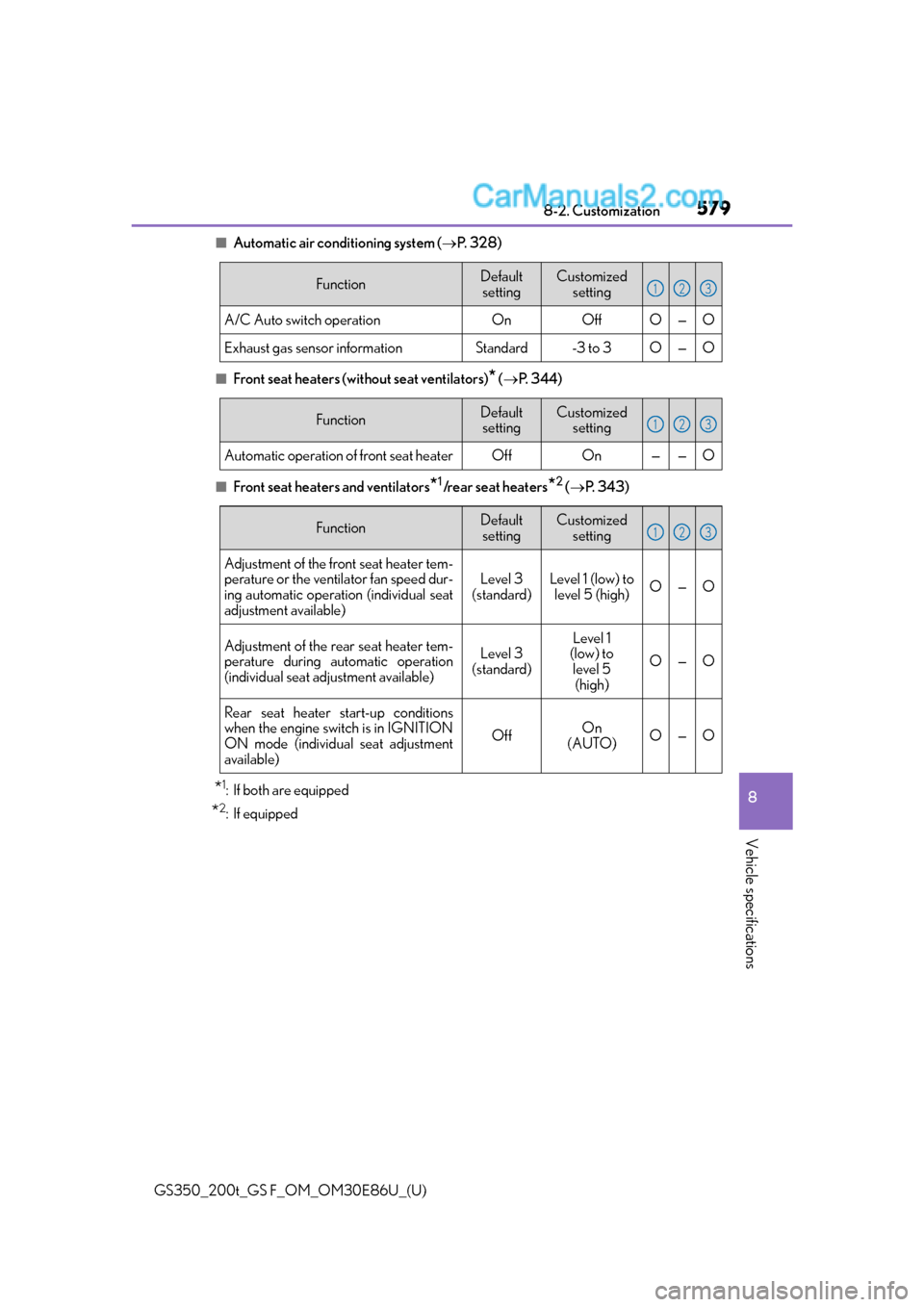

5798-2. Customization
8
Vehicle specifications
■Automatic air conditioning system (P. 3 2 8 )
■Front seat heaters (without seat ventilators)* ( P. 3 4 4 )
■Front seat heaters and ventilators*1/rear seat heaters*2 ( P. 343)
*1: If both are equipped
*2:If equipped
FunctionDefault
settingCustomized setting
A/C Auto switch operationOnOffO—O
Exhaust gas sensor informationStandard-3 to 3O—O
123
FunctionDefaultsettingCustomized setting
Automatic operation of front seat heaterOffOn——O
123
FunctionDefault
settingCustomized setting
Adjustment of the front seat heater tem-
perature or the ventilator fan speed dur-
ing automatic operat ion (individual seat
adjustment available) Level 3
(standard)Level 1 (low) to level 5 (high)O—O
Adjustment of the re ar seat heater tem-
perature during automatic operation
(individual seat adjustment available)Level 3
(standard)Level 1
(low) to
level 5 (high)
O—O
Rear seat heater start-up conditions
when the engine switch is in IGNITION
ON mode (individual seat adjustment
available)
OffOn
(AUTO)O—O
123

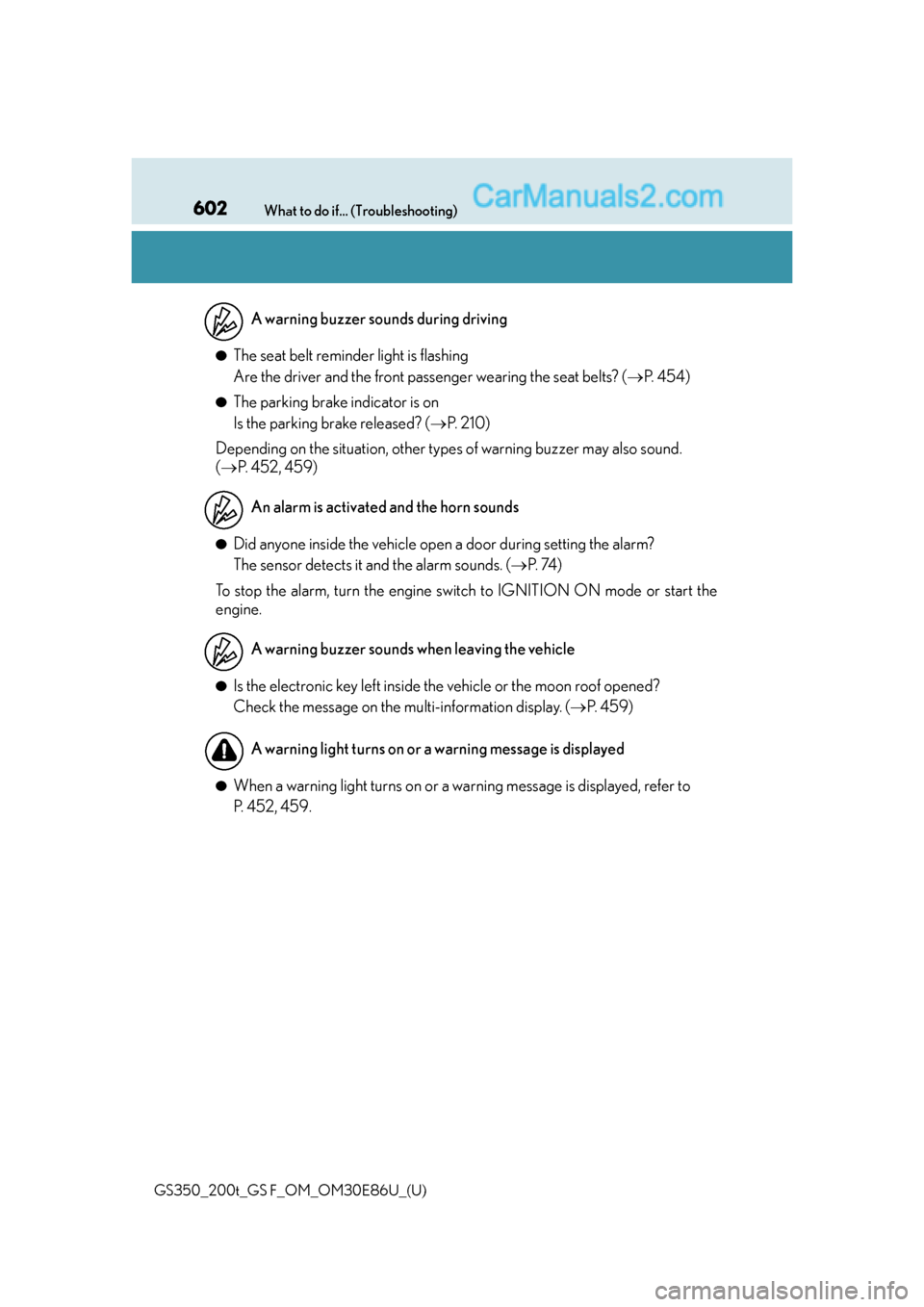

602What to do if... (Troubleshooting)
GS350_200t_GS F_OM_OM30E86U_(U)
●The seat belt reminder light is flashing
Are the driver and the front passenger wearing the seat belts? ( P. 4 5 4 )
●The parking brake indicator is on
Is the parking brake released? ( P. 2 1 0 )
Depending on the situation, other type s of warning buzzer may also sound.
( P. 4 5 2 , 4 5 9 )
●Did anyone inside the vehicle open a door during setting the alarm?
The sensor detects it and the alarm sounds. ( P. 74 )
To stop the alarm, turn the engine switch to IGNITION ON mode or start the
engine.
●Is the electronic key left inside the vehicle or the moon roof opened?
Check the message on the multi-information display. ( P. 4 5 9 )
●When a warning light turns on or a warning message is displayed, refer to
P. 452, 459. A warning buzzer sounds during driving
An alarm is activated and the horn sounds
A warning buzzer sounds when leaving the vehicle
A warning light turns on or a warning message is displayed
