711-1. For safe use
GS350_200t_GS F_OM_OM30E86U_(U)
1
For safety and security
Exhaust gas precautions
Harmful substance to the human body is included in exhaust gases if inhaled.
WA R N I N G
Exhaust gases include harmful carbon monoxi de (CO), which is colorless and odorless.
Observe the following precautions.
Failure to do so may cause exhaust gases enter the vehicle and may lead to an accident
caused by light-headedness, or may lead to death or a serious health hazard.
■Important points while driving
●Keep the trunk lid closed.
●If you smell exhaust gases in the vehicle ev en when the trunk lid is closed, open the
windows and have the vehicle inspected at your Lexus dealer as soon as possible.
■When parking
●If the vehicle is in a poorly ventilated area or a closed area, such as a garage, stop the
engine.
●Do not leave the vehicle with the engine running for a long time.
If such a situation cannot be avoided, park the vehicle in an open space and ensure
that exhaust fumes do not enter the vehicle interior.
●Do not leave the engine running in an area with snow build-up, or where it is snowing.
If snowbanks build up around the vehicle wh ile the engine is running, exhaust gases
may collect and enter the vehicle.
■Exhaust pipe
The exhaust system needs to be checked periodically. If there is a hole or crack caused
by corrosion, damage to a joint or abnormal exhaust noise, be sure to have the vehicle
inspected and repaired by your Lexus dealer.

721-2. Theft deterrent system
GS350_200t_GS F_OM_OM30E86U_(U)

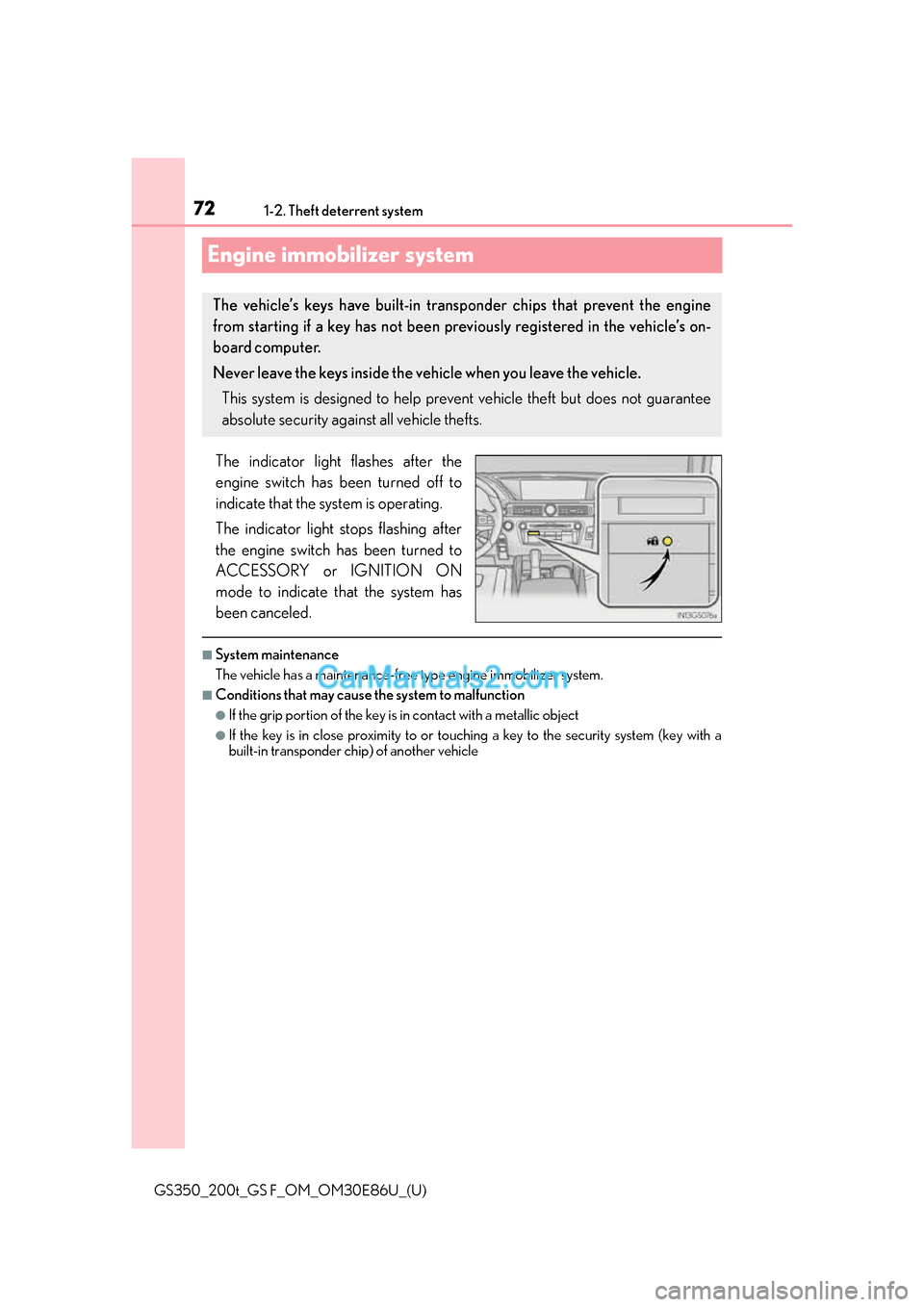

Engine immobilizer system
The indicator light flashes after the
engine switch has been turned off to
indicate that the system is operating.
The indicator light stops flashing after
the engine switch has been turned to
ACCESSORY or IGNITION ON
mode to indicate that the system has
been canceled.
■System maintenance
The vehicle has a maintenance-free type engine immobilizer system.
■Conditions that may cause the system to malfunction
●If the grip portion of the key is in contact with a metallic object
●If the key is in close proximity to or touching a key to the security system (key with a
built-in transponder chip) of another vehicle
The vehicle’s keys have built-in transponder chips that prevent the engine
from starting if a key has not been prev iously registered in the vehicle’s on-
board computer.
Never leave the keys inside the vehicle when you leave the vehicle.
This system is designed to help prevent vehicle theft but does not guarantee
absolute security against all vehicle thefts.

731-2. Theft deterrent system
GS350_200t_GS F_OM_OM30E86U_(U)
1
For safety and security

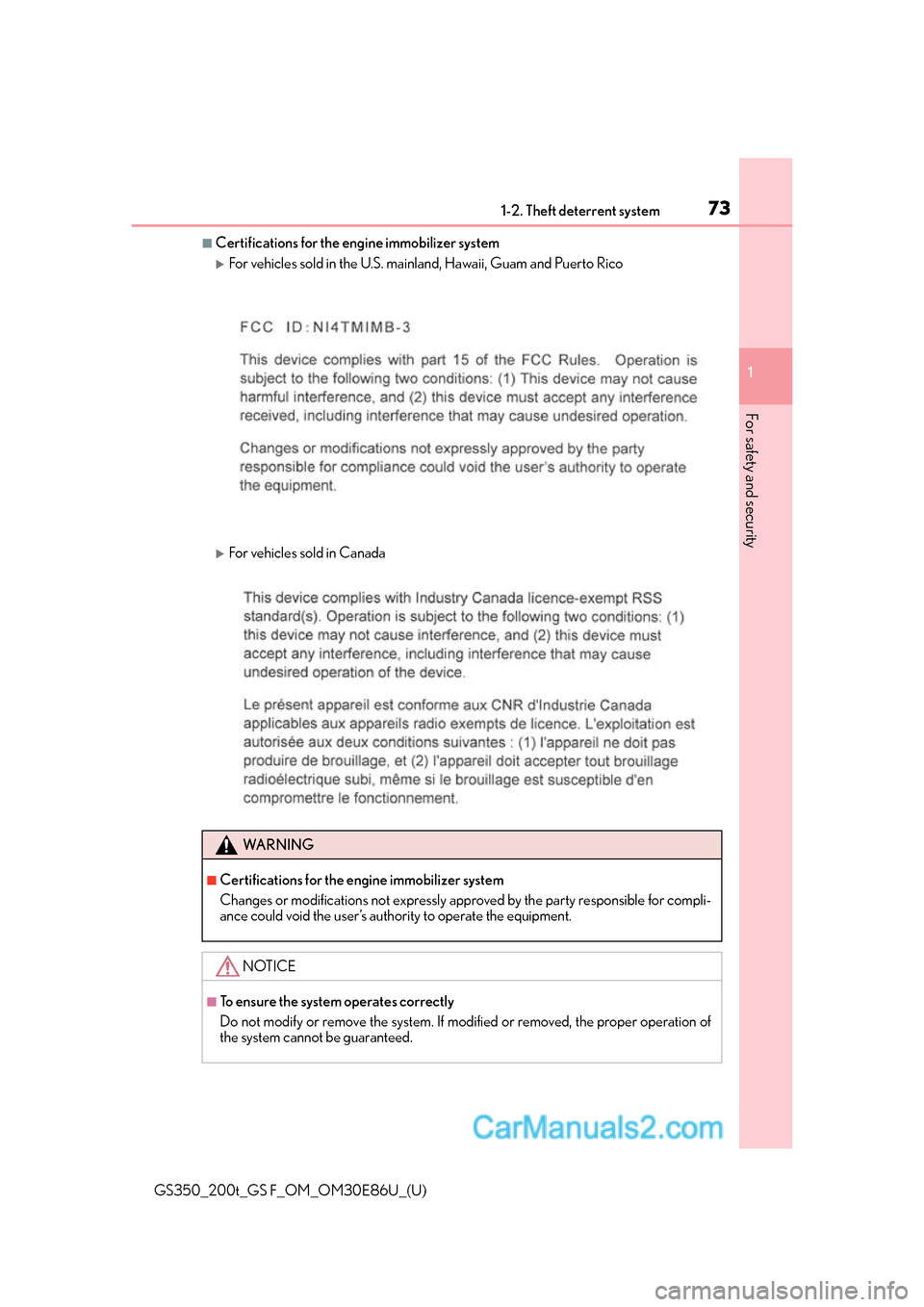

■Certifications for the en gine immobilizer system
For vehicles sold in the U.S. main land, Hawaii, Guam and Puerto Rico
For vehicles sold in Canada
WA R N I N G
■Certifications for the engine immobilizer system
Changes or modifications not expressly approved by the party responsible for compli-
ance could void the user’s authority to operate the equipment.
NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper operation of
the system cannot be guaranteed.

741-2. Theft deterrent system
GS350_200t_GS F_OM_OM30E86U_(U)

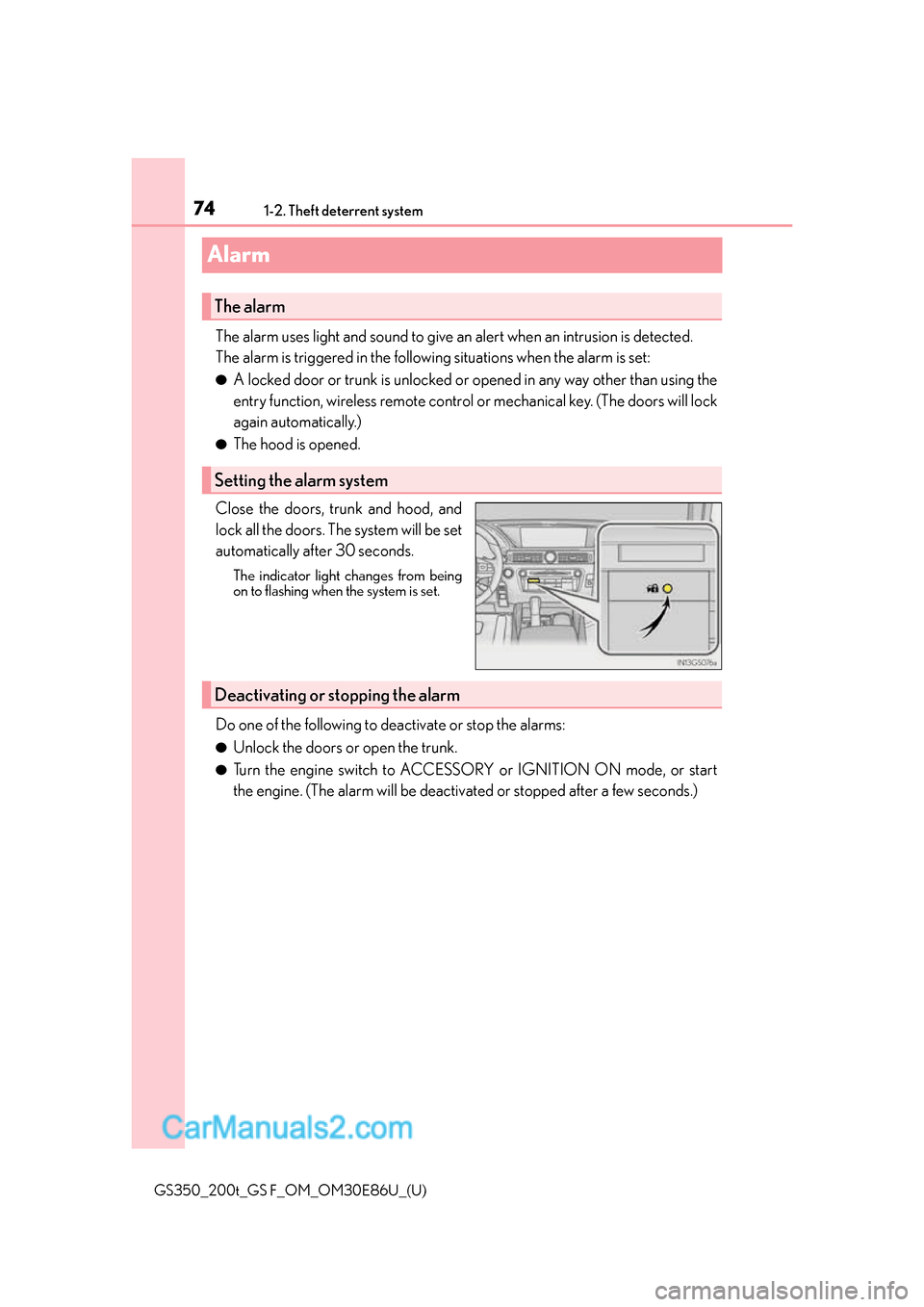

Alarm
The alarm uses light and sound to give an alert when an intrusion is detected.
The alarm is triggered in the following situations when the alarm is set:
●A locked door or trunk is unlocked or opened in any way other than using the
entry function, wireless remote control or mechanical key. (The doors will lock
again automatically.)
●The hood is opened.
Close the doors, trunk and hood, and
lock all the doors. The system will be set
automatically after 30 seconds.
The indicator light changes from being
on to flashing when the system is set.
Do one of the following to de activate or stop the alarms:
●Unlock the doors or open the trunk.
●Turn the engine switch to ACCESSORY or IGNITION ON mode, or start
the engine. (The alarm will be deactivat ed or stopped after a few seconds.)
The alarm
Setting the alarm system
Deactivating or stopping the alarm

751-2. Theft deterrent system
GS350_200t_GS F_OM_OM30E86U_(U)
1
For safety and security

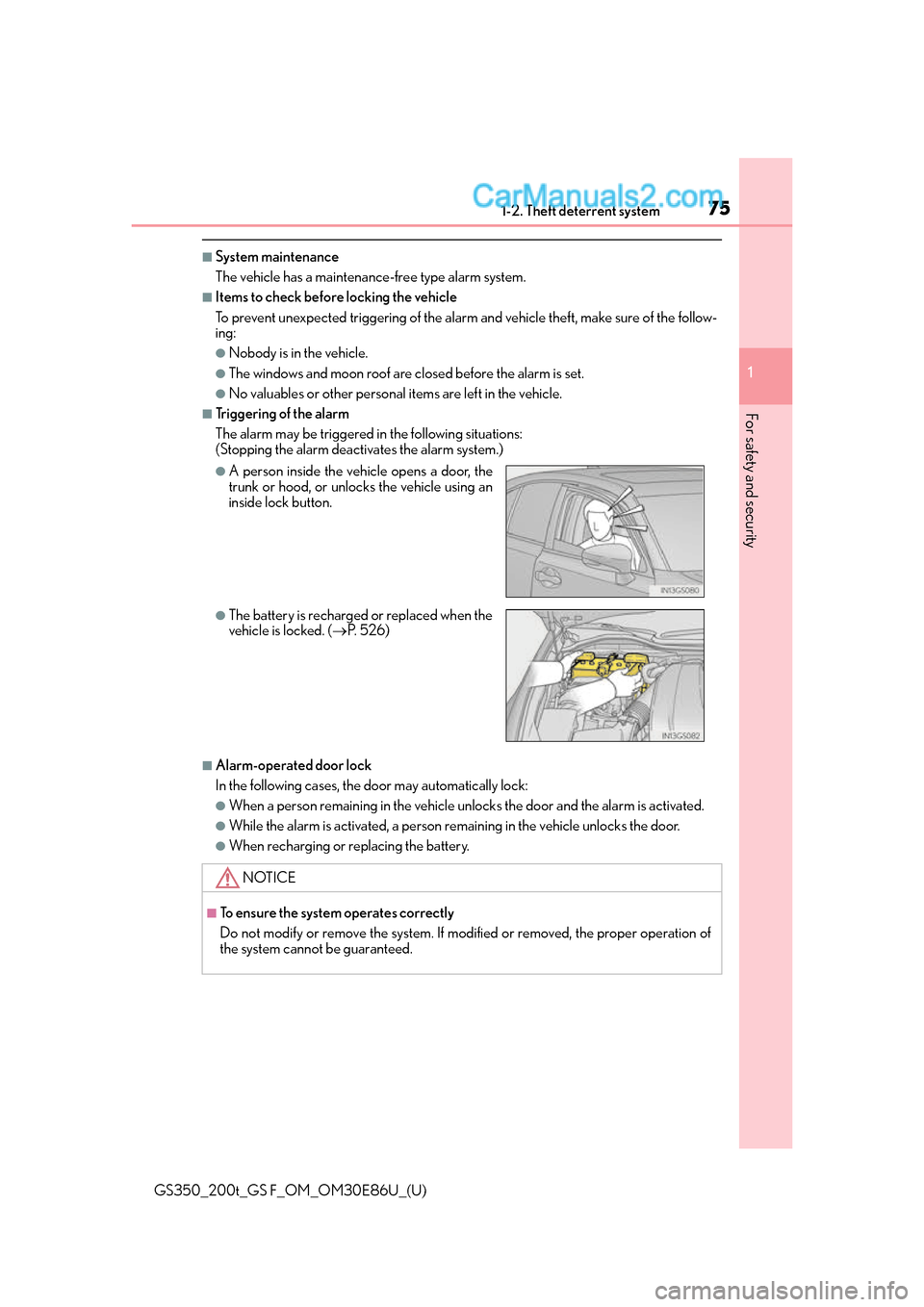

■System maintenance
The vehicle has a maintenance-free type alarm system.
■Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft, make sure of the follow-
ing:
●Nobody is in the vehicle.
●The windows and moon roof are closed before the alarm is set.
●No valuables or other personal items are left in the vehicle.
■Triggering of the alarm
The alarm may be triggered in the following situations:
(Stopping the alarm deactivates the alarm system.)
■Alarm-operated door lock
In the following cases, the door may automatically lock:
●When a person remaining in the vehicle unlocks the door and the alarm is activated.
●While the alarm is activated, a person re maining in the vehicle unlocks the door.
●When recharging or replacing the battery.
●A person inside the vehicle opens a door, the
trunk or hood, or unlocks the vehicle using an
inside lock button.
●The battery is recharged or replaced when the
vehicle is locked. (P. 5 2 6 )
NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper operation of
the system cannot be guaranteed.

761-2. Theft deterrent system
GS350_200t_GS F_OM_OM30E86U_(U)

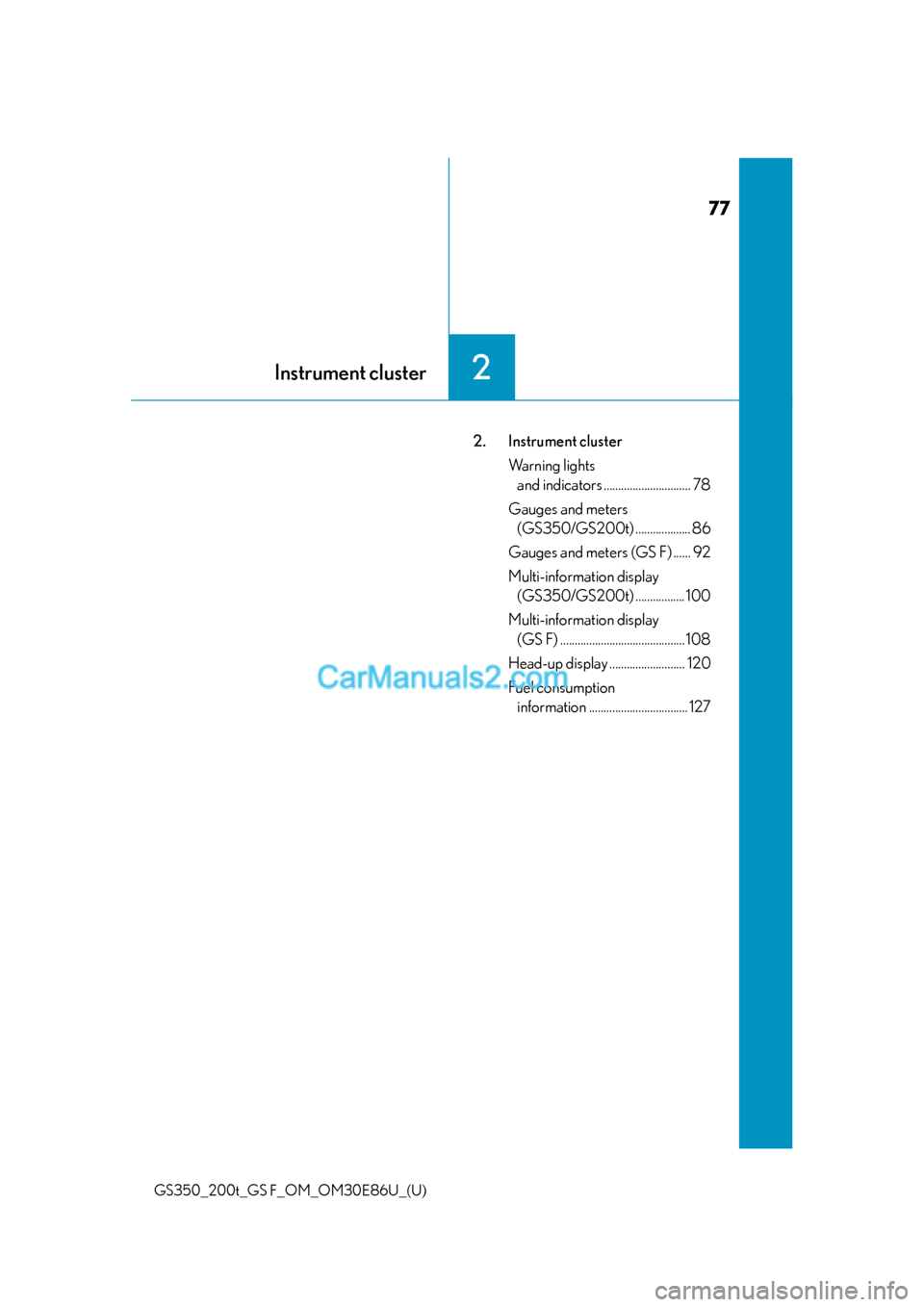

77
GS350_200t_GS F_OM_OM30E86U_(U)
Instrument cluster2
2. Instrument clusterWarning lights and indicators .............................. 78
Gauges and meters (GS350/GS200t) ................... 86
Gauges and meters (GS F) ...... 92
Multi-information display (GS350/GS200t) ................. 100
Multi-information display (GS F) ........................................... 108
Head-up display .......................... 120
Fuel consumption information .................................. 127

78
GS350_200t_GS F_OM_OM30E86U_(U)2. Instrument cluster

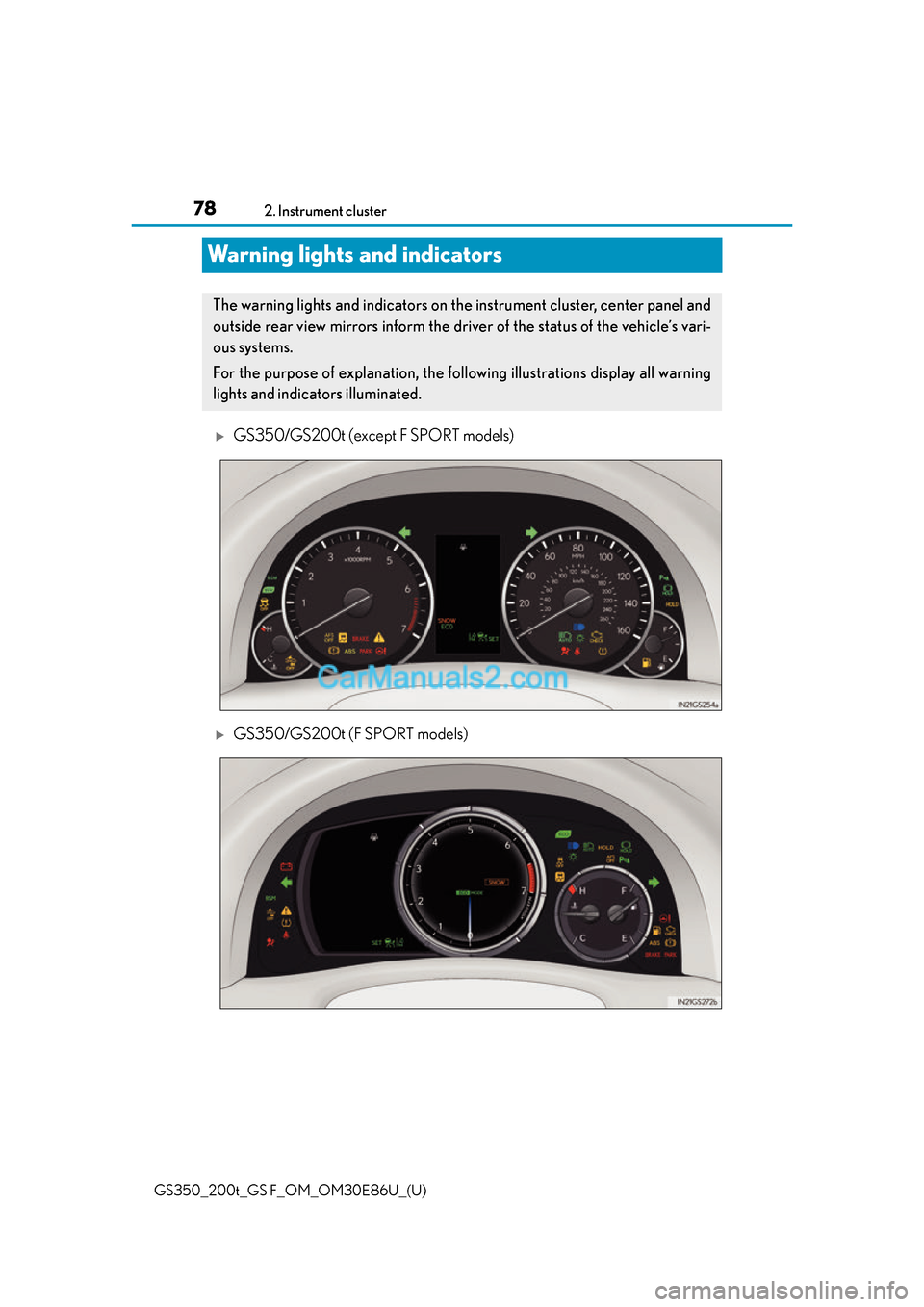

Warning lights and indicators
GS350/GS200t (except F SPORT models)
GS350/GS200t (F SPORT models)
The warning lights and indicators on th
e instrument cluster, center panel and
outside rear view mirrors inform the driv er of the status of the vehicle’s vari-
ous systems.
For the purpose of explanation, the foll owing illustrations display all warning
lights and indicators illuminated.

GS350_200t_GS F_OM_OM30E86U_(U)
792. Instrument cluster
2
Instrument cluster

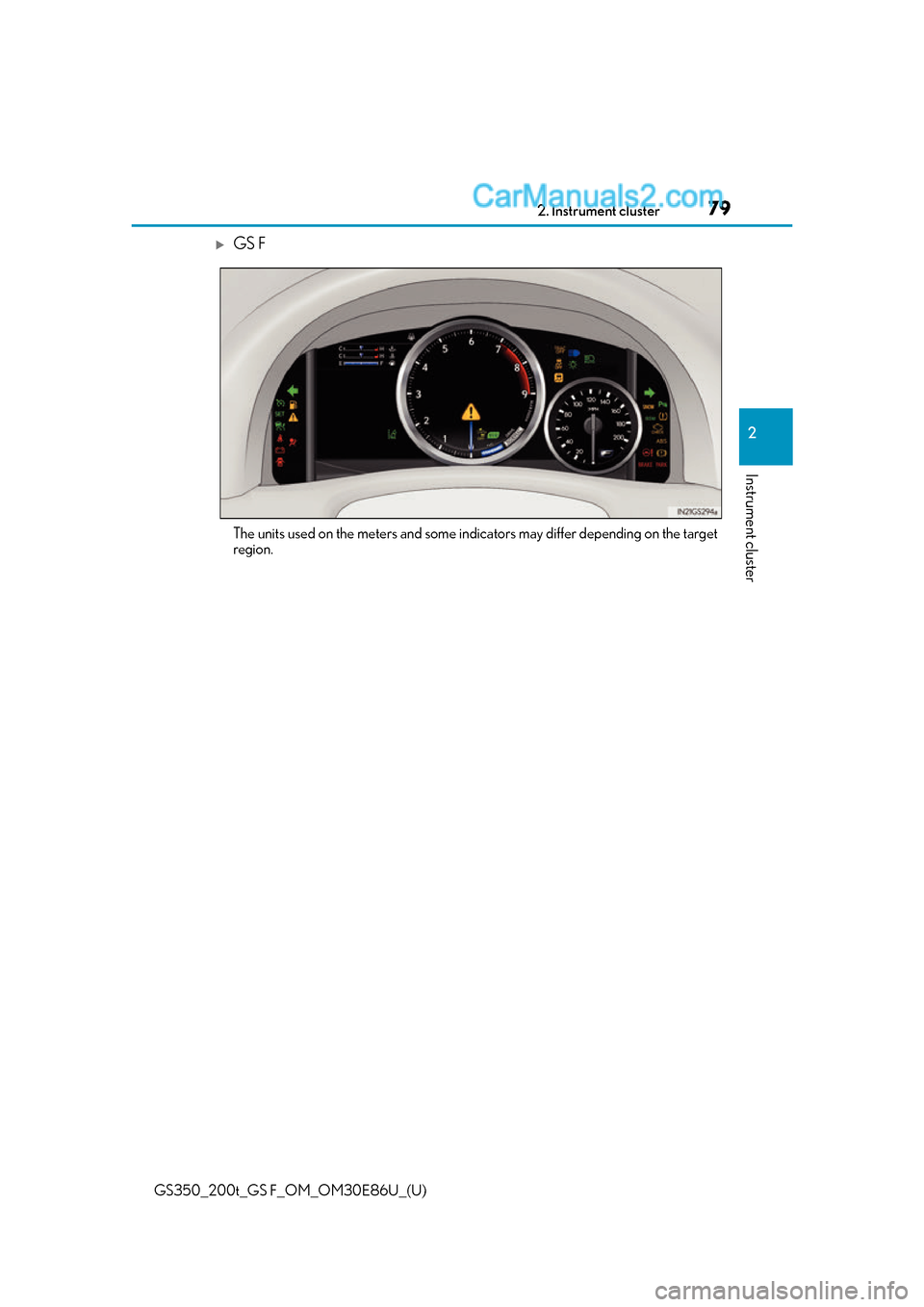

GS F
The units used on the meters and some indicators may differ depending on the target
region.

80
GS350_200t_GS F_OM_OM30E86U_(U)2. Instrument cluster

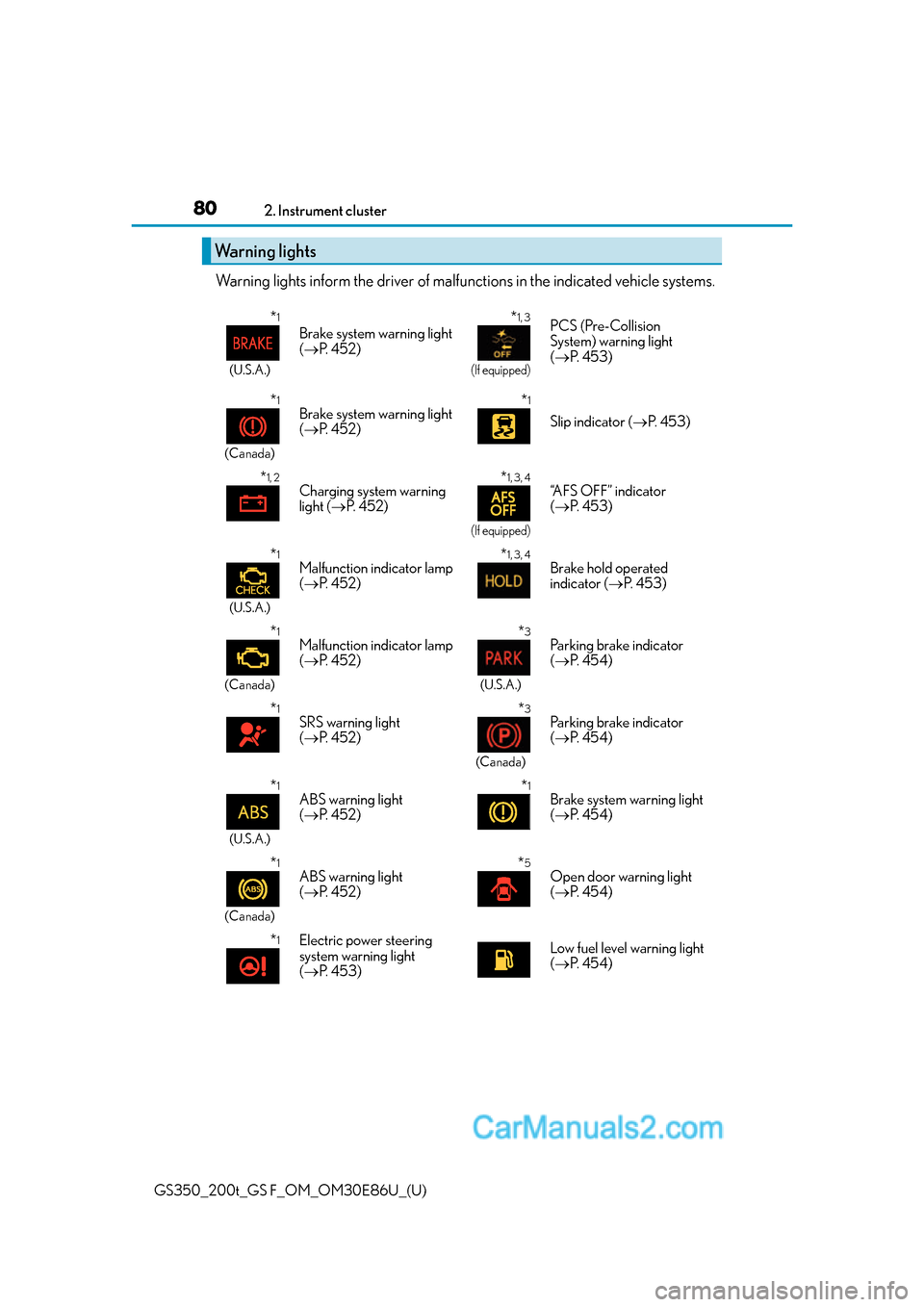

Warning lights inform the driver of malfun
ctions in the indicated vehicle systems.
Warning lights
*1
(U.S.A.)
Brake system warning light
( P. 4 5 2 )
*1, 3
(If equipped)
PCS (Pre-Collision
System) warning light
( P. 4 5 3 )
*1
(Canada)
Brake system warning light
( P. 4 5 2 )*1
Slip indicator ( P. 4 5 3 )
*1, 2Charging system warning
light ( P. 4 5 2 )*1, 3, 4
(If equipped)
“AFS OFF” indicator
( P. 4 5 3 )
*1
(U.S.A.)
Malfunction indicator lamp
( P. 4 5 2 )*1, 3, 4Brake hold operated
indicator ( P. 4 5 3 )
*1
(Canada)
Malfunction indicator lamp
( P. 4 5 2 )*3
(U.S.A.)
Parking brake indicator
( P. 4 5 4 )
*1SRS warning light
( P. 4 5 2 )*3
(Canada)
Parking brake indicator
( P. 4 5 4 )
*1
(U.S.A.)
ABS warning light
( P. 4 5 2 )*1Brake system warning light
( P. 4 5 4 )
*1
(Canada)
ABS warning light
( P. 4 5 2 )*5Open door warning light
( P. 4 5 4 )
*1Electric power steering
system warning light
( P. 4 5 3 )Low fuel level warning light
( P. 4 5 4 )
