Lexus GS350 2018 Owners Manual

GS350_300_GS F_OM_OM30G34U_(U)
912. Instrument cluster
2
Instrument cluster
NOTICE
■To prevent damage to the engine and its components
●Do not let the indicator needle of the tachometer enter the red zone, which indicates
the maximum engine speed.
●The engine may be overheating if the engine coolant temperature gauge is in the red
zone (H). In this case, immediately stop the vehicle in a safe place, and check the
engine after it has cooled completely. (→ P. 509)

92
GS350_300_GS F_OM_OM30G34U_(U)2. Instrument cluster

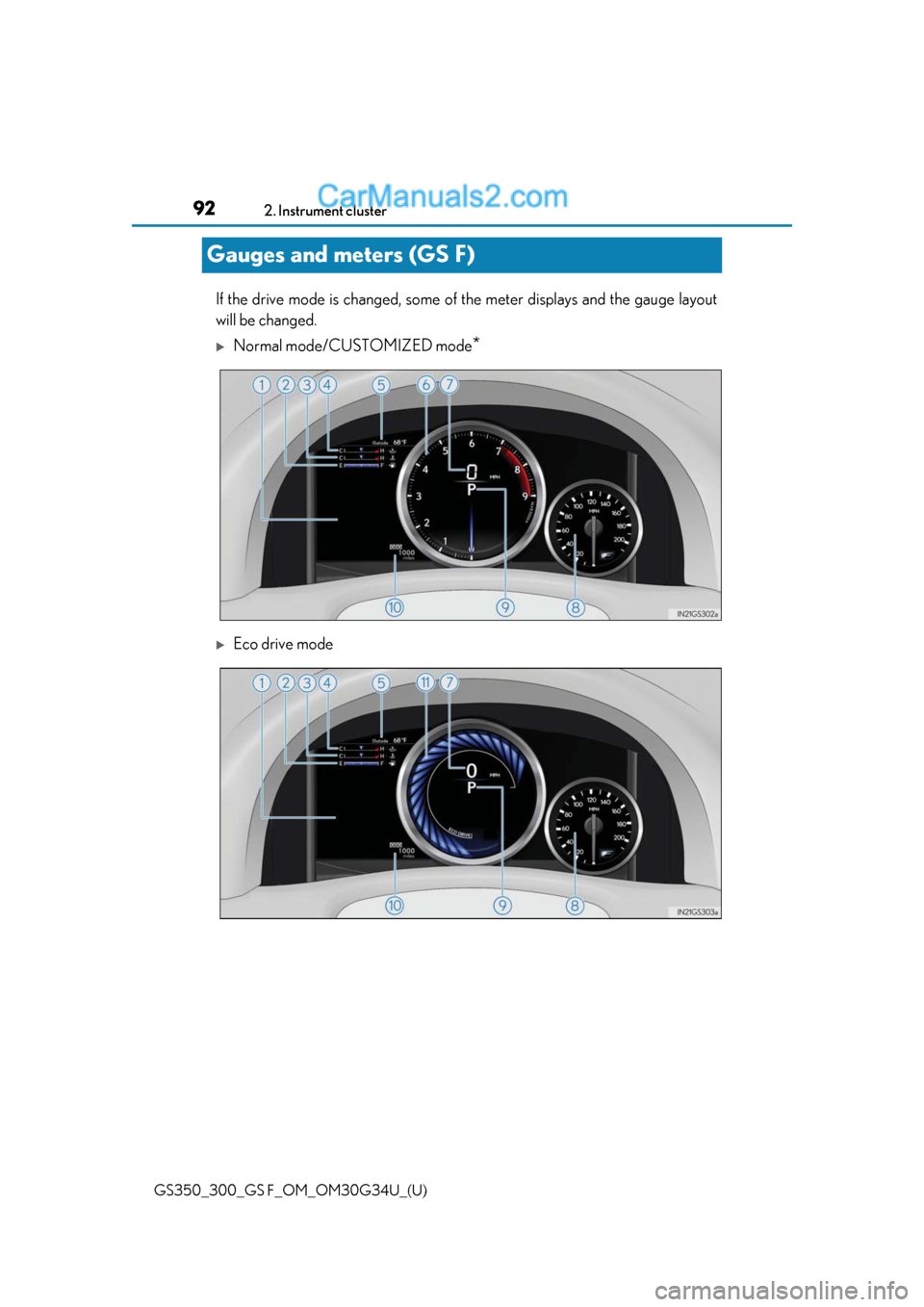

Gauges and meters (GS F)
If the drive mode is changed, some of
the meter displays and the gauge layout
will be changed.
Normal mode/CUSTOMIZED mode*
Eco drive mode

GS350_300_GS F_OM_OM30G34U_(U)

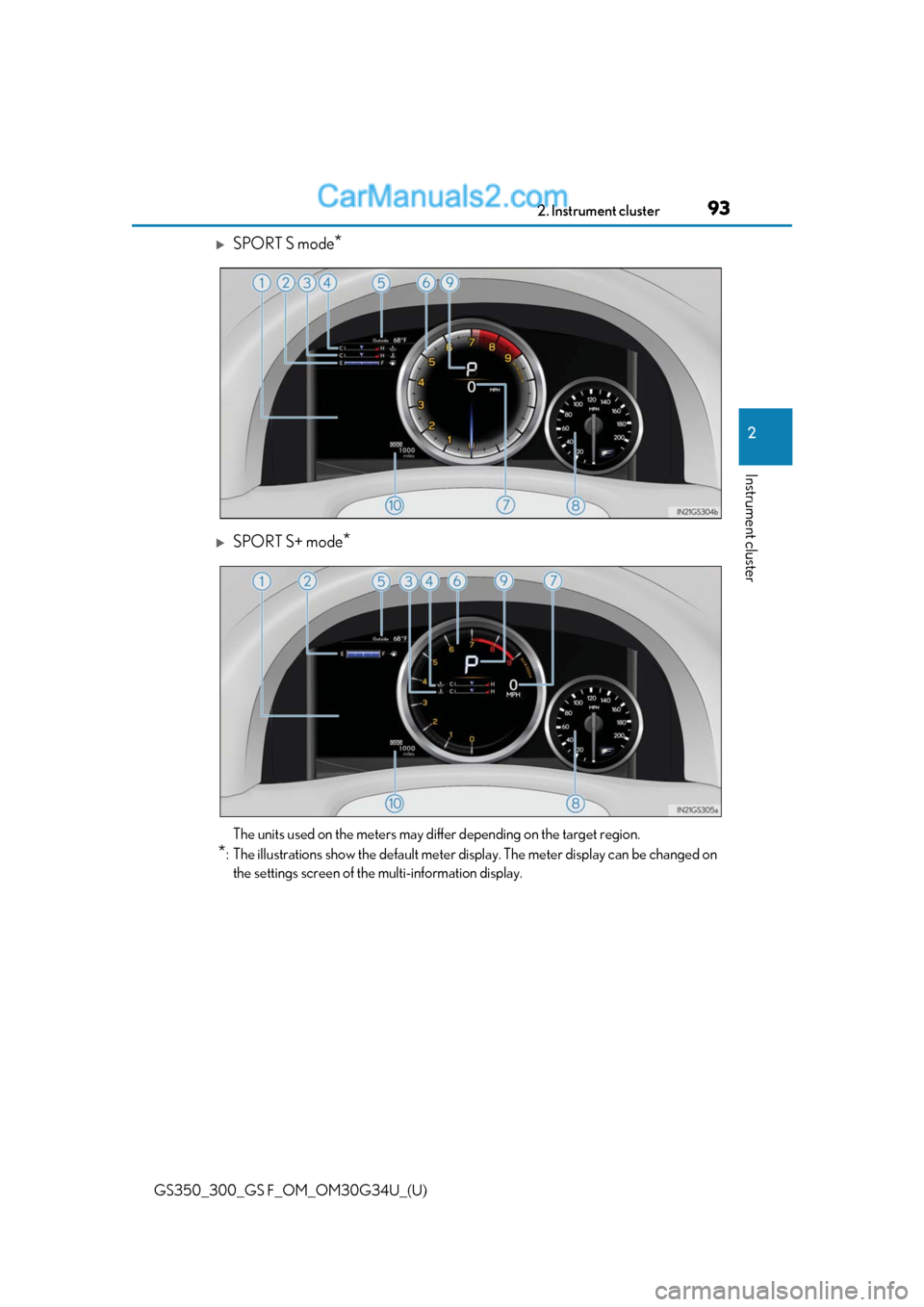

932. Instrument cluster
2
Instrument cluster
SPORT S mode*
SPORT S+ mode*
The units used on the meters may differ depending on the target region.
*: The illustrations show the default meter display. The meter display can be changed on
the settings screen of th e multi-information display.

94
GS350_300_GS F_OM_OM30G34U_(U)2. Instrument cluster
Multi-information display
Presents the driver with a variety of vehicle data (
→P. 108)
Displays warning me ssages in case of a malfunction ( →P. 441)
Fuel gauge
Engine coolant temperature gauge
Displays the engine coolant temperature. If the engine coolant temperature gauge
indicator ( ) enters the red zone, a buzzer will sound and the indicator will turn red
and start flashing. Also, a warning message will be displayed.
Engine oil temperature gauge
Displays the engine oil temperature. If the engine oil temperature gauge indicator
( ) enters the red zone, the indicator will turn red and start flashing.
Outside temperature
Displays the outside temperature within the range of -40°F (-40°C) to 122°F
(50°C). Low outside temperature indicator comes on when the ambient temperature
is 37°F (3°C) or lower.
Tachometer
Displays the engine speed in revolutions per minute
Digital speedometer
Analog speedometer
Shift position and gear position
Displays the selected shift posi tion or selected shift range (→P. 202)
Odometer and trip meter display
Odometer:
Displays the total distance the vehicle has been driven
Trip meter:
Displays the distance the vehi cle has been driven since the meter was last reset. Trip
meters “A” and “B” can be used to record and display different distances inde-
pendently.
Eco driving meter
Displays the vehicle acceleration. The more rapidly the vehicle is accelerated, the
lower the number of blue segments displayed, indicating that your driving is less eco-
friendly. This meter is designed as a guideline to show the eco-friendliness of your
driving.
1
2
3
4
5
6
7
8
9
10
11

GS350_300_GS F_OM_OM30G34U_(U)

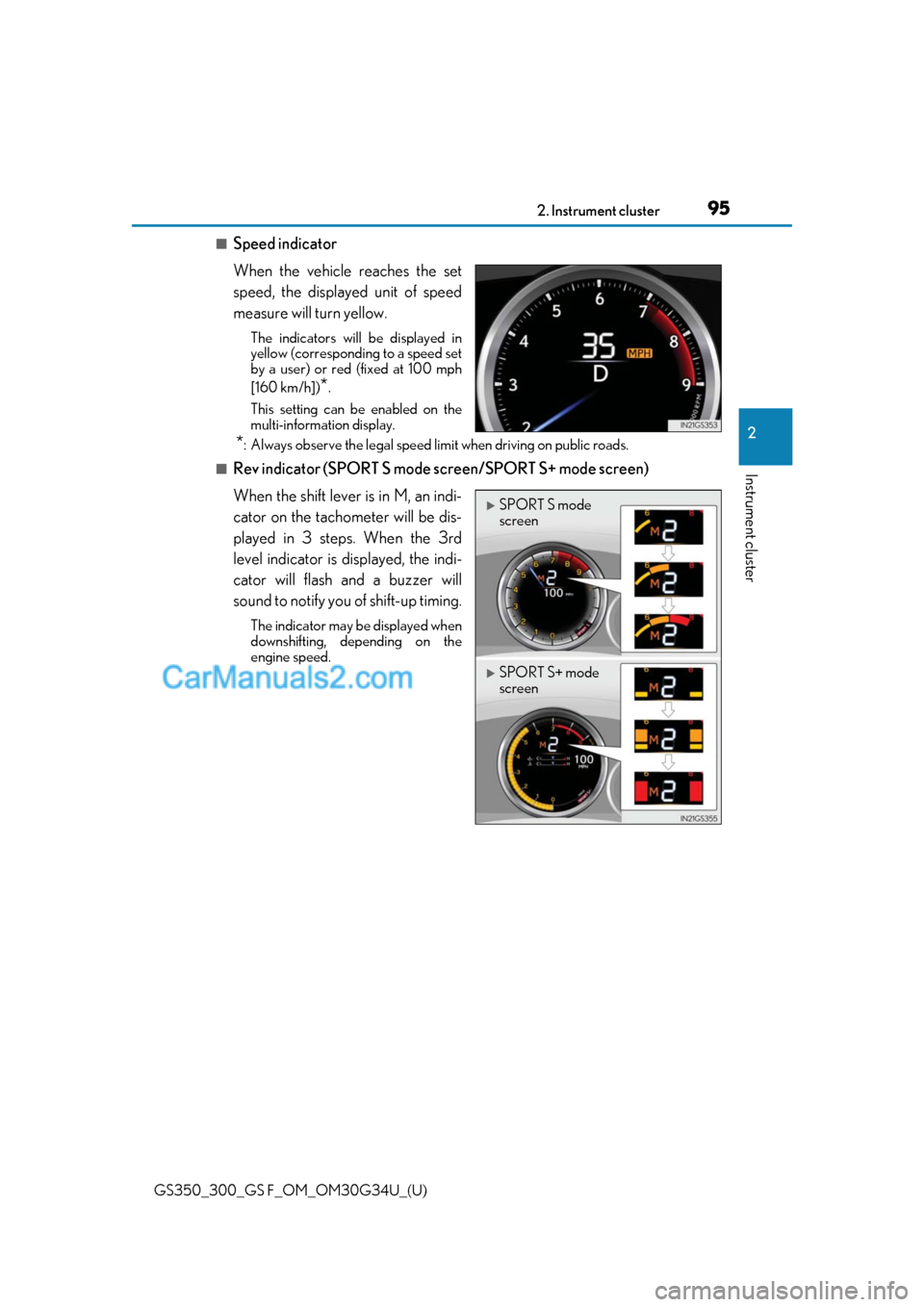

952. Instrument cluster
2
Instrument cluster
■Speed indicator
When the vehicle reaches the set
speed, the displayed unit of speed
measure will turn yellow.
The indicators will be displayed in
yellow (corresponding to a speed set
by a user) or red (fixed at 100 mph
[160 km/h])
*.
This setting can be enabled on the
multi-information display.
*: Always observe the legal speed limi t when driving on public roads.
■Rev indicator (SPORT S mode screen/SPORT S+ mode screen)
When the shift lever is in M, an indi-
cator on the tachometer will be dis-
played in 3 steps. When the 3rd
level indicator is displayed, the indi-
cator will flash and a buzzer will
sound to notify you of shift-up timing.
The indicator may be displayed when
downshifting, depending on the
engine speed.
SPORT S mode
screen
SPORT S+ mode
screen

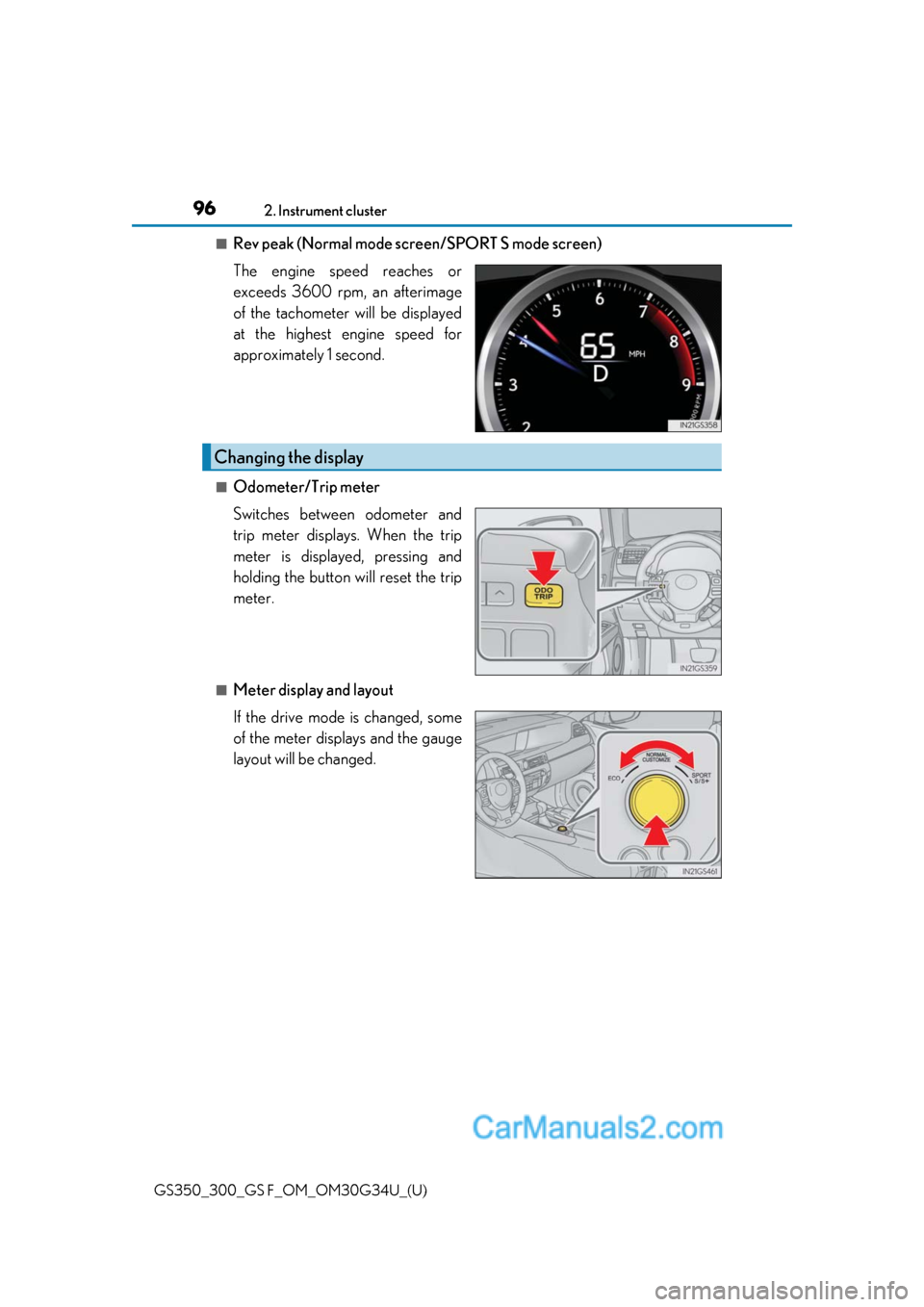

96
GS350_300_GS F_OM_OM30G34U_(U)2. Instrument cluster
■Rev peak (Normal mode scr
een/SPORT S mode screen)
The engine speed reaches or
exceeds 3600 rpm, an afterimage
of the tachometer will be displayed
at the highest engine speed for
approximately 1 second.
■Odometer/Trip meter
Switches between odometer and
trip meter displays. When the trip
meter is displayed, pressing and
holding the button will reset the trip
meter.
■Meter display and layout
If the drive mode is changed, some
of the meter displays and the gauge
layout will be changed.
Changing the display

GS350_300_GS F_OM_OM30G34U_(U)

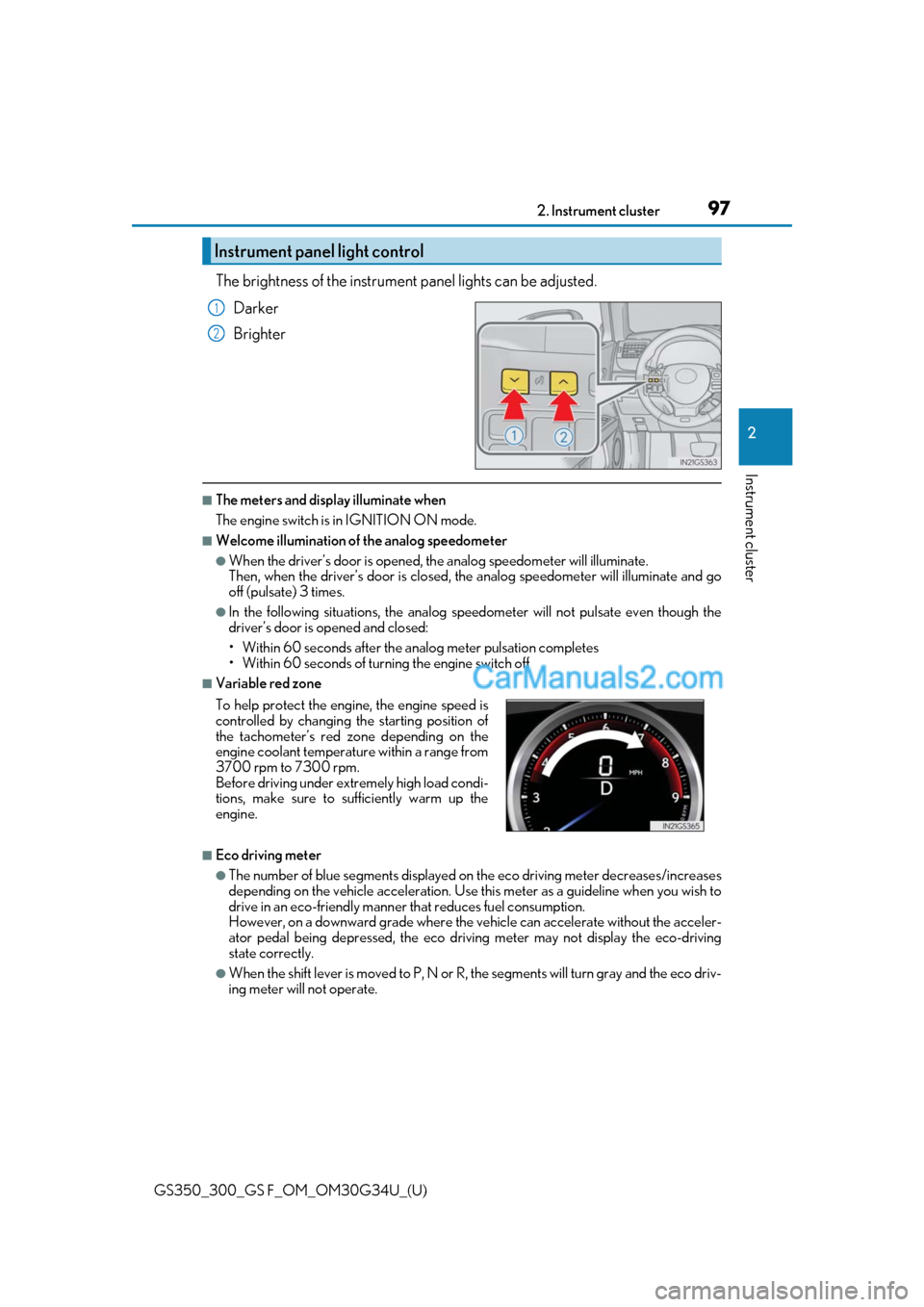

972. Instrument cluster
2
Instrument cluster
The brightness of the instrument panel lights can be adjusted.
Darker
Brighter
■The meters and display illuminate when
The engine switch is in IGNITION ON mode.
■Welcome illumination of the analog speedometer
●When the driver’s door is opened, the analog speedometer will illuminate.
Then, when the driver’s door is closed, the analog speedometer will illuminate and go
off (pulsate) 3 times.
●In the following situations, the analog sp eedometer will not pulsate even though the
driver’s door is opened and closed:
• Within 60 seconds after the an alog meter pulsation completes
• Within 60 seconds of turning the engine switch off
■Variable red zone
■Eco driving meter
●The number of blue segments displayed on the eco driving meter decreases/increases
depending on the vehicle acceleration. Use this meter as a guideline when you wish to
drive in an eco-friendly manner that reduces fuel consumption.
However, on a downward grade where the ve hicle can accelerate without the acceler-
ator pedal being depressed, the eco driv ing meter may not display the eco-driving
state correctly.
●When the shift lever is moved to P, N or R, the segments will turn gray and the eco driv-
ing meter will not operate.
Instrument panel light control
1
2
To help protect the engine, the engine speed is
controlled by changing the starting position of
the tachometer’s red zone depending on the
engine coolant temperature within a range from
3700 rpm to 7300 rpm.
Before driving under extremely high load condi-
tions, make sure to su fficiently warm up the
engine.

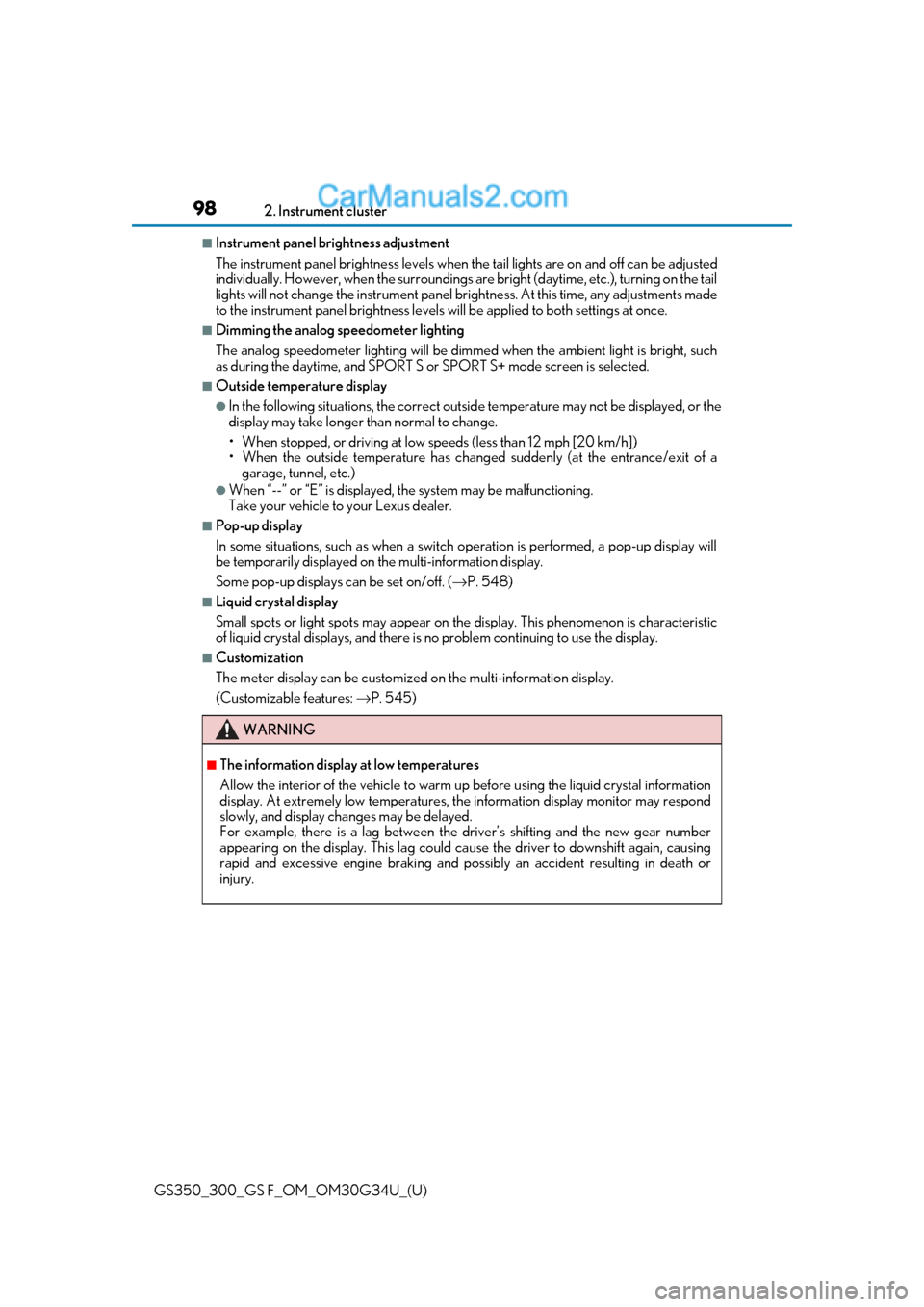

98
GS350_300_GS F_OM_OM30G34U_(U)2. Instrument cluster
■Instrument panel brightness adjustment
The instrument panel brightness levels when the tail lights are on and off can be adjusted
individually. However, when the
surroundings are bright (daytime, etc.), turning on the tail
lights will not change the inst rument panel brightness. At th is time, any adjustments made
to the instrument panel brightness levels will be applied to both settings at once.
■Dimming the analog speedometer lighting
The analog speedometer lighting will be dimm ed when the ambient light is bright, such
as during the daytime, and SPORT S or SPORT S+ mode screen is selected.
■Outside temperature display
●In the following situations, the correct outside temperature may not be displayed, or the
display may take longer than normal to change.
• When stopped, or driving at low speeds (less than 12 mph [20 km/h])
• When the outside temperature has changed suddenly (at the entrance/exit of a
garage, tunnel, etc.)
●When “--” or “E” is displayed, the system may be malfunctioning.
Take your vehicle to your Lexus dealer.
■Pop-up display
In some situations, such as when a switch operation is performed, a pop-up display will
be temporarily displayed on the multi-information display.
Some pop-up displays can be set on/off. ( →P. 548)
■Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is characteristic
of liquid crystal displays, and there is no problem continuing to use the display.
■Customization
The meter display can be customized on the multi-information display.
(Customizable features: →P. 545)
WARNING
■The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal information
display. At extremely low temperatures, th e information display monitor may respond
slowly, and display changes may be delayed.
For example, there is a lag between the dr iver’s shifting and the new gear number
appearing on the display. This lag could ca use the driver to downshift again, causing
rapid and excessive engine braking and possibly an accident resulting in death or
injury.

GS350_300_GS F_OM_OM30G34U_(U)
992. Instrument cluster
2
Instrument cluster
NOTICE
■To prevent damage to the engine and its components
●Do not let the indicator of the tachometer enter the red zone, as it represents the
engine speed range which exceeds the maximum safe engine speed.
●In the following situations, th e engine may be overheating. In this case, immediately
stop the vehicle in a safe place, and check the engine after it has cooled completely.
( → P. 509)
• The engine coolant temperature gauge indicator ( ) is in the red zone and flash- ing.
• The engine oil temperature gauge indicator ( ) is in the red zone and flashing.

100
GS350_300_GS F_OM_OM30G34U_(U)2. Instrument cluster
Multi-information display (GS350/GS300)
The multi-information display presents the
driver with a variety of vehicle data.
●Menu icons
Displays the following informatio n when an icon is selected. (→P. 102)
Some of the information may be displayed automatically depending on the situa-
tion.
Drive information
Select to display various drive data. ( →P. 102)
Navigation system-linked display (if equipped)
Select to display the following na vigation system-linked information.
•Route guidance
• Compass display (north-up display/heading-up display)
Audio system-linked display
Select to enable selection of an audio source or track on the meter using the
meter control switches.
Driving assist system information
Select to display the cruise control or dynamic radar cruise control with full-
speed range/LKA (Lane-Keeping Assist) (if equipped) information, when the
system is used. ( →P. 249, 258, 270)
Warning message display
Select to display warning messages and measures to be taken if a malfunction is
detected. ( →P. 441)
Display contents
Except F SPORT modelsF SPORT models
