Lexus GS350 2018 Owner's Manual

509
GS350_300_GS F_OM_OM30G34U_(U)
7
When trouble arises
7-2. Steps to take in an emergency

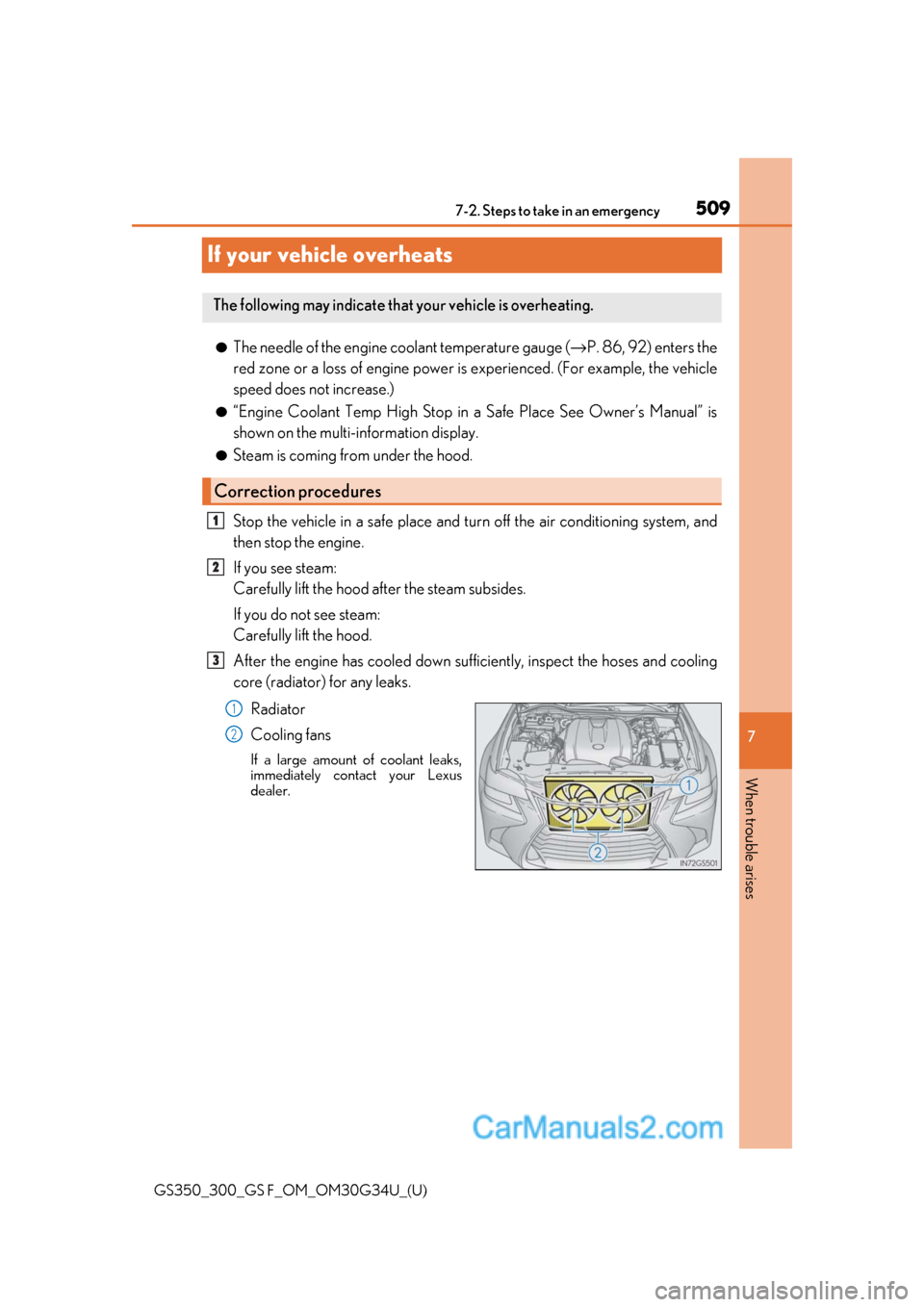

If your vehicle overheats
●The needle of the engine coolant temperature gauge (→P. 86, 92) enters the
red zone or a loss of engine power is experienced. (For example, the vehicle
speed does not increase.)
●“Engine Coolant Temp High Stop in a Safe Place See Owner’s Manual” is
shown on the multi-information display.
●Steam is coming from under the hood.
Stop the vehicle in a safe place and tu rn off the air conditioning system, and
then stop the engine.
If you see steam:
Carefully lift the hood after the steam subsides.
If you do not see steam:
Carefully lift the hood.
After the engine has cooled down sufficiently, inspect the hoses and cooling
core (radiator) for any leaks.
Radiator
Cooling fans
If a large amount of coolant leaks,
immediately contact your Lexus
dealer.
The following may indicate that your vehicle is overheating.
Correction procedures
1
2
3
1
2

5107-2. Steps to take in an emergency
GS350_300_GS F_OM_OM30G34U_(U)

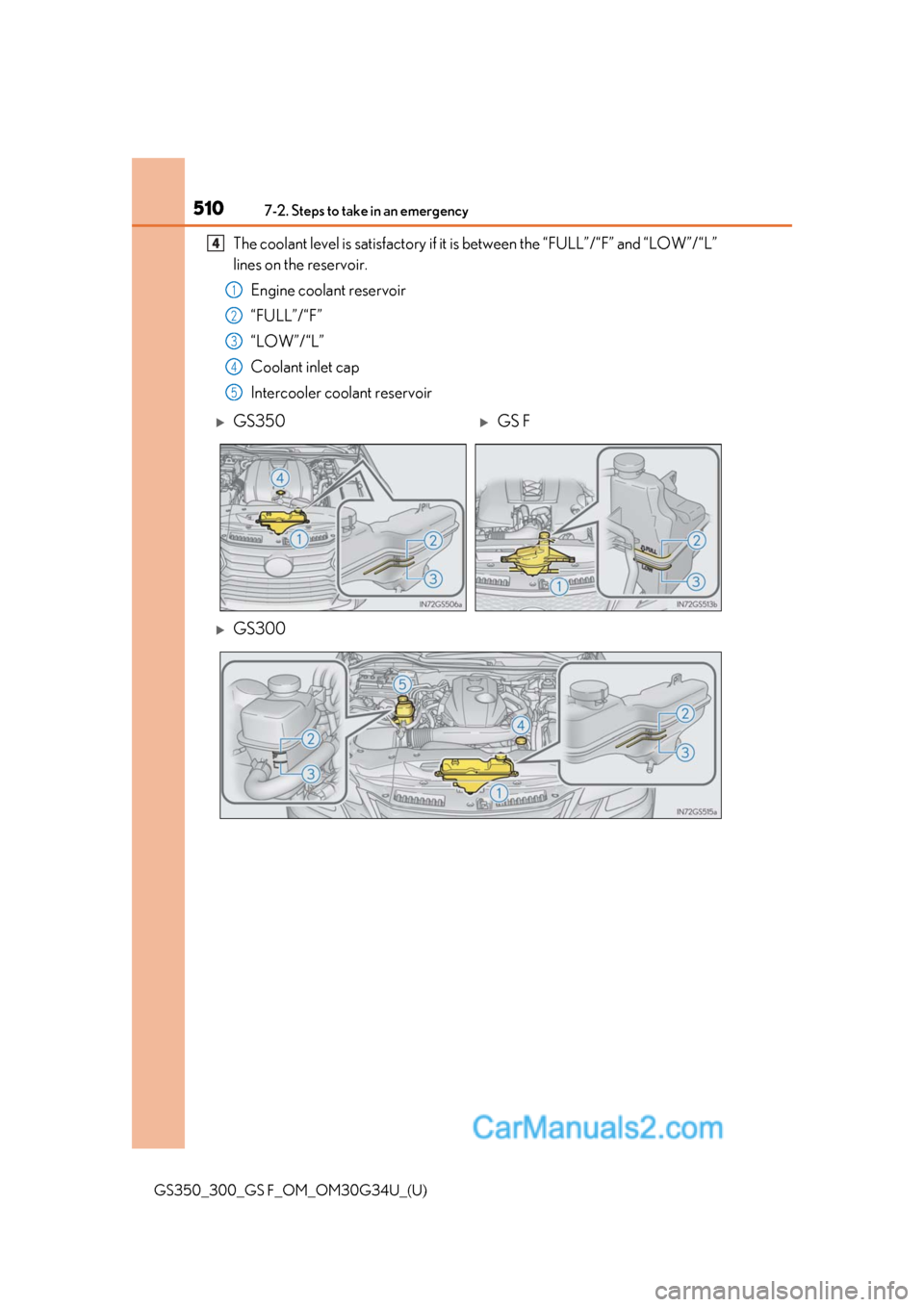

The coolant level is satisfactory if it is between the “FULL”/“F” and “LOW”/“L”
lines on the reservoir.
Engine coolant reservoir
“FULL”/“F”
“LOW”/“L”
Coolant inlet cap
Intercooler coolant reservoir4
1
2
3
4
5
GS350GS F
GS300

5117-2. Steps to take in an emergency
GS350_300_GS F_OM_OM30G34U_(U)
7
When trouble arises
Add coolant if necessary.
Water can be used in an emerge ncy if coolant is unavailable.
Start the engine and turn the air conditio ning system on to check that the radi-
ator cooling fans operate and to check for coolant leaks from the radiator or
hoses.
The fans operate when the air conditioning system is turned on immediately after a
cold start. Confirm that the fans are operating by checking the fan sound and air flow.
If it is difficult to check these, turn the air conditioning system on and off repeatedly.
(The fans may not operate in freezing temperatures.)
If the fans are not operating:
Stop the engine immediately an d contact your Lexus dealer.
If the fans are operating:
Have the vehicle inspected at the nearest Lexus dealer.
5
GS350GS F
GS300
6
7

5127-2. Steps to take in an emergency
GS350_300_GS F_OM_OM30G34U_(U)

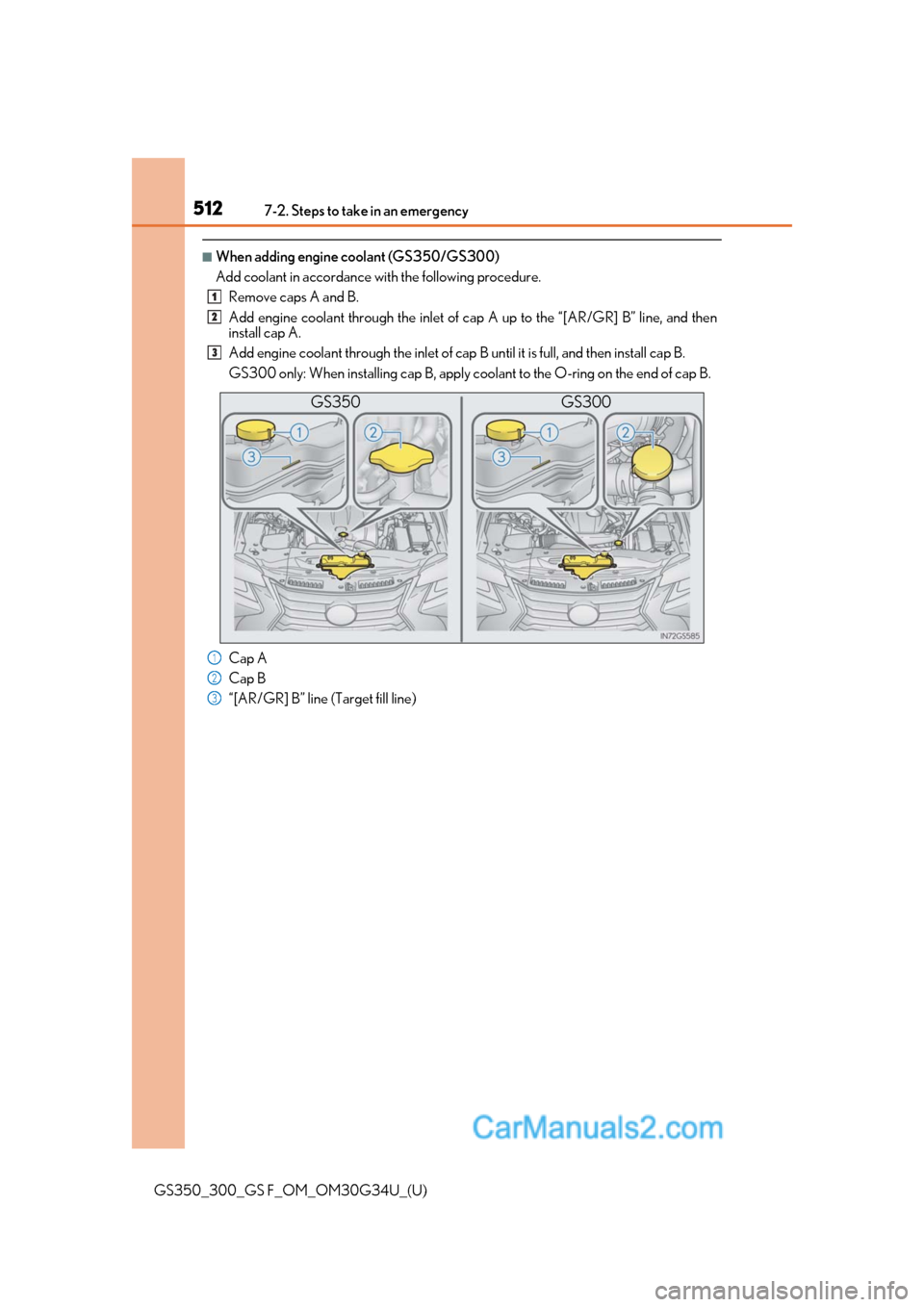

■When adding engine coolant (GS350/GS300)
Add coolant in accordance with the following procedure. Remove caps A and B.
Add engine coolant through the inlet of cap A up to the “[AR/GR] B” line, and then
install cap A.
Add engine coolant through the inlet of cap B until it is full, and then install cap B.
GS300 only: When inst alling cap B, apply coolant to the O-ring on the end of cap B.
Cap A
Cap B
“[AR/GR] B” line (Target fill line)
1
2
3
GS350 GS300
1
2
3

5137-2. Steps to take in an emergency
GS350_300_GS F_OM_OM30G34U_(U)
7
When trouble arises

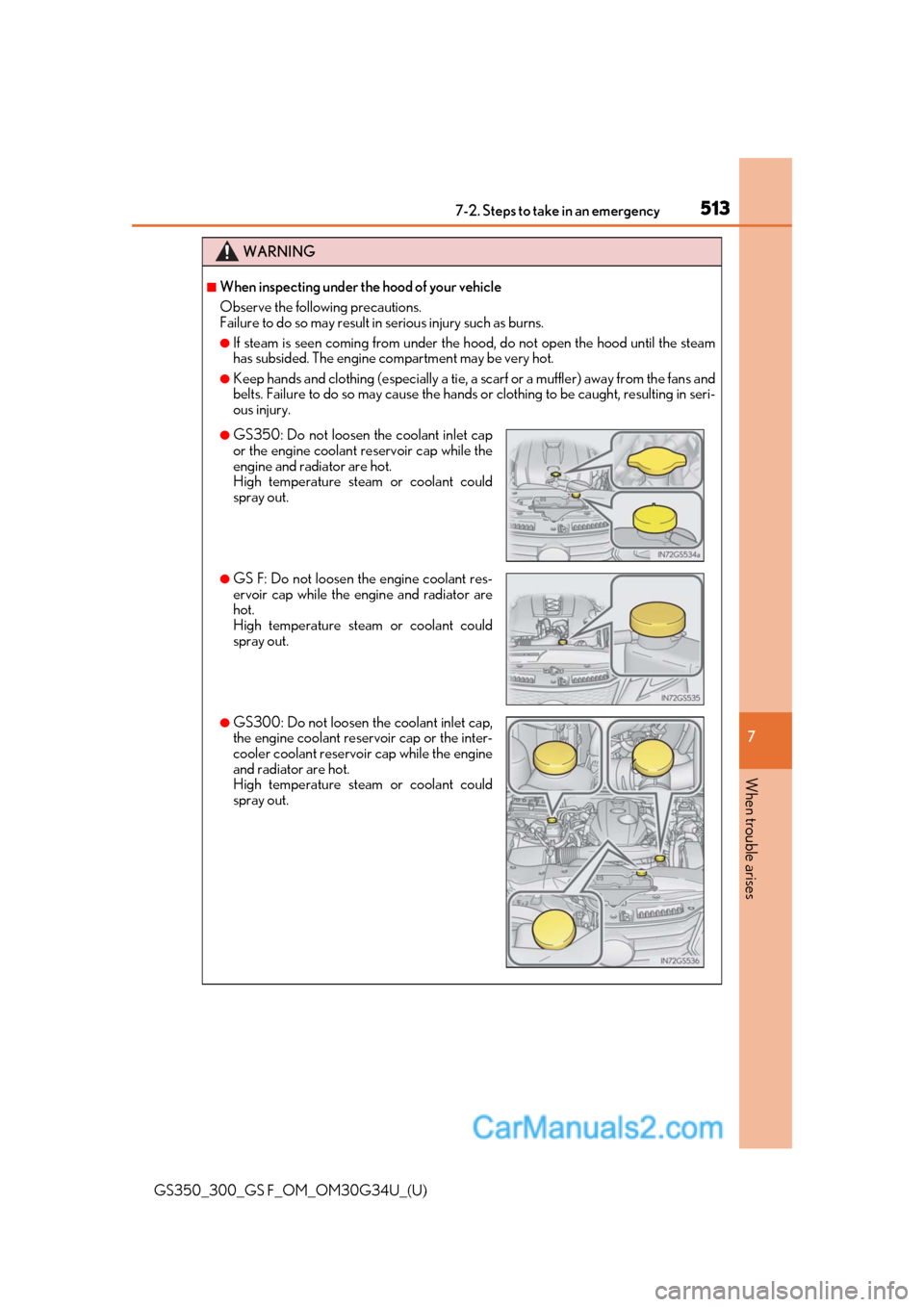

WARNING
■When inspecting under the hood of your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
●If steam is seen coming from under the h ood, do not open the hood until the steam
has subsided. The engine compartment may be very hot.
●Keep hands and clothing (especially a tie, a scarf or a muffler) away from the fans and
belts. Failure to do so may cause the hands or clothing to be caught, resulting in seri-
ous injury.
●GS350: Do not loosen the coolant inlet cap
or the engine coolant reservoir cap while the
engine and radiator are hot.
High temperature steam or coolant could
spray out.
●GS F: Do not loosen the engine coolant res-
ervoir cap while the engine and radiator are
hot.
High temperature steam or coolant could
spray out.
●GS300: Do not loosen the coolant inlet cap,
the engine coolant rese rvoir cap or the inter-
cooler coolant reservoir cap while the engine
and radiator are hot.
High temperature steam or coolant could
spray out.

5147-2. Steps to take in an emergency
GS350_300_GS F_OM_OM30G34U_(U)

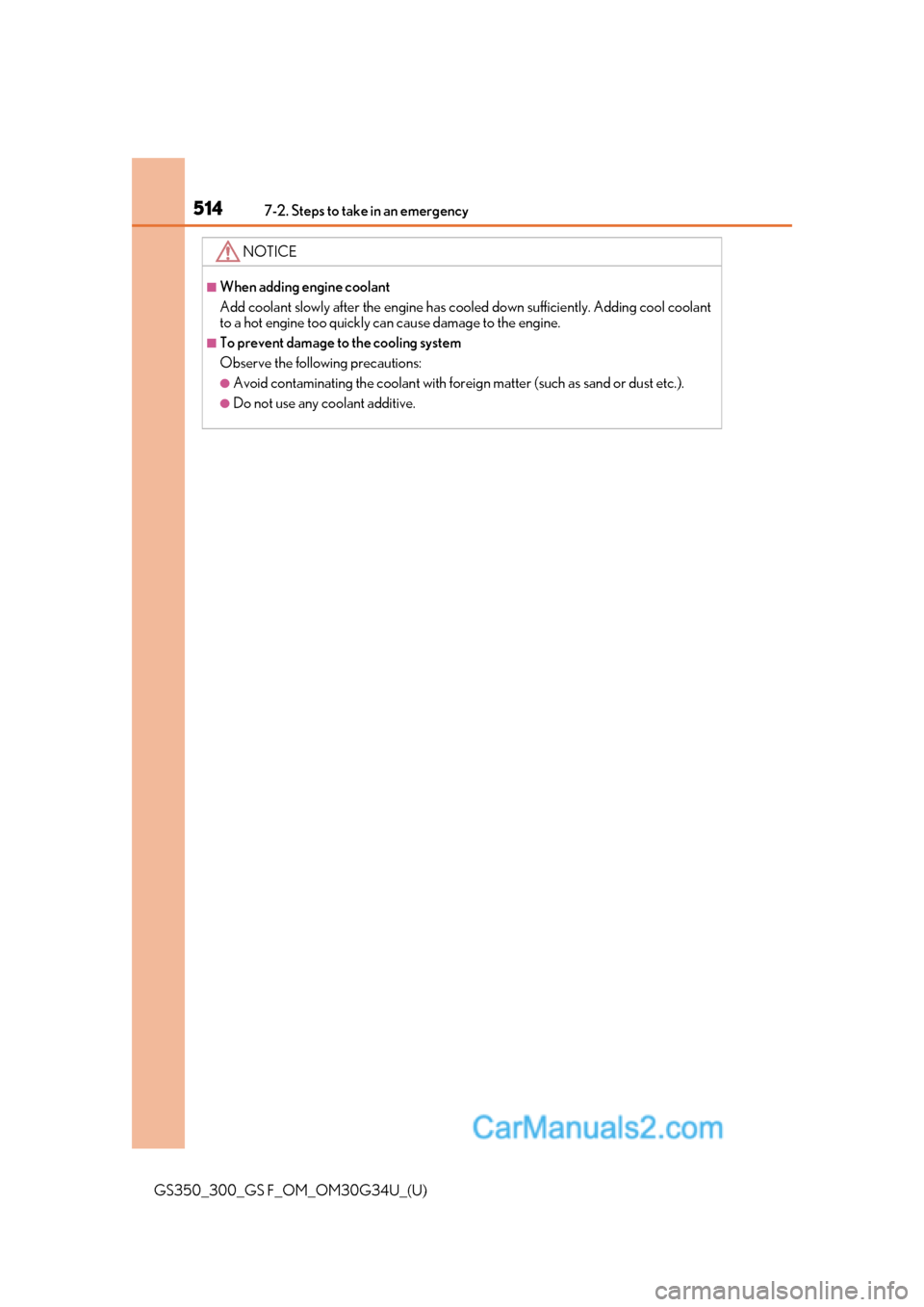

NOTICE
■When adding engine coolant
Add coolant slowly after the engine has cooled down sufficiently. Adding cool coolant
to a hot engine too quickly can cause damage to the engine.
■To prevent damage to the cooling system
Observe the following precautions:
●Avoid contaminating the coolant with foreig n matter (such as sand or dust etc.).
●Do not use any coolant additive.

515
GS350_300_GS F_OM_OM30G34U_(U)
7
When trouble arises
7-2. Steps to take in an emergency
If the vehicle becomes stuck
Stop the engine. Set the parking brake and shift the shift lever to P.
Remove the mud, snow or sand from around the rear wheels.
Place wood, stones or some other materi al under the rear wheels to help pro-
vide traction.
Restart the engine.
Shift the shift lever to D or R and rele ase the parking brake. Then, while exer-
cising caution, depress the accelerator pedal.
■When it is difficult to free the vehicle
Carry out the following procedures if the tires spin or the vehicle becomes
stuck in mud, dirt or snow:
Press to turn off TRAC. ( →P. 290)GS350/GS300
1
2
3
4
5

5167-2. Steps to take in an emergency
GS350_300_GS F_OM_OM30G34U_(U)

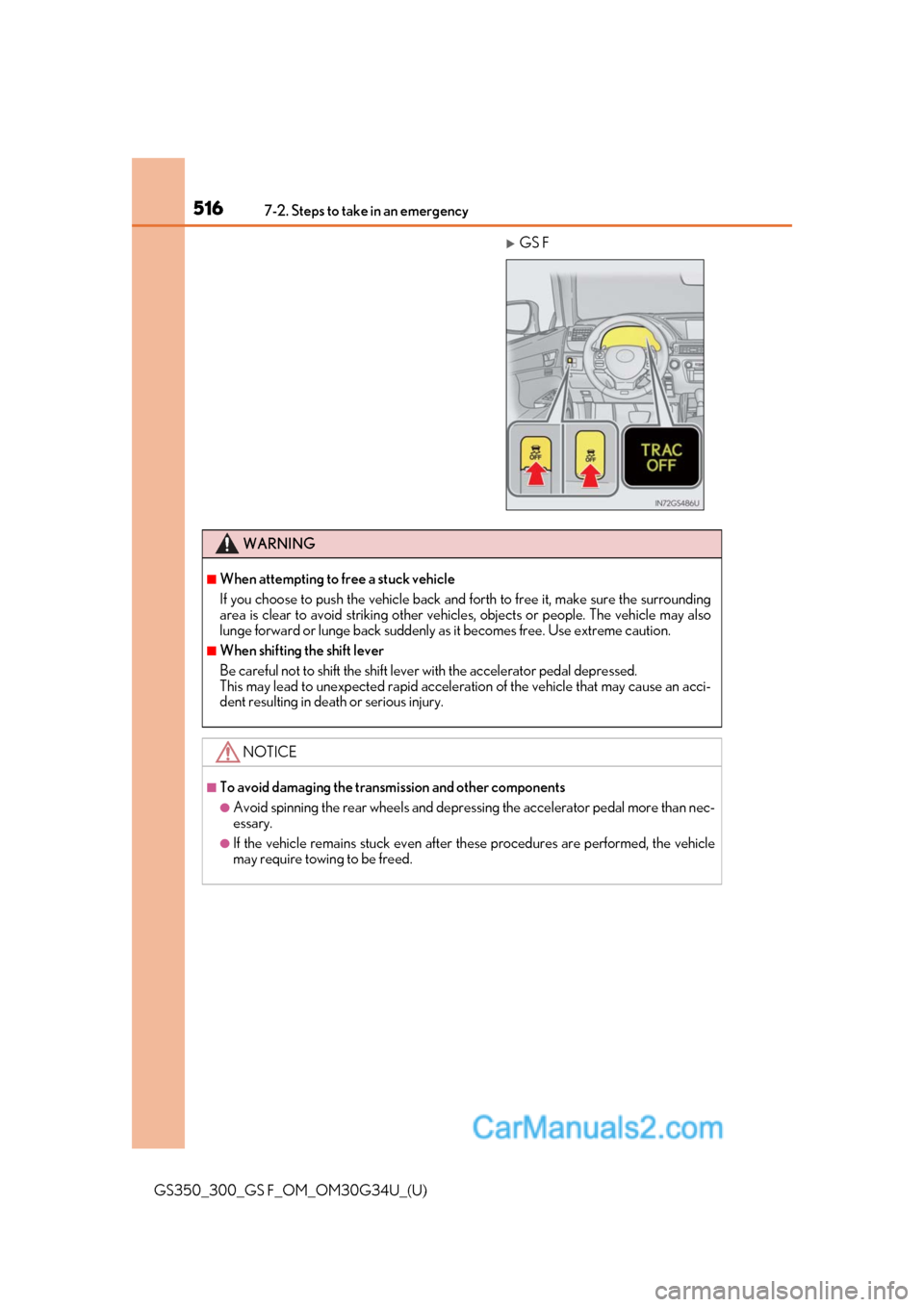

GS F
WARNING
■When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the surrounding
area is clear to avoid striking other vehicles, objects or people. The vehicle may also
lunge forward or lunge back suddenly as it becomes free. Use extreme caution.
■When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may cause an acci-
dent resulting in deat h or serious injury.
NOTICE
■To avoid damaging the transmission and other components
●Avoid spinning the rear wheels and depressing the accelerator pedal more than nec-
essary.
●If the vehicle remains stuck even after th ese procedures are performed, the vehicle
may require towing to be freed.

517
GS350_300_GS F_OM_OM30G34U_(U)

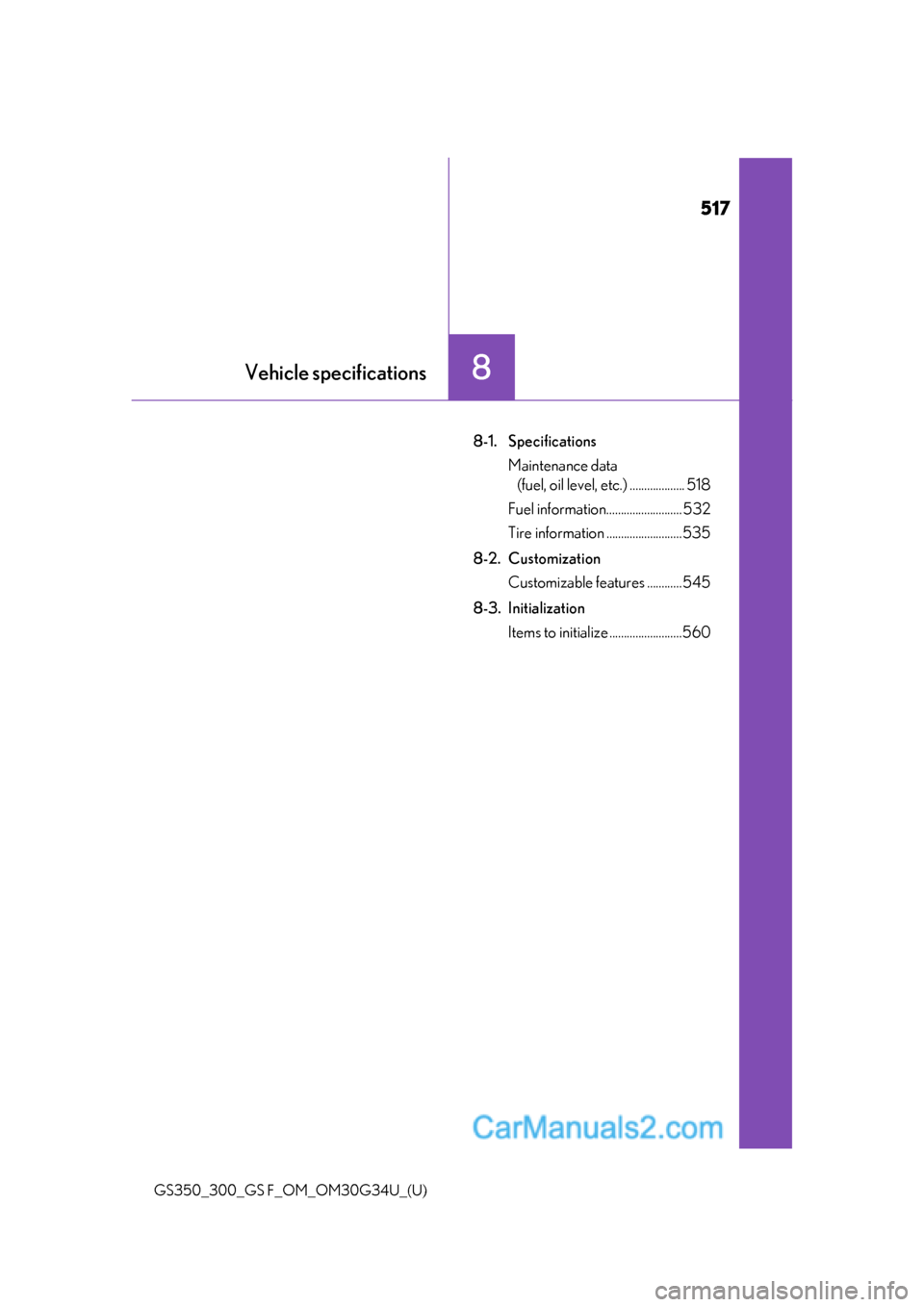

8Vehicle specifications
8-1. SpecificationsMaintenance data (fuel, oil level, etc.) ................... 518
Fuel information.......................... 532
Tire information ..........................535
8-2. Customization Customizable features ............545
8-3. Initialization Items to initialize .........................560

518

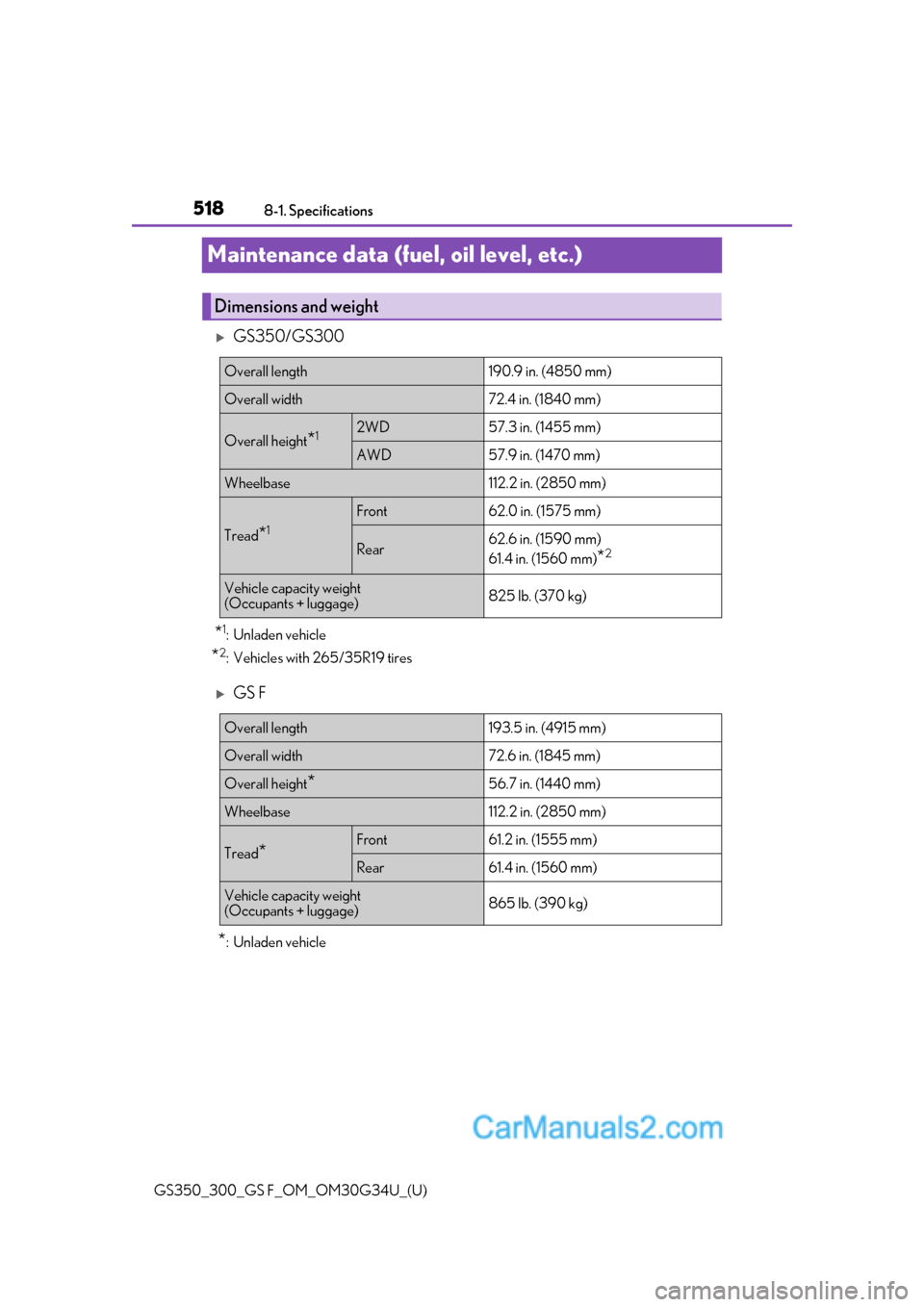

GS350_300_GS F_OM_OM30G34U_(U)8-1. Specifications
Maintenance data (fuel, oil level, etc.)
GS350/GS300
*1:Unladen vehicle
*2: Vehicles with 265/35R19 tires
GS F
*:Unladen vehicle
Dimensions and weight
Overall length190.9 in. (4850 mm)
Overall width72.4 in. (1840 mm)
Overall height*12WD57.3 in. (1455 mm)
AWD57.9 in. (1470 mm)
Wheelbase112.2 in. (2850 mm)
Tread*1
Front62.0 in. (1575 mm)
Rear62.6 in. (1590 mm)
61.4 in. (1560 mm)
*2
Vehicle capacity weight
(Occupants + luggage)825 lb. (370 kg)
Overall length193.5 in. (4915 mm)
Overall width72.6 in. (1845 mm)
Overall height*56.7 in. (1440 mm)
Wheelbase112.2 in. (2850 mm)
Tread*Front61.2 in. (1555 mm)
Rear61.4 in. (1560 mm)
Vehicle capacity weight
(Occupants + luggage)865 lb. (390 kg)
