length Lexus GS350 2019 Owner's Manual

GS350_300_OM_OM30G96U_(U)
1192. Instrument cluster
2
Instrument cluster
■Torque distribution
Displays the distribution of driving torque between the left and right rear
wheels
●Reading the display• Normal display Displays the amount of drive
torque applied to the left and
right rear wheels through bars
that fluctuate in length on the
multi-information display
• Advanced display Displays the difference in
torque applied to the left and
right rear wheels through dis-
played segments on the main
meter in addition to the bar
display.
The greater the number of
segments displayed, the
greater the difference in
torque is.
●Switching the display
To switch to advanced display, press .
To return to normal display, press .
●Peak hold function (advanced display only)
If the difference in torque of 4
segments or more is applied to
the left or right rear wheel, a yel-
low outline will be displayed for
the highest segment that was
reached, for a certain amount of
time.
Multi-information display
Main meter

164
GS350_300_OM_OM30G96U_(U)3-3. Adjusting the seats
Front seats
GS350/GS300
GS F
Adjustment procedure
Seat position adjustment switch
Seatback angle adjustment switch
Seat cushion (front) angle adjust-
ment switch
Vertical height adjustment switch
Seatback upper angle adjustment
switch (if equipped)
Lumbar support adjustment switch
(if equipped)
Pelvic support adjustment switch (if
equipped)
Seat cushion length adjustment
switch (if equipped)
Seatback side support adjustment
switch (if equipped)1
2
3
4
5
6
7
8
9

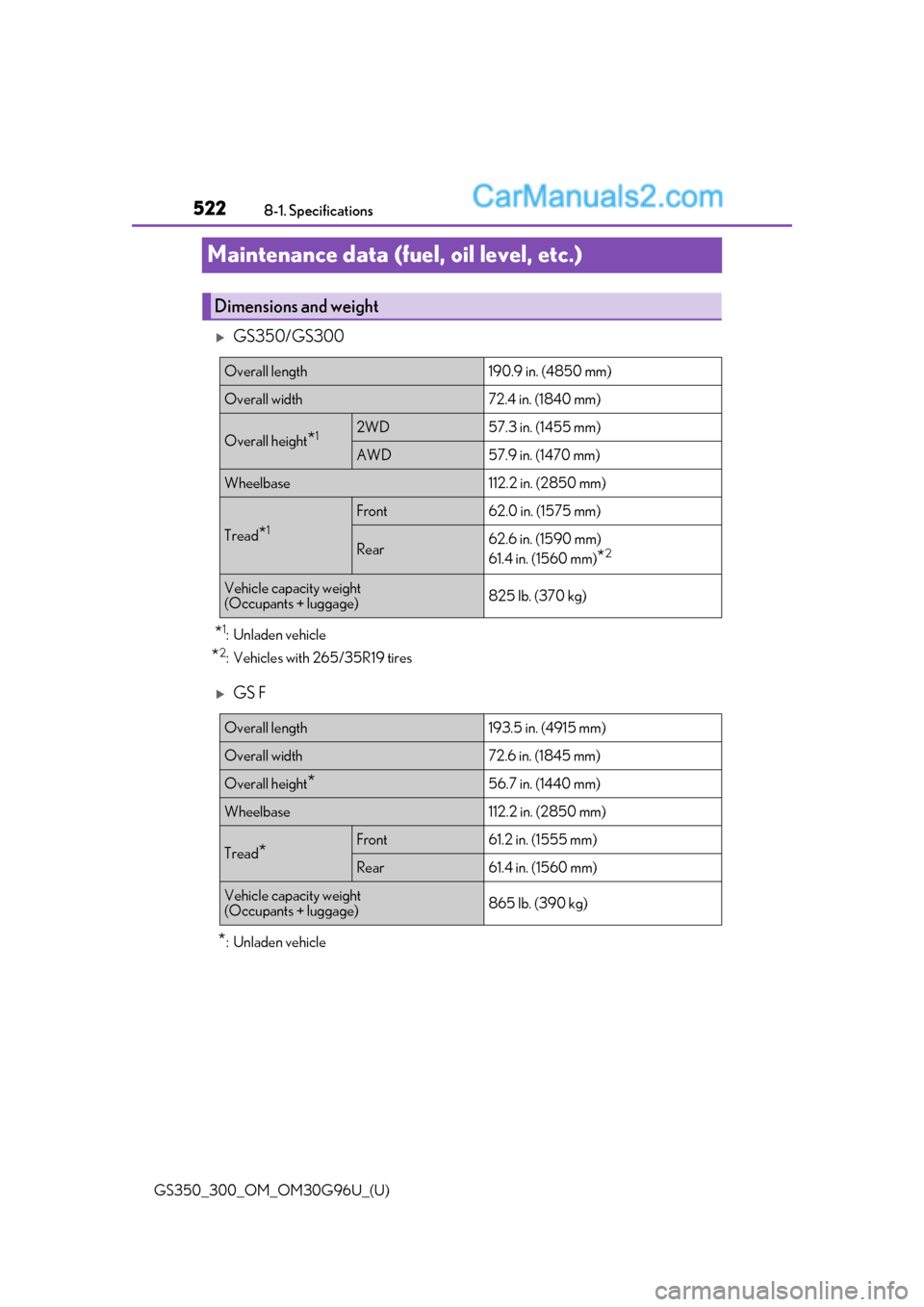

522
GS350_300_OM_OM30G96U_(U)8-1. Specifications
Maintenance data (fuel, oil level, etc.)
GS350/GS300
*1:Unladen vehicle
*2: Vehicles with 265/35R19 tires
GS F
*:Unladen vehicle
Dimensions and weight
Overall length190.9 in. (4850 mm)
Overall width72.4 in. (1840 mm)
Overall height*12WD57.3 in. (1455 mm)
AWD57.9 in. (1470 mm)
Wheelbase112.2 in. (2850 mm)
Tread*1
Front62.0 in. (1575 mm)
Rear62.6 in. (1590 mm)
61.4 in. (1560 mm)
*2
Vehicle capacity weight
(Occupants + luggage)825 lb. (370 kg)
Overall length193.5 in. (4915 mm)
Overall width72.6 in. (1845 mm)
Overall height*56.7 in. (1440 mm)
Wheelbase112.2 in. (2850 mm)
Tread*Front61.2 in. (1555 mm)
Rear61.4 in. (1560 mm)
Vehicle capacity weight
(Occupants + luggage)865 lb. (390 kg)
