4977-2. Steps to take in an emergency
GS350_GS F_OM_OM30J07U_(U)
7
When trouble arises
WARNING
■Driving to spread the liquid sealant evenly
●Drive the vehicle carefully at a low speed. Be especially careful when turning and cor-
nering.
●If the vehicle does not drive straight or you feel a pull through the steering wheel, stop
the vehicle and check the following:
• Tire condition. The tire may have separated from the wheel.
• Tire inflation pressure. If tire inflation pressure is 19 psi (130 kPa, 1.3 kgf/cm
2 or
bar) or less, the tire may be severely damaged.
NOTICE
■When performing an emergency repair
●Perform the emergency repair without removi ng the nail or screw that has punctured
the tread of the tire. If the object that has punctured the tire is removed, repair by the
emergency tire puncture repair kit may not be possible.
●The repair kit is not waterproof. Make sure that the repair kit is not exposed to water,
such as when it is be ing used in the rain.
●Do not put the repair kit directly onto dusty ground such as sand at the side of the
road. If the repair kit vacuums up dust etc., a malfunction may occur.
■Handling the emergency tire puncture repair kit
●The repair kit power source should be 12 V DC suitable for vehicle use. Do not con-
nect the repair kit to any other source.
●If gasoline splatters on the repair kit, the repair kit may deteriorate. Take care not to
allow gasoline to contact it.
●Store the emergency tire puncture repair kit in the trunk.
The kit may be thrown around during sudden braking and so forth, damaging the kit.
●Store the repair kit in the tr unk out of reach of children.
●Do not disassemble or modify the repair kit. Do not subject parts such as the air pres-
sure indicator to impacts. This may cause a malfunction.
■To avoid damage to the tire pressu re warning valves and transmitters
When a tire is repaired with liquid sealants, the tire pressure warning valve and trans-
mitter may not operate properly. If a liquid sealant is used, contact your Lexus dealer or
other qualified service shop as soon as possi ble. Make sure to replace the tire pressure
warning valve and transmitter when replacing the tire. ( P. 395)

528
GS350_GS F_OM_OM30J07U_(U)8-1. Specifications
GS F
*: If equipped
Tire size255/35ZR19 (92Y) (front), 275/35ZR19 (96Y) (rear),
225/40ZR19 (93Y) XL (spare)
*
Tire inflation pressure
(Recommended
cold tire inflation
pressure)
Vehicle speed
Front tire
psi (kPa, kgf/cm2
or bar)
Rear tire
psi (kPa, kgf/cm2
or bar)
More than 137 mph
(220 km/h)44 (300, 3.0)44 (300, 3.0)
137 mph (220 km/h)
or less36 (250, 2.5)36 (250, 2.5)
Tire inflation pressure
(spare)
(Recommended
cold tire inflation
pressure)
42 psi (290kPa, 2.9kgf/cm2 or bar)
Wheel size19  9J (255/35ZR19), 19  10J (275/35ZR19),
19  8 1/2J (225/40ZR19)
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)
Light bulbs
Light bulbsBulb No.WType
ExteriorFront turn signal lights*7444NA28A
Outer foot lightsW5W5B
InteriorVanity lights8B
Trunk light3.8B
A: Wedge base bulbs (amber)
B: Wedge base bulbs (clear)
*: Vehicles with single-beam headlights

600

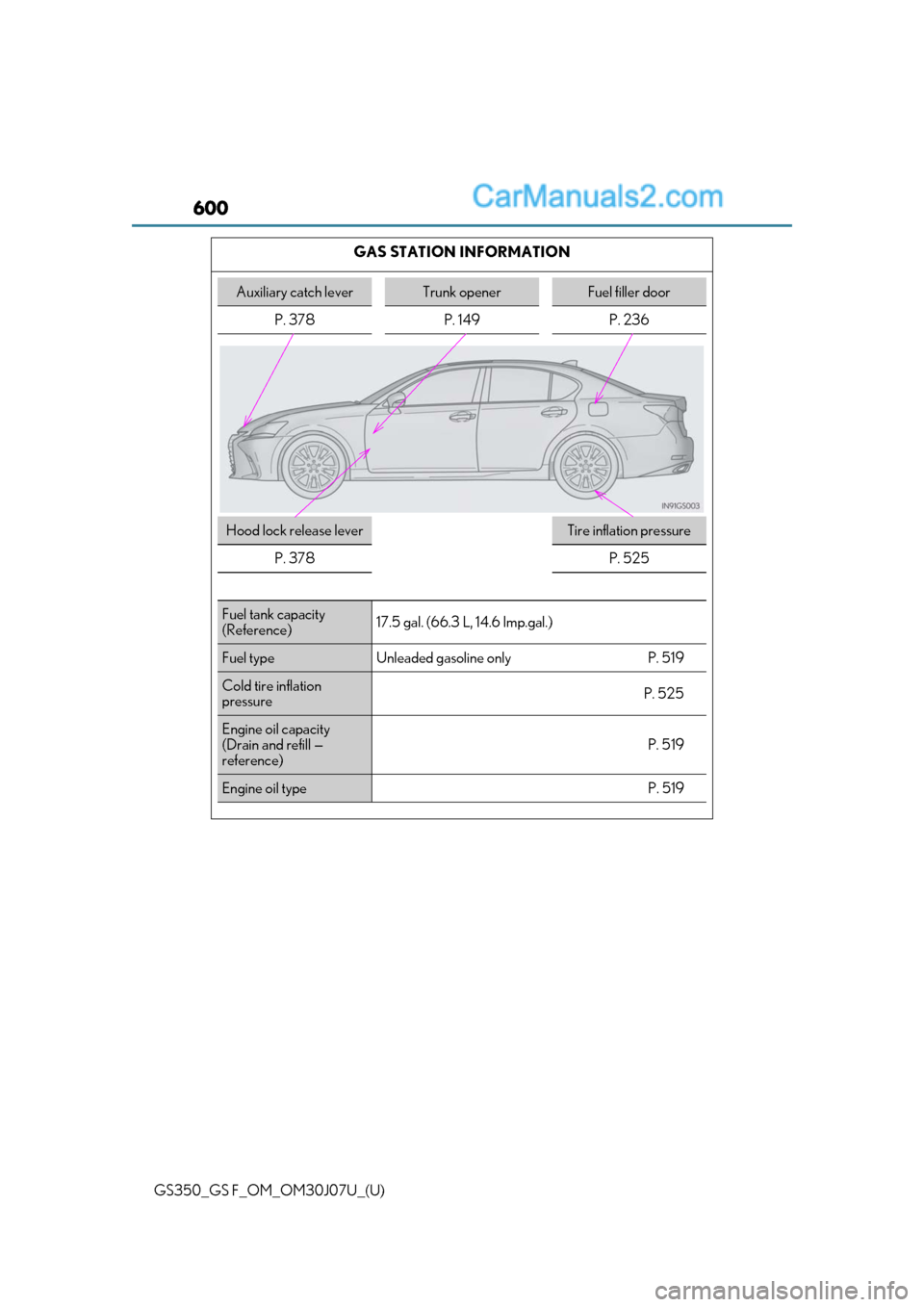

GS350_GS F_OM_OM30J07U_(U)GAS STATION INFORMATION
Auxiliary catch leverTrunk openerFuel filler door
P. 378 P. 149 P. 236
Hood lock release leverTire inflation pressure
P. 378
P. 525
Fuel tank capacity
(Reference) 17.5 gal. (66.3 L, 14.6 Imp.gal.)
Fuel type
Unleaded gasoline only P. 519
Cold tire inflation
pressure P. 525
Engine oil capacity
(Drain and refill —
reference) P. 519
Engine oil type
P. 519
