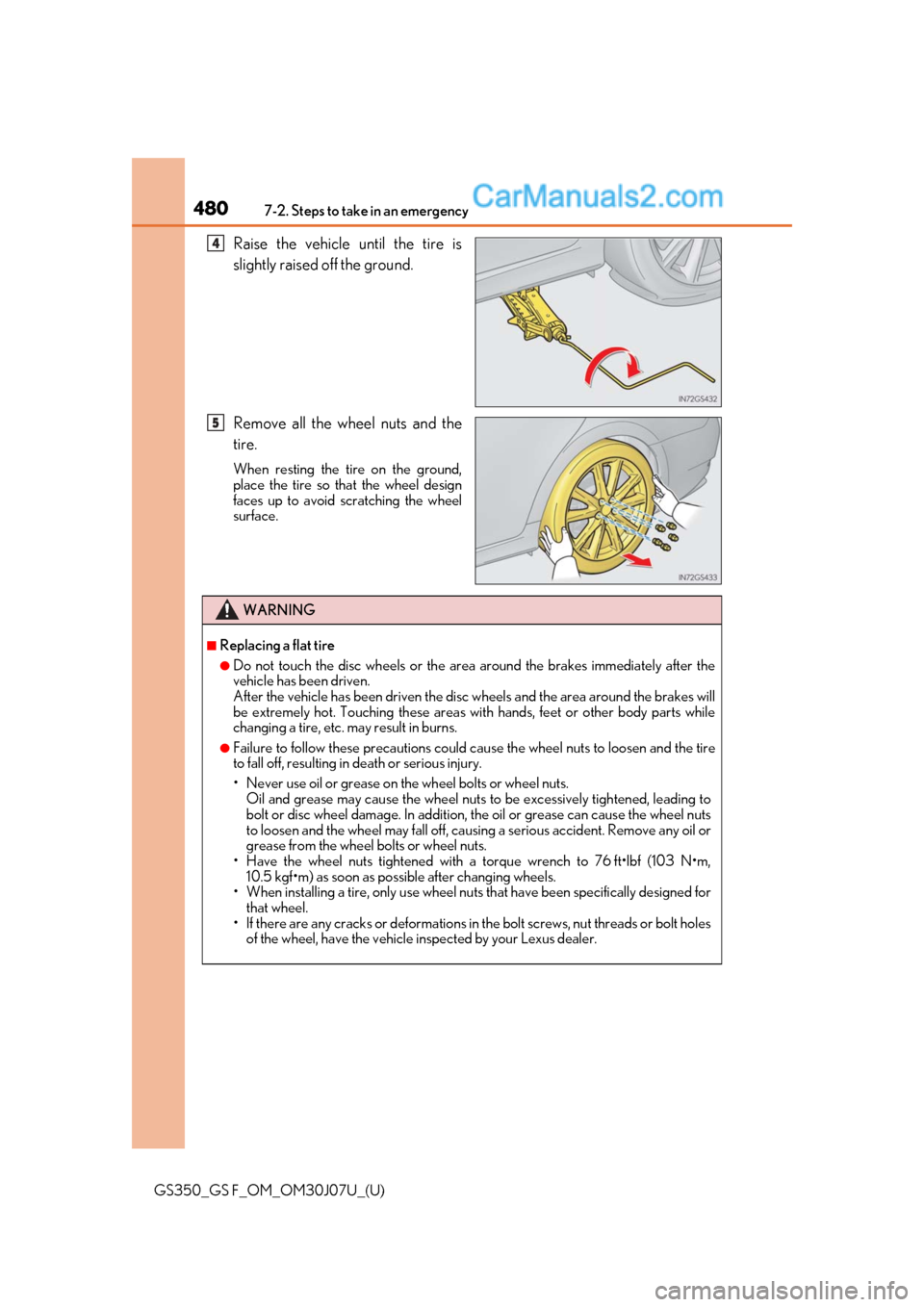

4807-2. Steps to take in an emergency
GS350_GS F_OM_OM30J07U_(U)
Raise the vehicle until the tire is
slightly raised off the ground.
Remove all the wheel nuts and the
tire.
When resting the tire on the ground,
place the tire so that the wheel design
faces up to avoid scratching the wheel
surface.
4
5
WARNING
■Replacing a flat tire
●Do not touch the disc wheels or the area around the brakes immediately after the
vehicle has been driven.
After the vehicle has been driven the disc wheels and the area around the brakes will
be extremely hot. Touching these areas with hands, feet or other body parts while
changing a tire, etc. may result in burns.
●Failure to follow these precautions could cause the wheel nuts to loosen and the tire
to fall off, resulting in death or serious injury.
• Never use oil or grease on the wheel bolts or wheel nuts. Oil and grease may cause the wheel nuts to be excessively tightened, leading to
bolt or disc wheel damage. In addition, the oil or grease can cause the wheel nuts
to loosen and the wheel may fall off, causing a serious accident. Remove any oil or
grease from the wheel bolts or wheel nuts.
• Have the wheel nuts tightened with a torque wrench to 76 ft•lbf (103 N•m, 10.5 kgf•m) as soon as possible after changing wheels.
• When installing a tire, only use wheel nuts that have been specifically designed for
that wheel.
• If there are any cracks or deformations in the bolt screws, nut threads or bolt holes of the wheel, have the vehicle inspected by your Lexus dealer.

4827-2. Steps to take in an emergency
GS350_GS F_OM_OM30J07U_(U)
Firmly tighten each wheel nut two or
three times in the order shown in the
illustration.
Tightening torque:
76 ft•lbf (103 N•m, 10.5 kgf•m)
Stow the flat tire, tire jack and all tools.
■The spare tire
●GS350: The spare tire is identified by the label “TEMPORARY USE ONLY” on the
tire sidewall.
●Use the spare tire temporarily, and only in an emergency.
●Make sure to check the tire inflat ion pressure of the spare tire. (P. 525)
■When using the spare tire
As the spare tire is not equipped with a tire pressure warning valve and transmitter, low
inflation pressure of the spare tire will not be indicated by the tire pressure warning sys-
tem. Also, if you replace the spare tire after the tire pressure warning light comes on, the
light remains on.
■When the spare tire is equipped
The vehicle may become lower when driving with the spare tire compared to when driv-
ing with standard tires.
■If you have a flat rear tire on a road covered with snow or ice (vehicles with front and
rear tires of the same size)
Install the compact spare tire on one of the front wheels of the vehicle. Perform the fol-
lowing steps and fit tire chains to the rear tires:
Replace a front tire with the compact spare tire.
Replace the flat rear tire with the tire removed from the front of the vehicle.
Fit tire chains to the rear tires.
4
WARNING
■When using the spare tire
●Remember that the spare tire provided is specifically designed for use with your vehi-
cle. Do not use your spare tire on another vehicle.
●Do not use more than one spare tire simultaneously.
●Replace the spare tire with a stan dard tire as soon as possible.
●Avoid sudden acceleration, abrupt steering, sudden braking and shifting operations
that cause sudden engine braking.
5
1
2
3

524

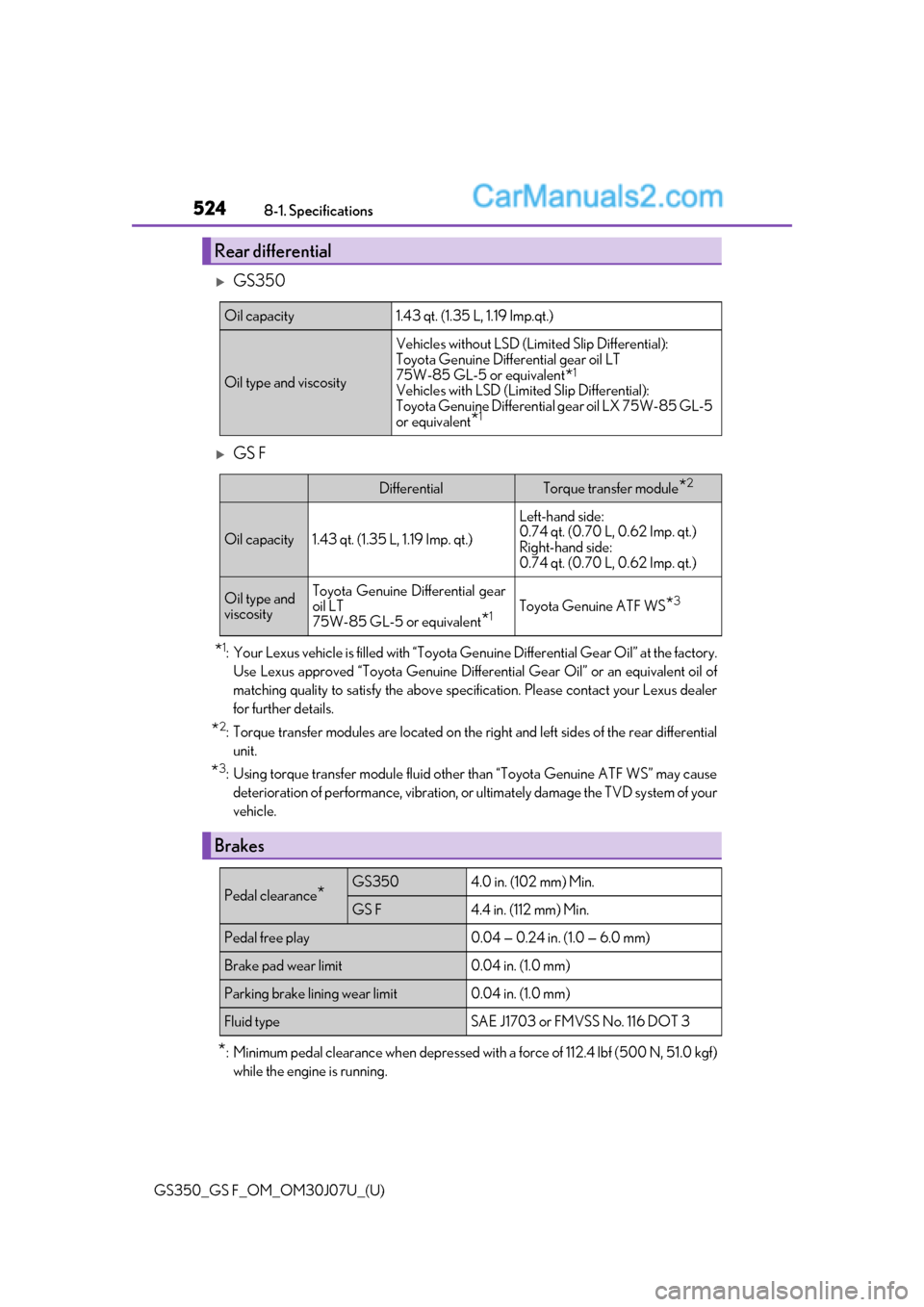

GS350_GS F_OM_OM30J07U_(U)8-1. Specifications
GS350
GS F
*1: Your Lexus vehicle is filled with “Toyota Genuine Differential Gear Oil” at the factory.
Use Lexus approved “Toyota Genuine Differen tial Gear Oil” or an equivalent oil of
matching quality to satisfy the above specification. Please contact your Lexus dealer
for further details.
*2: Torque transfer modules are located on the ri ght and left sides of the rear differential
unit.
*3: Using torque transfer module fluid other than “Toyota Genuine ATF WS” may cause deterioration of performance, vibration, or ultimately damage the TVD system of your
vehicle.
*: Minimum pedal clearance when depressed wi th a force of 112.4 lbf (500 N, 51.0 kgf)
while the engine is running.
Rear differential
Oil capacity1.43 qt. (1.35 L, 1.19 Imp.qt.)
Oil type and viscosity
Vehicles without LSD (Limited Slip Differential):
Toyota Genuine Differential gear oil LT
75W-85 GL-5 or equivalent
*1
Vehicles with LSD (Limited Slip Differential):
Toyota Genuine Differential gear oil LX 75W-85 GL-5
or equivalent
*1
DifferentialTorque transfer module*2
Oil capacity 1.43 qt. (1.35 L, 1.19 Imp. qt.)
Left-hand side:
0.74 qt. (0.70 L, 0.62 Imp. qt.)
Right-hand side:
0.74 qt. (0.70 L, 0.62 Imp. qt.)
Oil type and
viscosity Toyota Genuine Differential gear
oil LT
75W-85 GL-5 or equivalent
*1Toyota Genuine ATF WS*3
Brakes
Pedal clearance*GS3504.0 in. (102 mm) Min.
GS F4.4 in. (112 mm) Min.
Pedal free play0.04 — 0.24 in. (1.0 — 6.0 mm)
Brake pad wear limit0.04 in. (1.0 mm)
Parking brake lining wear limit0.04 in. (1.0 mm)
Fluid typeSAE J1703 or FMVSS No. 116 DOT 3

GS350_GS F_OM_OM30J07U_(U)

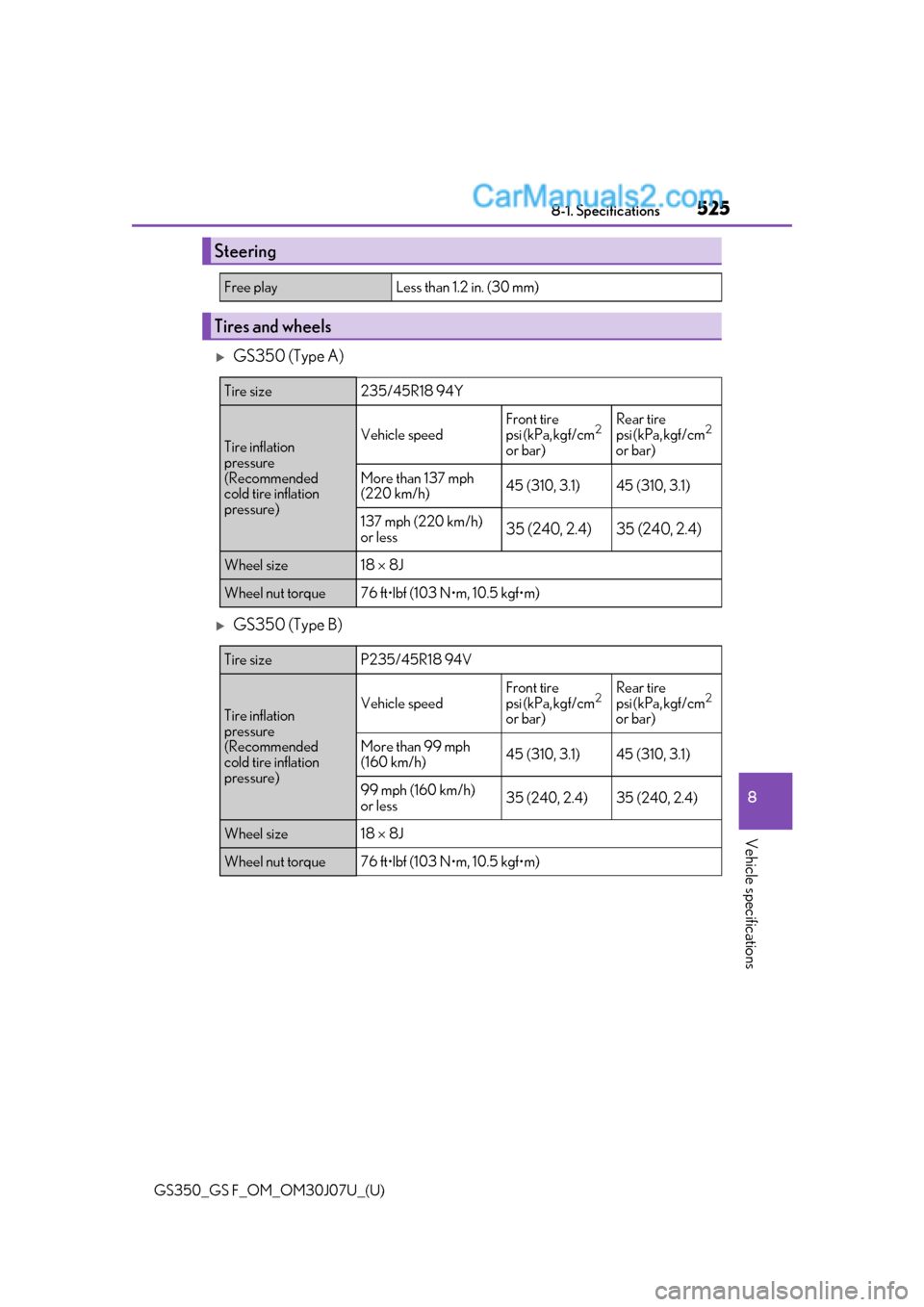

5258-1. Specifications
8
Vehicle specifications
GS350 (Type A)
GS350 (Type B)
Steering
Free playLess than 1.2 in. (30 mm)
Tires and wheels
Tire size235/45R18 94Y
Tire inflation
pressure
(Recommended
cold tire inflation
pressure)Vehicle speedFront tire
psi (kPa, kgf/cm2
or bar)Rear tire
psi (kPa, kgf/cm2
or bar)
More than 137 mph
(220 km/h)45 (310, 3.1)45 (310, 3.1)
137 mph (220 km/h)
or less35 (240, 2.4)35 (240, 2.4)
Wheel size18  8J
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)
Tire sizeP235/45R18 94V
Tire inflation
pressure
(Recommended
cold tire inflation
pressure)Vehicle speed
Front tire
psi (kPa, kgf/cm2
or bar)
Rear tire
psi (kPa, kgf/cm2
or bar)
More than 99 mph
(160 km/h)45 (310, 3.1)45 (310, 3.1)
99 mph (160 km/h)
or less35 (240, 2.4)35 (240, 2.4)
Wheel size18  8J
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)

526

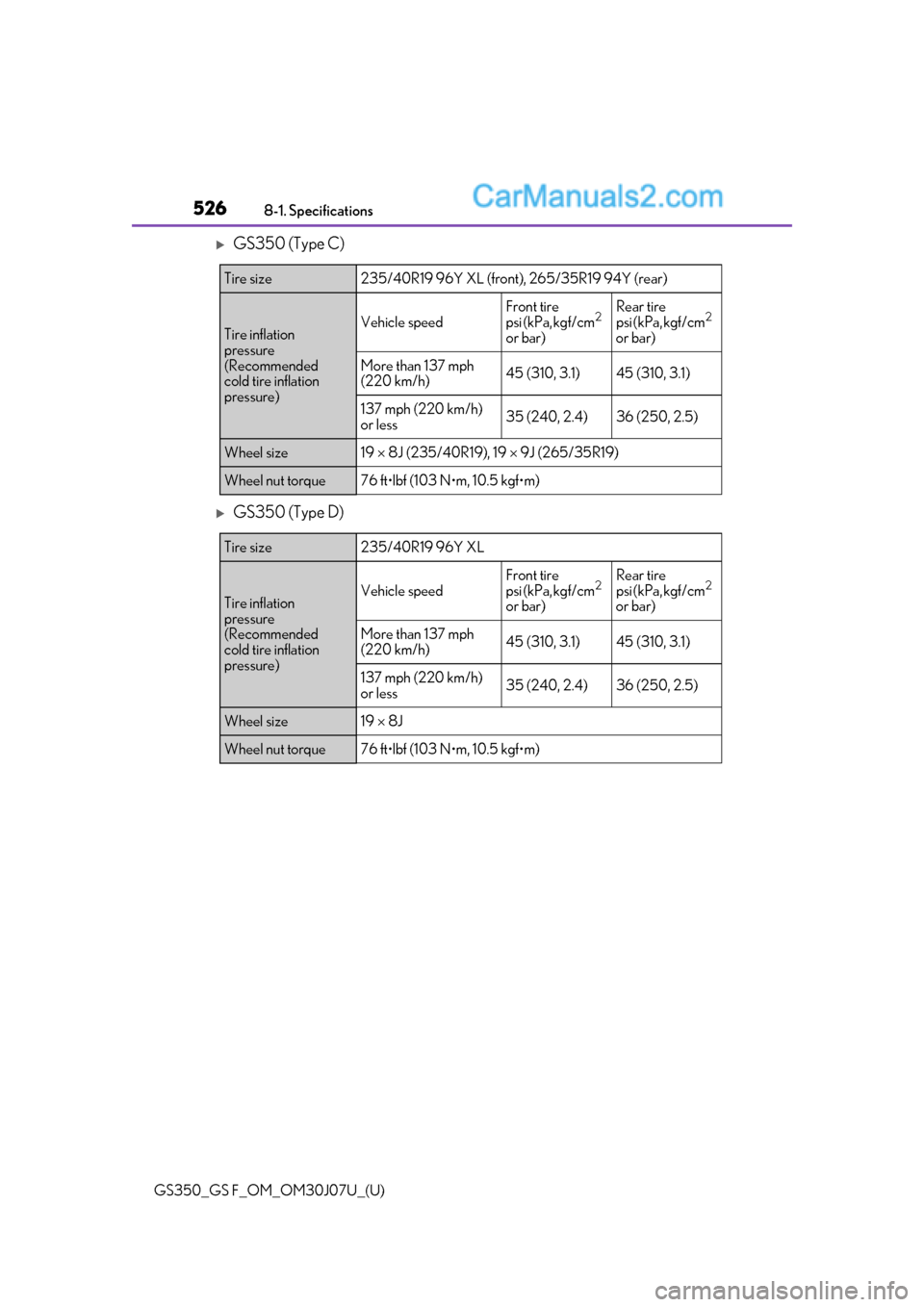

GS350_GS F_OM_OM30J07U_(U)8-1. Specifications
GS350 (Type C)
GS350 (Type D)
Tire size235/40R19 96Y XL (front), 265/35R19 94Y (rear)
Tire inflation
pressure
(Recommended
cold tire inflation
pressure)Vehicle speed
Front tire
psi (kPa, kgf/cm2
or bar)
Rear tire
psi (kPa, kgf/cm2
or bar)
More than 137 mph
(220 km/h)45 (310, 3.1)45 (310, 3.1)
137 mph (220 km/h)
or less35 (240, 2.4)36 (250, 2.5)
Wheel size19  8J (235/40R19), 19  9J (265/35R19)
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)
Tire size235/40R19 96Y XL
Tire inflation
pressure
(Recommended
cold tire inflation
pressure)Vehicle speedFront tire
psi (kPa, kgf/cm2
or bar)Rear tire
psi (kPa, kgf/cm2
or bar)
More than 137 mph
(220 km/h)45 (310, 3.1)45 (310, 3.1)
137 mph (220 km/h)
or less35 (240, 2.4)36 (250, 2.5)
Wheel size19  8J
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)

GS350_GS F_OM_OM30J07U_(U)

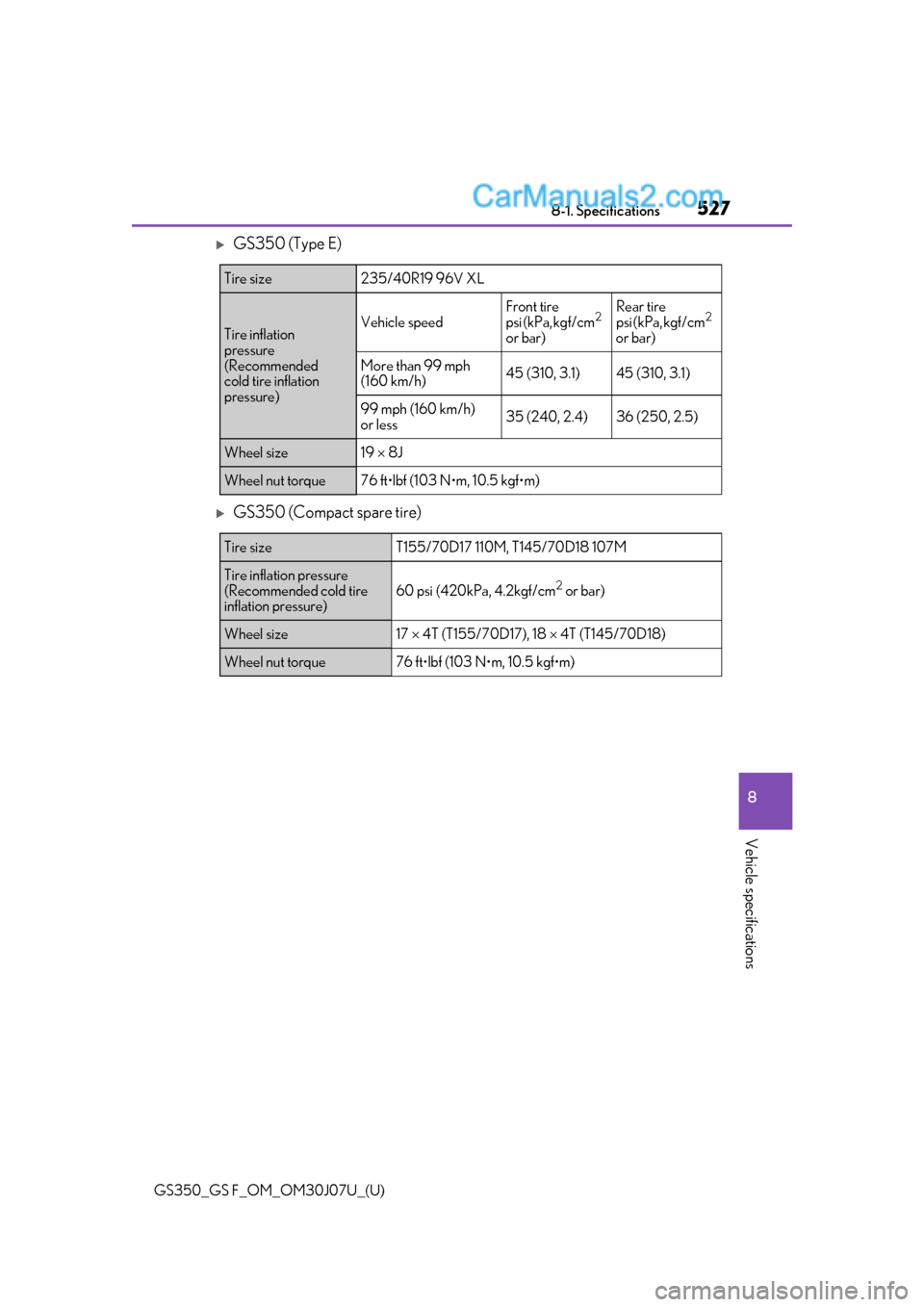

5278-1. Specifications
8
Vehicle specifications
GS350 (Type E)
GS350 (Compact spare tire)
Tire size235/40R19 96V XL
Tire inflation
pressure
(Recommended
cold tire inflation
pressure)Vehicle speed
Front tire
psi (kPa, kgf/cm2
or bar)
Rear tire
psi (kPa, kgf/cm2
or bar)
More than 99 mph
(160 km/h)45 (310, 3.1)45 (310, 3.1)
99 mph (160 km/h)
or less35 (240, 2.4)36 (250, 2.5)
Wheel size19  8J
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)
Tire sizeT155/70D17 110M, T145/70D18 107M
Tire inflation pressure
(Recommended cold tire
inflation pressure)60 psi (420kPa, 4.2kgf/cm2 or bar)
Wheel size17  4T (T155/70D17), 18  4T (T145/70D18)
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)

528
GS350_GS F_OM_OM30J07U_(U)8-1. Specifications
GS F
*: If equipped
Tire size255/35ZR19 (92Y) (front), 275/35ZR19 (96Y) (rear),
225/40ZR19 (93Y) XL (spare)
*
Tire inflation pressure
(Recommended
cold tire inflation
pressure)
Vehicle speed
Front tire
psi (kPa, kgf/cm2
or bar)
Rear tire
psi (kPa, kgf/cm2
or bar)
More than 137 mph
(220 km/h)44 (300, 3.0)44 (300, 3.0)
137 mph (220 km/h)
or less36 (250, 2.5)36 (250, 2.5)
Tire inflation pressure
(spare)
(Recommended
cold tire inflation
pressure)
42 psi (290kPa, 2.9kgf/cm2 or bar)
Wheel size19  9J (255/35ZR19), 19  10J (275/35ZR19),
19  8 1/2J (225/40ZR19)
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)
Light bulbs
Light bulbsBulb No.WType
ExteriorFront turn signal lights*7444NA28A
Outer foot lightsW5W5B
InteriorVanity lights8B
Trunk light3.8B
A: Wedge base bulbs (amber)
B: Wedge base bulbs (clear)
*: Vehicles with single-beam headlights

587Alphabetical index
GS350_GS F_OM_OM30J07U_(U)
Main display..............................................316
MaintenanceDo-it-yourself maintenance..........376
General maintenance ..................... 372
Maintenance data ............................... 516
Maintenance requirements...........370
Malfunction indicator lamp .............. 435
Master warning light ........................... 437
Meter ....................................................92, 98 Head-up display.................................. 126
Indicators................................................... 87
Instrument panel light control .......................................... 95, 103
Meters................................................92, 98
Multi-information display ....... 106, 114
Warning lights ........................................86
Micro dust and pollen filter .............. 324
Mirrors Inside rear view mirror ..................... 175
Outside rear view mirror defoggers ........................................... 324
Outside rear view mirrors ............... 177
Vanity mirrors ......................................346
Moon roof................................................. 184 Door lock linked moon roof operation ..................... 185
Jam protection function ................... 185
Operation ............................................... 184
Warning message ............................. 442
MP3 disc
*
Multi-information display........... 106, 114 Drive information....................... 108, 115
Dynamic radar cruise control with full-speed range ................... 266
“F” content ................................................. 117
G-force ......................................... 109, 120
Lap timer.................................................... 117
LKA (Lane-Keeping Assist)......... 256
Torque distribution .............................. 119
Navigation system
*
Noise from under vehicle ........................8
Odometer ........................................ 93, 100
Oil Engine oil .................................................519
Front differential oil ........................... 523
Rear differential oil ............................ 524
Opener Fuel filler door...................................... 234
Hood........................................................ 378
Trunk ..........................................................149
M
N
O
*: Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.

592Alphabetical index
GS350_GS F_OM_OM30J07U_(U)
SwitchesASC (Active Sound Control) switch...................................................... 221
Audio remote control switches
*
Automatic High Beam switch ..... 225
Brake Hold............................................. 219
Cruise control switch........................................266, 278
Door lock switches ............................ 145
Driving mode select switch ........... 281
Driving position memory switches ................................................ 166
Emergency flashers switch ........... 424
Engine switch ...................................... 203
Garage door opener switches .............................................. 353
Heated steering wheel switch.................................................... 332
HUD (Head-up display) switches ................................................ 126
Ignition switch ..................................... 203
Intuitive parking assist
*
Light switch ........................................... 222
LKA (Lane-Keeping Assist) switch................................................... 260
Meter control switches ........... 107, 115
Moon roof switches........................... 184
Outside rear view mirror switches ................................................. 177 Paddle shift switches..........................210
Parking brake switches .................... 217
Power door lock switch ...................145
Power window switches ................... 181
Rear sunshade switch ..................... 349
Rear window and outside
rear view mirror defoggers
switch ................................................... 324
Seat heater switches ........................ 333
Seat ventilator switches .................. 333
Snow mode switch ........................... 209
“SOS” button ........................................... 72
Talk switch
*
Telephone switches*
Tilt and telescopic steering control switch .................. 174
Tire pressure warning reset switch ................................................... 396
Trunk closer switch............................ 150
Trunk opener switch ..........................149
Trunk opener main switch ............... 151
TVD (Torque Vectoring Differential) switch ......................... 295
Vehicle-to-vehicle distance switch ....................................................272
VSC OFF switch ............................... 299
Window lock switch ........................... 181
Windshield wipers and washer switch ......................... 229

593Alphabetical index
GS350_GS F_OM_OM30J07U_(U)
Tachometer .....................................93, 100Variable red zone............................... 103
Tail lights................................................... 222 Light switch ........................................... 222
Replacing light bulbs ..........................421
Welcome light illumination control ................................................... 144
Talk switch
*
Telephone switches*
Theft deterrent system Alarm........................................................... 79
Engine immobilizer system.............. 77
Tire inflation pressure ......................... 525 Maintenance data ............................. 525
Tire inflation pressure display function ............................................... 395
Warning light ....................................... 437
Warning message ............................. 442
Tire information ..................................... 532 Glossary .................................................537
Size ............................................................534
Tire identification number..............534
Uniform Tire Quality Grading.............................................. 536
Tire pressure warning system ......... 395 Function ................................................. 395
Initializing............................................... 396
Installing tire pressure warning valves and transmitters ............... 395
Registering ID codes .......................397
Warning light ....................................... 437
Warning message ............................. 442 Tires ........................................................... 394
Chains ..................................................... 307
Checking ............................................... 394
Emergency tire puncture repair kit .............................................. 484
If you have a flat tire .............. 473, 484
Inflation pressure................................ 525
Information............................................ 532
Replacing ............................................... 473
Rotating tires ........................................395
Size ........................................................... 525
Snow tires ..............................................309
Spare tire................................................ 473
Tire inflation pressure display function................................................395
Tire pressure warning system .....395
Warning light ....................................... 437
Warning message............................. 442
Tools ........................................................... 474
Top tether strap ....................................... 68
Torque Vectoring Differential (TVD) ..................................................... 295
Total load capacity............................... 200
Towing Dinghy towing ..................................... 202
Emergency towing ............................427
Towing eyelet ...................................... 429
Trailer towing.........................................201
TRAC (Traction Control) Function .................................................. 297
TRAC OFF switch ............................ 299
T
*: Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
