water pump Lexus GS350 2020 Owner's Manual

5
1
8 7
6
5
4
3
2
GS350_GS F_OM_OM30J07U_(U)
9
6-3. Do-it-yourself maintenance Do-it-yourself service precautions................................ 376
Hood ............................................... 378
Positioning a floor jack ............ 379
Engine compartment ................ 381
Tires ................................................. 394
Tire inflation pressure .............. 404
Wheels ........................................... 407
Air conditioning filter ............... 409
Electronic key battery................. 411
Checking and replacing fuses................................................413
Headlight aim (vehicles with single-beam head lights) ........ 417
Light bulbs ......................................419
7-1. Essential information Emergency flashers .................. 424
If your vehicle has to be stopped in an
emergency ................................ 425
If the vehicle is trapped in rising water ................................ 426 7-2. Steps to take in an
emergency
If your vehicle needs to be towed ................................427
If you think something is wrong................ 433
Fuel pump shut off system...... 434
If a warning light turns on or a warning buzzer
sounds ......................................... 435
If a warning message is displayed .................................... 442
If you have a flat tire (vehicles with spare tire) ......................... 473
If you have a flat tire (vehicles without spare ti re) .................. 484
If the engine will not start ........ 498
If the parking brake cannot be released................................500
If the electronic key does not operate properly..................... 502
If the vehicle battery is discharged.................................505
If your vehicle overheats......... 509
If the vehicle becomes stuck ...............................................513
7When trouble arises

388
GS350_GS F_OM_OM30J07U_(U)6-3. Do-it-yourself maintenance
The coolant level is satisfactory if it
is between the “FULL”/“F” and “LOW”/“L”
lines on the reservoir when the engine is cold.
■Engine coolant reservoir
Reservoir cap
“FULL” line
“LOW” line
If the level is on or below the “LOW” lin e, add coolant up to the “FULL” line.
(  P. 509)
■Coolant selection
Only use “Toyota Super Long Life Coolant” or a similar high quality ethylene glycol
based non-silicate, non-amine, non-nitrite, and non-borate coolant with long-life hybrid
organic acid technology.
U.S.A.:
“Toyota Super Long Life Coolant” is a mixt ure of 50% coolant and 50% deionized water.
(Minimum temperature: -31 F [-35 C])
Canada:
“Toyota Super Long Life Cool ant” is a mixture of 55% coolant and 45% deionized water.
(Minimum temperature: -44 F [-42C])
For more details about coolant, contact your Lexus dealer.
■If the coolant level drops within a short time of replenishing
Visually check the radiator, hoses, engine coolant reservoir caps, drain cock and water
pump.
If you cannot find a leak, have your Lexus de aler test the cap and check for leaks in the
cooling system.
Coolant
1
2
3
GS350GS F

GS350_GS F_OM_OM30J07U_(U)
3936-3. Do-it-yourself maintenance
6
Maintenance and care

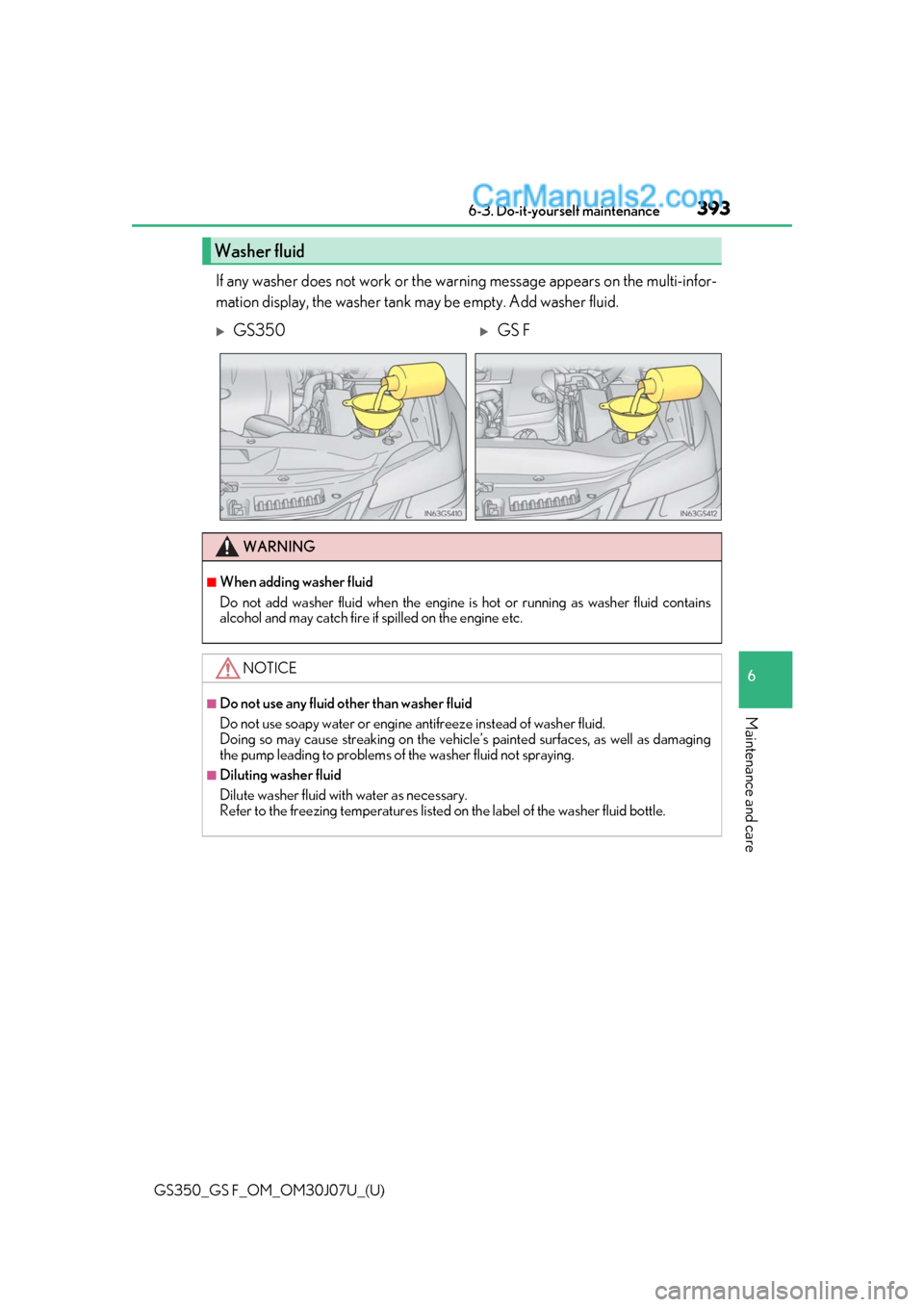

If any washer does not work or the warning message appears on the multi-infor-
mation display, the washer tank may be empty. Add washer fluid.
Washer fluid
GS350GS F
WARNING
■When adding washer fluid
Do not add washer fluid when the engine is hot or running as washer fluid contains
alcohol and may catch fire if spilled on the engine etc.
NOTICE
■Do not use any fluid other than washer fluid
Do not use soapy water or engine antifreeze instead of washer fluid.
Doing so may cause streaking on the vehicle’s painted surfaces, as well as damaging
the pump leading to problems of the washer fluid not spraying.
■Diluting washer fluid
Dilute washer fluid with water as necessary.
Refer to the freezing temperatures listed on the label of the washer fluid bottle.

423
GS350_GS F_OM_OM30J07U_(U)
7When trouble arises
7-1. Essential informationEmergency flashers................... 424
If your vehicle has to be stopped in an
emergency .................................425
If the vehicle is trapped in rising water ................................426 7-2. Steps to take in an
emergency
If your vehicle needs to be towed................................ 427
If you think something is wrong ................ 433
Fuel pump shut off system ...... 434
If a warning light turns on or a warning buzzer
sounds.......................................... 435
If a warning message is displayed..................................... 442
If you have a flat tire (vehicles with spare tire) ......................... 473
If you have a flat tire (vehicles without spare tire)...................484
If the engine will not start ........498
If the parking brake cannot be released ............................... 500
If the electronic key does not operate properly .....................502
If the vehicle battery is discharged ................................ 505
If your vehicle overheats .........509
If the vehicle becomes stuck .............................................. 513
