OCCUPANT RESTRAINT SYSTEMS
190(C) Booster seat installation
G16040
A booster seat must be used in forwardfacing position
only.
G16059

Move seat fully back
CAUTION
 A forwardfacing child restraint system should be
allowed to be installed on the front passenger seat
only when it is unavoidable. Always move the seat
as far back as possible, because the front passenger
airbag could inflate with considerable speed and
force. Otherwise, the child may be killed or seriously
injured.

OCCUPANT RESTRAINT SYSTEMS
191

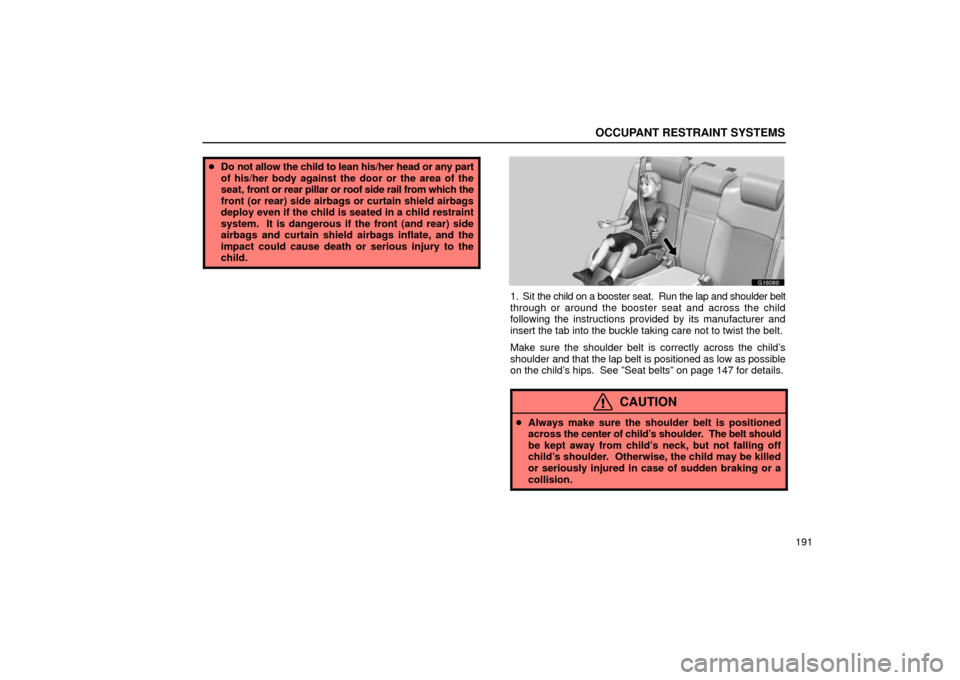

Do not allow the child to lean his/her head or any part
of his/her body against the door or the area of the
seat, front or rear pillar or roof side rail from which the
front (or rear) side airbags or curtain shield airbags
deploy even if the child is seated in a child restraint
system. It is dangerous if the front (and rear) side
airbags and curtain shield airbags inflate, and the
impact could cause death or serious injury to the
child.
G16060
1. Sit the child on a booster seat. Run the lap and shoulder belt
through or around the booster seat and across the child
following the instructions provided by its manufacturer and
insert the tab into the buckle taking care not to twist the belt.
Make sure the shoulder belt is correctly across the child’s
shoulder and that the lap belt is positioned as low as possible
on the child’s hips. See ”Seat belts” on page 147 for details.
CAUTION
 Always make sure the shoulder belt is positioned
across the center of child’ s shoulder. The belt should
be kept away from child’s neck, but not falling off
child’s shoulder. Otherwise, the child may be killed
or seriously injured in case of sudden braking or a
collision.

OCCUPANT RESTRAINT SYSTEMS
192

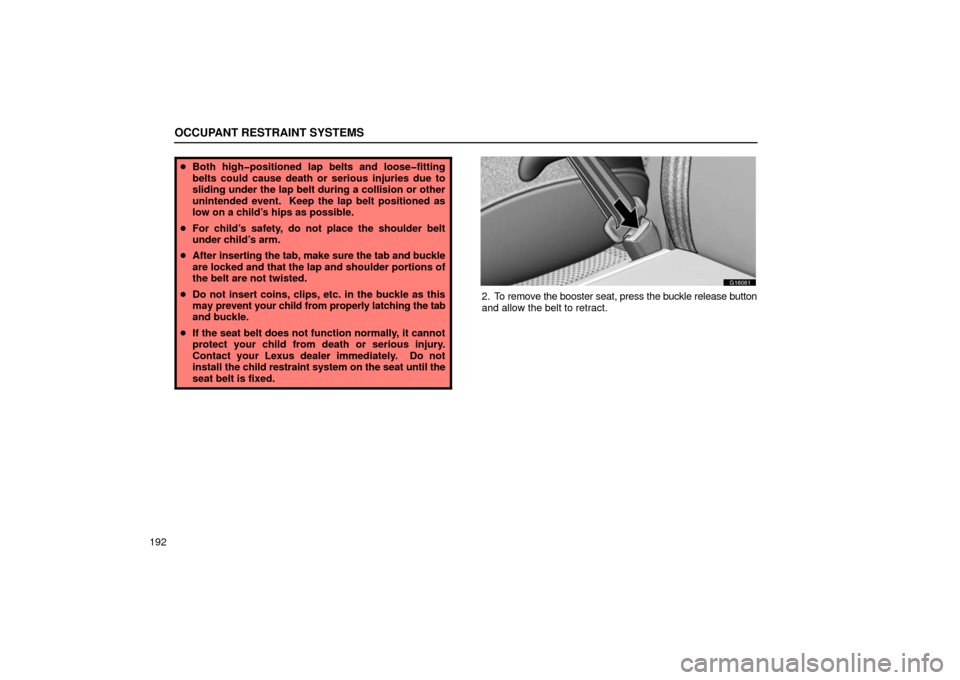

Both highpositioned lap belts and loosefitting
belts could cause death or serious injuries due to
sliding under the lap belt during a collision or other
unintended event. Keep the lap belt positioned as
low on a child’s hips as possible.
 For child’s safety, do not place the shoulder belt
under child’s arm.
 After inserting the tab, make sure the tab and buckle
are locked and that the lap and shoulder portions of
the belt are not twisted.
 Do not insert coins, clips, etc. in the buckle as this
may prevent your child from properly latching the tab
and buckle.
 If the seat belt does not function normally, it cannot
protect your child from death or serious injury.
Contact your Lexus dealer immediately. Do not
install the child restraint system on the seat until the
seat belt is fixed.
G16061
2. To remove the booster seat, press the buckle release button
and allow the belt to retract.

OCCUPANT RESTRAINT SYSTEMS
193

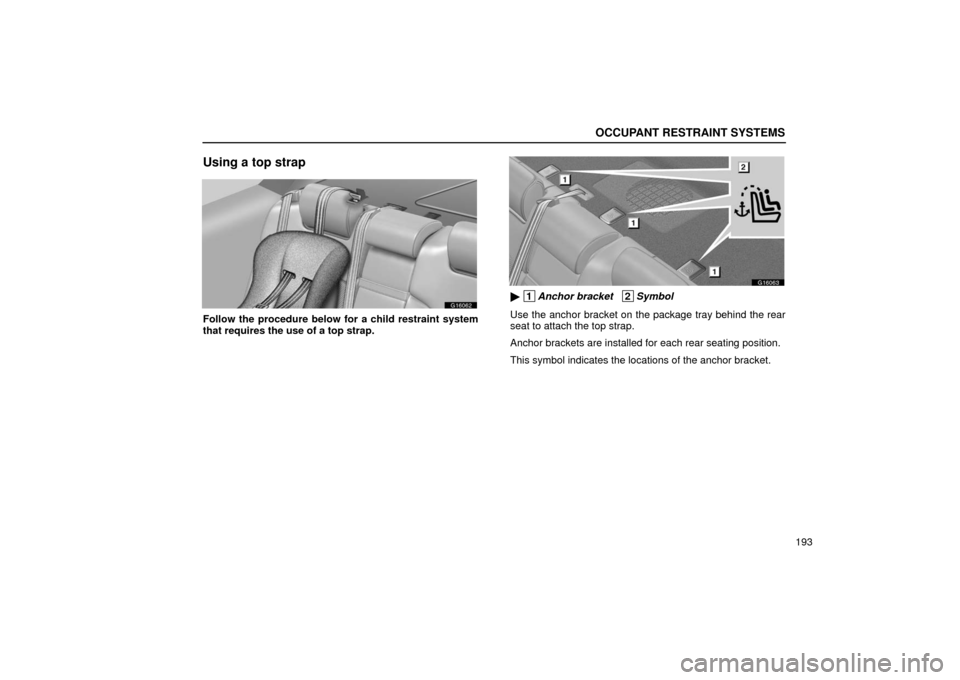

Using a top strap
G16062
Follow the procedure below for a child restraint system
that requires the use of a top strap.
G16063
 1Anchor bracket 2Symbol
Use the anchor bracket on the package tray behind the rear
seat to attach the top strap.
Anchor brackets are installed for each rear seating position.
This symbol indicates the locations of the anchor bracket.

OCCUPANT RESTRAINT SYSTEMS
194
G16121

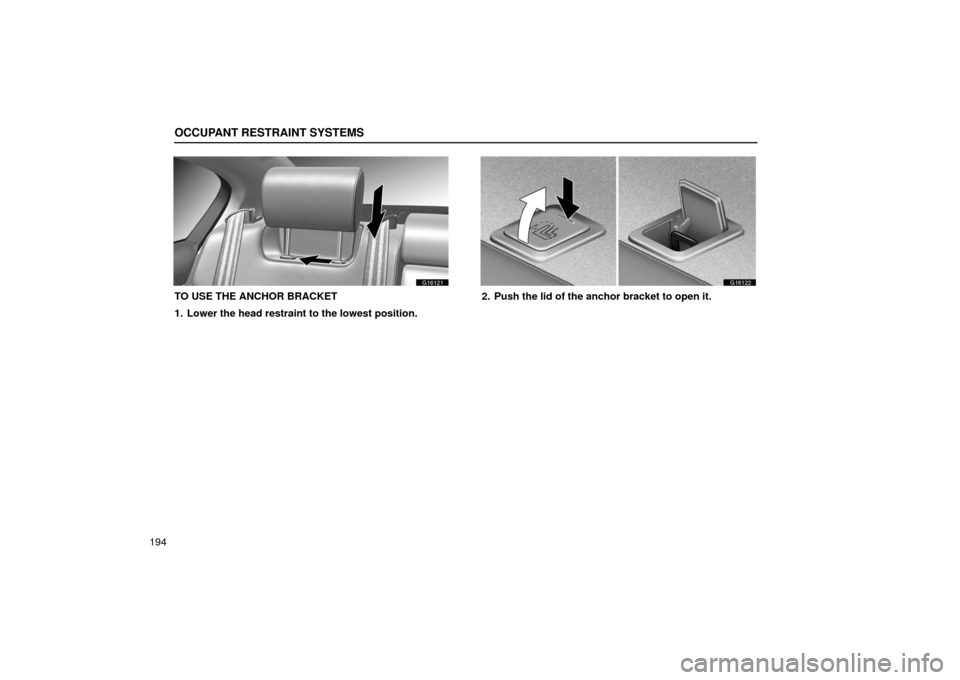

TO USE THE ANCHOR BRACKET
1. Lower the head restraint to the lowest position.
G16122
2. Push the lid of the anchor bracket to open it.

OCCUPANT RESTRAINT SYSTEMS
195
G16064

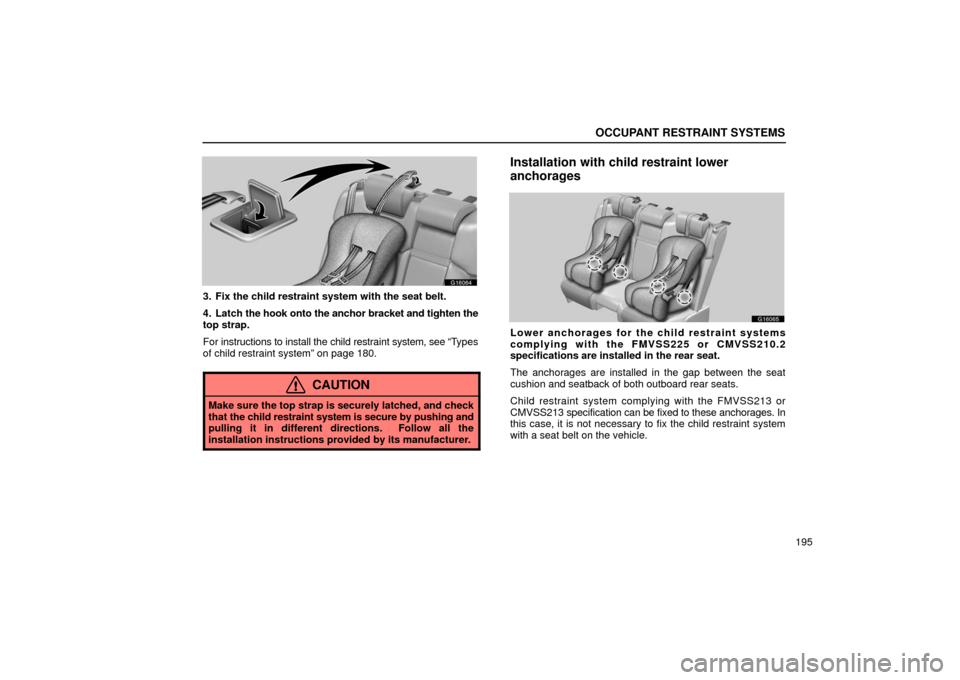

3. Fix the child restraint system with the seat belt.
4. Latch the hook onto the anchor bracket and tighten the
top strap.
For instructions to install the child restraint system, see “Types
of child restraint system” on page 180.
CAUTION
Make sure the top strap is securely latched, and check
that the child restraint system is secure by pushing and
pulling it in different directions. Follow all the
installation instructions provided by its manufacturer.
Installation with child restraint lower
anchorages
G16065
Lower anchorages for the child restraint systems
complying with the FMVSS225 or CMVSS210.2
specifications are installed in the rear seat.
The anchorages are installed in the gap between the seat
cushion and seatback of both outboard rear seats.
Child restraint system comp lying with the FMVSS213 or
CMVSS213 specification can be fixed to these anchorages. In
this case, it is not necessary to fix the child restraint system
with a seat belt on the vehicle.

OCCUPANT RESTRAINT SYSTEMS
196CHILD RESTRAINT SYSTEM INSTALLATION

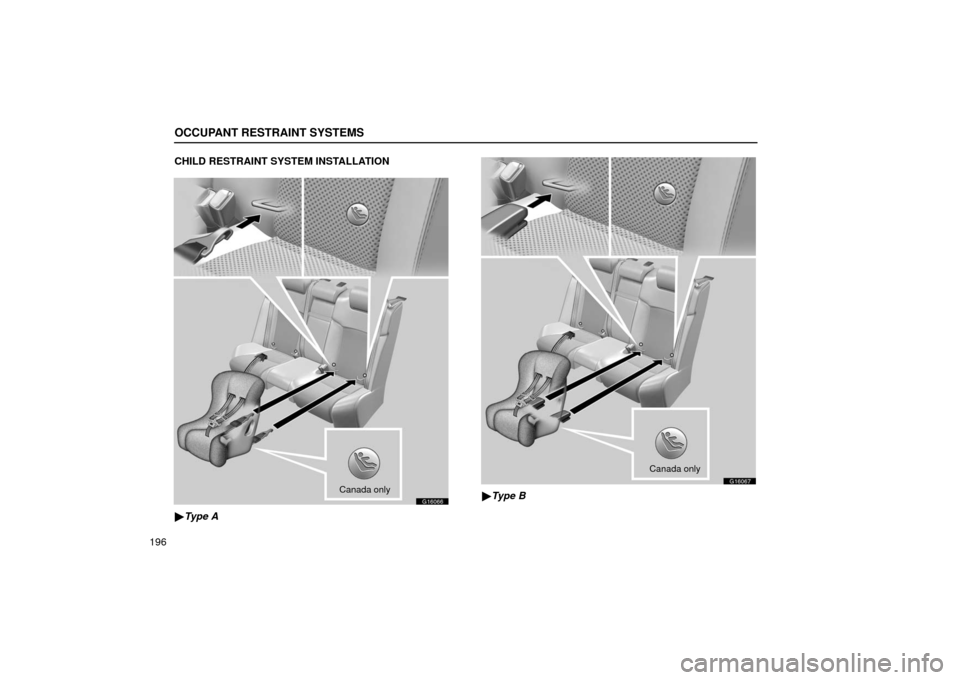

G16066
Canada only

Type A
G16067
Canada only
Type B

OCCUPANT RESTRAINT SYSTEMS
197
1. Widen the gap
between the seat cushion and seatback
slightly and confirm the position of the lower anchorages
near the button on the seatback.
Type A—
2. Latch the hooks of lower straps onto the anchorages
and tighten the lower straps.
Type B—
2. Latch the buckles onto the anchorages
For owners in Canada—The symbol on a child restraint
system indicates the presence of a lower connector system.
If your child restraint system has a top strap, it should be
anchored. (For the installation of the top strap, see “Using a top
strap” on page 193.)
For installation details, refer to the instruction manual
equipped with each product.
CAUTION
 When using the lower anchorages for the child
restraint system, be sure that there are no irregular
objects around the anchorages or that the seat belt is
not caught.
 Push and pull the child restraint system in different
directions to be sure it is secure. Follow all the
installation instructions provided by its
manufacturer.

OCCUPANT RESTRAINT SYSTEMS
198
DRIVING POSITION MEMORYSYSTEM
A microcomputer will memorize the position of the driver’s
seat, and the positions of the tilt and telescopic steering, and
outside rear view mirrors. Three different driving position
profiles can be entered into the computer’s memory.
Recording a driving position in the computer’s memory can
only be done when the engine switch is selected in “IG −ON”
mode and the selector lever is in the ”P” position.

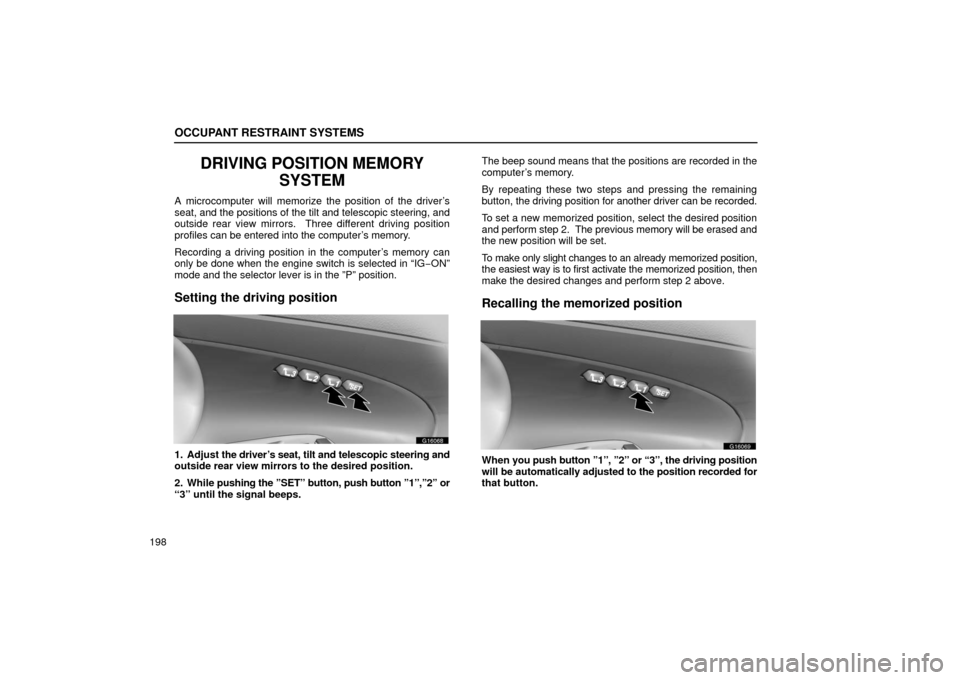

Setting the driving position
G16068
1. Adjust the driver’s seat, tilt and telescopic steering and
outside rear view mirrors to the desired position.
2. While pushing the ”SET” button, push button ”1”,”2” or
“3” until the signal beeps. The beep sound means that the positions are recorded in the
computer’s memory.
By repeating these two steps
and pressing the remaining
button, the driving position for another driver can be recorded.
To set a new memorized position, select the desired position
and perform step 2. The previous memory will be erased and
the new position will be set.
To make only slight changes to an already memorized position,
the easiest way is to first activate the memorized position, then
make the desired changes and perform step 2 above.
Recalling the memorized position
G16069
When you push button ”1”, ”2” or “3”, the driving position
will be automatically adjusted to the position recorded for
that button.

OCCUPANT RESTRAINT SYSTEMS
199
Conditions for memorized position activation

Engine switch in “IG−ON” mode and selector lever in ”P”
position, with the vehicle stopped.
 Engine switch in “OFF” mode and within 30 seconds of
opening driver’s door.
The memorized position can be activated, except for the tilt
and telescopic steering.
If any driving position memory switch is pushed while one of
the memorized driving position profiles is being activated, the
operation will stop.
To activate the system, push the desired button (“1”, “2” or \
“3”)
again.
The driving position memory control system cannot be
operated while the vehicle is moving.
If the vehicle’s battery is disconnected, the computer’s
memory will be erased and the memorized positions will have
to be set again.
CAUTION
 Do not start the vehicle while the adjustments are
being made.
 Take care not to select the wrong button, or the seat
could strike the rear passenger or hit your body
against the steering wheel. If this happens, you can
stop the movement by pressing another driving
position memory switch.
MEMORY RECALL FUNCTION
You can recall the memorized position using the entry
function or wireless remote control.
If you unlock the door using the entry function or wireless
remote control, the memorized seat position is recalled when
the driver’s door is opened. The memorized steering wheel
position will be recalled when you push the engine switch.
This function can be used after setting by the following
procedure.
Setting the driving position onto the electronic key
The driver’s door must be closed with the engine switch turned
off.
1. Push and hold the previously memorized driving position
button “1”, “2” or “3”.
2. While depressing the button above, push and hold the
“LOCK” or “UNLOCK” button on the electronic key until a beep
sounds.
If you wish to set other driv ing position, repeat the above
procedure. The previous setting will be erased and the new
position will be set.
Resetting the driving position on the electronic key
The driver’s door must be closed with the engine switch turned
off.
1. Push and hold the “SET” button.
2. Push and hold the “LOCK” or “UNLOCK” button on the
electronic key until two beeps sound.
