KEYS AND DOORS
9

Do not put the electronic key in water or wash it in an
ultrasonic washer.
 Do not keep the electronic key together with the
products emitting electromagnetic waves such as a
cellular phone.
 Do not disassemble the electronic key.
 Do not place the electronic key near electrical
appliances (e.g. television, computer or stereo) or
electrical medical equipment such as low frequency
medical appliances.
 If gasoline, polishing agents or oil adheres to the
electronic key, it may deform or crack over time.
The electronic keys are required to deactivate the engine
immobilizer, and are essential for the engine immobilizer to
function correctly, so be careful not to lose these keys. If you
make your own duplicate key, you will not be able to cancel the
system or start the engine.
To protect items when using valet parking, turn the trunk lid
opener main switch to inoperative or lock the glove box if
necessary, and leave the electronic key (with the mechanical
key removed) with the attendant. For details, see “Trunk lid
opener main switch” on page 126.
If you should lose your electronic keys or if you need additional
electronic keys, duplicates can be made by a Lexus dealer
using the key number.
We recommend writing down the key number and storing it in
a safe place.

KEYS AND DOORS
10
SMART ACCESS SYSTEM WITH PUSHBUTTON START
G11024
 1Engine immobilizer 2Entry function 3Wireless remote control 4Pushbutton starting
The smart access system with pushbutton start comprises 4 kinds of f\
unctions; engine immobilizer, entry function,
wireless remote control and pushbutton starting.
For engine immobilizer, see page 11.
For entry function, see page 13.
For wireless remote control, see page 28.
For push− button starting, see page 342.

KEYS AND DOORS
11
If the electronic key battery is discharged, the entry function
and wireless remote control cannot be used. Use the
mechanical key integrated into
the electronic key by inserting
it in the door keyhole to lock or unlock doors and into the trunk
lid keyhole to unlock the trunk lid. To start the engine, see
“Starting the engine when the electronic key battery is
discharged” on page 27. In order to activate the entry function
and wireless remote control, the battery should be replaced.
For details, see “Replacing the battery” on page 33.
(a) Engine immobilizer
G11009
The engine immobilizer is a theft prevention function.
When you enter the vehicle carrying an electronic key and
press the engine switch, the electronic code in the key is
automatically checked to determine whether it
corresponds to the registered ID code for the vehicle. If
the ID code is verified, you can start the engine.
The system is automatically set when the engine switch is off.
The indicator light will start flashing to show the system is set.

KEYS AND DOORS
12If any of the following indicator conditions occurs, contact your
Lexus dealer.

The indicator light stays on except when the theft deterrent
system is setting or activating. (See “Theft deterrent
system” on page 40.)
 The indicator light does not start flashing when the engine
switch is off.
 The indicator light flashes inconsistently.
For your Lexus dealer to make you a new key with a built −in
transponder chip, your dealer will need your key number and
electronic key. However, there is a limit to the number of
additional keys your Lexus dealer can make for you.
If you make your own duplicate key, you will not be able
to cancel the function or start the engine.
NOTICE
Do not modify, remove or disassemble the engine
immobilizer. If any unauthorized changes or
modifications are made, proper operation of this
function cannot be guaranteed.
For vehicles sold in U.S.A.
FCC ID: NI4TMIMB1
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
CAUTION
Changes or modifications not expressly approved by
the party responsible for compliance could void the
user’s authority to operate the equipment.

KEYS AND DOORS
41
G11006
Security indicator light
Setting the system
1. Turn the engine switch off.
The engine immobilizer causes the indicator light to flash.
2. Close and lock all the doors, trunk and hood using entry
function, wireless remote control or a mechanical key.
If you lock them with entry function or wireless remote control,
the turn signal lights flash once and one beep will sound.*
NOTE:
* The turn signal lights can be set not to flash and beep can
be set not to sound.
Ask your Lexus dealer for details.
3. At this time, the system is set.
Cancelling the system
When you unlock any door or trunk using entry function,
wireless remote control or a mechanical key, the system
is cancelled.
If you unlock them with entry function or wireless remote
control, the turn signal lights flash twice and two beeps will
sound.* NOTE:
* The turn signal lights can be set not to flash and beep can
be set not to sound.
Ask your Lexus dealer for details.
Activating the system
The alarm sounds for 60 seconds if any of the following are
operated:
Unlocking any door or trunk without using entry function,
wireless remote control or a mechanical key.
 Opening the hood forcibly.
 Reconnecting the battery.
If any door is unlocked during the alarm sounding, its door is
automatically locked.
To stop the alarm: Use either of the following methods.
 Unlock the door or trunk using entry function, wireless
remote control or a mechanical key.
 Turn the engine switch to “IG− ON” mode.

STARTING AND DRIVING
345
“ACC” mode
G31033
This mode allows some accessories to be operable such
as the radio, even if the engine is not running. An amber
indicator light turns on at the engine switch.
To select the “ACC” mode from “OFF” mode, push the engine
switch once without depressing the brake pedal. The engine
immobilizer is disabled and the security indicator light goes
out. (For details, see “Engine immobilizer” on page 11.)
If you cycle once through all the modes (“OFF”, “ACC”,
“IG−ON”) with the driver’s door closed, the second time you
select the “ACC” mode, the above message will appear for a
few seconds.
If the vehicle is left in “ACC” mode for about an hour, the engine
switch is automatically off.
If the driver’s door is opened with the transmission in “P”, a
buzzer will remind you in “ACC” mode.
“IGON” mode
G31034
“IGON” mode has two conditions: all gauges, meters
and accessories on and the engine is not running, or
engine running.
To select the “IG
−ON” mode while the engine is not running:
 From “OFF” mode—push the engine switch twice without
depressing the brake pedal.
 From “ACC” mode—push the engine switch once without
depressing the brake pedal.
The engine switch indicator light will be illuminated amber if the
engine is not running, and will turn off when the engine is
running.

STARTING AND DRIVING
346If you push the engine switch while the brake pedal is
depressed with the transmission not in “P” or “N”, “IG
−ON”
mode is selected with the engine not running.
It is not a malfunction if the needles on all meters and gauges
move slightly when selected in “IG− ON” mode.
NOTICE
Do not leave the engine switch in “IGON” mode while
the engine is not running. The battery will be
discharged.
“OFF” mode
G31032
This mode turns the engine and all accessories off.
To select the “OFF” mode from “IG− ON” mode:
 If the engine is not running, push the engine switch once
while the brake pedal is not depressed.
 If the engine is running, push the engine switch once
regardless of brake pedal position while the vehicle is
completely stopped.
To select the “OFF” mode from “ACC” mode, push the engine
switch twice while the brake pedal is not depressed.
The engine immobilizer is automatically set, the security
indicator light blinks and the engine switch indicator light is
turned off. (For details, see “Engine immobilizer” on page 11.)
The steering wheel can be locked only in this mode.

STARTING AND DRIVING
350
Starting the engine
Normal starting procedure
G31035
When depressing the brake pedal while carrying an
electronic key, make sure the green engine switch
indicator light comes on. And then push the engine
switch to start the engine.
If you press the engine switch while the brake pedal is
depressed and the transmission is in “P” or “N”, the engine will
start even if initially in “OFF”, “ACC” or “IG −ON” mode.
If you start the engine in “OFF” mode, the engine immobilizer
is disabled, and the security indicator light goes off.
If you push the engine switch while the brake pedal is
depressed with the transmission not in “P” or “N”, “IG −ON”
mode will be selected with the engine not running. If the engine stalls ...
Simply restart it , using the correct procedure given in normal
starting.
If the engine will not start
See ”If your vehicle will not start” on page 462.
NOTICE

Do not race a cold engine.
 If the engine becomes difficult to start or stalls
frequently, have the engine checked immediately.

IN CASE OF AN EMERGENCY
462
IF YOUR ENGINE STALLS WHILEDRIVING
If your engine stalls while driving . . .
1. Reduce your speed gradually, keeping a straight line. Move
cautiously off the road to a safe place.
2. Turn on your emergency flashers.
3. Turn the engine switch off, and try starting the engine again.
If the engine will not start, see ”If your vehicle will not start”\
.

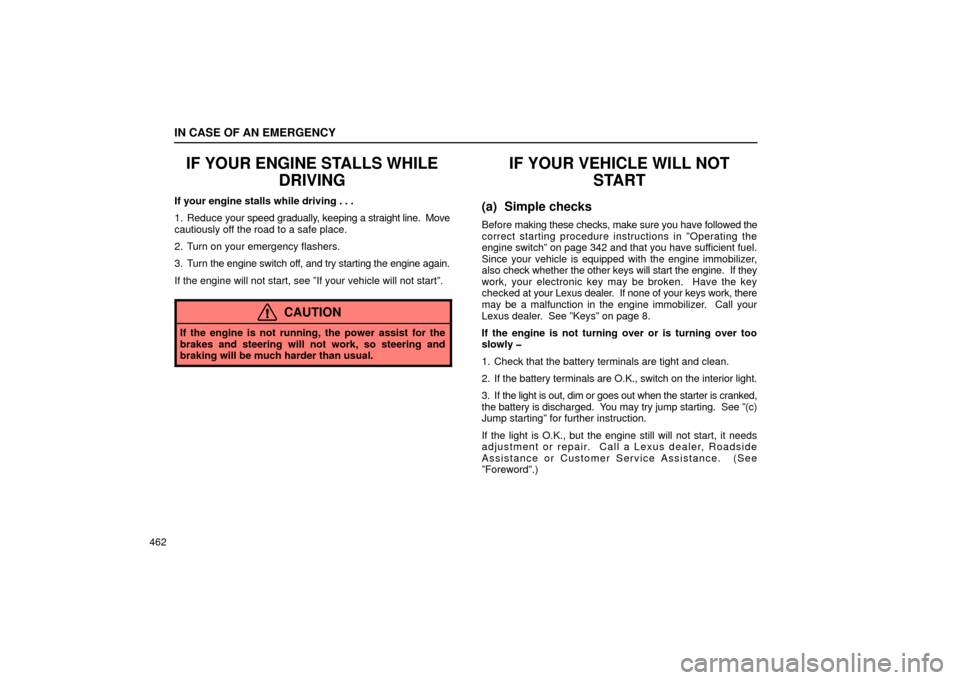

CAUTION
If the engine is not running, the power assist for the
brakes and steering will not work, so steering and
braking will be much harder than usual.
IF YOUR VEHICLE WILL NOT START
(a) Simple checks
Before making these checks, make sure you have followed the
correct starting procedure instructions in ”Operating the
engine switch” on page 342 and that you have sufficient fuel.
Since your vehicle is equipped with the engine immobilizer,
also check whether the other keys will start the engine. If they
work, your electronic key may be broken. Have the key
checked at your Lexus dealer. If none of your keys work, there
may be a malfunction in the engine immobilizer. Call your
Lexus dealer. See ”Keys” on page 8.
If the engine is not turning over or is turning over too
slowly
1. Check that the battery terminals are tight and clean.
2. If the battery terminals are O.K., switch on the interior light.
3. If the light is out, dim or goes out when the starter is cranked,
the battery is discharged. You may try jump starting. See ”(c)
Jump starting” for further instruction.
If the light is O.K., but the engine still will not start, it needs
adjustment or repair. Call a Lexus dealer, Roadside
Assistance or Customer Service Assistance. (See
”Foreword”.)

IN CASE OF AN EMERGENCY
490

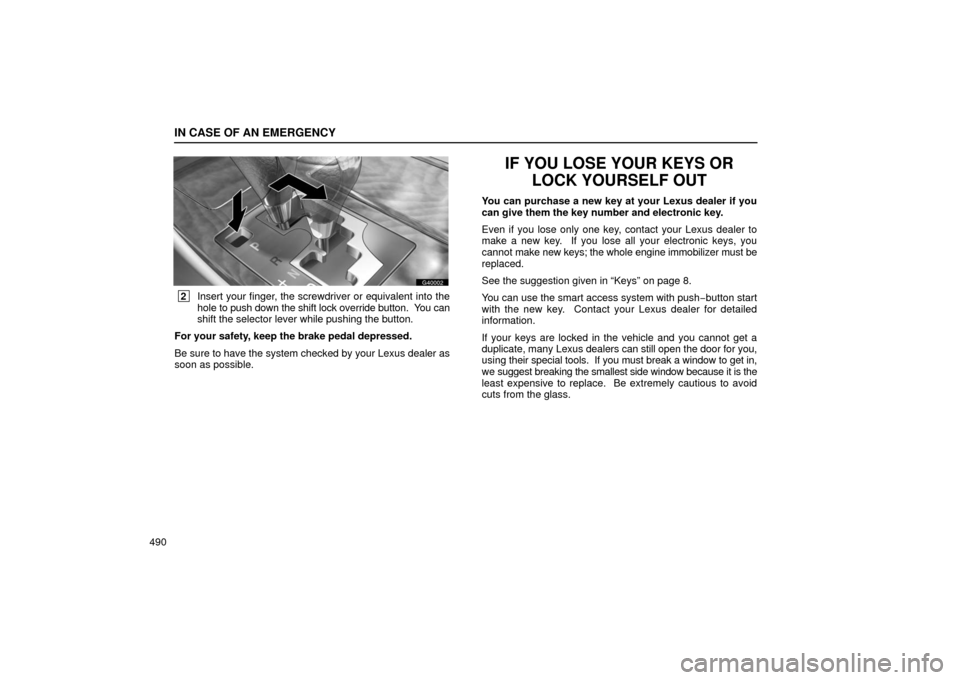

G40002
2Insert your finger, the screwdriver or equivalent into the
hole to push down the shift lock override button. You can
shift the selector lever while pushing the button.
For your safety, keep the brake pedal depressed.
Be sure to have the system checked by your Lexus dealer as
soon as possible.
IF YOU LOSE YOUR KEYS OR LOCK YOURSELF OUT
You can purchase a new key at your Lexus dealer if you
can give them the key number and electronic key.
Even if you lose only one key, contact your Lexus dealer to
make a new key. If you lose all your electronic keys, you
cannot make new keys; the whole engine immobilizer must be
replaced.
See the suggestion given in “Keys” on page 8.
You can use the smart access system with push −button start
with the new key. Contact your Lexus dealer for detailed
information.
If your keys are locked in the vehicle and you cannot get a
duplicate, many Lexus dealers can still open the door for you,
using their special tools. If you must break a window to get in,
we suggest breaking the smallest side window because it is the
least expensive to replace. Be extremely cautious to avoid
cuts from the glass.
