Page 498 of 622
IN CASE OF AN EMERGENCY
477

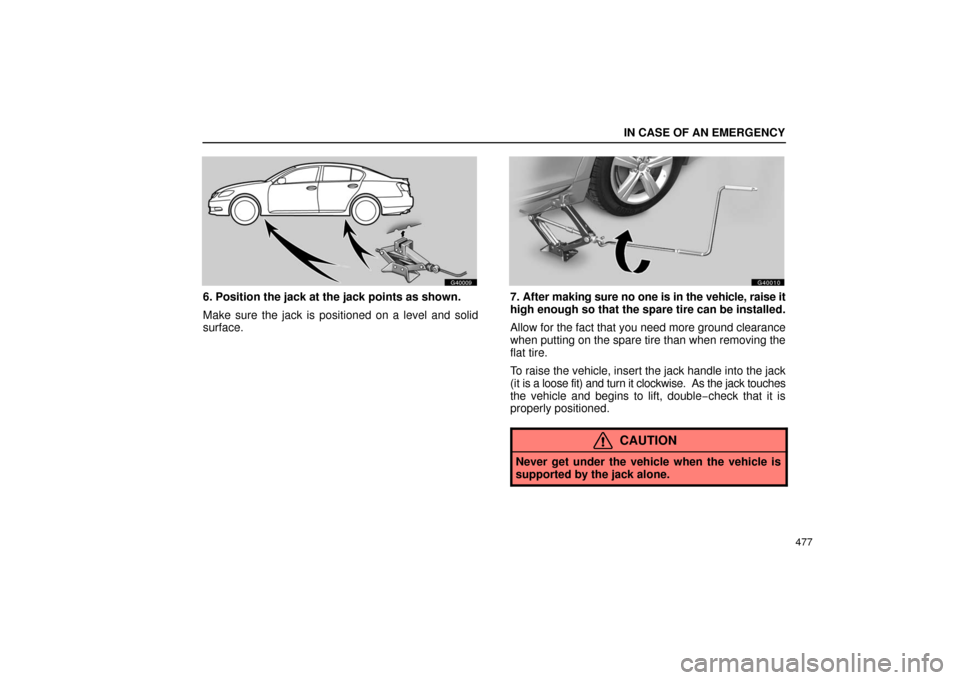

G40009
6. Position the jack at the jack points as shown.
Make sure the jack is positioned on a level and solid
surface.
G40010
7. After making sure no one is in the vehicle, raise it
high enough so that the spare tire can be installed.
Allow for the fact that you need more ground clearance
when putting on the spare tire than when removing the
flat tire.
To raise the vehicle, insert the jack handle into the jack
(it is a loose fit) and turn it clockwise. As the jack touches
the vehicle and begins to lift, double −check that it is
properly positioned.
CAUTION
Never get under the vehicle when the vehicle is
supported by the jack alone.
