STARTING AND DRIVING
366
1Dual sensors
There are four of these steering guidance sensors installed in
the front bumper.
Steering guidance means that when an obstacle is inspected,
not only is the distance estimated, this function judges whether
collision with the obstacle within detection range is avoidable
if the vehicle is steered in a certain direction, and informs the
driver. There will be no warning if it judges that there is no
possibility of collision with the obstacle within detection range.
(See page 369.)
2 Rear corner sensors
There is one of these installed on each corner of the rear
bumper, they inspect obstacles and will sound a warning
depending on the distance to the obstacle. (See page 373.)
3 Back sensors
There are two of these installed near the center of the rear
bumper, they inspect obstacles and will sound a warning
depending on the distance to the obstacle. (See page 374.)
G31050
To use the intuitive parking assist, push the main switch
in the switch box with the engine switch in “IGON” mode.
Pushing the main switch again will turn the intuitive
parking assist off.
When you push the main switch, the indicator light in the
instrument cluster comes on and a beep sounds for one
second, indicating that the intuitive parking assist is turned on.
The intuitive parking assist will remain on even after turning the
engine switch to “OFF” and then to “IG−ON” mode with the
main switch on. However, a beep does not sound at this time.
If an error is detected in the intuitive parking assist while
self−checking, beeps sound and a warning appears in the
multi−information display and on the screen. For details, see
“Intuitive parking assist failure warning” on page 378.

STARTING AND DRIVING
369
Dual sensors
G31054
(A) Collision will be unavoidable: Collision with the
detected obstacle cannot be avoided even by changing the
steering.
(B) Collision will be avoided by changing the steering:
Collision with the obstacle can be avoided by changing the
steering.
(C) Collision will be avoide d with the present steering
angle: Even if you continue moving at the present steering
angle, the distance to the obstacle within sensor detection
range will not be less than about 25 cm (0.8 ft.).
The dual sensors detect an obstacle in front of the vehicle
or at an angle to the front of the vehicle, and estimate the
distance to the obstacle and also the steering angle
required. They will evaluate which of the above 3
conditions is applicable. The selector lever must be in any position other than “P” or “R”
for these sensors to operate, however the obstacle at an angle
to the front of the vehicle will also be detected while the selector
lever is in “R”.
CAUTION
With long obstacles such as walls, the decision of the
sensor may change as the obstacle gets closer; from
certain avoidance to avoidance if steering is changed;
from certain avoidance to unavoidable collision; and
there are also times when the
decision will be changed
from avoidance if steering is changed, to certain
collision. When you move your vehicle, be sure to
confirm a safe distance around your vehicle with your
eyes and drive slowly, or an accident or injury may
result.
The steering guidance may not operate properly in the
following conditions:
 Tires other than those of Lexus genuine size are
installed.
 The steering sensor information cannot be received
properly. (See “Intuitive parking assist failure warning”
on page 378.)

STARTING AND DRIVING
377
NOTE:
* The detection range can be changed from about 50 cm
(1.5 ft.) for dual sensors and about 60 cm (2 ft.) for back
sensors.
Ask your Lexus dealer for details.
The intuitive parking assist may not work properly in the
following cases:
 When the bumper is damaged.
 When the part near the sensors is subjected to a strong
impact.
 When an accessory is installed within the sensor detection
range.
 When snowflakes or mud gets on the sensors.
(If removed, the system will work properly.)
 When water is splashed from a high pressure car wash or
steam on the sensors.
 When a sensor is covered with your hand.
 When the vehicle is tilted.
 In extreme hot or cold weather
(In extreme cold weather, the error display appears and the
system becomes inoperative.)
 When driving on bumpy roads, slopes, gravelled roads or
grass.
Devices issuing ultrasonic waves are operated around your
vehicle, such as a horn from another vehicle, motorcycle
engine, air braking sound from heavy −duty vehicles.
 When another vehicle equipped with ultrasonic sensors
gets close to your vehicle.
 When heavy rain or water is splashed over the vehicle.
(Drive carefully as the braking distance may be affected.)
 When a radio antenna or fender pole is mounted on your
vehicle.
 If towing eyelet is installed on your vehicle.
 When you are driving towards a tall curb stone or curb stone
having right angle.
 The detection range for an object such as a traffic sign may
be shortened.
 An object just under the bumper cannot be detected.
Although an object lower than the location of sensors is
once detected, the detection might be stopped when your
vehicle gets closer to the object.
 When an obstacle is very close to the sensors.

STARTING AND DRIVING
378The intuitive parking assist may not detect the following:

Thin objects such as wire or rope
 Sound wave absorbing objects such as cotton or snow
 Objects with a sharp edge
 Tall objects with the upper part projected
 Shorter objects
Intuitive parking assist failure warning
If an error is detected when the intuitive parking assist is
turned on, the vehicle symbol comes on or flashes with
beeping sounds.
At this time steering guidance is temporarily stopped.
However, the sensors functioning properly continue their
obstacle detection. For details, see “When the detection range
of the sensors is shorter” on page 381.
The intuitive parking assist failure warning display is not given
in either of the following operations:
 Changing to another screen
 Turning off the main switch for the intuitive parking assist

STARTING AND DRIVING
379

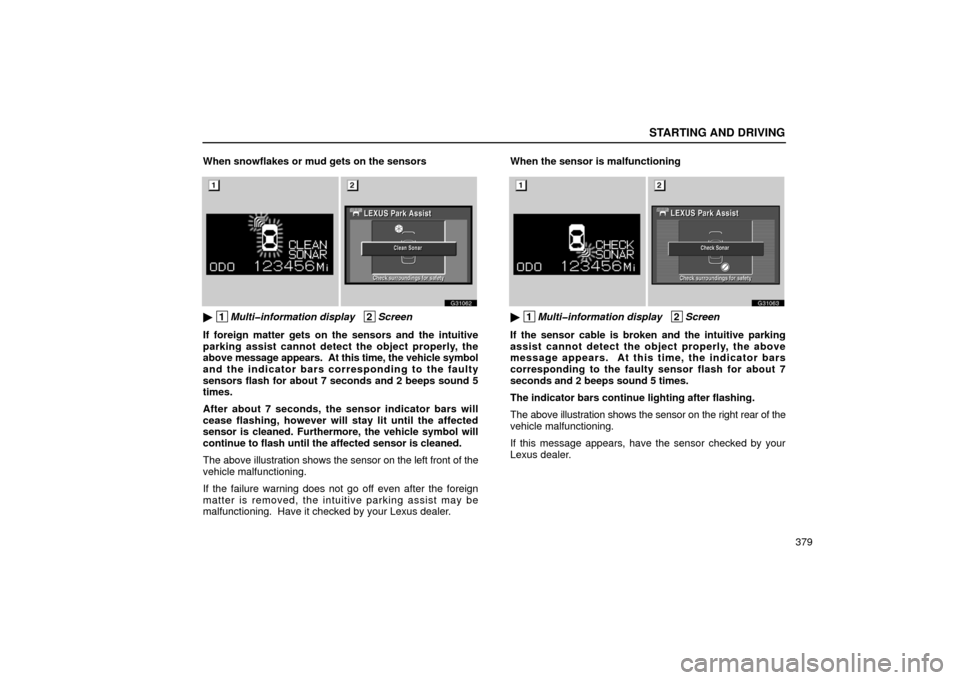

When snowflakes or mud gets on the sensors
G31062
 1
Multiinformation display 2Screen
If foreign matter gets on the sensors and the intuitive
parking assist cannot detect the object properly, the
above message appears. At this time, the vehicle symbol
and the indicator bars corresponding to the faulty
sensors flash for about 7 seconds and 2 beeps sound 5
times.
After about 7 seconds, the sensor indicator bars will
cease flashing, however will stay lit until the affected
sensor is cleaned. Furthermore, the vehicle symbol will
continue to flash until the affected sensor is cleaned.
The above illustration shows the sensor on the left front of the
vehicle malfunctioning.
If the failure warning does not go off even after the foreign
matter is removed, the intuitive parking assist may be
malfunctioning. Have it checked by your Lexus dealer. When the sensor is malfunctioning
G31063
 1
Multiinformation display 2Screen
If the sensor cable is broken and the intuitive parking
assist cannot detect the object properly, the above
message appears. At this time, the indicator bars
corresponding to the faulty sensor flash for about 7
seconds and 2 beeps sound 5 times.
The indicator bars continue lighting after flashing.
The above illustration shows the sensor on the right rear of the
vehicle malfunctioning.
If this message appears, have the sensor checked by your
Lexus dealer.

STARTING AND DRIVING
381
As the intuitive parking assist might be malfunctioning in
the following cases, have it checked by your Lexus dealer.

The indicator in the instrument cluster does not come on
and a beep does not sound even when the intuitive parking
assist main switch is turned on.
 The warning comes on despite no obstacle around the
vehicle.
When the detection range of the sensors is
shorter
In the following cases, the sensors will detect an obstacle
about 50 cm (1.5 ft.) from either front corner of the vehicle
and the steering guidance will be stopped. Accordingly,
the tire orientation symbol on the screen does not appear.
And only the warning according to the distance up to the
obstacle is given.
a. Any one of the sensors is malfunctioning.
b. Any one of the steering sensors is malfunctioning.
c. The steering sensor signal cannot be received properly.
d. The correct vehicle information cannot be given due to
extremely low battery voltage.
e. Proper steering detection (going straight) cannot be
detected
In case of a., when the intu itive parking assist returns to
normal, the steering guidance also comes back automatically.
In case of b. through e., the steering guidance also comes back
automatically after the neutral point of the steering sensor
calibration is completed.

STARTING AND DRIVING
382

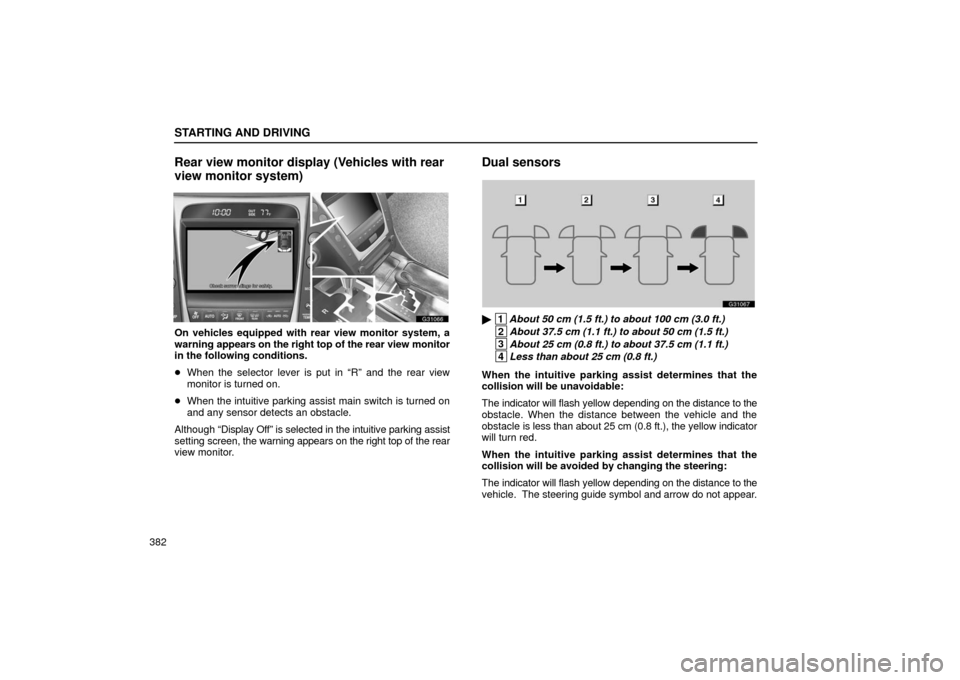

Rear view monitor display (Vehicles with rear
view monitor system)
G31066
On vehicles equipped with rear view monitor system, a
warning appears on the right top of the rear view monitor
in the following conditions.
 When the selector lever is put in “R” and the rear view
monitor is turned on.
 When the intuitive parking assist main switch is turned on
and any sensor detects an obstacle.
Although “Display Off” is selected in the intuitive parking assist
setting screen, the warning appears on the right top of the rear
view monitor.
Dual sensors
G31067
 1 About 50 cm (1.5 ft.) to about 100 cm (3.0 ft.)
2About 37.5 cm (1.1 ft.) to about 50 cm (1.5 ft.)
3About 25 cm (0.8 ft.) to about 37.5 cm (1.1 ft.)
4Less than about 25 cm (0.8 ft.)
When the intuitive parking assist determines that the
collision will be unavoidable:
The indicator will flash yellow depending on the distance to the
obstacle. When the distance between the vehicle and the
obstacle is less than about 25 cm (0.8 ft.), the yellow indicator
will turn red.
When the intuitive parking assist determines that the
collision will be avoided by changing the steering:
The indicator will flash yellow depending on the distance to the
vehicle. The steering guide symbol and arrow do not appear.

STARTING AND DRIVING
383
When the intuitive parking assist determines that the
collision will be avoided with the present steering angle:
The indicator will come on in green.
However, if the sensors detect and determine an obstacle at
an angle to the front of the vehicle, the indicator will not come
on.
Beeps (except for avoidable collisions at the present
steering angle):
As distance to the obstacle gets closer, the interval of the
intermittent
sound gets shorter, and then finally to a continuous
sound when the distance between the vehicle and the obstacle
is less than about 25 cm (0.8 ft.).

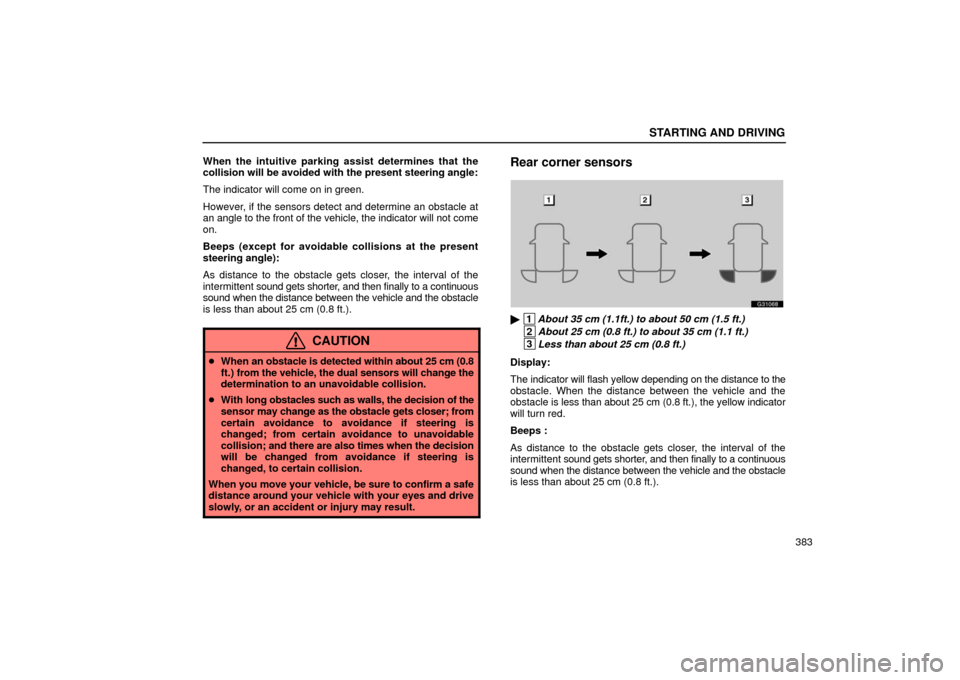

CAUTION
 When an obstacle is detected within about 25 cm (0.8
ft.) from the vehicle, the dual sensors will change the
determination to an unavoidable collision.
 With long obstacles such as walls, the decision of the
sensor may change as the obstacle gets closer; from
certain avoidance to avoidance if steering is
changed; from certain avoidance to unavoidable
collision; and there are also times when the decision
will be changed from avoidance if steering is
changed, to certain collision.
When you move your vehicle, be sure to confirm a safe
distance around your vehicle with your eyes and drive
slowly, or an accident or injury may result.
Rear corner sensors
G31068
 1 About 35 cm (1.1ft.) to about 50 cm (1.5 ft.)
2About 25 cm (0.8 ft.) to about 35 cm (1.1 ft.)
3Less than about 25 cm (0.8 ft.)
Display:
The indicator will flash yellow depending on the distance to the
obstacle. When the distance between the vehicle and the
obstacle is less than about 25 cm (0.8 ft.), the yellow indicator
will turn red.
Beeps :
As distance to the obstacle gets closer, the interval of the
intermittent sound gets shorter, and then finally to a continuous
sound when the distance between the vehicle and the obstacle
is less than about 25 cm (0.8 ft.).

IN CASE OF AN EMERGENCY
469
NOTICE
Do not use liquid sealants for a flat tire as tire
pressure sensors will be damaged.
 Take due care not to go over a curb stone and
be careful of the holes in the road because
deflated tire pressure affects tire cushion
performance. The wheels, tires, body,
suspension and other components could be
damaged.
 Your ground clearance is reduced if the runflat
tire goes flat so avoid driving over obstacles
and drive slowly on rough, unpaved roads and
speed bumps. Also, do not attempt to go
through an automatic car wash as the vehicle
may get caught, resulting in damage.
 When the tires must be replaced, have them
replaced by the nearest Lexus dealer or
authorized tire dealer. The tire pressure
sensors will be affected by the installation or
removal of tires.
 When the tires must be replaced, replace the
grommets for tire pressure sensors as well.
IF YOU HAVE A FLAT TIRE
(Vehicles with standard tires)
CAUTION
If the low tire pressure warning light comes on,
observe the following instructions:
 Decelerate as soon as possible to the most
appropriate speed that conditions permit.
 Avoid abrupt steering wheel maneuvering and
braking. If the vehicle tires deteriorate, you
could lose control of the steering wheel or the
brakes, causing death or serious injury.
 The warning system may not activate
immediately if bursts or sudden air leakage
should occur.
1. Reduce your speed gradually, keeping a straight line.
Move cautiously off the road to a safe place − well away
from the traffic. Avoid stopping on the center divider of
a highway. Park on a level spot with firm ground.
2. Stop the engine and turn on your emergency flashers.
3. Firmly set the parking brake and put the transmission
in ”P”.
4. Have everyone get out of the vehicle on the side away
from traffic.

IN CASE OF AN EMERGENCY
470
5. Read the following instructions thoroughly.
CAUTION
When jacking, be sure to observe the following to
reduce the possibility of personal injury:
 Follow jacking instructions.
 Do not put any part of your body under a vehicle
supported by a jack. Otherwise, personal injury
may occur.
 Do not start or run the engine while your vehicle
is supported by the jack.
 Stop the vehicle on a level firm ground, firmly
set the parking brake and put the transmission
in ”P”. Block the wheel diagonally opposite to
the one being changed if necessary.
 Make sure to set the jack properly in the jack
point. Raising the vehicle with jack improperly
positioned will damage the vehicle or may allow
the vehicle to fall off the jack and cause
personal injury.
 Never get under the vehicle when the vehicle is
supported by the jack alone.
Use the jack only for lifting your vehicle during
wheel changing.
 Do not raise the vehicle with someone in the
vehicle.
 When raising the vehicle, do not put an object
on or under the jack.
 Raise the vehicle only high enough to remove
and change the tire.
NOTICE
Do not use liquid sealants for a flat tire as tire
pressure sensors will be damaged.
 Do not continue driving with a deflated tire.
Driving even a short distance can damage a tire
beyond repair.
 When the tires must be repaired or replaced,
have them repaired or replaced by the nearest
Lexus dealer or authorized tire dealer. The tire
pressure sensors will be affected by the
installation or removal of tires.
 When the tires must be replaced, replace the
grommets for tire pressure sensors as well.
