INSTRUMENTS AND CONTROLS
Gauges, meters and service reminder
indicators
Fuel gauge68
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . .
Engine coolant temperature gauge 68
. . . . . . . . . . . . . . . . . . . . . . . . . .
Tachometer 69
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Odometer and trip meter 70
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Light sensitive optitron meter 71
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service reminder indicators and warning buzzers 72
. . . . . . . . . . . . . .
Multi−information display 82
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Instrument panel light control 96
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

GAUGES, METERS AND SERVICE REMINDER INDICATORS
68
FUEL GAUGE
G13001
Low fuel level warning light
The gauge indicates the approximate quantity of fuel
remaining in the tank when the engine switch is selected
in “IGON” mode.
It is a good idea to keep the tank over 1/4 full.
If the fuel level approaches ”E” or the low fuel level warning light\
comes on, fill the fuel tank as soon as possible.
On inclines or curves, due to the movement of fuel in the tank,
the fuel gauge needle may fluctuate or the low fuel level
warning light may come on earlier than usual.
If the fuel tank is completely empty, the malfunction indicator
lamp comes on. Fill the fuel tank immediately.
The indicator lamp goes off after driving several times. If the
indicator lamp does not go off, contact your Lexus dealer as
soon as possible. See the inner back cover for fuel capacity and recommended
fuel selection.
ENGINE COOLANT
TEMPERATURE GAUGE
G13002
 Normal range
The gauge indicates the engine coolant temperature when
the engine switch is selected in “IGON” mode. The
engine operating temperature will vary with changes in
weather and engine load.
If the needle points to the red zone or higher, stop your vehicle
and allow the engine to cool.
Your vehicle may overheat during severe operating conditions,
such as:
 Driving up a long hill on a hot day.
 Reducing speed or stopping after high speed driving.

GAUGES, METERS AND SERVICE REMINDER INDICATORS
69

Idling for a long period with the air conditioning on in
stop−and−go traffic.
NOTICE
Do not remove the thermostat in the engine cooling
system as this may cause the engine to overheat. The
thermostat is designed to control the flow of coolant
to keep the temperature of the engine within the
specified operating range.
 Do not continue driving with an overheated engine.
See ”If your vehicle overheats” on page 467.

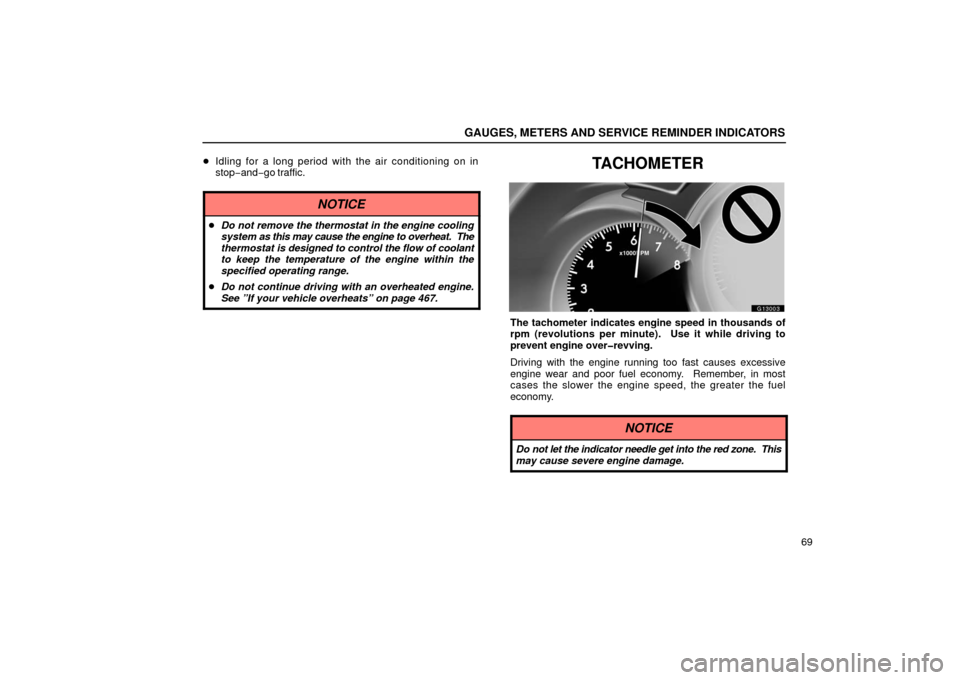

TACHOMETER
G13003
The tachometer indicates engine speed in thousands of
rpm (revolutions per minute). Use it while driving to
prevent engine overrevving.
Driving with the engine running too fast causes excessive
engine wear and poor fuel economy. Remember, in most
cases the slower the engine speed, the greater the fuel
economy.
NOTICE
Do not let the indicator needle get into the red zone. This
may cause severe engine damage.

GAUGES, METERS AND SERVICE REMINDER INDICATORS
70

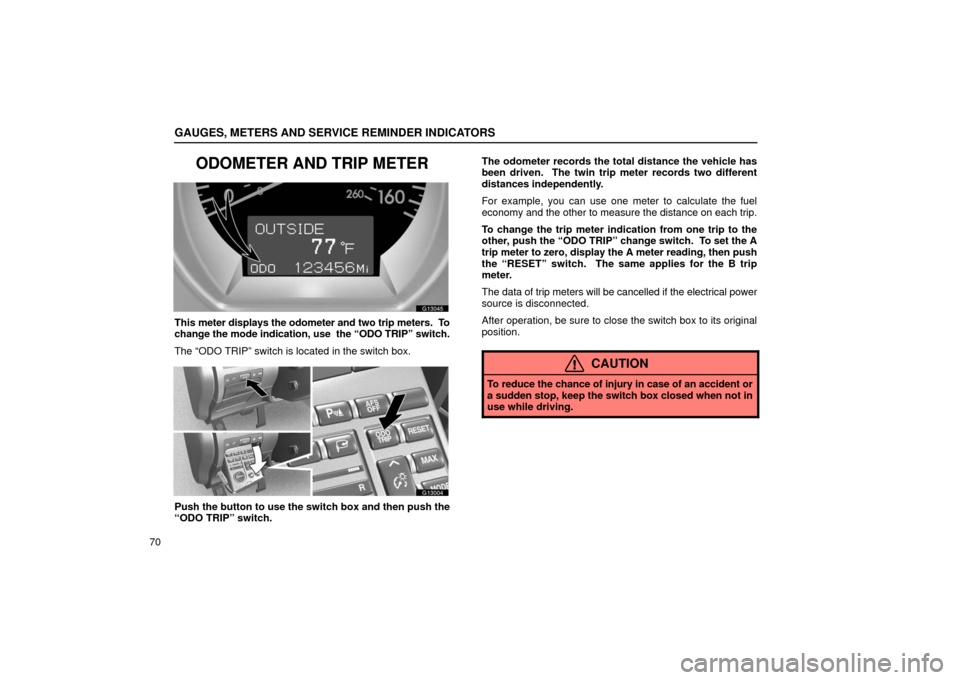

ODOMETER AND TRIP METER
G13045
This meter displays the odometer and two trip meters. To
change the mode indication, use the “ODO TRIP” switch.
The “ODO TRIP” switch is located in the switch box.
G13004
Push the button to use the switch box and then push the
“ODO TRIP” switch. The odometer records the total distance the vehicle has
been driven. The twin trip meter records two different
distances independently.
For example, you can use one meter to calculate the fuel
economy and the other to measure the distance on each trip.
To change the trip meter indication from one trip to the
other, push the “ODO TRIP” change switch. To set the A
trip meter to
zero, display the A meter reading, then push
the “RESET” switch. The same applies for the B trip
meter.
The data of trip meters will be cancelled if the electrical power
source is disconnected.
After operation, be sure to close the switch box to its original
position.
CAUTION
To reduce the chance of injury in case of an accident or
a sudden stop, keep the switch box closed when not in
use while driving.

GAUGES, METERS AND SERVICE REMINDER INDICATORS
71

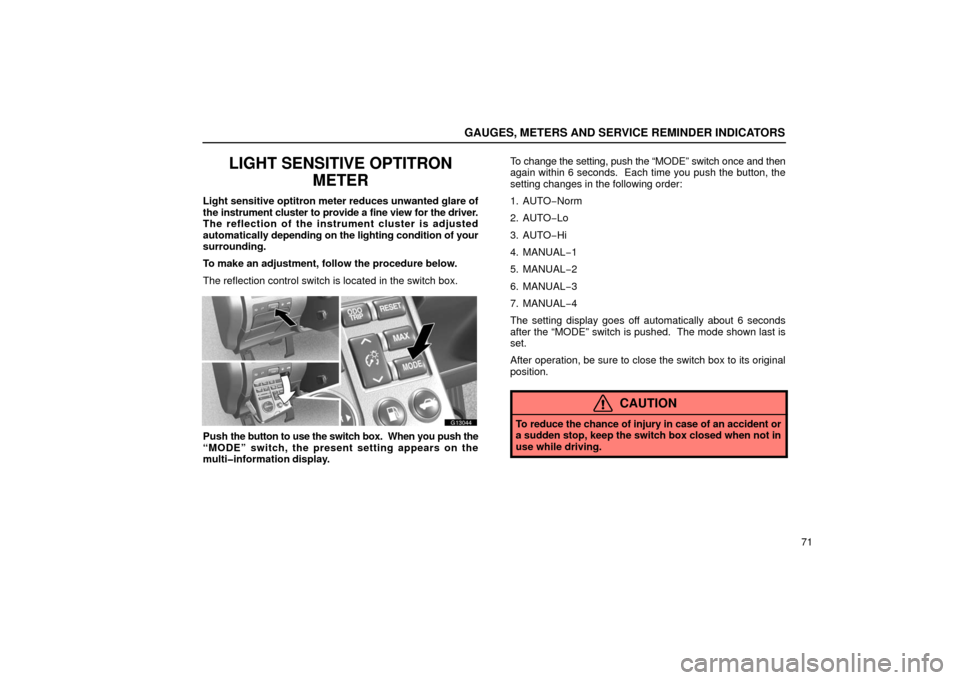

LIGHT SENSITIVE OPTITRONMETER
Light sensitive optitron meter reduces unwanted glare of
the instrument cluster to provide a fine view for the driver.
The reflection of the instrument cluster is adjusted
automatically depending on the lighting condition of your
surrounding.
To make an adjustment, follow the procedure below.
The reflection control switch is located in the switch box.
G13044
Push the button to use the switch box. When you push the
“MODE” switch, the present setting appears on the
multiinformation display. To change the setting, push the “MODE” switch once and then
again within 6 seconds. Each time you push the button, the
setting changes in the following order:
1. AUTO−Norm
2. AUTO−Lo
3. AUTO−Hi
4. MANUAL−1
5. MANUAL−2
6. MANUAL−3
7. MANUAL−4
The setting display goes off automatically about 6 seconds
after the “MODE” switch is pushed. The mode shown last is
set.
After operation, be sure to close the switch box to its original
position.
CAUTION
To reduce the chance of injury in case of an accident or
a sudden stop, keep the switch box closed when not in
use while driving.

GAUGES, METERS AND SERVICE REMINDER INDICATORS
72
NOTICE
Do not place luggage (especially metallic type on the
package tray, or apply window tint (especially a
conductive or metallic tape) or a sticker on the rear
window. Otherwise the light sensitive optitron meter
may not operate properly.

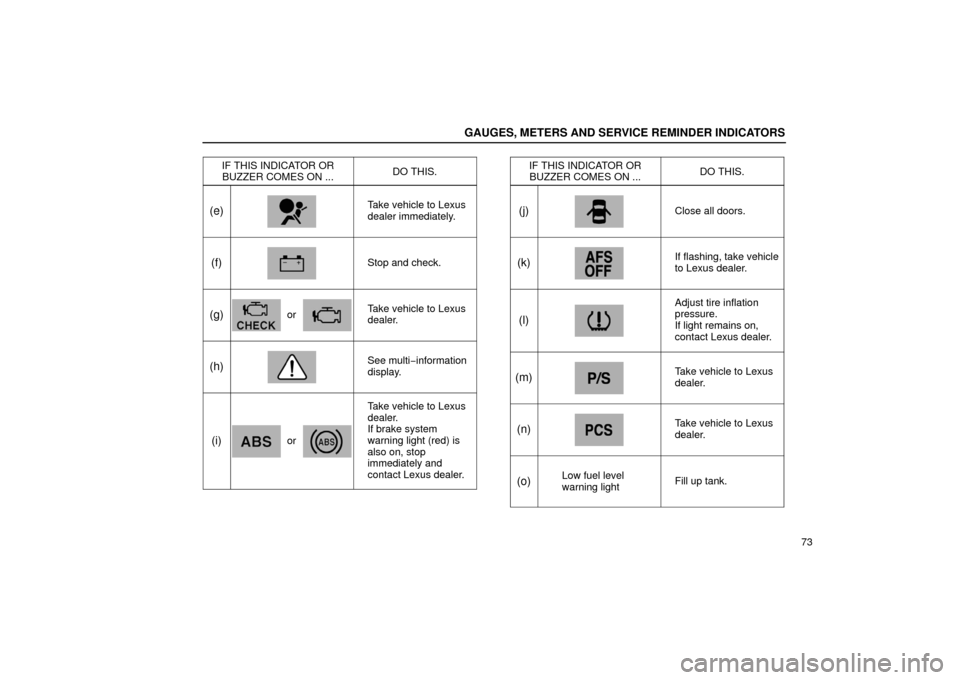

SERVICE REMINDER INDICATORSAND WARNING BUZZERS
IF THIS INDICATOR OR
BUZZER COMES ON ...DO THIS.
(a)or
(Red indicator and buzzer)If parking brake is off,
stop immediately and
contact Lexus dealer.
(b)
(Yellow indicator)
Take vehicle to Lexus
dealer. If brake
system warning light
(red) is also on, stop
immediately and
contact Lexus dealer.
(c)
(Indicator and buzzer)
Fasten driver’s seat
belt.
(d)WG5Fasten front
passenger’s seat belt.

GAUGES, METERS AND SERVICE REMINDER INDICATORS
73
IF THIS INDICATOR OR
BUZZER COMES ON ...
DO THIS.
(e)Take vehicle to Lexus
dealer immediately.
(f)Stop and check.
(g)orTake vehicle to Lexus
dealer.
(h)See multi− information
display.
(i)or
Take vehicle to Lexus
dealer.
If brake system
warning light (red) is
also on, stop
immediately and
contact Lexus dealer.
IF THIS INDICATOR OR BUZZER COMES ON ...DO THIS.
(j)Close all doors.
(k)WG10If flashing, take vehicle
to Lexus dealer.
(l)WG6
Adjust tire inflation
pressure.
If light remains on,
contact Lexus dealer.
(m)WG8Take vehicle to Lexus
dealer.
(n)WG7Take vehicle to Lexus
dealer.
(o)Low fuel level
warning lightFill up tank.

GAUGES, METERS AND SERVICE REMINDER INDICATORS
74IF THIS INDICATOR OR
BUZZER COMES ON ...
DO THIS.
(p)Key reminder
buzzerTurn off the engine
switch.
(a) Brake System Warning Light (red) and Buzzer
This light comes on in the following cases when the engine
switch is selected in “IG −ON” mode.
 When the parking brake is applied ...
GS430—This light comes on fo r a few seconds when the
engine is started even after the parking brake is released.
GS300—This light comes on fo r a few seconds when the
engine switch is selected in “IG −ON” mode even after the
parking brake is released.
If you drive your vehicle without releasing the parking brake,
the buzzer sounds and the message “PARK BRAKE” appears
on the multi −information display.
 When the brake fluid level is low ...
CAUTION
It is dangerous to continue driving normally when the
brake fluid level is low.
Have your vehicle checked at your Lexus dealer in the
following case:
The light does not come on even if the parking brake is
applied when the engine is started.
 The light does not come on even if the engine is started with
the parking brake released.

GAUGES, METERS AND SERVICE REMINDER INDICATORS
75
A warning light turning on briefly during operation does not
indicate a problem.
CAUTION

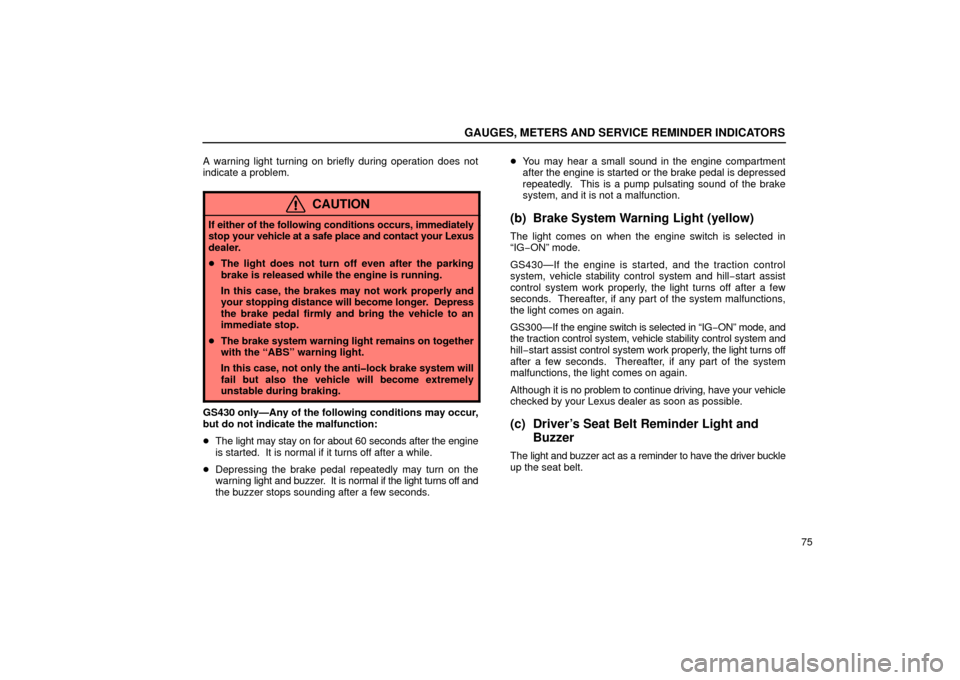

If either of the following conditions occurs, immediately
stop your
vehicle at a safe place and contact your Lexus
dealer.
 The light does not turn off even after the parking
brake is released while the engine is running.
In this case, the brakes may not work properly and
your stopping distance will become longer. Depress
the brake pedal firmly and bring the vehicle to an
immediate stop.
 The brake system warning light remains on together
with the “ABS” warning light.
In this case, not only the antilock brake system will
fail but also the vehicle will become extremely
unstable during braking.
GS430 only—Any of the following conditions may occur,
but do not indicate the malfunction:
The light may stay on for about 60 seconds after the engine
is started. It is normal if it turns off after a while.
 Depressing the brake pedal repeatedly may turn on the
warning light and buzzer. It is normal if the light turns off and
the buzzer stops sounding after a few seconds.
You may hear a small sound in the engine compartment
after the engine is started or the brake pedal is depressed
repeatedly. This is a pump pulsating sound of the brake
system, and it is not a malfunction.
(b) Brake System Warning Light (yellow)
The light comes on when the engine switch is selected in
“IG−ON” mode.
GS430—If the engine is started, and the traction control
system, vehicle stability control system and hill −start assist
control system work properly, the light turns off after a few
seconds. Thereafter, if any part of the system malfunctions,
the light comes on again.
GS300—If the engine switch is selected in “IG −ON” mode, and
the traction control system, vehicle stability control system and
hill −start assist control system work properly, the light turns off
after a few seconds. Thereafter, if any part of the system
malfunctions, the light comes on again.
Although it is no problem to continue driving, have your vehicle
checked by your Lexus dealer as soon as possible.
(c) Driver’s Seat Belt Reminder Light and Buzzer
The light and buzzer act as a reminder to have the driver buckle
up the seat belt.
