AIR CONDITIONING
267
To prevent fogging up of the windshield, the air intake mode
may change automatically to the OUTSIDE AIR mode
depending on the condition of the air conditioning system.
For example, when the ambient temperature is low, the air
intake mode may change automatically to the OUTSIDE AIR
mode. This is not a malfunction.
When the air conditioning is on, if the engine coolant
temperature becomes extremely high, the RECIRCULATED
AIR mode is automatically selected. This is not a malfunction.
When
the engine coolant temperature is lowered, the previous
mode resumes.
Turning off the air conditioning manually will cancel the
EXHAUST GAS AUTOMATIC mode. If you select the “AUTO”
mode during fan operating, the air conditioning turns on and
the EXHAUST GAS AUTOMATIC mode will operate.
For normal use, it is best to keep the air intake control button
set to OUTSIDE AIR mode. If recirculated air is used during

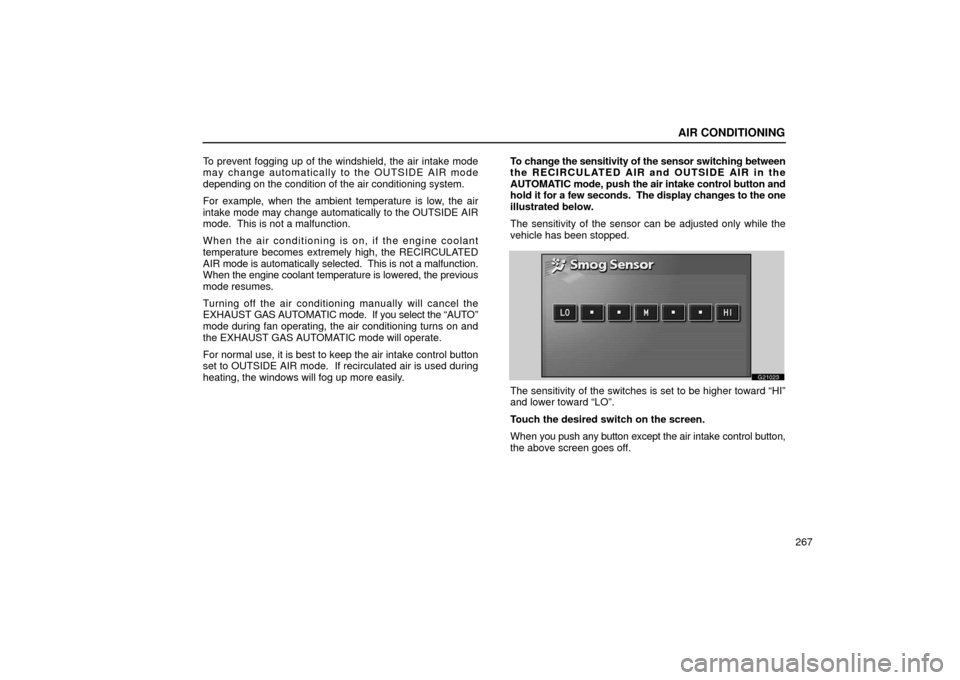

heating, the windows will fog up more easily. To change the sensitivity of the sensor switching between
the RECIRCULATED AIR and OUTSIDE AIR in the
AUTOMATIC mode, push the air intake control button and
hold it for a few seconds. The display changes to the one
illustrated below.
The sensitivity of the sensor can be adjusted only while the
vehicle has been stopped.
G21023
The sensitivity of the switches is set to be higher toward “HI”
and lower toward “LO”.
Touch the desired switch on the screen.
When
you push any button except the air intake control button,
the above screen goes off.

STARTING AND DRIVING
372
INTUITIVE PARKING ASSIST
G31049
The intuitive parking assist is a warning system used
when parking the vehicle at low speed (e.g. into a garage).
It uses an ultrasonic sensor, which checks the
approximate distance to an obstacle. It will inform you of
the approximate distance to an obstacle by displaying
information on the multiinformation display and the
screen, and with beeping sounds.

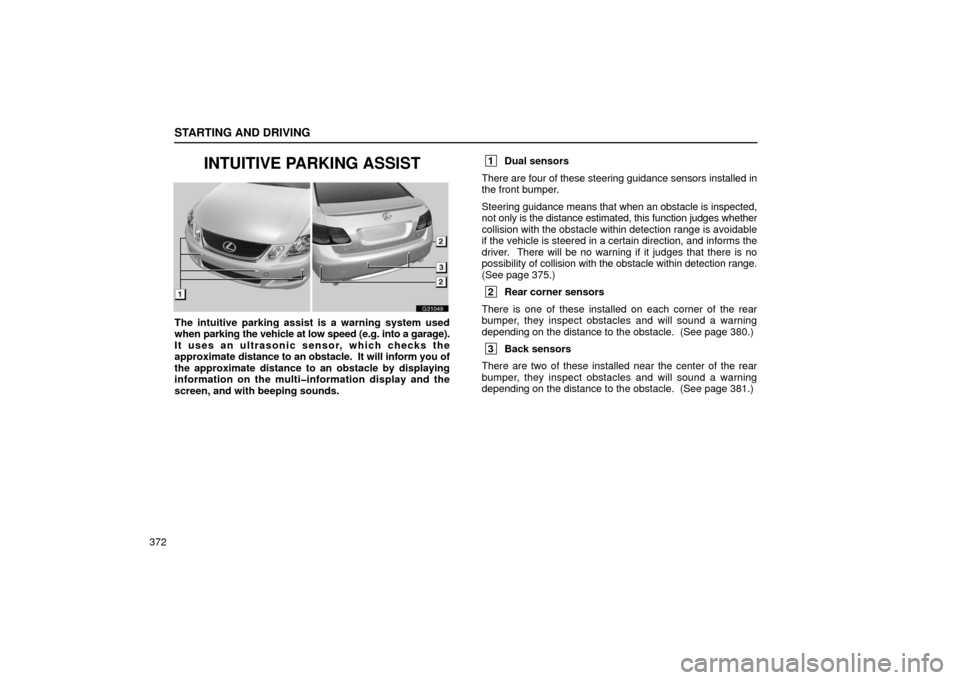

1 Dual sensors
There are four of these steering guidance sensors installed in
the front bumper.
Steering guidance means that when an obstacle is inspected,
not only is the distance estimated, this function judges whether
collision with the obstacle within detection range is avoidable
if the vehicle is steered in a certain direction, and informs the
driver. There will be no warning if it judges that there is no
possibility of collision with the obstacle within detection range.
(See page 375.)
2 Rear corner sensors
There is one of these installed on each corner of the rear
bumper, they inspect obstacles and will sound a warning
depending on the distance to the obstacle. (See page 380.)
3 Back sensors
There are two of these installed near the center of the rear
bumper, they inspect obstacles and will sound a warning
depending on the distance to the obstacle. (See page 381.)

STARTING AND DRIVING
374
G31052

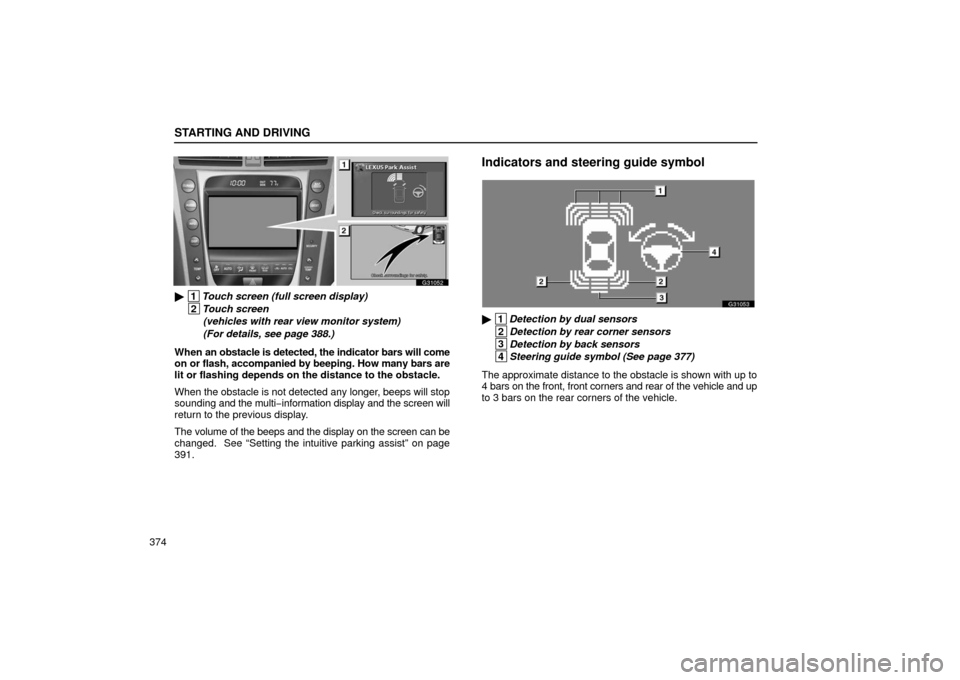

 1Touch screen (full screen display)
2Touch screen
(vehicles with rear view monitor system)
(For details, see page 388.)
When an obstacle is detected, the indicator bars will come
on or flash, accompanied by beeping. How many bars are
lit or flashing depends on the distance to the obstacle.
When the obstacle is not detected any longer, beeps will stop
sounding and the multi −information display and the screen will
return to the previous display.
The volume of the beeps and the display on the screen can be
changed. See “Setting the intuitive parking assist” on page
391.
Indicators and steering guide symbol
G31053
 1 Detection by dual sensors
2Detection by rear corner sensors
3Detection by back sensors
4Steering guide symbol (See page 377)
The approximate distance to the obstacle is shown with up to
4 bars on the front, front corners and rear of the vehicle and up
to 3 bars on the rear corners of the vehicle.

STARTING AND DRIVING
375
CAUTION
To avoid an accident or injury, observe the following
instructions, and then drive slowly using the brakes
while confirming a safe distance around your vehicle
with your eyes.
The sensor detection range is limited around the
bumper. Be sure to confirm safety outside sensor
detection with your eyes. For the sensor detection
range, see page 383.
 It might take time for the sensors to detect the
obstacle.
 Depending on the shape of the obstacle, indicators or
beeps may not warn you properly, and the detection
range may also be shortened.
 It might be difficult to hear beeps due to the volume
of audio or air flow noise of air conditioning.
Dual sensors
G31054

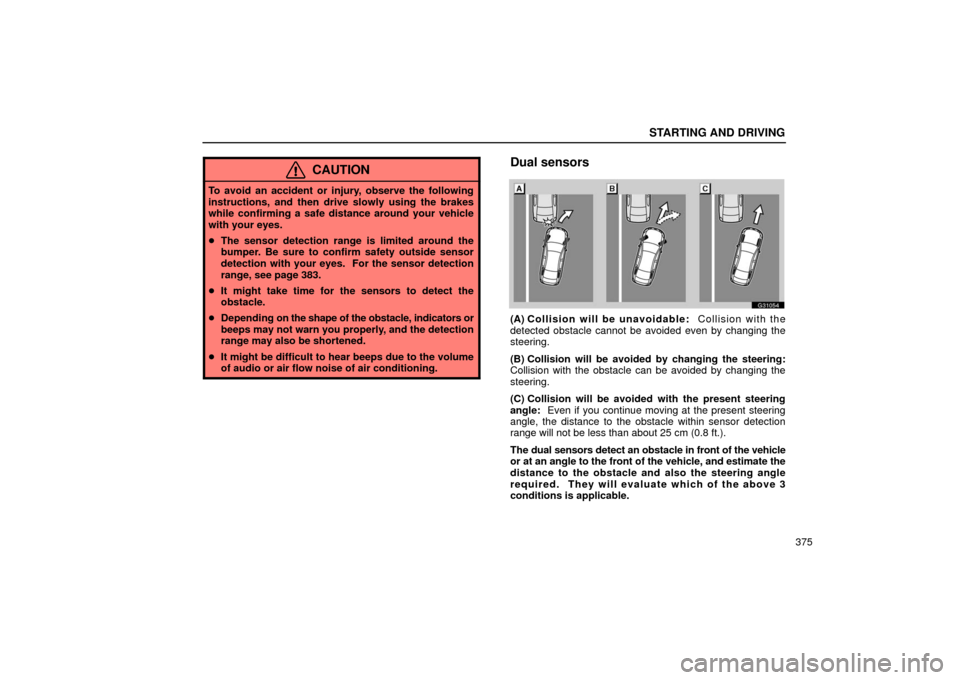

(A) Collision will be unavoidable: Collision with the
detected obstacle cannot be avoided even by changing the
steering.
(B) Collision will be avoided by changing the steering:
Collision with the obstacle can be avoided by changing the
steering.
(C) Collision will be avoide d with the present steering
angle: Even if you continue moving at the present steering
angle, the distance to the obstacle within sensor detection
range will not be less than about 25 cm (0.8 ft.).
The dual sensors detect an obstacle in front of the vehicle
or at an angle to the front of the vehicle, and estimate the
distance to the obstacle and also the steering angle
required. They will evaluate which of the above 3
conditions is applicable.

STARTING AND DRIVING
376The selector lever must be in any position other than “P” or “R”
for these sensors to operate, however the obstacle at an angle
to the front of the vehicle will also be detected while the selector
lever is in “R”.
CAUTION
With long obstacles such as walls, the decision of the
sensor may change as the obstacle gets closer; from
certain avoidance to avoidance if steering is changed;
from certain avoidance to unavoidable collision; and
there are also times when
the decision will be changed
from avoidance if steering is changed, to certain
collision. When you move your vehicle, be sure to
confirm a safe distance around your vehicle with your
eyes and drive slowly, or an accident or injury may
result.
The steering guidance may not operate properly in the
following conditions:
 Tires other than those of Lexus genuine size are
installed.
 The steering sensor information cannot be received
properly. (See “Intuitive parking assist failure warning”
on page 385.) (A) Collision will be unavoidable
G31055
 3

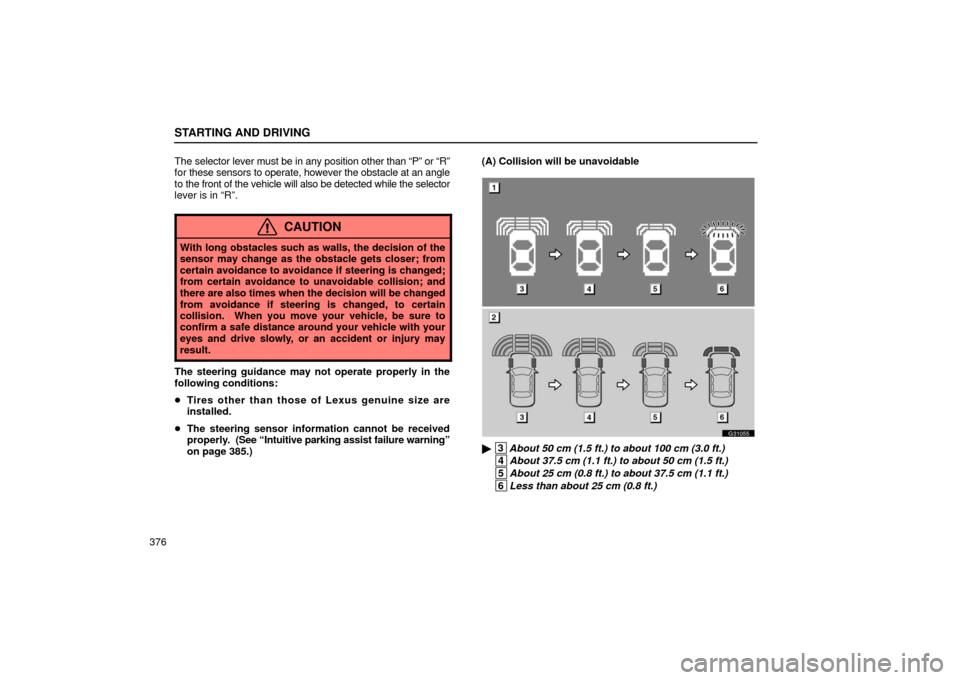

About 50 cm (1.5 ft.) to about 100 cm (3.0 ft.)
4About 37.5 cm (1.1 ft.) to about 50 cm (1.5 ft.)
5About 25 cm (0.8 ft.) to about 37.5 cm (1.1 ft.)
6Less than about 25 cm (0.8 ft.)

STARTING AND DRIVING
378The above illustration indicates that the collision will be
avoided by turning the steering wheel clockwise.
When
the possibility that the distance between the vehicle and
the obstacle is less than about 25 cm (0.8 ft.) is eliminated by
turning the steering wheel more, the steering guide symbol will
go out and the beeps will stop sounding.
The steering guide symbol and arrow are not instructions
you must observe. They are just a guide to avoid a
collision.
1 Multiinformation display:
The indicator bars will come on depending on the
distance to the obstacle . The steering guide symbol and
arrow will also come on.
2Screen:
The indicator bars will come on in yellow depending on
the distance to the obstacle. The steering guide symbol
and arrow will also come on. In addition, the current
direction of the tires is also indicated in 3 stages.
Beeps:
As distance to the obstacle gets closer, the interval of the
intermittent sound gets shorter, and then finally to a continuous
sound when the distance between the vehicle and the obstacle
is less than about 25 cm (0.8 ft.).
CAUTION
When an obstacle is detected within about 25 cm (0.8 ft.)
from the vehicle, the dual sensors will change the
determination to an unavoidable collision. To avoid an
accident or injury, be sure to confirm a safe distance
around your vehicle with your eyes and drive slowly.

STARTING AND DRIVING
379
(C) Collision will be avoide
d with the present steering
angle
G31057

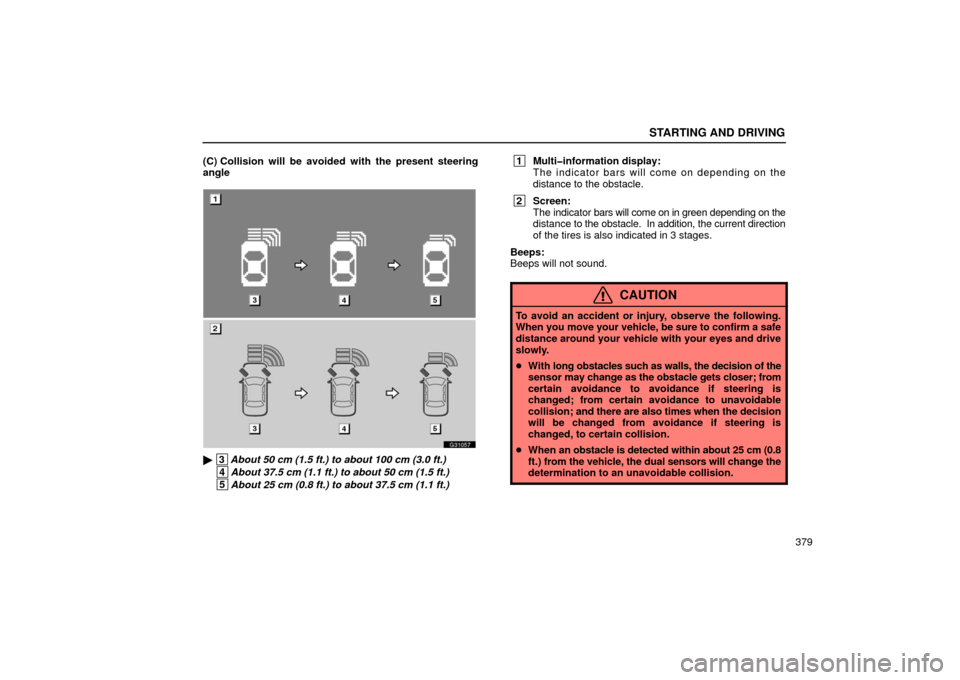

 3 About 50 cm (1.5 ft.) to about 100 cm (3.0 ft.)
4About 37.5 cm (1.1 ft.) to about 50 cm (1.5 ft.)
5About 25 cm (0.8 ft.) to about 37.5 cm (1.1 ft.)
1 Multiinformation display:
The indicator bars will come on depending on the
distance to the obstacle.
2Screen:
The indicator bars will come on in green depending on the
distance to the obstacle. In addition, the current direction
of the tires is also indicated in 3 stages.
Beeps:
Beeps will not sound.
CAUTION
To avoid an accident or injury, observe the following.
When you move your vehicle, be sure to confirm a safe
distance around your vehicle with your eyes and drive
slowly.
 With long obstacles such as walls, the decision of the
sensor may change as the obstacle gets closer; from
certain avoidance to avoidance if steering is
changed; from certain avoidance to unavoidable
collision; and there are also times when the decision
will be changed from avoidance if steering is
changed, to certain collision.
 When an obstacle is detected within about 25 cm (0.8
ft.) from the vehicle, the dual sensors will change the
determination to an unavoidable collision.

STARTING AND DRIVING
380
Rear corner sensors

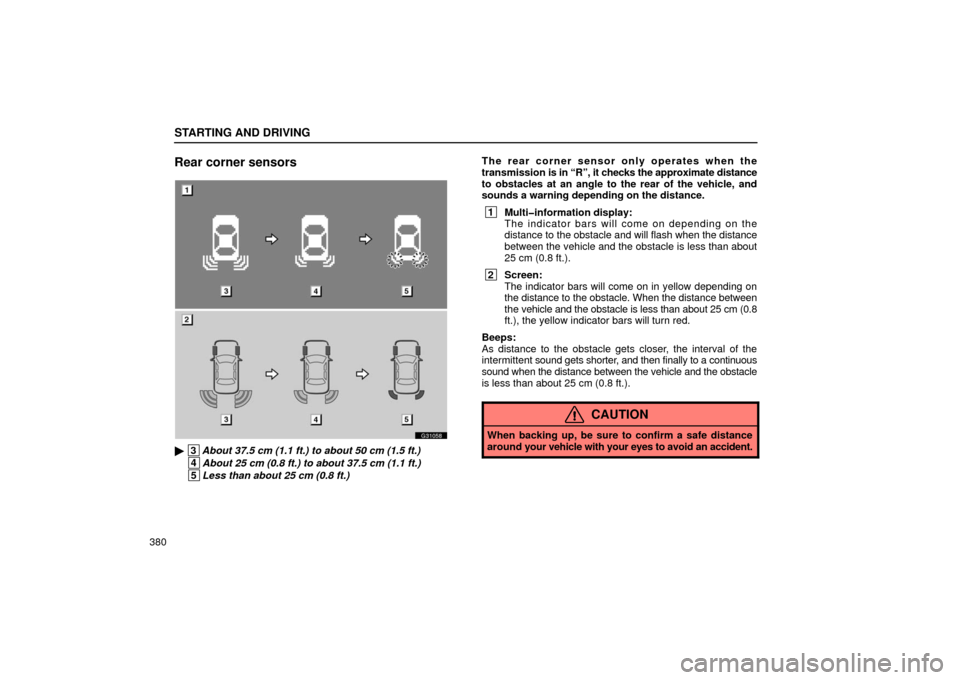

G31058

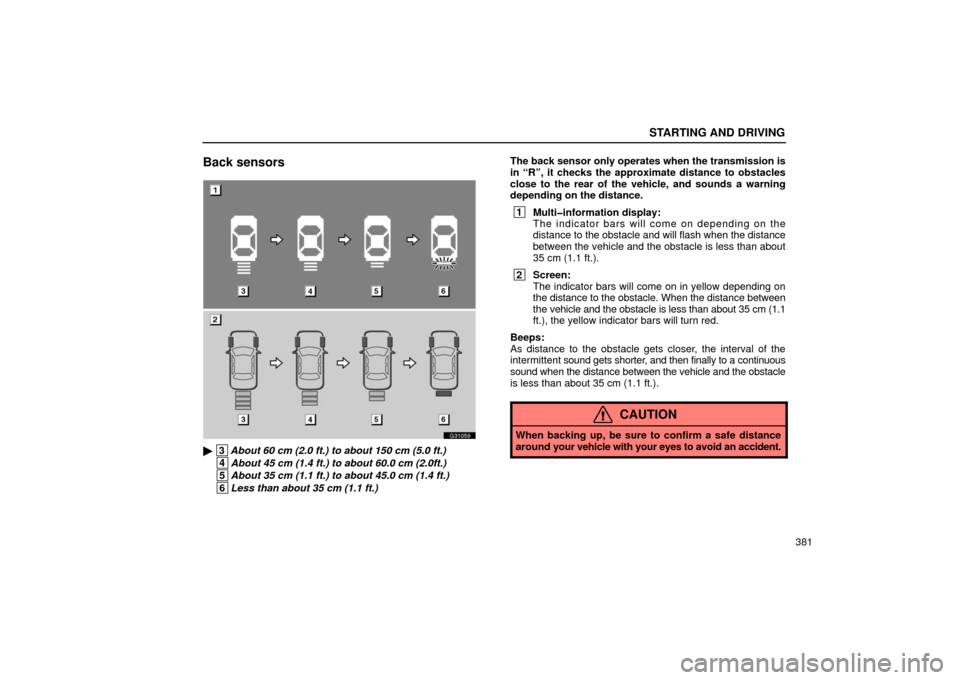

 3About 37.5 cm (1.1 ft.) to about 50 cm (1.5 ft.)
4About 25 cm (0.8 ft.) to about 37.5 cm (1.1 ft.)
5Less than about 25 cm (0.8 ft.) The rear corner sensor only operates when the
transmission is in “R”, it checks the approximate distance
to obstacles at an angle to the rear of the vehicle, and
sounds a warning depending on the distance.
1
Multiinformation display:
The indicator bars will come on depending on the
distance to the obstacle and will flash when the distance
between the vehicle and the obstacle is less than about
25 cm (0.8 ft.).
2 Screen:
The indicator bars will come on in yellow depending on
the distance to the obstacle. When the distance between
the vehicle and the obstacle is less than about 25 cm (0.8
ft.), the yellow indicator bars will turn red.
Beeps:
As distance to the obstacle gets closer, the interval of the
intermittent sound gets shorter, and then finally to a continuous
sound when the distance between the vehicle and the obstacle
is less than about 25 cm (0.8 ft.).
CAUTION
When backing up, be sure to confirm a safe distance
around your vehicle with your eyes to avoid an accident.

STARTING AND DRIVING
381
Back sensors
G31059
 3About 60 cm (2.0 ft.) to about 150 cm (5.0 ft.)
4About 45 cm (1.4 ft.) to about 60.0 cm (2.0ft.)
5About 35 cm (1.1 ft.) to about 45.0 cm (1.4 ft.)
6Less than about 35 cm (1.1 ft.) The back sensor only operates when the transmission is
in “R”, it checks the approximate distance to obstacles
close to the rear of the vehicle, and sounds a warning
depending on the distance.
1
Multiinformation display:
The indicator bars will come on depending on the
distance to the obstacle and will flash when the distance
between the vehicle and the obstacle is less than about
35 cm (1.1 ft.).
2 Screen:
The indicator bars will come on in yellow depending on
the distance to the obstacle. When the distance between
the vehicle and the obstacle is less than about 35 cm (1.1
ft.), the yellow indicator bars will turn red.
Beeps:
As distance to the obstacle gets closer, the interval of the
intermittent sound gets shorter, and then finally to a continuous
sound when the distance between the vehicle and the obstacle
is less than about 35 cm (1.1 ft.).
CAUTION
When backing up, be sure to confirm a safe distance
around your vehicle with your eyes to avoid an accident.

STARTING AND DRIVING
382
Numerous obstacles are detected on the front
and rear of the vehicle simultaneously

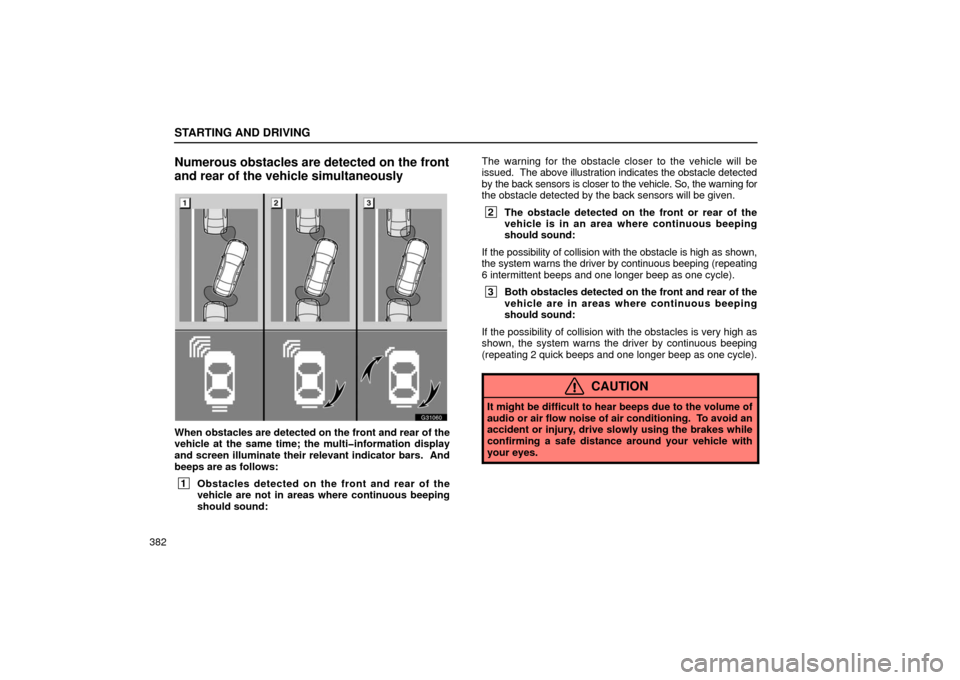

G31060
When obstacles are detected on the front and rear of the
vehicle at the same time; the multiinformation display
and screen illuminate their relevant indicator bars. And
beeps are as follows:
1Obstacles detected on the front and rear of the
vehicle are not in areas where continuous beeping
should sound: The warning for the obstacle closer to the vehicle will be
issued.
The above illustration indicates the obstacle detected
by the back sensors is closer to the vehicle. So, the warning for
the obstacle detected by the back sensors will be given.
2 The obstacle detected on the front or rear of the
vehicle is in an area where continuous beeping
should sound:
If the possibility of collision with the obstacle is high as shown,
the system warns the driver by continuous beeping (repeating
6 intermittent beeps and one longer beep as one cycle).
3 Both obstacles detected on the front and rear of the
vehicle are in areas where continuous beeping
should sound:
If the possibility of collision with the obstacles is very high as
shown, the system warns the driver by continuous beeping
(repeating 2 quick beeps and one longer beep as one cycle).
CAUTION
It might be difficult to hear beeps due to the volume of
audio or air flow noise of air conditioning. To avoid an
accident or injury, drive slowly using the brakes while
confirming a safe distance around your vehicle with
your eyes.
